Model LG SDM-HS95P – Common Parts & Diagrams

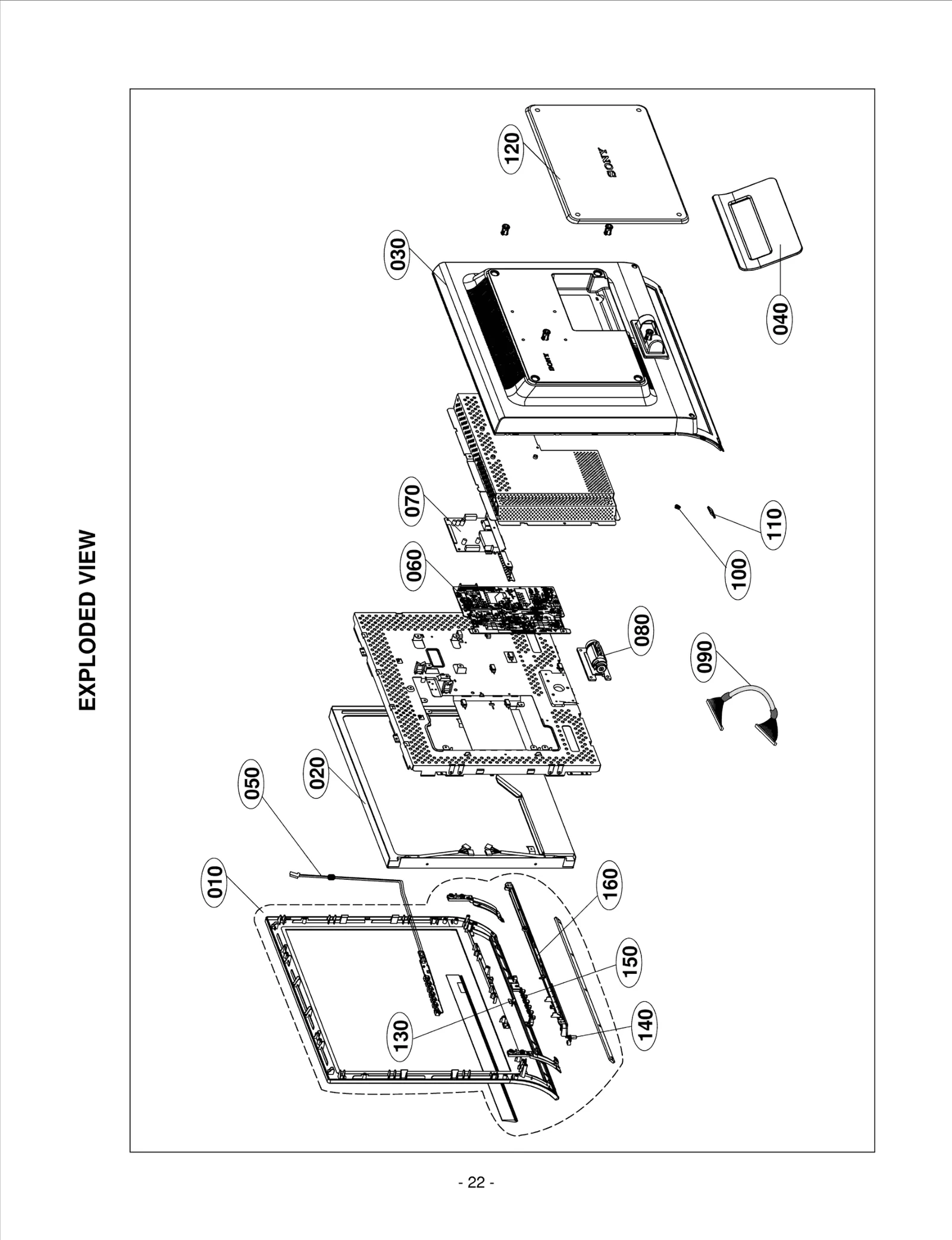

Diagram 0
Common parts from model LG SDM-HS95P
0
SCREW,DRAWING LGE 1SZZTMH005A Contact Us For Availability
0
LGE 1SZZTML006B LGE 1SZZTML006B Contact Us For Availability
0
LGE 4001TKK004A LGE 4001TKK004A Contact Us For Availability
0
IC,DRAWING LGE 0IZZTSZ632A Contact Us For Availability
0
LGE 1SZZTEF001B LGE 1SZZTEF001B Contact Us For Availability
0
SOCKET(CIRC),POWER LGE 6620K00003F Contact Us For Availability
0
LGE 1MCC0302423 LGE 1MCC0302423 Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPP001G Contact Us For Availability
0
LGE 332-110A LGE 332-110A Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
COVER LGE 3550TKK801A Contact Us For Availability
0
BOX LGE 3890TSE874B Contact Us For Availability
0
POWER CORD LGE 6410TCW004A Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL9070A Contact Us For Availability
0
Bag LGE 373-071D Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL109B Contact Us For Availability
0
PACKING LGE 3920TKP031B Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK234A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS209E Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC001E Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1535E Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004Q Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC001G Contact Us For Availability
0
SCREW,DRAWING LGE 332-113S Contact Us For Availability
0
LGE 387-T13A LGE 387-T13A Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020M Contact Us For Availability
0
PACKING LGE 3920TKP031A Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FFT003E Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023L Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK237A Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL155C Contact Us For Availability
0
SHIELD ASSY LGE 4815TKK035A Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
0
LGE 1MBC0251019 LGE 1MBC0251019 Contact Us For Availability
0
SCREW, LGE 332-113D Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020F Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK233A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016W Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT304A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST820A Contact Us For Availability
C403
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C414
CAPACITOR,FIXED CERA LGE 0CK102DK51A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C727
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C732
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C760
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C766
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D719
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
D730
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
J901
CONNECTOR ASSEMBLY LGE 6631T20023Q Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED901
LED LGE 0DLLT0390AA Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q705
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R413
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R426
LGE 0RX0271J668 LGE 0RX0271J668 Contact Us For Availability
R428
LGE 0FZZTTP001A LGE 0FZZTTP001A Contact Us For Availability
R429
LGE 0RX0471J668 LGE 0RX0471J668 Contact Us For Availability
R503
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R720
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R739
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R753
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R776
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R784
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R793
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R904
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
SW902
Switch,Tact LGE 6600R00001B Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018B Contact Us For Availability
U401
LGE 0IFA111733A LGE 0IFA111733A Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFVI80023A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U701
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
U901
IC,Ambient Light Sensor LGE 0IPRPTX001A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD909
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
