Model LG SDM-HS95 – Common Parts & Diagrams

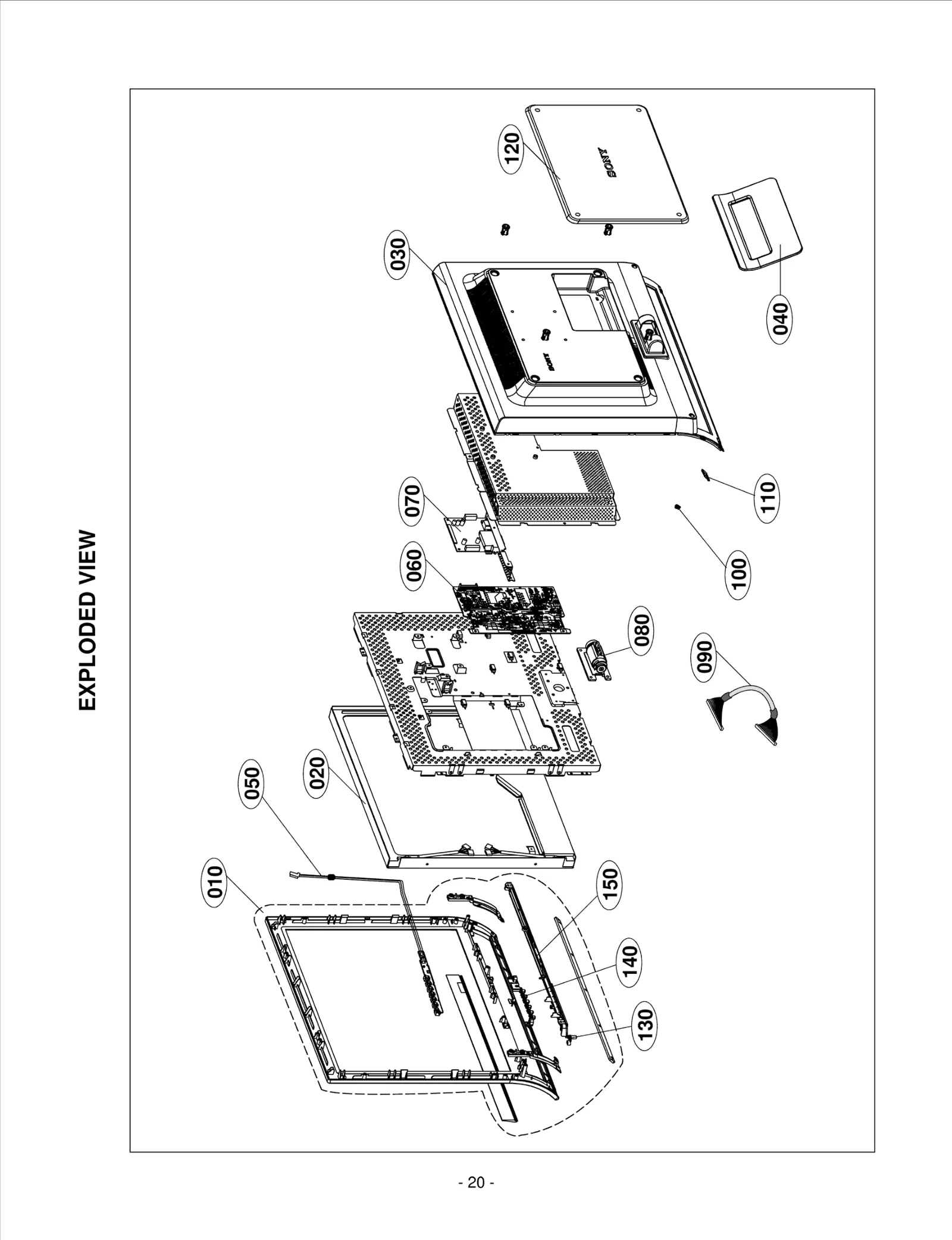

Diagram 0
Common parts from model LG SDM-HS95
0
SCREW,DRAWING LGE 1SZZTPC001G Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL126A Contact Us For Availability
0
PACKING LGE 3920TKP031A Contact Us For Availability
0
SCREW ASSEMBLY LGE 4001TKK004K Contact Us For Availability
0
LGE 1MCC0302623 LGE 1MCC0302623 Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTXP001B Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK237C Contact Us For Availability
0
COVER LGE 3550TKK801F Contact Us For Availability
0
KNOB LGE 4940TKT242A Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP322A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTYT001E Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL9069B Contact Us For Availability
0
Box LGE 3890TKD002P Contact Us For Availability
0
RUBBER LGE 5040TKM079A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016W Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTXC001B Contact Us For Availability
0
PACKING LGE 3920TKP031B Contact Us For Availability
0
KNOB LGE 4940TKP178A Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT286E Contact Us For Availability
0
IC,DRAWING LGE 0IZZTSZ638A Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020M Contact Us For Availability
0
BOX LGE 3890TSE873C Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS209G Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL184B Contact Us For Availability
0
LGE 387-T13A LGE 387-T13A Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020F Contact Us For Availability
0
POWER CORD LGE 6410TEW006A Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1562A Contact Us For Availability
0
LGE 332-110E LGE 332-110E Contact Us For Availability
0
LGE 339-006B LGE 339-006B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023L Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST796A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZ9PC001B Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
SCREW,DRAWING LGE 332-113V Contact Us For Availability
0
COVER LGE 3550TKK803A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK233B Contact Us For Availability
0
RUBBER LGE 5040TKM081B Contact Us For Availability
0
SOCKET(CIRC),POWER LGE 6620K00003F Contact Us For Availability
C226
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C403
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CK102DK51A Contact Us For Availability
C418
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C504
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
C505
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C727
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C742
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
D706
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D728
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
J901
CONNECTOR ASSEMBLY LGE 6631T20023Q Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED901
LED LGE 0DLLT0390AA Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R208
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R413
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R425
LGE 0FZZTTP001A LGE 0FZZTTP001A Contact Us For Availability
R426
LGE 0RX0271J668 LGE 0RX0271J668 Contact Us For Availability
R427
LGE 0RX0471J668 LGE 0RX0471J668 Contact Us For Availability
R505
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R584
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R718
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R726
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R783
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R789
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
SW907
Switch,Tact LGE 6600R00001B Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3017A Contact Us For Availability
U401
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U702
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD721
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
