Model LG SDM-HS75P – Common Parts & Diagrams

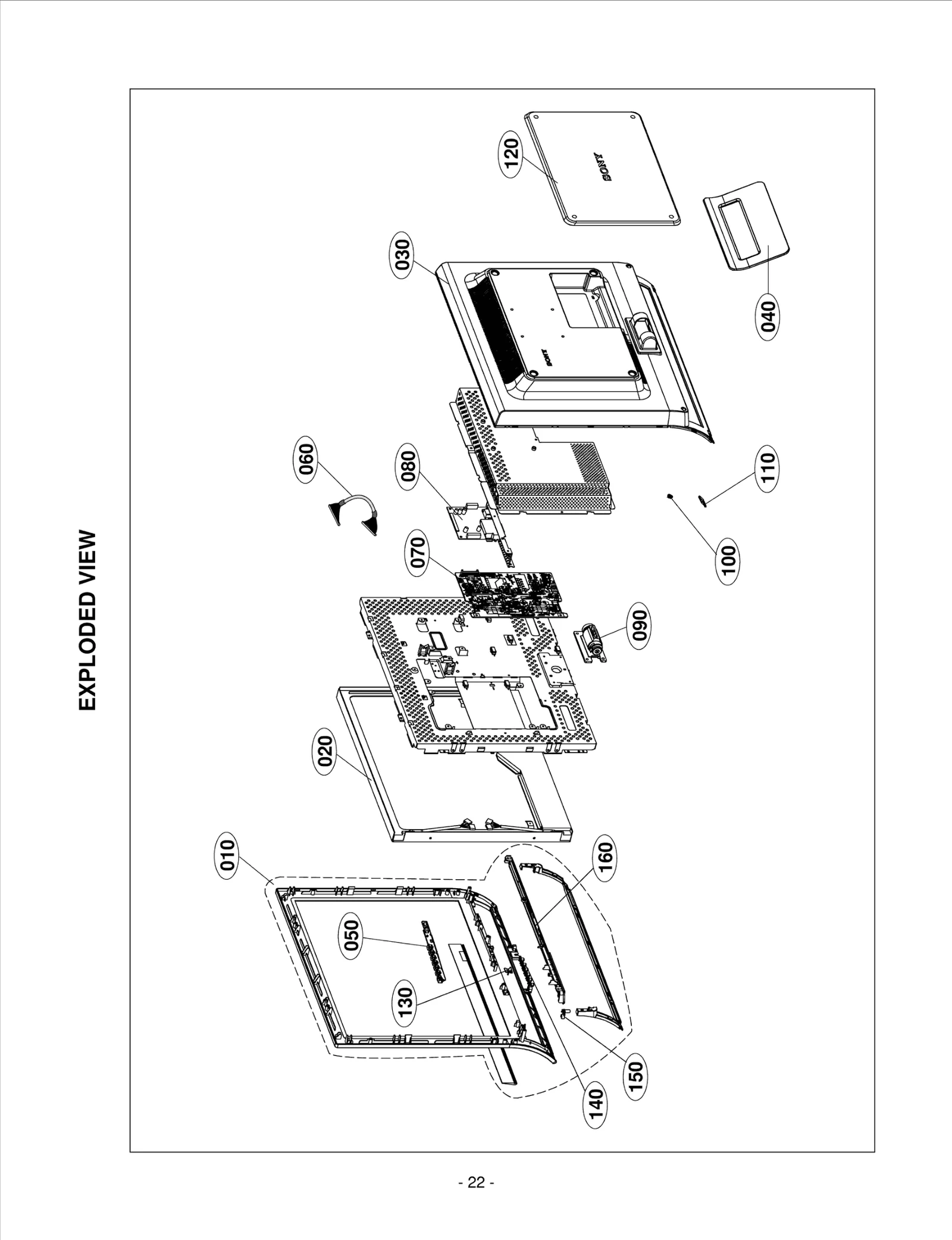

Diagram 0
Common parts from model LG SDM-HS75P
0
COVER LGE 3550TKK830A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016W Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC001E Contact Us For Availability
0
LGE 332-110B LGE 332-110B Contact Us For Availability
0
LGE 387-T13A LGE 387-T13A Contact Us For Availability
0
SOCKET(CIRC),POWER LGE 6620K00003F Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023L Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004Q Contact Us For Availability
0
LGE 1SZZTEF001B LGE 1SZZTEF001B Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
KNOB LGE 4940TKT242B Contact Us For Availability
0
RUBBER LGE 5040TKM081B Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP203A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC001G Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPP001G Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK251A Contact Us For Availability
0
COVER LGE 3550TKK829B Contact Us For Availability
0
LGE 4001TKK004A LGE 4001TKK004A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK250B Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS224A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT286E Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK251A Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL165C Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
PACKING LGE 3920TKP030B Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL9087B Contact Us For Availability
0
SCREW, LGE 332-113D Contact Us For Availability
0
SCREW,DRAWING LGE 332-113S Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL116B Contact Us For Availability
0
Box LGE 3890TKD002P Contact Us For Availability
0
BOX LGE 3890TSEA17A Contact Us For Availability
0
SHIELD ASSY LGE 4815TKK035A Contact Us For Availability
0
RUBBER LGE 5040TKM079B Contact Us For Availability
0
IC,DRAWING LGE 0IZZTSZ632A Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ020F Contact Us For Availability
0
PACKING LGE 3920TKP030A Contact Us For Availability
0
KNOB LGE 4940TKP178A Contact Us For Availability
0
POWER CORD LGE 6410TEW006A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST820A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC001H Contact Us For Availability
C226
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C403
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CK102DK51A Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C722
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C727
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C731
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C760
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C767
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
D724
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D728
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
J901
CONNECTOR ASSEMBLY LGE 6631T20023Q Contact Us For Availability
L703
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED901
LED LGE 0DLLT0390AA Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q703
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R413
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R425
LGE 0FZZTTP001A LGE 0FZZTTP001A Contact Us For Availability
R426
LGE 0RX0271J668 LGE 0RX0271J668 Contact Us For Availability
R427
LGE 0RX0471J668 LGE 0RX0471J668 Contact Us For Availability
R503
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R551
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R719
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R763
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R784
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R794
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
SW907
Switch,Tact LGE 6600R00001B Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018B Contact Us For Availability
U401
LGE 0IFA111733A LGE 0IFA111733A Contact Us For Availability
U402
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U403
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U701
IC,Multiplexer LGE 0ISTLTI047A Contact Us For Availability
U702
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U901
IC,Ambient Light Sensor LGE 0IPRPTX001A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD907
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
