Model LG SDM-G96X – Common Parts & Diagrams

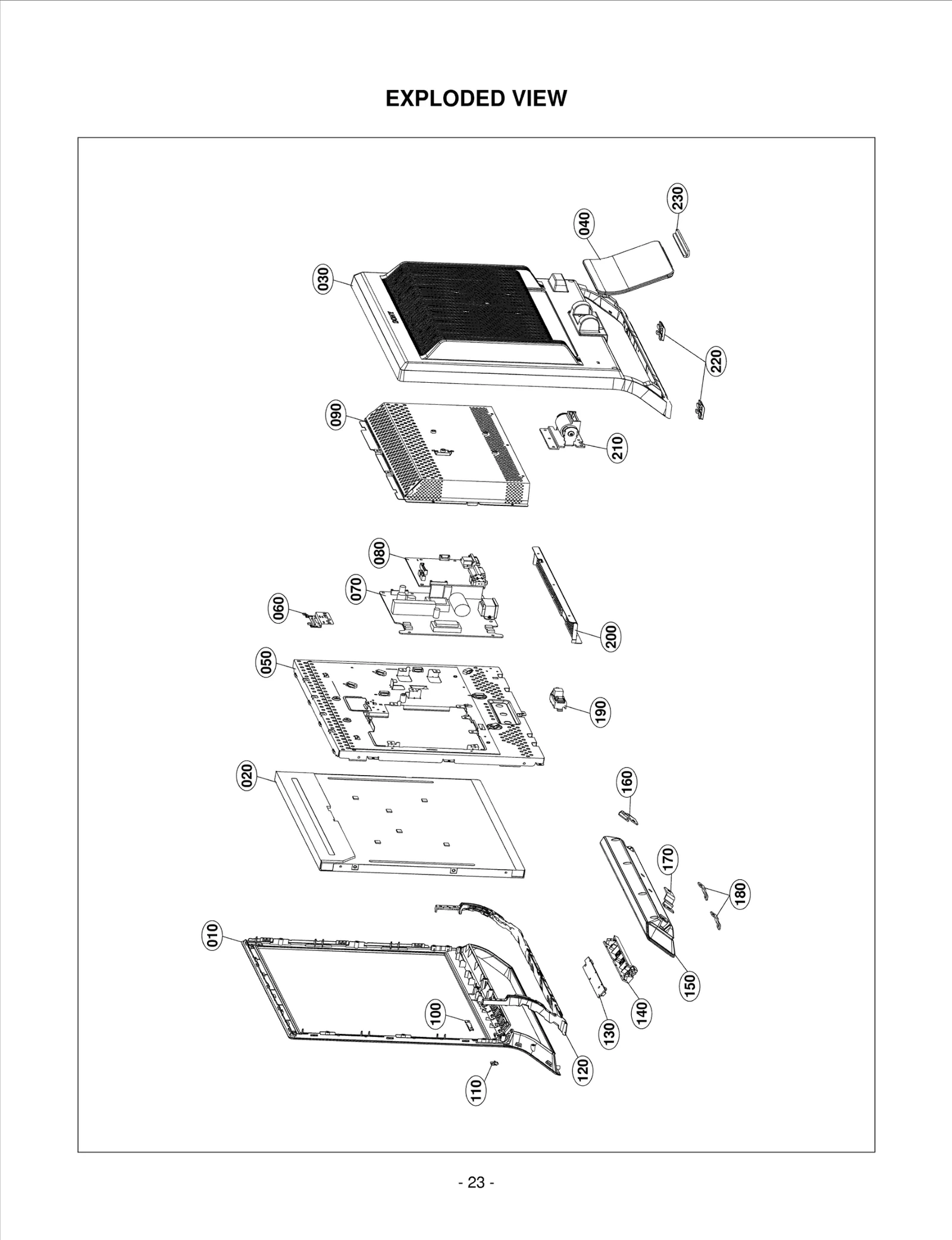

Diagram 0
Diagram 1
Common parts from model LG SDM-G96X
0
Card LGE 3840TRL091K Contact Us For Availability
0
LABEL LGE 3850TAZ220A Contact Us For Availability
0
Harness,Single LGE 6631900109C Contact Us For Availability
0
Screw,Taptite LGE FAB30007510 Contact Us For Availability
0
S/W Package LGE SAB30075801 Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9004G Contact Us For Availability
0
Packing LGE 3920900210A Contact Us For Availability
0
Screw,Taptite LGE FAB30011004 Contact Us For Availability
0
Screw Assembly LGE FAB30012202 Contact Us For Availability
0
LABEL LGE 3850TBZ123D Contact Us For Availability
0
Packing LGE 3918TKK038G Contact Us For Availability
0
POWER CORD LGE 6410TEW006A Contact Us For Availability
0
Screw,Taptite LGE FAB30010104 Contact Us For Availability
0
LABEL LGE 3850TAZ159A Contact Us For Availability
0
Label LGE 3850TAZ711D Contact Us For Availability
0
Harness,Single LGE 6631T20033J Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006P Contact Us For Availability
0
Screw,Taptite LGE FAB30005104 Contact Us For Availability
0
Screw,Taptite LGE FAB30009401 Contact Us For Availability
0
Label LGE MEZ31093702 Contact Us For Availability
0
LABEL LGE 3850TBZ442A Contact Us For Availability
0
Harness,Single LGE 6631T20023J Contact Us For Availability
0
FLUX LGE 7245TZZ009A Contact Us For Availability
0
Screw,Taptite LGE FAB30006304 Contact Us For Availability
0
Screw Assembly LGE FAB30021803 Contact Us For Availability
0
Label LGE MEZ31093701 Contact Us For Availability
0
LABEL,STREAMER LGE 3850TSZ015E Contact Us For Availability
0
Box LGE 3890900419B Contact Us For Availability
0
Screw,Taptite LGE FAB30005102 Contact Us For Availability
0
Screw,Taptite LGE FAB30010106 Contact Us For Availability
0
Screw,Taptite LGE FAB30018405 Contact Us For Availability
0
FLUX LGE 7245TZZ008A Contact Us For Availability
0
Screw,Taptite LGE FAB30005602 Contact Us For Availability
0
Screw,Taptite LGE FAB30013202 Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
Label LGE MEZ30479416 Contact Us For Availability
010
Cover Assembly LGE 30919L0037B Contact Us For Availability
020
LCD,Module-TN LGE EAJ30061101 Contact Us For Availability
030
Cover Assembly LGE 3809900222B Contact Us For Availability
040
Base Assembly LGE AAN30038101 Contact Us For Availability
050
Plate Assembly LGE 49519S0047C Contact Us For Availability
060
Plate LGE 49509K0347A Contact Us For Availability
070
Power Supply Assembl LGE 6709900033A Contact Us For Availability
080
Main Total Assembly LGE 33139L7048A Contact Us For Availability
090
Plate LGE 49509K0342A Contact Us For Availability
100
MARK LGE 3846TKK062A Contact Us For Availability
110
Lens LGE 3680900031A Contact Us For Availability
120
Plate LGE 49509S0050A Contact Us For Availability
130
PCB Assembly,Sub LGE 6871TST820E Contact Us For Availability
140
Knob LGE 4940900032A Contact Us For Availability
150
Speaker Assembly LGE 6401900165A Contact Us For Availability
160
Plate LGE 49509K0345B Contact Us For Availability
170
Plate LGE 49509K0345A Contact Us For Availability
180
Plate LGE 49509K0346A Contact Us For Availability
190
PCB Assembly,Sub LGE 6871TSTA70E Contact Us For Availability
200
Plate LGE 49509K0343B Contact Us For Availability
210
Plate Assembly LGE 49519K0151B Contact Us For Availability
220
Damper LGE 50409M0017A Contact Us For Availability
230
Bracket LGE 4810900112A Contact Us For Availability
C100
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C136
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C202
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C222
Capacitor,AL,Radial LGE 0CZZTAT005D Contact Us For Availability
C225
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C241
Capacitor,AL,Radial LGE 0CZZTAT005B Contact Us For Availability
C300
Capacitor,AL,Chip LGE 0CZZTAT008C Contact Us For Availability
C310
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C324
Capacitor,Ceramic,Ch LGE 0CK333DK56A Contact Us For Availability
C324
Capacitor,Ceramic,Chip LGE 0CH2474F566 Contact Us For Availability
C328
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C338
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C344
LGE 0CZZTAT005C LGE 0CZZTAT005C Contact Us For Availability
C347
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C349
Capacitor,AL,Radial LGE 0CZZTAT005G Contact Us For Availability
C352
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C364
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
D213
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D307
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J1
CONNECTOR ASSEMBLY LGE 6631T20024C Contact Us For Availability
L306
FILTER(CIRC),EMC LGE 6210TCE0016 Contact Us For Availability
L307
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L309
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LED1
LED LGE 0DLLT0390AA Contact Us For Availability
Q201
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q203
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R4
RESISTOR,FIXED CARBON FILM LGE 0RD1801Q609 Contact Us For Availability
R6
LGE 0RD7500Q609 LGE 0RD7500Q609 Contact Us For Availability
R8
LGE 0RD1101Q609 LGE 0RD1101Q609 Contact Us For Availability
R9
RESISTOR,FIXED CARBON FILM LGE 0RD0332Q609 Contact Us For Availability
R107
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R116
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R208
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R218
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R241
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R242
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R253
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R255
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R328
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R333
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R347
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R354
RESISTOR,METAL GLAZE LGE 0RJ5602D677 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ1503D677 Contact Us For Availability
R360
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
SW6
SWITCH LGE 140-058E Contact Us For Availability
U101
IC,Microprocessors LGE EAN30211501 Contact Us For Availability
U103
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U202
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U203
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U301
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
U303
LGE 0IPRPSG012B LGE 0IPRPSG012B Contact Us For Availability
U304
IC,KEC LGE 0IKE780900M Contact Us For Availability
U305
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
ZD5
Diode,Zener LGE 0DZ560009AG Contact Us For Availability
ZD305
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
