Model LG SD-V65HT-TC – Common Parts & Diagrams
Diagram 0

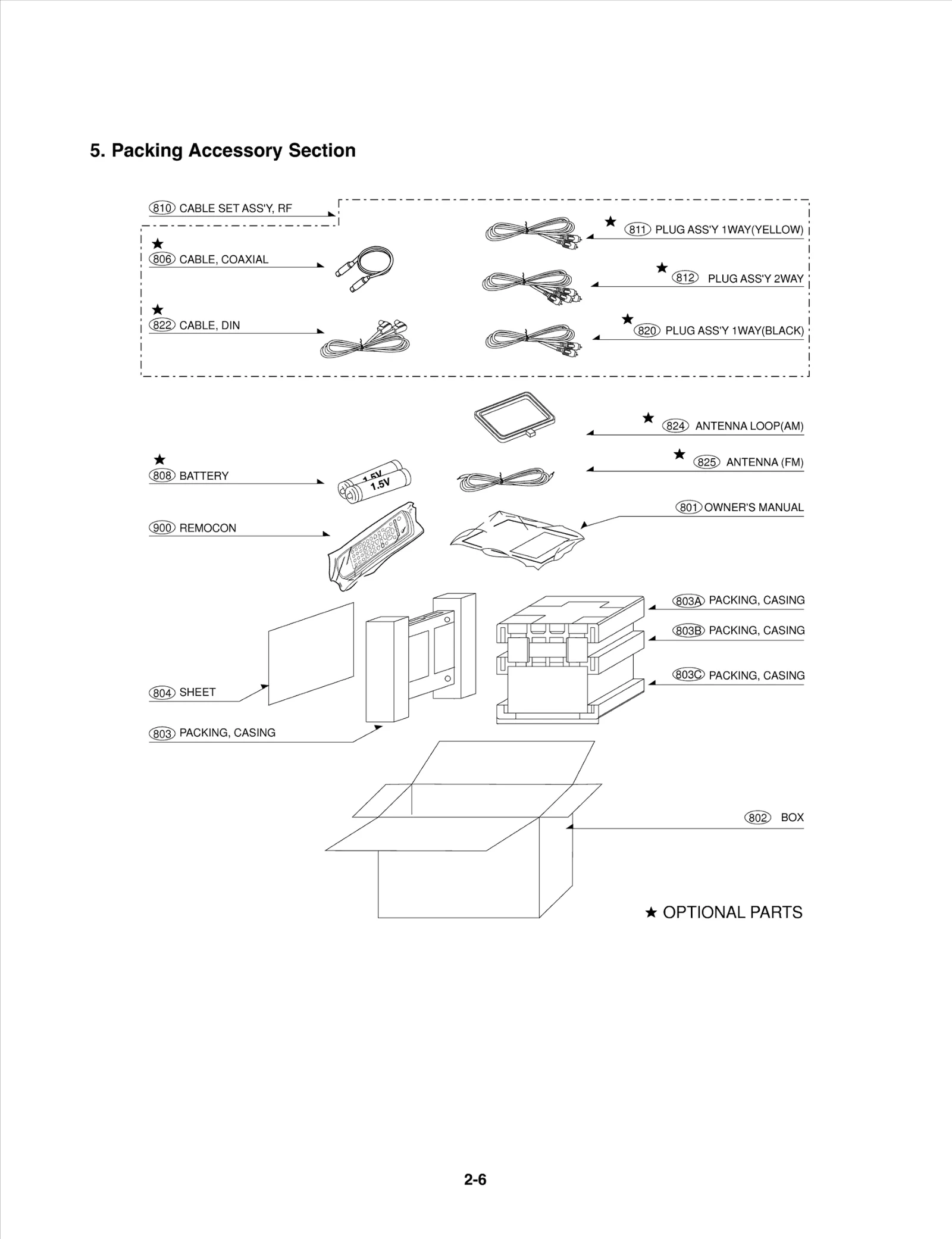

Diagram 1

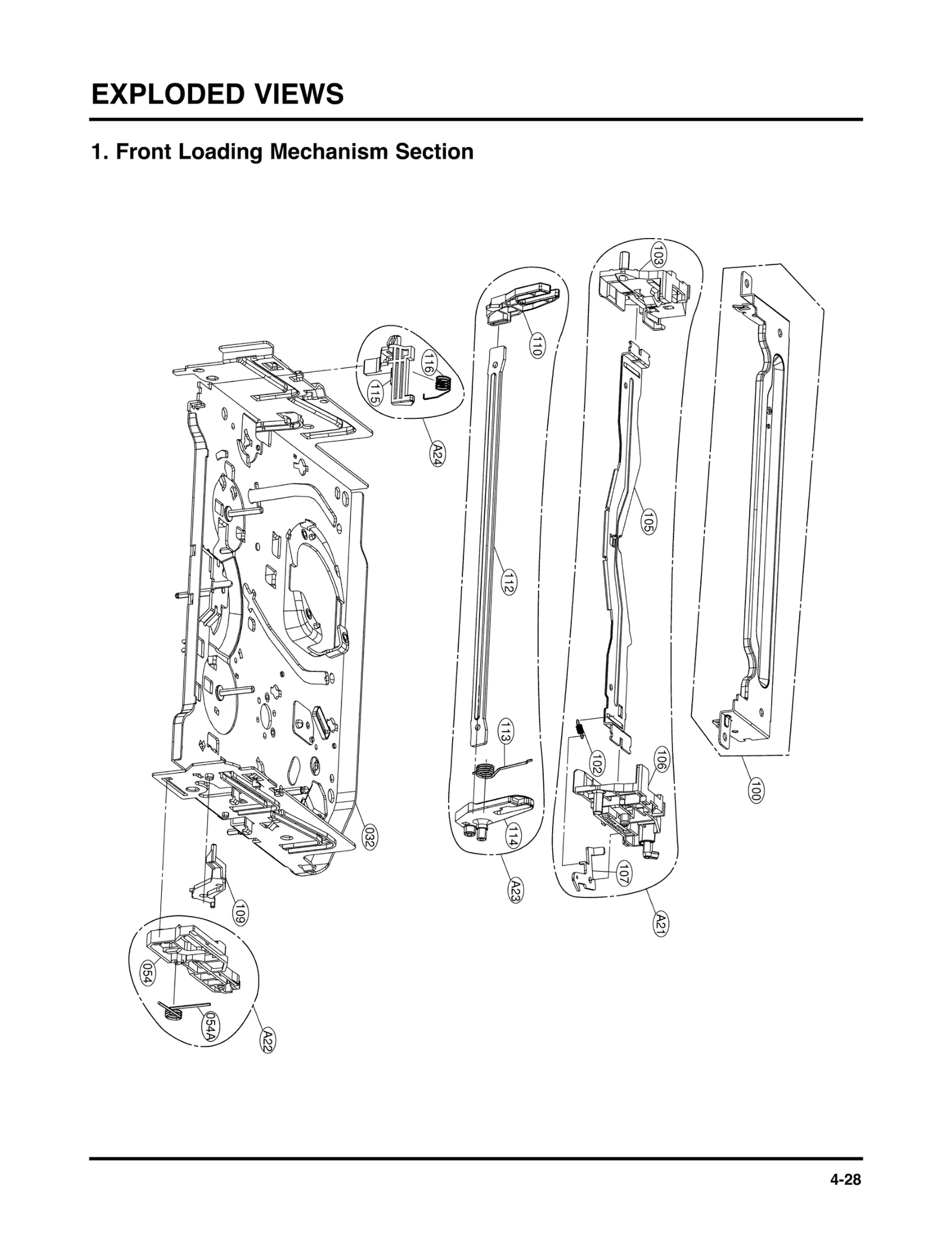

Diagram 2

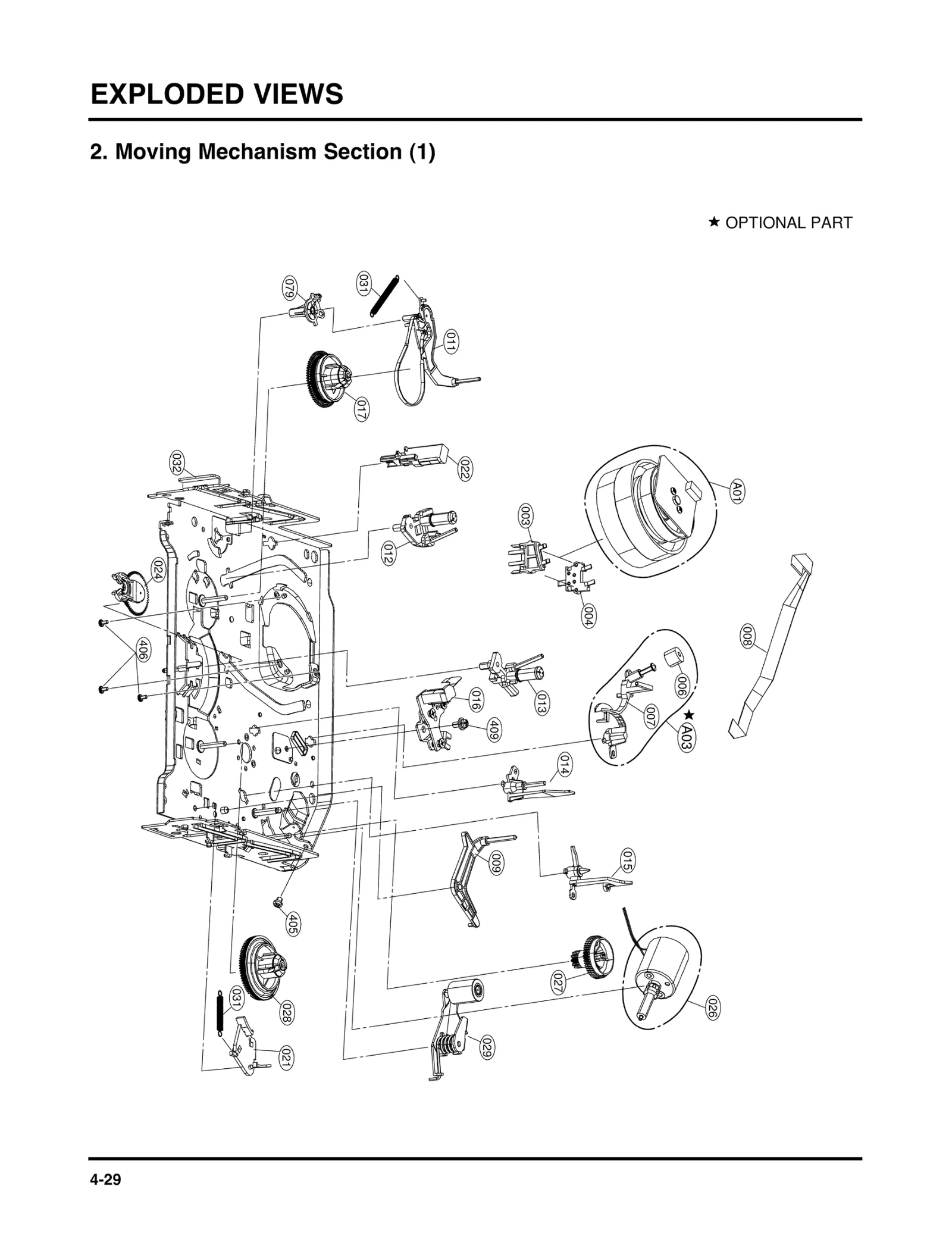

Diagram 3

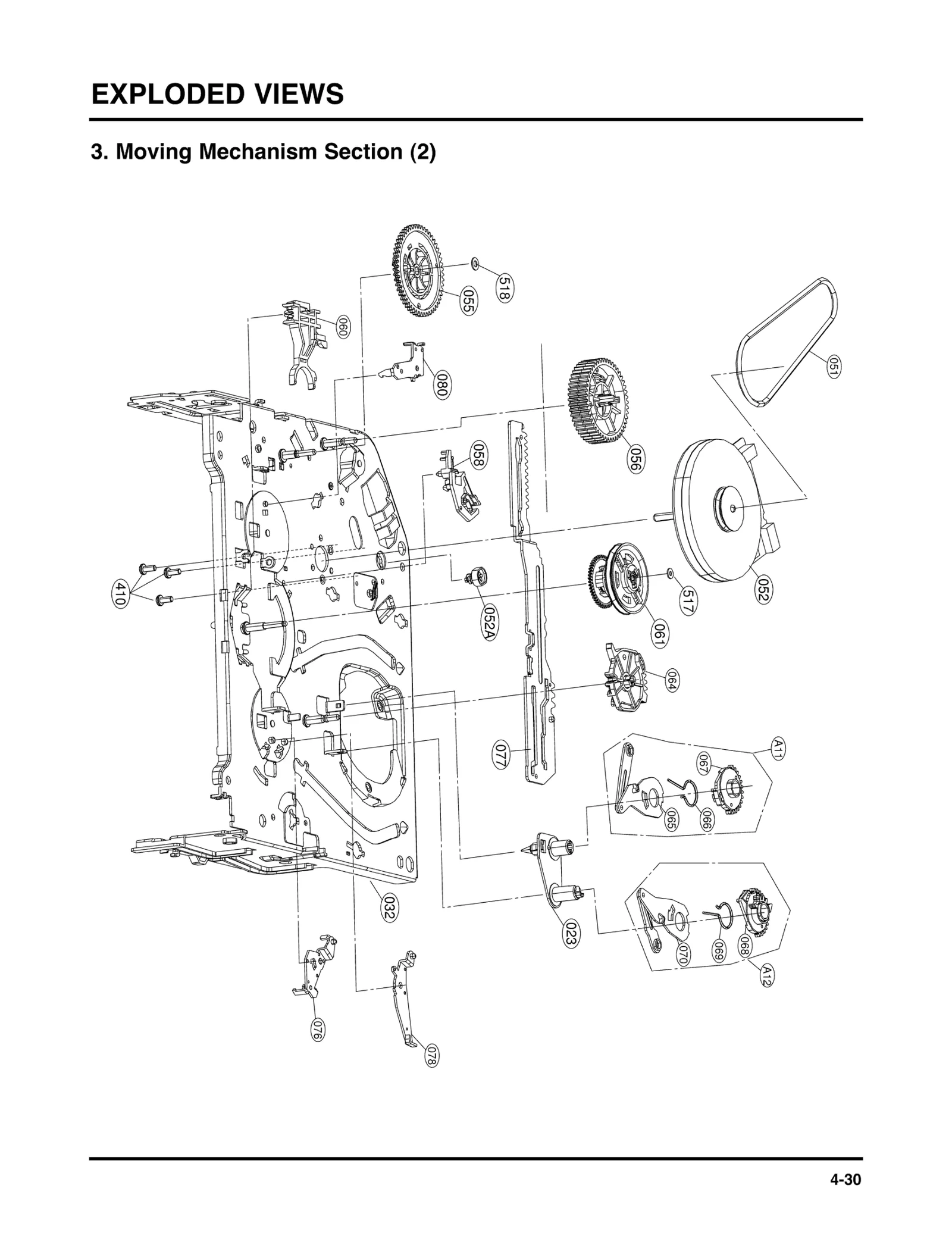

Diagram 4

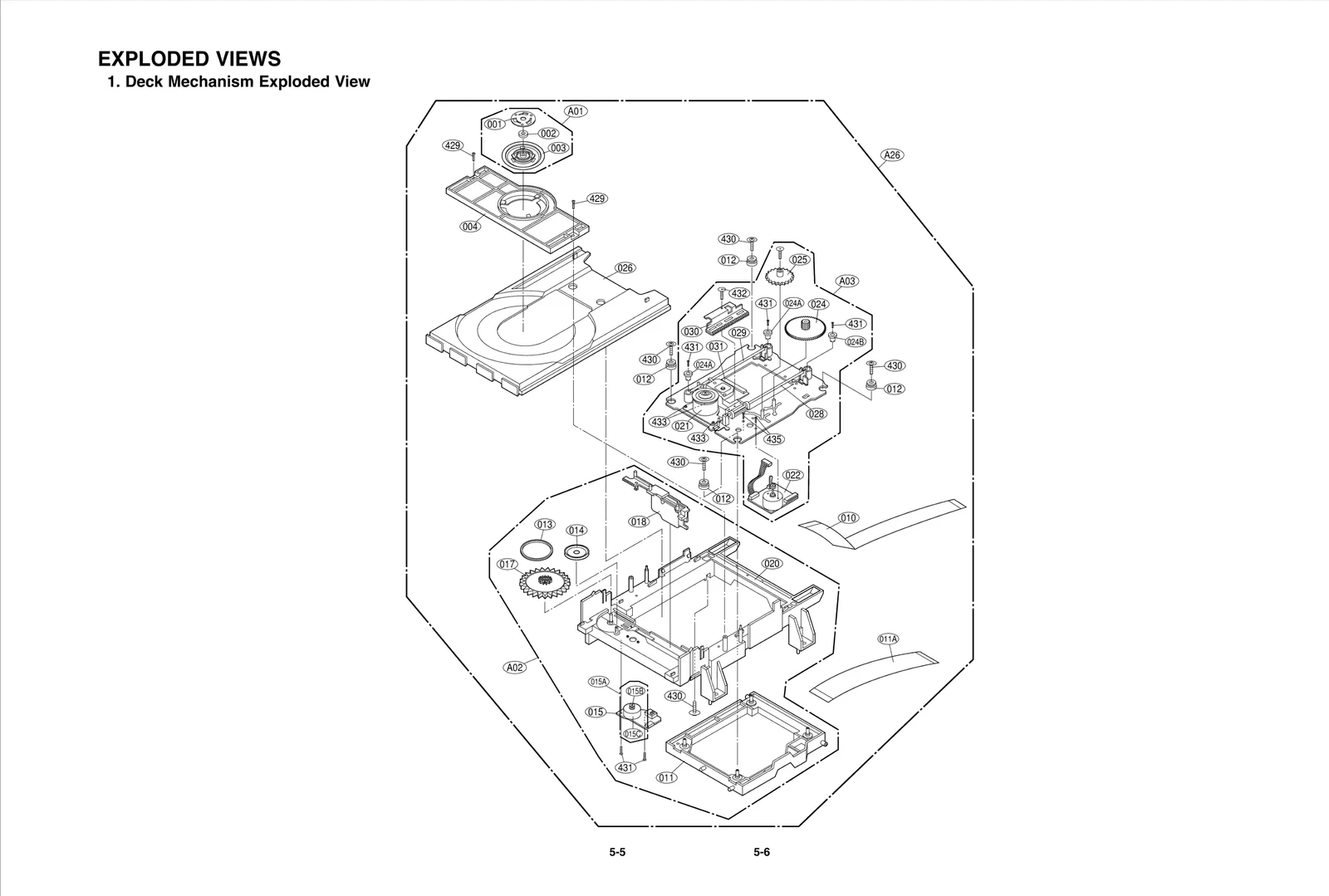

Diagram 5
Diagram 6
Common parts from model LG SD-V65HT-TC
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
HOLDER LGE 4930R-0376A Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
CAP LGE 5006R-0042A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
006
Roller LGE 4580R-0004A Contact Us For Availability
007
Arm LGE 4260R-0053A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
010
Wire,Flat LGE 6850R-JK18Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14E Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,OT LGE 6871RZ5130A Contact Us For Availability
015A
MOTOR ASSEMBLY LGE 4681R-1023E Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E009A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680R-E010A Contact Us For Availability
015C
MOTOR(MECH) LGE 4680HP2011A Contact Us For Availability
015C
Motor,Unclassified LGE 4680R-D003A Contact Us For Availability
015C
MOTOR LGE 4680HP2001A Contact Us For Availability
016
Base Assembly LGE 3041R-M036B Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
MOTOR ASSEMBLY LGE 4681R-0034C Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004A Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0042A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
026
TRAY LGE 3390R-0017A Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013C Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A015A Contact Us For Availability
052
LGE 4680R-A017A LGE 4680R-A017A Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0007A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE LGE 3300R-M202A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0060A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
CABINET ASSEMBLY LGE 3091RLP001B Contact Us For Availability
251
CABINET LGE 3090R-H002B Contact Us For Availability
252
Damper LGE 4850RL0001A Contact Us For Availability
260
Frame Assembly LGE 3211R-H002B Contact Us For Availability
261
FRAME LGE 3210R-H004A Contact Us For Availability
261A
LGE 5040RL0001A LGE 5040RL0001A Contact Us For Availability
262
Plate LGE 3300R-H011A Contact Us For Availability
263
LGE 3550R-4067A LGE 3550R-4067A Contact Us For Availability
264
Cover LGE 3550R-4066A Contact Us For Availability
266
Case LGE 3110R-V017A Contact Us For Availability
274
LGE 255-249C LGE 255-249C Contact Us For Availability
275
HOLDER LGE 4930R-0381A Contact Us For Availability
276
LGE 4930RL0001A LGE 4930RL0001A Contact Us For Availability
276B
HOLDER LGE 4930RL5001A Contact Us For Availability
277
KNOB LGE 4940R-V056A Contact Us For Availability
280
LGE 3720R-M021A LGE 3720R-M021A Contact Us For Availability
281
LGE 4940R-T132A LGE 4940R-T132A Contact Us For Availability
281A
LGE 4940R-T133A LGE 4940R-T133A Contact Us For Availability
281C
KNOB LGE 4940R-T135A Contact Us For Availability
281D
LGE 4940R-T134A LGE 4940R-T134A Contact Us For Availability
282
Plate LGE 3300R-T001A Contact Us For Availability
283
DOOR ASSEMBLY LGE 3581R-V089B Contact Us For Availability
285
DOOR LGE 3580R-T138A Contact Us For Availability
287
DECORATION LGE 3508R-H007A Contact Us For Availability
288
LGE 3790R-P095A LGE 3790R-P095A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
322
HEAT SINK LGE 4920R-E010A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
330
CHASSIS LGE 3140R-H003A Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
452
LGE 353-051B LGE 353-051B Contact Us For Availability
467
SCREW,DRAWING LGE 353-051G Contact Us For Availability
469
Screw,Customized LGE 1SZZR-0081A Contact Us For Availability
470
SCREW,DRAWING LGE 353-051K Contact Us For Availability
471
SCREW,DRAWING LGE 353-051J Contact Us For Availability
473
LGE 1SZZR-0080A LGE 1SZZR-0080A Contact Us For Availability
801
LGE 3835RH0033U LGE 3835RH0033U Contact Us For Availability
802
LGE 3890RCC132D LGE 3890RCC132D Contact Us For Availability
803
Packing LGE 3920RCE088A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
822
SPEAKER WIRE (6 PACK) LGE 6850R-KAEX1 Contact Us For Availability
824
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
825
ANTENNA,LEAD LGE 563-655A Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710CAAZ01D Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0940A Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016C Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0603E Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-M013C Contact Us For Availability
A03
ARM ASSEMBLY LGE 4261R-0039A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-M016C Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0004A Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RF0379A Contact Us For Availability
A43
PANEL ASSEMBLY,AUDIO LGE 3721R-M186C Contact Us For Availability
A44
LGE 3141R-H025J LGE 3141R-H025J Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-8821D Contact Us For Availability
A46A
SUB PWB(PCB) ASSEMBL LGE 6885R-6559C Contact Us For Availability
A48
BOARD ASSEMBLY LGE 3501R-8300A Contact Us For Availability
A48A
PWB(PCB) ASSEMBLY,TO LGE 6871R-8300A Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-5581A Contact Us For Availability
BD101
Diode,Bridge LGE 0DRVH00050A Contact Us For Availability
C9G8
Capacitor,Ceramic,Axial LGE 0CN2210K518 Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE687RR640 Contact Us For Availability
C104
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C112
Capacitor,Film,DIP LGE 0CQ4732L439 Contact Us For Availability
C114
Capacitor,Film,DIP LGE 0CQ2721N409 Contact Us For Availability
C115
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C117
CAPACITOR LGE 624-087D Contact Us For Availability
C123
Capacitor,Film,DIP LGE 0CQ4711N449 Contact Us For Availability
C127
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C130
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C131
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C134
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C136
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C140
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C144
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C146
Capacitor,AL,Radial LGE 0CE4776F638 Contact Us For Availability
C179
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C215
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C223
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C307
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C367
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C441
Capacitor,AL,Radial LGE 0CE4774D638 Contact Us For Availability
C444
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C471
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C477
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C500
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C526
Capacitor,AL,Radial LGE 0CE4764K638 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C588
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C598
Capacitor,AL,Radial LGE 0CE108CC638 Contact Us For Availability
C601
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C701
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4150K416 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CH1152K516 Contact Us For Availability
C730
Capacitor,AL,Radial LGE 0CE228ED610 Contact Us For Availability
C871
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C878
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
D122
Diode,Rectifier LGE 0DRFC00191A Contact Us For Availability
D127
DIODE,RECTIFIERS LGE 0DRSA00020A Contact Us For Availability
D127
Diode,Schottky LGE 0DR104510AB Contact Us For Availability
DIG601
DIGITRON LGE 6302R-V212A Contact Us For Availability
ES502
HOLDER ASSEMBLY LGE 4931R-0078C Contact Us For Availability
F101
FUSE,SLOW BLOW LGE 0FS8001B51B Contact Us For Availability
F102
IC,ROHM LGE GIRH200000B Contact Us For Availability
F502
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F618
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
IC5A1
LGE 0IMMRFU011A LGE 0IMMRFU011A Contact Us For Availability
IC5A1A
LGE 6957R-645AA LGE 6957R-645AA Contact Us For Availability
IC101
LGE 0IMCRSA076A LGE 0IMCRSA076A Contact Us For Availability
IC101
LGE 0IPMGSK015A LGE 0IPMGSK015A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGSK016A Contact Us For Availability
IC160
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC161
IC,SHARP LGE 0ISH313000C Contact Us For Availability
IC161
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC162
IC,POWER MANAGEMENT LGE 0IPMGKE046A Contact Us For Availability
IC163
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC165
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPAK005A Contact Us For Availability
IC203
IC,PERIPHERALS LGE 0IPRPMT007A Contact Us For Availability
IC205
IC JRC(JAPAN RADIO CORP) LGE 0IJR456000B Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGPV002A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC402
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC501
LGE 0IMCRMI089A LGE 0IMCRMI089A Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF008B Contact Us For Availability
IC503
IC,EEPROM LGE 0ISS241610A Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC506
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC506
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC507
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC770
IC,PERIPHERALS LGE 0IPRPSG033A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013B Contact Us For Availability
JK602
JACK,FIBER OPTIC LGE 6612R-L002A Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AD Contact Us For Availability
JK801
JACK,RCA LGE 6612JH003DA Contact Us For Availability
JKS01
TERMINAL BLOCK LGE 6640000012A Contact Us For Availability
L101
LGE 6200JB8013N LGE 6200JB8013N Contact Us For Availability
L102
Line Noise Filter LGE 6200JB8009X Contact Us For Availability
L121
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L403
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L597
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L601
INDUCTOR RADIAL LEAD LGE 0LR8200J025 Contact Us For Availability
L706
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L781
LGE 6140RCC007D LGE 6140RCC007D Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0086C Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002C Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P6M02
Connector,BtoB LGE 561-844F Contact Us For Availability
P6602
Connector,BtoB LGE 6630S-BC02H Contact Us For Availability
P6603
Connector,BtoB LGE 6630S-BC01H Contact Us For Availability
PDM01
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PDM03
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PDV01
CONNECTOR (CIRC) LGE 561-036K Contact Us For Availability
PSW01
Connector,Wafer LGE 561-715J Contact Us For Availability
PV602
CONNECTOR(CIRC),DRAW LGE 561-843F Contact Us For Availability
PVD01
LGE 6631R-E023C LGE 6631R-E023C Contact Us For Availability
PVD02
CONNECTOR (CIRC),FFC LGE 561-686L Contact Us For Availability
PVD04
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
PVS01
CONNECTOR (CIRC),WAF LGE 561-7150 Contact Us For Availability
PWS01
Harness,Single LGE 6631R-F010V Contact Us For Availability
Q162
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q163
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q304
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q310
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q401
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q403
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R117
LGE 0RS0150K619 LGE 0RS0150K619 Contact Us For Availability
R121
Resistor,Metal Oxide Film LGE 0RS1803K619 Contact Us For Availability
R138
Resistor,Metal Oxide Film LGE 0RS1800K619 Contact Us For Availability
R154
Resistor,Metal Film LGE 0RN2402F408 Contact Us For Availability
R155
Resistor,Metal Film LGE 0RN1201F408 Contact Us For Availability
R167
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R606
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
RS502
SENSOR LGE 6500RAB009A Contact Us For Availability
T101
LGE 6170RNGW17V LGE 6170RNGW17V Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW16C Contact Us For Availability
TH01
THERMISTOR,PTC LGE 6322B62204A Contact Us For Availability
TU101
TUNER LGE 6700FM0091A Contact Us For Availability
TU701
TUNER LGE 6700NFNG05A Contact Us For Availability
TU701
TUNER LGE 6700NFNL05A Contact Us For Availability
VR601
VOLUME,ROTARY LGE 6110S-ET01A Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2983C Contact Us For Availability
X201
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
ZD161
Diode,Zener LGE 0DZ560009CB Contact Us For Availability
ZD161
DIODE,ZENER LGE 0DZ562609AB Contact Us For Availability
ZD162
Diode,Zener LGE 0DZ100009HA Contact Us For Availability
× ![]()
Login and Registration Form
