Model LG SD-K615-K-TU – Common Parts & Diagrams

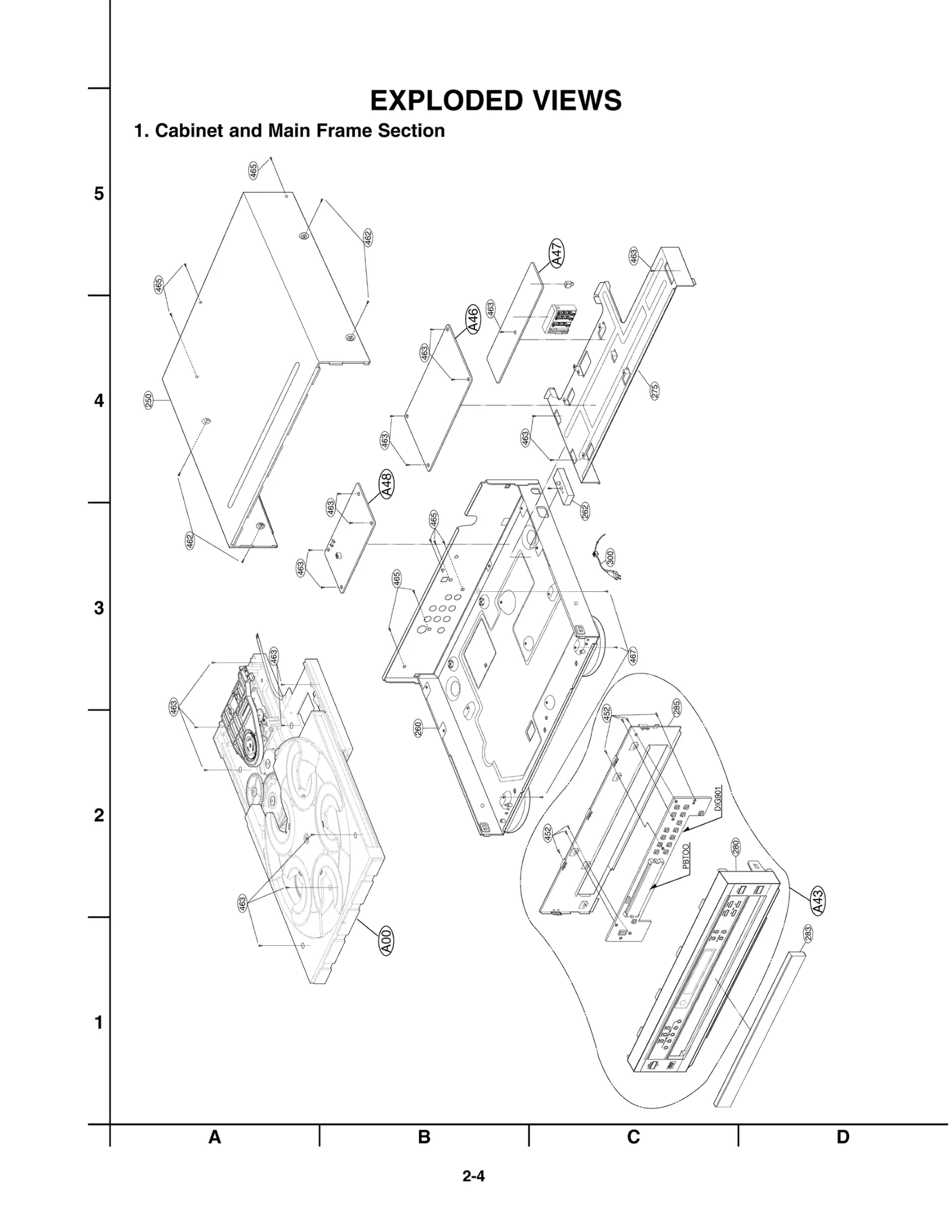

Diagram 0

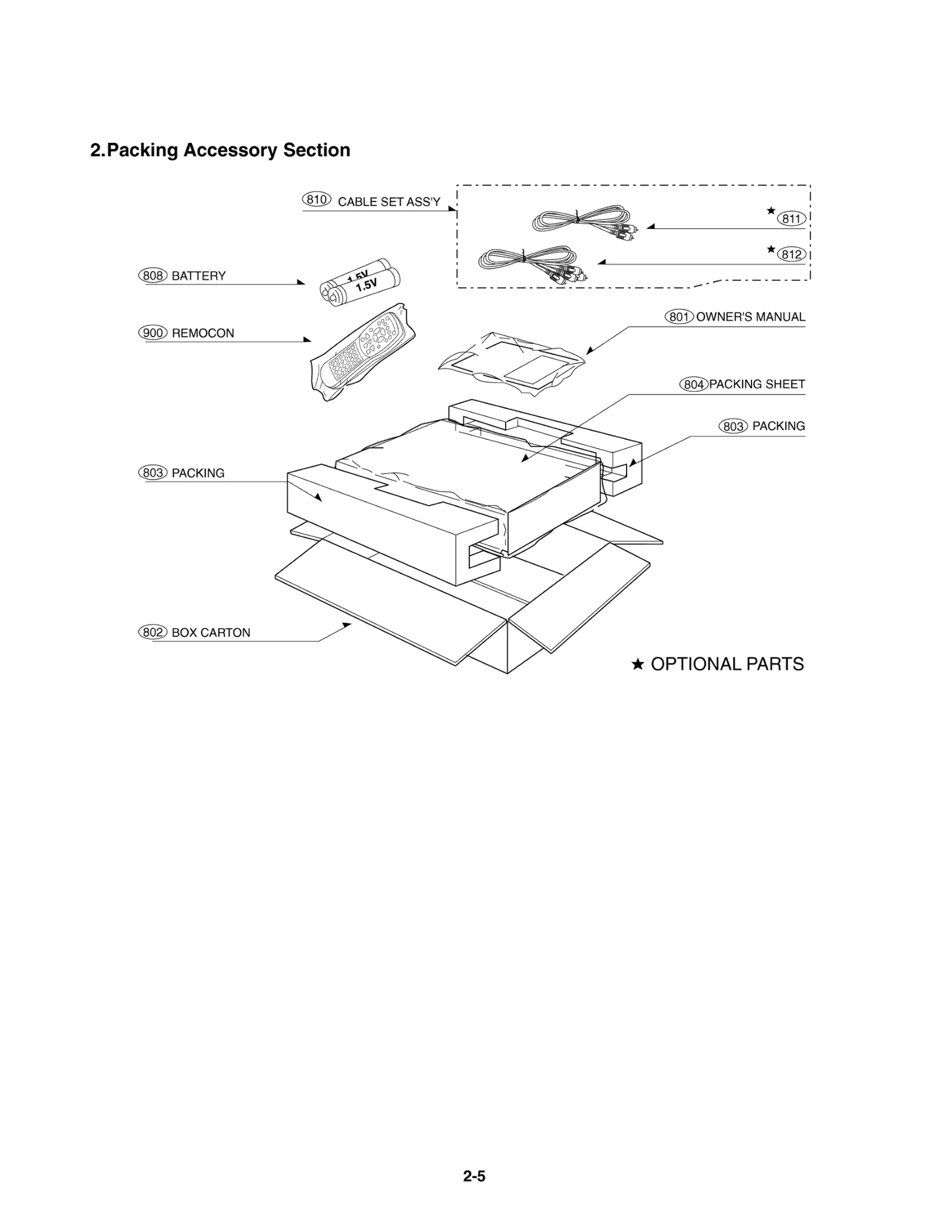

Diagram 1

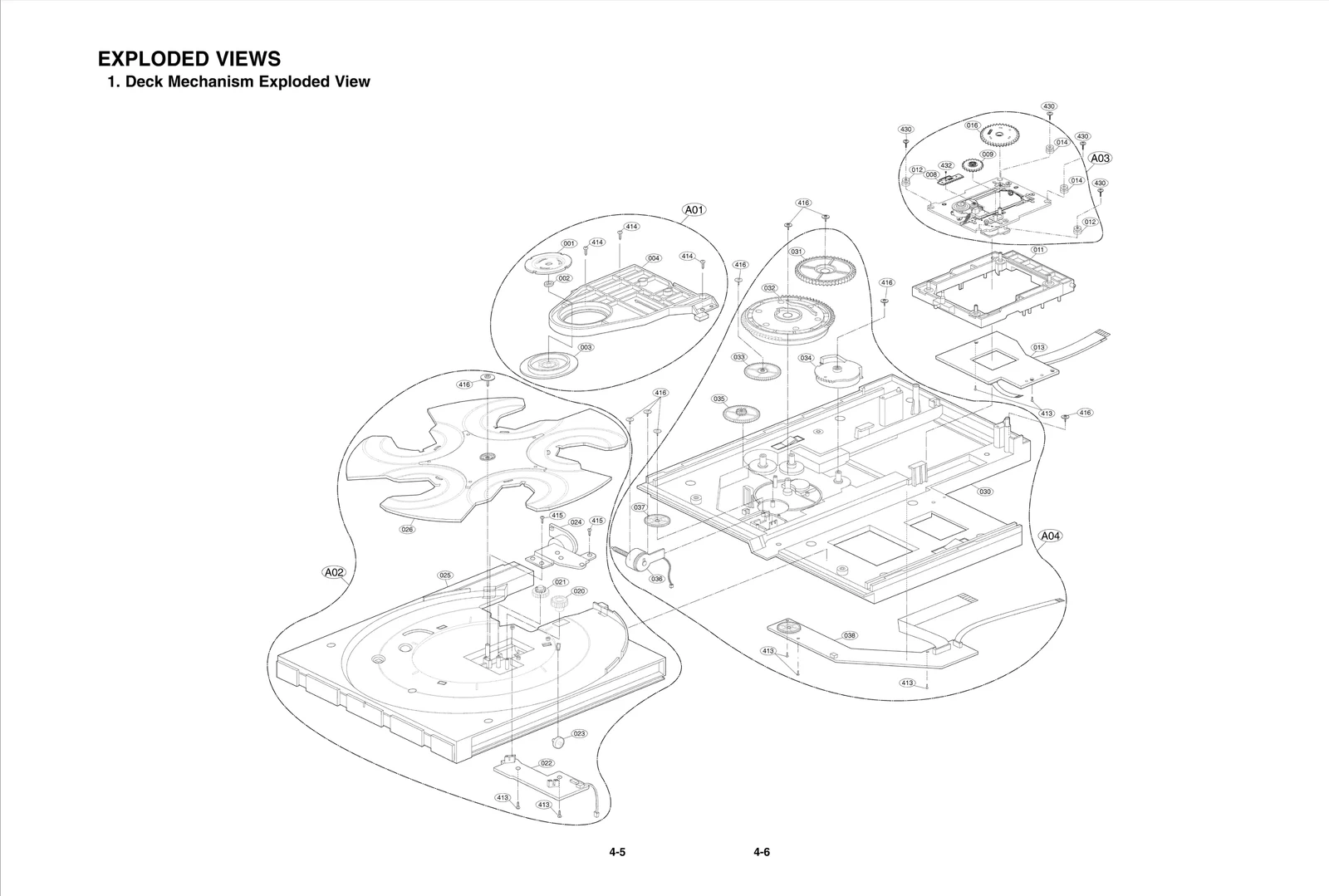

Diagram 2
Diagram 3
Common parts from model LG SD-K615-K-TU
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
LGE 4860R-0009A LGE 4860R-0009A Contact Us For Availability
004
LGE 4930R-0197A LGE 4930R-0197A Contact Us For Availability
008
GEAR LGE 4470R-0047A Contact Us For Availability
009
GEAR LGE 4470R-0053A Contact Us For Availability
011
LGE 3210R-0041A LGE 3210R-0041A Contact Us For Availability
012
LGE 5040R-0047D LGE 5040R-0047D Contact Us For Availability
013
LGE 6871R-0001J LGE 6871R-0001J Contact Us For Availability
014
LGE 5040R-0047A LGE 5040R-0047A Contact Us For Availability
014
RUBBER LGE 5040R-0047B Contact Us For Availability
016
GEAR LGE 4470R-0050A Contact Us For Availability
020
GEAR LGE 4470R-0073A Contact Us For Availability
021
GEAR LGE 4470R-0074A Contact Us For Availability
022
LGE 6871R-3024C LGE 6871R-3024C Contact Us For Availability
023
LGE 4580R-0006A LGE 4580R-0006A Contact Us For Availability
024
MOTOR ASSY LGE 4681R-0010C Contact Us For Availability
025
BASE LGE 3040R-0032A Contact Us For Availability
026
LGE 3390R-0008A LGE 3390R-0008A Contact Us For Availability
030
LGE 3040R-0031A LGE 3040R-0031A Contact Us For Availability
031
LGE 4470R-0069A LGE 4470R-0069A Contact Us For Availability
032
GEAR LGE 4470R-0067A Contact Us For Availability
033
GEAR LGE 4470R-0070A Contact Us For Availability
034
LGE 4470R-0068A LGE 4470R-0068A Contact Us For Availability
035
GEAR LGE 4470R-0071A Contact Us For Availability
036
LGE 4681R-0012A LGE 4681R-0012A Contact Us For Availability
037
LGE 4470R-0072A LGE 4470R-0072A Contact Us For Availability
038
PWB(PCB) ASSY,TOTAL LGE 6871R-3026B Contact Us For Availability
250
LGE 3110R-0194D LGE 3110R-0194D Contact Us For Availability
260
LGE 3141R-0037E LGE 3141R-0037E Contact Us For Availability
275
LGE 4811R-0027D LGE 4811R-0027D Contact Us For Availability
280
LGE 3721R-F267C LGE 3721R-F267C Contact Us For Availability
283
DOOR ASSEMBLY LGE 3581R-T045C Contact Us For Availability
285
LGE 3301R-M021B LGE 3301R-M021B Contact Us For Availability
300
POWER CORD LGE 6410RAHS02A Contact Us For Availability
413
LGE 4000R-0006A LGE 4000R-0006A Contact Us For Availability
414
LGE 4000R-0006B LGE 4000R-0006B Contact Us For Availability
415
LGE 1MPC0301118 LGE 1MPC0301118 Contact Us For Availability
416
LGE 4404R-0017A LGE 4404R-0017A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
432
SCREW, LGE 1SZZR-0011A Contact Us For Availability
462
SCREW,DRAWING LGE 353-085E Contact Us For Availability
801
LGE 3835RS0033F LGE 3835RS0033F Contact Us For Availability
802
LGE 3890R-H779G LGE 3890R-H779G Contact Us For Availability
803
LGE 3920R-E054A LGE 3920R-E054A Contact Us For Availability
804
LGE 3858R-S001B LGE 3858R-S001B Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
LGE 6851RP0003R LGE 6851RP0003R Contact Us For Availability
811
PLUG ASSY LGE 6611R1G001A Contact Us For Availability
812
PLUG ASSY LGE 6611R2G001A Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N078A Contact Us For Availability
A00
LGE 6721R-0326A LGE 6721R-0326A Contact Us For Availability
A01
LGE 4931R-0037A LGE 4931R-0037A Contact Us For Availability
A02
BASE ASSY LGE 3041R-0014B Contact Us For Availability
A03
LGE 3041R-0061A LGE 3041R-0061A Contact Us For Availability
A04
BASE ASSY LGE 3041R-0016A Contact Us For Availability
A43
LGE 3501R-3002C LGE 3501R-3002C Contact Us For Availability
A46
LGE 6871R-5030D LGE 6871R-5030D Contact Us For Availability
A47
LGE 6871R-5032B LGE 6871R-5032B Contact Us For Availability
A48
LGE 6871R-5031A LGE 6871R-5031A Contact Us For Availability
BC101
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C2A4
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C2A5
Capacitor,Ceramic,Chip LGE 0CH1683F942 Contact Us For Availability
C2B3
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C2B5
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C2C1
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C2C5
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C2C6
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C2D7
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C2M2
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C2M3
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C2M6
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C2N6
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C3F1
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C104
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C109
LGE 0CE108BF638 LGE 0CE108BF638 Contact Us For Availability
C115
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C116
LGE 0CE477BH638 LGE 0CE477BH638 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE337CH618 Contact Us For Availability
C126
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C130
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C137
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C138
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C240
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C291
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C297
Capacitor,AL,Chip LGE 0CH8477C611 Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C530
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C540
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C553
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C556
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C558
Capacitor,AL,Chip LGE 0CH8105K611 Contact Us For Availability
C561
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
C607
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C613
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C614
LGE 0CE477CC618 LGE 0CE477CC618 Contact Us For Availability
C905
LGE 0CN6810K518 LGE 0CN6810K518 Contact Us For Availability
C920
Capacitor,AL,Radial LGE 0CE1063F638 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE4763C638 Contact Us For Availability
D2A3
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D100
DIODE LGE 0DD221009AA Contact Us For Availability
D100
DIODE LGE 0DD010009CA Contact Us For Availability
D103
LGE 0DR310000AA LGE 0DR310000AA Contact Us For Availability
D106
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D107
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D109
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D109
DIODE,RECTIFIER LGE 0DR810040BA Contact Us For Availability
D111
LGE 0DRRE00029A LGE 0DRRE00029A Contact Us For Availability
D603
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
DIG901
LGE 6302R-V103C LGE 6302R-V103C Contact Us For Availability
F102
LGE 0IRH100000B LGE 0IRH100000B Contact Us For Availability
F603
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FH101
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC2A1
IC,LINEAR LGE 0ILNRHI003A Contact Us For Availability
IC2A4
LGE 0IKE393000G LGE 0IKE393000G Contact Us For Availability
IC2M1
LGE 0IFA303100A LGE 0IFA303100A Contact Us For Availability
IC3F1
LGE 0IMMRAL009A LGE 0IMMRAL009A Contact Us For Availability
IC3F1
IC,MEMORIES LGE 0IMMRFU001B Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFA024A Contact Us For Availability
IC102
Sensor IC LGE 657-062B Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC103
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC104
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMGKE008B Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC107
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC107
IC,POWER MANAGEMENT LGE 0IPMGKE006B Contact Us For Availability
IC201
LGE 0ILNRHY002B LGE 0ILNRHY002B Contact Us For Availability
IC203
IC,ELITE MEMORY TECH LGE 0IEB121616A Contact Us For Availability
IC301
LGE 0IXL957210C LGE 0IXL957210C Contact Us For Availability
IC305
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC305
LGE 0IMMRWI004A LGE 0IMMRWI004A Contact Us For Availability
IC305
LGE 0IMMREB005A LGE 0IMMREB005A Contact Us For Availability
IC305
LGE 0IHY576532A LGE 0IHY576532A Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
IC,NATIONAL SEMICOND LGE 0INS860200A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRAL012A Contact Us For Availability
IC503
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC504
IC,PERIPHERALS LGE 0IPRPMT002A Contact Us For Availability
IC506
LGE 0IPMGRH003A LGE 0IPMGRH003A Contact Us For Availability
IC901
LGE 0IMCRHY031B LGE 0IMCRHY031B Contact Us For Availability
IC902
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
JK601
Jack,Fiber Optic LGE 6612K00001A Contact Us For Availability
JK602
LGE 6612R-C006G LGE 6612R-C006G Contact Us For Availability
L101
LGE 616-145J LGE 616-145J Contact Us For Availability
L101
FILTER(CIRC) LGE 616-145H Contact Us For Availability
L102
Coil,Choke LGE 633-088D Contact Us For Availability
L103
COIL,CHOKE LGE 633-088G Contact Us For Availability
L301
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L604
LGE 0LA0101K018 LGE 0LA0101K018 Contact Us For Availability
L902
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
LED901
LED LGE 0DL325319AA Contact Us For Availability
PBK00
LGE 6871R-5036A LGE 6871R-5036A Contact Us For Availability
PBT00
LGE 6871R-5035B LGE 6871R-5035B Contact Us For Availability
Q2A2
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q2A5
LGE 0TR388209AA LGE 0TR388209AA Contact Us For Availability
Q2M1
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q107
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q606
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q607
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q607
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q615
TRANSISTOR KTA1267-GR MINI TP LGE 0TR126709AC Contact Us For Availability
Q902
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
R1A1
Resistor,Metal Oxide Film LGE 0RS0562K619 Contact Us For Availability
R2A6
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R2A9
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R2B1
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R2B6
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R2D4
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R2D5
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R2D6
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R2F1
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R2F3
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R2G2
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R2G9
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R2Q2
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R2Q3
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R2Q8
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R5A1
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R102
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R103
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R112
LGE 0RD0391F608 LGE 0RD0391F608 Contact Us For Availability
R120
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R124
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R125
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R127
LGE 0RN3601E408 LGE 0RN3601E408 Contact Us For Availability
R128
LGE 0RN3301E408 LGE 0RN3301E408 Contact Us For Availability
R140
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R273
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R309
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R368
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R409
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R419
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R434
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R518
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R531
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R534
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R591
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R604
Resistor,Carbon Film LGE 0RD0752F608 Contact Us For Availability
R622
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R633
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R634
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R916
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R917
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R939
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R980
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R995
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R996
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
RC901
Receiver Module LGE 6712R1638GA Contact Us For Availability
SW602
SWITCH,TACT LGE 6600R-SH18A Contact Us For Availability
T101
TRANSFORMER,SMPS LGE 642-024E Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X201
LGE 6202R-BM01A LGE 6202R-BM01A Contact Us For Availability
X901
LGE 6212BA3004C LGE 6212BA3004C Contact Us For Availability
ZD101
LGE 0DZ560009CA LGE 0DZ560009CA Contact Us For Availability
× ![]()
Login and Registration Form
