Model SCS3017RS04 – Common Parts & Diagrams

Common parts from model SCS3017RS04

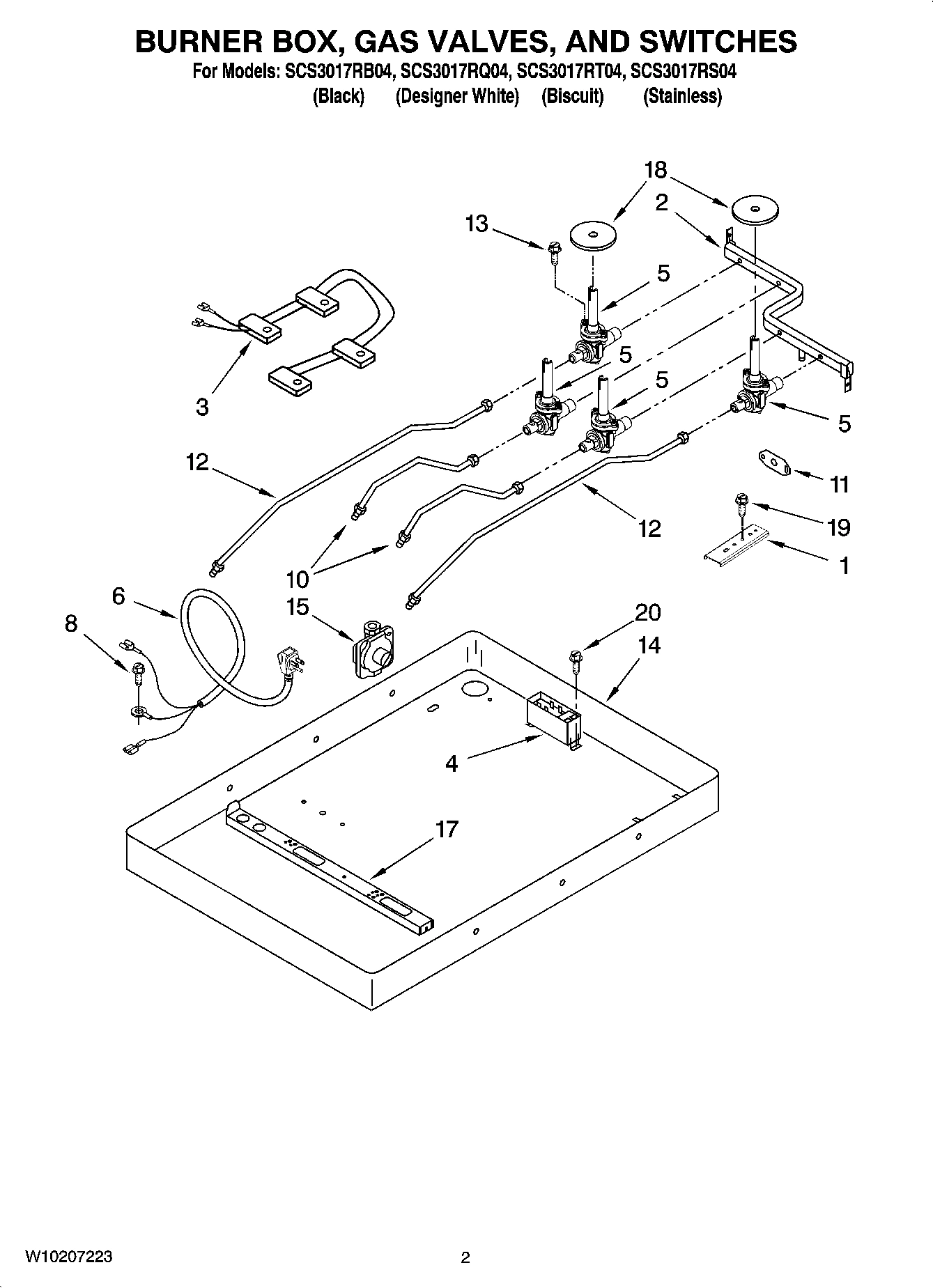

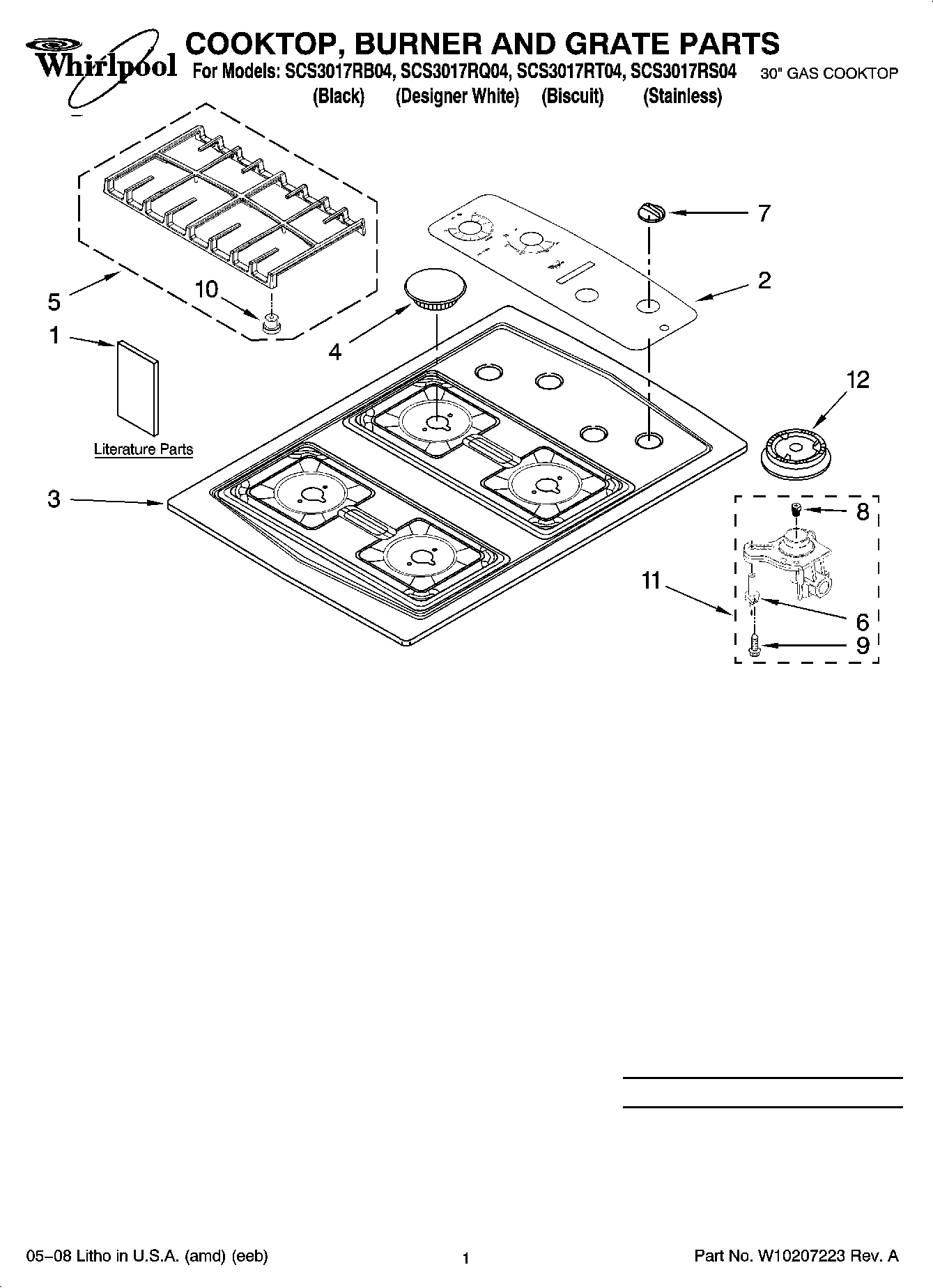

01 - COOKTOP, BURNER AND GRATE PARTS

Print

• This Diagram
• All Diagrams

×

-

4456626 Whirlpool Wire In Stock WPL 4456626 View Details $43.63

View on Model

-

4456627 Whirlpool Wire Harness Out of Stock WPL 4456627 View Details $131.08

View on Model

-

WP8286320 Whirlpool Orifice Spud In Stock WPL WP8286320 View Details $77.53

View on Model

2

8286503 Whirlpool Oven Control Panel Out of Stock WPL 8286503 View Details $170.72

View on Model

2

9759354 Whirlpool Oven Manifold Pipe Out of Stock WPL 9759354 View Details $94.42

View on Model

2

WP8286502 Whirlpool Control Panel Out of Stock WPL WP8286502 View Details $80.48

View on Model

3

WP4456905 Whirlpool Wire Harness In Stock WPL WP4456905 View Details $133.61

View on Model

4

8286155EP Whirlpool Burner Cap Out of Stock WPL 8286155EP View Details $99.82

View on Model

4

WP8286153CB Whirlpool Burner Cap In Stock WPL WP8286153CB View Details $51.78

View on Model

4

WP8286154CB Whirlpool Burner Cap Out of Stock WPL WP8286154CB View Details $62.24

View on Model

4

WP8286155CB Whirlpool Burner Cap In Stock WPL WP8286155CB View Details $76.84

View on Model

5

WP4456817 Whirlpool Valve Burner Out of Stock WPL WP4456817 View Details $192.57

View on Model

6

W10392007 Whirlpool Power Cord Out of Stock WPL W10392007 View Details $64.45

View on Model

6

WP9782116 Whirlpool Surface Ignitor In Stock WPL WP9782116 View Details $42.07

View on Model

7

WP8286057BL Whirlpool Knob In Stock WPL WP8286057BL View Details $17.19

View on Model

7

WP8286057WH Whirlpool Knob Out of Stock WPL WP8286057WH View Details $5.47

View on Model

8

8286473 Whirlpool Oven Orifice Out of Stock WPL 8286473 View Details $50.90

View on Model

8

8286551 Whirlpool Oven Orifice Out of Stock WPL 8286551 View Details $59.65

View on Model

8

WP3177991 Whirlpool Screw In Stock WPL WP3177991 View Details $4.50

View on Model

8

WP3192523 Whirlpool Orifice Out of Stock WPL WP3192523 View Details $55.58

View on Model

9

WP8273062 Whirlpool Screw In Stock WPL WP8273062 View Details $4.50

View on Model

11

WPW10128449 Whirlpool Orifice Holder In Stock WPL WPW10128449 View Details $63.65

View on Model

11

WPW10128450 Whirlpool Orifice Holder In Stock WPL WPW10128450 View Details $71.38

View on Model

11

WPW10128451 Whirlpool Orifice Holder In Stock WPL WPW10128451 View Details $69.17

View on Model

12

3191320 Whirlpool Oven Gas Tubing Out of Stock WPL 3191320 View Details $71.34

View on Model

15

W11170853 Whirlpool Regulator Out of Stock WPL W11170853 View Details $189.56

View on Model

17

W10203756 Whirlpool Support Out of Stock WPL W10203756 View Details $9.92

View on Model
