Model LG SCBC2001CSS – Common Parts & Diagrams
Diagram 0

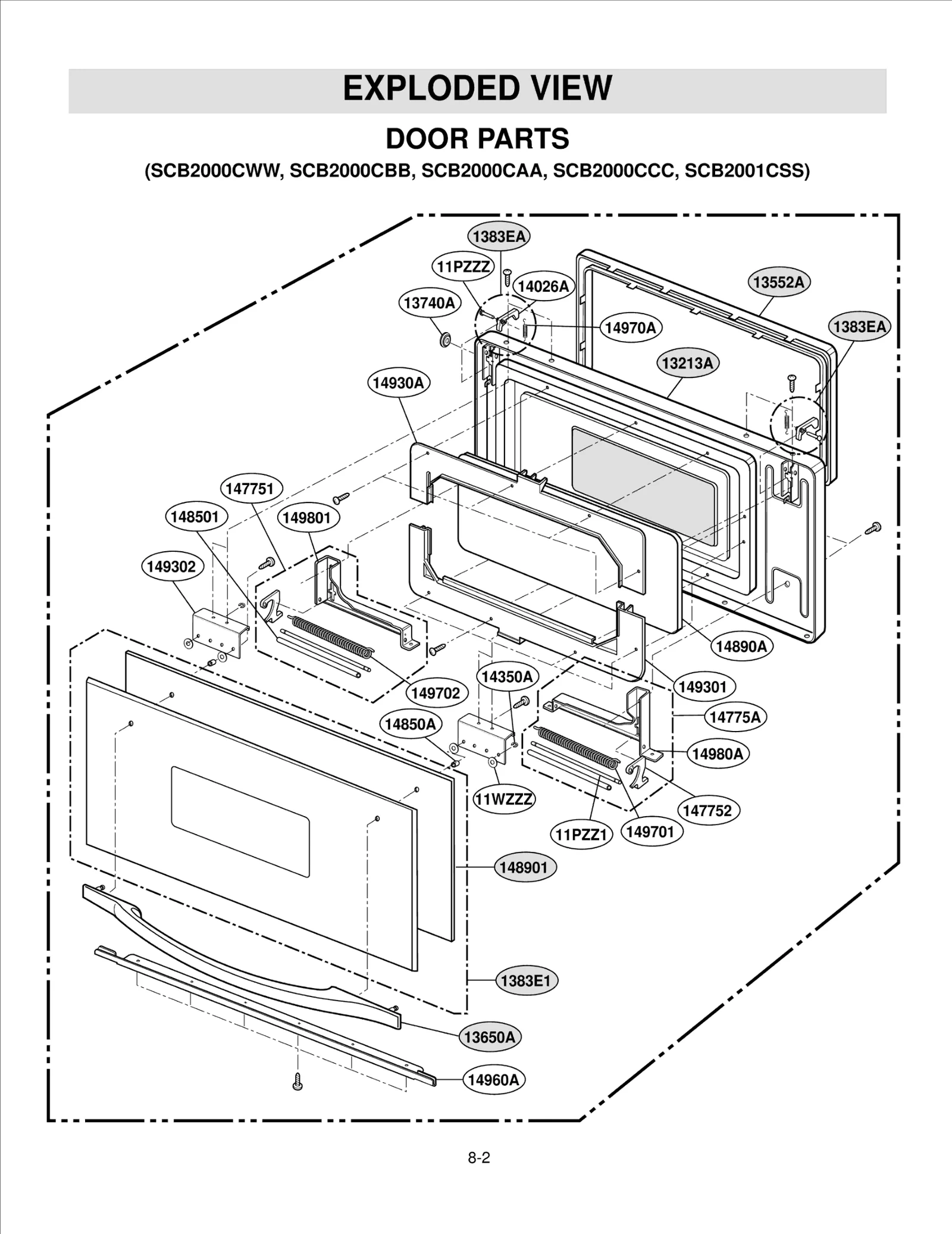

Diagram 1

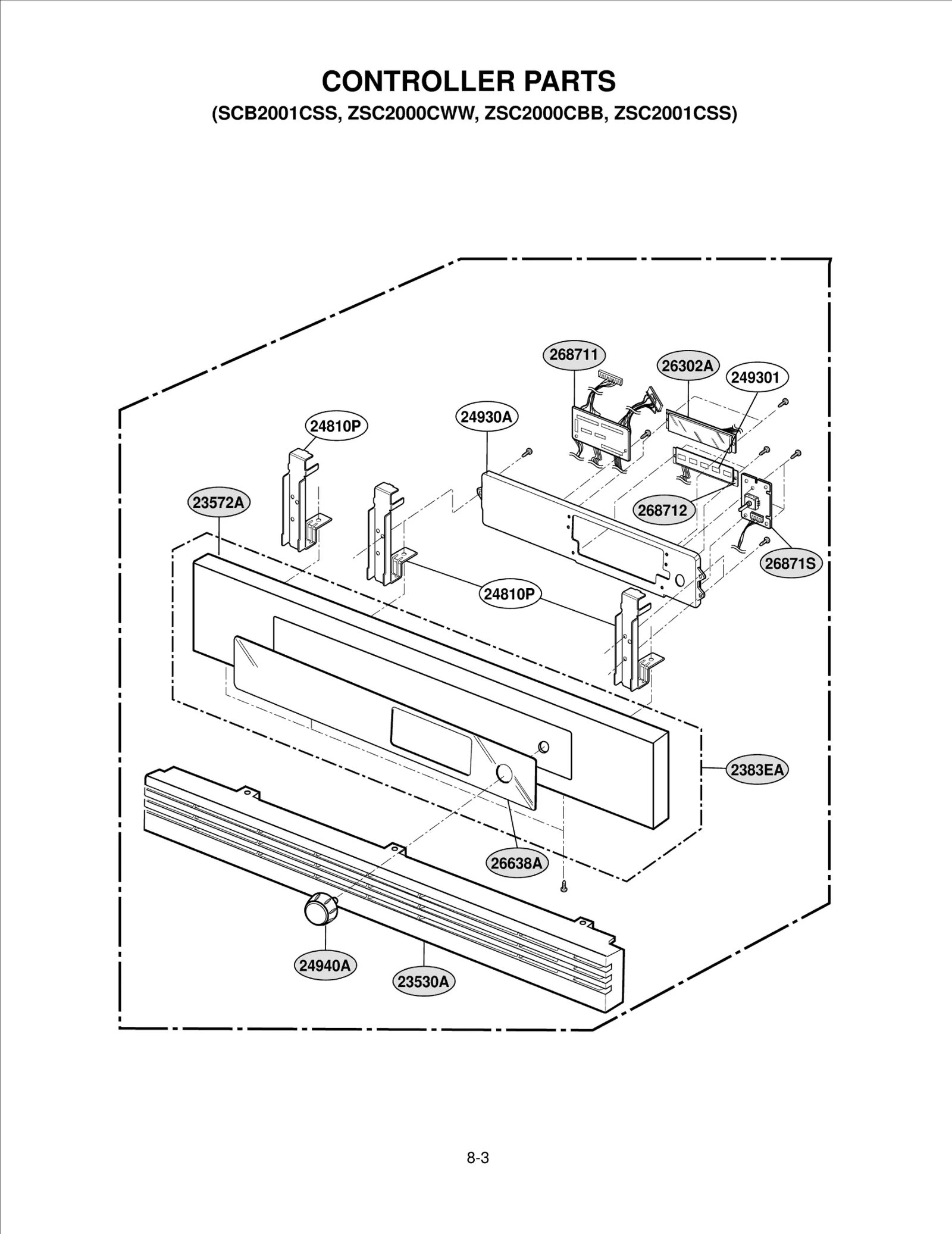

Diagram 2

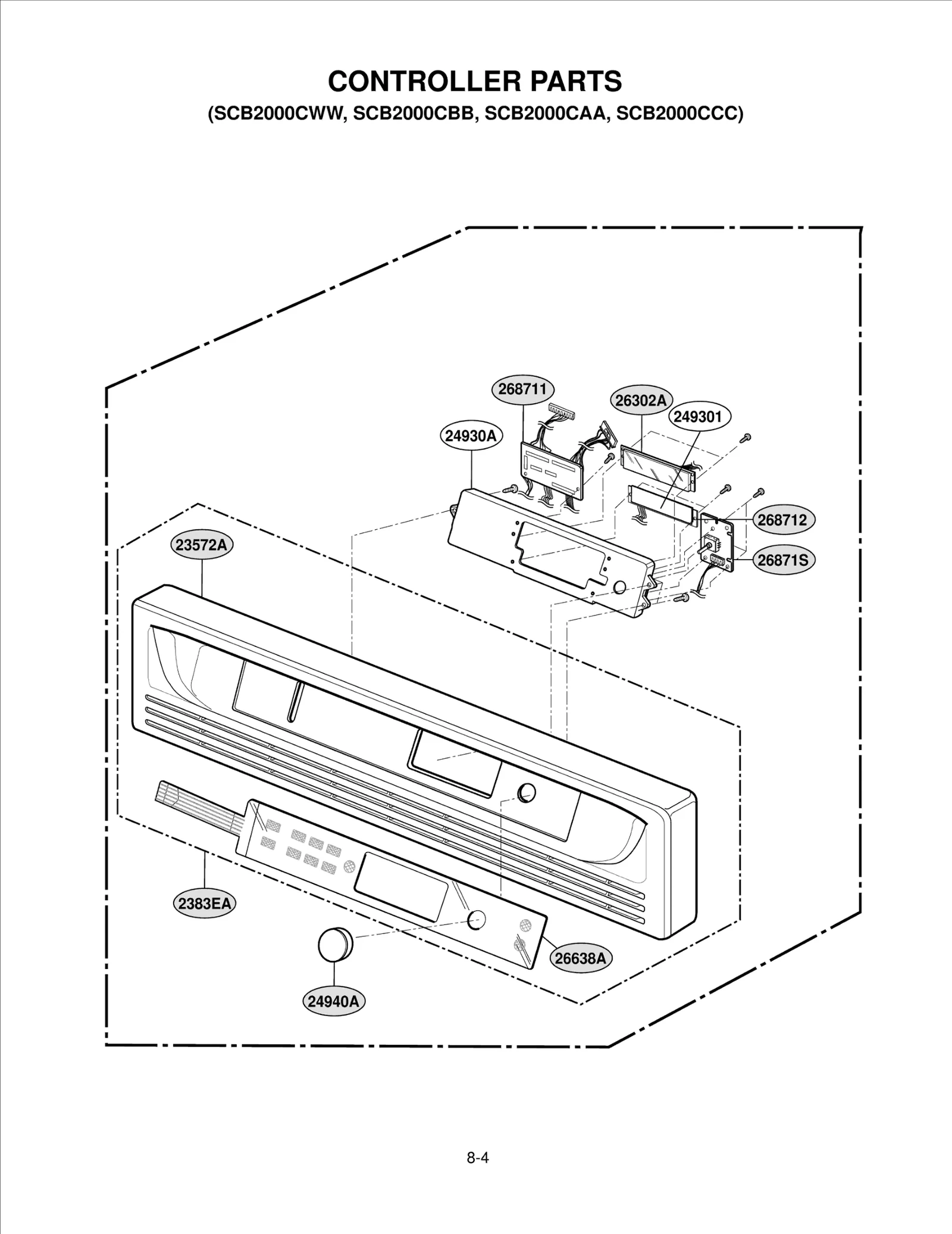

Diagram 3

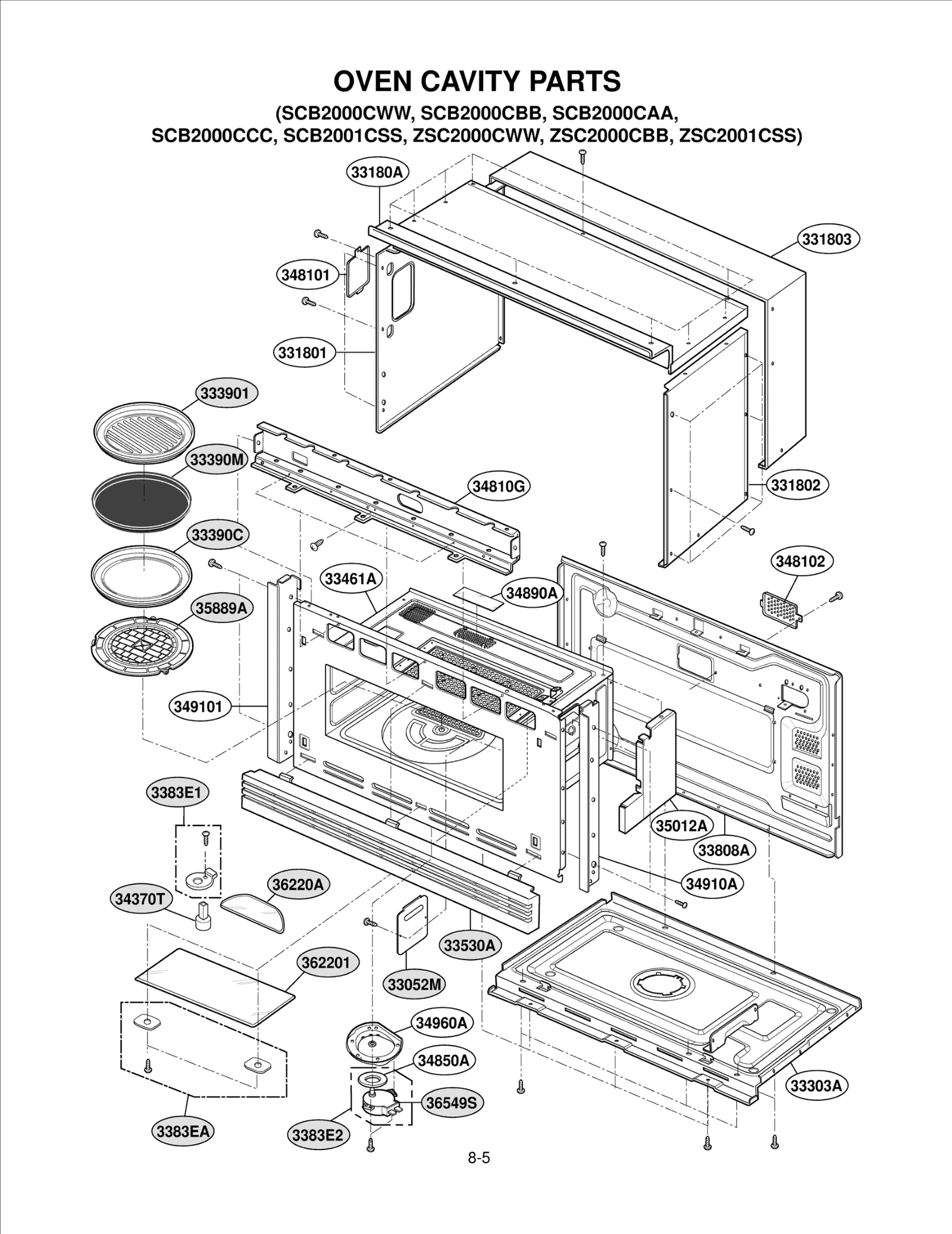

Diagram 4

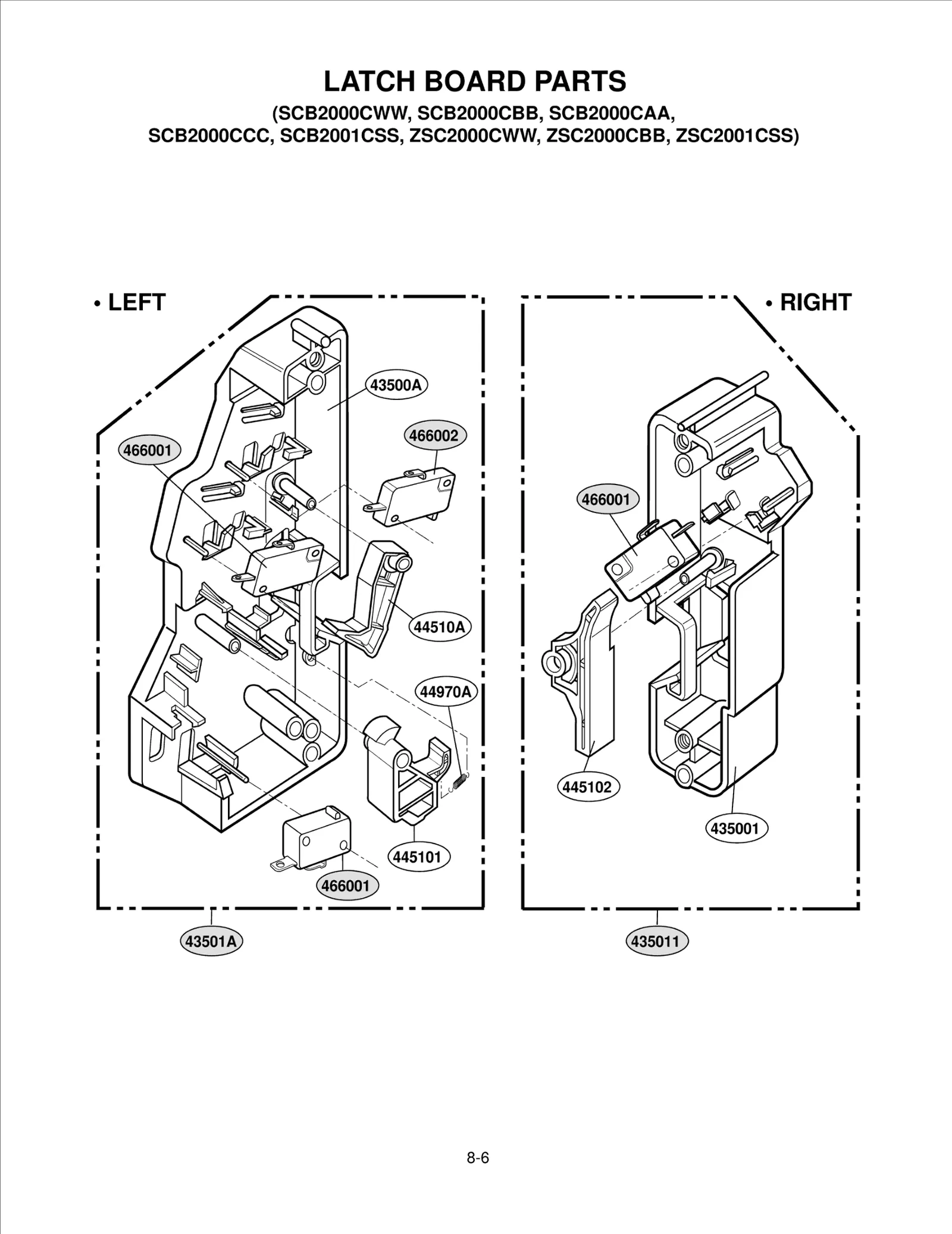

Diagram 5

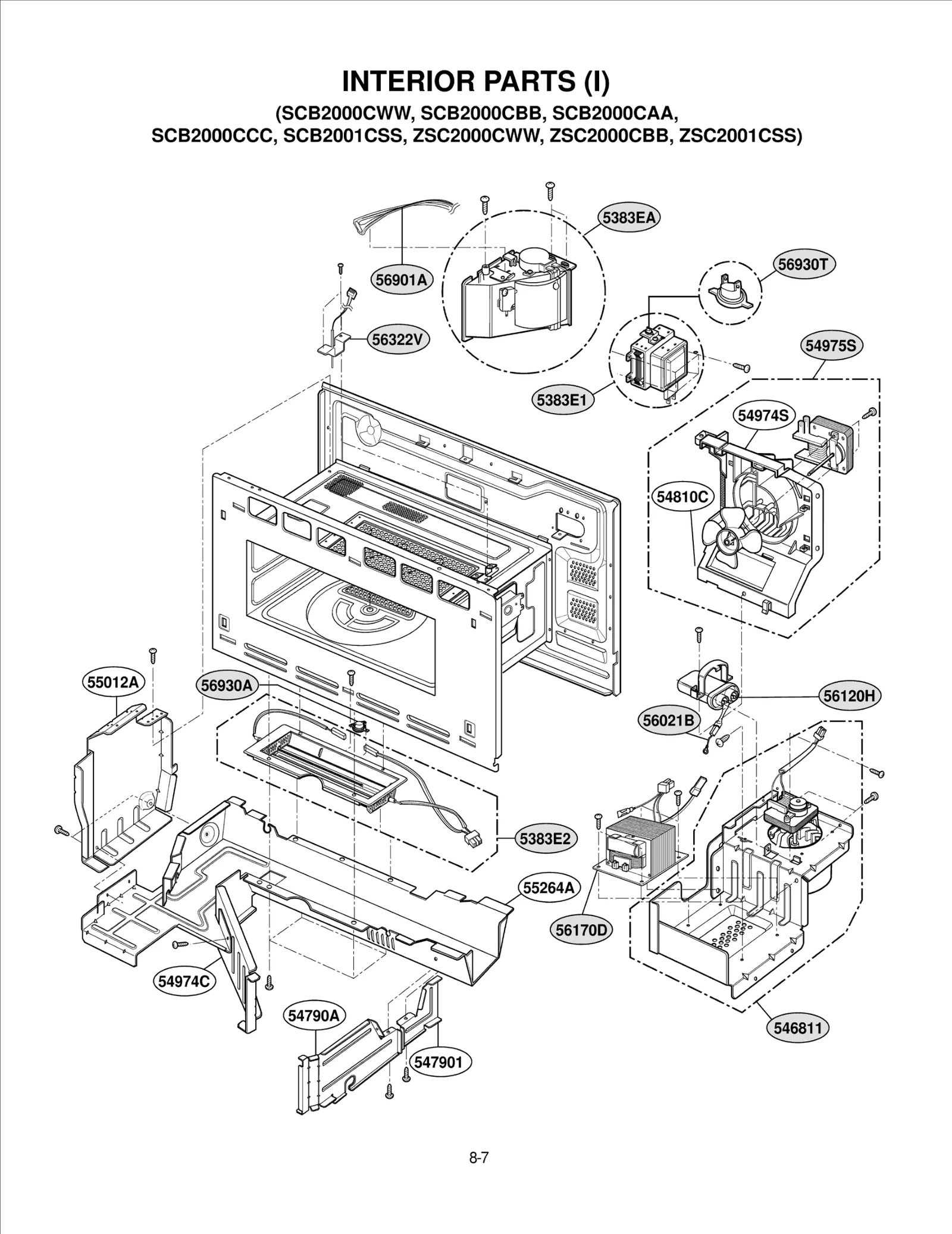

Diagram 6

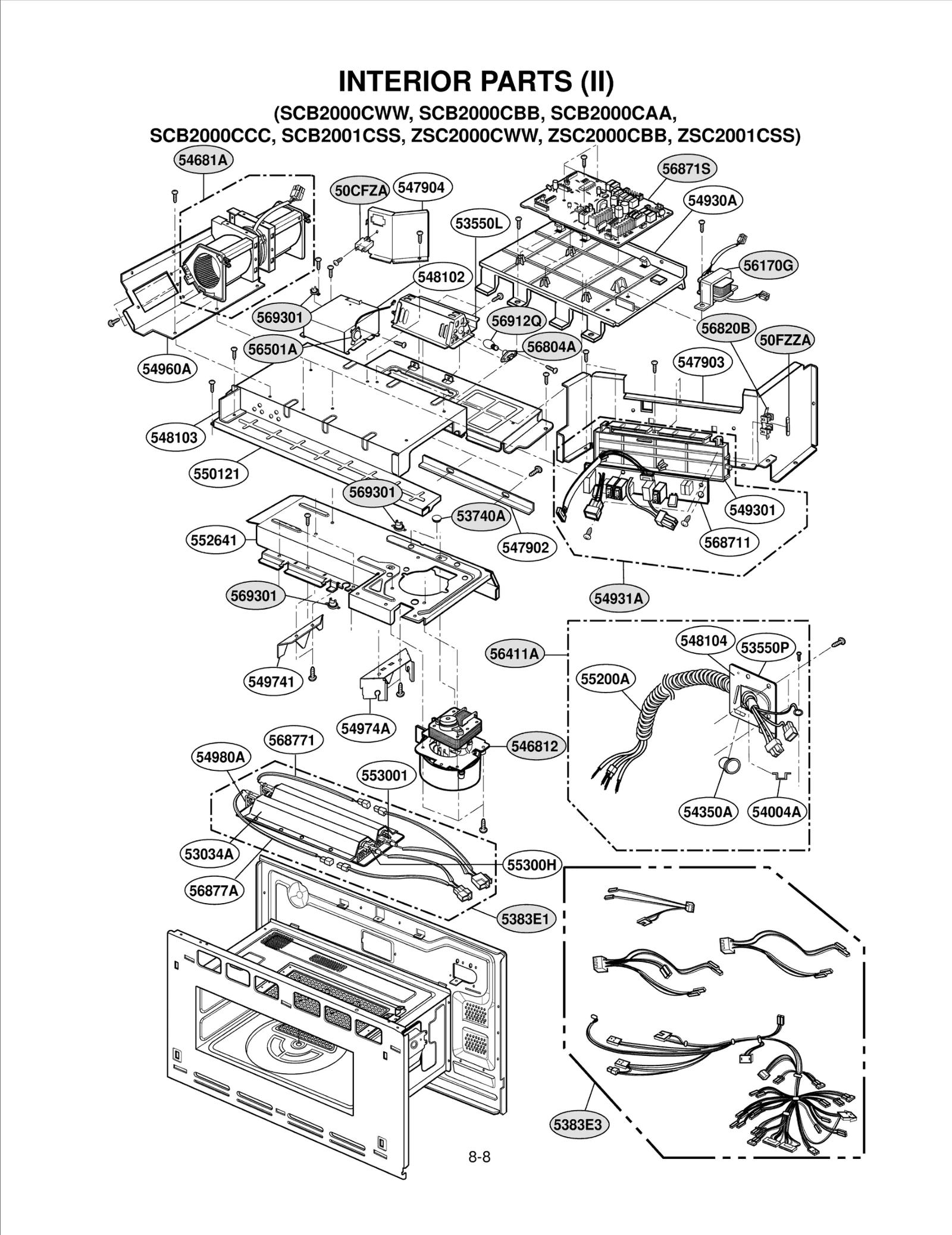

Diagram 7
Diagram 8
Common parts from model LG SCBC2001CSS
*01
LGE 3828W5A1511 LGE 3828W5A1511 Contact Us For Availability
*03
COOK BOOK LGE 3878W5A0012 Contact Us For Availability
*04
LGE 3828W5U0080 LGE 3828W5U0080 Contact Us For Availability
*05
Label,Cooking Guide LGE 3850W5D001B Contact Us For Availability
11WZZZ
WASHER LGE 1WZZW3Z008B Contact Us For Availability
50CFZA
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
1383E1
LGE 383EW1A012A LGE 383EW1A012A Contact Us For Availability
1383E2
LGE 383EW0A004E LGE 383EW0A004E Contact Us For Availability
1383EA
Locker,Parts Assembly,SVC LGE 383EW2A001B Contact Us For Availability
2383EA
LGE 383EW1A013E LGE 383EW1A013E Contact Us For Availability
3383E1
Holder,Parts Assembly,SVC LGE 383EW3A005A Contact Us For Availability
3383E2
Parts Assembly,SVC LGE 383EW3A006A Contact Us For Availability
3383EA
SERVICE PARTS LGE 383EW3A004A Contact Us For Availability
5383E1
Parts Assembly,SVC LGE 383EW1A002B Contact Us For Availability
5383E1
SERVICE PARTS LGE 383EW1A007A Contact Us For Availability
5383E2
Parts Assembly,SVC LGE 383EW1A001B Contact Us For Availability
5383E3
LGE 383EW1A011A LGE 383EW1A011A Contact Us For Availability
5383EA
SERVICE PARTS LGE 383EW1A006B Contact Us For Availability
13213A
Frame Assembly,Door LGE 3213W0A004C Contact Us For Availability
13552A
Cover,Choke LGE 3552W1A043A Contact Us For Availability
13581A
LGE 3581W0A005E LGE 3581W0A005E Contact Us For Availability
13650A
LGE 3650W1A038B LGE 3650W1A038B Contact Us For Availability
14350A
LGE 4350W3A018A LGE 4350W3A018A Contact Us For Availability
14775A
Hinge Assembly LGE 4775W2A001C Contact Us For Availability
14850A
LGE 4850W3A006B LGE 4850W3A006B Contact Us For Availability
14930A
Supporter LGE 4930W1A002A Contact Us For Availability
14960A
Plate LGE 4960W1A006F Contact Us For Availability
23530A
Grille,Vent LGE 3530W1A012B Contact Us For Availability
23572A
Panel,Control LGE 3572W0A195B Contact Us For Availability
24810P
Bracket,Control Panel LGE 4810W3P001A Contact Us For Availability
24930A
Holder,Display LGE 4930W1A005A Contact Us For Availability
24940A
Knob LGE 4940W3A012B Contact Us For Availability
26302A
LGE 6302W5A011C LGE 6302W5A011C Contact Us For Availability
26638A
LGE 6638W1A013B LGE 6638W1A013B Contact Us For Availability
33052M
Cover,Insulator LGE 3052W3M020A Contact Us For Availability
33180A
LGE 3180W0A001A LGE 3180W0A001A Contact Us For Availability
33390C
TRAY,[CERAMIC] LGE 3390W1C001A Contact Us For Availability
33530A
Grille,Vent LGE 3530W1A011B Contact Us For Availability
34370T
SHAFT,TURN TABLE LGE 4370W3T011A Contact Us For Availability
34850A
RING,MWO LGE 4350W4A007J Contact Us For Availability
34910A
Grille LGE 4918W1A007D Contact Us For Availability
36220A
Filter,Ceramic LGE 6220W3A001A Contact Us For Availability
43501A
Holder Assembly,Locker LGE 3501W1A022A Contact Us For Availability
53740A
LGE 3740W3A002A LGE 3740W3A002A Contact Us For Availability
54681A
Motor, AC Ventilation LGE 4681W1A002B Contact Us For Availability
54931A
Holder Assembly LGE 4931W2A001A Contact Us For Availability
54975S
LGE 4975W1S063B LGE 4975W1S063B Contact Us For Availability
56021B
DIODE ASSY,DIODE+CABLE LGE 6021W3B001L Contact Us For Availability
56170D
LGE 6170W1D002F LGE 6170W1D002F Contact Us For Availability
56170G
TRANSFORMER,POWER LGE 6170W2G008A Contact Us For Availability
56322V
Thermistor,NTC LGE 2B72827K Contact Us For Availability
56411A
LGE 6411W1A016A LGE 6411W1A016A Contact Us For Availability
56501A
SENSOR ASSY LGE 6501W1A004B Contact Us For Availability
56820B
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
56871S
PCB Assembly,Sub LGE 6871W1S004A Contact Us For Availability
56901A
Fuse Assembly LGE 6901W3A003A Contact Us For Availability
56930A
THERMOSTAT ALL PW-2N.145/0.H.P LGE 6930W3A001B Contact Us For Availability
147751
Hinge Assembly LGE 4775W2A002C Contact Us For Availability
149301
Supporter LGE 4930W1A002B Contact Us For Availability
149302
Supporter LGE 4930W3A018A Contact Us For Availability
249301
Holder,Display LGE 4930W3A021A Contact Us For Availability
268711
PCB Assembly,Sub LGE 6871W2S190A Contact Us For Availability
268712
PCB Assembly,Sub LGE 6871W2S188A Contact Us For Availability
331801
LGE 3180W1A002A LGE 3180W1A002A Contact Us For Availability
331802
Case LGE 3180W1A001A Contact Us For Availability
331803
Case LGE 3180W0A002A Contact Us For Availability
333901
Tray,Metal LGE 3390W2M005D Contact Us For Availability
348101
Bracket,Idle LGE 4810W3G141B Contact Us For Availability
348102
Bracket,Idle LGE 4810W3G141A Contact Us For Availability
349101
Grille LGE 4918W1A008D Contact Us For Availability
435011
Holder Assembly,Locker LGE 3501W1A021A Contact Us For Availability
546811
Motor Assembly,AC,Blower LGE 4681W1A003A Contact Us For Availability
546812
Fan Assembly LGE 4681W2A002B Contact Us For Availability
569303
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
× ![]()
