Model LG SCA1001KSS – Common Parts & Diagrams
Diagram 0

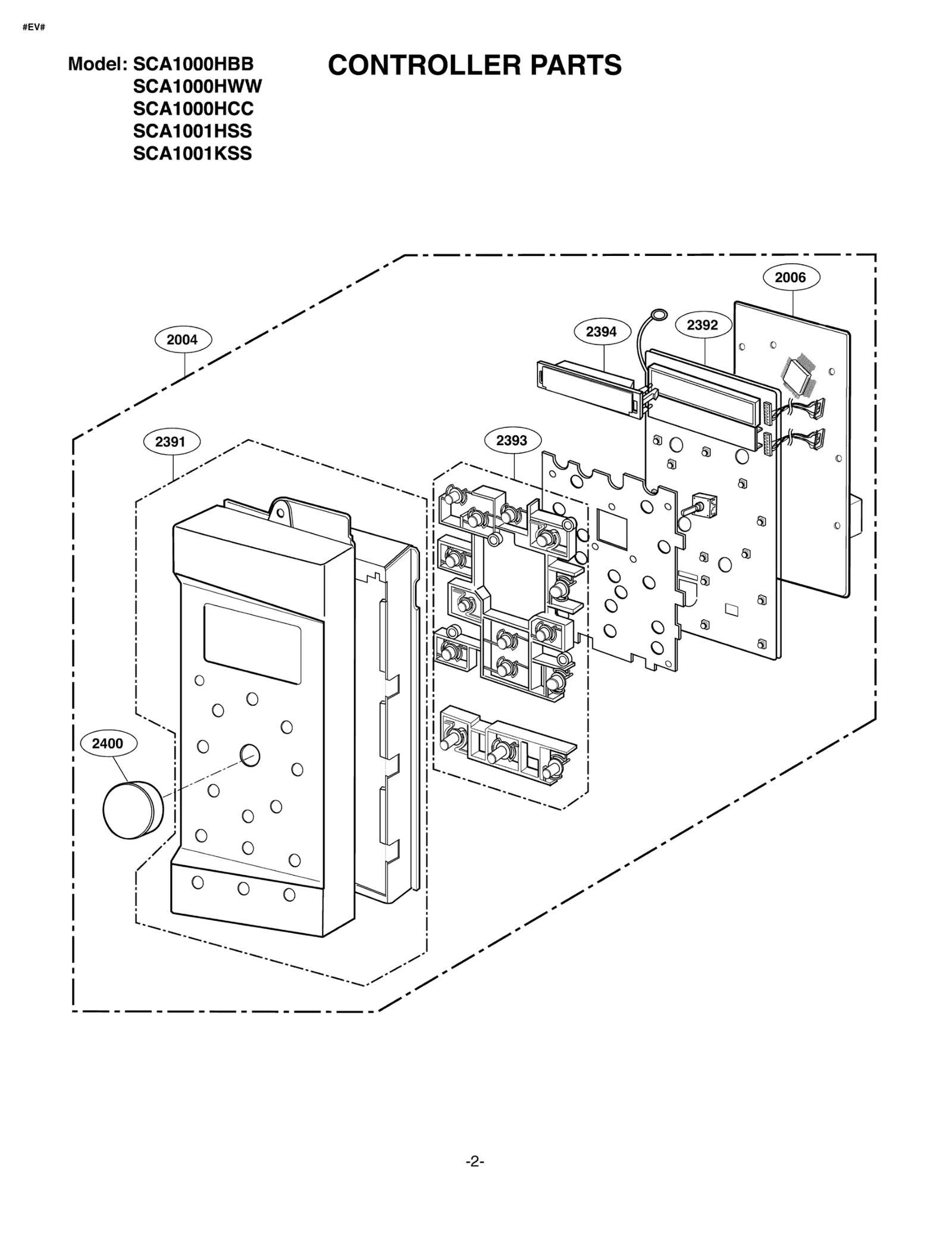

Diagram 1

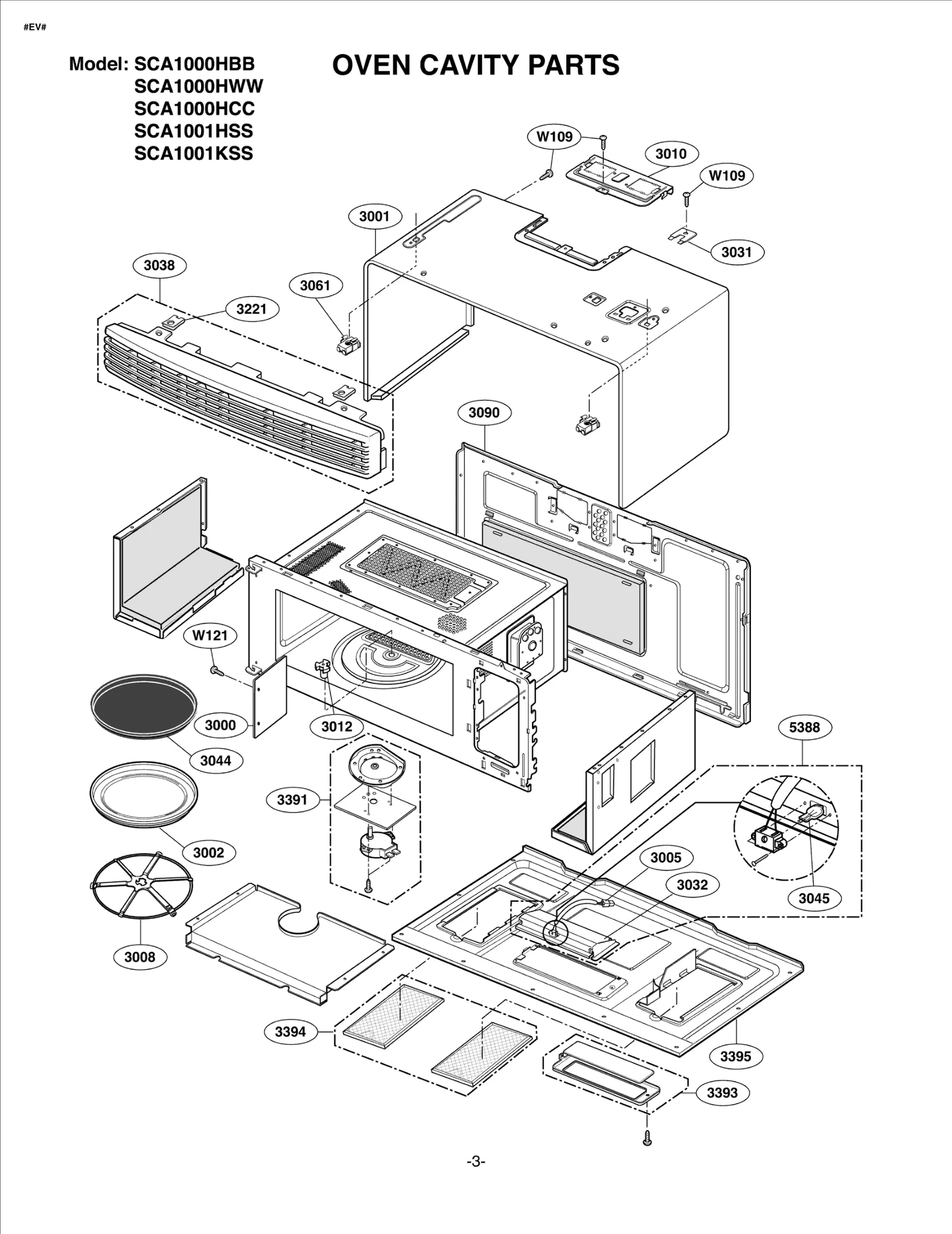

Diagram 2

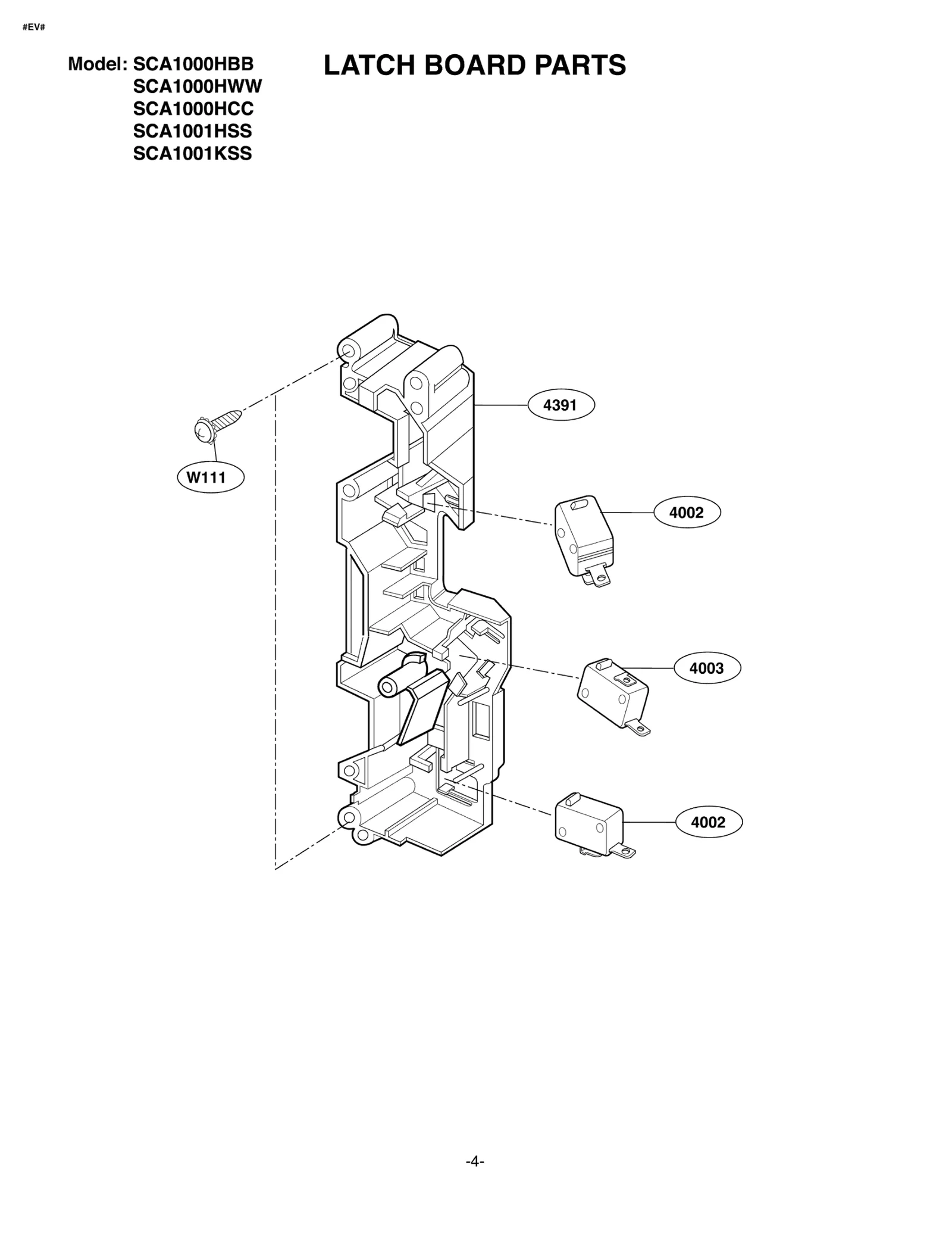

Diagram 3

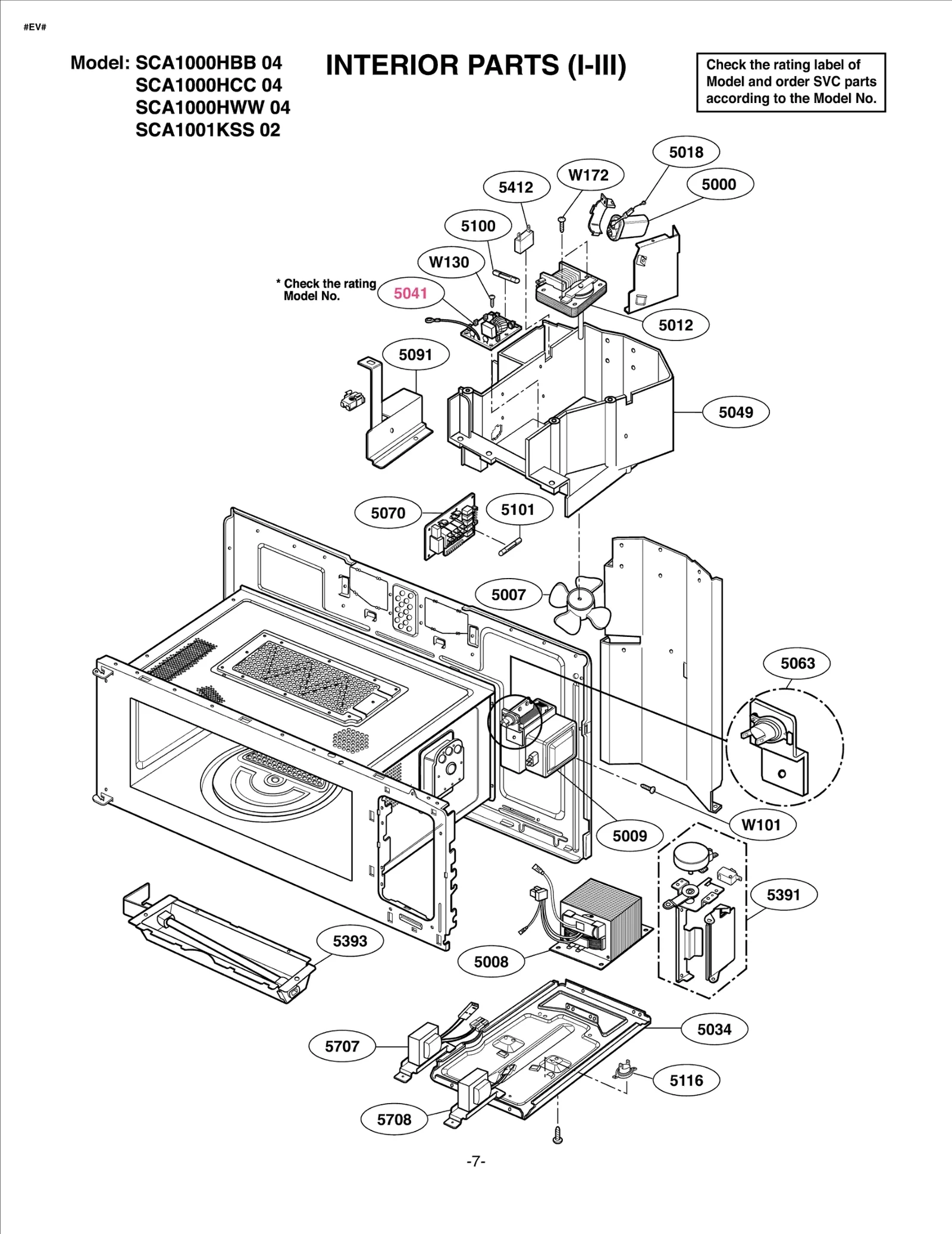

Diagram 4

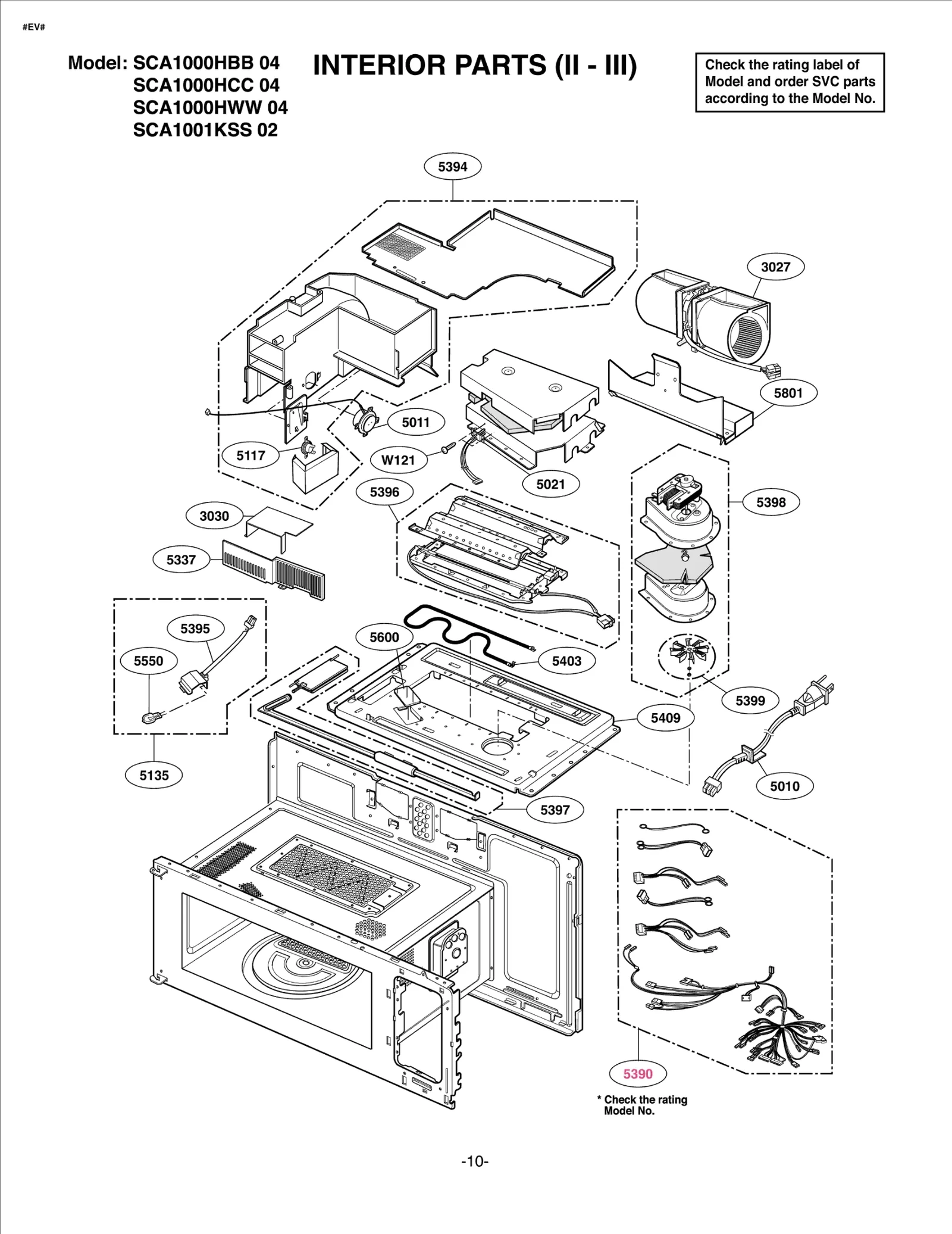

Diagram 5

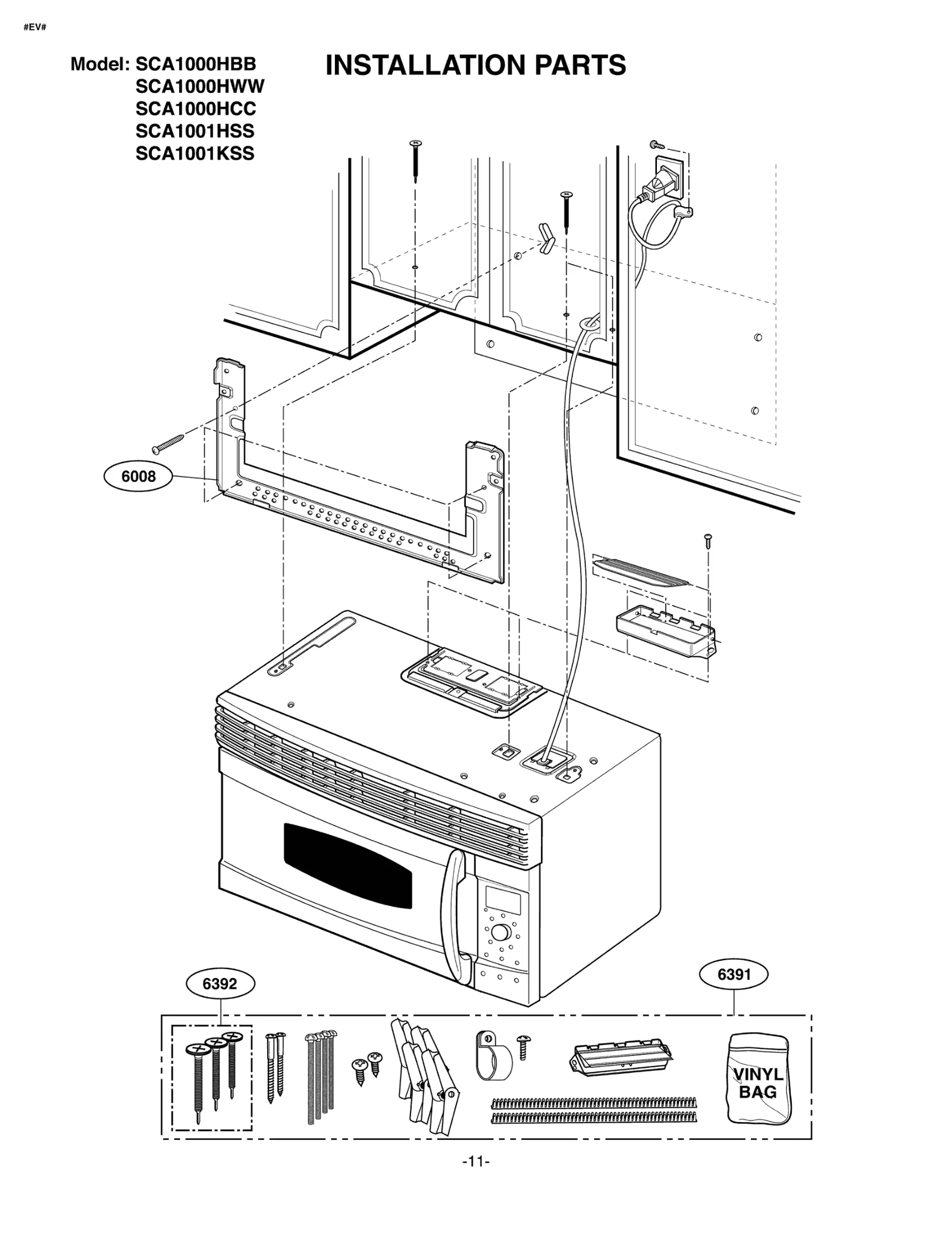

Diagram 6
Diagram 7
Common parts from model LG SCA1001KSS
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S005D No Longer Available
3030
BRACKET ASSY LGE 4811W1A003A Contact Us For Availability
3031
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
3032
REFLECTOR LGE 3034W2A006A Contact Us For Availability
3038
Grille Assembly LGE 3531W1A017H Contact Us For Availability
3090
Cover Assembly,Rear LGE 3809W0A002C Contact Us For Availability
3221
BRACKET,[MWO] LGE 4810W3G142A Contact Us For Availability
3391
SERVICE PARTS LGE 383EW1A022C Contact Us For Availability
3393
COOKTOP GLASS ASSY LGE 383EW1A021B Contact Us For Availability
3394
GREASE FILTER ASSY LGE 383EW1A023A Contact Us For Availability
3395
Parts Assembly LGE 383EW1A036K Contact Us For Availability
4391
SERVICE PARTS LGE 383EW1A005A Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D052T Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D049B Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001A Contact Us For Availability
5010
Power Cord Assembly LGE 6411W1A014V Contact Us For Availability
5021
THERMISTOR,NTC LGE 6322W1A001A Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5049
GUIDE,[SUCTION GUIDE] LGE 4974W0A001A Contact Us For Availability
5063
BRACKET ASSY LGE 4811W3A016A Contact Us For Availability
5091
BRACKET,[MOUNT] LGE 4810W2Q001A Contact Us For Availability
5101
FUSE,DRAWING LGE 3B70856T Contact Us For Availability
5116
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
5135
Reflector Assembly LGE 3035W1A006D Contact Us For Availability
5337
PROTECTOR (MECH) LGE 3740W3A004A Contact Us For Availability
5388
Parts Assembly LGE 383EW1A136C Contact Us For Availability
5390
Parts Assembly LGE 383EW1A030F Contact Us For Availability
5391
DAMPER INLET ASSY LGE 383EW1A025A Contact Us For Availability
5393
REFLECTOR ASSY-L LGE 383EW1A024A Contact Us For Availability
5394
Duct,Parts Assembly,SVC LGE 383EW1A080A Contact Us For Availability
5395
Parts Assembly LGE 383EW1A028F Contact Us For Availability
5396
REFLECTOR-U ASSY LGE 383EW1A033A Contact Us For Availability
5397
DAMPER OUTLET ASSY LGE 383EW1A029A Contact Us For Availability
5398
BLOWER ASSY LGE 383EW1A031A Contact Us For Availability
5399
CONVECTION FAN ASSY LGE 383EW1A032A Contact Us For Availability
5403
Heater,Sheath LGE 5300W1S010B Contact Us For Availability
5403
HEATER,[SHEATH] LGE 5300W1S010A Contact Us For Availability
5409
INSULATOR LGE 5012W1A003A Contact Us For Availability
5600
GLASS LGE 4890W3A010A Contact Us For Availability
5801
MOUNT LGE 4960W2A004A Contact Us For Availability
6008
PLATE ASSY LGE 3301W1A028A Contact Us For Availability
6391
SERVICE PARTS LGE 383EW2A002A Contact Us For Availability
6392
SERVICE PARTS LGE 383EW1A038A Contact Us For Availability
MAX1
COOK BOOK LGE 3878W5A0034 Contact Us For Availability
MAY1
Box LGE 3890W3Y735A Contact Us For Availability
MBM2
Card,Technical LGE MBM30035001 Contact Us For Availability
MBM4
TEMPLATE LGE 4922W5A022A Contact Us For Availability
MBM5
TEMPLATE LGE 4922W5A024A Contact Us For Availability
MEZ1
LABEL,[COOKING GUIDE] LGE 3850W5D002A Contact Us For Availability
MEZ2
LABEL,[COOKING GUIDE] LGE 3850W5D002B Contact Us For Availability
MFL1
Manual,Owners LGE MFL30039301 Contact Us For Availability
MFL3
LGE MFL59060903 LGE MFL59060903 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
