  • Whirlpool SC8436EXW0

Model Whirlpool SC8436EXW0 – Common Parts & Diagrams

Guide, Cooking
Guide, Cooking WPL LIT3149508 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT4320691 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT4321076 Contact Us For Availability
View on Model
Instruction, Installation
Instruction, Installation WPL LIT786737 Contact Us For Availability
View on Model
1

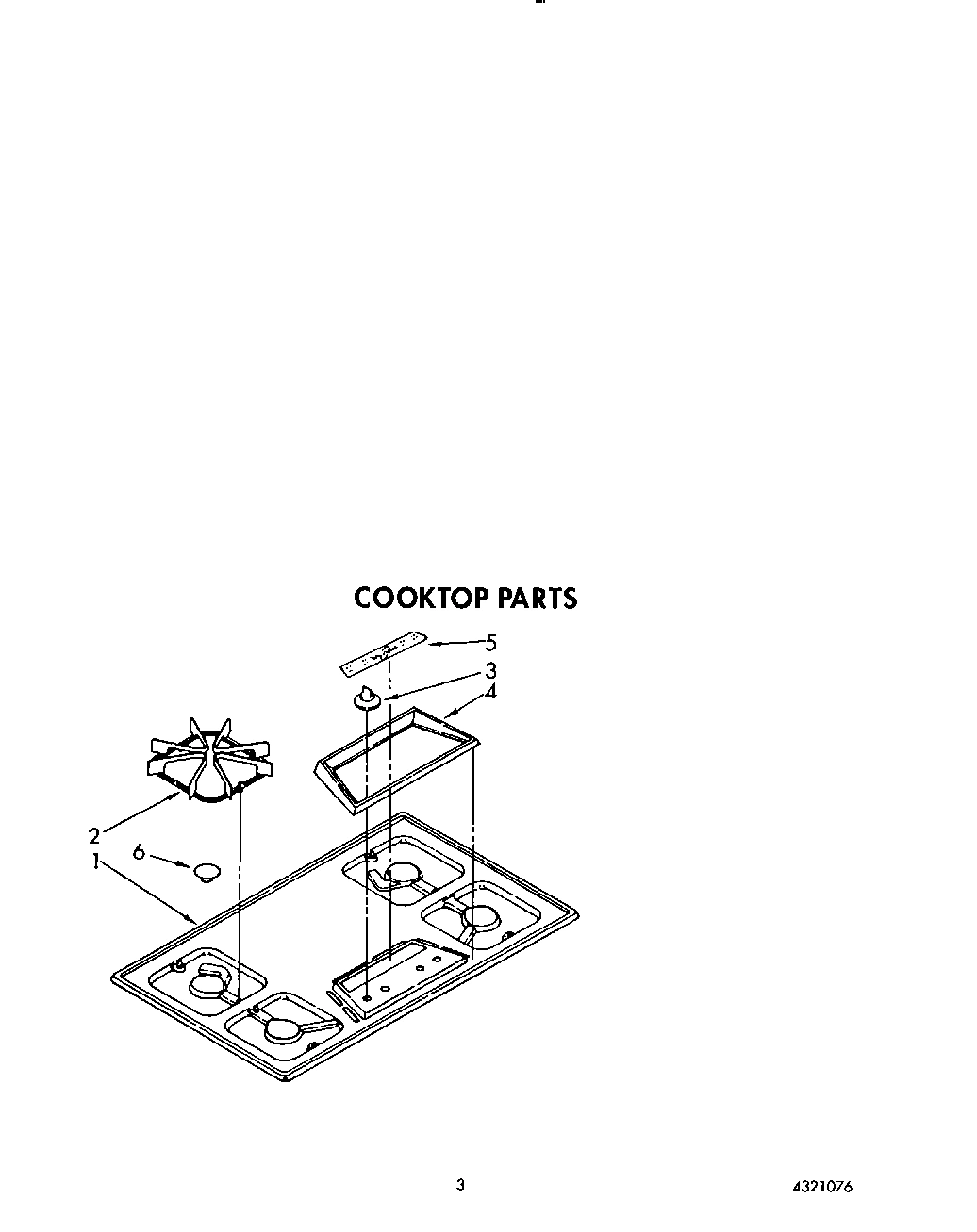

Cooktop (Almond)
Cooktop (Almond) WPL 4157499 Contact Us For Availability
View on Model
1
Cooktop (Black)
Cooktop (Black) WPL 4321064 Contact Us For Availability
View on Model
1

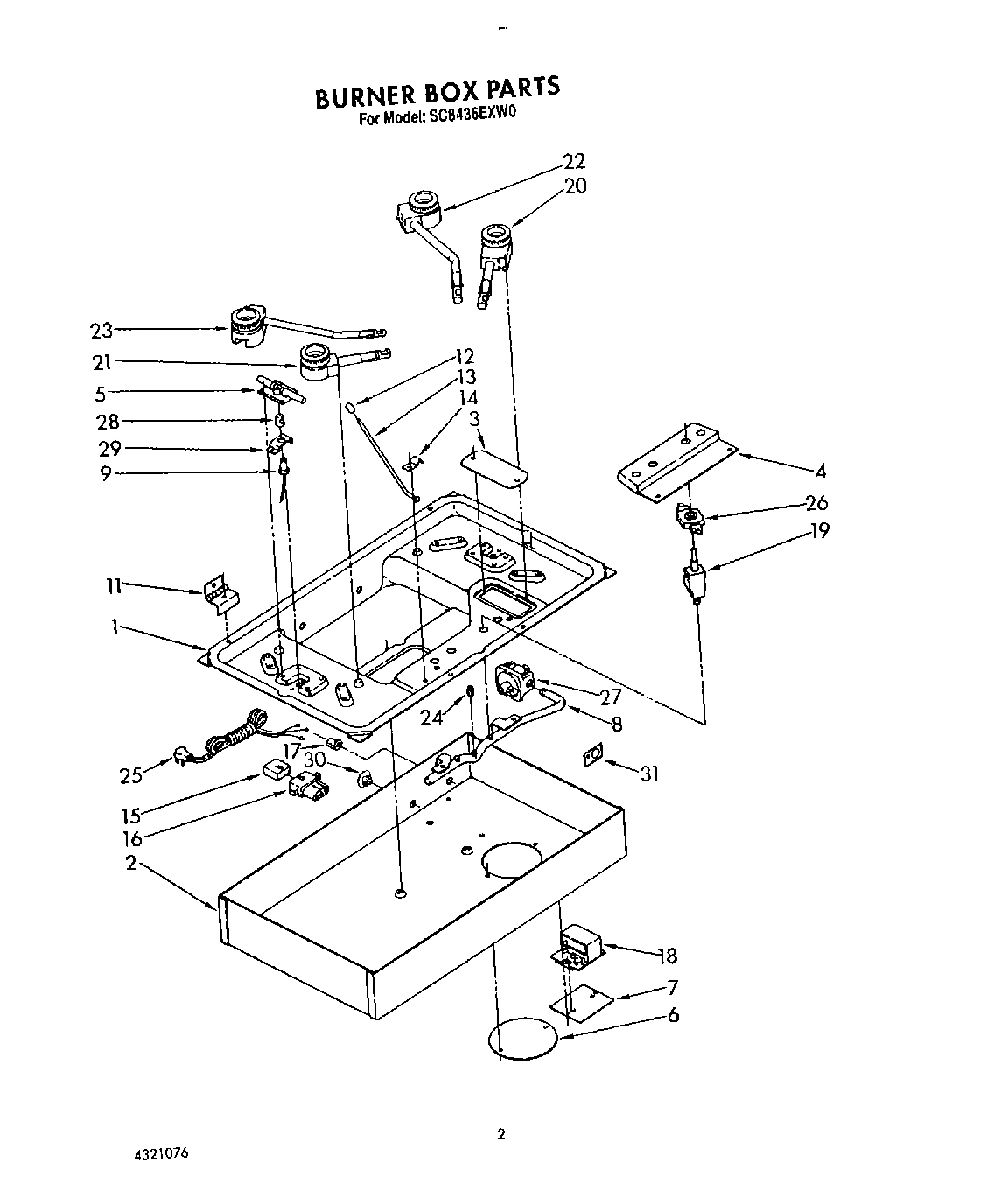

Burner Box
Burner Box WPL 4157476 Contact Us For Availability
View on Model
2
Grate (4)
Grate (4) WPL 4364025 Contact Us For Availability
View on Model
2
Casing, Burner Box
Casing, Burner Box WPL 4157477 Contact Us For Availability
View on Model
3
Knob (4)
Knob (4) WPL 4321109 Contact Us For Availability
View on Model
3
Cover, Access
Cover, Access WPL 4157478 Contact Us For Availability
View on Model
4
Trim, Cooktop
Trim, Cooktop WPL 4157496 Contact Us For Availability
View on Model
4
Cover, Switch
Cover, Switch WPL 4157479 Contact Us For Availability
View on Model
5
Nameplate
Nameplate WPL 4157544 Contact Us For Availability
View on Model
5
Tube, Flash (2)
Tube, Flash (2) WPL 4157480 Contact Us For Availability
View on Model
6
Burner Cap (4)
Burner Cap (4) WPL 4321110 Contact Us For Availability
View on Model
6
Cover, Access
Cover, Access WPL 4157481 Contact Us For Availability
View on Model
6
Screw, 8-18 X 1/4 (2)
Screw, 8-18 X 1/4 (2) WPL 786232 Contact Us For Availability
View on Model
7
Plate, Module
Plate, Module WPL 4315698 Contact Us For Availability
View on Model
8
Pipe, Manifold
Pipe, Manifold WPL 4157614 Contact Us For Availability
View on Model
9
Electrode
Electrode WPL 4315589 Contact Us For Availability
View on Model
11
Screw, 10-24 X 1/4 (2)
Screw, 10-24 X 1/4 (2) WPL 4157126 Contact Us For Availability
View on Model
11
Hinge (2)
Hinge (2) WPL 4157485 Contact Us For Availability
View on Model
12
Tip, Rod
Tip, Rod WPL 4157486 Contact Us For Availability
View on Model
13
Rod, Support
Rod, Support WPL 4157497 Contact Us For Availability
View on Model
14
Clamp, Rod
Clamp, Rod WPL 4157539 Contact Us For Availability
View on Model
16
Block, Disconnect
Block, Disconnect WPL 4157489 Contact Us For Availability
View on Model
17
Strain Relief
Strain Relief WPL 786287 Contact Us For Availability
View on Model
18
Module, Spark
Module, Spark WPL 786323 Contact Us For Availability
View on Model
19
Valve
Valve WPL 4157490 Contact Us For Availability
View on Model
20
Burner (Right Front)
Burner (Right Front) WPL 4157491 Contact Us For Availability
View on Model
21
Burner (Left Front)
Burner (Left Front) WPL 4157492 Contact Us For Availability
View on Model
22
Burner (Right Rear)
Burner (Right Rear) WPL 4157493 Contact Us For Availability
View on Model
23
Burner (Left Rear)
Burner (Left Rear) WPL 4157494 Contact Us For Availability
View on Model
25
Cord, Power
Cord, Power WPL 4157487 Contact Us For Availability
View on Model
26
Switch, Valve
Switch, Valve WPL 786130 Contact Us For Availability
View on Model
27
Pressure Regulator
Pressure Regulator WPL 786123 Contact Us For Availability
View on Model
28
Cap
Cap WPL 4157536 Contact Us For Availability
View on Model
29
Bracket
Bracket WPL 4157537 Contact Us For Availability
View on Model
30
Hole Plug
Hole Plug WPL 4157538 Contact Us For Availability
View on Model
31
Cover, Manifold Pipe
Cover, Manifold Pipe WPL 4315486 Contact Us For Availability
View on Model
