Model LG SC5MAR4G – Common Parts & Diagrams

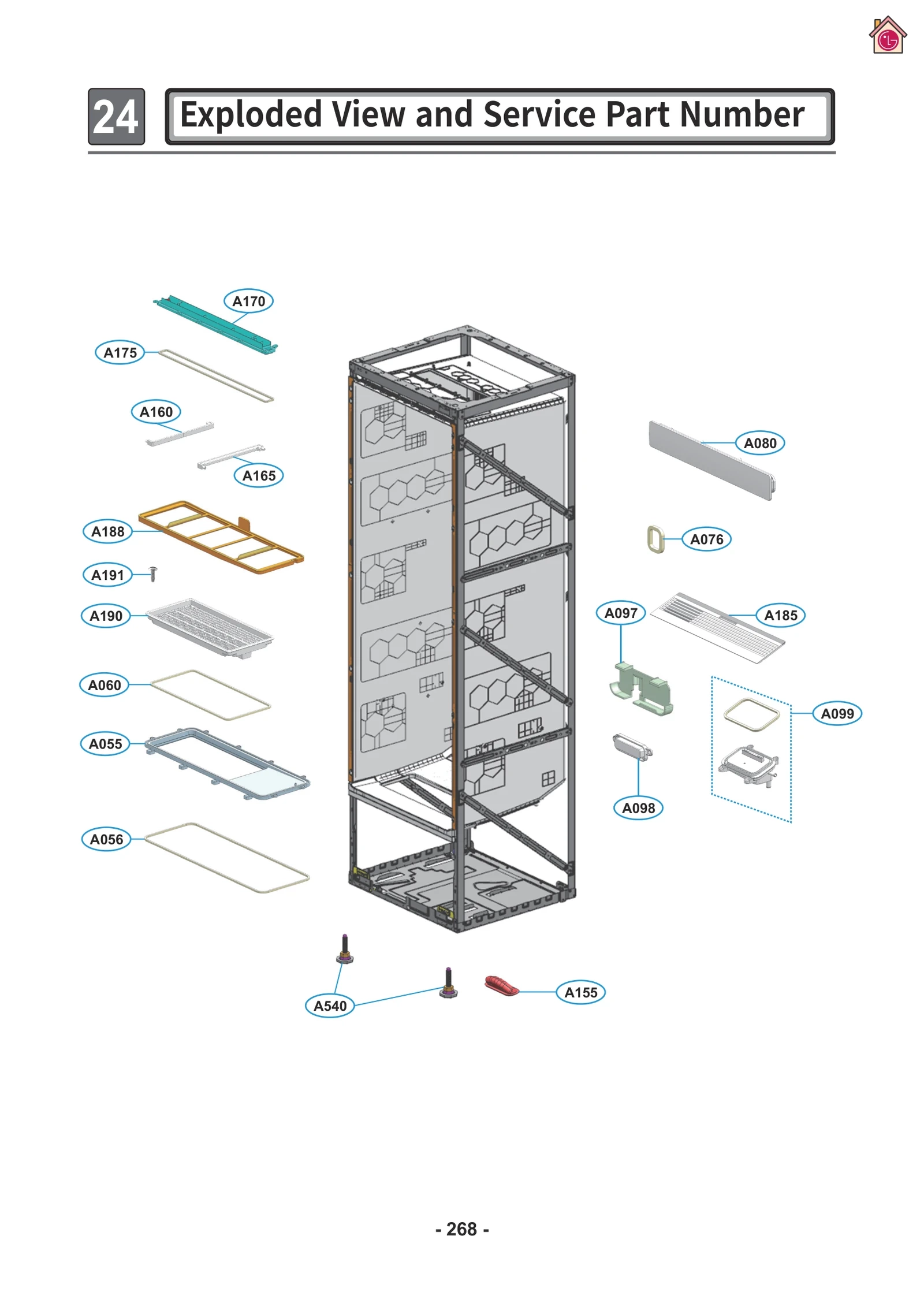

Diagram 0

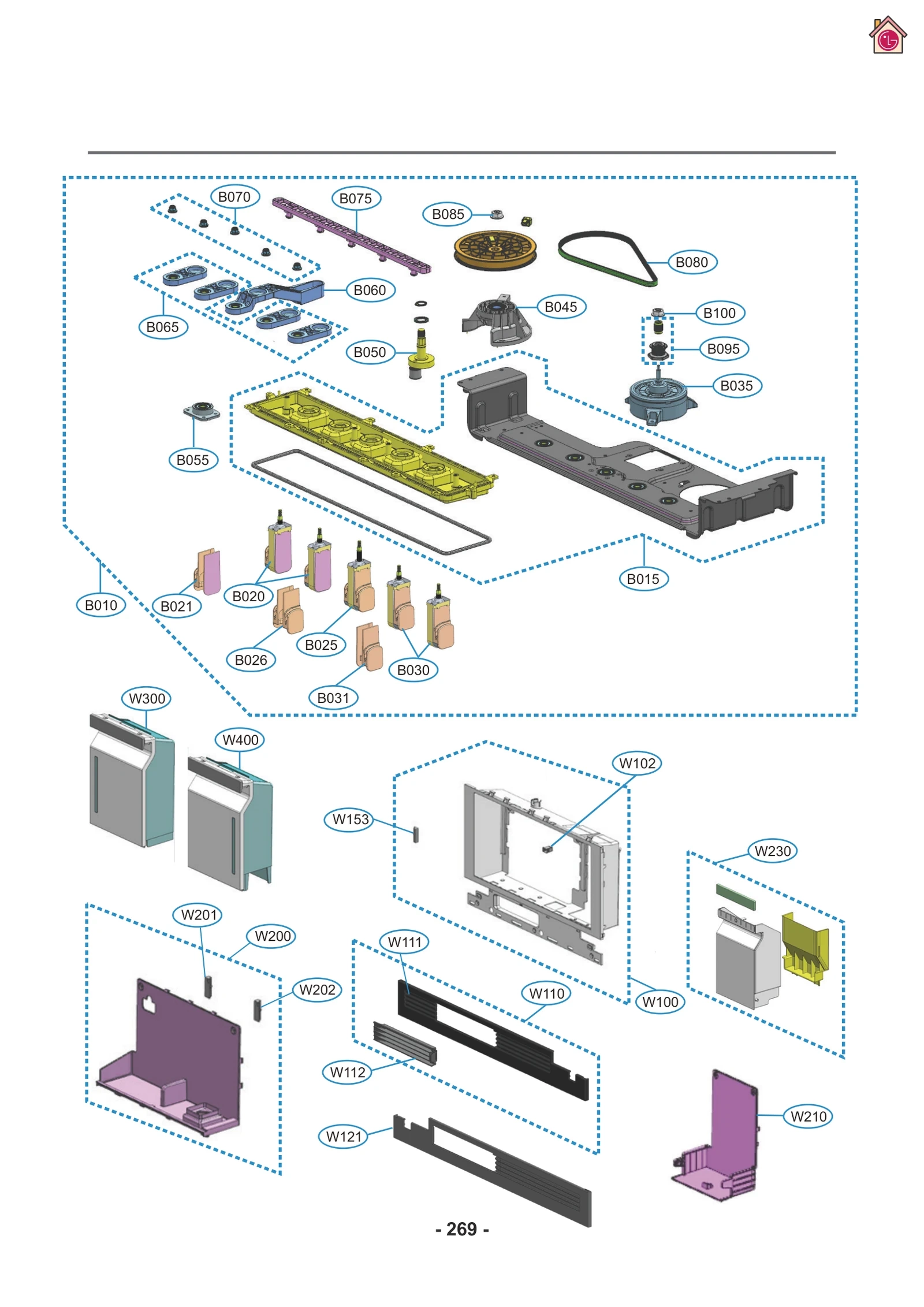

Diagram 1

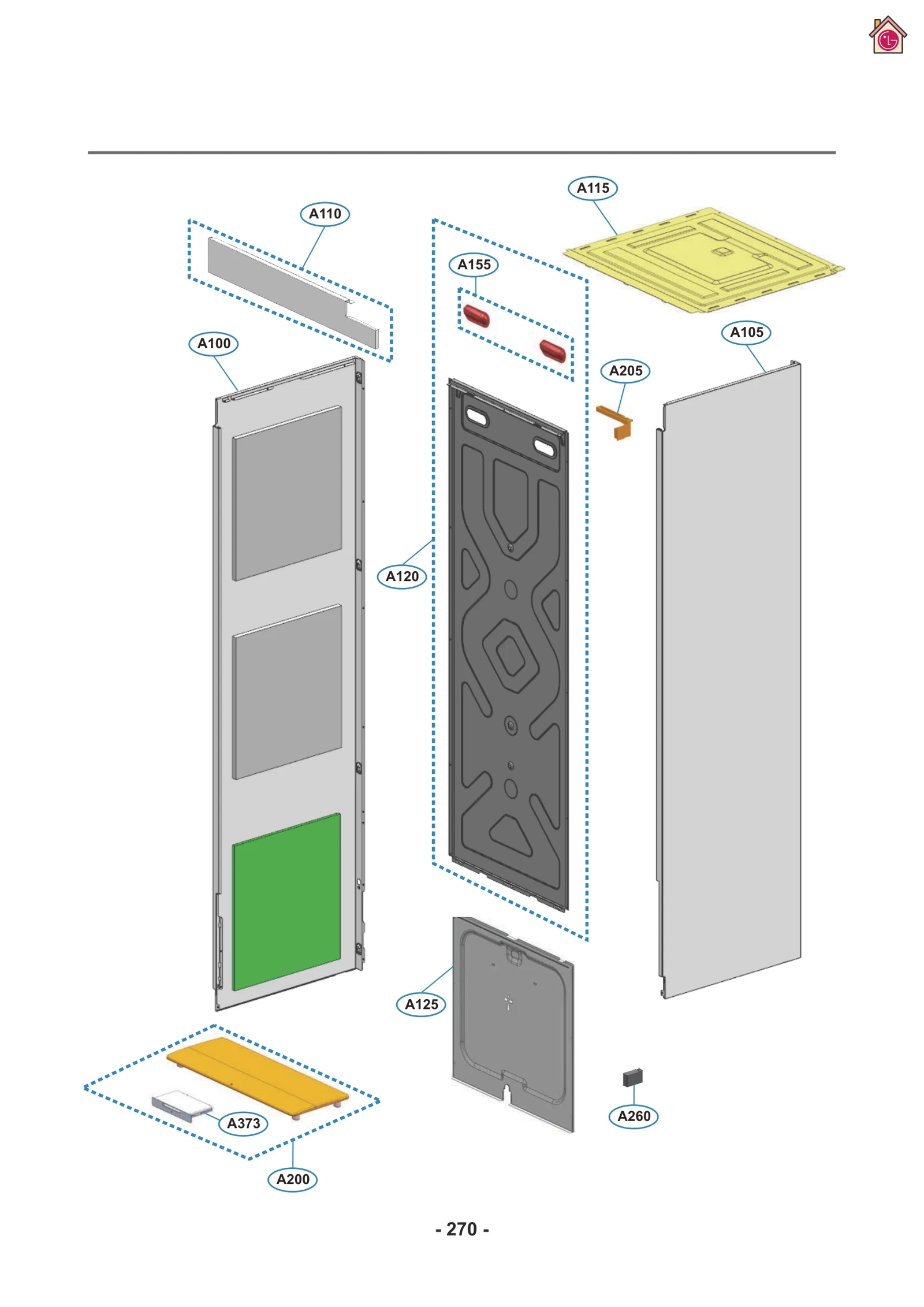

Diagram 2

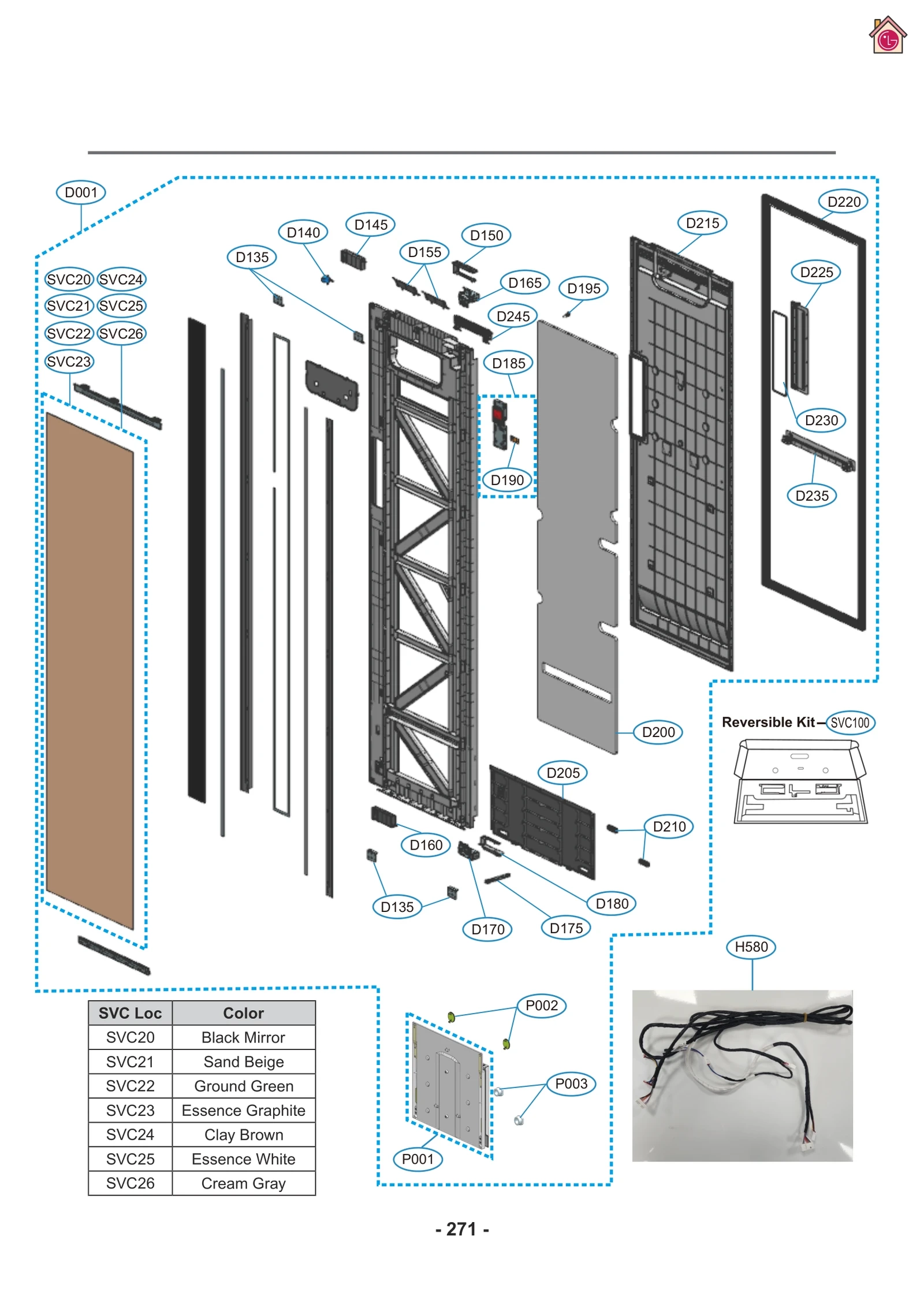

Diagram 3

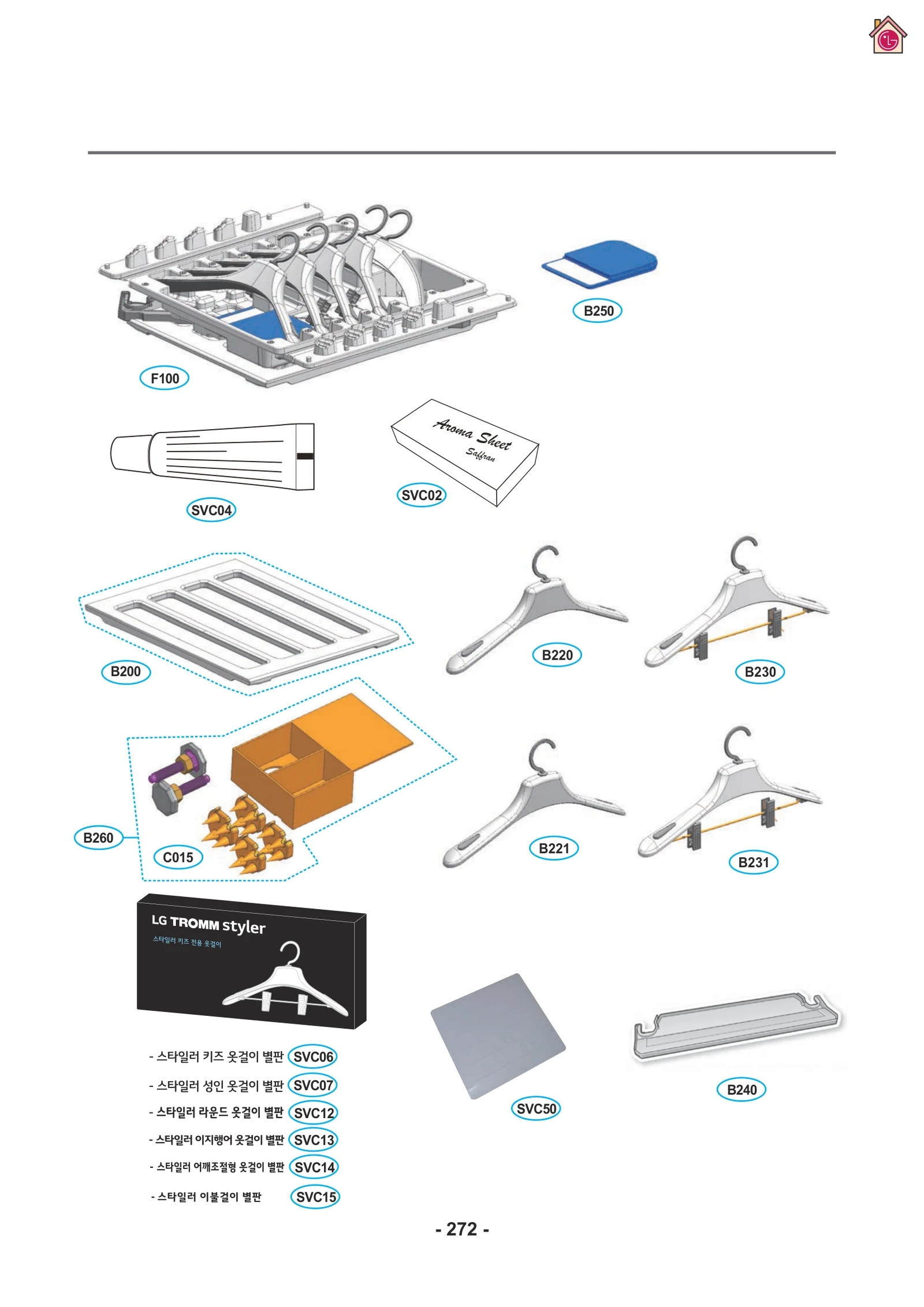

Diagram 4

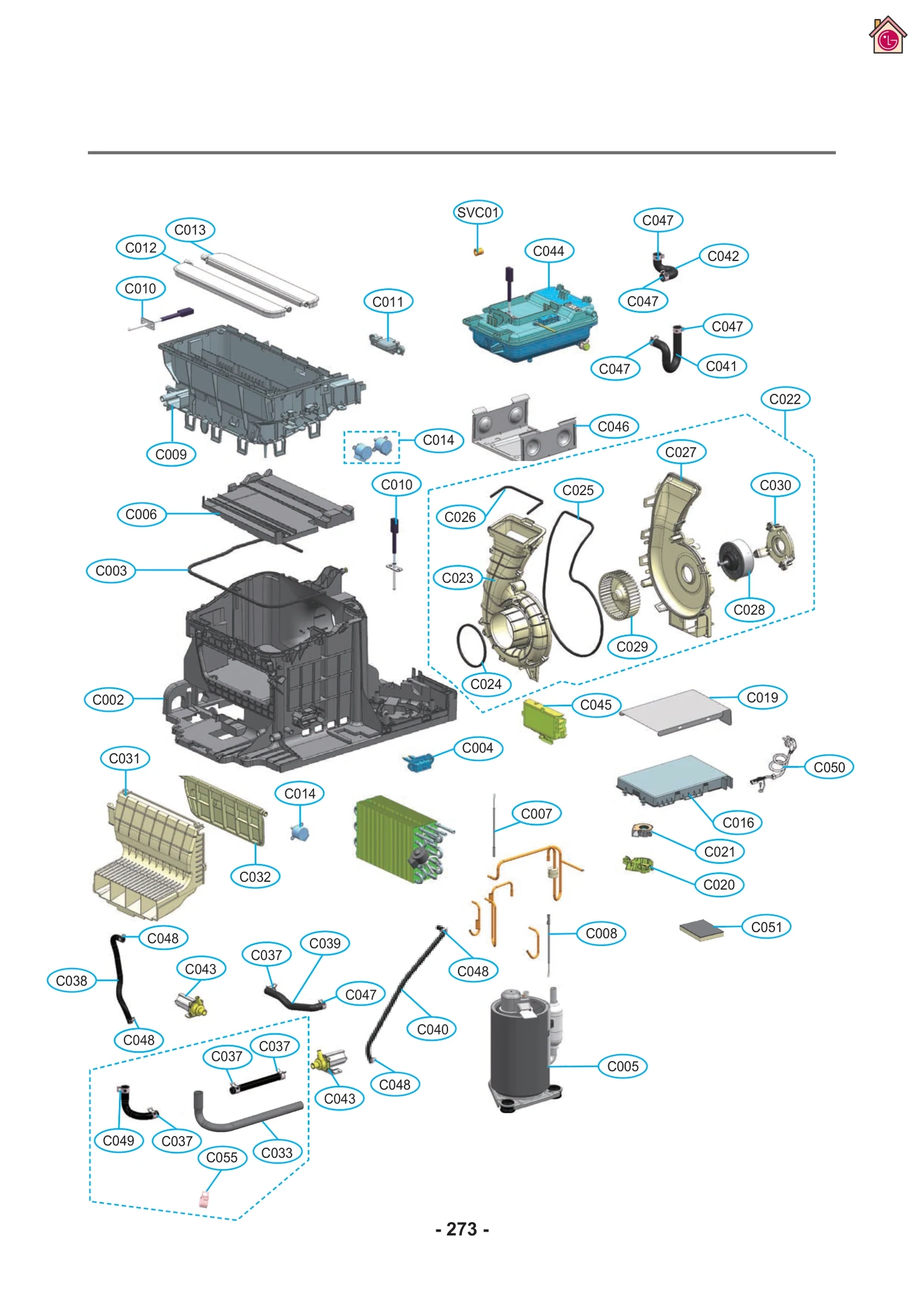

Diagram 5

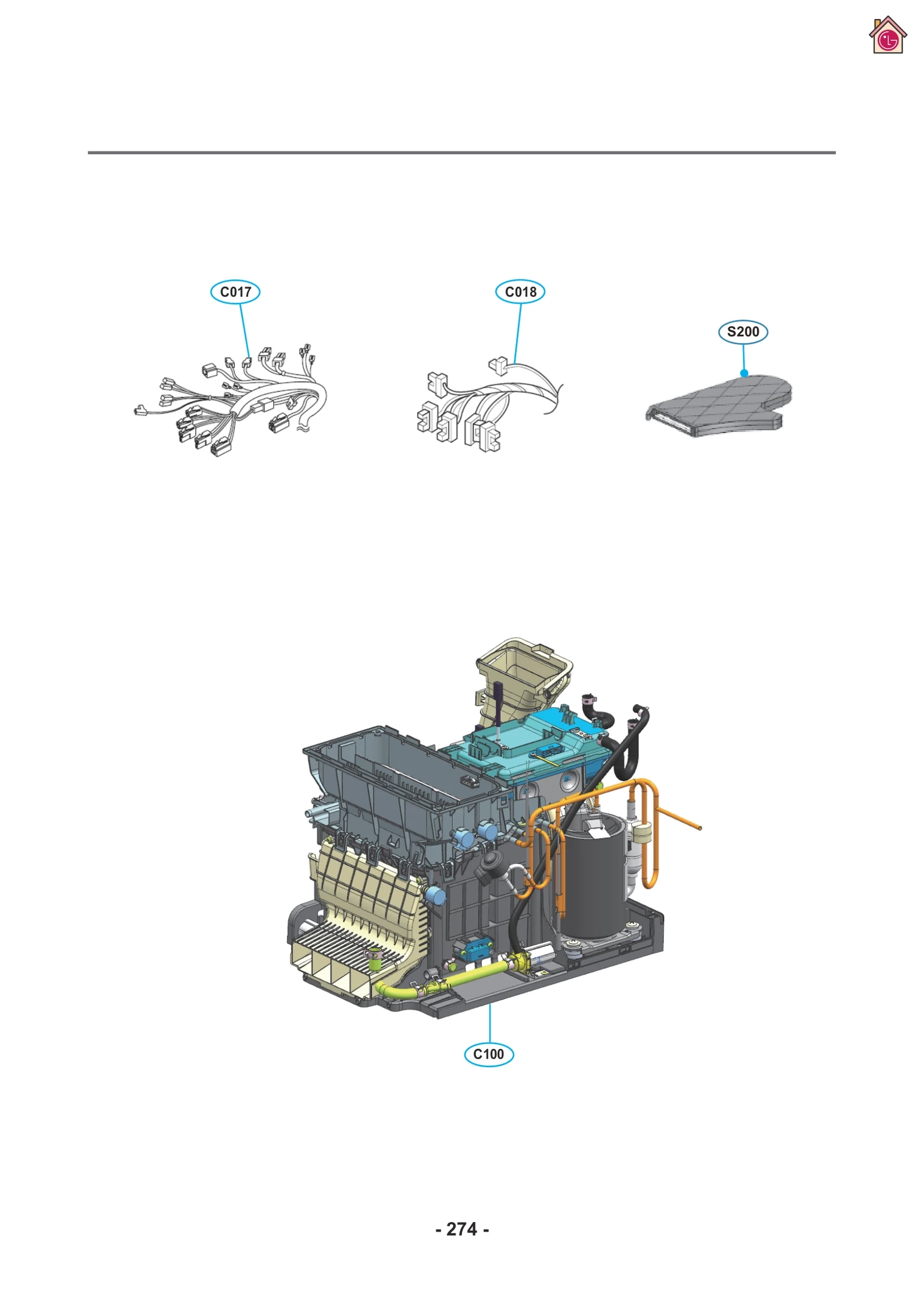

Diagram 6
Common parts from model LG SC5MAR4G
A060
Gasket LGE MDS62912137 Contact Us For Availability
A076
Gasket LGE MDS62912146 Contact Us For Availability
A080
Case Assembly,Lamp LGE ABQ30263103 Contact Us For Availability
A097
Cover,Lamp LGE MCK71935601 Contact Us For Availability
A098
Sensor Assembly LGE EBD64426001 Contact Us For Availability
A099
Nozzle Assembly LGE AGB74616101 Contact Us For Availability
A100
Cabinet Assembly LGE ABJ76763601 Contact Us For Availability
A105
Cabinet Assembly LGE ABJ76763901 Contact Us For Availability
A110
Bracket Assembly LGE ABA30093301 Contact Us For Availability
A115
Cover,Top LGE MCK71710301 Contact Us For Availability
A120
Cover Assembly,Rear LGE ACQ30578601 Contact Us For Availability
A125
Cover Assembly,Rear LGE ACQ89384604 Contact Us For Availability
A160
Supporter,Holder LGE MJH66371701 Contact Us For Availability
A165
Supporter,Holder LGE MJH66371801 Contact Us For Availability
A170
Case Assembly,Lamp LGE ABQ30229701 Contact Us For Availability
A185
Grille LGE MDX65467907 Contact Us For Availability
A188
LGE ADQ75806101 LGE ADQ75806101 Contact Us For Availability
A190
Duct,Connector LGE MCZ65396401 Contact Us For Availability
A191
Screw,Tapping LGE FAB33498801 Contact Us For Availability
A200
Cover Assembly LGE ACQ30578405 Contact Us For Availability
A205
Cap,Cover LGE MBL68732501 Contact Us For Availability
A260
Cap,Cover LGE MBL68732601 Contact Us For Availability
A373
Holder Assembly LGE AEJ76311601 Contact Us For Availability
B010
Hanger Assembly LGE AEE73409902 Contact Us For Availability
B015
Frame Assembly LGE ADV30075301 Contact Us For Availability
B020
Hanger Assembly LGE AEE73410102 Contact Us For Availability
B021
Holder LGE MEG66713301 Contact Us For Availability
B025
Hanger Assembly LGE AEE73410002 Contact Us For Availability
B026
Holder LGE MEG66712301 Contact Us For Availability
B030
Hanger Assembly LGE AEE73410202 Contact Us For Availability
B031
Holder LGE MEG66713401 Contact Us For Availability
B035
Motor Assembly,DC LGE EAU65081902 Contact Us For Availability
B045
Housing Assembly,Bearing LGE AEN75463001 Contact Us For Availability
B050
Shaft Assembly LGE AHR74150901 Contact Us For Availability
B055
Housing Assembly,Bearing LGE AEN75463601 Contact Us For Availability
B060
Lever Assembly LGE AFF73650101 Contact Us For Availability
B065
Lever Assembly LGE AFF73650201 Contact Us For Availability
B070
Nut,Common LGE FAD31030802 Contact Us For Availability
B075
Link LGE MFF64126401 Contact Us For Availability
B200
LGE AHT75338801 LGE AHT75338801 Contact Us For Availability
B220
Hanger Assembly LGE AEE73410702 Contact Us For Availability
B221
Hanger Assembly LGE AEE73009511 Contact Us For Availability
B230
Hanger Assembly LGE AEE73410701 Contact Us For Availability
B231
Hanger Assembly LGE AEE73009512 Contact Us For Availability
B250
LGE MFQ62202104 LGE MFQ62202104 Contact Us For Availability
C002
Base,Lower LGE MAM66014201 Contact Us For Availability
C005
Damper LGE MCQ68986111 Contact Us For Availability
C006
Cover,Water Inlet LGE MCK71724201 Contact Us For Availability
C009
Cover,Base LGE MCK71724501 Contact Us For Availability
C011
LED Lamp Assembly LGE ALD31620001 Contact Us For Availability
C012
Guide,Air LGE MEA66380901 Contact Us For Availability
C013
Guide,Air LGE MEA66381001 Contact Us For Availability
C014
LGE EAU30126501 LGE EAU30126501 Contact Us For Availability
C016
PCB Assembly,Main LGE EBR39083210 Contact Us For Availability
C017
Harness,Multi LGE EAD65998203 Contact Us For Availability
C018
Harness,Multi LGE EAD65998307 Contact Us For Availability
C019
Cover,Protect LGE MCK71724601 Contact Us For Availability
C020
Bracket,Fan LGE MAZ67722801 Contact Us For Availability
C021
Motor Assembly,DC,Cooling LGE EAU61663204 Contact Us For Availability
C022
Fan Assembly LGE ADP75678701 Contact Us For Availability
C023
Housing,Blower LGE MEK65187201 Contact Us For Availability
C024
Gasket LGE MDS62912138 Contact Us For Availability
C025
Gasket LGE MDS62912139 Contact Us For Availability
C026
Gasket LGE MDS62912140 Contact Us For Availability
C027
Housing,Blower LGE MEK65187301 Contact Us For Availability
C028
Motor Assembly,DC LGE EAU65082801 Contact Us For Availability
C029
Impeller,Blower LGE MER63471701 Contact Us For Availability
C030
Supporter,Motor LGE MJH66377301 Contact Us For Availability
C031
Duct,Inlet LGE MCZ65396501 Contact Us For Availability
C032
Guide,Air LGE MEA66381101 Contact Us For Availability
C033
Hose,Pump LGE MEJ64693901 Contact Us For Availability
C038
Hose,Pump LGE MEJ64693801 Contact Us For Availability
C039
Hose,Pump LGE MEJ64693701 Contact Us For Availability
C040
Hose,Pump LGE MEJ64694001 Contact Us For Availability
C041
Hose,Discharge LGE MEJ64695101 Contact Us For Availability
C042
Hose,Connector LGE MEJ64694101 Contact Us For Availability
C043
Motor Assembly,DC,Pump LGE EAU63644002 Contact Us For Availability
C044
Generator Assembly LGE ADZ73350114 Contact Us For Availability
C046
Bracket LGE MAZ67691301 Contact Us For Availability
C051
Damper,Absorbing LGE MCQ68968013 Contact Us For Availability
C100
Cycle Assembly LGE ACT76583814 Contact Us For Availability
D001
Door Assembly LGE ADC30034627 Contact Us For Availability
D135
Bracket,Hinge LGE MAZ67693901 Contact Us For Availability
D145
Cap,Cover LGE MBL68731301 Contact Us For Availability
D150
Cap,Cover LGE MBL68731501 Contact Us For Availability
D155
Duct,Outlet LGE MCZ65396801 Contact Us For Availability
D160
Cap,Cover LGE MBL68731401 Contact Us For Availability
D165
Hinge LGE MEF62482402 Contact Us For Availability
D175
Slider LGE MHS62482202 Contact Us For Availability
D180
Cap,Cover LGE MBL68731601 Contact Us For Availability
D185
PCB Assembly,Display LGE EBR41920702 Contact Us For Availability
D195
Hanger,Upper LGE MEC62684902 Contact Us For Availability
D200
Damper LGE MCQ70889601 Contact Us For Availability
D205
Door Liner LGE MCW64255301 Contact Us For Availability
D210
Damper LGE MCQ70883301 Contact Us For Availability
D215
Door Liner LGE MCW64254001 Contact Us For Availability
D220
Gasket LGE MDS30083401 Contact Us For Availability
D220
Gasket LGE MDS64510910 Contact Us For Availability
D225
Cover,Guide LGE MCK71728802 Contact Us For Availability
D230
Gasket LGE MDS62912143 Contact Us For Availability
D235
Supporter,Holder LGE MJH66378701 Contact Us For Availability
D245
Guide,Air LGE MEA66382101 Contact Us For Availability
F100
Accessory Assembly LGE AAA30993314 Contact Us For Availability
H580
Harness,Multi LGE EAD65998603 Contact Us For Availability
P001
Door Assembly LGE ADC30039510 Contact Us For Availability
P002
Cap,Screw LGE MBL65478505 Contact Us For Availability
P003
Cap,Screw LGE MBL68733501 Contact Us For Availability
SVC02
Aroma Sheet,Parts Assembly,SVC LGE AGM73611307 Contact Us For Availability
SVC02
Aroma Sheet,Parts Assembly,SVC LGE AGM73611309 Contact Us For Availability
SVC06
Package Assembly,Accessory LGE AGF79600805 Contact Us For Availability
SVC07
Package Assembly,Accessory LGE AGF79600801 Contact Us For Availability
SVC12
LGE AGM30080101 LGE AGM30080101 Contact Us For Availability
SVC13
LGE AAA31340701 LGE AAA31340701 Contact Us For Availability
SVC14
LGE AGF79600813 LGE AGF79600813 Contact Us For Availability
SVC15
Package Assembly,Accessory LGE AGF79600816 Contact Us For Availability
SVC50
Plate,Lower LGE MGJ66164101 Contact Us For Availability
SVC100
Box Assembly,Local Sourcing Parts LGE CLS32185301 Contact Us For Availability
W100
Frame Assembly LGE ADV30084602 Contact Us For Availability
W102
Locker Assembly LGE AFK73109601 Contact Us For Availability
W110
Decor Assembly,Door LGE ACW76663301 Contact Us For Availability
W111
Decor,Door LGE MCR68462501 Contact Us For Availability
W112
LGE ADQ75811901 LGE ADQ75811901 Contact Us For Availability
W121
Decor,Door LGE MCR68477701 Contact Us For Availability
W200
Cover Assembly,Rear LGE ACQ30583701 Contact Us For Availability
W210
Cover,Rear LGE MCK71734401 Contact Us For Availability
W230
Case Assembly LGE ABQ30223801 Contact Us For Availability
W300
Tank Assembly,Water LGE AJL75320204 Contact Us For Availability
W400
LGE AJL75320105 LGE AJL75320105 Contact Us For Availability
× ![]()
