Model Whirlpool SBE26EB ELECTRIC RANGE – Common Parts & Diagrams

1

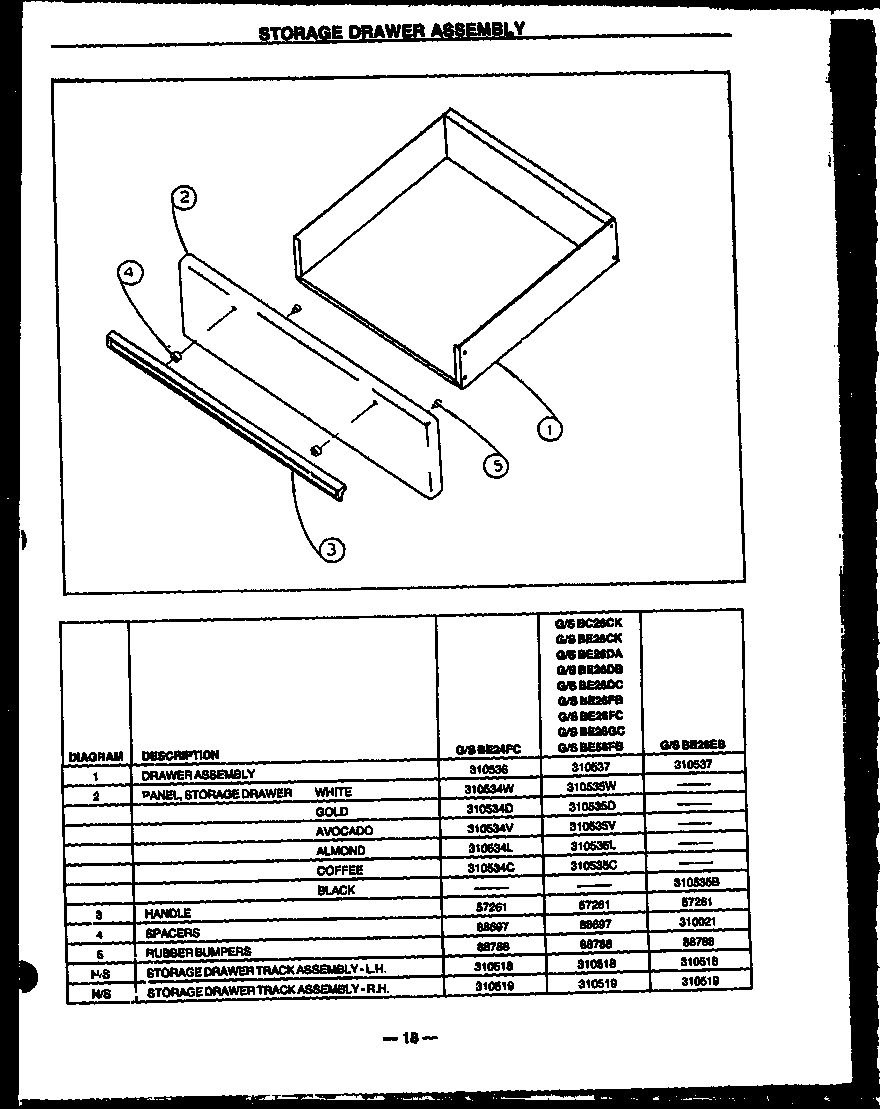

STORAGE DRAWER
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
View on Model
1

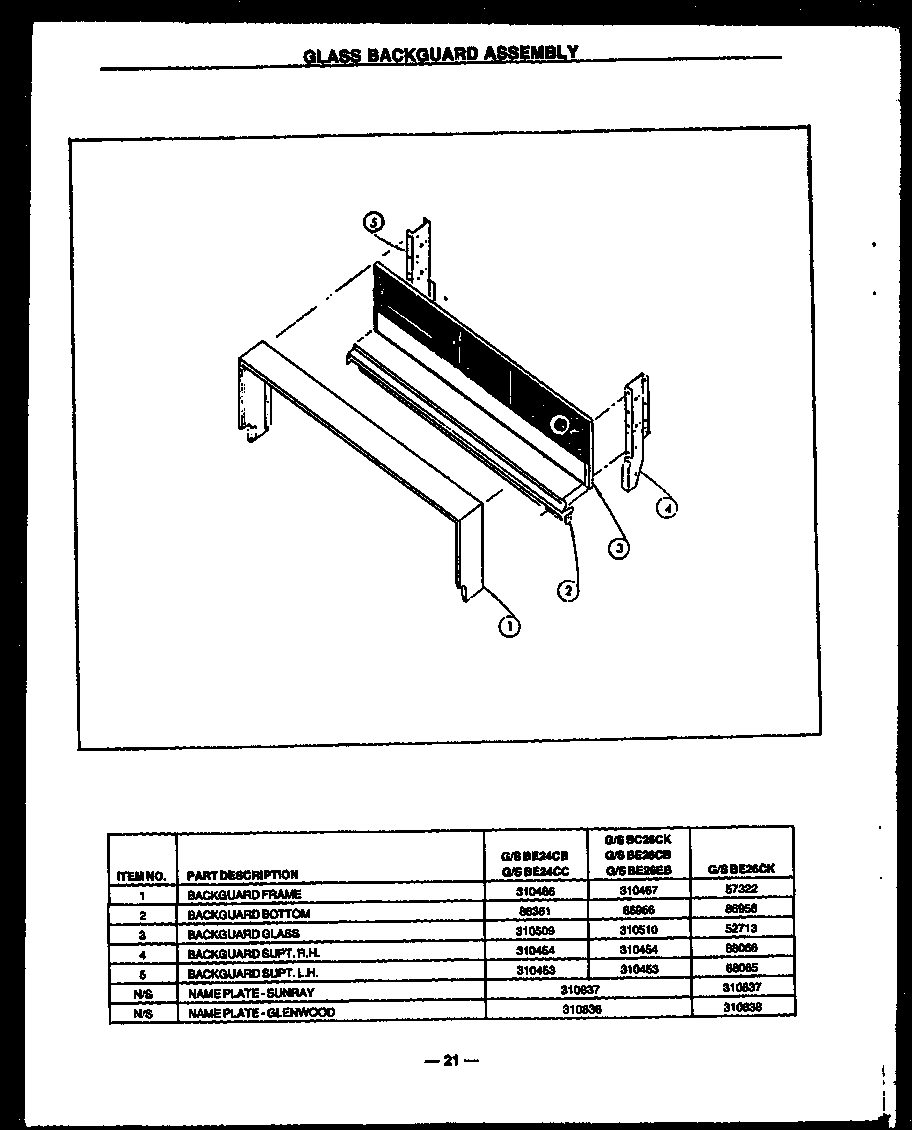

FRAME, BACKGUARD, 6``
FRAME, BACKGUARD, 6`` WPL Y0310467 Contact Us For Availability
View on Model
1

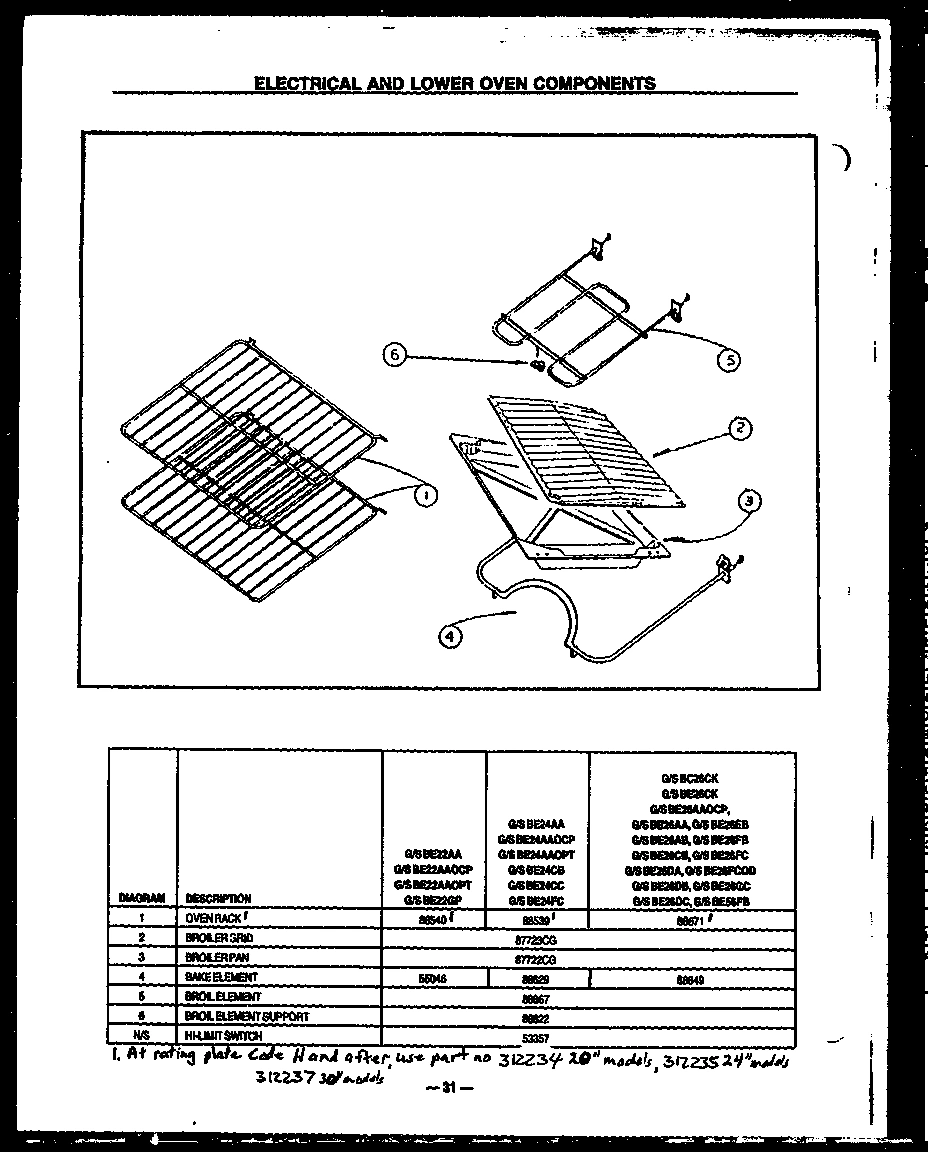

OVEN RACK
OVEN RACK WPL Y0088671 Contact Us For Availability
View on Model
2
HANDLE, DOOR (J)
HANDLE, DOOR (J) WPL Y0057315 Contact Us For Availability
View on Model
2
STORAGE DRAWER PANEL, BLACK
STORAGE DRAWER PANEL, BLACK WPL 310535B Contact Us For Availability
View on Model
2
BASE-BKGD, 30`` W/HOLES
BASE-BKGD, 30`` W/HOLES WPL Y0086956 Contact Us For Availability
View on Model
3
SUB 88812, HANDLE OVEN DR {J}
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
View on Model
3
GLASS, BACKGUARD, 6``
GLASS, BACKGUARD, 6`` WPL Y0310510 Contact Us For Availability
View on Model
4

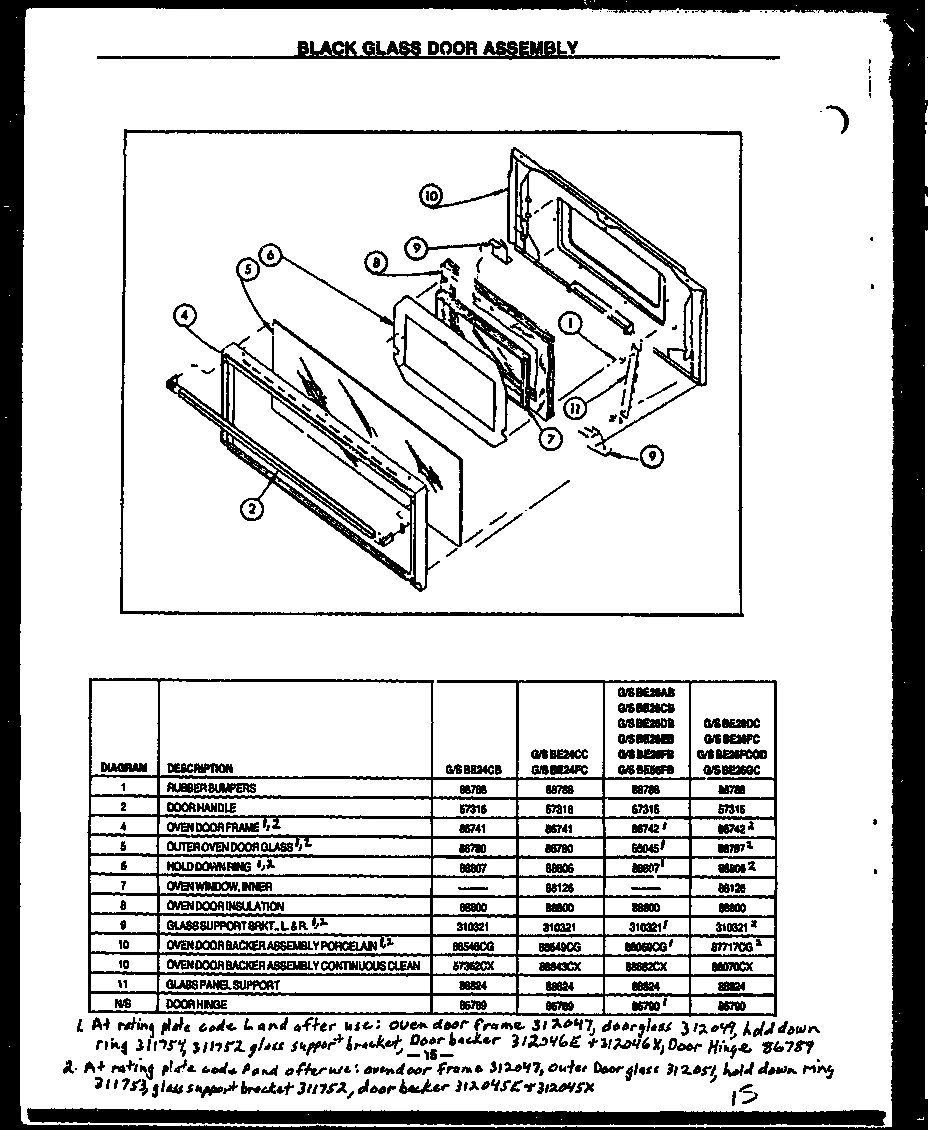

OVEN DOOR FRAME
OVEN DOOR FRAME WPL 86742 Contact Us For Availability
View on Model
4
SPACER, HANDLE
SPACER, HANDLE WPL 310021 Contact Us For Availability
View on Model
4
SUPPORT, BACKGUARD, 6`` LH
SUPPORT, BACKGUARD, 6`` LH WPL Y0310454 Contact Us For Availability
View on Model
5
BUMPER-RUBBER 1/4``
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
View on Model
5
OUTER DOOR GLASS
OUTER DOOR GLASS WPL Y0055045 Contact Us For Availability
View on Model
5
SUPPORT, BACKGUARD, 6`` RH
SUPPORT, BACKGUARD, 6`` RH WPL Y0310453 Contact Us For Availability
View on Model
6
RING, INSULATION HOLD DOWN
RING, INSULATION HOLD DOWN WPL 0088807 Contact Us For Availability
View on Model
8
SUB 41966, INSULATION
SUB 41966, INSULATION WPL Y0088800 Contact Us For Availability
View on Model
8
SUPPORT ROD
SUPPORT ROD WPL 0087023 Contact Us For Availability
View on Model
9
SUPPORT, FULL GLASS DR {J}
SUPPORT, FULL GLASS DR {J} WPL 0310321 Contact Us For Availability
View on Model
10
BACKER, OVEN DOOR (NO WINDOW)
BACKER, OVEN DOOR (NO WINDOW) WPL 88069CG Contact Us For Availability
View on Model
10
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 88682CX Contact Us For Availability
View on Model
10
SUPPORT, REAR, VERTICAL {J}
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
View on Model
11
SUPPORT, GLASS PANEL{J}
SUPPORT, GLASS PANEL{J} WPL 0088824 Contact Us For Availability
View on Model
11
SHIELD, SWITCH COVER
SHIELD, SWITCH COVER WPL 86935CG Contact Us For Availability
View on Model
14
BURNER BOX
BURNER BOX WPL 56011CG Contact Us For Availability
View on Model
16
COVER, REAR BURNER BOX
COVER, REAR BURNER BOX WPL 311014E Contact Us For Availability
View on Model
20
BOTTOM WIRE COVER SUPPORT
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
View on Model
22
COVER WIRE
COVER WIRE WPL Y0088833 Contact Us For Availability
View on Model
24
SHOULDER SCREW
SHOULDER SCREW WPL 0088779 Contact Us For Availability
View on Model
25
TRACK, LOWER L.H.
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
View on Model
26
TRACK, LOWER R.H.
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
View on Model
27
SEE NOTE ROLLER
SEE NOTE ROLLER WPL Y00000000 Contact Us For Availability
View on Model
31
TOP DOOR SEAL
TOP DOOR SEAL WPL 56069 Contact Us For Availability
View on Model
NI
HINGE, OVEN DOOR
HINGE, OVEN DOOR WPL Y0086790 Contact Us For Availability
View on Model
NI
TRACK, UPPER L.H. (ELEC)
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
View on Model
NI
TRACK, UPPER R.H. (ELEC)
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
View on Model
NI
SCREW
SCREW WPL 0055047 Contact Us For Availability
View on Model
NI
KNOB, CLOCK
KNOB, CLOCK WPL Y0055020 Contact Us For Availability
View on Model
NI
CLOCK (USED IN R0168021 KIT)
CLOCK (USED IN R0168021 KIT) WPL Y0056096 Contact Us For Availability
View on Model
NI
SUNRAY LABEL
SUNRAY LABEL WPL 0310837 Contact Us For Availability
View on Model
NI
NAMEPLATE, GLENWOOD
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
View on Model
