Model LG SA565 – Common Parts & Diagrams

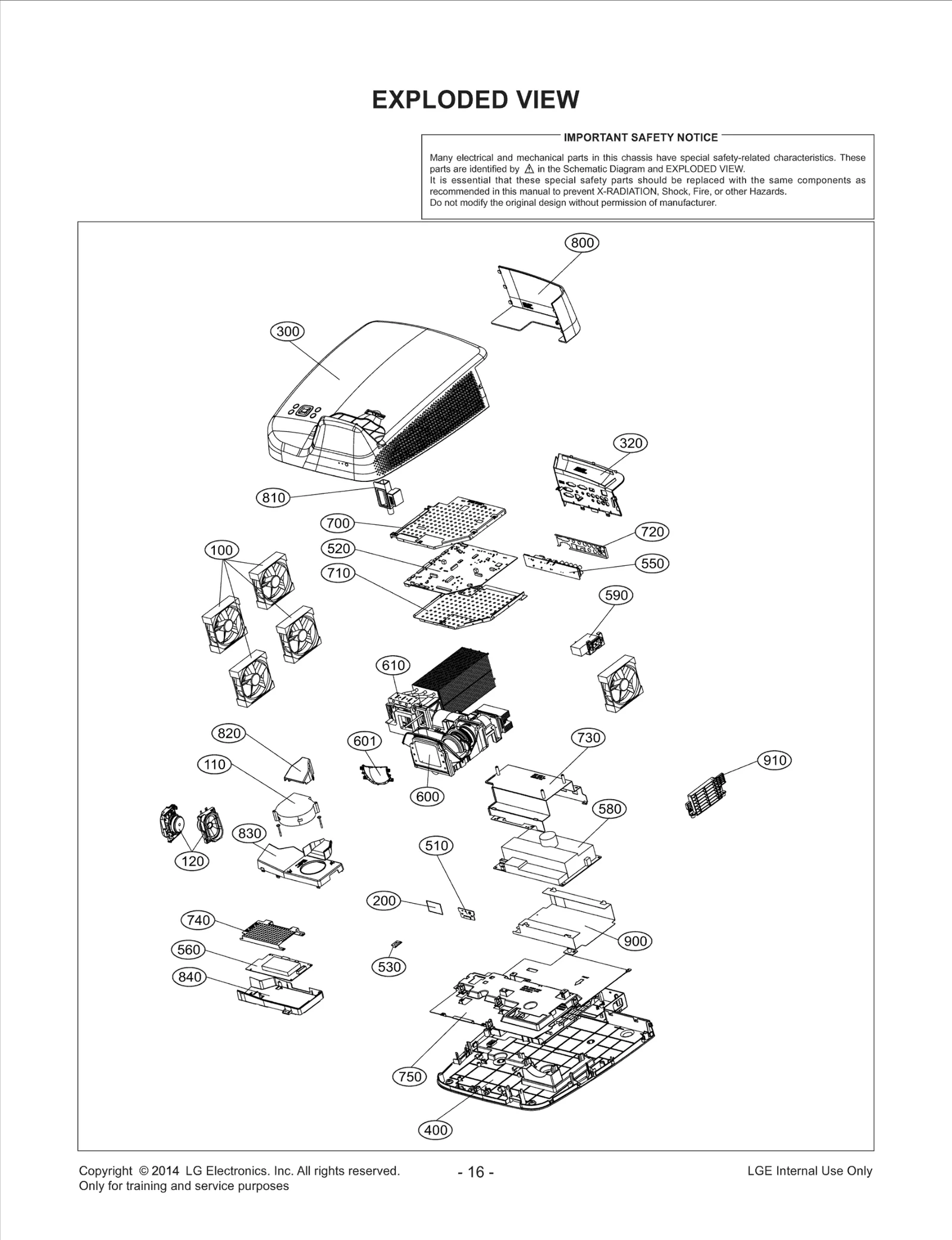

Diagram 0
Diagram 1
Common parts from model LG SA565
110
Fan Module LGE EAL38674207 Contact Us For Availability
300
Case Assembly LGE ABQ73953101 Contact Us For Availability
510
Chassis Assembly LGE EBT62336301 Contact Us For Availability
520
BPR Total Assembly LGE EBU62015401 Contact Us For Availability
530
Chassis Assembly LGE EBT62292701 Contact Us For Availability
550
Chassis Assembly LGE EBT62213701 Contact Us For Availability
560
Hand Insert PCB Assembly LGE EBR75870501 Contact Us For Availability
600
Chassis Assembly LGE EBT62334701 Contact Us For Availability
601
Mirror LGE MFP62162002 Contact Us For Availability
610
LED Assembly LGE EAV62033701 Contact Us For Availability
700
Plate,Shield LGE MGJ63444001 Contact Us For Availability
710
Plate,Shield LGE MGJ63422801 Contact Us For Availability
720
Plate LGE MGJ63423001 Contact Us For Availability
730
Plate LGE MGJ63444201 Contact Us For Availability
740
Plate LGE MGJ63422901 Contact Us For Availability
750
Plate LGE MGJ63444101 Contact Us For Availability
800
Cover LGE MCK67239601 Contact Us For Availability
820
Cover LGE MCK67239501 Contact Us For Availability
830
Cover LGE MCK67292101 Contact Us For Availability
840
Cover LGE MCK67239401 Contact Us For Availability
910
Bracket LGE MAZ63586801 Contact Us For Availability
A1
Title LGE SAC30666052 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73775302 Contact Us For Availability
A11
Title LGE SAC30666050 Contact Us For Availability
AR100
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR1504
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
BU800
Buzzer,Magnetic LGE 6908000014A Contact Us For Availability
C112
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C220
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C223
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C238
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C305
Capacitor,Ceramic,Chip LGE 0CZZB00043A Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C358
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C501
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C511
CAPACITOR,FIXED ELEC LGE 0CE337WH6DC Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C537
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C543
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C544
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C555
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C558
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C703
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C721
CAPACITOR,FIXED ELEC LGE 0CE476WC6DC Contact Us For Availability
C737
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5100K416 Contact Us For Availability
C808
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
C809
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C819
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C823
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C906
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C908
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1004
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1029
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1205
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1223
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C1232
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C1243
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1302
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1314
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C1328
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C1402
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE EAE39143401 Contact Us For Availability
C1606
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1704
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C1800
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C1815
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C1817
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1818
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C1822
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C1825
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C1827
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C1843
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C1849
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C1856
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C1904
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D201
Diode,Schottky LGE EAH60678401 Contact Us For Availability
D500
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D703
Diode,Switching LGE 0DSAU00108A Contact Us For Availability
D802
Diode,TVS LGE EAH60667401 Contact Us For Availability
D902
Diode,TVS LGE EAH61515101 Contact Us For Availability
D903
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1003
Diode,TVS LGE EAH33945901 Contact Us For Availability
D1302
Varistor LGE EAF61530201 Contact Us For Availability
D1800
Diode,Schottky LGE 0DRDI00108A Contact Us For Availability
D1809
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D1810
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
D1813
DIODE,RECTIFIERS LGE 0DRON00088A Contact Us For Availability
D2002
Diode,TVS LGE EAH42720601 Contact Us For Availability
IC10
Socket,IC LGE EAG61232301 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN62408001 Contact Us For Availability
IC102
IC,EEPROM LGE EAN61925802 Contact Us For Availability
IC300
IC,LED Driver LGE EAN62455001 Contact Us For Availability
IC403
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC500
IC,CMOS LGE EAN38682701 Contact Us For Availability
IC501
IC,Reset LGE EAN60670101 Contact Us For Availability
IC501
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC502
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN61950701 Contact Us For Availability
IC510
IC,DC,DC Converter LGE EAN62409001 Contact Us For Availability
IC600
S/W,Firmware LGE SAA36163008 Contact Us For Availability
IC703
IC,ROHM LGE 0IRH765700B Contact Us For Availability
IC801
IC,POWER MANAGEMENT LGE 0IPMG00004A Contact Us For Availability
IC802
IC,Buffer LGE 0IPRPBB005A Contact Us For Availability
IC804
IC,CMOS LGE EAN61867901 Contact Us For Availability
IC850
IC,OP Amplifier LGE EAN62655301 Contact Us For Availability
IC901
IC,STANDARD LOGIC LGE 0ISTLON023B Contact Us For Availability
IC1005
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC1007
IC,CMOS LGE 0ISTL00021A Contact Us For Availability
IC1100
IC,Tx/Rx LGE EAN60390201 Contact Us For Availability
IC1200
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1201
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC1300
IC,Ethernet LGE EAN58379401 Contact Us For Availability
IC1300
S/W,Firmware LGE SAA36362401 Contact Us For Availability
IC1301
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1303
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC1500
IC,Microprocessors LGE EAN62573501 Contact Us For Availability
IC1800
IC,Power Driver LGE 0IMCR02219A Contact Us For Availability
IC1801
IC,MICRO CONTROLLER LGE 0IMCRFA003A Contact Us For Availability
IC1802
IC,Inverter LGE EAN60994601 Contact Us For Availability
IC1803
IC,Unclassified LGE 0IPMG78386A Contact Us For Availability
IC1905
IC,EEPROM LGE 0IMMR00023A Contact Us For Availability
IC1907
IC,Gate LGE 0IMCRPH015A Contact Us For Availability
IC1910
IC,Multiplexer LGE EAN61109001 Contact Us For Availability
IC2002
IC,CMOS LGE EAN62655801 Contact Us For Availability
JK1
Jack,Phone LGE 6612F00099F Contact Us For Availability
JK2
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
JK8
CONNECTOR (CIRC),USB LGE 6630SK01104 Contact Us For Availability
JK700
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK701
Connector,USB LGE EAG63372001 Contact Us For Availability
JK800
Connector,USB LGE EAG62571101 Contact Us For Availability
L100
Inductor,Wire Wound,Axial LGE 0LCAB00012A Contact Us For Availability
L503
Filter,LCR LGE 6200J000132 Contact Us For Availability
L507
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L511
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L1200
Filter,Bead LGE EAM38769505 Contact Us For Availability
L1203
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1607
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1801
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
L1807
Inductor,Wire Wound,Chip LGE EAP38274508 Contact Us For Availability
L1810
Inductor,Wire Wound,Chip LGE EAP38274506 Contact Us For Availability
L1813
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L2004
Filter,Bead LGE EAM54407902 Contact Us For Availability
LD1001
LED LGE 0DL233309AC Contact Us For Availability
M902
Gasket LGE MDS62110205 Contact Us For Availability
M906
Gasket LGE MDS62110204 Contact Us For Availability
NR03
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
P500
Connector,FFC/FPC/PIC LGE EAG61090202 Contact Us For Availability
P500
Connector,Wafer LGE 6630VK19611 Contact Us For Availability
P501
CONNECTOR (CIRC),WAFER LGE 6630VK19608 Contact Us For Availability
P502
Connector,Wafer LGE EAG39798201 Contact Us For Availability
P701
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P902
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P903
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P1200
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P1301
Jack,Modular LGE EAG38645702 Contact Us For Availability
P1500
Connector,FFC/FPC/PIC LGE EAG61008602 Contact Us For Availability
P1801
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P1803
CONNECTOR (CIRC),WAF LGE 6630VE00204 Contact Us For Availability
P2000
Connector,Wafer LGE 6602T12005D Contact Us For Availability
Q500
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q800
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q920
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1301
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q1800
TRANSISTOR,FETS LGE 0TFON80004C Contact Us For Availability
R21
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R24
RESISTOR,METAL GLAZE LGE 0RJ3601E472 Contact Us For Availability
R27
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R29
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ0102E472 Contact Us For Availability
R102
Resistor,Chip LGE EBC62497201 Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ1500D477 Contact Us For Availability
R108
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R123
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R166
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R195
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0222D477 Contact Us For Availability
R207
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R222
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R240
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ6202E472 Contact Us For Availability
R313
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R316
Resistor,Chip LGE EBC62458801 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R414
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R425
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R500
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R507
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ1803D677 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R529
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R530
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R531
RESISTOR,METAL GLAZE LGE 0RJ3000C477 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R538
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R700
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R734
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R746
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R812
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R826
RESISTOR,METAL GLAZE LGE 0RJ3602D677 Contact Us For Availability
R830
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R836
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R837
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R838
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R922
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R923
Resistor,Chip LGE 0RJ0622D677 Contact Us For Availability
R1043
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R1051
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R1056
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R1059
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R1111
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1116
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1211
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R1222
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1300
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1312
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1317
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1323
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1338
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R1352
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1639
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R1705
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1815
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R1823
Resistor,Chip LGE EBC42745201 Contact Us For Availability
R1826
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R1827
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R1829
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R1830
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R1833
Resistor,Chip LGE 0RJ5100D477 Contact Us For Availability
R1834
Resistor,Chip LGE EBC60665702 Contact Us For Availability
R1835
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R1839
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R1840
Resistor,Chip LGE 0RJ1601C478 Contact Us For Availability
R1848
Resistor,Chip LGE 0RJ7500E472 Contact Us For Availability
R1866
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1870
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R1932
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R1963
RESISTOR,METAL GLAZE LGE 0RJ2001D477 Contact Us For Availability
R2014
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
S1
Harness,Single LGE EAD60732908 Contact Us For Availability
S2
Cable,FFC LGE EAD61670702 Contact Us For Availability
S3
Harness,Single LGE EAD42065903 Contact Us For Availability
S4
Harness,Single LGE EAD52821205 Contact Us For Availability
S6
Wire,Flat LGE EAD62291101 Contact Us For Availability
S7
Harness,Single LGE EAD60676310 Contact Us For Availability
S8
Harness,Single LGE EAD62094403 Contact Us For Availability
S10
Harness,Single LGE EAD60958557 Contact Us For Availability
S11
Cable,FFC LGE EAD62329601 Contact Us For Availability
S12
Harness,Single LGE 6631T20010T Contact Us For Availability
S12
Cable,Assembly LGE EAD57734003 Contact Us For Availability
SW26
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW26
Switch,Tact LGE EBF55334201 Contact Us For Availability
VA802
Varistor LGE EAF61530301 Contact Us For Availability
VA810
Varistor LGE EAF61530101 Contact Us For Availability
X100
Crystal LGE EAW61923601 Contact Us For Availability
X600
Crystal LGE EAW58239602 Contact Us For Availability
X1300
Crystal LGE 6212AB2015C Contact Us For Availability
X1600
Crystal LGE 6212AB2018B Contact Us For Availability
× ![]()
Login and Registration Form
