Model LG S95AR Soundbar – Common Parts & Diagrams

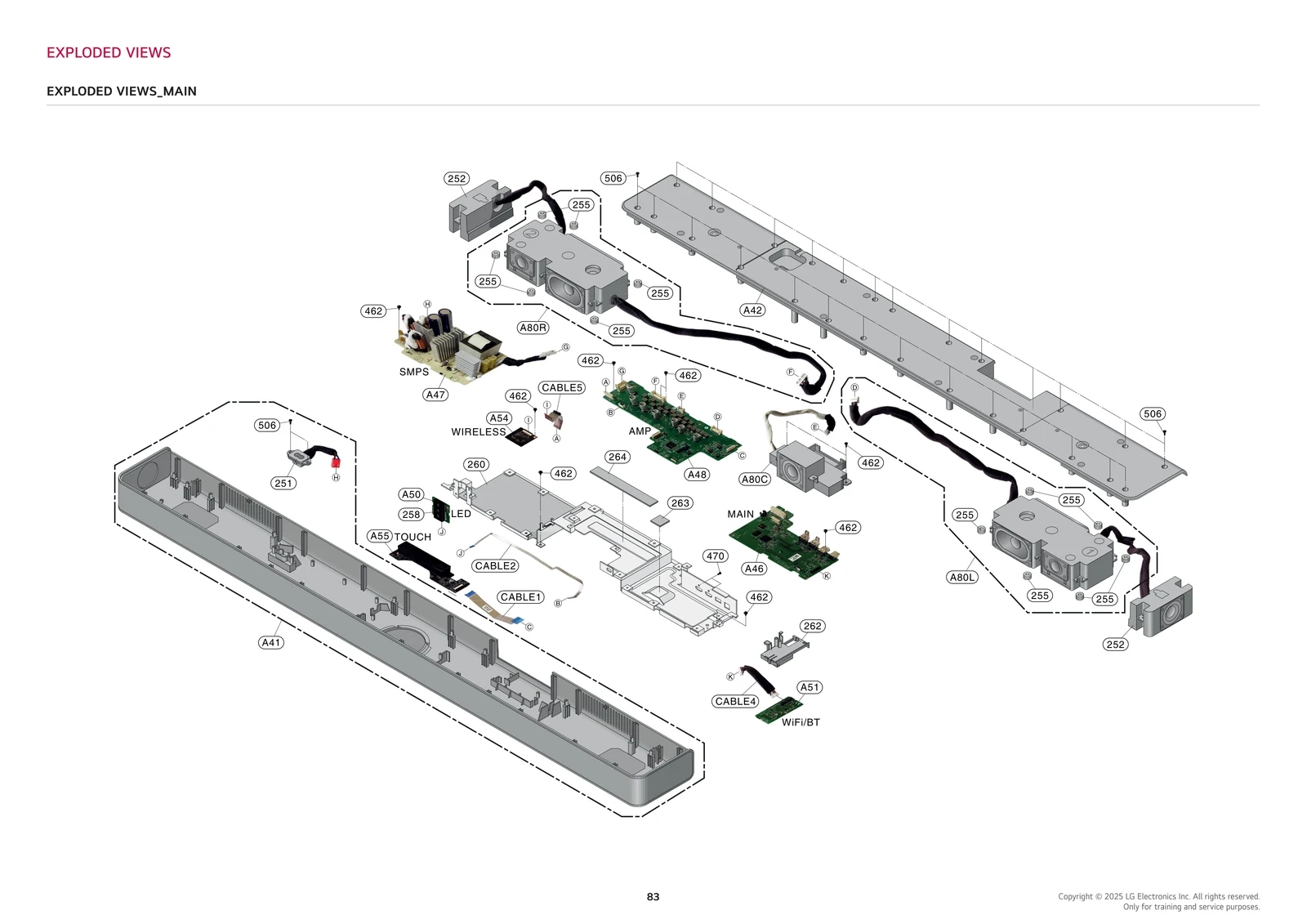

Diagram 0

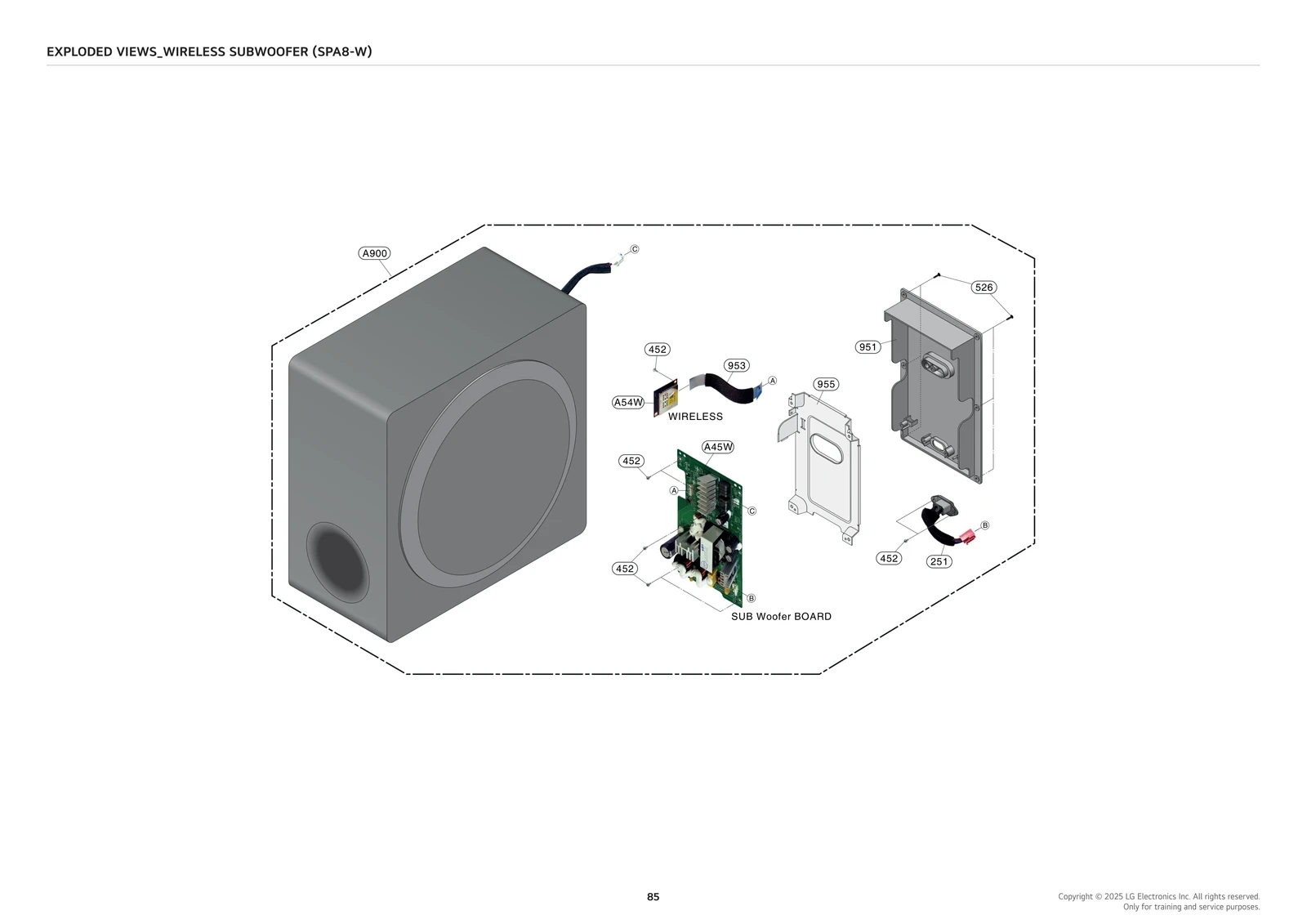

Diagram 1

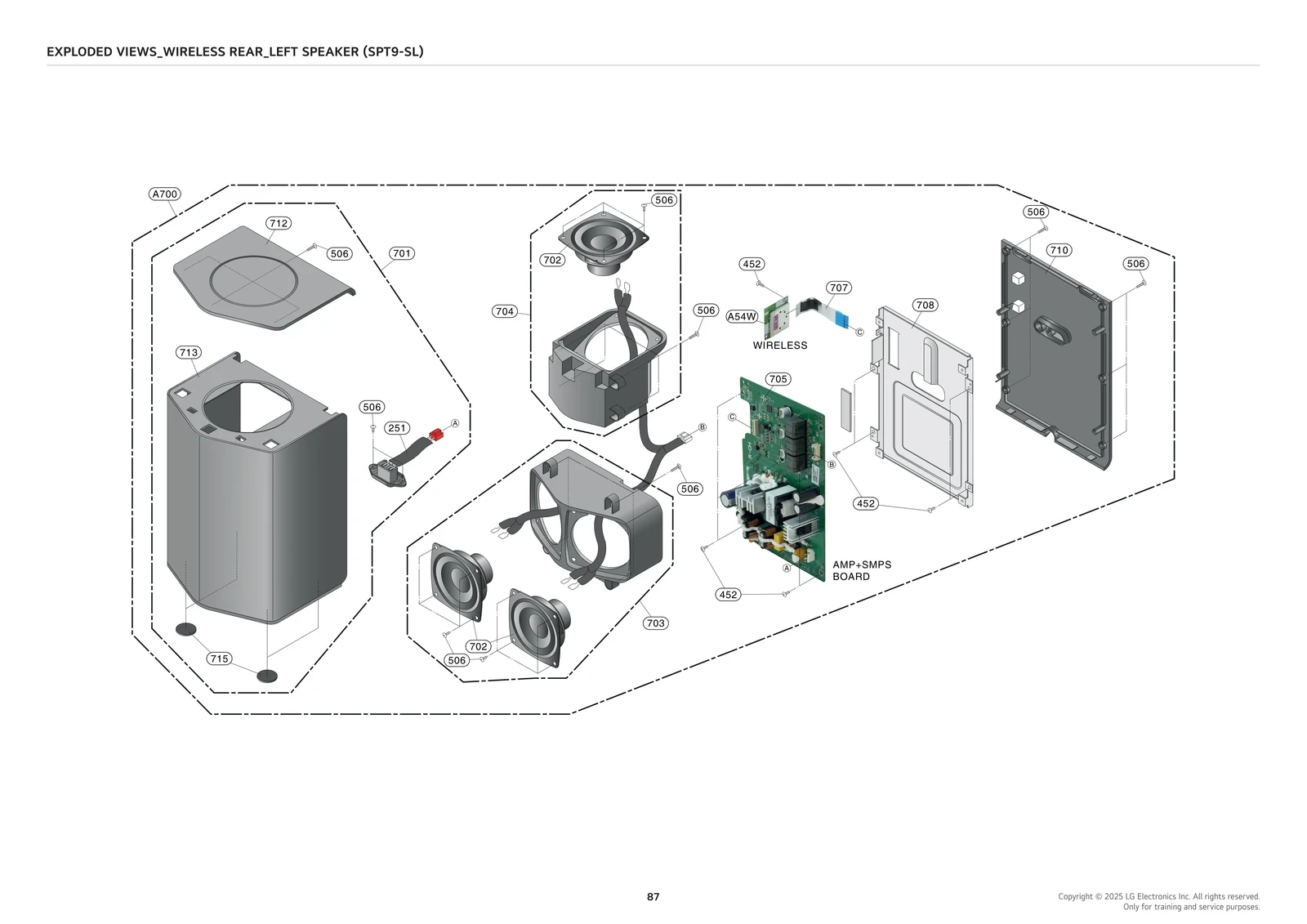

Diagram 2
Diagram 3

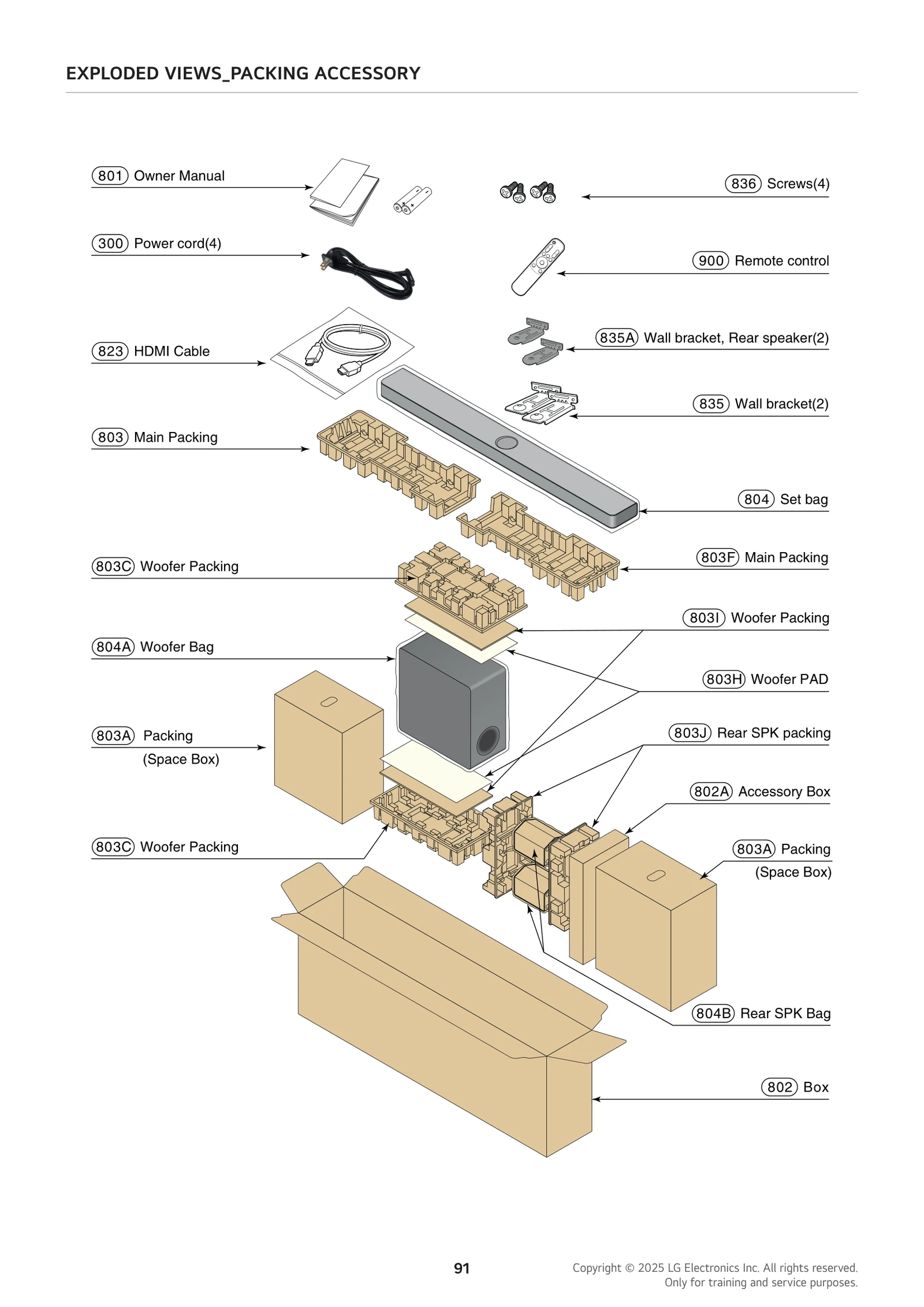

Diagram 4
Diagram 5
Common parts from model LG S95AR Soundbar
251
Socket,Power LGE EAG63233208 Contact Us For Availability
252
Case Assembly LGE ABQ30268901 Contact Us For Availability
255
Damper LGE MCQ70812602 Contact Us For Availability
258
Damper LGE MCQ70906201 Contact Us For Availability
260
Frame Assembly LGE ADV30103201 Contact Us For Availability
262
Holder Assembly LGE AEJ76315401 Contact Us For Availability
263
Damper LGE MCQ70845606 Contact Us For Availability
264
Damper LGE MCQ70845620 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
526
Screw,Customized LGE FAB34718601 Contact Us For Availability
701
Case Assembly LGE ABQ30156603 Contact Us For Availability
702
Speaker,Woofer LGE EAB64448704 Contact Us For Availability
703
Case Assembly LGE ABQ30162701 Contact Us For Availability
704
Case Assembly LGE ABQ30162501 Contact Us For Availability
705
PCB Assembly LGE EBR35850403 Contact Us For Availability
707
Cable,FFC LGE EAD62131542 Contact Us For Availability
708
Bracket LGE MAZ67596501 Contact Us For Availability
709
PCB Assembly LGE EBR35851503 Contact Us For Availability
710
Case Assembly LGE ABQ30158414 Contact Us For Availability
711
Case Assembly LGE ABQ30158413 Contact Us For Availability
712
Cover LGE MCK71596802 Contact Us For Availability
713
Cover LGE MCK71596701 Contact Us For Availability
715
Foot LGE MDP62266801 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30150012 Contact Us For Availability
802
Box LGE MAY70135544 Contact Us For Availability
802A
Box LGE MAY69878501 Contact Us For Availability
803
Packing LGE MFZ67504802 Contact Us For Availability
803A
Packing LGE MFZ67515201 Contact Us For Availability
803C
Packing LGE MFZ67345301 Contact Us For Availability
803F
Packing LGE MFZ67504801 Contact Us For Availability
803H
Packing LGE MFZ63392015 Contact Us For Availability
803I
Packing LGE MFZ67368304 Contact Us For Availability
803J
Packing LGE MFZ67345601 Contact Us For Availability
804
Bag LGE MAF66406208 Contact Us For Availability
804A
Bag LGE MAF66436601 Contact Us For Availability
804B
Bag LGE MAF66405703 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
835A
Accessory Assembly LGE AAA30014402 Contact Us For Availability
836
Packing Assembly LGE AGG75620760 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30109405 Contact Us For Availability
953
Cable,FFC LGE EAD62131520 Contact Us For Availability
955
Frame LGE MDQ66754501 Contact Us For Availability
955
Frame LGE MDQ66754502 Contact Us For Availability
A41
Case Assembly LGE ABQ30268806 Contact Us For Availability
A42
Case Assembly LGE ABQ30268701 Contact Us For Availability
A45W
PCB Assembly LGE EBR35847006 Contact Us For Availability
A46
Option Code Assembly LGE EBR43376931 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR41987401 Contact Us For Availability
A48
PCB Assembly LGE EBR42730902 Contact Us For Availability
A50
PCB Assembly LGE EBR41850901 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209402 Contact Us For Availability
A54W
Module,Rx Module LGE EAT65209702 Contact Us For Availability
A55
PCB Assembly LGE EBR41850601 Contact Us For Availability
A80C
Case Assembly LGE ABQ30217103 Contact Us For Availability
A80L
Case Assembly LGE ABQ30216907 Contact Us For Availability
A80R
Case Assembly LGE ABQ30217007 Contact Us For Availability
A700
Active Woofer LGE TCG37554024 Contact Us For Availability
A701
Active Woofer LGE TCG37554124 Contact Us For Availability
A900
Active Woofer LGE TCG37553837 Contact Us For Availability
AIC301A
S/W,System Program LGE SAA44691001 Contact Us For Availability
AIC301B
S/W,System Program LGE SAA44691101 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131569 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62246614 Contact Us For Availability
CABLE4
Harness,Single LGE EAD65366214 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970531 Contact Us For Availability
IC1000A
S/W,System Program LGE SAA30205801 Contact Us For Availability
IC1001A
S/W,System Program LGE SAA30206101 Contact Us For Availability
IC3500A
S/W,System Program LGE SAA44612801 Contact Us For Availability
IC3502A
S/W,System Program LGE SAA44690901 Contact Us For Availability
IC5005A
S/W,System Program LGE SAA30205701 Contact Us For Availability
WIC702A
S/W,System Program LGE SAA30231601 Contact Us For Availability
× ![]()
