Model LG S90TY Soundbar – Common Parts & Diagrams
Diagram 0

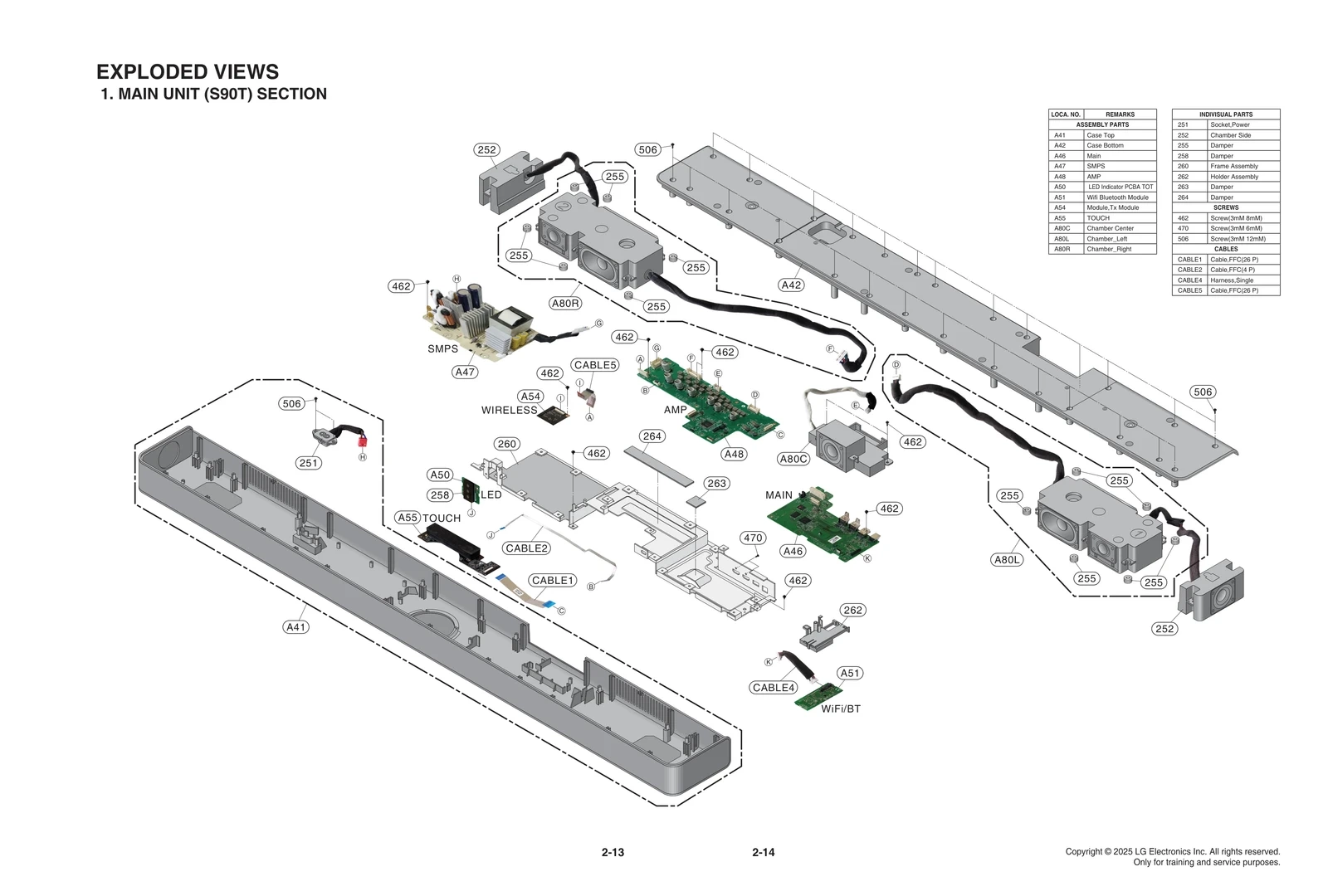

Diagram 1

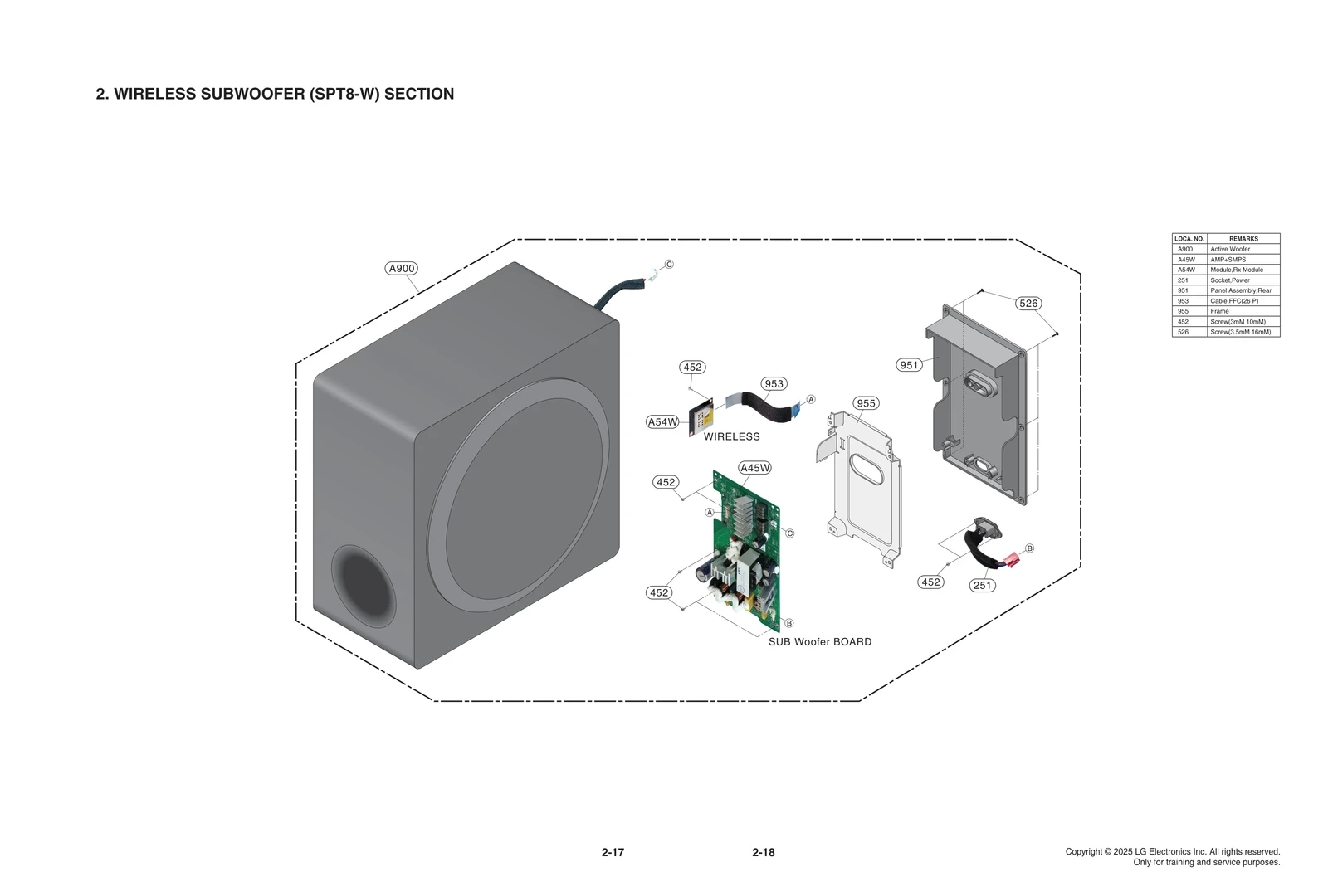

Diagram 2

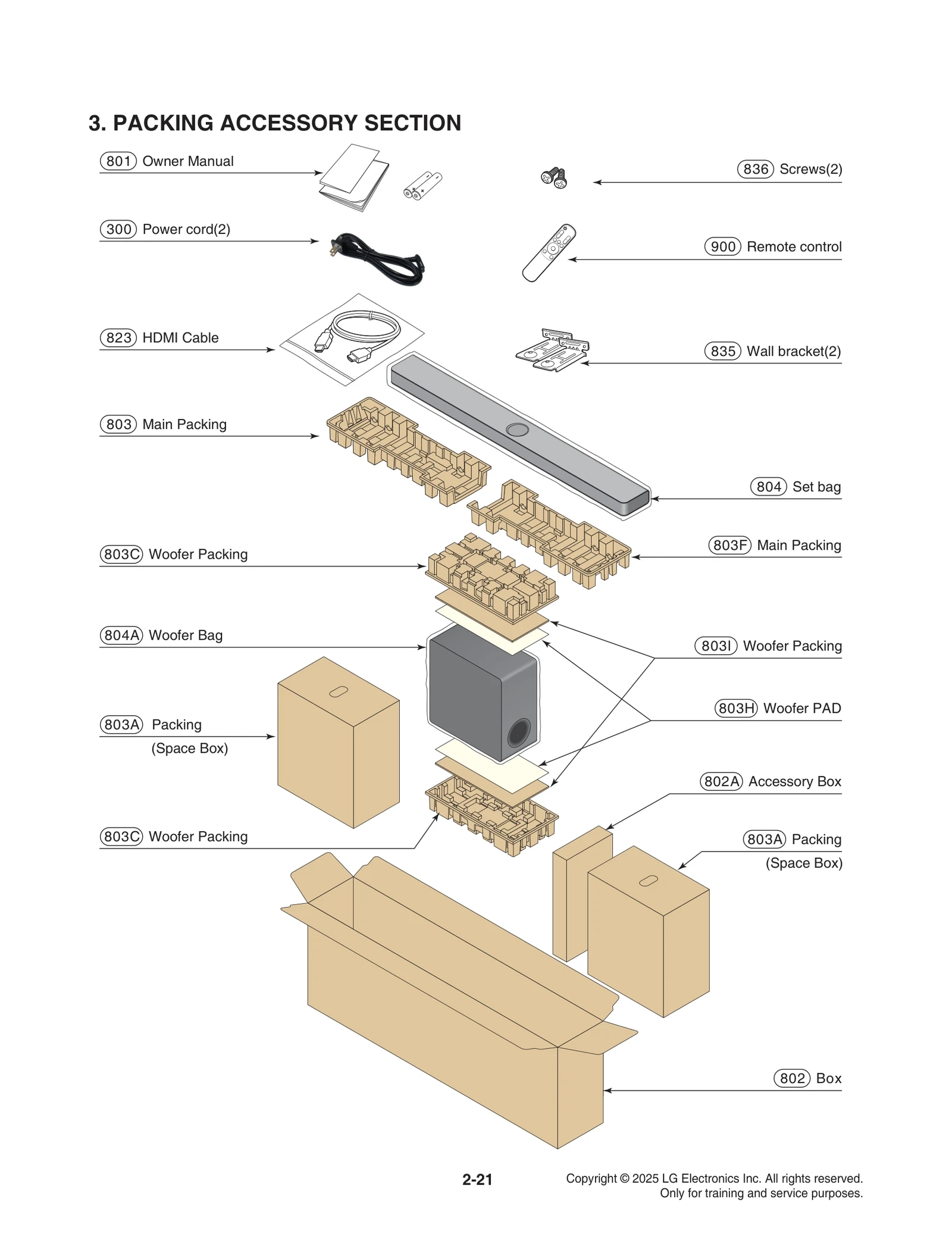

Diagram 3
Common parts from model LG S90TY Soundbar
251
Socket,Power LGE EAG63233208 Contact Us For Availability
255
Damper LGE MCQ70812602 Contact Us For Availability
258
Damper LGE MCQ70906201 Contact Us For Availability
260
Frame Assembly LGE ADV30103201 Contact Us For Availability
262
Holder Assembly LGE AEJ76315401 Contact Us For Availability
263
Damper LGE MCQ70845606 Contact Us For Availability
264
Damper LGE MCQ70845620 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
526
Screw,Customized LGE FAB34718601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30100089 Contact Us For Availability
802
Box LGE MAY70135504 Contact Us For Availability
802A
Box LGE MAY69878502 Contact Us For Availability
803
Packing LGE MFZ67504802 Contact Us For Availability
803A
Packing LGE MFZ67504901 Contact Us For Availability
803C
Packing LGE MFZ67345301 Contact Us For Availability
803F
Packing LGE MFZ67504801 Contact Us For Availability
803H
Packing LGE MFZ63392015 Contact Us For Availability
803I
Packing LGE MFZ67368304 Contact Us For Availability
804
Bag LGE MAF66406208 Contact Us For Availability
804A
Bag LGE MAF66436601 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30109403 Contact Us For Availability
953
Cable,FFC LGE EAD62131520 Contact Us For Availability
955
Frame LGE MDQ66754501 Contact Us For Availability
955
Frame LGE MDQ66754502 Contact Us For Availability
A41
Case Assembly LGE ABQ30268802 Contact Us For Availability
A42
Case Assembly LGE ABQ30268701 Contact Us For Availability
A45W
PCB Assembly LGE EBR35847004 Contact Us For Availability
A46
Option Code Assembly LGE EBR42691422 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR41987401 Contact Us For Availability
A48
PCB Assembly LGE EBR41851301 Contact Us For Availability
A50
PCB Assembly LGE EBR41850901 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209402 Contact Us For Availability
A54W
Module,Rx Module LGE EAT65209702 Contact Us For Availability
A55
PCB Assembly LGE EBR41850601 Contact Us For Availability
A80C
Case Assembly LGE ABQ30217103 Contact Us For Availability
A80L
Case Assembly LGE ABQ30216905 Contact Us For Availability
A80R
Case Assembly LGE ABQ30217005 Contact Us For Availability
A900
Active Woofer LGE TCG37553835 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131569 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62246614 Contact Us For Availability
CABLE4
Harness,Single LGE EAD65366214 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD63970531 Contact Us For Availability
IC1000A
S/W,System Program LGE SAA44610201 Contact Us For Availability
IC1001A
S/W,System Program LGE SAA44610301 Contact Us For Availability
IC3500A
S/W,System Program LGE SAA44612801 Contact Us For Availability
IC5005A
S/W,System Program LGE SAA44609901 Contact Us For Availability
WIC702A
S/W,System Program LGE SAA44613001 Contact Us For Availability
× ![]()
