Model LG S80TY Soundbar – Common Parts & Diagrams

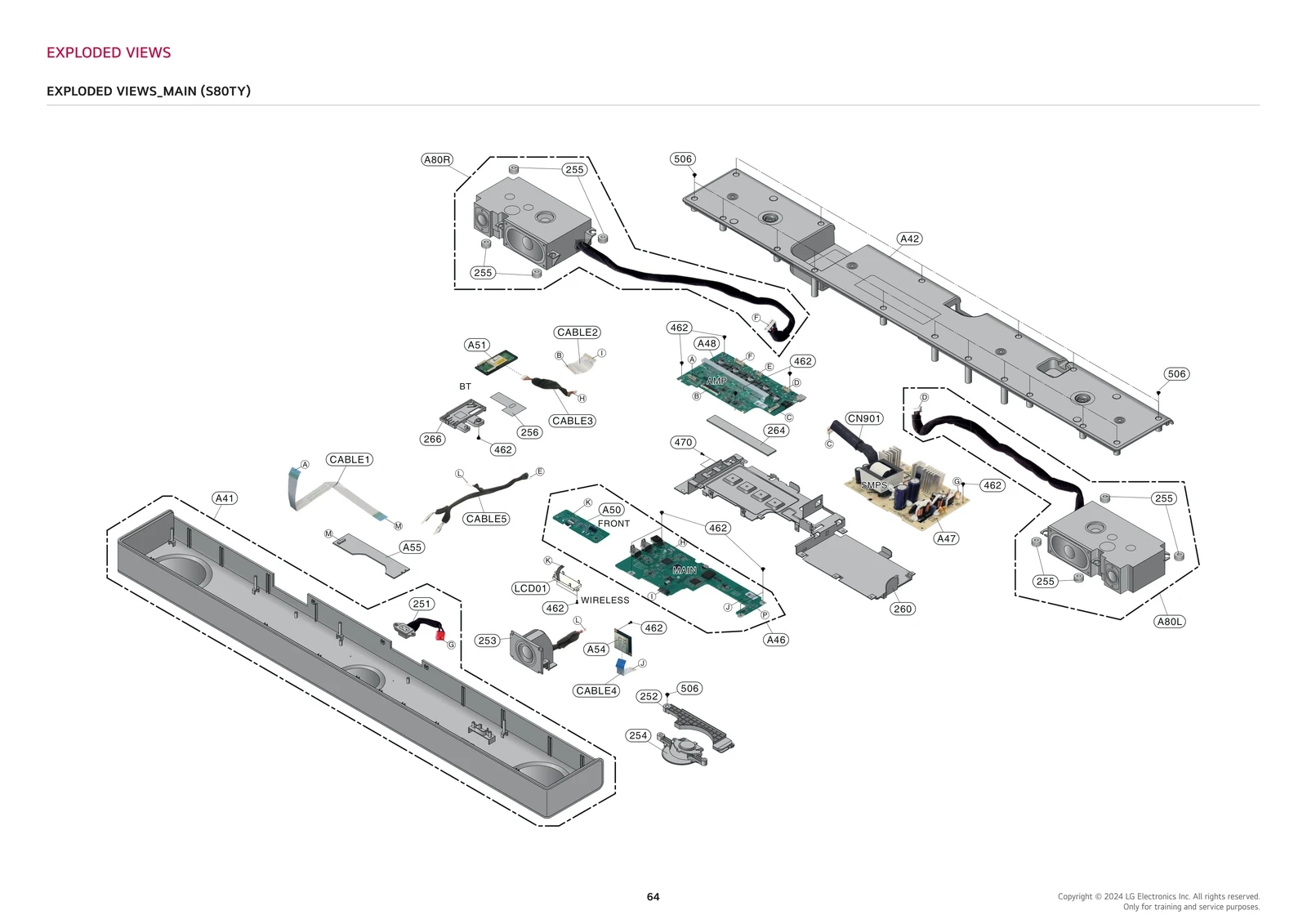

Diagram 0

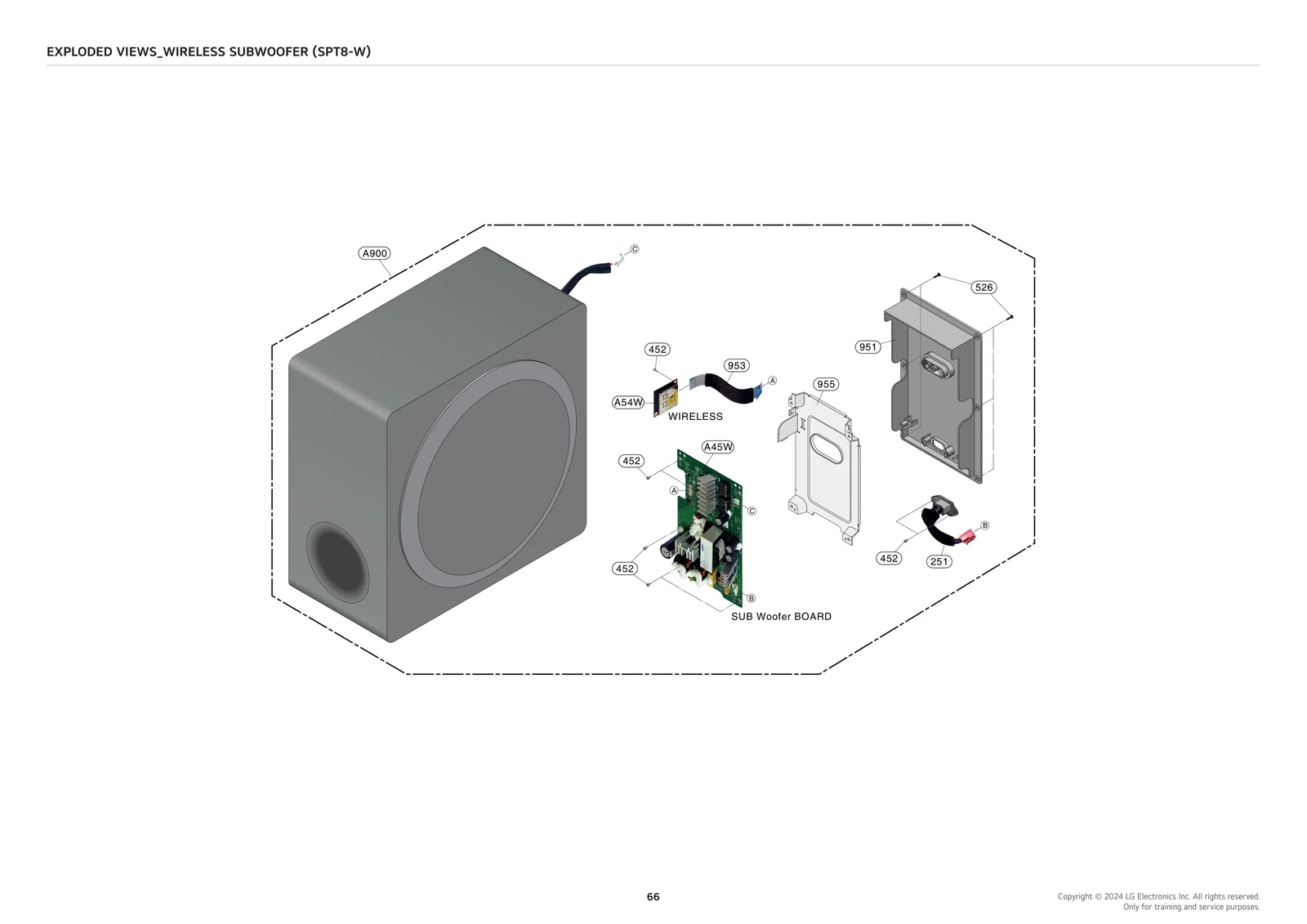

Diagram 1

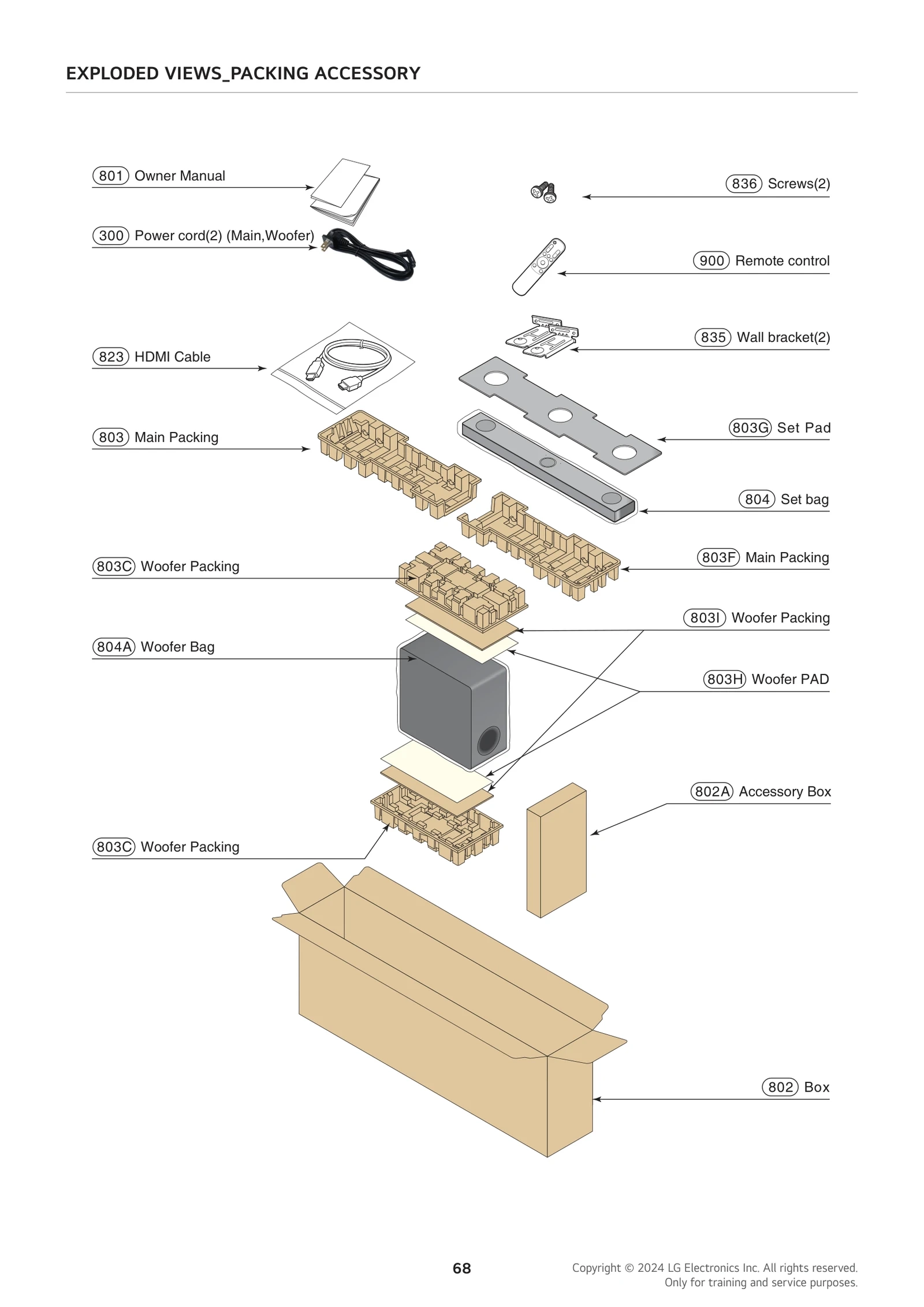

Diagram 2
Diagram 3
Common parts from model LG S80TY Soundbar
251
Socket,Power LGE EAG63233208 Contact Us For Availability
253
Speaker,Woofer LGE EAB65148208 Contact Us For Availability
254
Speaker,Tweeter LGE EAB64448805 Contact Us For Availability
255
Damper LGE MCQ70812602 Contact Us For Availability
256
Gasket LGE MDS67625301 Contact Us For Availability
260
Frame Assembly LGE ADV30058101 Contact Us For Availability
264
Damper LGE MCQ70845607 Contact Us For Availability
266
Holder Assembly LGE AEJ76306301 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
526
Screw,Customized LGE FAB34718601 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30138132 Contact Us For Availability
802
Box LGE MAY70197848 Contact Us For Availability
802A
Box LGE MAY06831901 Contact Us For Availability
803
Packing LGE MFZ67359202 Contact Us For Availability
803C
Packing LGE MFZ67345301 Contact Us For Availability
803F
Packing LGE MFZ67359201 Contact Us For Availability
803G
Packing LGE MFZ67345402 Contact Us For Availability
803H
Packing LGE MFZ63392015 Contact Us For Availability
803I
Packing LGE MFZ67368304 Contact Us For Availability
804
Bag LGE MAF66406209 Contact Us For Availability
804A
Bag LGE MAF66436601 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30109403 Contact Us For Availability
953
Cable,FFC LGE EAD62131520 Contact Us For Availability
955
Frame LGE MDQ66754502 Contact Us For Availability
955
Frame LGE MDQ66754501 Contact Us For Availability
A41
Case Assembly LGE ABQ30163809 Contact Us For Availability
A42
Case Assembly LGE ABQ30163906 Contact Us For Availability
A45W
PCB Assembly LGE EBR35847004 Contact Us For Availability
A46
Option Code Assembly LGE EBR24810804 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR36589101 Contact Us For Availability
A48
PCB Assembly LGE EBR43859001 Contact Us For Availability
A50
PCB Assembly LGE EBR43858501 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209401 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209402 Contact Us For Availability
A54W
Module,Rx Module LGE EAT65209702 Contact Us For Availability
A55
PCB Assembly LGE EBR37102101 Contact Us For Availability
A80L
Case Assembly LGE ABQ30153402 Contact Us For Availability
A80R
Case Assembly LGE ABQ30153502 Contact Us For Availability
A900
Active Woofer LGE TCG37553839 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131551 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD65850902 Contact Us For Availability
CABLE3
Harness,Single LGE EAD65366208 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131552 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR36020201 Contact Us For Availability
CN901
Harness,Single LGE EAD63467402 Contact Us For Availability
IC1000A
S/W,System Program LGE SAA44815501 Contact Us For Availability
IC1001A
S/W,System Program LGE SAA44815601 Contact Us For Availability
IC4002A
S/W,System Program LGE SAA44815701 Contact Us For Availability
IC5005A
S/W,System Program LGE SAA44815401 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172306 Contact Us For Availability
WIC702A
S/W,System Program LGE SAA44613001 Contact Us For Availability
× ![]()
