Model LG S80QR Soundbar – Common Parts & Diagrams

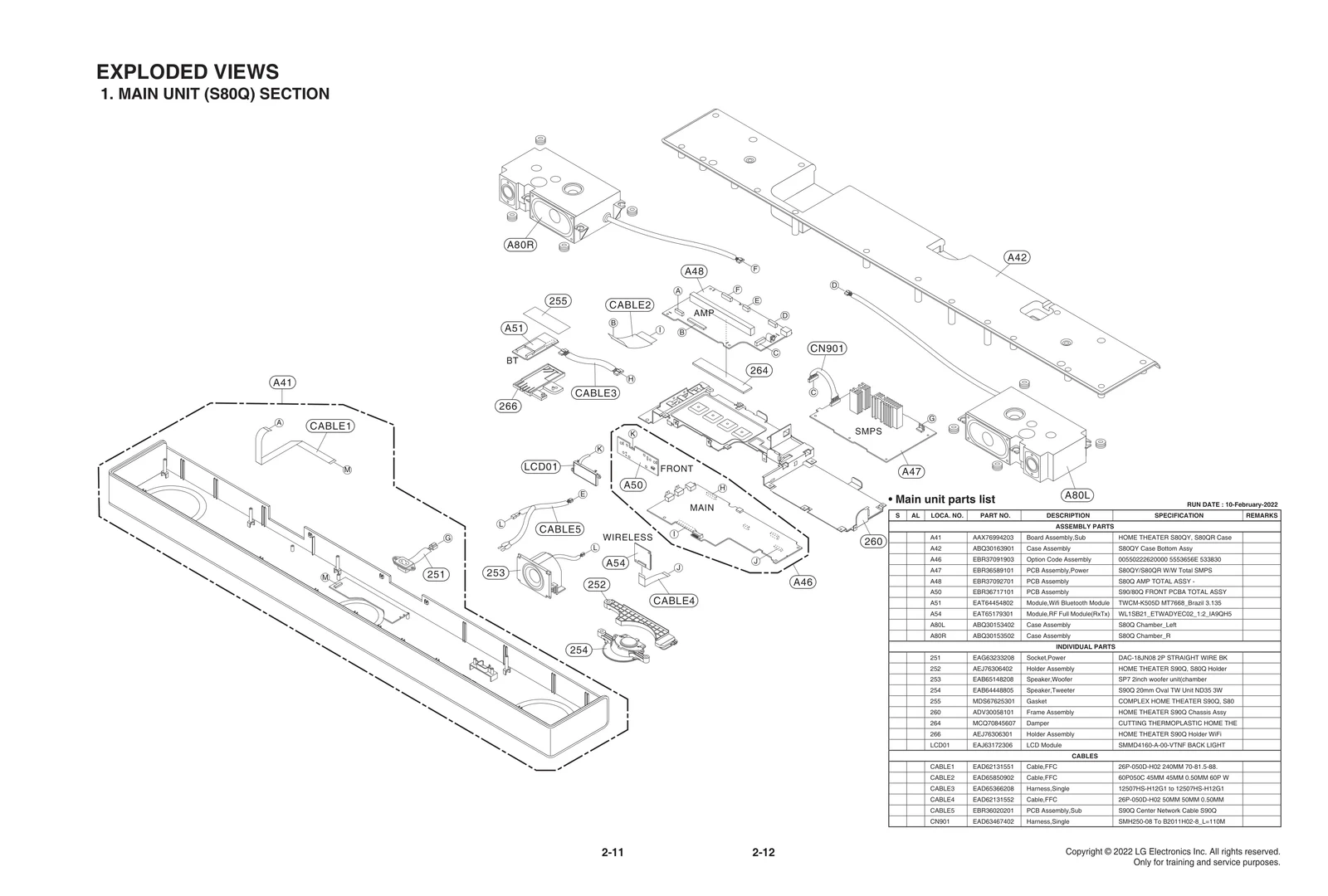

Diagram 0

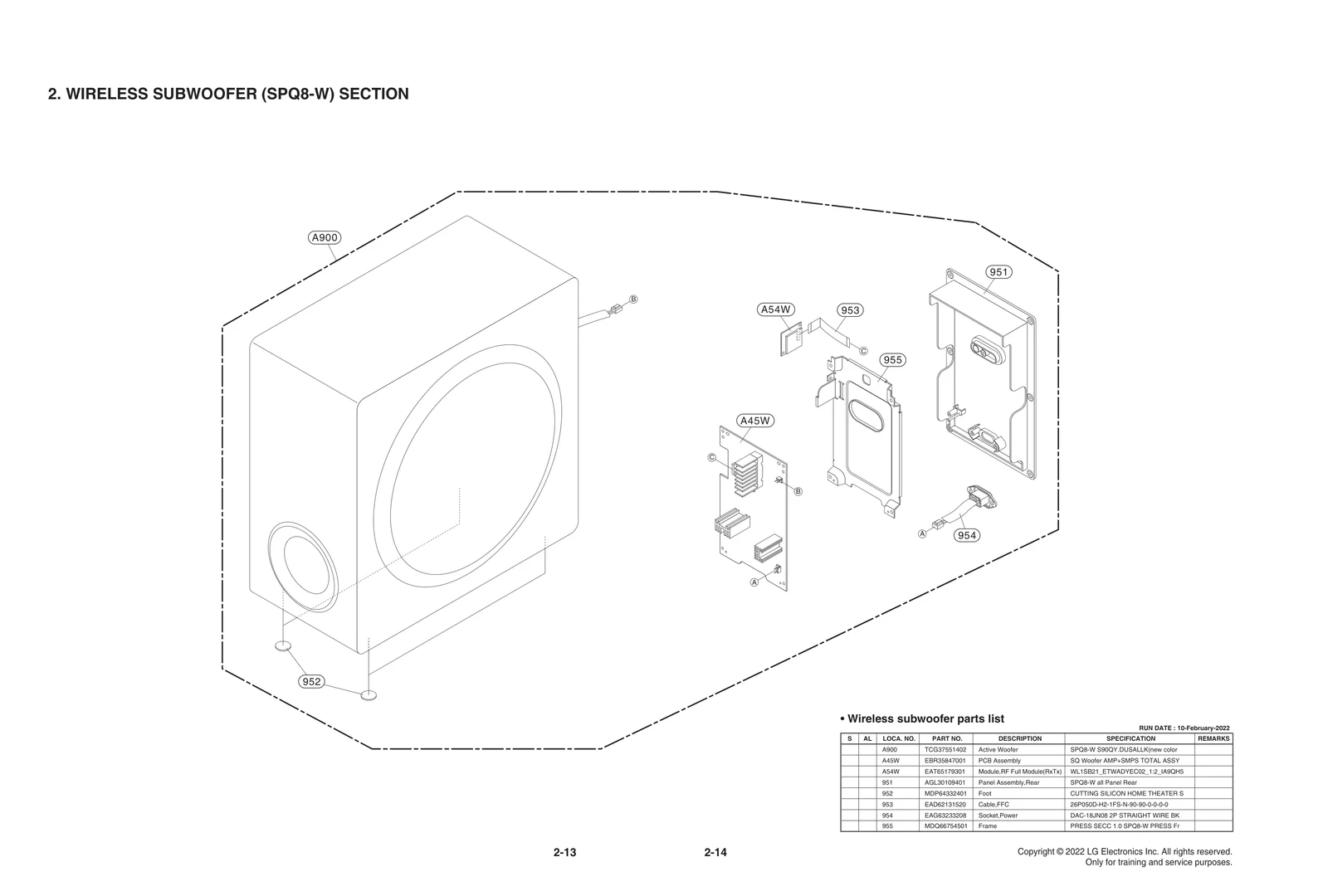

Diagram 1

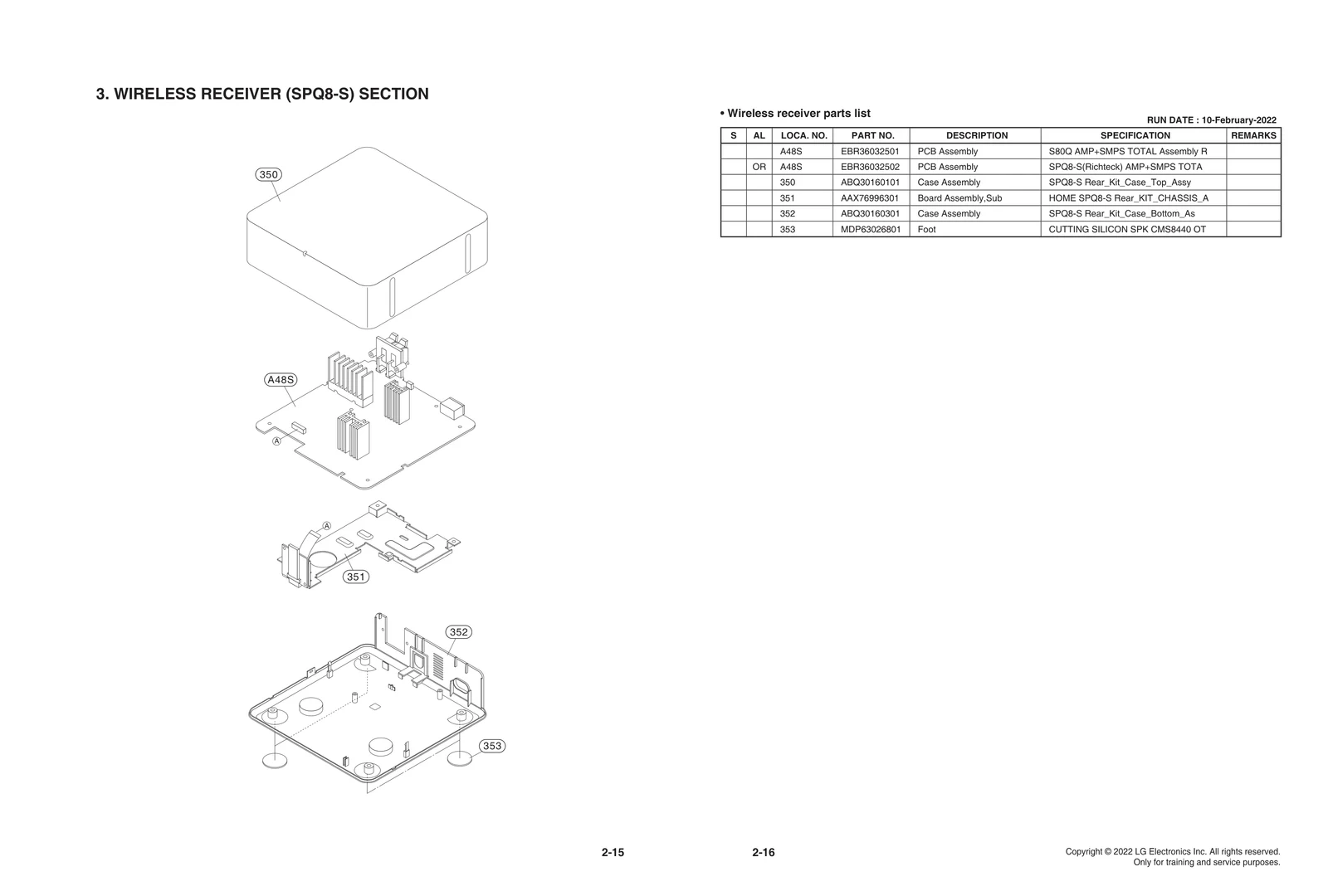

Diagram 2

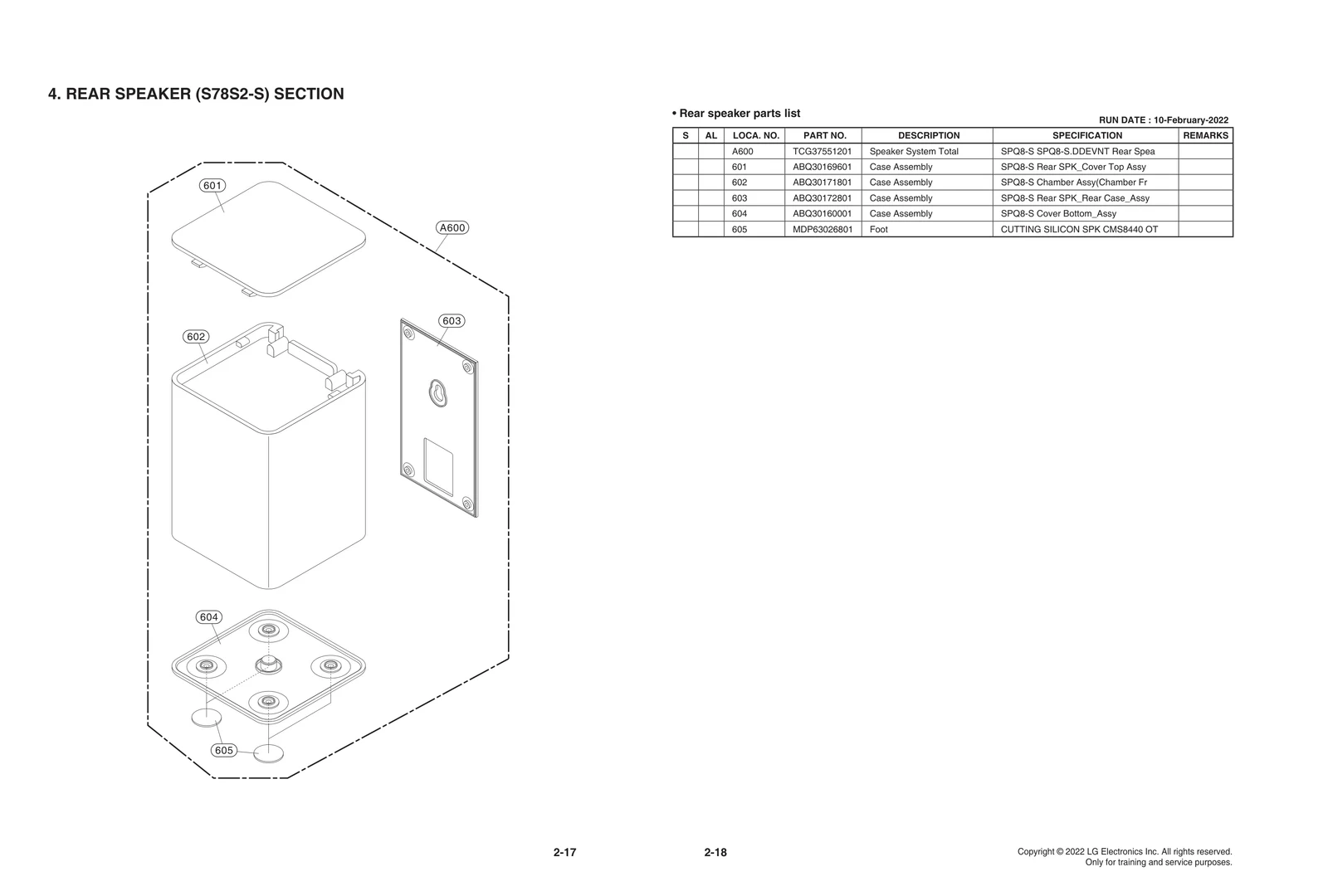

Diagram 3

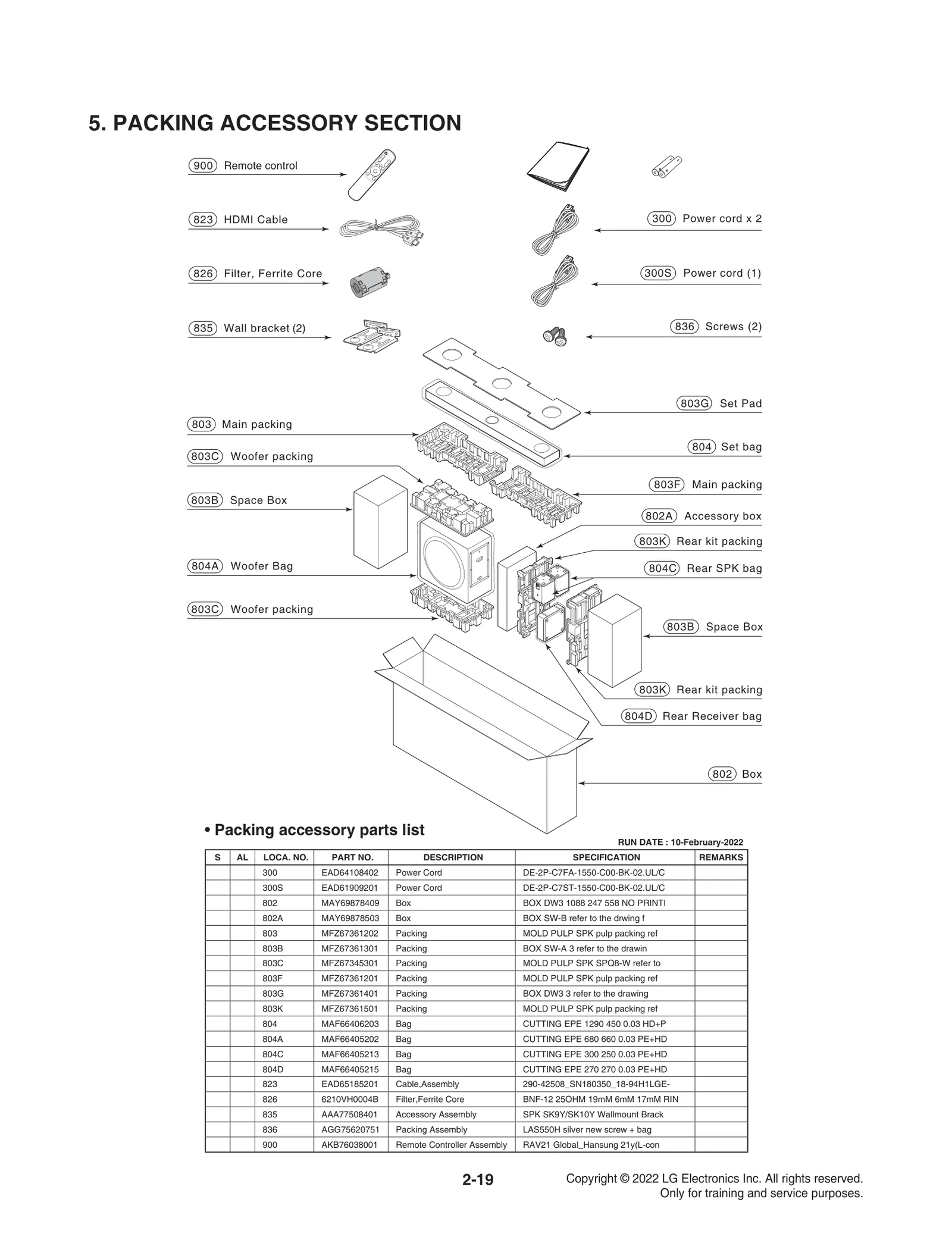

Diagram 4
Diagram 5
Common parts from model LG S80QR Soundbar
253
Speaker,Woofer LGE EAB65148208 Contact Us For Availability
254
Speaker,Tweeter LGE EAB64448805 Contact Us For Availability
255
Gasket LGE MDS67625301 Contact Us For Availability
260
Frame Assembly LGE ADV30058101 Contact Us For Availability
264
Damper LGE MCQ70845607 Contact Us For Availability
266
Holder Assembly LGE AEJ76306301 Contact Us For Availability
350
Case Assembly LGE ABQ30160101 Contact Us For Availability
351
Board Assembly,Sub LGE AAX76996301 Contact Us For Availability
352
Case Assembly LGE ABQ30180201 Contact Us For Availability
601
Case Assembly LGE ABQ30169601 Contact Us For Availability
602
Case Assembly LGE ABQ30171801 Contact Us For Availability
603
Case Assembly LGE ABQ30172801 Contact Us For Availability
604
Case Assembly LGE ABQ30160001 Contact Us For Availability
605
Foot LGE MDP63026801 Contact Us For Availability
802
Box LGE MAY69878409 Contact Us For Availability
802A
Box LGE MAY69878503 Contact Us For Availability
803
Packing LGE MFZ67361202 Contact Us For Availability
803B
Packing LGE MFZ67361301 Contact Us For Availability
803C
Packing LGE MFZ67345301 Contact Us For Availability
803F
Packing LGE MFZ67361201 Contact Us For Availability
803G
Packing LGE MFZ67361401 Contact Us For Availability
803K
Packing LGE MFZ67361501 Contact Us For Availability
804
Bag LGE MAF66406203 Contact Us For Availability
804A
Bag LGE MAF66405202 Contact Us For Availability
804C
Bag LGE MAF66405706 Contact Us For Availability
804D
Bag LGE MAF66405707 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30109401 Contact Us For Availability
952
Foot LGE MDP64332401 Contact Us For Availability
953
Cable,FFC LGE EAD62131520 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
955
Frame LGE MDQ66754501 Contact Us For Availability
A41
Board Assembly,Sub LGE AAX76994203 Contact Us For Availability
A42
Case Assembly LGE ABQ30163901 Contact Us For Availability
A45W
PCB Assembly LGE EBR35847001 Contact Us For Availability
A46
Option Code Assembly LGE EBR37091903 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR36589101 Contact Us For Availability
A48
PCB Assembly LGE EBR37092701 Contact Us For Availability
A48S
PCB Assembly LGE EBR36032502 Contact Us For Availability
A48S
PCB Assembly LGE EBR36032501 Contact Us For Availability
A50
PCB Assembly LGE EBR36717101 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT65179301 Contact Us For Availability
A80L
Case Assembly LGE ABQ30153402 Contact Us For Availability
A80R
Case Assembly LGE ABQ30153502 Contact Us For Availability
A600
Speaker System Total LGE TCG37551201 Contact Us For Availability
A900
Active Woofer LGE TCG37551402 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131551 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD65850902 Contact Us For Availability
CABLE3
Harness,Single LGE EAD65366208 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131552 Contact Us For Availability
CABLE5
PCB Assembly,Sub LGE EBR36020201 Contact Us For Availability
CN901
Harness,Single LGE EAD63467402 Contact Us For Availability
IC1000A
S/W,System Program LGE SAA43441403 Contact Us For Availability
IC1001A
S/W,System Program LGE SAA43441903 Contact Us For Availability
IC4000A
S/W,System Program LGE SAA43409602 Contact Us For Availability
IC5005A
S/W,System Program LGE SAA43441803 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172306 Contact Us For Availability
WIC702A
S/W,System Program LGE SAA43409701 Contact Us For Availability
WIC702B
S/W,System Program LGE SAA43442701 Contact Us For Availability
× ![]()
