Model LG S75QR Soundbar – Common Parts & Diagrams
Diagram 0

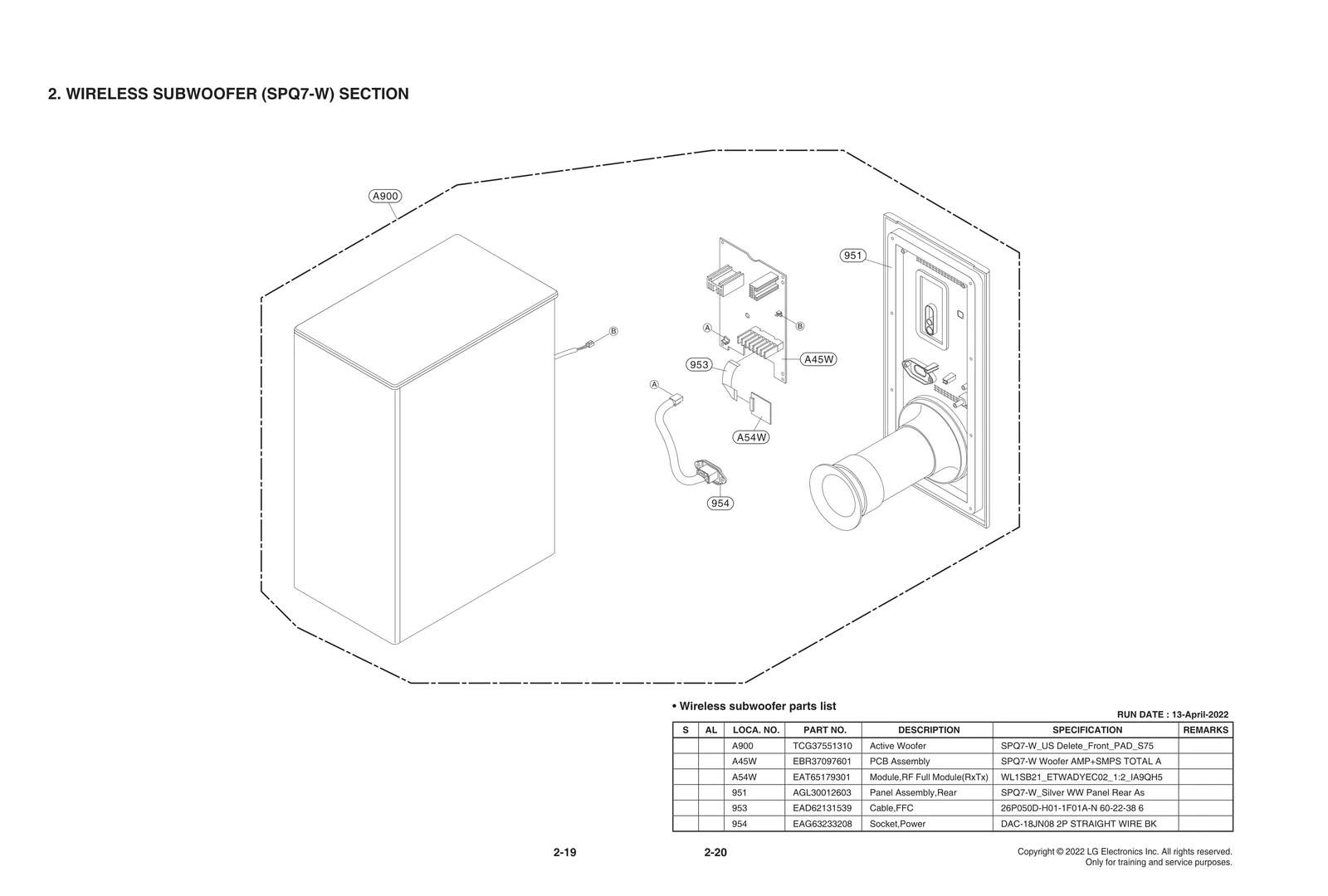

Diagram 1

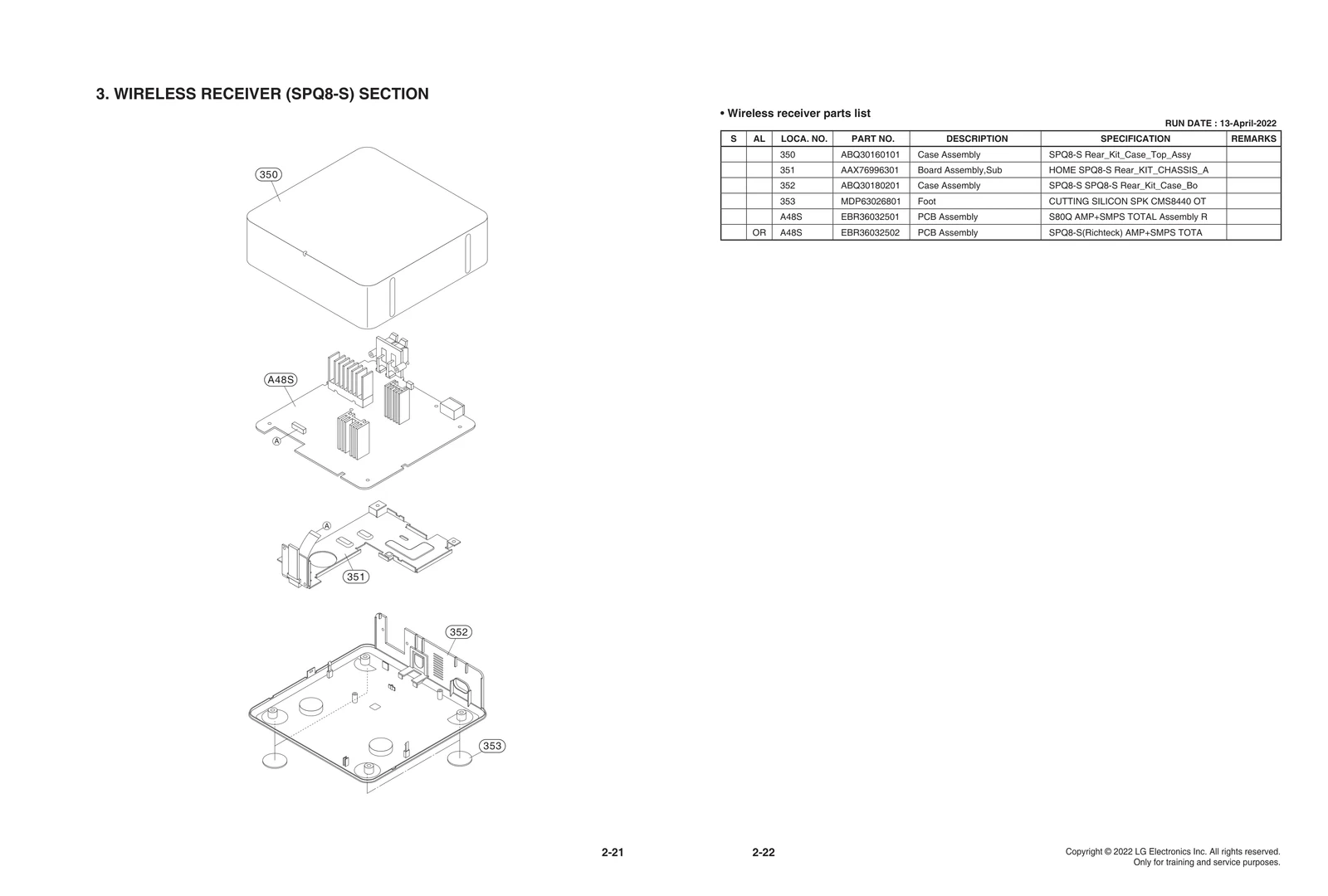

Diagram 2

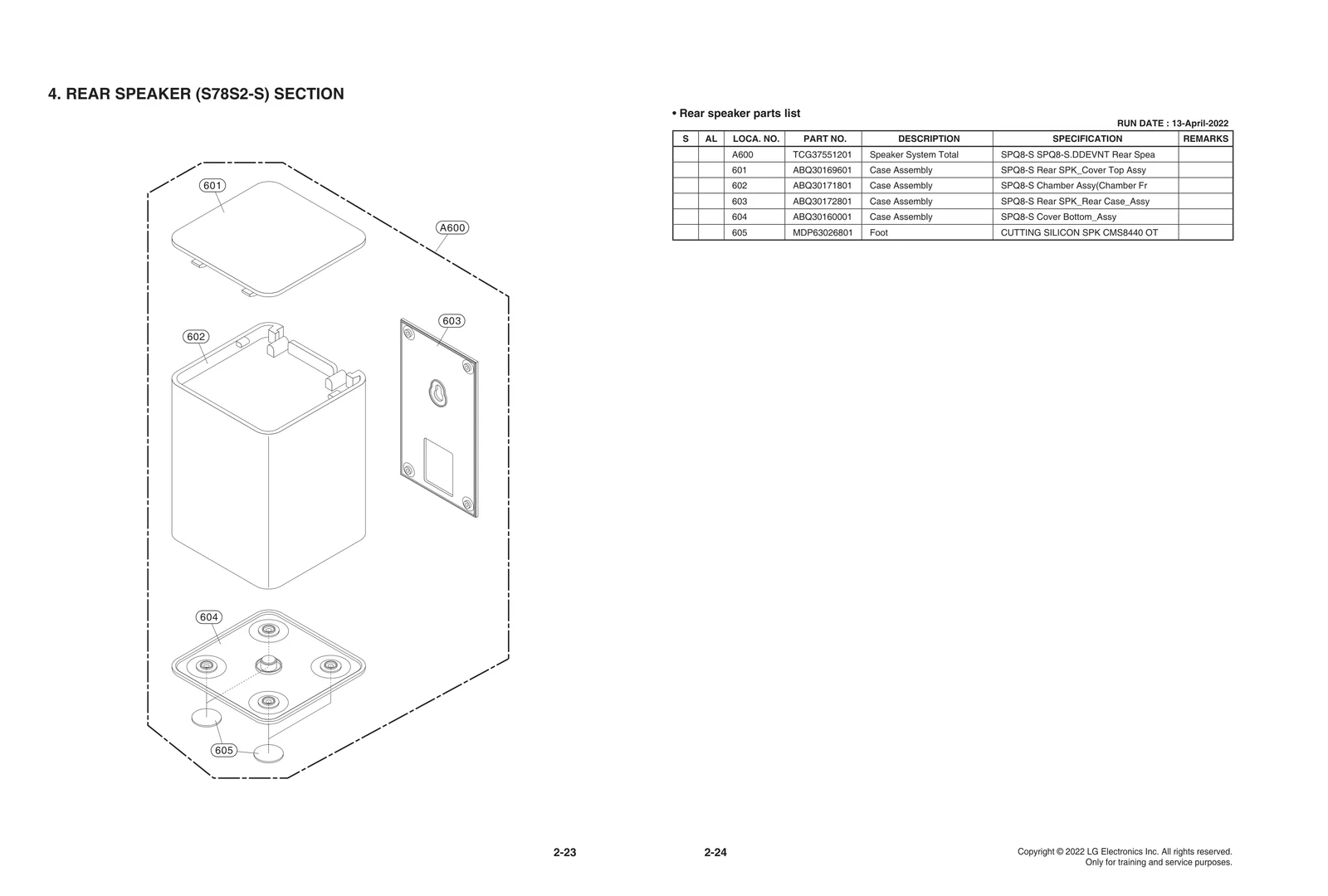

Diagram 3

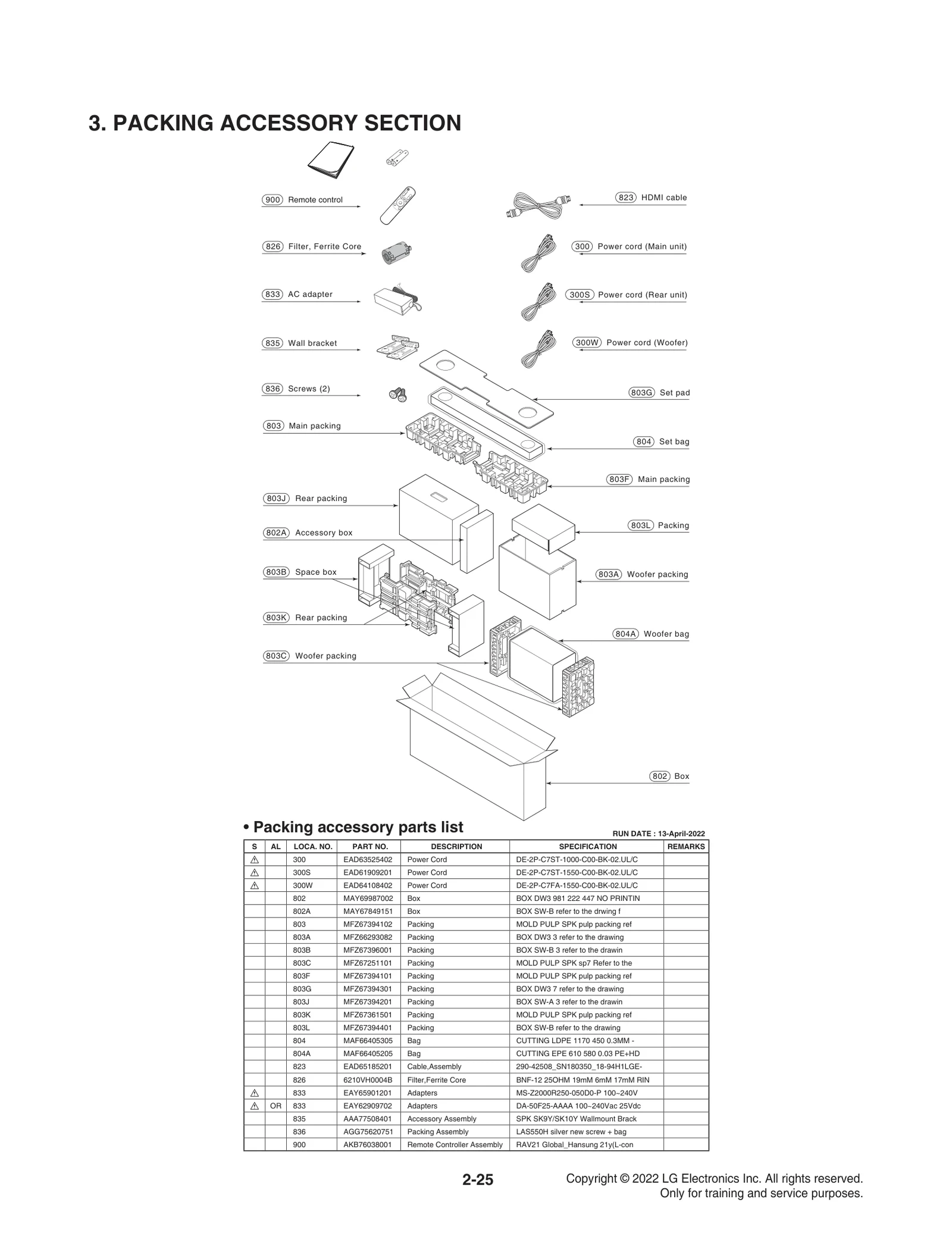

Diagram 4
Diagram 5
Common parts from model LG S75QR Soundbar
262
Damper LGE MCQ70767102 Contact Us For Availability
262
Damper LGE MCQ70845602 Contact Us For Availability
263
Damper LGE MCQ70845610 Contact Us For Availability
264
Damper LGE MCQ70767106 Contact Us For Availability
264
Damper LGE MCQ70845603 Contact Us For Availability
268
Chassis LGE MBS64866201 Contact Us For Availability
350
Case Assembly LGE ABQ30160101 Contact Us For Availability
351
Board Assembly,Sub LGE AAX76996301 Contact Us For Availability
352
Case Assembly LGE ABQ30180201 Contact Us For Availability
601
Case Assembly LGE ABQ30169601 Contact Us For Availability
602
Case Assembly LGE ABQ30171801 Contact Us For Availability
603
Case Assembly LGE ABQ30172801 Contact Us For Availability
604
Case Assembly LGE ABQ30160001 Contact Us For Availability
605
Foot LGE MDP63026801 Contact Us For Availability
802
Box LGE MAY69987001 Contact Us For Availability
802A
Box LGE MAY67849151 Contact Us For Availability
803
Packing LGE MFZ67394102 Contact Us For Availability
803A
Packing LGE MFZ66293082 Contact Us For Availability
803B
Packing LGE MFZ67396001 Contact Us For Availability
803C
Packing LGE MFZ67251101 Contact Us For Availability
803F
Packing LGE MFZ67394101 Contact Us For Availability
803G
Packing LGE MFZ67394301 Contact Us For Availability
803J
Packing LGE MFZ67394201 Contact Us For Availability
803K
Packing LGE MFZ67361501 Contact Us For Availability
803L
Packing LGE MFZ67394402 Contact Us For Availability
804
Bag LGE MAF66405305 Contact Us For Availability
804A
Bag LGE MAF66405205 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
833
Adapters LGE EAY65901201 Contact Us For Availability
835
Accessory Assembly LGE AAA77508401 Contact Us For Availability
951
Panel Assembly,Rear LGE AGL30012603 Contact Us For Availability
953
Cable,FFC LGE EAD62131539 Contact Us For Availability
954
Socket,Power LGE EAG63233208 Contact Us For Availability
A41
Case Assembly LGE ABQ30088011 Contact Us For Availability
A42
Case Assembly LGE ABQ30000111 Contact Us For Availability
A45W
PCB Assembly LGE EBR37097601 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT66952508 Contact Us For Availability
A47
LFS Total PCB Assembly LGE EBT66626903 Contact Us For Availability
A48S
PCB Assembly LGE EBR36032501 Contact Us For Availability
A48S
PCB Assembly LGE EBR36032502 Contact Us For Availability
A51
Module,Bluetooth LGE EAT65184003 Contact Us For Availability
A53
Holder Assembly LGE AEJ76299301 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT65179301 Contact Us For Availability
A55
PCB Assembly LGE EBR32814503 Contact Us For Availability
A80L
Case Assembly LGE ABQ30000204 Contact Us For Availability
A80R
Case Assembly LGE ABQ30000304 Contact Us For Availability
A600
Speaker System Total LGE TCG37551201 Contact Us For Availability
A900
Active Woofer LGE TCG37551310 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62131550 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD61049032 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131543 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD62185625 Contact Us For Availability
IC101A
S/W,System Program LGE SAA43409602 Contact Us For Availability
IC102A
S/W,System Program LGE SAA43429901 Contact Us For Availability
IC103A
S/W,System Program LGE SAA43430001 Contact Us For Availability
IC505A
S/W,System Program LGE SAA43429801 Contact Us For Availability
LCD01
LCD Module LGE EAJ63172305 Contact Us For Availability
WIC602A
S/W,System Program LGE SAA43409701 Contact Us For Availability
WIC702B
S/W,System Program LGE SAA43442701 Contact Us For Availability
× ![]()
