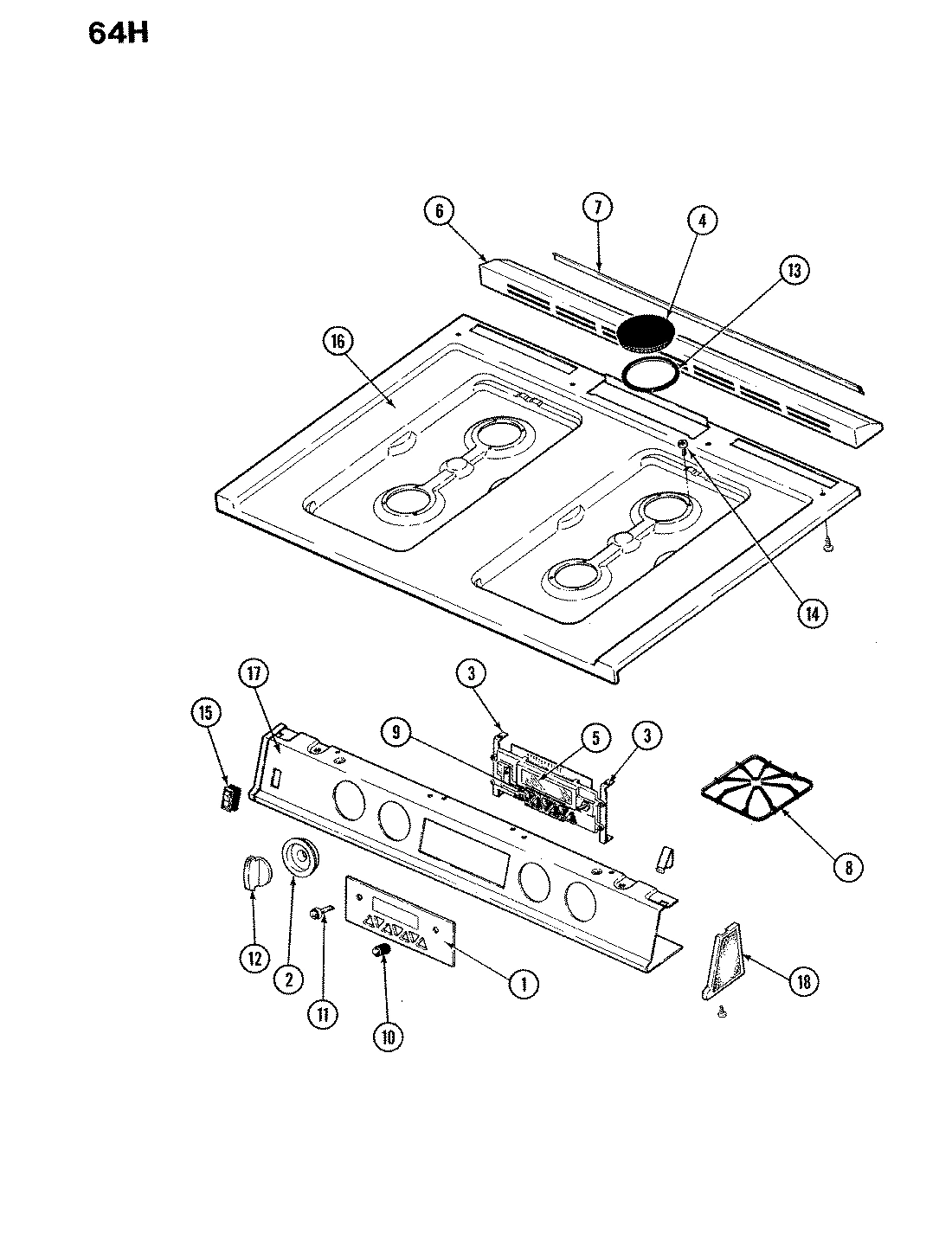

04 - MANIFOLD PANEL - MAIN TOP

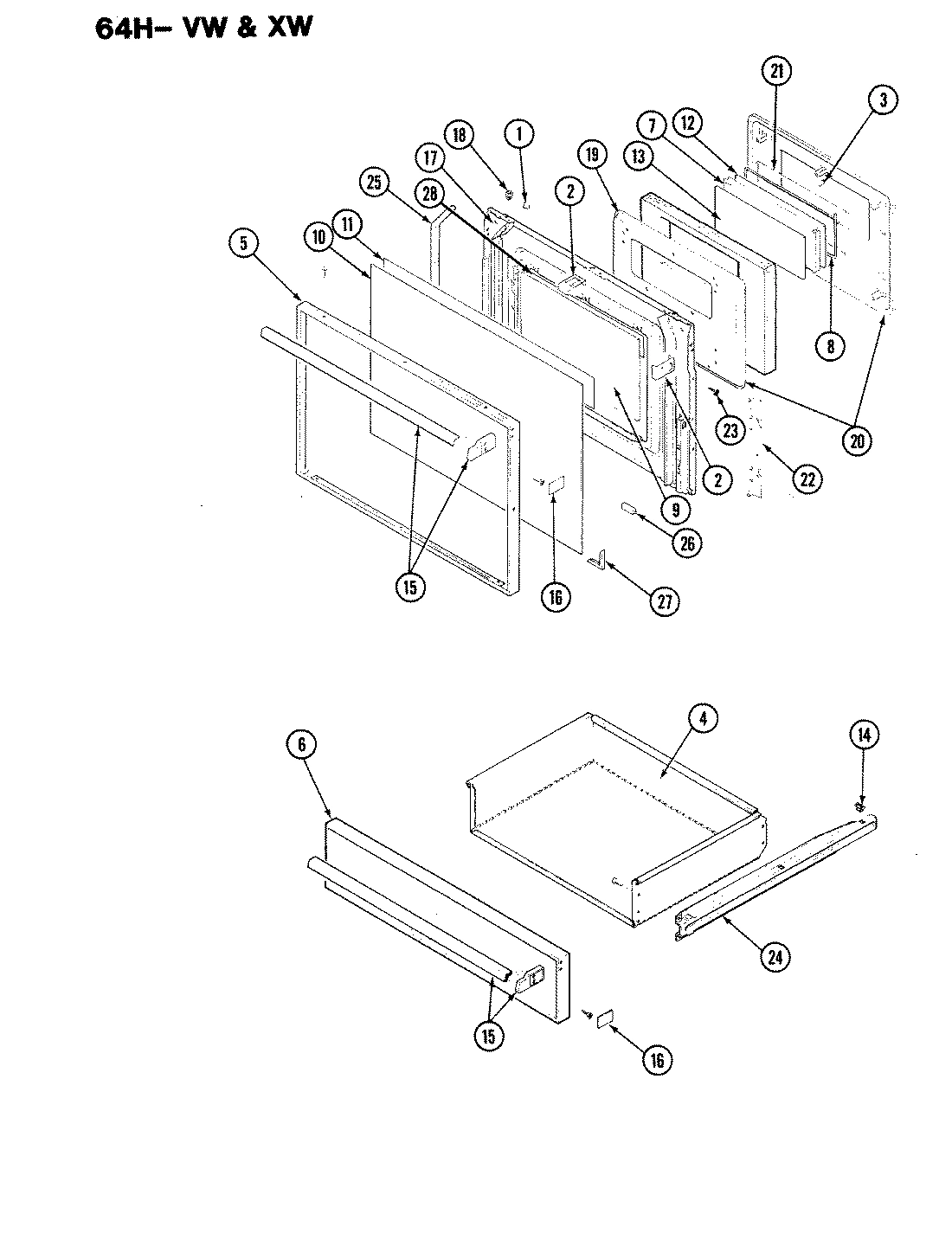

02 - DOOR PARTS

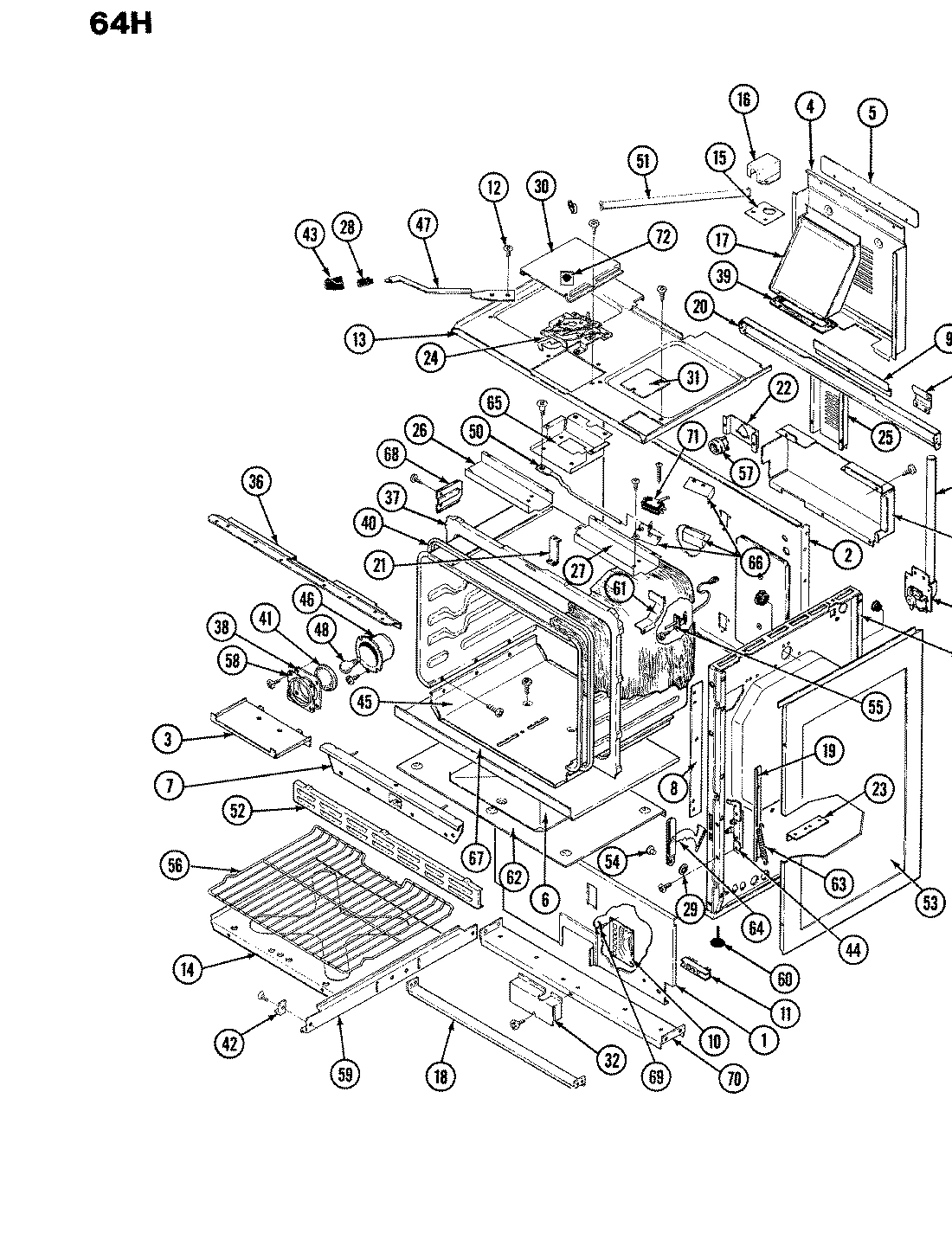

01 - BODY PARTS

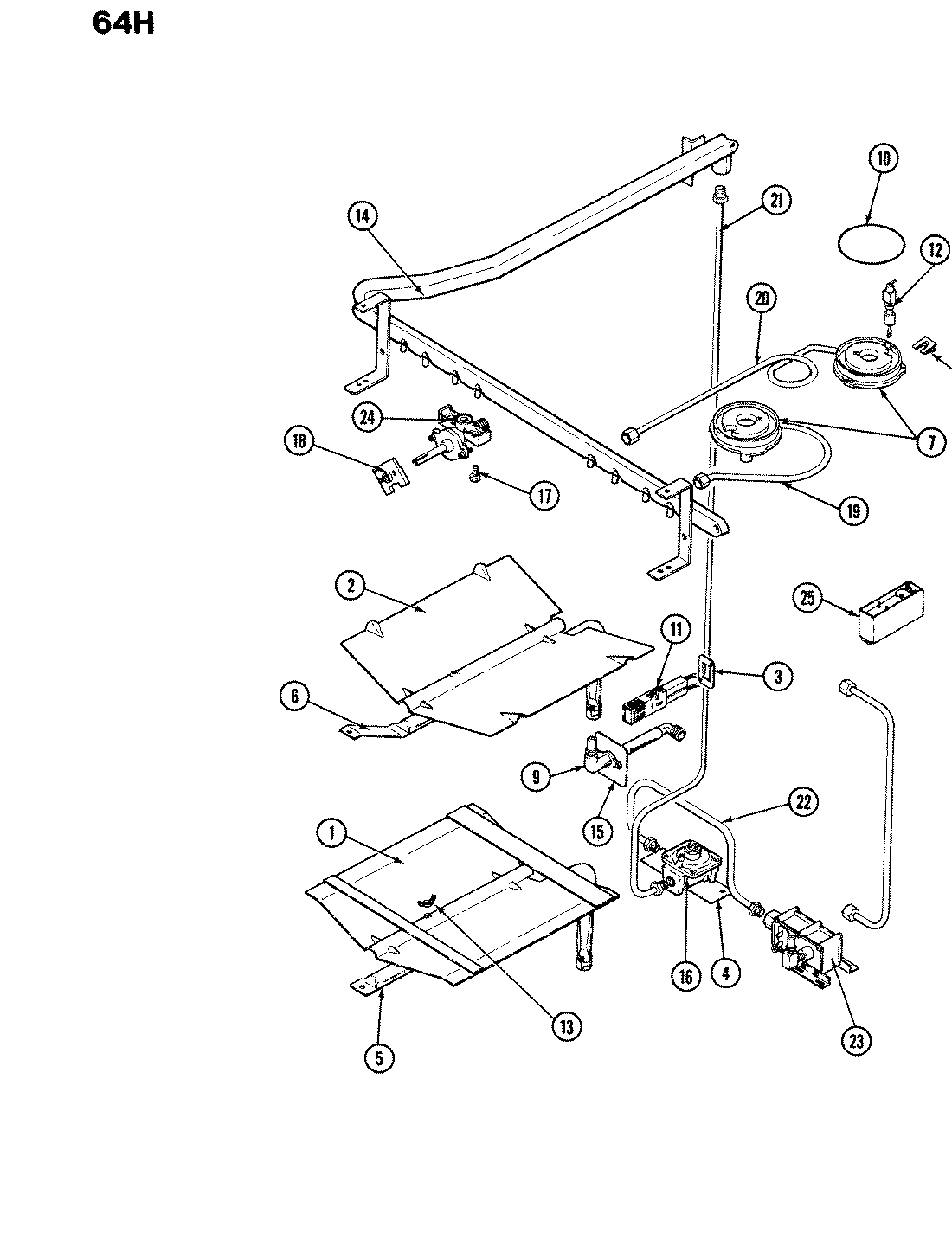

03 - GAS CONTROLS
Common parts from model Whirlpool S64H-4TKXW GAS RANGE
1
BEZEL, CLOCK-BLACK WPL 7720P12960 Contact Us For Availability
1
BEZEL, CLOCK WPL 7720P13060 Contact Us For Availability
1
TRIM BEZEL BLACK WPL 7740P03060 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BACK,BROILER SECTION WPL 4002F11945 Contact Us For Availability
1
BACK, BROIL SECTION WPL 4002F14545 Contact Us For Availability
1
BACK, BROILER WPL 4002F15945 Contact Us For Availability
1
BAFFLE WPL 3601W18415 Contact Us For Availability
1
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
2
BEZEL, VALVE KNOB-BLACK WPL 7740P00860 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BACK, MAIN WPL 4002F14480 Contact Us For Availability
2
BACK, MAIN WPL 4002F16580 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
3
BRACKET, CLOCK MTG WPL 3801F19945 Contact Us For Availability
3
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
3
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
3
SCREW WPL 7101P27360 Contact Us For Availability
3
SCREW WPL 7101P06160 Contact Us For Availability
3
BRACKET, BURNER LIGHTER WPL 3801F17945 Contact Us For Availability
4
CAP, BURNER ASSY WPL 3403A01960 Contact Us For Availability
4
CAP, BURNER WPL 7504P00560 Contact Us For Availability
4
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
4
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
4
BRACKET, SPARK MODULE WPL 3801F18045 Contact Us For Availability
4
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
4
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
4
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
4
BRACKET, SPARK MODULE WPL 3801F30345 Contact Us For Availability
5
CLOCK WPL 7601P13360 Contact Us For Availability
5
CLOCK WPL 7601P15860 Contact Us For Availability
5
CLOCK, ELECTRONIC WPL 7601P17960 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BAFFLE, FLUE BOX WPL 3601F06751 Contact Us For Availability
5
SCREW WPL 7101P05860 Contact Us For Availability
5
BURNER OVEN WPL 3403A01545 Contact Us For Availability
5
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
5
BURNER WPL 7505P10160 Contact Us For Availability
6
COVER, VENT TRIM WPL 7724P02660 Contact Us For Availability
6
COVER, VENT TRIM WPL 7724P05560 Contact Us For Availability
6
DRAWER, SERVICE WPL 5425A02170K Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
BURNER ASSY BROIL WPL 3403A01645 Contact Us For Availability
6
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
6
BURNER, BAKE & BROIL WPL 7505P10060 Contact Us For Availability
7
GASKET, VENT WPL 7201P04060 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
BAFFLE, OVN FRONT WPL 3601W12515 Contact Us For Availability
7
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
7
BURNER ASSY WPL 3403A01860 Contact Us For Availability
7
BURNER, TOP WPL 7505P18760 Contact Us For Availability
7
BURNER, TOP COMPLETE KIT WPL W10127325 Contact Us For Availability
8
GRATE (BLK) WPL 2003W02300 Contact Us For Availability
8
HARNESS, OVEN SENSOR WPL 5170P07960 Contact Us For Availability
8
HARNESS, WIRE WPL 5170P08160 Contact Us For Availability
8
HARNESS, OVEN SENSOR WPL 5170P08960 Contact Us For Availability
8
WIRE HARNESS WPL 5170P09460 Contact Us For Availability
8
HARNESS, RELAY WPL 5170P09560 Contact Us For Availability
8
GRATE, BLACK WPL 7518P00960 Contact Us For Availability
8
GRATE, BURNER WPL Y04000011 Contact Us For Availability
8
GRATE, BURNER WPL Y04000012 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
8
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
8
CLIP WPL 7112P07260 Contact Us For Availability
9
BUTTON, CONTROL SEL (BLK) WPL 7711P42860 Contact Us For Availability
9
BUTTON, CONTROL SET WPL 7711P44560 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
9
BAFFLE, FLUE BOX WPL 3601F11445 Contact Us For Availability
9
FITTING, BROIL BURNER WPL 7507P02860 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
RELAY, BOARD ASSY. WPL 7428P00860 Contact Us For Availability
10
RELAY BOARD WPL 7428P01060 Contact Us For Availability
10
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
11
BUTTON, CLOCK SET WPL 7711P43360 Contact Us For Availability
11
KNOB, BUTTON CLOCK SET WPL 7711P44660 Contact Us For Availability
11
TAPE 29.5`` WPL 4870F00560 Contact Us For Availability
11
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
11
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
11
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
12
PAD, FOAM GASKET WPL 7201P04160 Contact Us For Availability
12
KNOB, VALVE (BLK) WPL 7733P03260 Contact Us For Availability
12
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
12
GLASS, WINDOW INNER WPL 7902P34060 Contact Us For Availability
12
BOLT WPL 7116P00360 Contact Us For Availability
12
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
13
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
13
BOTTOM, BURNER BOX WPL 4011F15780 Contact Us For Availability
13
BOTTOM BURNER BOX WPL 4011F17819 Contact Us For Availability
13
BOTTOM, BURNER BOX WPL 4011F17823 Contact Us For Availability
13
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
13
NUT, WING WPL 7103P03060 Contact Us For Availability
13
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
14
SLEEVE, WIRE PROTECTOR WPL 7214P04160 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205F02015 Contact Us For Availability
14
BOTTOM, OVEN WPL 2205F02021 Contact Us For Availability
14
BOTTOM, OVEN WPL W10124403 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P09260 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P11760 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
15
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
15
BOTTOM, AIR BOX TUBE WPL 4011F15651 Contact Us For Availability
15
PLATE, FITTING WPL 3605F01945 Contact Us For Availability
15
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
16
RING, BLACK WPL 2014F00100 Contact Us For Availability
16
TOP, MAIN WHITE WPL 2001F06981 Contact Us For Availability
16
TOP, MAIN-STAINLESS WPL 2001F07030 Contact Us For Availability
16
TOP, MAIN BLACK WPL 2001F10209 Contact Us For Availability
16
TOP, MAIN (ALM) WPL 2001F10284 Contact Us For Availability
16
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
16
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
16
BOX, AIR TUBE WPL 4006F08451 Contact Us For Availability
16
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
16
REGULATOR WPL 7510P04060 Contact Us For Availability
16
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
17
SCREW WPL 7101P25660 Contact Us For Availability
17
TRIM, MANIFOLD-BLACK WPL 7712P06460 Contact Us For Availability
17
LINING WPL 2402W12815 Contact Us For Availability
17
LINING WPL 2402W17315 Contact Us For Availability
17
LINING WPL 2402W17319 Contact Us For Availability
17
BOX, FLUE WPL 4006W02615 Contact Us For Availability
17
MIXER AIR OVEN BURNER WPL 3411F00634 Contact Us For Availability
17
MIXER, AIR WPL 3411F00635 Contact Us For Availability
17
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
17
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
17
SCREW WPL 7101P29660 Contact Us For Availability
17
SLEEVE WPL 7214P00360 Contact Us For Availability
17
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
17
SWITCH, HI LIMIT WPL 7403P18760 Contact Us For Availability
18
SCREW WPL 7101P06560 Contact Us For Availability
18
TRIM, MANIFOLD PANEL END L WPL 7713P00560 Contact Us For Availability
18
TRIM, END CAP (LT) WPL 7713P00660 Contact Us For Availability
18
NUT, SNAP WPL 7103P11460 Contact Us For Availability
18
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
18
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
18
SWITCH, LIGHTER BURNER WPL 7403P23560 Contact Us For Availability
18
SWITCH WPL 7403P25960 Contact Us For Availability
18
SWITCH WPL 7403P28660 Contact Us For Availability
19
PAD, INNER WPL 2410F01651 Contact Us For Availability
19
BRACE, INNER SIDE WPL 3802F05045 Contact Us For Availability
19
TUBE, FRONT BURNER WPL 7506P10460 Contact Us For Availability
20
PAD, ASSY. WPL 2410A02915 Contact Us For Availability
20
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
20
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
20
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
20
TUBE, REAR BURNER WPL 7506P10560 Contact Us For Availability
21
RETAINER WPL 3804F02245 Contact Us For Availability
21
BRACKET WPL 3801F02145 Contact Us For Availability
21
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
21
SCREW WPL 7101P07460 Contact Us For Availability
21
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
22
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
BRACKET WPL 3801F02451 Contact Us For Availability
22
BRACKET, SPACER RT WPL 3801F08480 Contact Us For Availability
22
BRACKET, SPACER LT WPL 3801F08680 Contact Us For Availability
22
TUBE, REGULATOR----NA WPL 7506P07560 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
23
BRACKET, H.L. SWIT WPL 3801F09645 Contact Us For Availability
23
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW WPL 7101P18060 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
23
VALVE, BROIL & BAKE WPL 7501P03460 Contact Us For Availability
23
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
24
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
24
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
24
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
24
VALVE WPL 7502P11860 Contact Us For Availability
24
VALVE WPL 7502P23060 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
25
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
25
SCREW WPL 7101P10460 Contact Us For Availability
25
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
26
+ NAT. GAS CONVERSION KIT WPL 5415A01560 Contact Us For Availability
26
LP CONVERSION KIT WPL 5415A01660 Contact Us For Availability
27
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
28
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
28
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
29
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
30
COVER, DOOR LOCK WPL 4005F29380 Contact Us For Availability
31
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
32
COVER,MODULE WPL 4005F29780 Contact Us For Availability
33
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
33
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
34
SCREW WPL 7101P05760 Contact Us For Availability
34
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
35
FAN ASSEMBLY WPL 7427P00260 Contact Us For Availability
36
FRONT, BURN BOX BOTT WPL 4012F02080 Contact Us For Availability
36
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
37
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
38
GASKET, LAMP RETA WPL 7201P01560 Contact Us For Availability
39
WPL 7201P01360 WPL 7201P01360 Contact Us For Availability
40
WPL 7201P03660 WPL 7201P03660 Contact Us For Availability
41
WPL 7902P05760 WPL 7902P05760 Contact Us For Availability
42
WPL 8016P00460 WPL 8016P00460 Contact Us For Availability
42
WPL 8016P00560 WPL 8016P00560 Contact Us For Availability
42
WPL 7101P01360 WPL 7101P01360 Contact Us For Availability
43
WPL W10124350 WPL W10124350 Contact Us For Availability
43
WPL 7701P06860 WPL 7701P06860 Contact Us For Availability
44
WPL 3418A02934 WPL 3418A02934 Contact Us For Availability
44
WPL 3418A03034 WPL 3418A03034 Contact Us For Availability
44
WPL 7101P11260 WPL 7101P11260 Contact Us For Availability
45
WPL 4001F03645 WPL 4001F03645 Contact Us For Availability
45
WPL 4001F06045 WPL 4001F06045 Contact Us For Availability
46
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
46
WPL 4001F02019 WPL 4001F02019 Contact Us For Availability
46
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
46
WPL 7101P06460 WPL 7101P06460 Contact Us For Availability
46
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
47
WPL 7101P01860 WPL 7101P01860 Contact Us For Availability
47
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
47
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
48
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
49
WPL 4009W03880 WPL 4009W03880 Contact Us For Availability
49
WPL 4009W05880 WPL 4009W05880 Contact Us For Availability
49
WPL 4009W07480 WPL 4009W07480 Contact Us For Availability
50
WPL 780 WPL 780 Contact Us For Availability
× ![]()
Login and Registration Form
