Model LG S5MSB.ALMEEUS LG STUDIO Styler - Refresh Garments in Minutes with Smart wi-fi Enabled Steam Clothing Care System – Common Parts & Diagrams

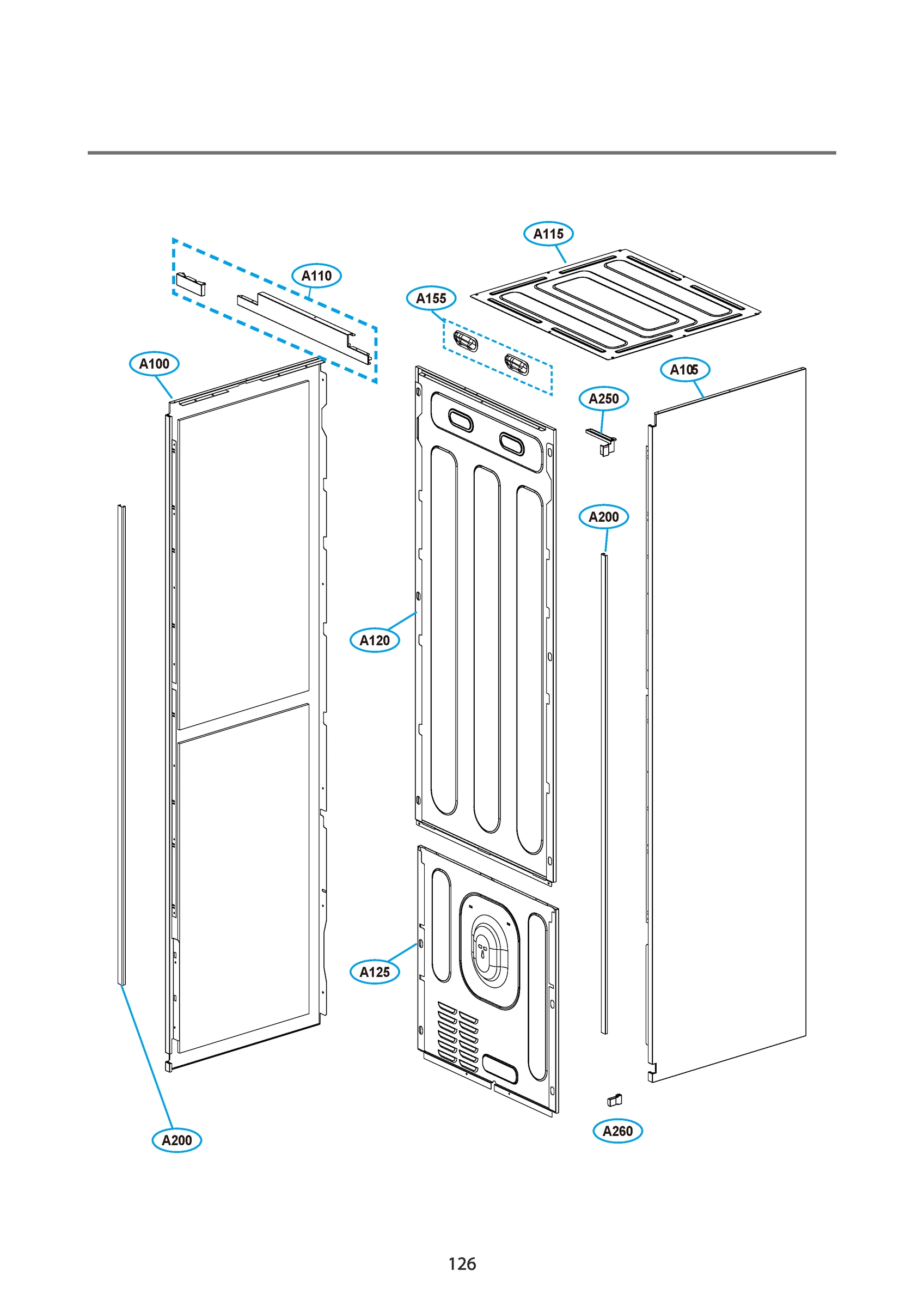

A100
Cabinet Assembly
Cabinet Assembly LGE ABJ73588225 Contact Us For Availability
View on Model
A105
Cabinet Assembly
Cabinet Assembly LGE ABJ73588325 Contact Us For Availability
View on Model
A110
Bracket Assembly
Bracket Assembly LGE ABA73968811 Contact Us For Availability
View on Model
A112
Decor,Door
Decor,Door LGE MCR65387515 Contact Us For Availability
View on Model
A130
PCB Assembly,Main
PCB Assembly,Main LGE EBR37099901 Contact Us For Availability
View on Model
A152
Lamp,Incandescent
Lamp,Incandescent LGE EAQ60660310 Contact Us For Availability
View on Model
A345
Hinge
Hinge LGE MEF62482402 Contact Us For Availability
View on Model
A410
Cover,Guide
Cover,Guide LGE MCK68026002 Contact Us For Availability
View on Model
A500
Cycle Assembly
Cycle Assembly LGE ACT74354685 Contact Us For Availability
View on Model
A500
Cycle Assembly
Cycle Assembly LGE ACT74354655 Contact Us For Availability
View on Model

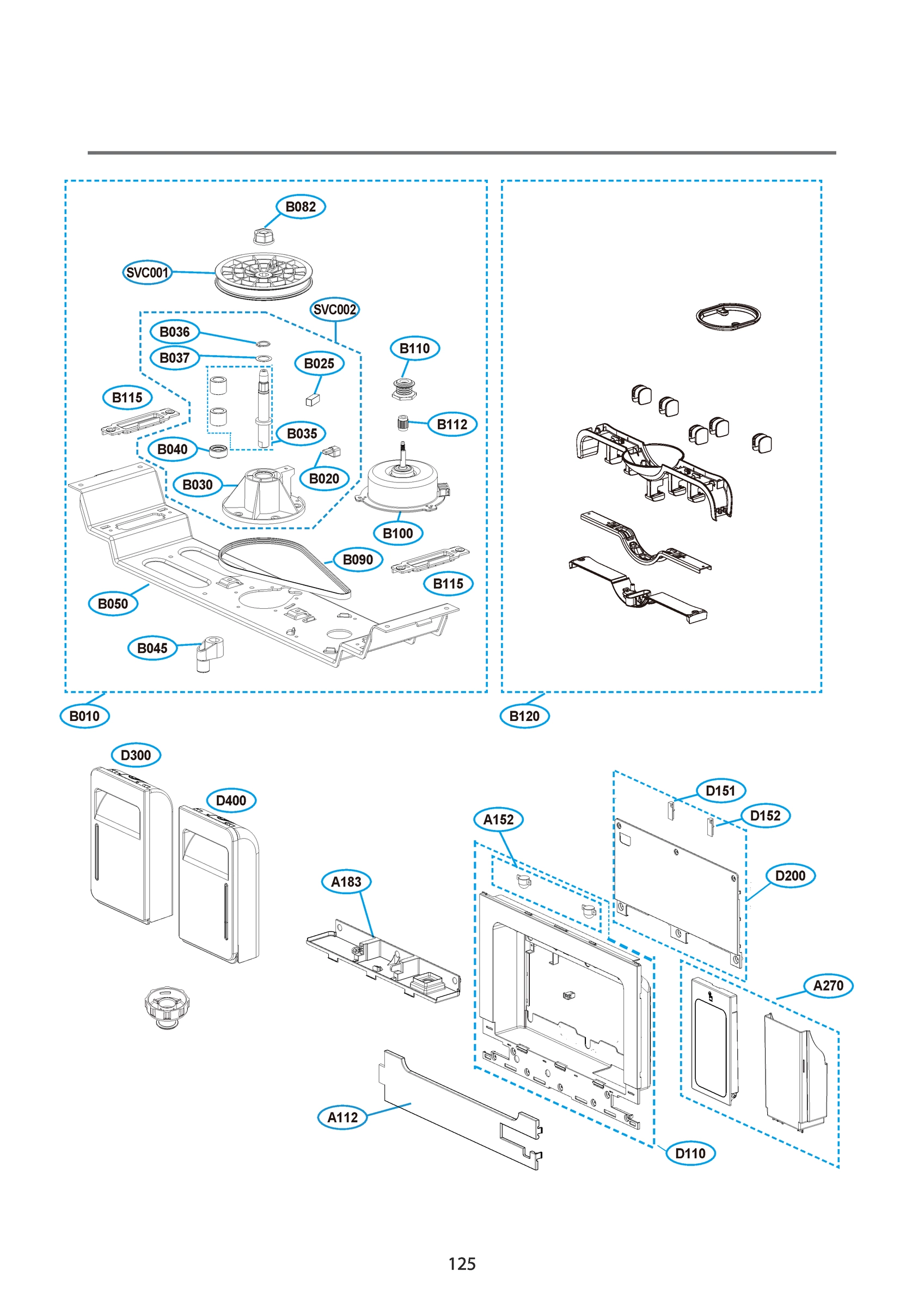

B010
Hanger Assembly
Hanger Assembly LGE AEE72909304 Contact Us For Availability
View on Model
B020
Sensor Assembly
Sensor Assembly LGE 6501ED4001G Contact Us For Availability
View on Model
B045
Shaft Assy,Parts Assembly,SVC
Shaft Assy,Parts Assembly,SVC LGE AGM30085201 Contact Us For Availability
View on Model
B120
Hanger Assembly
Hanger Assembly LGE AEE73409402 Contact Us For Availability
View on Model
B230
Hanger Assembly
Hanger Assembly LGE AEE73009502 Contact Us For Availability
View on Model
C100
Shelf Assembly
Shelf Assembly LGE AHT72933805 Contact Us For Availability
View on Model
D110
Frame Assembly
Frame Assembly LGE ADV75085502 Contact Us For Availability
View on Model
D152
Switch Assembly,LID
Switch Assembly,LID LGE 6601EA2001W Contact Us For Availability
View on Model

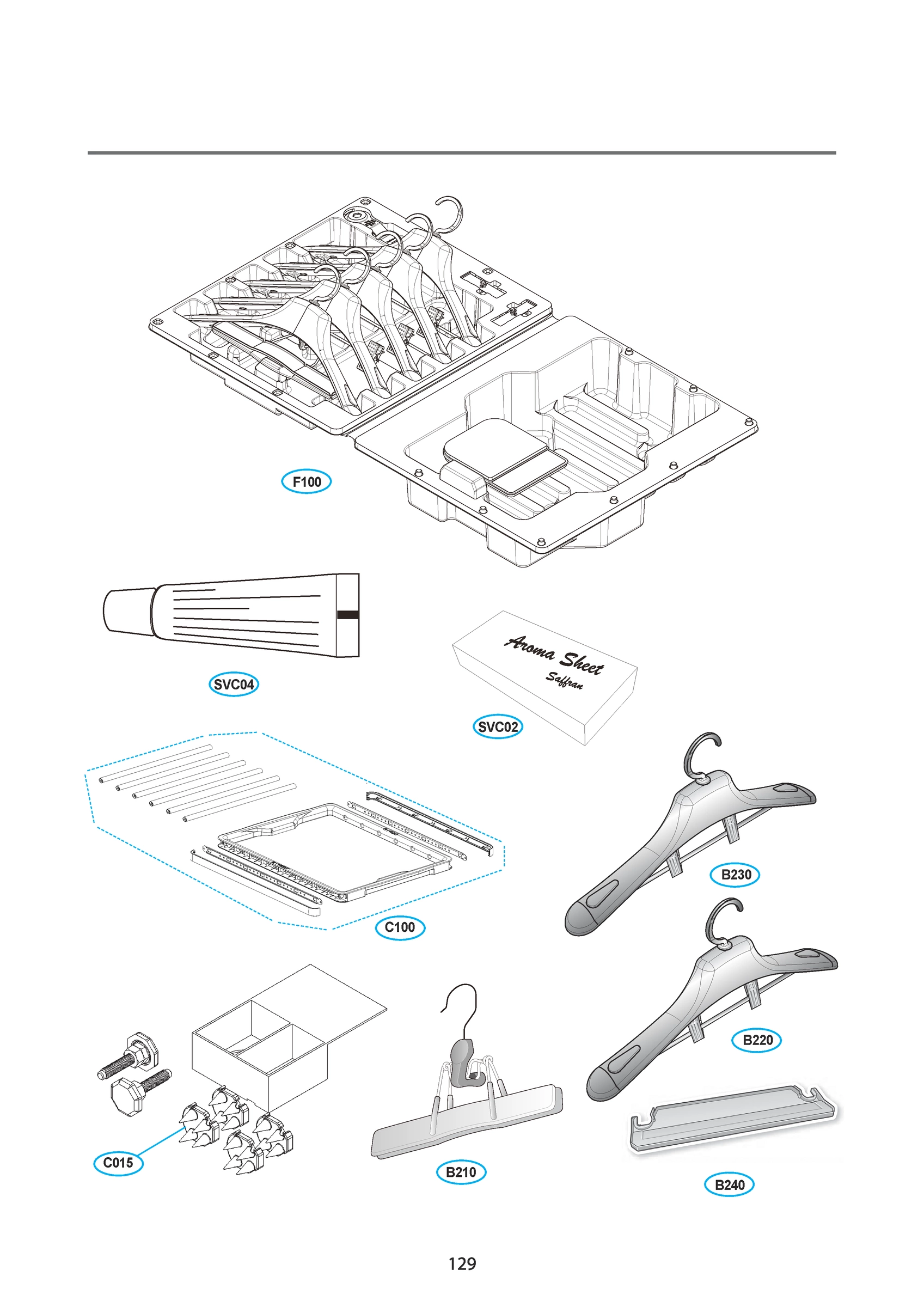

F100
Accessory Assembly
Accessory Assembly LGE AAA77728620 Contact Us For Availability
View on Model
M155
Pipe
Pipe LGE MGE62212603 Contact Us For Availability
View on Model
M160
Pipe
Pipe LGE MGE62212604 Contact Us For Availability
View on Model
M165
Pipe
Pipe LGE MGE62131403 Contact Us For Availability
View on Model
M170
Pipe
Pipe LGE MGE62131603 Contact Us For Availability
View on Model
M175
Pipe
Pipe LGE MGE62131503 Contact Us For Availability
View on Model

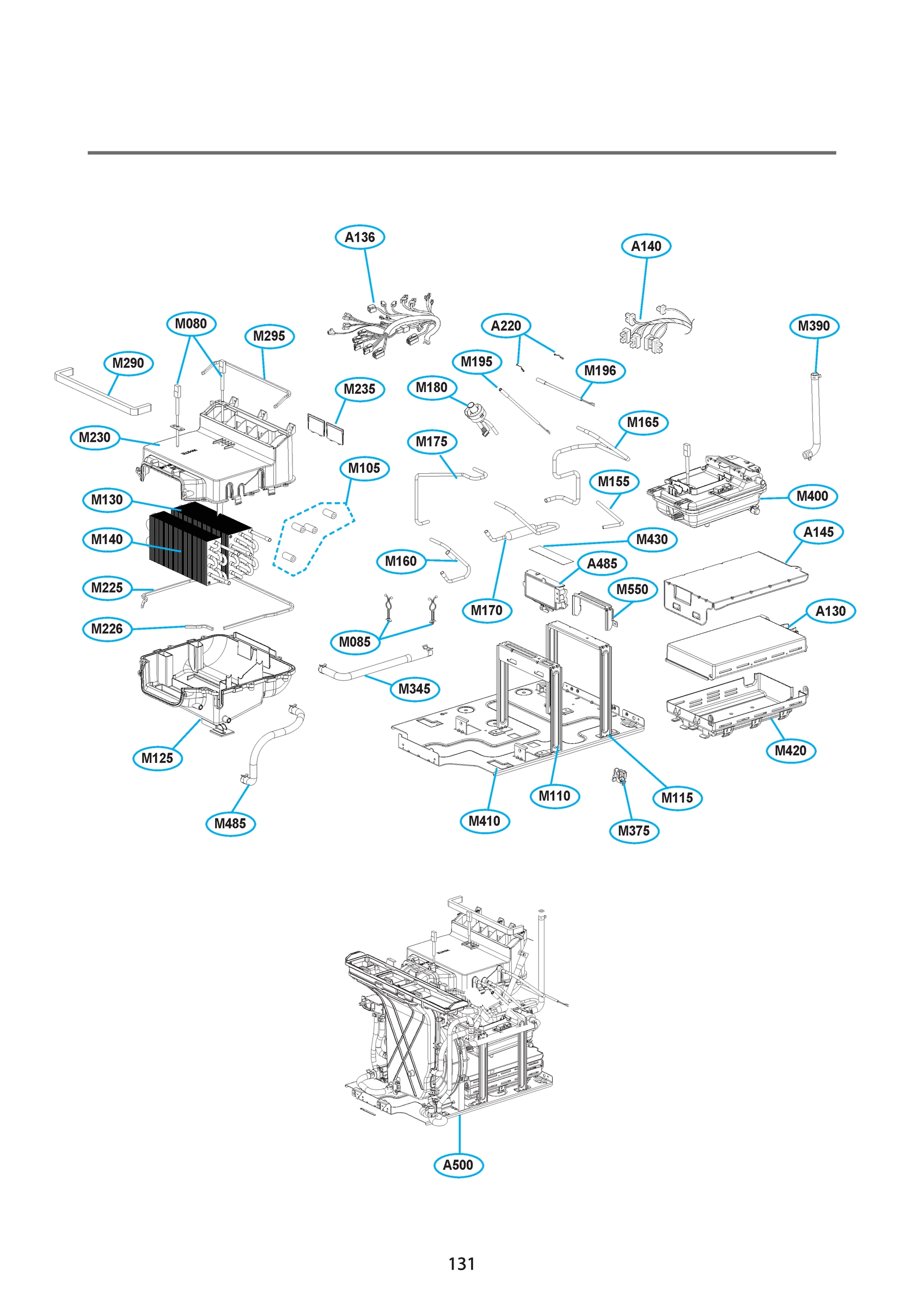

M400
Generator Assembly
Generator Assembly LGE 3111ER1001G Contact Us For Availability
View on Model
M410
Frame,Lower
Frame,Lower LGE MDQ66689801 Contact Us For Availability
View on Model
M425
Filter
Filter LGE MDJ62664301 Contact Us For Availability
View on Model
SVC001
Pulley,Parts Assembly,SVC
Pulley,Parts Assembly,SVC LGE AGM30049401 Contact Us For Availability
View on Model
SVC002
Shaft Assy,Parts Assembly,SVC
Shaft Assy,Parts Assembly,SVC LGE AGM30049501 Contact Us For Availability
View on Model
SVC02
Aroma Sheet,Parts Assembly,SVC
Aroma Sheet,Parts Assembly,SVC LGE AGM73611306 Contact Us For Availability
View on Model
SVC02
Aroma Sheet,Parts Assembly,SVC
Aroma Sheet,Parts Assembly,SVC LGE AGM73611307 Contact Us For Availability
View on Model
SVC02
Aroma Sheet,Parts Assembly,SVC
Aroma Sheet,Parts Assembly,SVC LGE AGM73611309 Contact Us For Availability
View on Model
SVC02
Aroma Sheet,Parts Assembly,SVC
Aroma Sheet,Parts Assembly,SVC LGE AGM73611312 Contact Us For Availability
View on Model
SVC03
Duct Assy,Parts Assembly,SVC
Duct Assy,Parts Assembly,SVC LGE AGM30071001 Contact Us For Availability
View on Model
SVC03
Duct Assy,Parts Assembly,SVC
Duct Assy,Parts Assembly,SVC LGE AGM30070901 Contact Us For Availability
View on Model
