Model LG S40TR Soundbar – Common Parts & Diagrams
Diagram 0

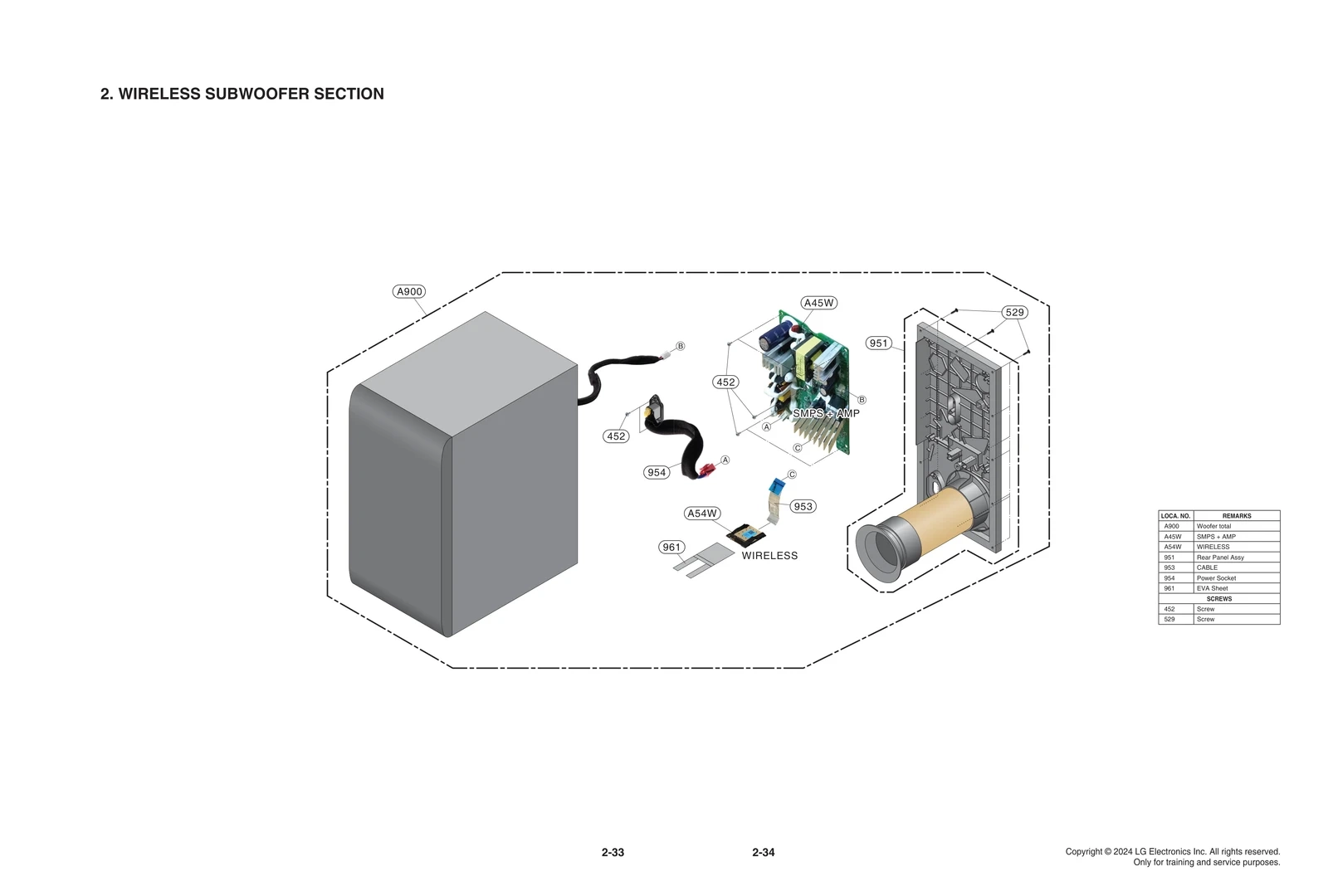

Diagram 1

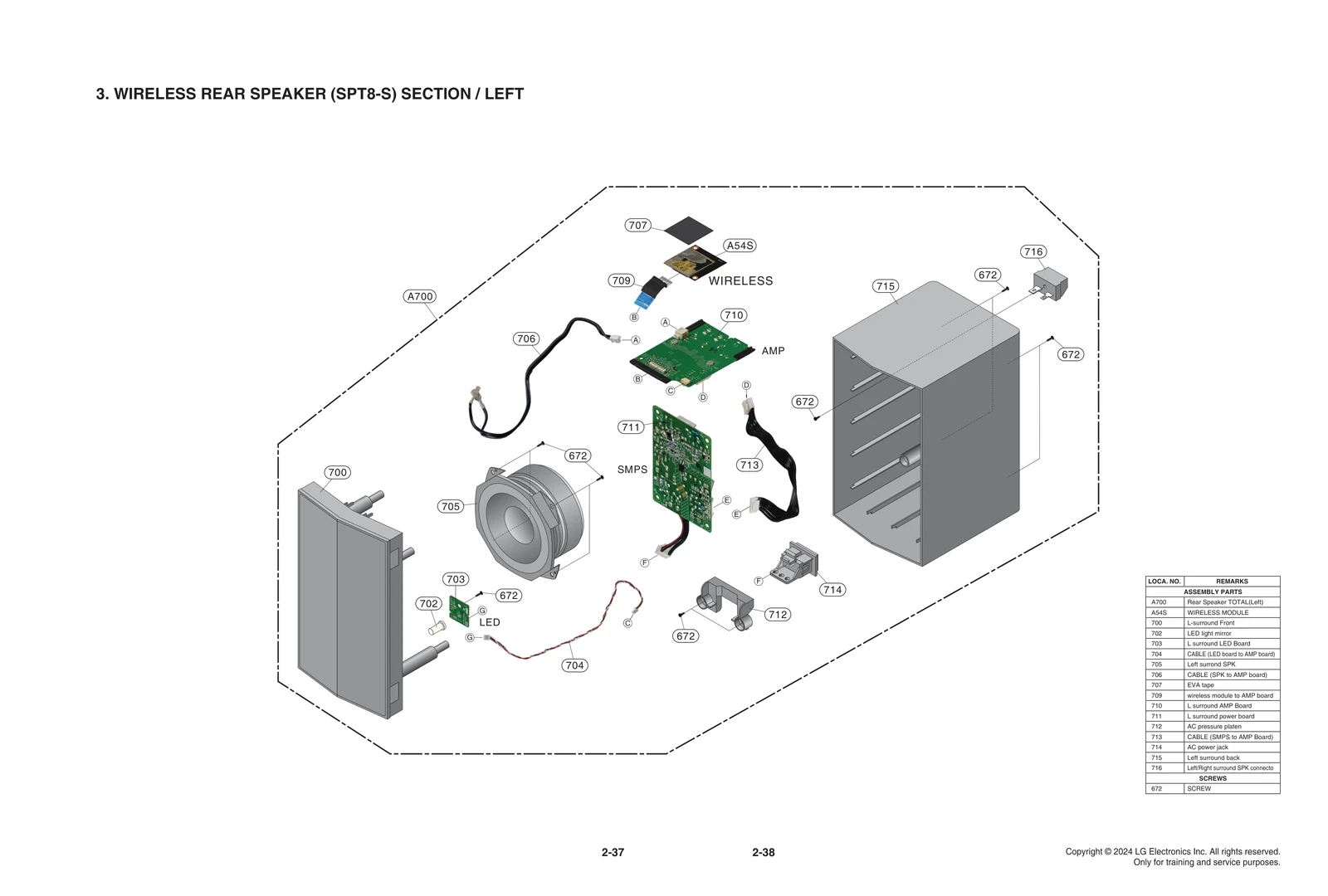

Diagram 2

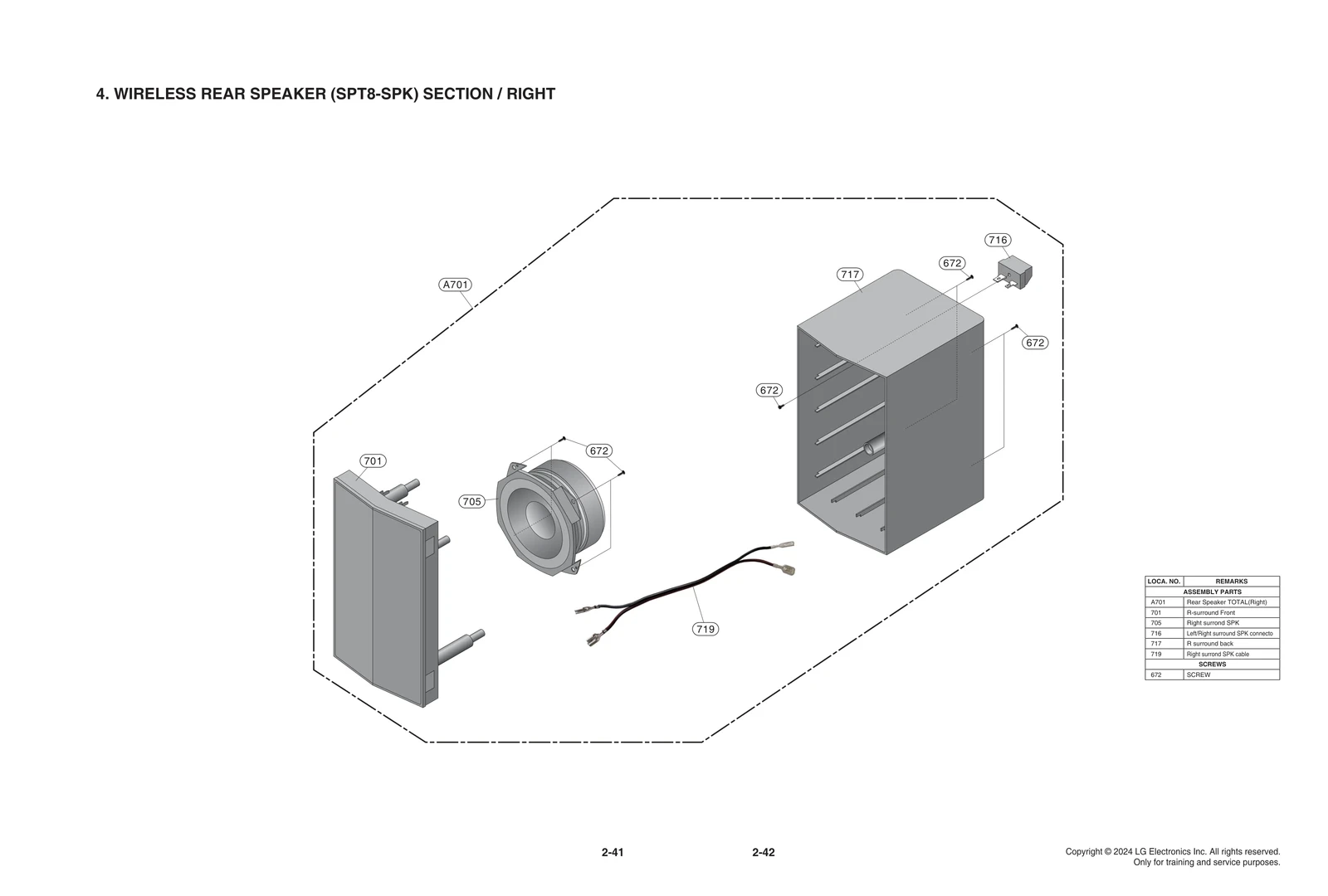

Diagram 3

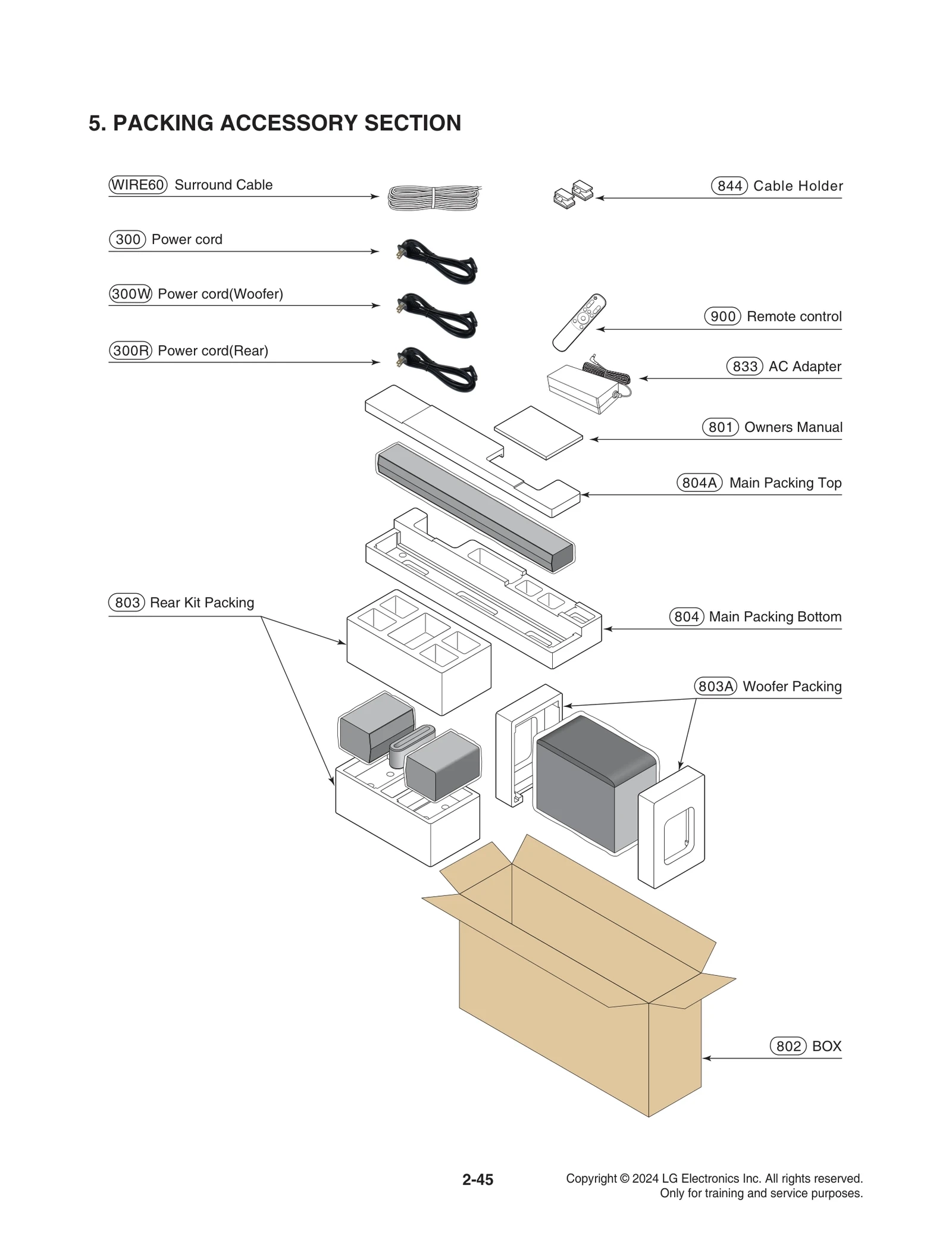

Diagram 4
Diagram 5
Common parts from model LG S40TR Soundbar
252
Speaker,Full Range LGE EAB65408302 Contact Us For Availability
253
Button LGE MBG67872201 Contact Us For Availability
254
Frame Assembly LGE ADV30103101 Contact Us For Availability
255
Sheet LGE MHK67950901 Contact Us For Availability
256
Damper LGE MCQ70907101 Contact Us For Availability
300R
Power Cord,Outsourcing LGE COV37881801 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
462
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
525
Screw,Customized LGE FAB34966901 Contact Us For Availability
529
Screw,Customized LGE FAB34718801 Contact Us For Availability
531
Screw,Machine LGE FAB35016201 Contact Us For Availability
672
Screw,Outsourcing LGE COV37847601 Contact Us For Availability
700
Cover,Outsourcing LGE COV37892201 Contact Us For Availability
701
Cover Assembly,Outsourcing LGE COV37892901 Contact Us For Availability
702
Lens,Outsourcing LGE COV37892701 Contact Us For Availability
703
LED Assembly,Outsourcing LGE COV37889401 Contact Us For Availability
704
Cable,Outsourcing LGE COV37889601 Contact Us For Availability
705
Speaker Unit,Outsourcing LGE COV37887401 Contact Us For Availability
706
PCB Assembly,Sub,Outsourcing LGE COV37886901 Contact Us For Availability
707
Tape,Outsourcing LGE COV37893501 Contact Us For Availability
709
FFC Cable,Outsourcing LGE COV37889801 Contact Us For Availability
710
PCB Assembly,Audio,Outsourcing LGE COV37889301 Contact Us For Availability
711
SMPS,Outsourcing LGE COV37889501 Contact Us For Availability
712
Holder,Outsourcing LGE COV37892401 Contact Us For Availability
713
Cable,Outsourcing LGE COV37889701 Contact Us For Availability
714
Power Socket,Outsourcing LGE COV37889901 Contact Us For Availability
715
Case Assembly,Outsourcing LGE COV37892303 Contact Us For Availability
716
Terminal,Outsourcing LGE COV37894301 Contact Us For Availability
717
Case Assembly,Outsourcing LGE COV37893003 Contact Us For Availability
719
PCB Assembly,Sub,Outsourcing LGE COV37887101 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30138002 Contact Us For Availability
802
Box LGE MAY70141055 Contact Us For Availability
803
Packing LGE MFZ67553503 Contact Us For Availability
803A
Packing LGE MFZ67553504 Contact Us For Availability
804
Packing LGE MFZ67553501 Contact Us For Availability
804A
Packing LGE MFZ67553502 Contact Us For Availability
833
Adapters LGE EAY65911503 Contact Us For Availability
844
Holder,Outsourcing LGE COV37882801 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74935642 Contact Us For Availability
951
Case Assembly LGE ABQ30220103 Contact Us For Availability
953
Cable,FFC LGE EAD62131521 Contact Us For Availability
954
Socket,Power LGE EAG63233204 Contact Us For Availability
961
Sheet LGE MHK65489403 Contact Us For Availability
A41
Case LGE MBN66589301 Contact Us For Availability
A42
Case Assembly LGE ABQ30264508 Contact Us For Availability
A44
PCB Assembly LGE EBR42238501 Contact Us For Availability
A45W
PCB Assembly LGE EBR42252005 Contact Us For Availability
A46
Option Code Assembly LGE EBR43603917 Contact Us For Availability
A50
PCB Assembly LGE EBR42239901 Contact Us For Availability
A51
Module,Bluetooth LGE EAT65209902 Contact Us For Availability
A51
Module,Bluetooth LGE EAT65209901 Contact Us For Availability
A54
Module,Tx Module LGE EAT65209402 Contact Us For Availability
A54S
RF Module,Outsourcing LGE COV37959301 Contact Us For Availability
A54W
Module,Rx Module LGE EAT65209702 Contact Us For Availability
A700
Speaker Assembly,Outsourcing LGE COV37882123 Contact Us For Availability
A701
Speaker Assembly,Outsourcing LGE COV37882215 Contact Us For Availability
A900
Speaker System Total LGE TCG37553625 Contact Us For Availability
CABLE1
Harness,Single LGE EAD66040102 Contact Us For Availability
CABLE2
Harness,Single LGE EAD66040001 Contact Us For Availability
CABLE3
Harness,Single LGE EAD65485503 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD66039801 Contact Us For Availability
CABLE5
Cable,FFC LGE EAD66039603 Contact Us For Availability
CABLE6
PCB Assembly,Sub LGE EBR42249001 Contact Us For Availability
IC405A
S/W,System Program LGE SAA44569701 Contact Us For Availability
IC406A
S/W,System Program LGE SAA44783901 Contact Us For Availability
IC801A
S/W,System Program LGE SAA44570101 Contact Us For Availability
WIRE60
Cable & Wire,Outsourcing LGE COV37882901 Contact Us For Availability
× ![]()
