Model Whirlpool S35HA-92X ELECTRIC RANGE – Common Parts & Diagrams

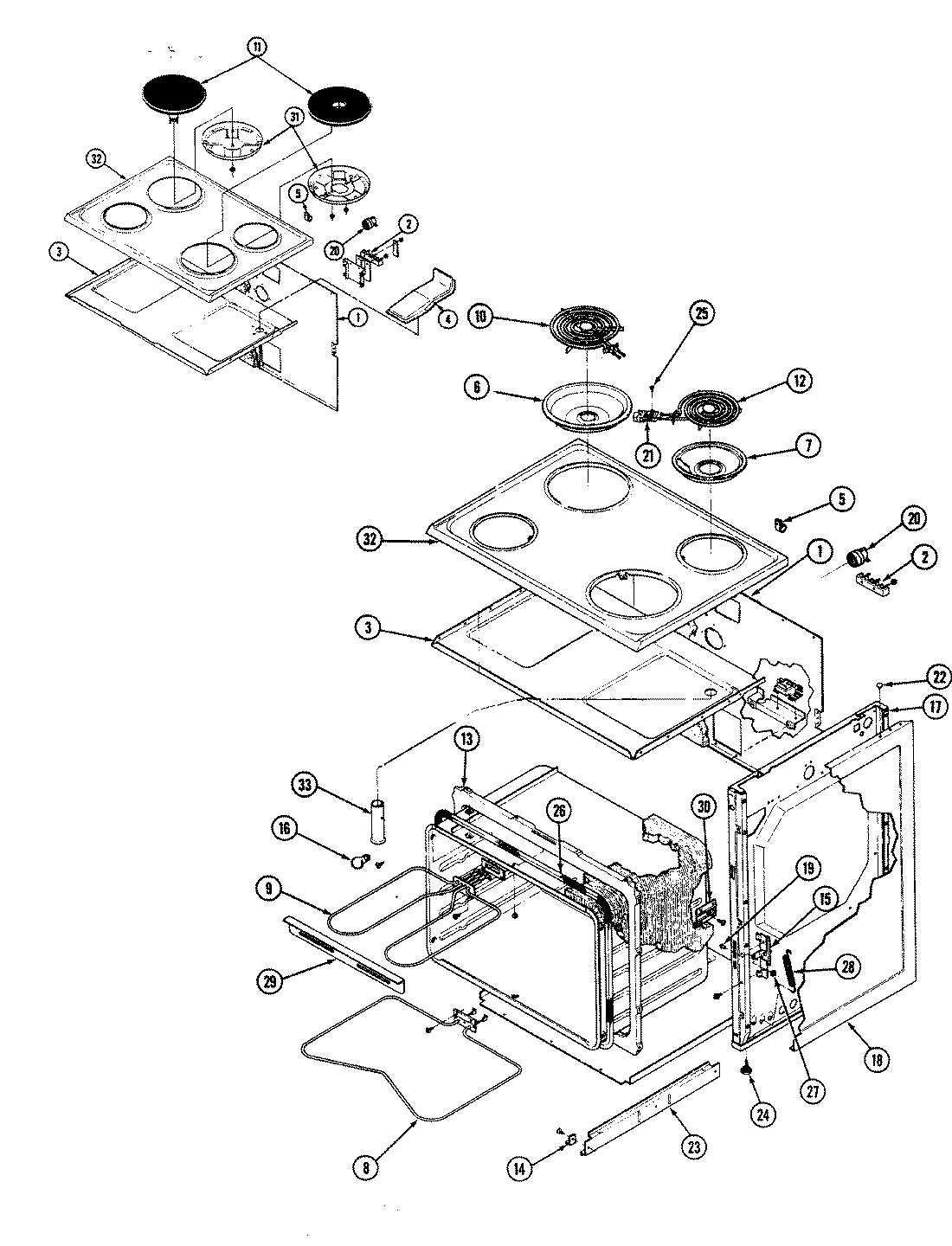

01 - BODY

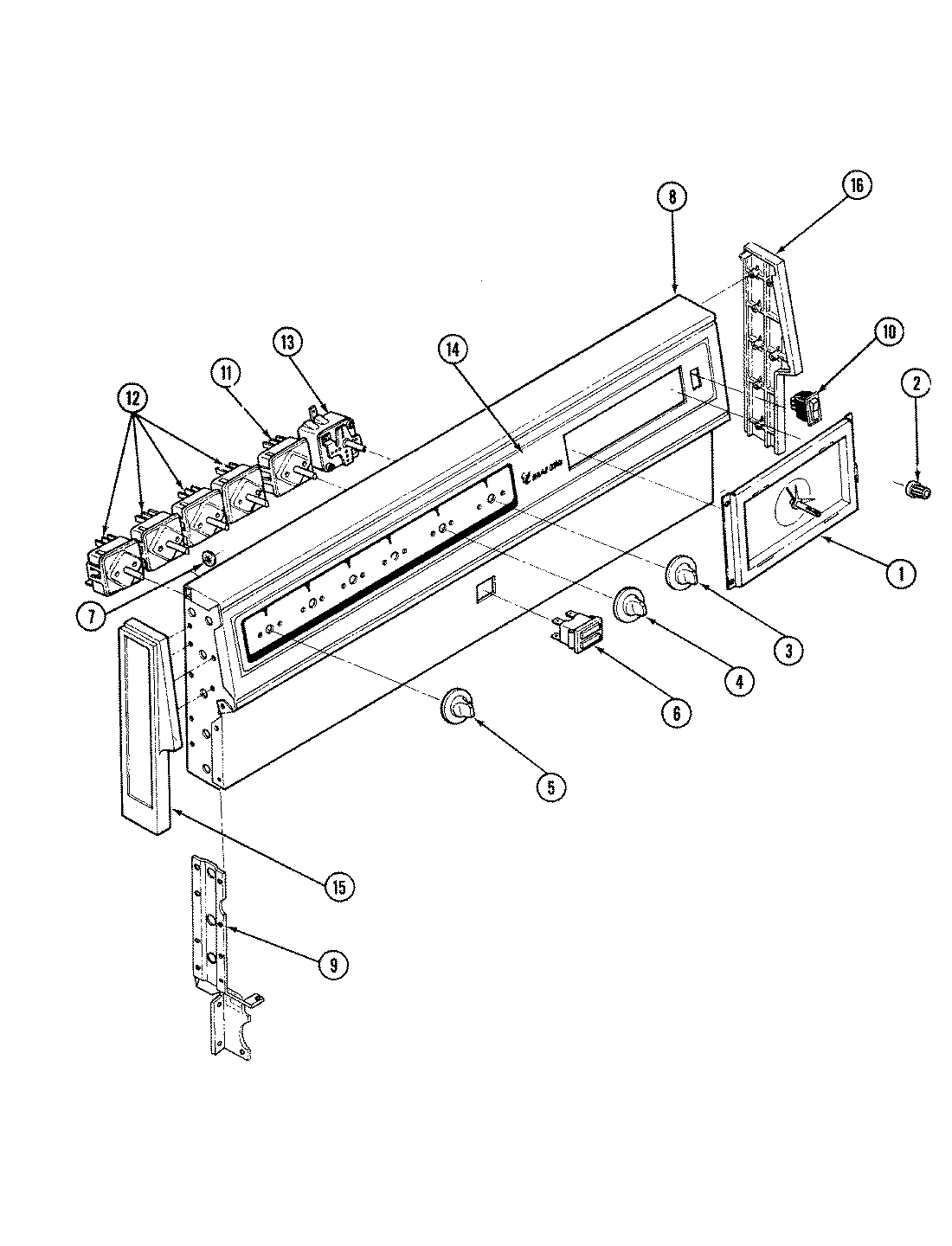

02 - CONTROL PANEL

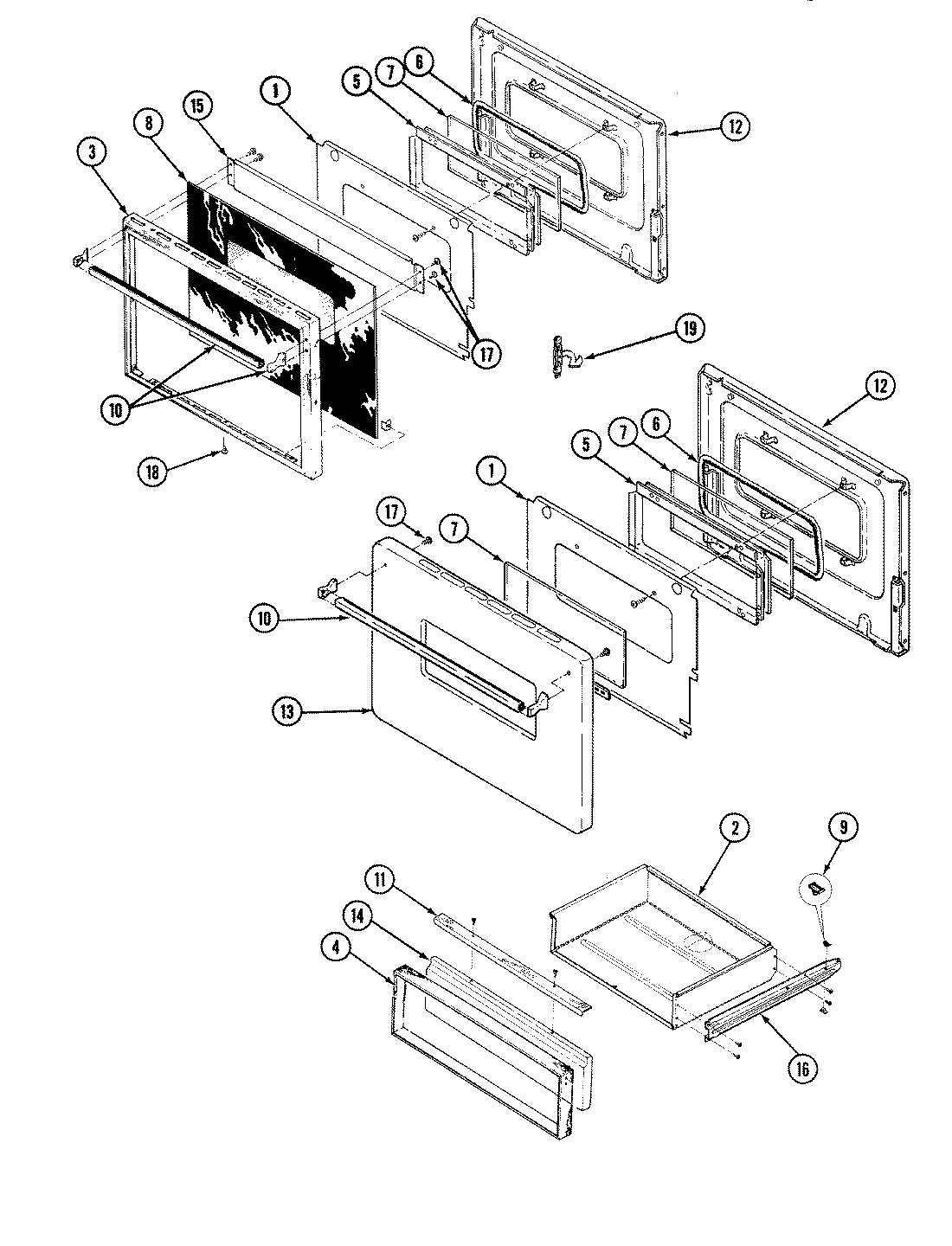

03 - DOOR
Common parts from model Whirlpool S35HA-92X ELECTRIC RANGE
1
BACK, MAIN WPL 4002F09280 Contact Us For Availability
1
CLOCK WPL 7602P08560 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10860 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
4
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
4
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
BRACE WPL 3802F00380 Contact Us For Availability
4
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
4
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
4
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
4
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
4
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
4
KNOB WPL 7739P02560 Contact Us For Availability
4
FRAME, SVC DOOR WPL 7706P18160 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
5
KNOB WPL 7737P02160 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
6
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
6
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
7
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
7
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
8
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
8
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
8
BACKGUARD ASSY WPL 2601W25874 Contact Us For Availability
8
PANEL, BKGD ALMOND WPL 2601W25884 Contact Us For Availability
8
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
9
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
9
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
9
SUPPORT WPL 3807F01080 Contact Us For Availability
9
SUPPORT WPL 3807F01280 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
10
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
10
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
11
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
12
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
12
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
12
SWITCH, INFINITE (1400W) WPL 7403P26260 Contact Us For Availability
12
SWITCH, INFINITE (2400W) WPL 7403P26360 Contact Us For Availability
12
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
12
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
13
THERMOSTAT WPL 7404P02960 Contact Us For Availability
14
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
14
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
14
TRIM, BACKGUARD WPL 7703P18660 Contact Us For Availability
14
TRIM, BKGD WPL 7703P26860 Contact Us For Availability
14
PANEL, DRAWER (BLK) WPL 2416F01370 Contact Us For Availability
15
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
15
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
15
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
HOUSING, LAMP WPL 4001F01619 Contact Us For Availability
15
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
15
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
15
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
15
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
16
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
16
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
17
PAN, BROIL WPL 3401F00423 Contact Us For Availability
17
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
17
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
17
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
SPRING WPL 7803P00260 Contact Us For Availability
18
SEAL WPL 1726252 Contact Us For Availability
18
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
RACK, OVEN WPL 7801P03060 Contact Us For Availability
19
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
19
STRAP WPL 8019P00260 Contact Us For Availability
20
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
21
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
22
RIVET, SPACER TOP WPL 7107P00860 Contact Us For Availability
23
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
23
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
24
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
26
SHIELD WPL 3604F01745 Contact Us For Availability
26
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
27
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
30
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
32
WPL 2002W02930 WPL 2002W02930 Contact Us For Availability
33
WPL 8026P00360 WPL 8026P00360 Contact Us For Availability
× ![]()
