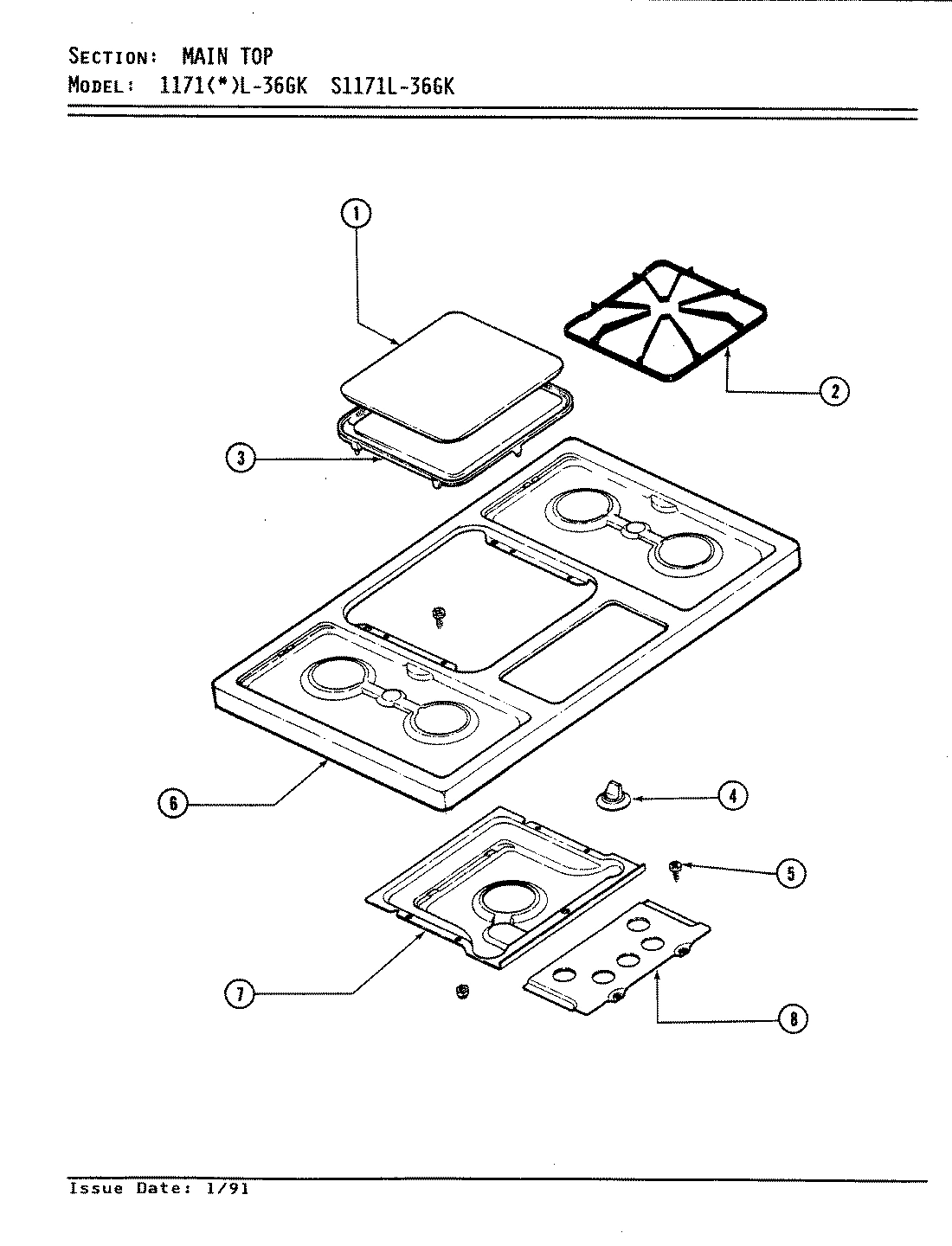

Model Whirlpool S1171L-36GK GAS COOK-TOP – Common Parts & Diagrams

1
BURNER, GRIDDLE
BURNER, GRIDDLE WPL 7505P09260 Contact Us For Availability
View on Model
1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F12623 Contact Us For Availability
View on Model
1
COVER, GRIDDLE
COVER, GRIDDLE WPL 2005F00530 Contact Us For Availability
View on Model
2
BURNER, LT FR
BURNER, LT FR WPL 7505P09060 Contact Us For Availability
View on Model
2
CORD, POWER
CORD, POWER WPL 7402P01360 Contact Us For Availability
View on Model
2
GRATE
GRATE WPL 2003W00100 Contact Us For Availability
View on Model
3
BURNER, LT REAR
BURNER, LT REAR WPL 7505P09160 Contact Us For Availability
View on Model
3
COVER, TRANSFORMER
COVER, TRANSFORMER WPL 4005F10851 Contact Us For Availability
View on Model
3
GRIDDLE
GRIDDLE WPL 7508P00660 Contact Us For Availability
View on Model
4
BURNER, RT FR
BURNER, RT FR WPL 7505P08860 Contact Us For Availability
View on Model
4
HINGE, TOP
HINGE, TOP WPL 7106P00160 Contact Us For Availability
View on Model
4
KNOB, VALVE
KNOB, VALVE WPL 7733P04860 Contact Us For Availability
View on Model
5
BURNER, RT REAR
BURNER, RT REAR WPL 7505P08960 Contact Us For Availability
View on Model
5
HINGE, TOP
HINGE, TOP WPL 7106P00560 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7101P26060 Contact Us For Availability
View on Model
6
IGNITER (RT)
IGNITER (RT) WPL 7432P00960 Contact Us For Availability
View on Model
6
COVER, BURNER VALVE
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
View on Model
6
HOUSING, UNIT
HOUSING, UNIT WPL 4001F06551 Contact Us For Availability
View on Model
6
TOP, MAIN (CHR)
TOP, MAIN (CHR) WPL 2001F07430 Contact Us For Availability
View on Model
7
IGNITER (LT)
IGNITER (LT) WPL 7432P01760 Contact Us For Availability
View on Model
7
MODULE, SPARK
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
View on Model
7
TRAY, GRIDDLE-DRIP
TRAY, GRIDDLE-DRIP WPL 2006F00350 Contact Us For Availability
View on Model
8
IGNITER, TOP
IGNITER, TOP WPL 7432P01660 Contact Us For Availability
View on Model
8
NUT, SNAP
NUT, SNAP WPL 7103P01660 Contact Us For Availability
View on Model
8
NUT, LOCK
NUT, LOCK WPL 7103P08560 Contact Us For Availability
View on Model
8
PLATE, NAME
PLATE, NAME WPL 7719P00860 Contact Us For Availability
View on Model
8
TRIM, CONTROL PANEL
TRIM, CONTROL PANEL WPL 7720P14260 Contact Us For Availability
View on Model
9
PIPE, MANIFOLD W/GRIDDLE
PIPE, MANIFOLD W/GRIDDLE WPL 7513P08060 Contact Us For Availability
View on Model
9
NUT, TWIN SPEED
NUT, TWIN SPEED WPL 7103P02860 Contact Us For Availability
View on Model
10
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
View on Model
10
SPACER, TOP
SPACER, TOP WPL 8010P07260 Contact Us For Availability
View on Model
11
SCREW, CONTROL VALVE
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
View on Model
11
SUPPORT, GRIDDLE
SUPPORT, GRIDDLE WPL 3807F19834 Contact Us For Availability
View on Model
12
SUPPORT, BURNER
SUPPORT, BURNER WPL 3807F33051 Contact Us For Availability
View on Model
13
SUPPORT
SUPPORT WPL 3807F03534 Contact Us For Availability
View on Model
14
SWITCH, IGN LT RR
SWITCH, IGN LT RR WPL 7403P19360 Contact Us For Availability
View on Model
15
SWITCH, IGN RT RR
SWITCH, IGN RT RR WPL 7403P19260 Contact Us For Availability
View on Model
17
SWITCH
SWITCH WPL 7403P19160 Contact Us For Availability
View on Model
18
TUBE, ASSY FLASH - GRIDDLE
TUBE, ASSY FLASH - GRIDDLE WPL 7506P06460 Contact Us For Availability
View on Model
19
TUBE, ASSY FLASH
TUBE, ASSY FLASH WPL 7506P01760 Contact Us For Availability
View on Model
20
VALVE
VALVE WPL 7502P03460 Contact Us For Availability
View on Model
21
VALVE
VALVE WPL 7502P02760 Contact Us For Availability
View on Model
22
VALVE
VALVE WPL 7502P01160 Contact Us For Availability
View on Model
23
VALVE
VALVE WPL 7502P02860 Contact Us For Availability
View on Model
24
VALVE, BURNER (GRIDDLE)
VALVE, BURNER (GRIDDLE) WPL 7502P00460 Contact Us For Availability
View on Model
