Model Whirlpool S1171L-30K GAS COOK-TOP – Common Parts & Diagrams
02 - TOP ASSEMBLY

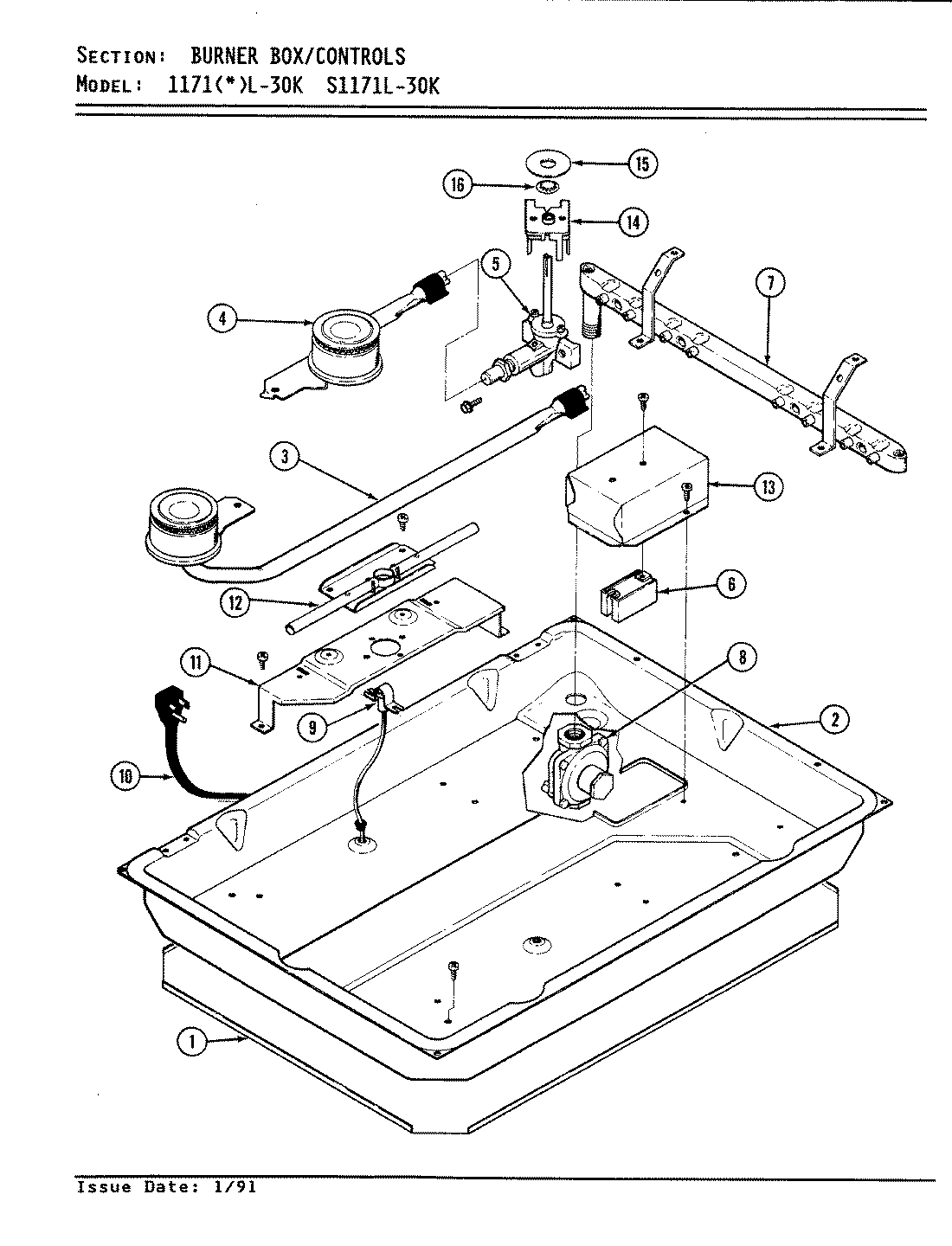

01 - BURNER BOX
Common parts from model Whirlpool S1171L-30K GAS COOK-TOP
1
GRATE WPL 2003W00100 Contact Us For Availability
1
BAFFLE, BOTTOM WPL 3601F18551 Contact Us For Availability
2
SCREW WPL 7101P26160 Contact Us For Availability
2
NUT, PAL WPL 7103P11060 Contact Us For Availability
2
HINGE, TOP WPL 7106P01760 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 4011F14123 Contact Us For Availability
3
KNOB, BURNER (BLACK) WPL 7733P04560 Contact Us For Availability
3
BURNER, TOP LEFT WPL 7505P16060 Contact Us For Availability
4
TOP, MAIN (STLS) WPL 2001W07630 Contact Us For Availability
4
SCREW WPL 7118P00460 Contact Us For Availability
4
BURNER, TOP RIGHT WPL 7505P16160 Contact Us For Availability
5
PLATE, NAME WPL 7719P00860 Contact Us For Availability
5
PANEL, CONTROL (BLK) WPL 7720P14660 Contact Us For Availability
5
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
5
VALVE, HI-MED-LO WPL 7502P12160 Contact Us For Availability
6
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
PIPE, MANIFOLD WPL 7513P06060 Contact Us For Availability
8
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
9
IGNITER WPL 7432P01060 Contact Us For Availability
10
CORD, POWER WPL 7402P01360 Contact Us For Availability
11
SUPPORT WPL 3807F10151 Contact Us For Availability
12
TUBE, FLASH WPL 7506P01660 Contact Us For Availability
13
COVER, TRANSFORMER WPL 4005F10980 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
15
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
16
CLIP WPL 7112P02460 Contact Us For Availability
× ![]()
