Model Whirlpool S1070EH-Z GAS RANGE – Common Parts & Diagrams

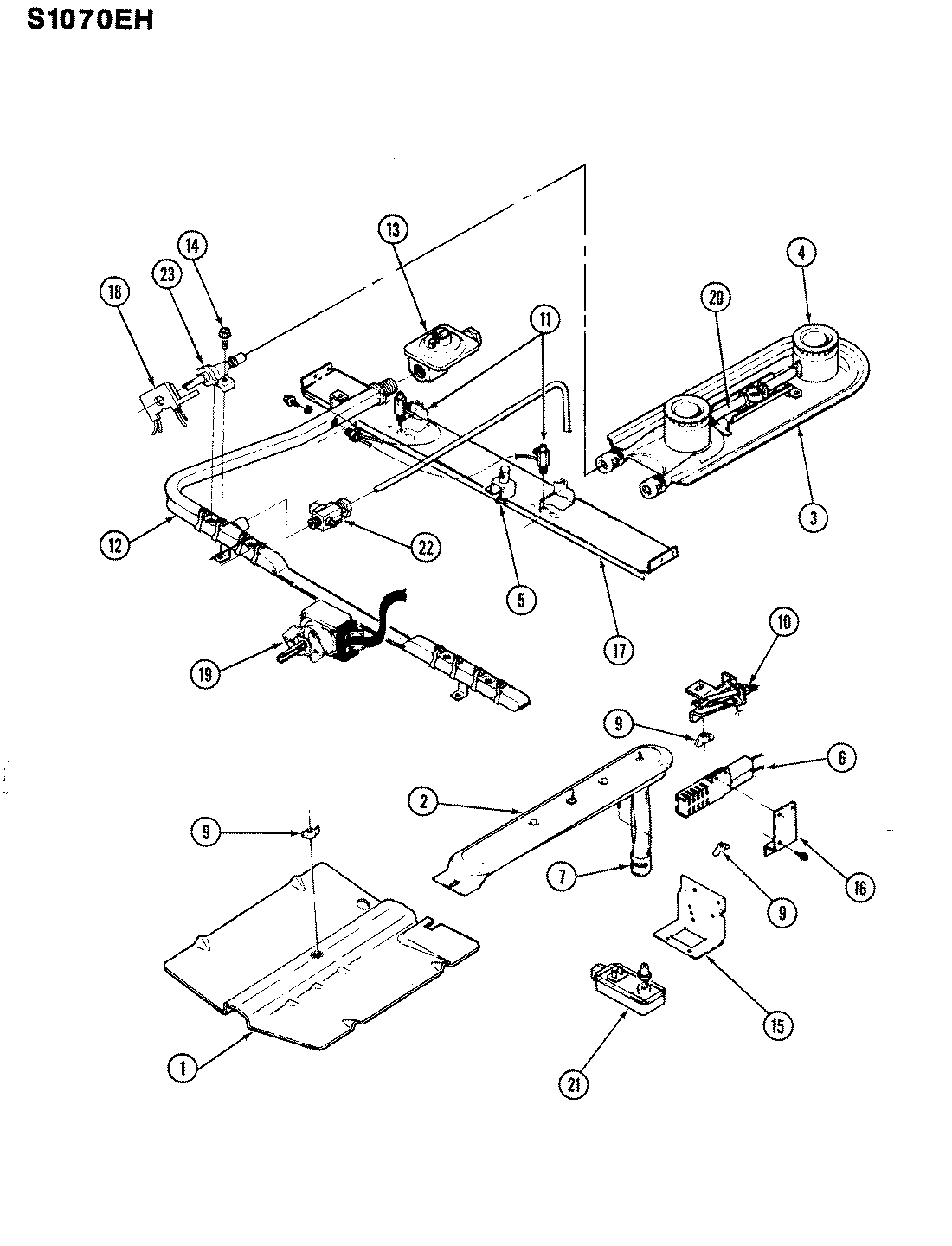

03 - CONTROL SYSTEM

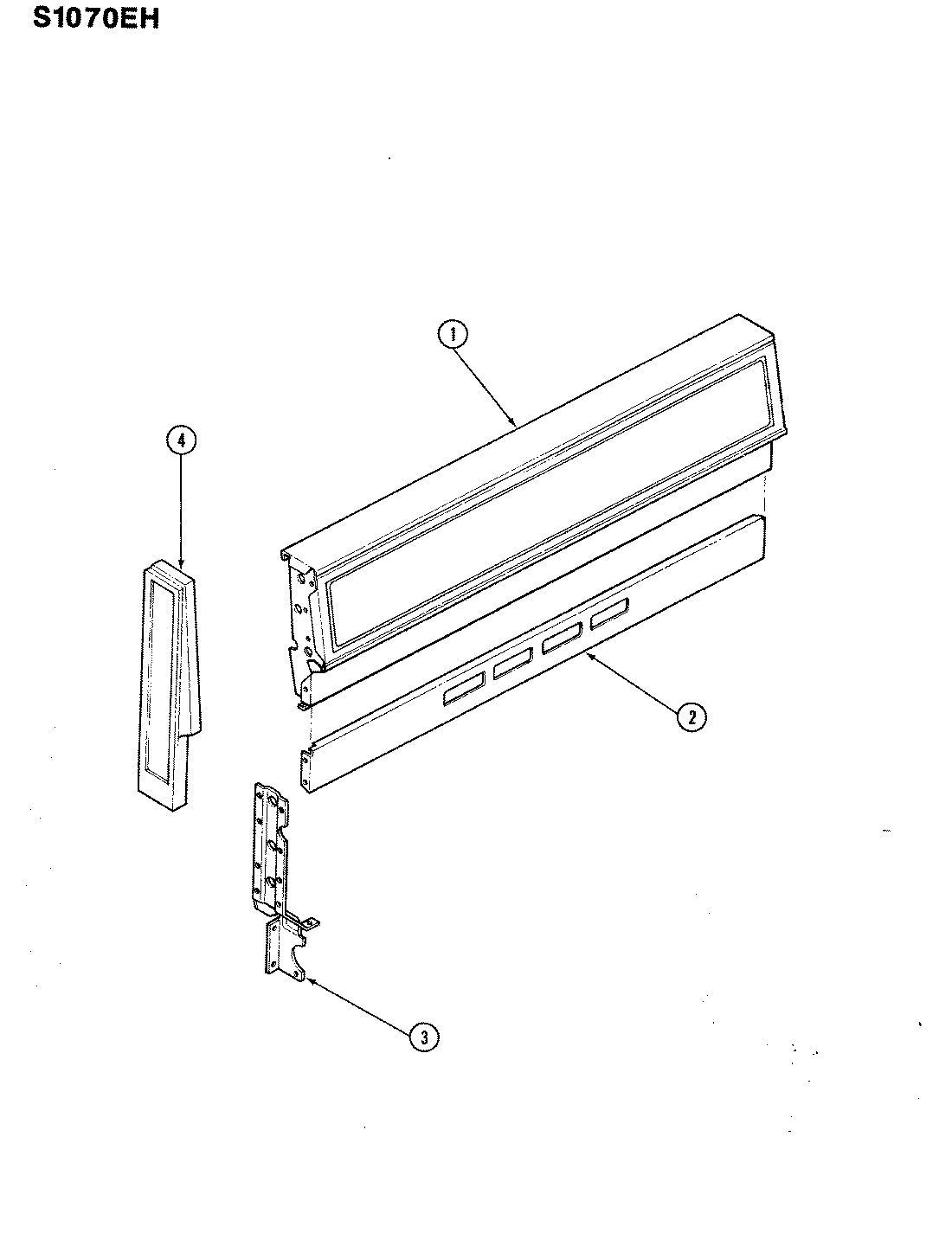

02 - CONTROL PANEL

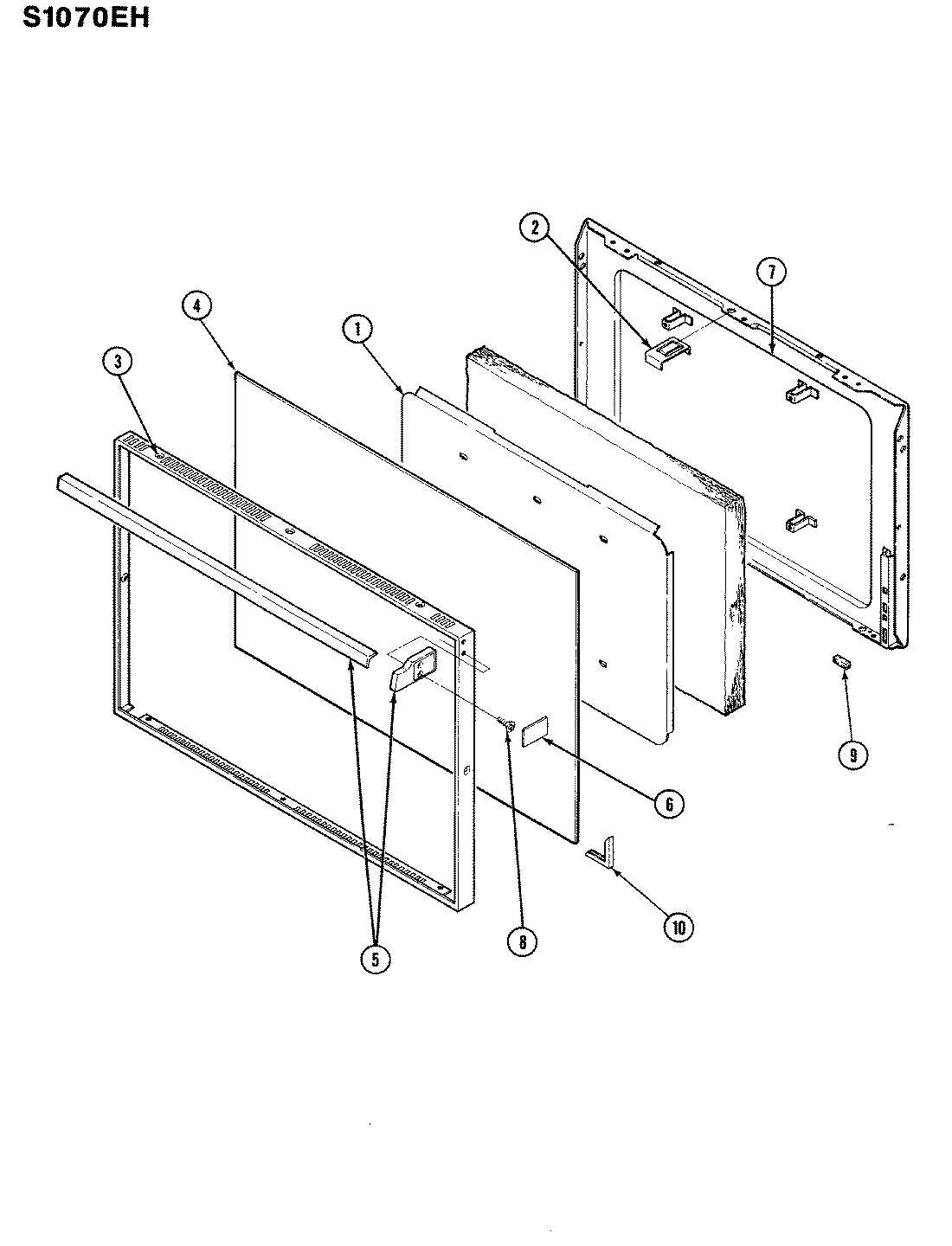

04 - DOOR

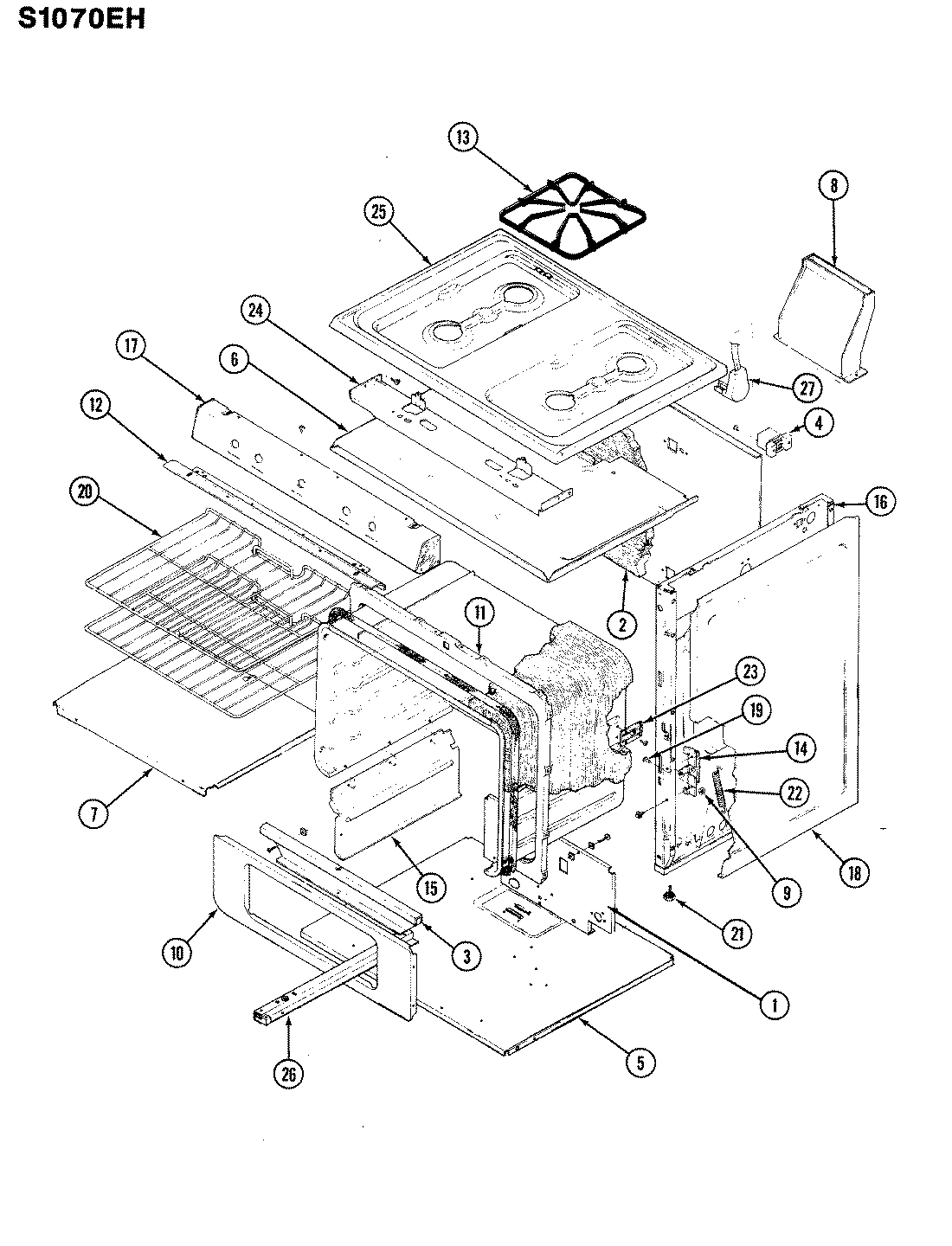

01 - BODY
Common parts from model Whirlpool S1070EH-Z GAS RANGE
1
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
1
TRIM, BACKGUARD WPL 7703P14460 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
CATCH WPL 8002P00160 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
PANEL, BKGD LWR BLK WPL 2620W01700 Contact Us For Availability
2
DRAWER, BROILER WPL 3407W00911 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BACK, MAIN WPL 4002F07020 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
SUPPORT WPL 3807F16880 Contact Us For Availability
3
SUPPORT WPL 3807F17080 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
3
BAFFLE, OVEN FRONT WPL 3601W12412 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
TRIM WPL 7726P00460 Contact Us For Availability
4
TRIM WPL 7726P01560 Contact Us For Availability
4
GLASS, DOOR SOLID WPL 7902P06360 Contact Us For Availability
5
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
5
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
5
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
6
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
7
MIXER, AIR WPL 3411F00134 Contact Us For Availability
7
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
7
PANEL, BROILER DRWR WPL 2403F01470 Contact Us For Availability
7
LINK, BROILER WPL 7807P00160 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01224 Contact Us For Availability
8
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
8
BRACKET WPL 3801F02045 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
10
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
10
SPRING WPL 7803P01460 Contact Us For Availability
10
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
10
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
11
BURNER, PILOT WPL 7505P08160 Contact Us For Availability
11
FRONT, FRAME OVEN WPL 2201F03223 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P02860 Contact Us For Availability
12
FRONT, BURNER BOX WPL 4012F01920 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
13
GRATE WPL 2003W00100 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7711P13760 Contact Us For Availability
14
SCREW VALVE WPL 1986319 Contact Us For Availability
14
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
14
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
15
SUPPORT WPL 3807F12034 Contact Us For Availability
15
LINING, BROILER WPL 2404F02123 Contact Us For Availability
16
PAN, BROIL WPL 3401F00411 Contact Us For Availability
16
LINING ASSY, INNER SIDE WPL 4009W03480 Contact Us For Availability
17
PANEL, MANIFOLD BLACK WPL 2616F02490 Contact Us For Availability
18
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
18
PANEL, SIDE (HV WHT) WPL 2618F05276 Contact Us For Availability
18
PANEL, SIDE (AVOC) WPL 2618F05277 Contact Us For Availability
18
PANEL, SIDE COFFEE WPL 2618F05278 Contact Us For Availability
19
THERMOSTAT OVEN WPL 7515P01560 Contact Us For Availability
19
PIN, HINGE WPL 7113P00260 Contact Us For Availability
20
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
20
RACK, OVEN WPL 7801P03060 Contact Us For Availability
21
VALVE, OVEN WPL 7501P06160 Contact Us For Availability
21
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
22
SPRING WPL 7803P00260 Contact Us For Availability
23
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
23
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
23
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
25
TOP, MAIN - C WPL 2001F03630 Contact Us For Availability
26
TRACK WPL 3404A00151 Contact Us For Availability
26
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
26
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
27
CORD, POWER WPL 7402P01460 Contact Us For Availability
27
MANUAL, USE & CARE WPL 8112P00760 Contact Us For Availability
27
MANUAL, USE & CARE WPL 8112P03260 Contact Us For Availability
× ![]()
