Model LG RVF1000 In-Room type Video Conference System – Common Parts & Diagrams

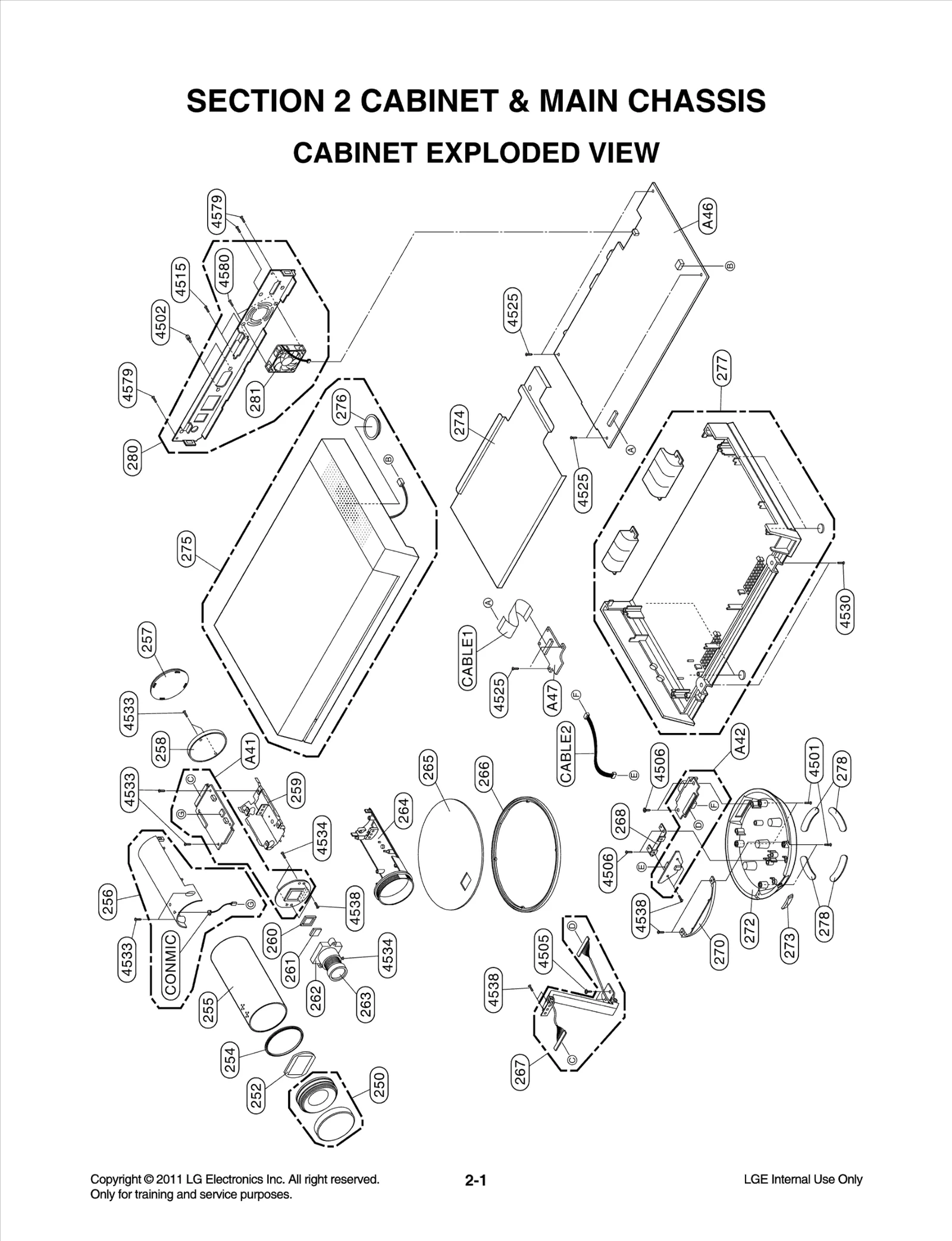

Diagram 0
Common parts from model LG RVF1000 In-Room type Video Conference System
250
Cover Assembly LGE ACQ85300402 Contact Us For Availability
252
Lens LGE MFB62293601 Contact Us For Availability
254
Decor LGE MCR63409901 Contact Us For Availability
255
Cover LGE MCK65010702 Contact Us For Availability
257
Cap LGE MBL63858001 Contact Us For Availability
258
Bracket LGE MAZ62566701 Contact Us For Availability
259
Plate Assembly LGE AGU73508003 Contact Us For Availability
260
Sheet LGE 3858R-X089B Contact Us For Availability
261
Lens LGE MFB62294201 Contact Us For Availability
262
Holder LGE MEG62279601 Contact Us For Availability
263
Lens Assembly LGE AFD73030501 Contact Us For Availability
265
Cover Assembly LGE ACQ83850101 Contact Us For Availability
266
Decor LGE MCR63410101 Contact Us For Availability
267
Harness,Single LGE EAD61507202 Contact Us For Availability
268
Bracket LGE MAZ62607301 Contact Us For Availability
270
Reflector LGE MGW62008401 Contact Us For Availability
272
Base LGE MAM62085501 Contact Us For Availability
274
Plate Assembly LGE AGU73588001 Contact Us For Availability
276
Speaker,Full Range LGE EAB61968801 Contact Us For Availability
278
Foot LGE MDP62086801 Contact Us For Availability
281
Fan Module LGE EAL60861001 Contact Us For Availability
4501
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
4502
BOLT,HEXAGON SOCKET LGE 1BK-0512391 Contact Us For Availability
4505
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
4506
Screw,Machine LGE 1MPC0301418 Contact Us For Availability
4515
SCREW,DRAWING LGE 1SZZR-0031B Contact Us For Availability
4525
SCREW,DRAWING LGE 1SZZR-0098J Contact Us For Availability
4530
Screw,Customized LGE 353-027R Contact Us For Availability
4533
Screw,Customized LGE 353-094A Contact Us For Availability
4534
Screw,Customized LGE 353-094D Contact Us For Availability
4538
Screw,Customized LGE 353-210A Contact Us For Availability
4580
Screw,Tapping LGE FAB31140101 Contact Us For Availability
A41
Option Code Assembly LGE EBR72923501 Contact Us For Availability
A42
LFS Total PCB Assembly LGE EBT61407301 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT61407201 Contact Us For Availability
A47
PCB Assembly LGE EBR71264301 Contact Us For Availability
CABLE1
Cable,FFC LGE 6850R-EZ08E Contact Us For Availability
CABLE2
Harness,Single LGE EAD61548401 Contact Us For Availability
CONMIC
Microphone,Condenser LGE EAB30660508 Contact Us For Availability
× ![]()
