Model Whirlpool RTW22E0CAE REFRIGERATOR – Common Parts & Diagrams

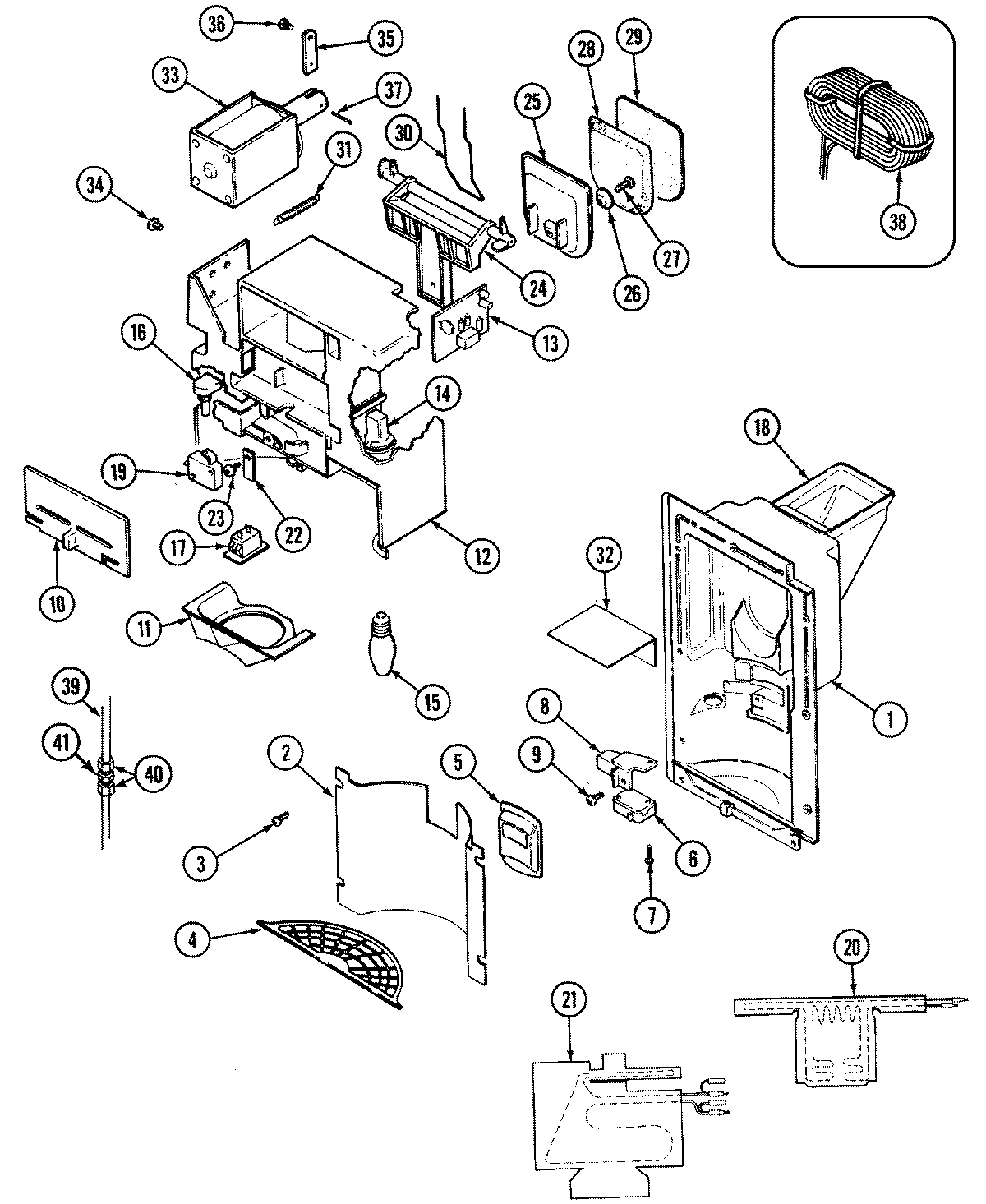

01 - ICE & WATER DISPENSER
Common parts from model Whirlpool RTW22E0CAE REFRIGERATOR
1
KIT, FOUNTAIN WPL 12000062 Contact Us For Availability
1
INSULATION, FOUNTAIN WPL 696832 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
3
SCREW WPL 6527573 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
6
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
13
BOARD, PC (115V) WPL 697513 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
16
SWITCH, LIGHT WPL 698323 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
18
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
20
HEATER, FOUNTAIN (UPPER) WPL 698551 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
22
RETAINER, TUBE WPL 699411 Contact Us For Availability
24
STRIKE, DOOR WPL 696751 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
32
FOIL, FONTAIN FRONT WPL 698541 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
37
PIN, SPRING WPL 672913 Contact Us For Availability
38
SCREW WPL 4000271 Contact Us For Availability
38
COIL, WATER WPL 676151 Contact Us For Availability
39
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
39
TUBING, DOOR WPL 671878 Contact Us For Availability
40
NUT, COMPRESSION (3/8``) WPL 676101 Contact Us For Availability
40
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
41
NUT, WIRE WPL 271165 Contact Us For Availability
41
UNION, REDUCING (3/8``- 5/16``) WPL 693161 Contact Us For Availability
NI
WIRE HARNESS WPL 698021 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
× ![]()
