Model Whirlpool RTT1900DAM REFRIGERATOR – Common Parts & Diagrams
05 - FRESH FOOD INNER DOOR

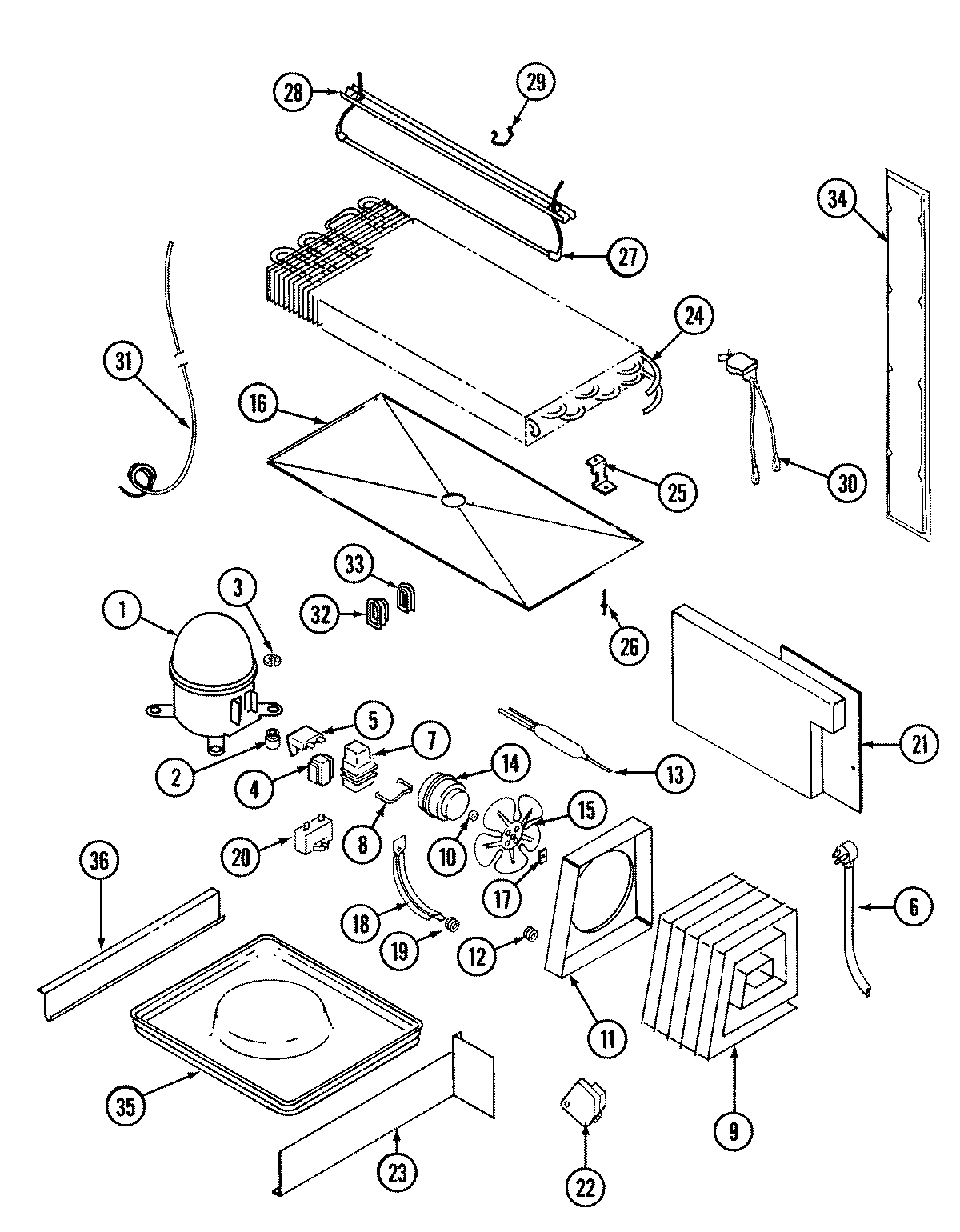

09 - UNIT COMPARTMENT & SYSTEM

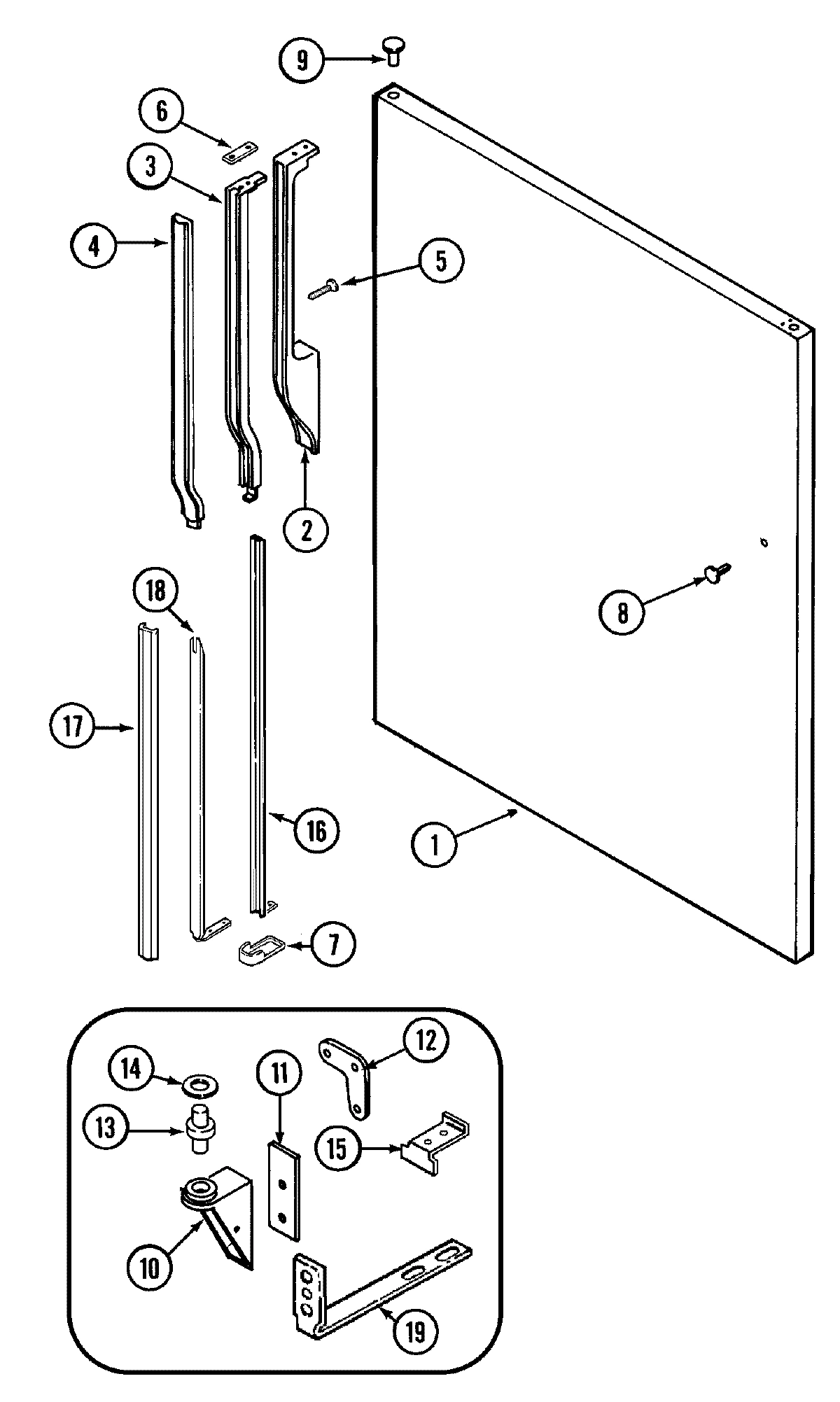

06 - FRESH FOOD OUTER DOOR

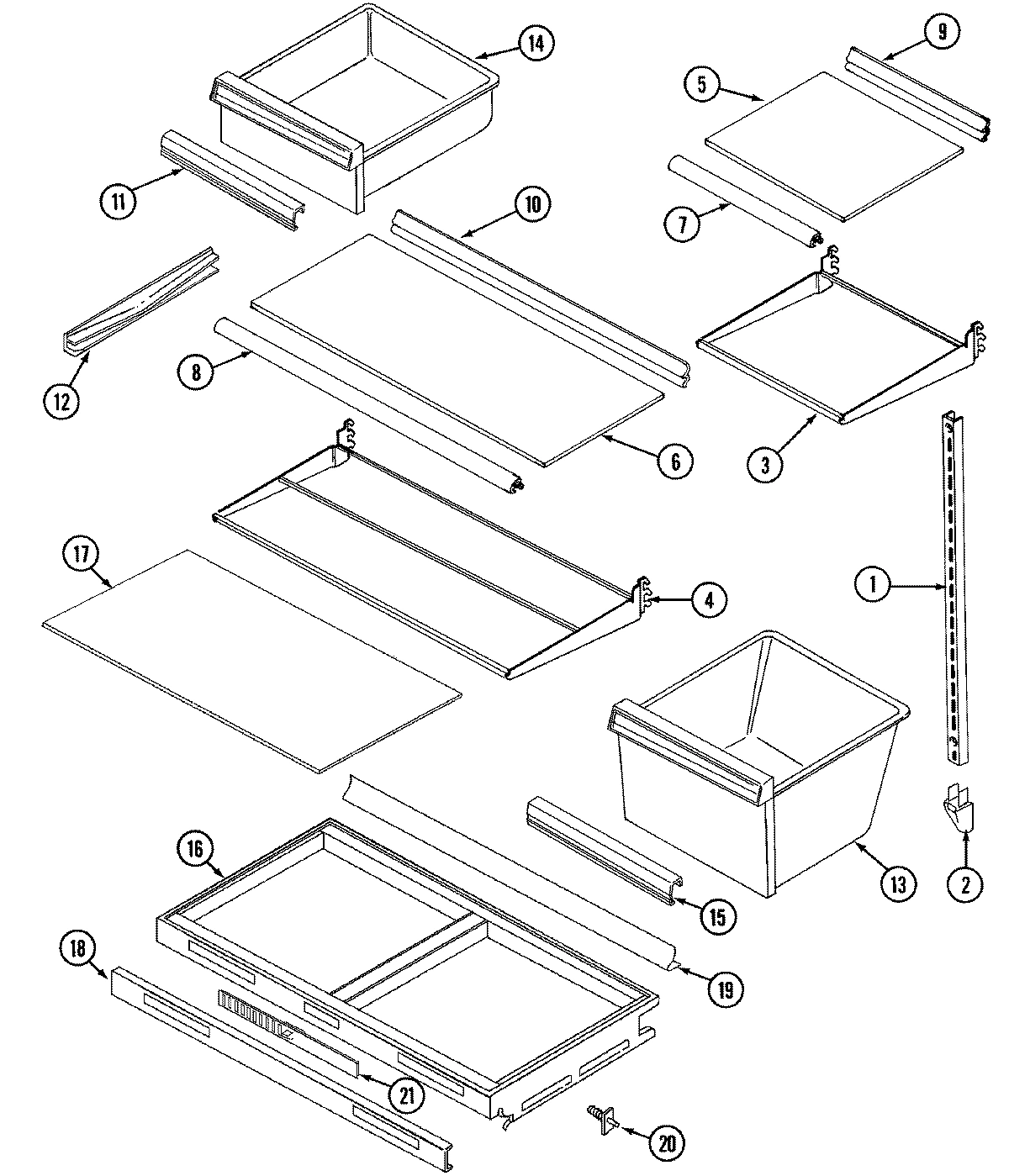

08 - SHELVES & ACCESSORIES

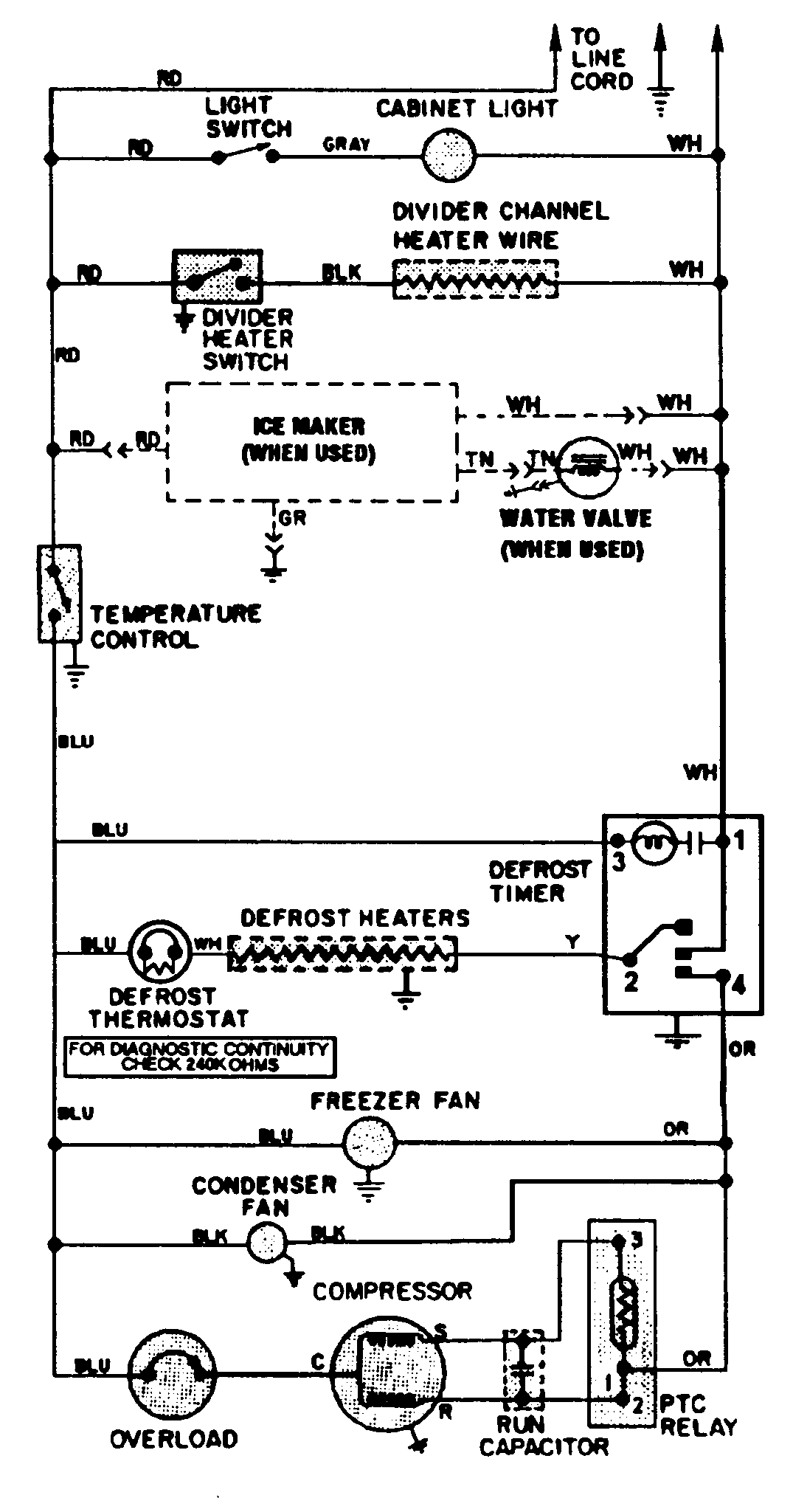

10 - WIRING INFORMATION

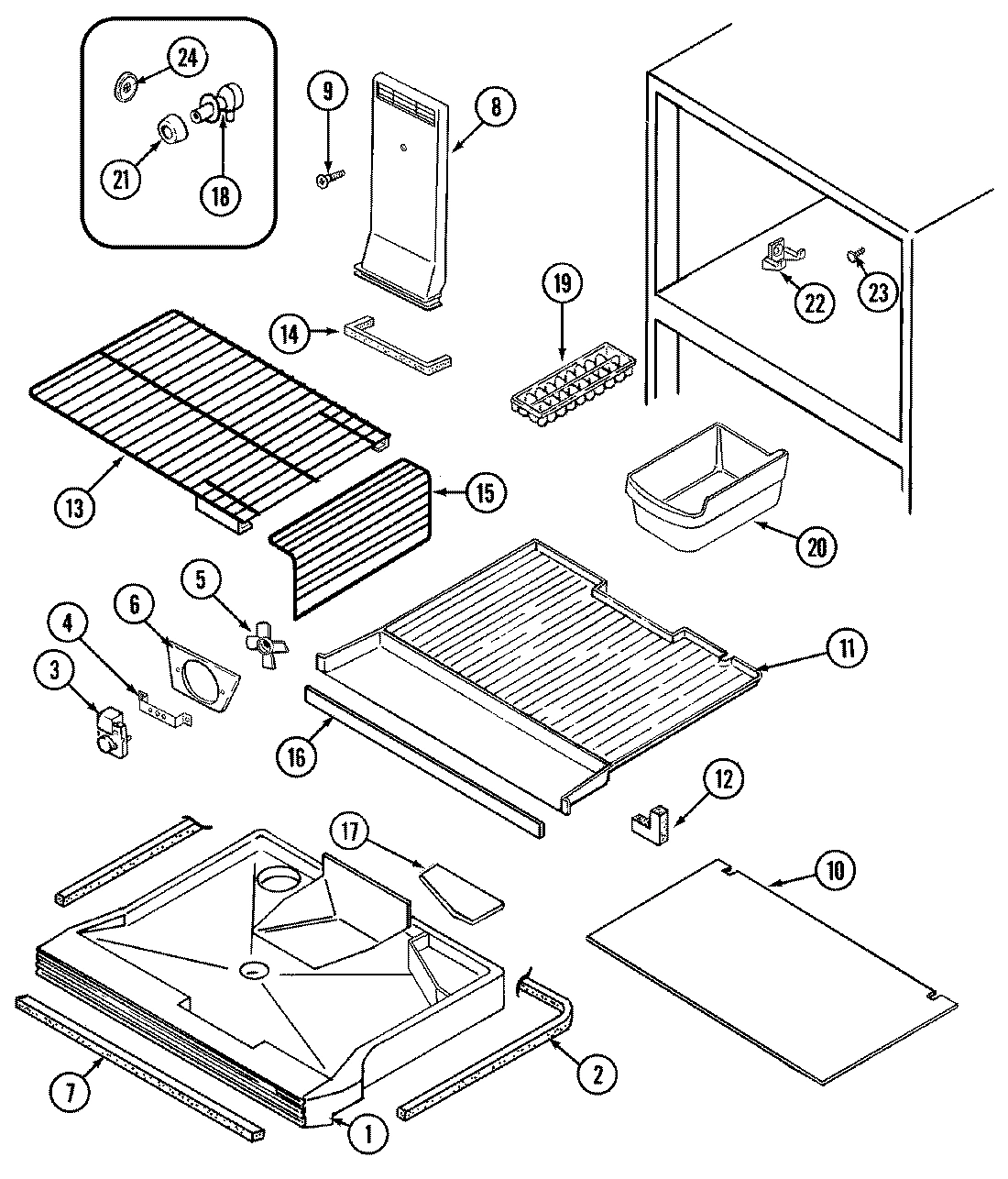

01 - FREEZER COMPARTMENT

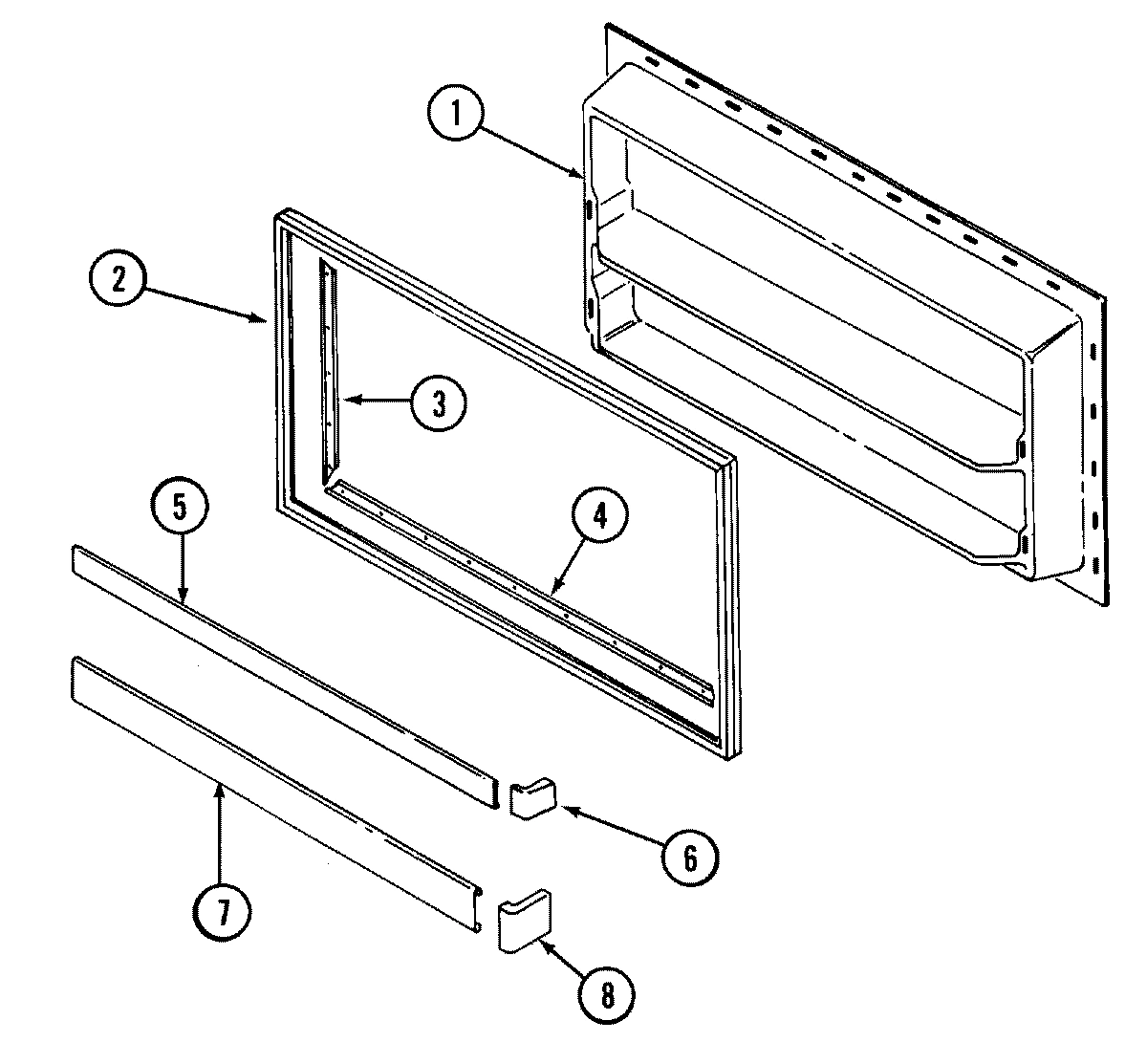

02 - FREEZER INNER DOOR

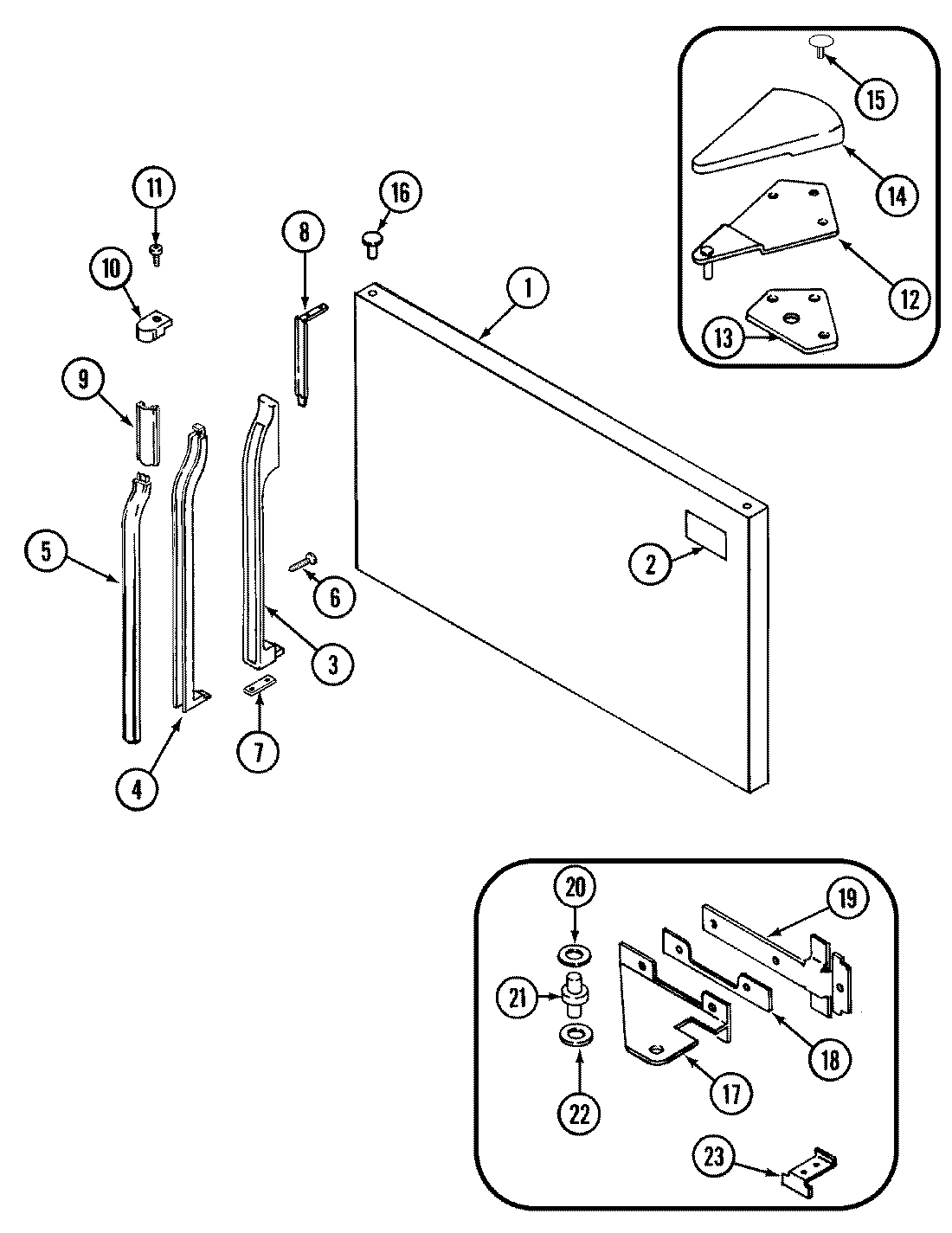

03 - FREEZER OUTER DOOR

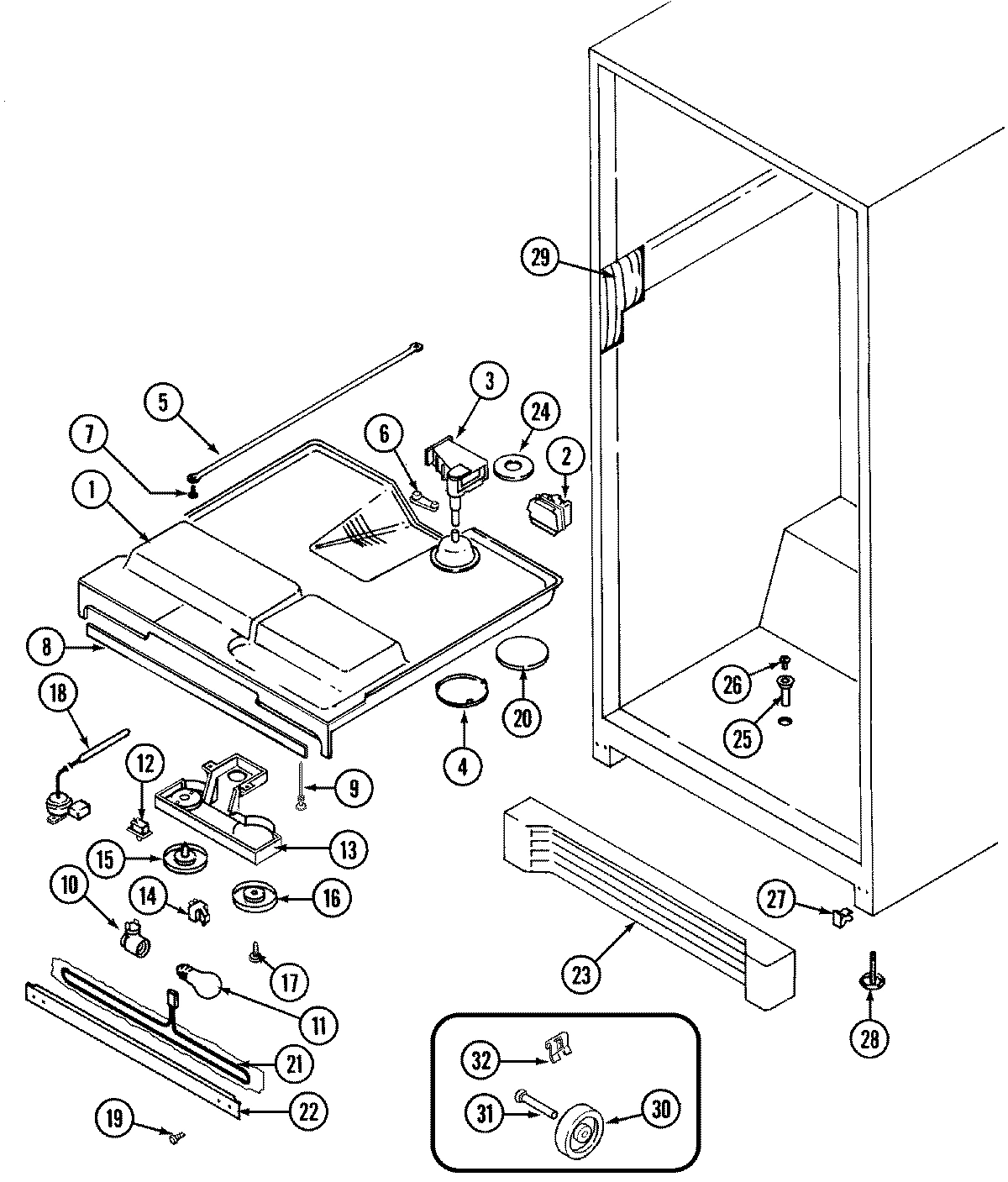

04 - FRESH FOOD COMPARTMENT

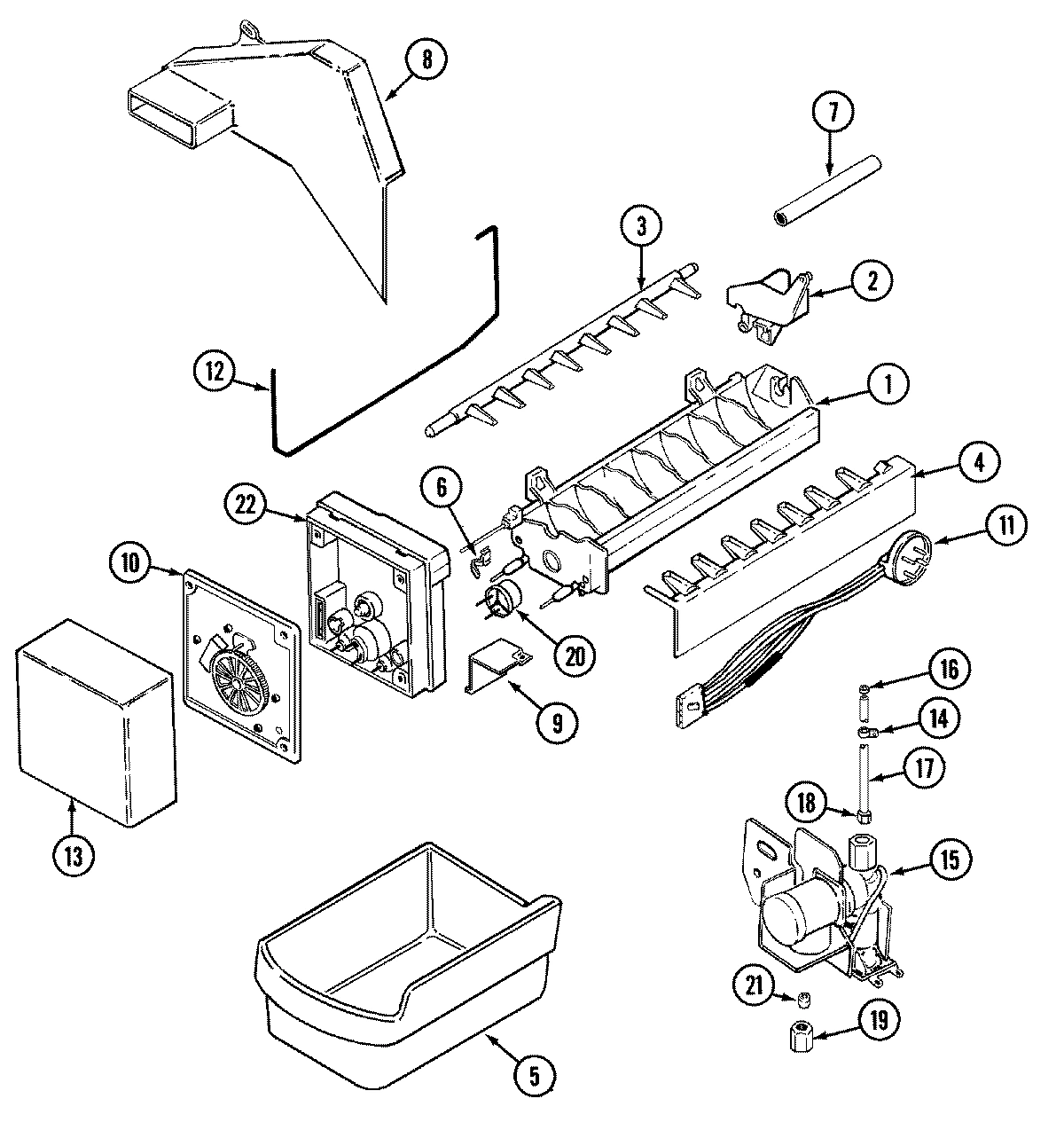

07 - OPTIONAL ICE MAKER KIT-RAEA300AAX
Common parts from model Whirlpool RTT1900DAM REFRIGERATOR
1
LINER, F.F. DOOR WPL 703451 Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723421AM Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694691 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342100AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 6527580 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
2
NAMEPLATE (ALM) WPL 699953 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
RETAINER, F.F. GASKET (SIDE) WPL 699998 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
HANDLE, DOOR WPL 679231 Contact Us For Availability
3
FRAME, F.F. HANDLE WPL 679211 Contact Us For Availability
3
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
3
FRAME, SPLIT SHELF WPL 701062 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
RETAINER, GASKET (SIDE) WPL 699993 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
RETAINER, GASKET (TOP/BOTTOM) WPL 699995 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
FRAME, FULL SHELF WPL 701065 Contact Us For Availability
4
SCREW WPL 40001536 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
FRAME, FRZ. HANDLE WPL 679214 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
DOOR, DAIRY----NA WPL 61001195 Contact Us For Availability
5
TRIM, DOOR SHELF WPL 61001197 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
INSERT, HANDLE (ALM) WPL 61001052 Contact Us For Availability
5
GLASS, SPLIT SHELF WPL 6813915 Contact Us For Availability
5
GLASS, MEAT SHELF WPL 6813921 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
PAN, ICE WPL 683461 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
6
BUMPER, DOOR WPL 282726 Contact Us For Availability
6
ENDCAP, SHELF TRIM (WHT) WPL 672132 Contact Us For Availability
6
CORD, POWER WPL 528903 Contact Us For Availability
6
SCREW WPL 6527544 Contact Us For Availability
6
GLASS, FULL SHELF WPL 6813929 Contact Us For Availability
6
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
TRAY, BUTTER WPL 299362 Contact Us For Availability
7
TRIM, DOOR SHELF WPL 61001196 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SHIM, HANDLE WPL 679341 Contact Us For Availability
7
END CAP, F.F. HANDLE WPL 679301 Contact Us For Availability
7
TRIM, SPLIT SHELF (FRONT) WPL 701072 Contact Us For Availability
7
TRIM, MEAT PAN (FRT.) WPL 701082 Contact Us For Availability
7
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
8
TRAY, EGG WPL 672152 Contact Us For Availability
8
ENDCAP, SHELF TRIM WPL 672083 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
8
TRIM, FULL SHELF (FRONT) WPL 701077 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
SHIM, TRIM LOCK (FRZ.) WPL 679273 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
TRIM, SPLIT SHELF (REAR) WPL 701102 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
TRIM, EXT. WPL 6793216 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
10
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
10
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
10
TRIM, FULL SHELF (REAR) WPL 701107 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
END CAP, FRZ. HANDLE WPL 679291 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
SCREW WPL 6527522 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
11
TRIM, MEAT PAN HANDLE WPL 61001188 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
12
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
12
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
12
HINGE, UPPER WPL 5370920 Contact Us For Availability
12
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 61001198 Contact Us For Availability
13
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
13
PAN, CRISPER WPL 61001193 Contact Us For Availability
13
SHELF, FRZ. WPL 703221 Contact Us For Availability
13
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704207 Contact Us For Availability
13
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672112 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
14
PAN, MEAT WPL 61001189 Contact Us For Availability
14
SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability
14
COVER, UPPER HINGE (ALM) WPL 701213 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
14
SCREW WPL 4000161 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
TRIM, CRISPER PAN HANDLE WPL 61001194 Contact Us For Availability
15
LEG, SHELF WPL 703231 Contact Us For Availability
15
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 61001114 Contact Us For Availability
15
SCREW WPL 4010171 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
16
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
16
SHIM, TRIM LOCK (F.F.) WPL 679275 Contact Us For Availability
16
SHELF, CRISPER WPL 690571 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
TUBE WPL 675796 No Longer Available
17
TRIM, EXT. WPL 6793218 Contact Us For Availability
17
GLASS, SHELF WPL 6874316 Contact Us For Availability
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
17
SCREW WPL 6527562 Contact Us For Availability
17
HINGE WPL 695143 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SUPPORT, SHIM WPL 679332 Contact Us For Availability
18
TRIM, CRISPER SHELF (FRT.) WPL 702823 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4140121 Contact Us For Availability
19
SCREW WPL 6527569 Contact Us For Availability
19
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
19
TRIM, CRISPER SHELF (REAR) WPL 687989 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
SCREW WPL 6527561 Contact Us For Availability
19
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
20
WASHER WPL 674836 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
SLIDE, CONTROL WPL 695425 Contact Us For Availability
21
CAP, GROMMET WPL 683871 Contact Us For Availability
21
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
SCREW WPL 4050071 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
WASHER WPL 542331 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
23
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
23
SCREW WPL 6527548 Contact Us For Availability
23
STOP, DOOR WPL 692562 Contact Us For Availability
23
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
23
KICKPLATE W/CLIPS (ALM) WPL 702875 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
CLIP, KICKPLATE WPL 702851 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
LEG, LEVELING WPL 686642 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 61001136 Contact Us For Availability
34
SCREW WPL 6527550 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
35
PAN, DRAIN WPL 682361 Contact Us For Availability
36
SCREW WPL 4000171 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001182 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001424 Contact Us For Availability
× ![]()
Login and Registration Form
