Model Whirlpool RTSA194AAE REFRIGERATOR – Common Parts & Diagrams

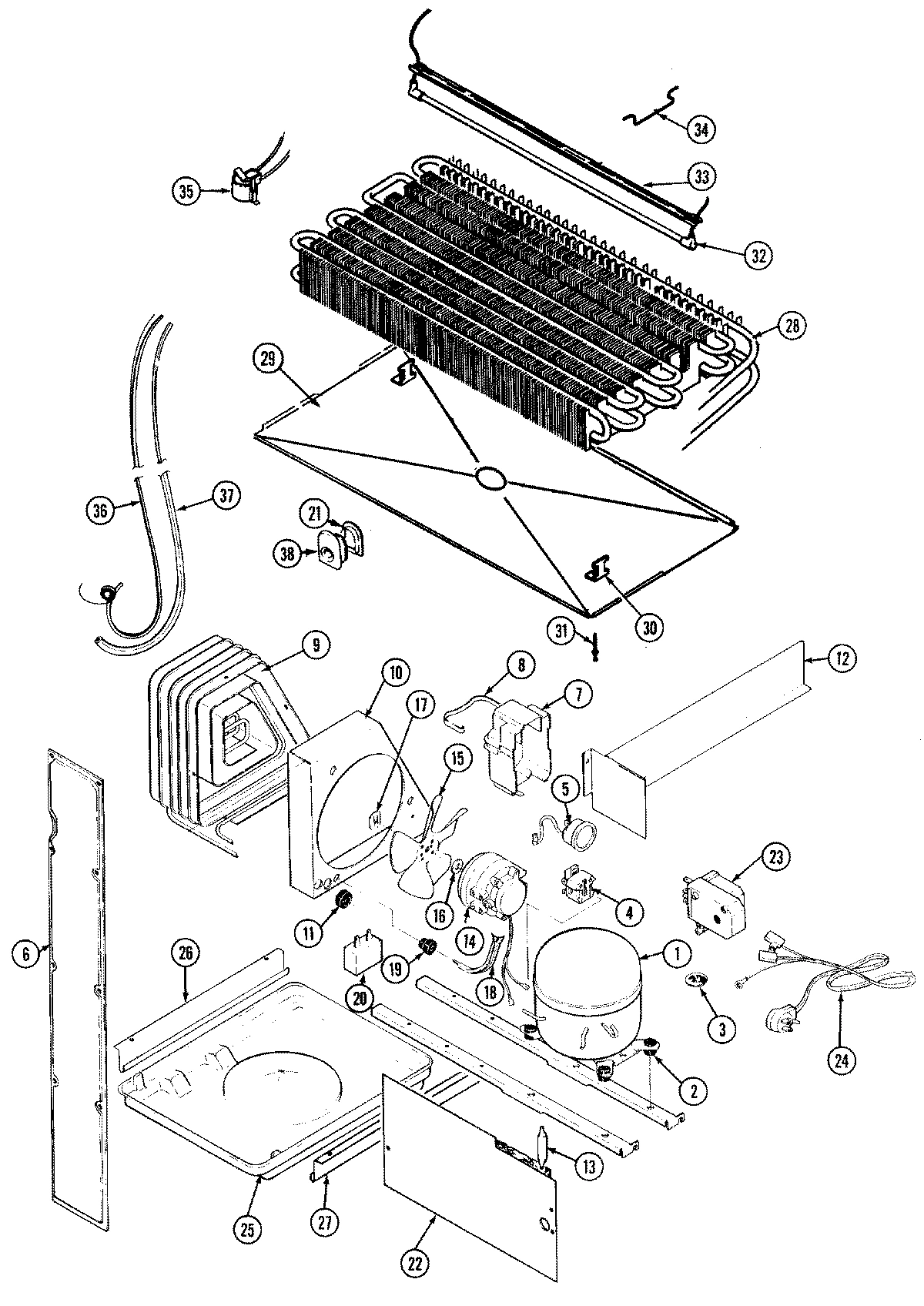

05 - UNIT COMPARTMENT & SYSTEM

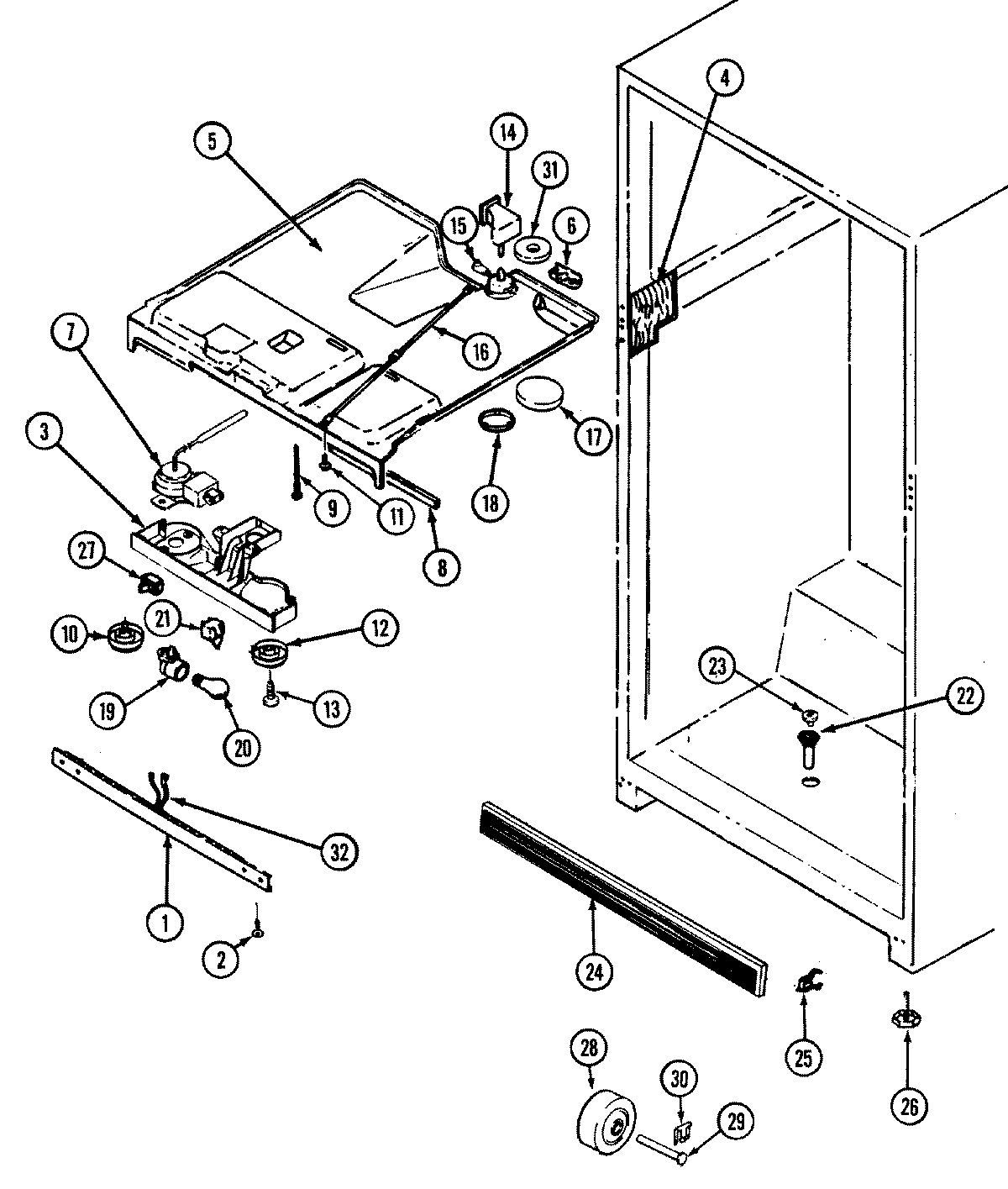

02 - FRESH FOOD COMPARTMENT

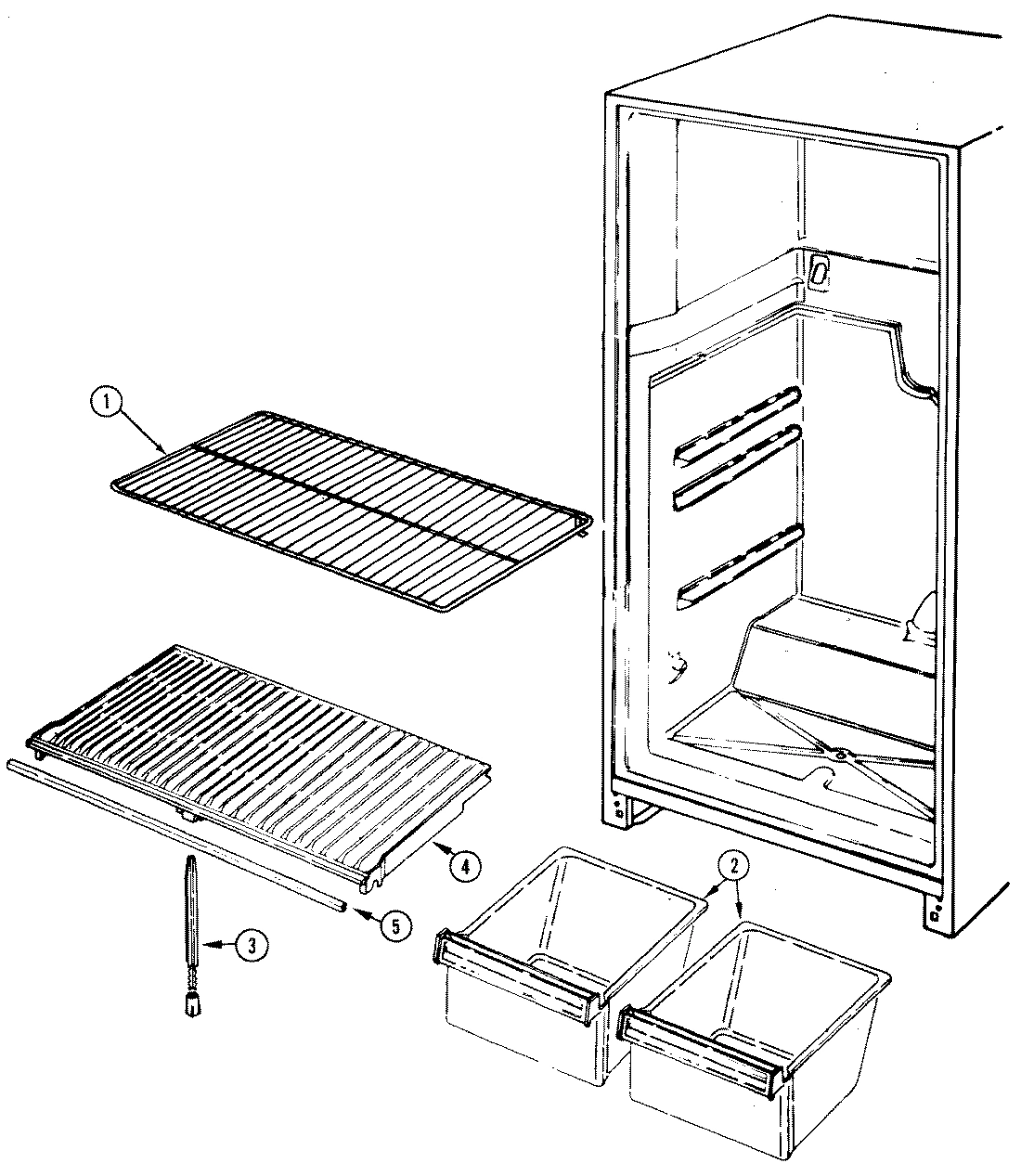

04 - SHELVES & ACCESSORIES

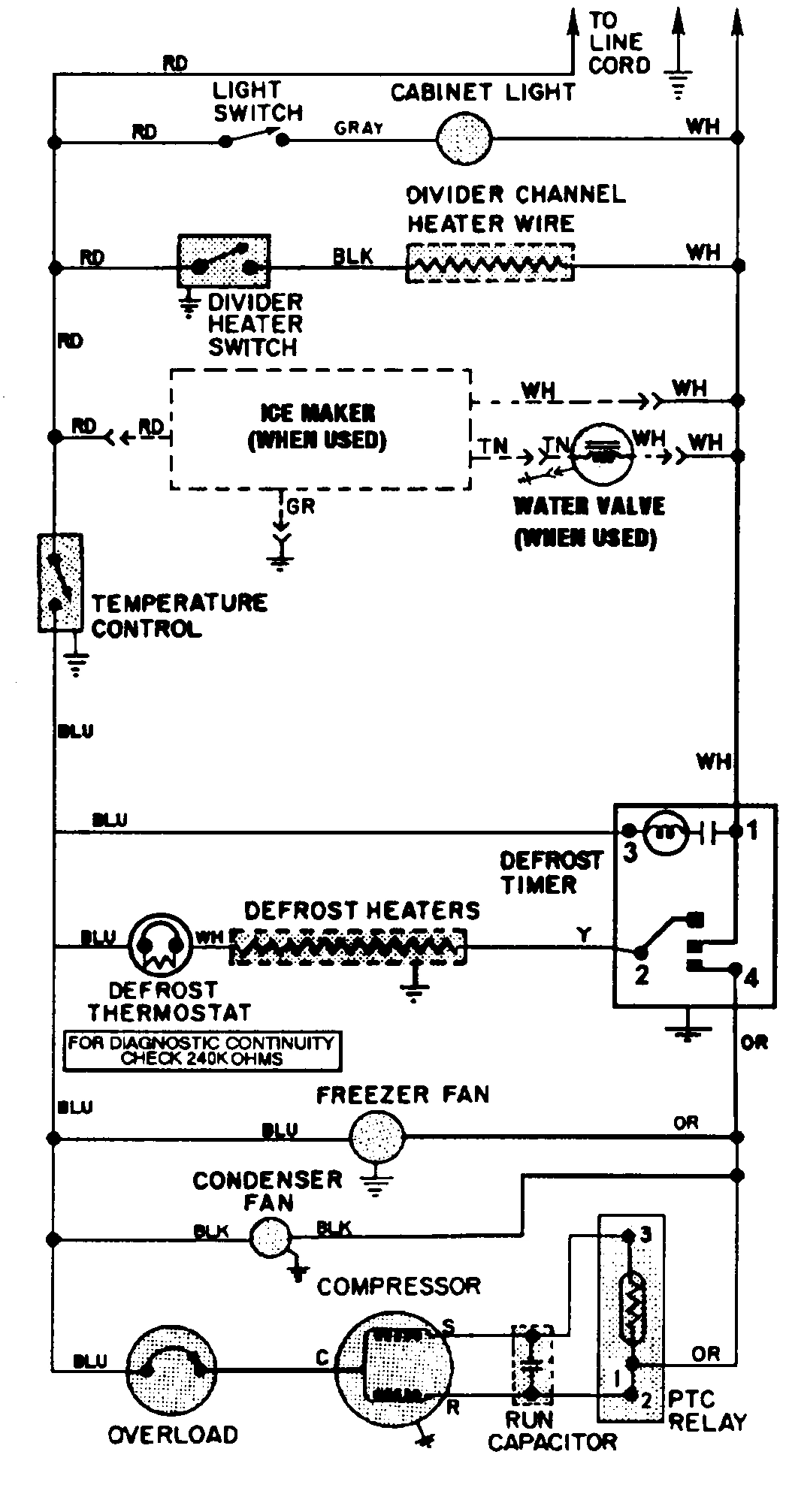

06 - WIRING INFORMATION

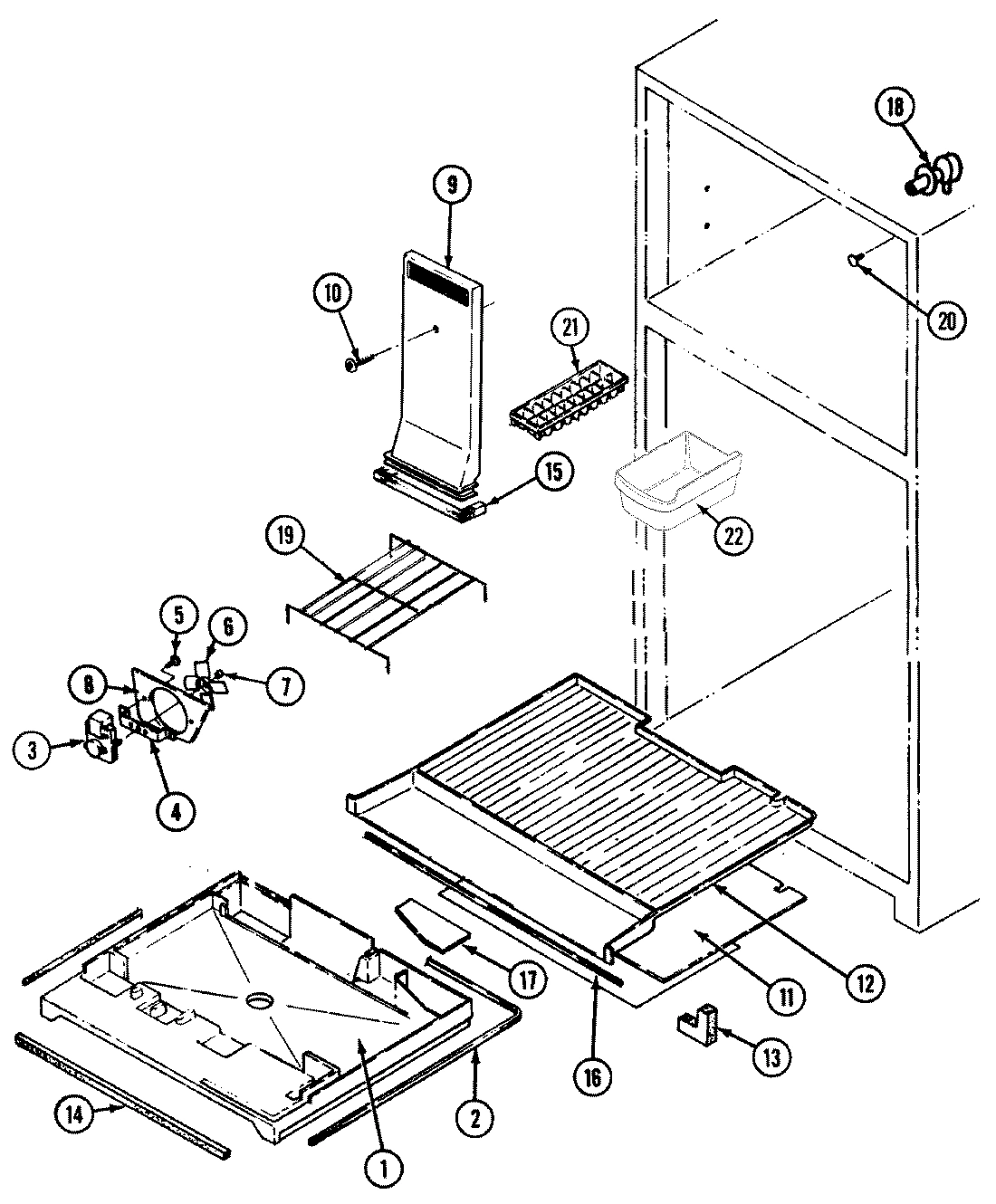

01 - FREEZER COMPARTMENT

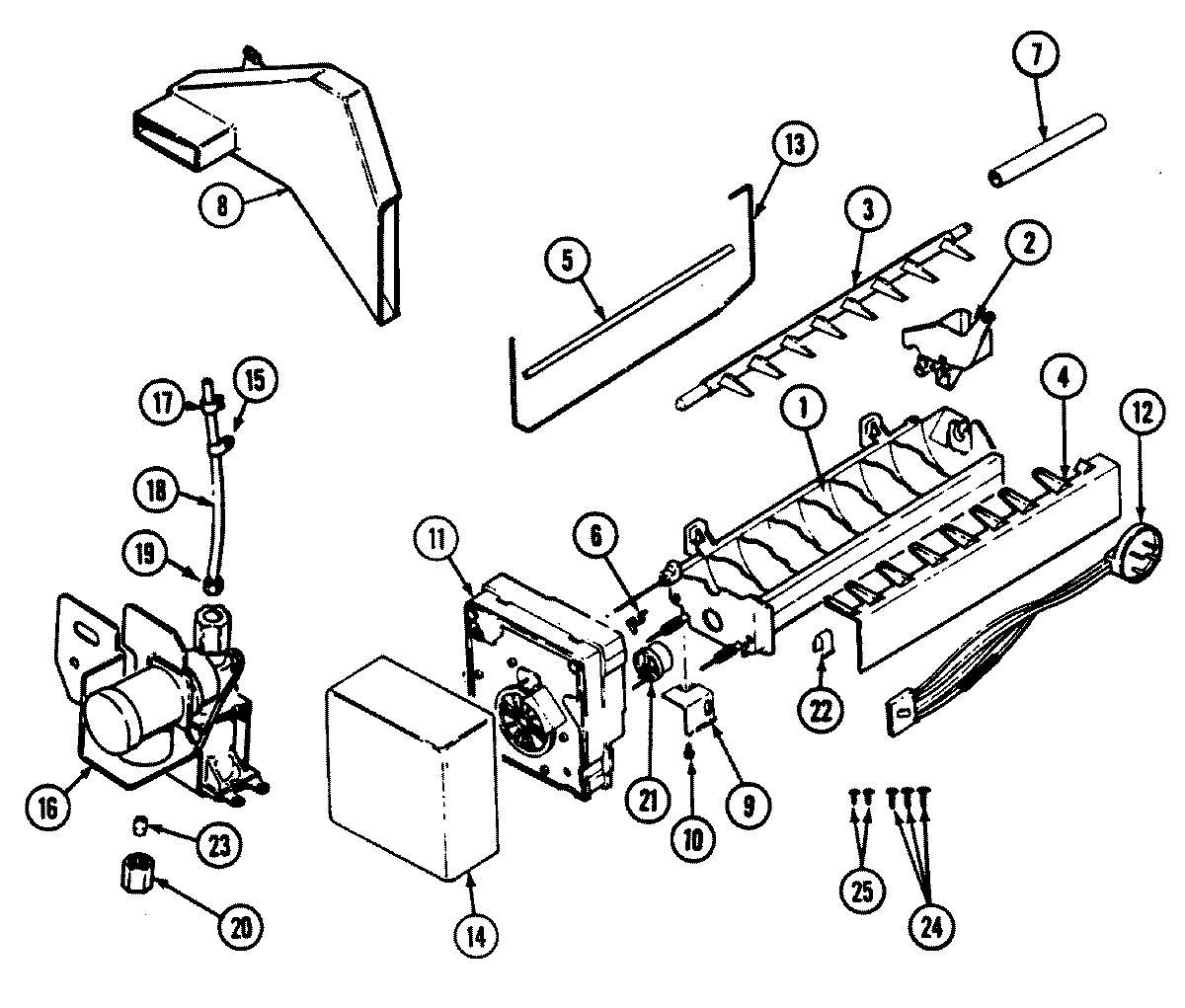

03 - OPTIONAL ICE MAKER
Common parts from model Whirlpool RTSA194AAE REFRIGERATOR
1
COMPRESSOR WPL RA10111 Contact Us For Availability
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
1
SHELF, WIRE WPL 662164 Contact Us For Availability
1
TRIM, SHELF WPL 7010913 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 6527567 Contact Us For Availability
2
PAN, CRISPER WPL 68222160 Contact Us For Availability
2
TRIM, CRISPER PAN WPL 703154 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
3
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
4
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
4
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
4
SHELF, CRISPER WPL 600196 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
TRIM, CRISPER SHELF WPL 6045411 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
SCREW WPL 6527550 Contact Us For Availability
6
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
8
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
TUNNEL, AIR WPL 702083 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
SCREW WPL 6527513 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
13
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
14
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
15
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
16
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
MAGNET WPL 694132 Contact Us For Availability
16
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
DISC, CRANK COVER WPL 690371 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
19
TRIVET WPL 682599 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
BULB, LIGHT WPL 681231 Contact Us For Availability
20
PLUG BUTTON WPL 701462 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 61001560 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
21
SWITCH, LIGHT WPL 669871 Contact Us For Availability
21
TRAY, ICE WPL 592812 Contact Us For Availability
21
CAP, CONNECTOR WPL 681871 Contact Us For Availability
21
CAP, GROMMET WPL 683871 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TUBE, DRAIN WPL 545317 Contact Us For Availability
22
PAN, ICE WPL 683461 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701286 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SWITCH, HEATER WPL 692831 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
WHEEL WPL 698121 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
PIN, WHEEL WPL 298352 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
CLIP WPL 602161 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
36
WIRE TIE WPL 662231 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001303 Contact Us For Availability
× ![]()
