Model Whirlpool RTG650UWW GAS COOK-TOP – Common Parts & Diagrams

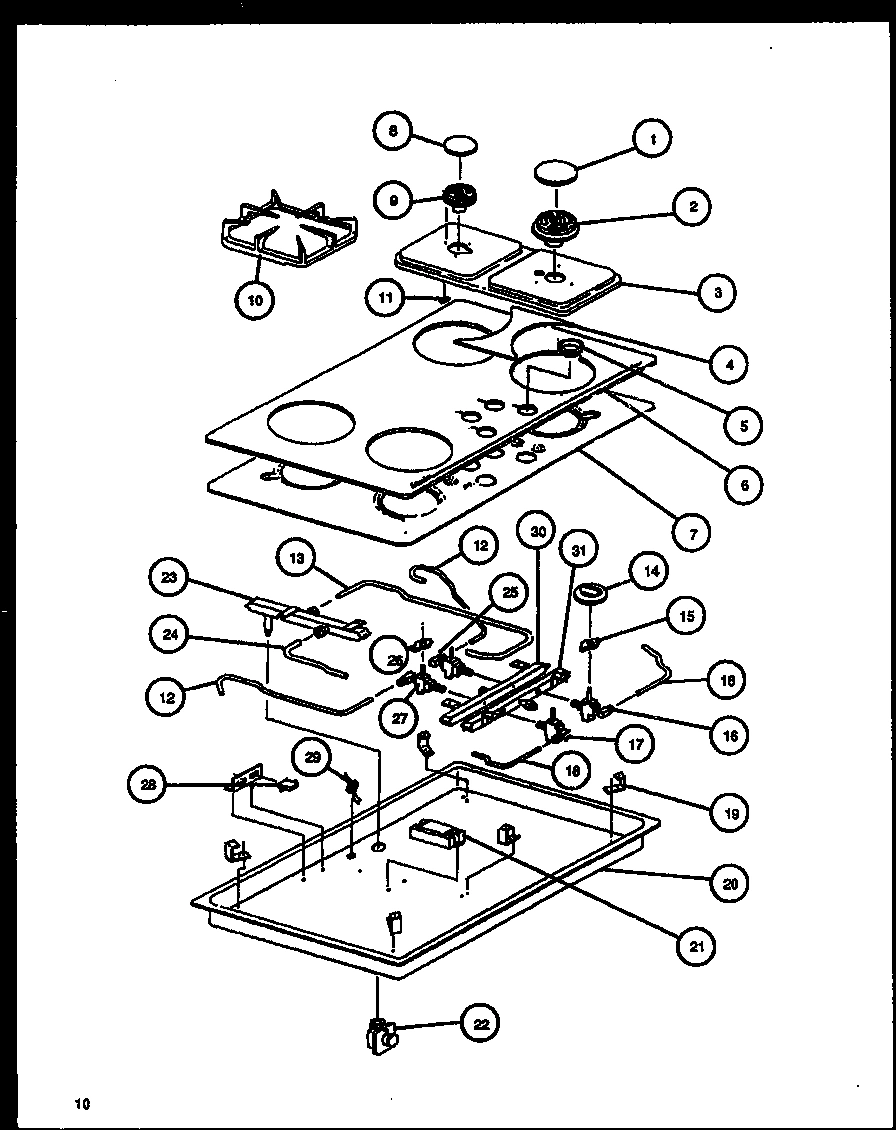

01 - Page 4
Common parts from model Whirlpool RTG650UWW GAS COOK-TOP
1
BURNER CAP, LARGE (LT GRAY) WPL 303536T Contact Us For Availability
2
BURNER BODY ASSY LARGE WPL Y0304908 Contact Us For Availability
3
BURNER BOWL WHITE WPL 303751W Contact Us For Availability
4
INSULATION GLASS WPL 0304841 Contact Us For Availability
5
NYLON DRIP GUARD WHITE WPL 0303433 Contact Us For Availability
6
GLASS TOP 36`` WHITE WPL Y0304847 Contact Us For Availability
7
PLATE GLASS SUPPORT (36) WPL Y0304835 Contact Us For Availability
8
CAP,BURNER (SMALL) WPL 303534T Contact Us For Availability
9
BURNER BODY ASSY SMALL WPL 0304909 Contact Us For Availability
10
GRATE, TOP BURNER WPL 305478T Contact Us For Availability
12
TUBING REAR BURNERS WPL Y0305259 Contact Us For Availability
13
TUBING WPL Y0305072 Contact Us For Availability
14
KNOB GAS VALVE WPL 0304842 Contact Us For Availability
15
SPARK SWITCH WPL Y0304121 Contact Us For Availability
16
VALVE RF WPL 0304939 Contact Us For Availability
17
VALVE LF WPL Y0304940 Contact Us For Availability
18
TUBING, FRONT BURNERS WPL Y0305261 Contact Us For Availability
19
SPACER BRACKET WPL 0305244 Contact Us For Availability
20
BOTTOM 36`` BURN. BOX WPL Y0305358 Contact Us For Availability
21
SPARK MODULE REIGNITION WPL Y0302244 Contact Us For Availability
22
REGULATOR WPL Y0304611 Contact Us For Availability
23
MANIFOLD INLET WPL 0304922 Contact Us For Availability
24
TUBING, INLET TO REAR MANI. WPL Y0305063 Contact Us For Availability
25
VALVE RR WPL Y0304937 Contact Us For Availability
26
SPARK SWITCH WPL Y0302242 Contact Us For Availability
27
VALVE LR WPL Y0304938 Contact Us For Availability
28
TERM HOUS 1M-5M-10M WPL 0042107 Contact Us For Availability
29
CORD SET WPL 0303585 Contact Us For Availability
30
MANIFOLD, REAR VALVES WPL 0305372 Contact Us For Availability
31
MANIFOLD, FRONT VALVES WPL 0305374 Contact Us For Availability
NI
CLIP, TINNERMAN WPL Y0304999 Contact Us For Availability
NI
SCREW WAFER HEAD WPL 0059446 Contact Us For Availability
NI
ORIFICE SPUD NG LGE BURNER WPL 0303986 Contact Us For Availability
NI
ORIFICE SPUD NG SM BURNER WPL 0303987 Contact Us For Availability
NI
INSTALLATION INSTRUCTIONS WPL 0304557 Contact Us For Availability
NI
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
NI
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SCREW No.8-18 X 3/8 WPL Y0064502 Contact Us For Availability
NI
ORIFICE SPUD LP LGE BURNER WPL Y0303984 Contact Us For Availability
NI
ORIFICE SPUD, No.65 WPL Y0303985 Contact Us For Availability
NI
HARNESS, H.V. MOD TO BURNER WPL Y0304288 Contact Us For Availability
NI
ASSY, ELECTRODE WPL Y0304357 Contact Us For Availability
NI
CLIP, ELECTRODE WPL Y0304365 Contact Us For Availability
NI
BRACKET-INSULATION WPL Y0305003 Contact Us For Availability
NI
USE AND CARE MANUAL WPL Y0305361 Contact Us For Availability
× ![]()
