Model Whirlpool RTG650UD GAS COOK-TOP – Common Parts & Diagrams
02 - Page 8
01 - Page 7

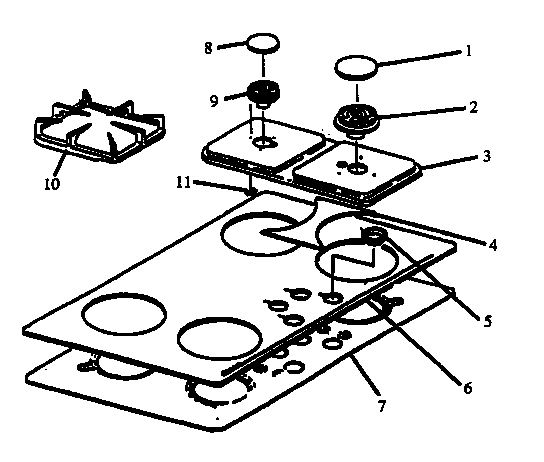

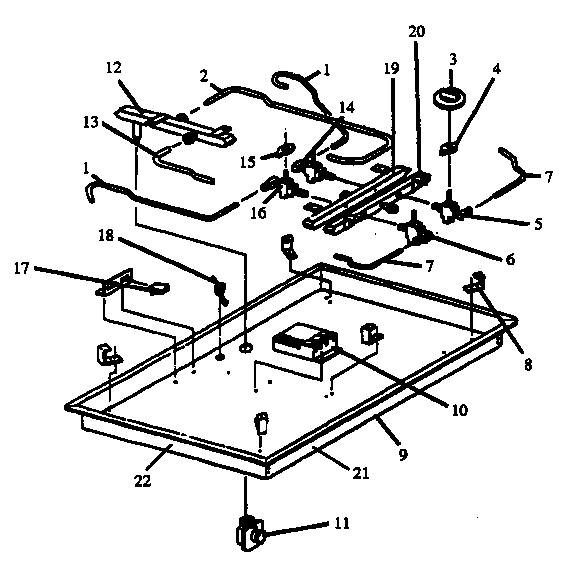

Common parts from model Whirlpool RTG650UD GAS COOK-TOP
1
TUBING REAR BURNERS WPL Y0305259 Contact Us For Availability
1
BURNER CAP, LARGE (BLK) WPL 303536B Contact Us For Availability
2
TUBING WPL Y0305072 Contact Us For Availability
2
BURNER BODY ASSY LARGE WPL Y0304908 Contact Us For Availability
3
KNOB GAS VALVE WPL 0304843 Contact Us For Availability
3
BURNER BOWL BLACK WPL 303751B Contact Us For Availability
4
SPARK SWITCH WPL Y0304121 Contact Us For Availability
4
INSULATION GLASS WPL 0304841 Contact Us For Availability
5
VALVE RF WPL 0304939 Contact Us For Availability
5
NYLON DRIP GUARD BLACK WPL 0303432 Contact Us For Availability
6
VALVE LF WPL Y0304940 Contact Us For Availability
6
KIT, MAIN TOP WPL Y0304848 Contact Us For Availability
7
TUBING, FRONT BURNERS WPL Y0305261 Contact Us For Availability
7
PLATE GLASS SUPPORT (36) WPL Y0304835 Contact Us For Availability
8
SPACER BRACKET WPL 0305244 Contact Us For Availability
8
CAP, BURNER (SMALL) WPL 303534B Contact Us For Availability
9
BOTTOM 36`` BURN. BOX WPL Y0305358 Contact Us For Availability
9
BURNER BODY ASSY SMALL WPL 0304909 Contact Us For Availability
10
SPARK MODULE REIGNITION WPL Y0302244 Contact Us For Availability
10
GRATE TOP BURNER WPL 305478B Contact Us For Availability
11
REGULATOR WPL Y0304611 Contact Us For Availability
11
SPEE NUT MOUNT BRACK TO FRAME WPL 0097909 Contact Us For Availability
12
MANIFOLD, INLET WPL Y0305000 Contact Us For Availability
13
TUBING, INLET TO REAR MANI. WPL Y0305063 Contact Us For Availability
14
VALVE RR WPL Y0304937 Contact Us For Availability
15
SPARK SWITCH WPL Y0302242 Contact Us For Availability
16
VALVE LR WPL Y0304938 Contact Us For Availability
17
TERM HOUS 1M-5M-10M WPL 0042107 Contact Us For Availability
18
CORD SET WPL 0303585 Contact Us For Availability
19
MANIFOLD, REAR VALVES WPL 0305372 Contact Us For Availability
20
MANIFOLD, FRONT VALVES WPL 0305374 Contact Us For Availability
21
W/A BURNER BOX SIDE WPL Y0305250 Contact Us For Availability
22
W/ASSY, BURNER BOX SIDE WPL Y0305248 Contact Us For Availability
NI
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
NI
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
MOUNTING BRACKET ASSEMBLY WPL Y0305287 Contact Us For Availability
NI
ORIFICE SPUD NG LGE BURNER WPL 0303986 Contact Us For Availability
NI
ORIFICE SPUD NG SM BURNER WPL 0303987 Contact Us For Availability
NI
ORIFICE SPUD No.69 WPL 0308917 Contact Us For Availability
NI
ORIFICE SPUD LP LGE BURNER WPL Y0303984 Contact Us For Availability
NI
HARNESS, H.V. MOD TO BURNER WPL Y0304288 Contact Us For Availability
NI
ELECTRODE, TOP BURNER WPL Y0305975 Contact Us For Availability
NI
CLIP, ELECTRODE WPL Y0307098 Contact Us For Availability
× ![]()
