Model Whirlpool RTD2100DAE REFRIGERATOR – Common Parts & Diagrams

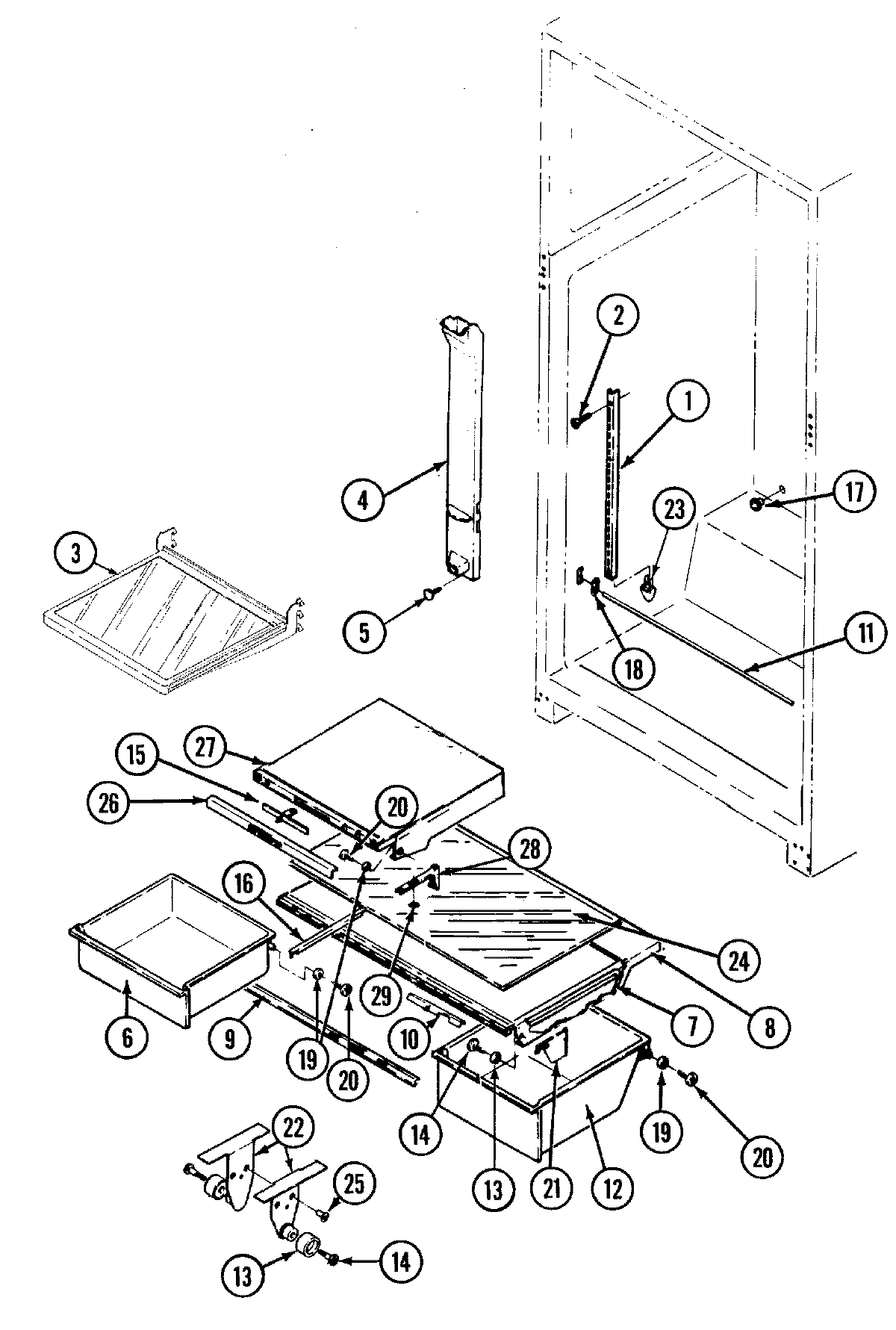

05 - SHELVES & ACCESSORIES

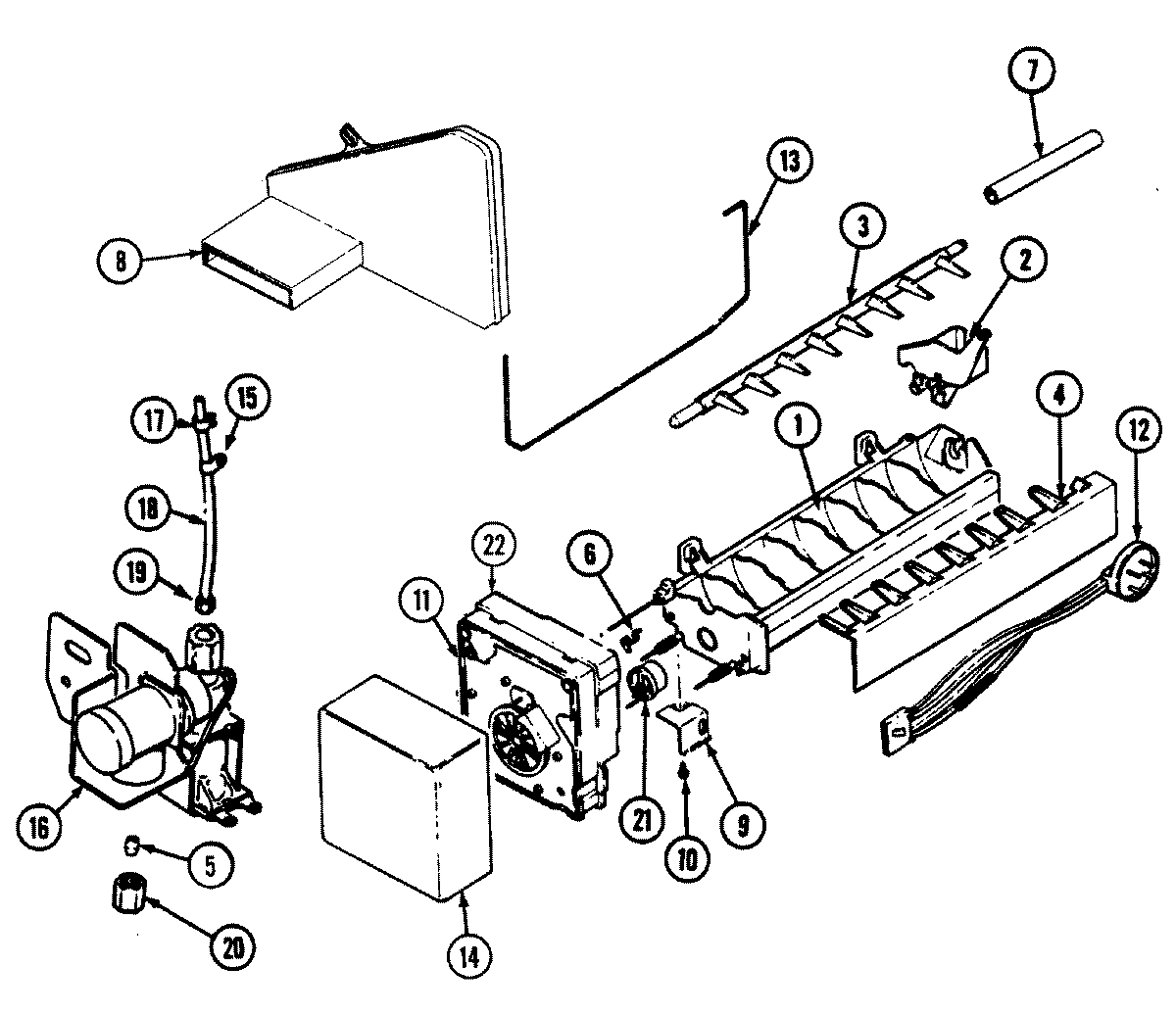

04 - OPTIONAL ICE MAKER KIT - RAE3100AAX

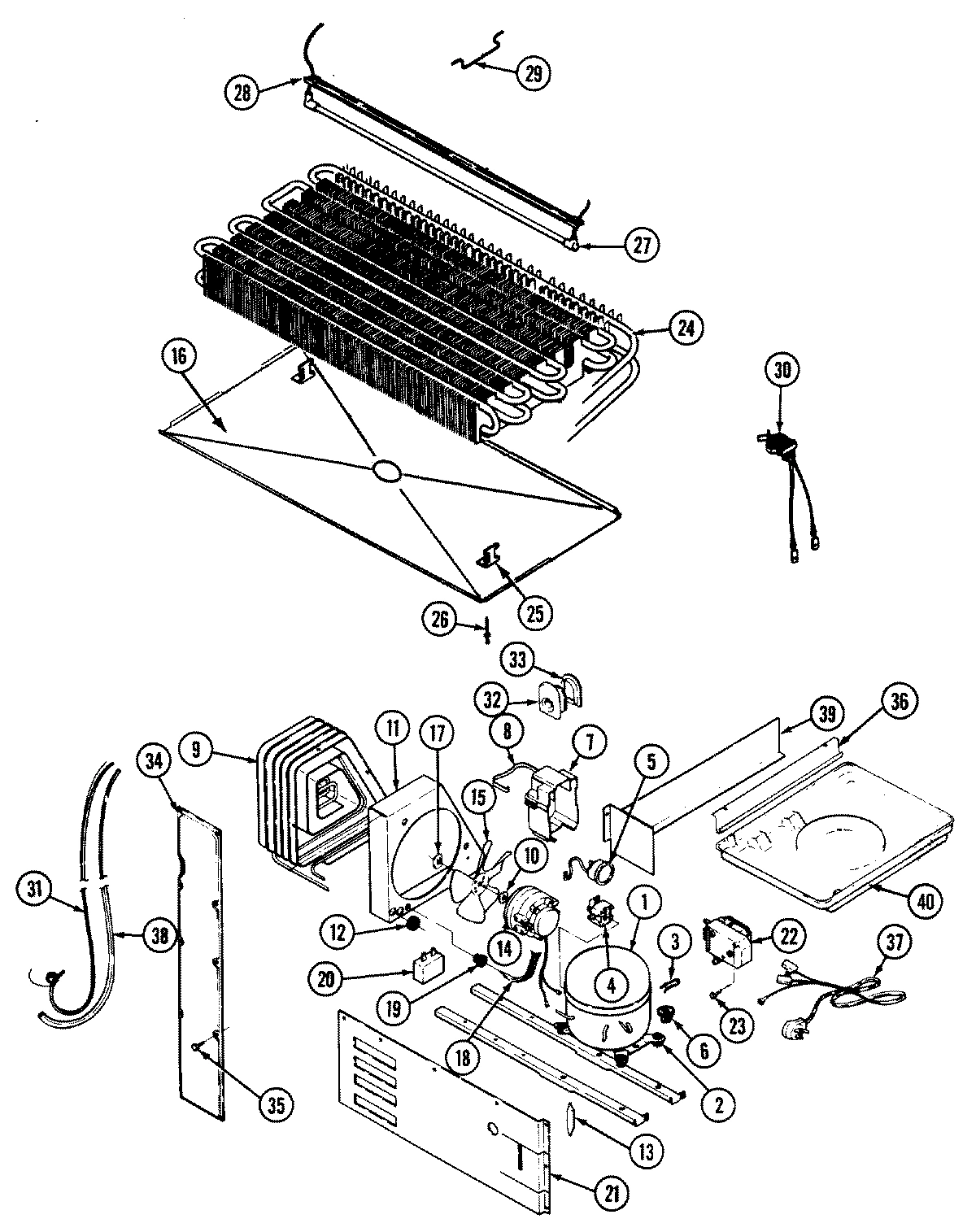

06 - UNIT COMPARTMENT & SYSTEM

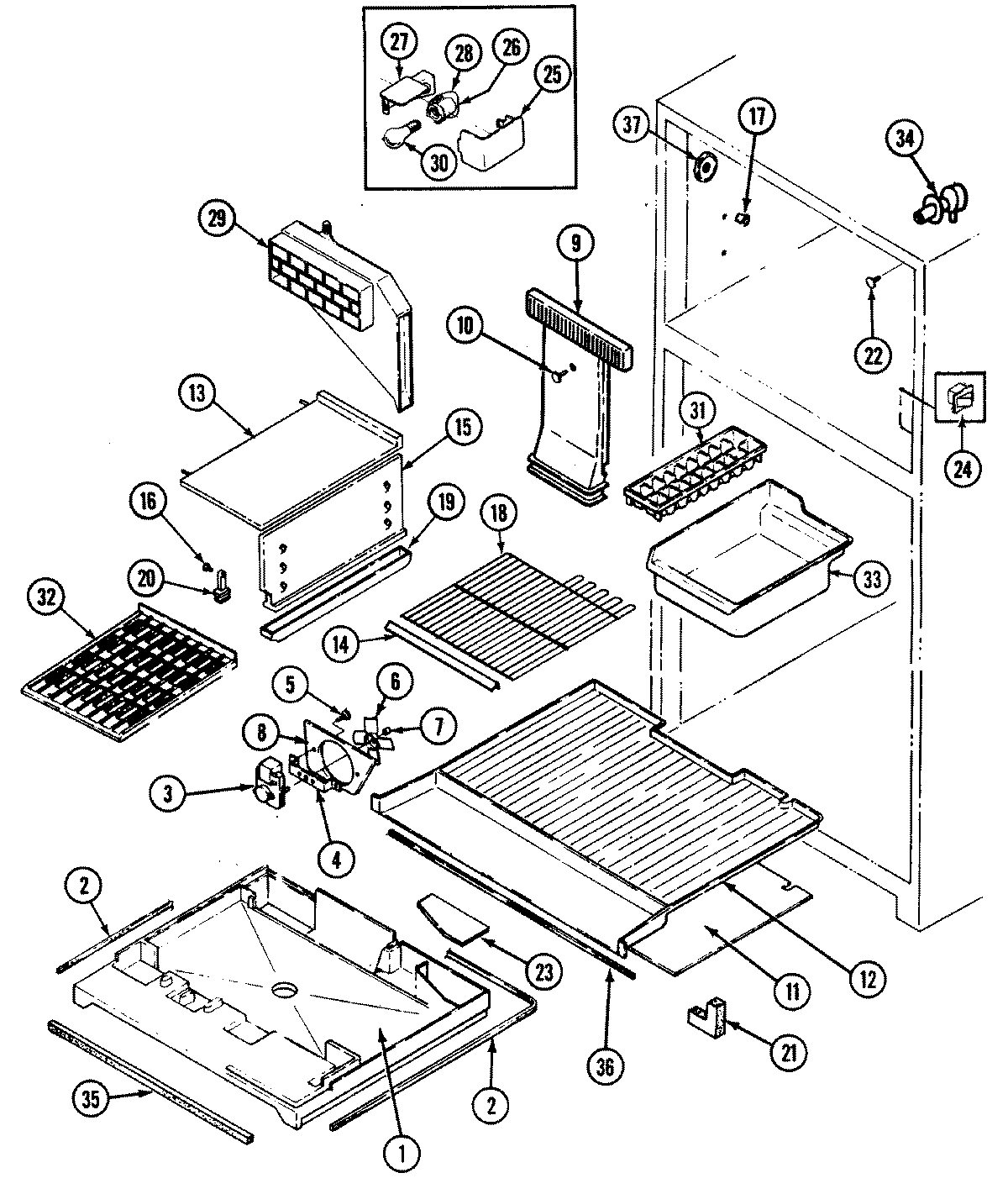

01 - FREEZER COMPARTMENT

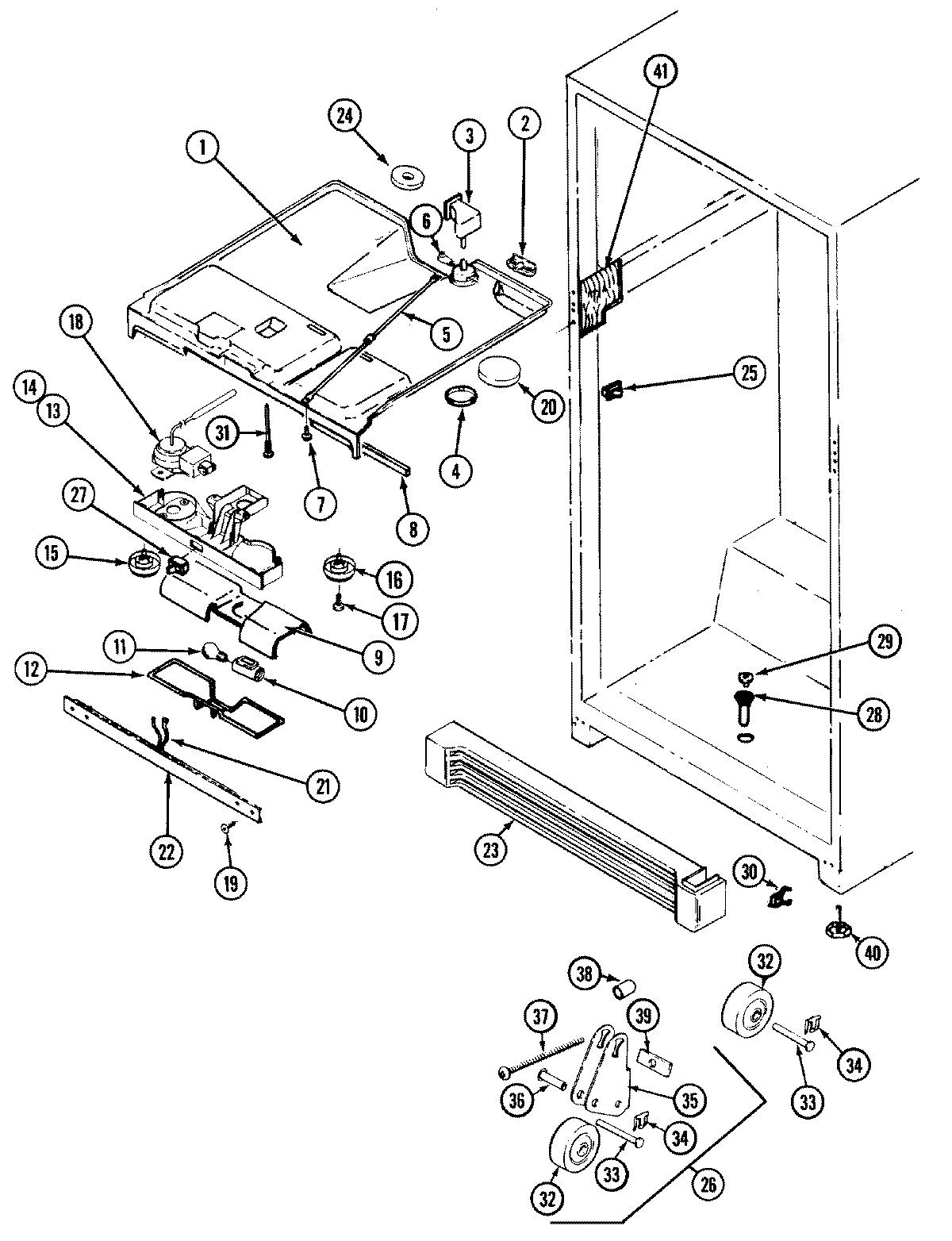

02 - FRESH FOOD COMPARTMENT

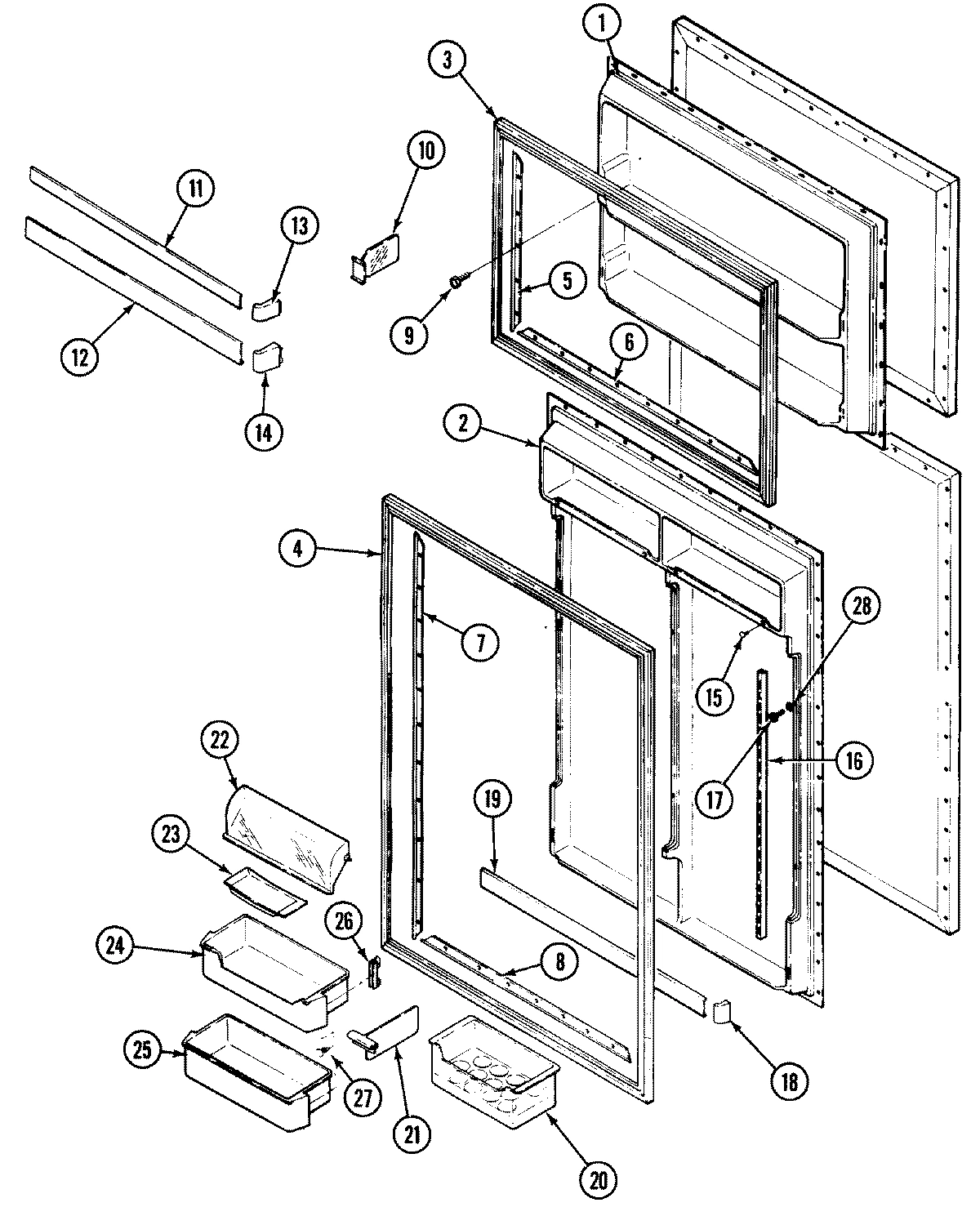

03 - INNER DOOR

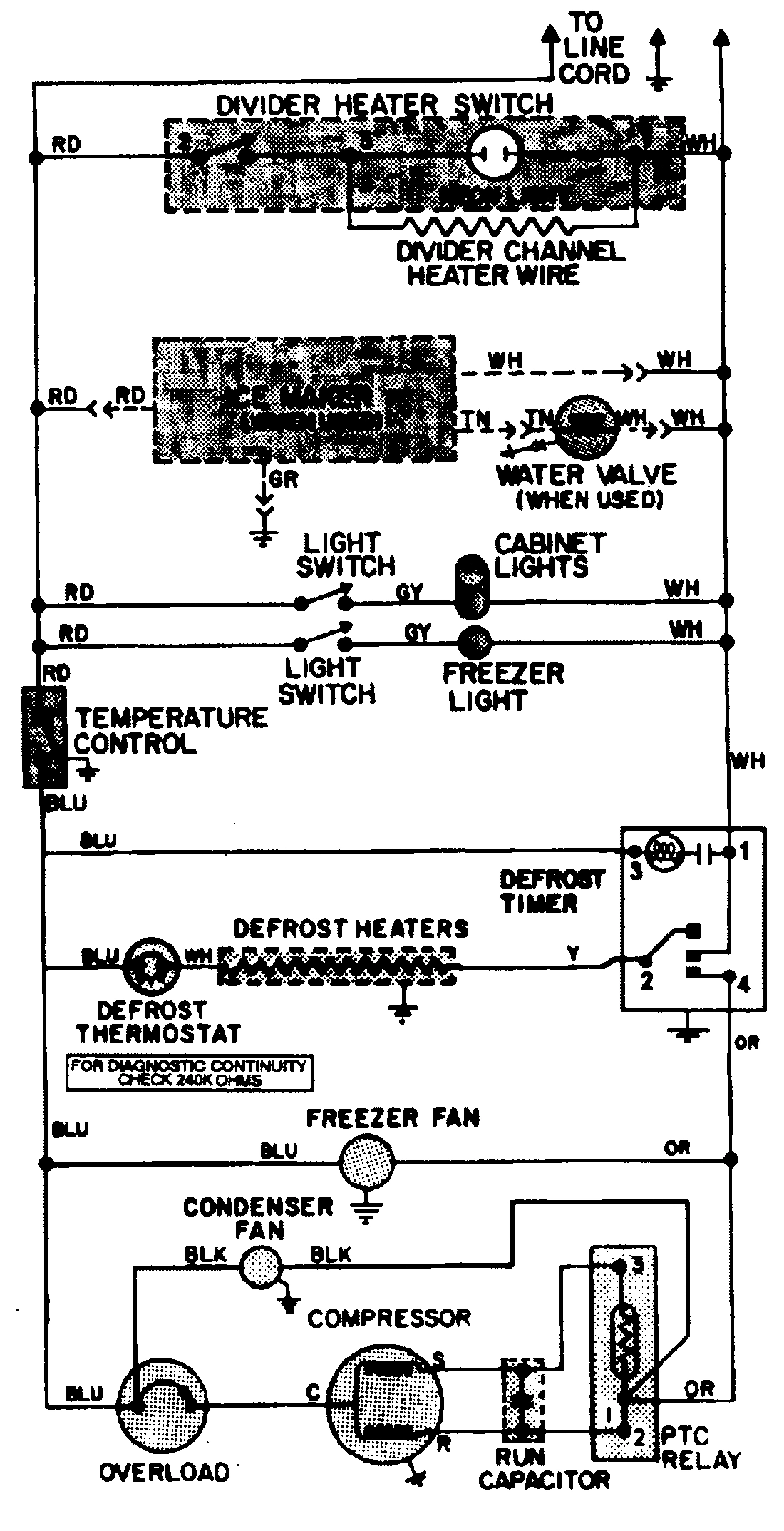

07 - WIRING INFORMATION
Common parts from model Whirlpool RTD2100DAE REFRIGERATOR
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694101 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694691 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694521 Contact Us For Availability
3
SHELF, MEAT WPL 61001088 Contact Us For Availability
3
SHELF, SPLIT WPL 61001089 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
4
TUNNEL, AIR WPL 695743 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
RETAINER, GASKET (SIDE) WPL 699993 Contact Us For Availability
6
PAN, MEAT WPL 6992830 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
7
SEAL, CRISPER SHELF (SIDE) WPL 697794 Contact Us For Availability
7
TUBE, FILL WPL 676663 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
RETAINER, F.F. GASKET (SIDE) WPL 699998 Contact Us For Availability
8
SHELF, CRISPER WPL 700431 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
8
DUCT, AIR WPL 670613 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
RETAINER, GASKET (TOP/BOTTOM) WPL 699995 Contact Us For Availability
9
TRIM, CRISPER SHELF WPL 61001070 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SEAL, AIR TUNNEL WPL 6632537 Contact Us For Availability
9
TUNNEL, AIR FRZ WPL 702087 Contact Us For Availability
9
SHIELD, HEAT WPL 698491 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
SLIDE, CONTROL WPL 674913 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
10
SOCKET, LIGHT WPL 694251 Contact Us For Availability
10
ORGANIZER, SHELF WPL 671958 Contact Us For Availability
11
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
COVER, EVAPORATOR WPL 679053 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 6771826 Contact Us For Availability
12
PAN, CRISPER WPL 6992814 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693982 Contact Us For Availability
12
GUARD, LIGHT WPL 694262 Contact Us For Availability
12
TRIM, DOOR SHELF WPL 6771825 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHELF, FRZ. (PLASTIC) WPL 671424 Contact Us For Availability
13
COVER, CONTROL WPL 61001087 Contact Us For Availability
13
ENDCAP, SHELF TRIM (WHT) WPL 672132 Contact Us For Availability
14
SCREW WPL 6527534 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
TRIM, SHELF WPL 61001072 Contact Us For Availability
14
SCREW WPL 40501635 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672083 Contact Us For Availability
15
SLIDE, CONTROL (MEAT) WPL 670743 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
DIVIDER, SHELF WPL 674192 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694173 Contact Us For Availability
15
BUMPER, DOOR WPL 282726 Contact Us For Availability
16
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
16
SCREW WPL 4060081 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 694174 Contact Us For Availability
16
RAIL, P.O. SHELF WPL 673172 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
CUP, SHELF WPL 674661 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
17
SCREW WPL 40002728 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SHELF, FRZ. (WIRE) WPL 676965 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
18
ENDCAP, SHELF TRIM WPL 672112 Contact Us For Availability
19
ROLLER WPL 674232 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SUPPORT, DIVIDER WPL 676481 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6771827 Contact Us For Availability
20
SCREW WPL 652756 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
GUIDE, DIVIDER WPL 676573 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
TRAY, EGG WPL 672152 Contact Us For Availability
21
SCREW WPL 6527528 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 691382 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
22
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
TIMER, DEFROST WPL 682332 Contact Us For Availability
22
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 701182 Contact Us For Availability
22
DOOR, DAIRY WPL 699185 Contact Us For Availability
23
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
COVER, PLENUM WPL 61664805 Contact Us For Availability
23
KICKPLATE W/CLIPS (WHT) WPL 702878 Contact Us For Availability
23
TRAY, BUTTER WPL 299362 Contact Us For Availability
24
GLASS, CRIPSER SHELF WPL 6748912 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
SHELF, PICK-OFF (LT.-LOW) WPL 6987220 Contact Us For Availability
25
RIVET WPL 263976 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
SHIELD, LIGHT WPL 672401 Contact Us For Availability
25
SHELF, PICK-OFF (RT.-HIGH) WPL 6987218 Contact Us For Availability
25
SHELF, PICK-OFF (LT.-HIGH) WPL 6987219 Contact Us For Availability
26
TRIM, MEAT PAN SUPPORT WPL 702814 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
26
WHEEL ASSY WPL 723192 Contact Us For Availability
26
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
26
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
26
HOOK, P O SHELF WPL 670437 Contact Us For Availability
26
HOOK, P.O. SHELF WPL 670438 Contact Us For Availability
27
SUPPORT, MEAT PAN----NA WPL 6764914 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
27
SWITCH, HEATER WPL 673632 Contact Us For Availability
27
RIVET WPL 5992017 Contact Us For Availability
28
ACTUATOR, MEAT PAN WPL 6707212 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
SCREW WPL 40001735 Contact Us For Availability
28
BASE, LIGHT WPL 672412 Contact Us For Availability
28
TUBE, DRAIN WPL 545317 Contact Us For Availability
28
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
29
NUT WPL 431019511 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SCREW WPL 40002636 Contact Us For Availability
29
DUCT, AIR WPL 676251 Contact Us For Availability
29
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
30
CLIP, KICKPLATE WPL 702851 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
TRAY, ICE WPL 592812 Contact Us For Availability
31
SCREW WPL 6527578 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
SHELF, ICE TRAY WPL 671145 Contact Us For Availability
32
WHEEL WPL 698121 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
PAN, ICE WPL 699192 Contact Us For Availability
33
PIN, WHEEL WPL 298352 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 61001564 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 701692 Contact Us For Availability
34
PLUG, GROMMET WPL 678551 Contact Us For Availability
34
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
34
CLIP WPL 602161 Contact Us For Availability
35
SCREW WPL 6527550 Contact Us For Availability
35
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
35
BRACKET, WHEEL WPL 675301 Contact Us For Availability
36
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
36
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
36
PIN, WHEEL WPL 649651 Contact Us For Availability
37
CORD, POWER WPL 528903 Contact Us For Availability
37
CAP, CONNECTOR WPL 681871 Contact Us For Availability
37
SCREW WPL 6527564 Contact Us For Availability
38
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
38
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
39
SCREW WPL 4000171 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
39
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
40
PAN, DRAIN WPL 682361 Contact Us For Availability
40
LEG, LEVELING WPL 686642 Contact Us For Availability
41
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
41
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001068 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001346 Contact Us For Availability
× ![]()
Login and Registration Form
