Model Whirlpool RTD19E0CAL REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

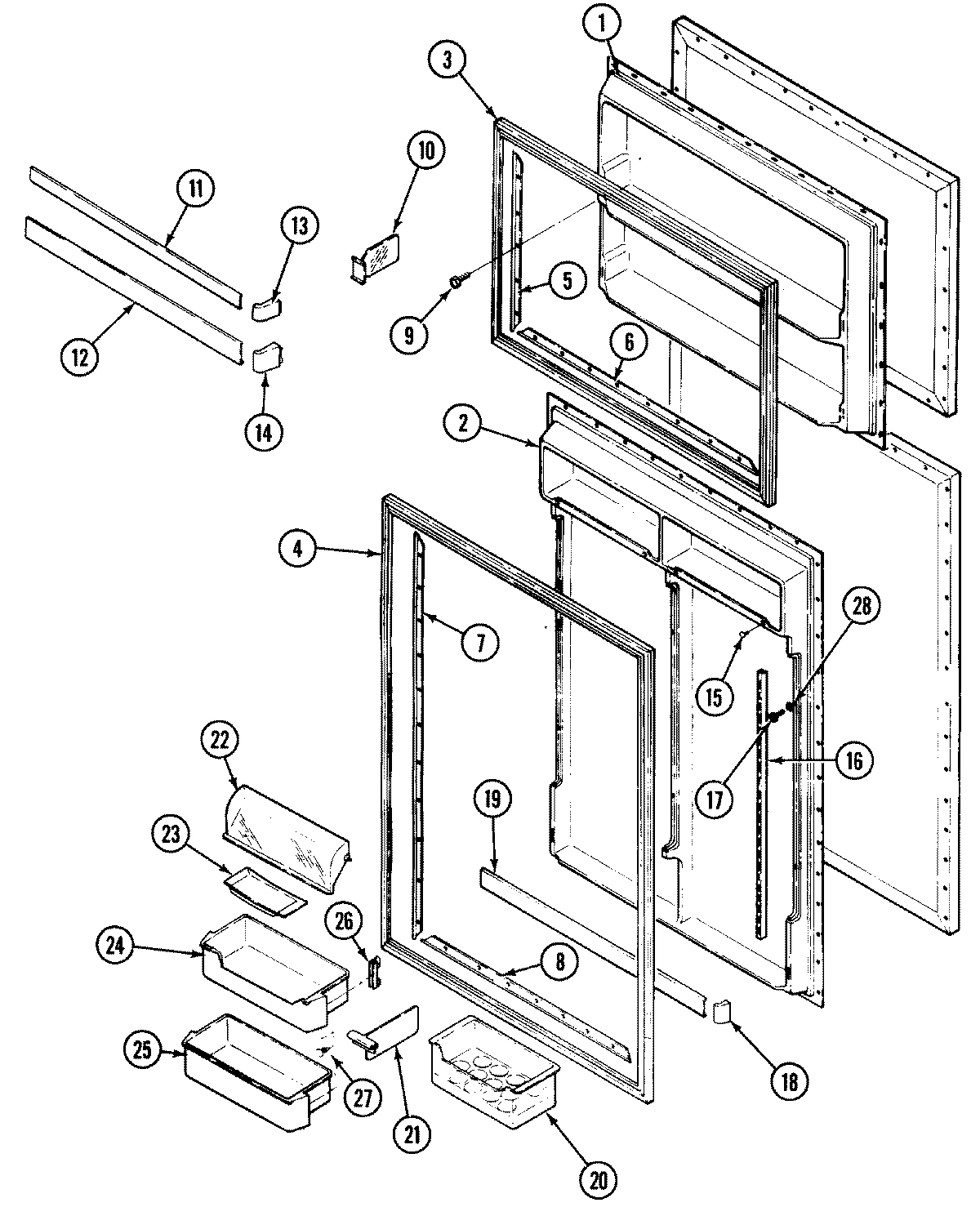

03 - INNER DOOR

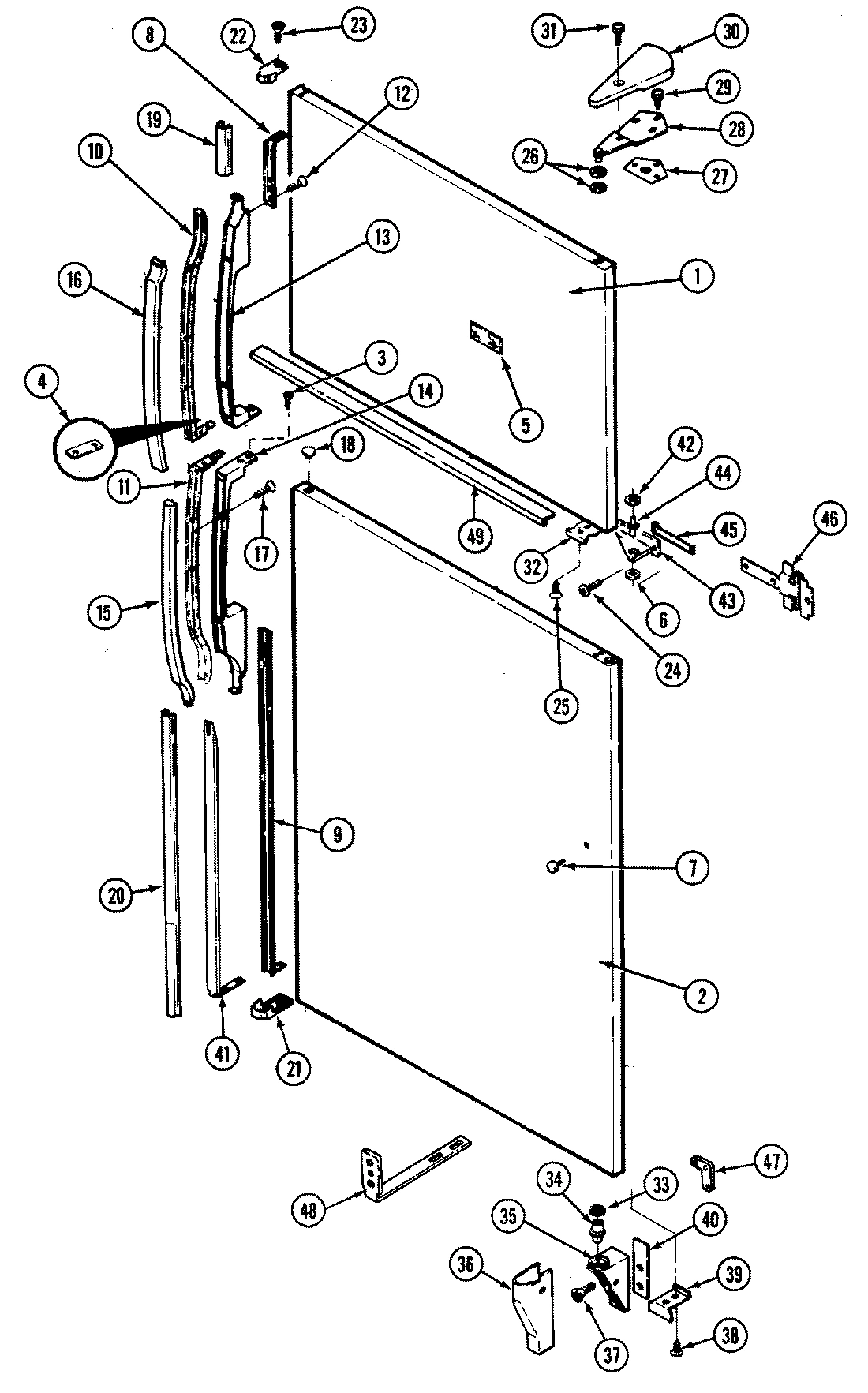

05 - OUTER DOOR

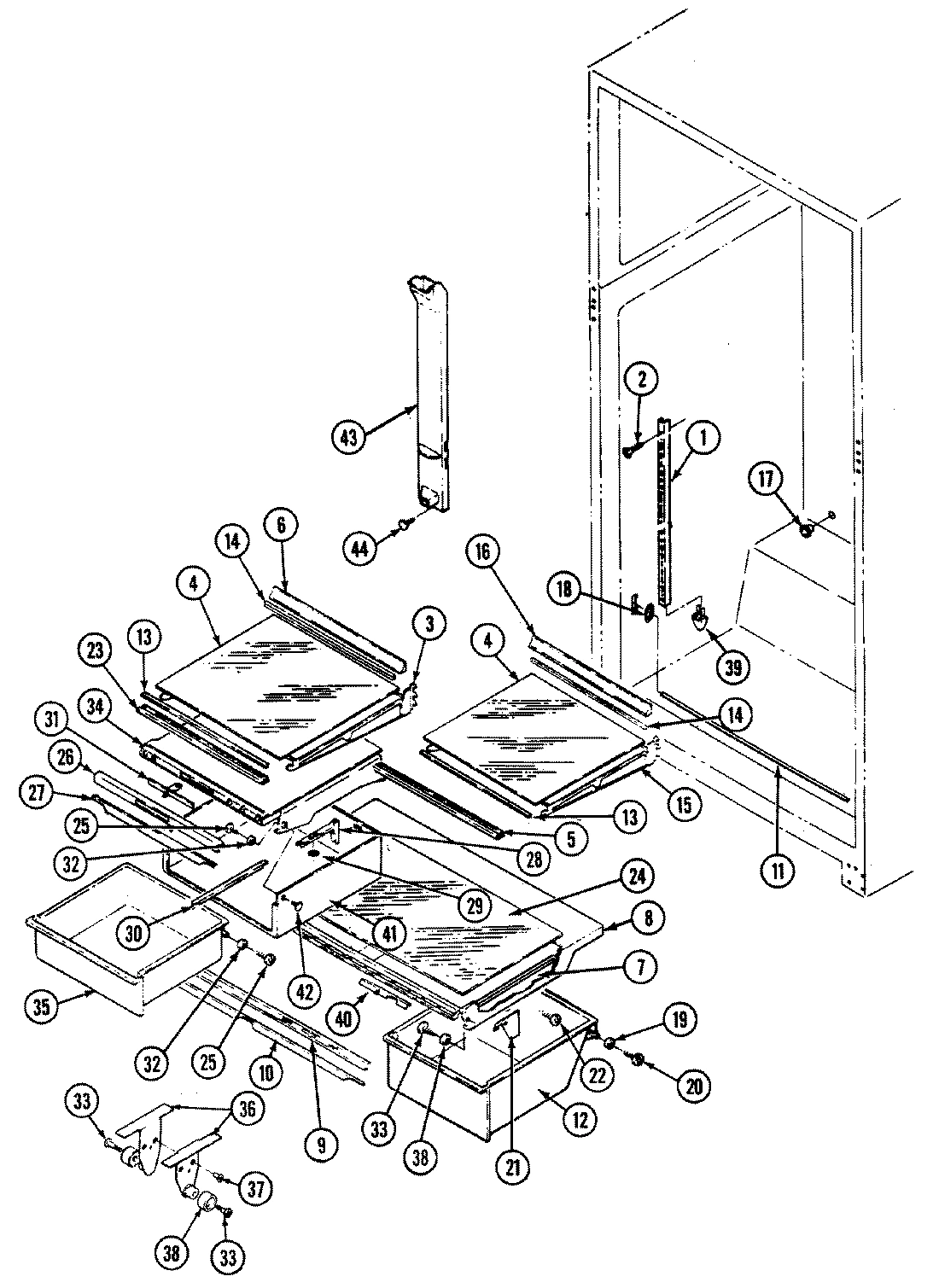

06 - SHELVES & ACCESSORIES

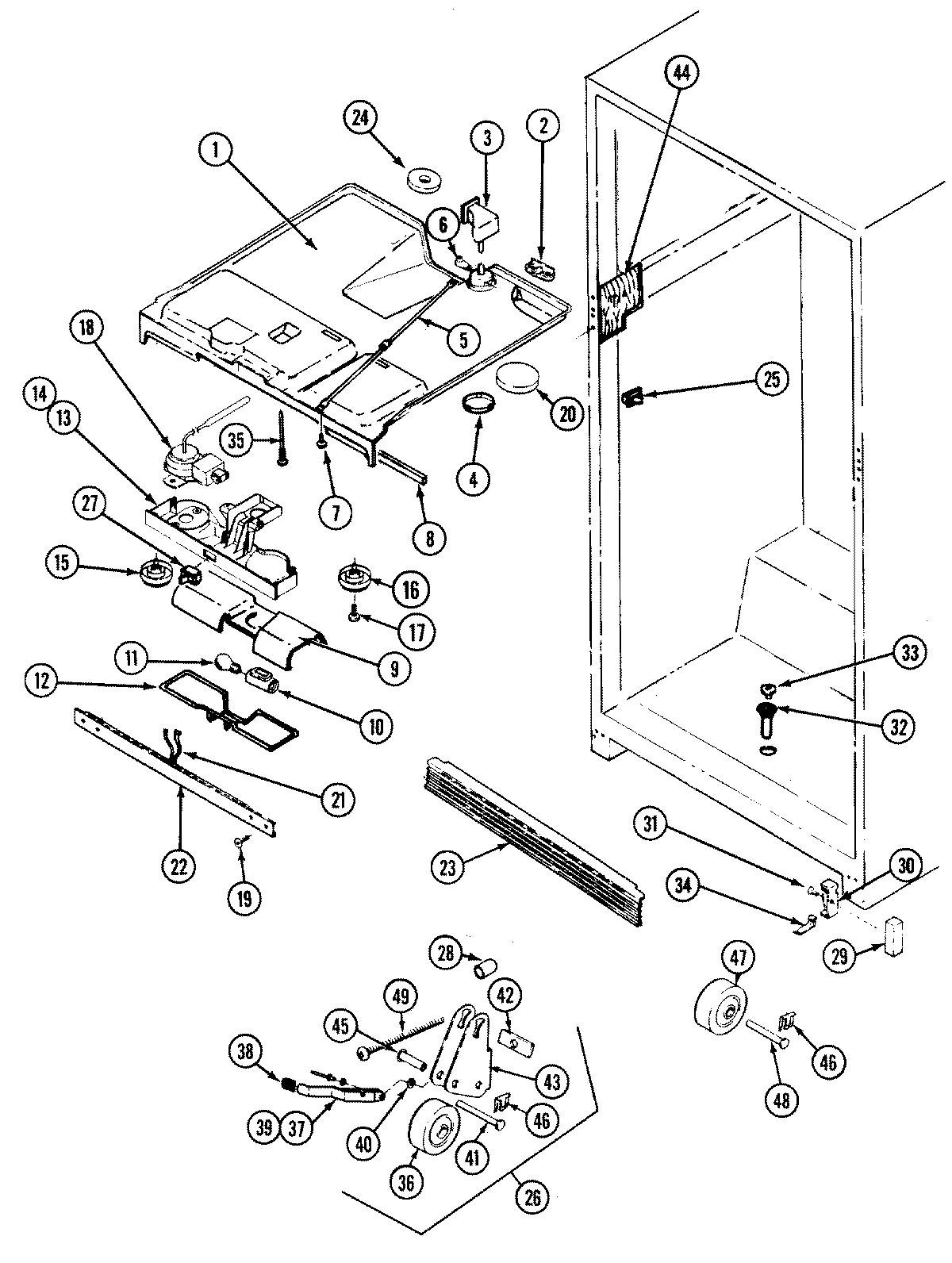

02 - FRESH FOOD COMPARTMENT

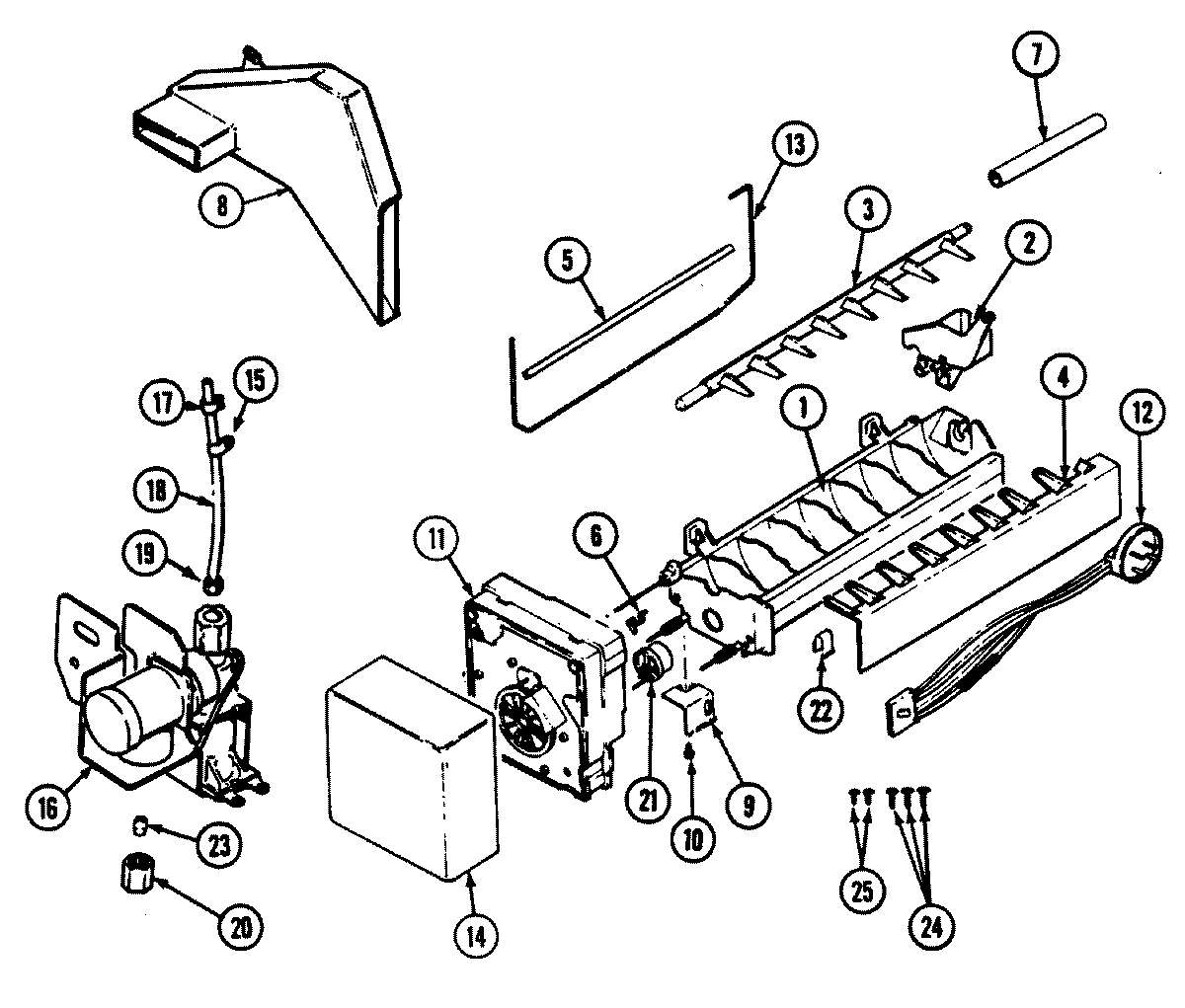

04 - OPTIONAL ICE MAKER KIT (RAE3100AAX)

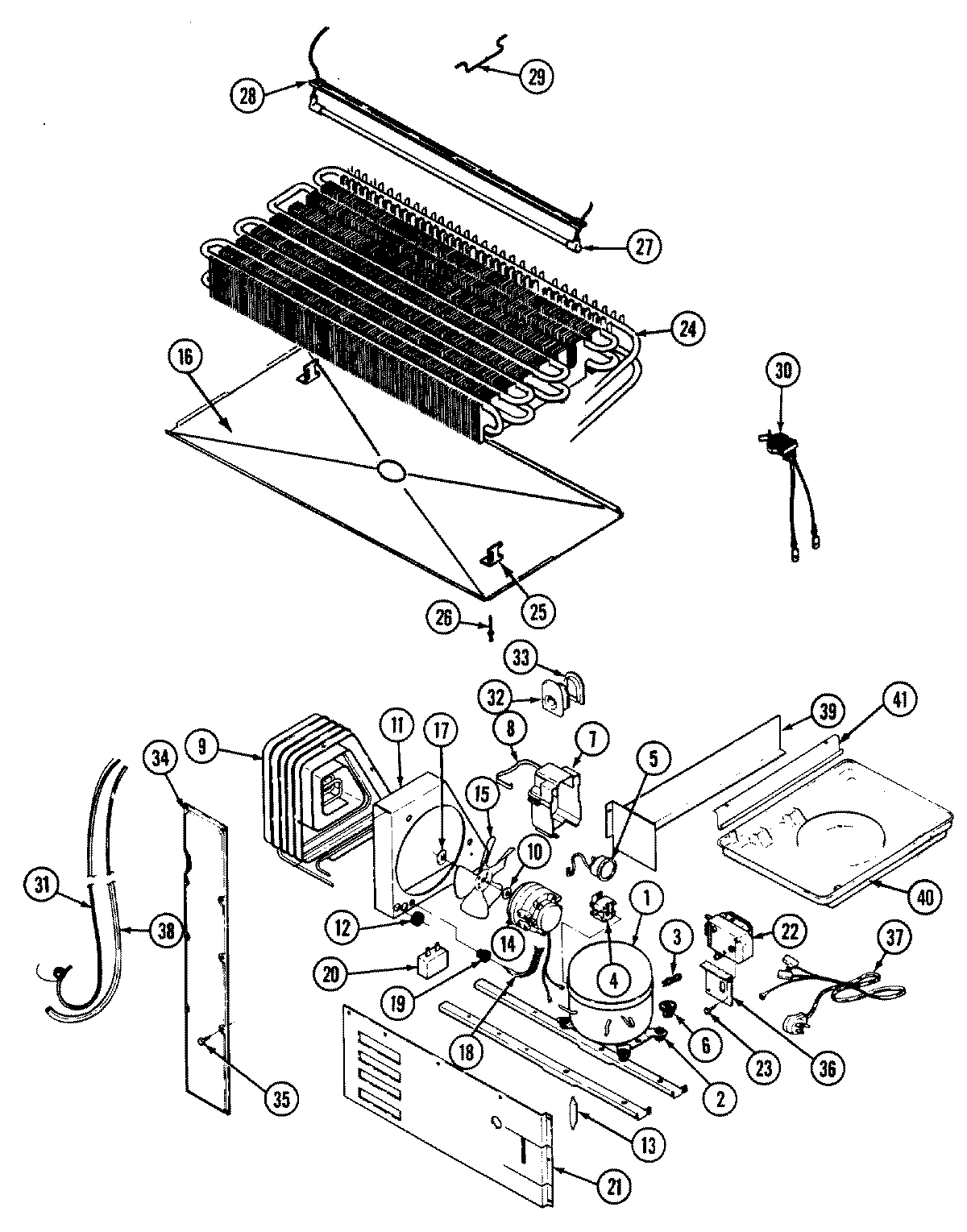

07 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RTD19E0CAL REFRIGERATOR
1
LINER, FRZ. DOOR WPL 694691 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342100AM Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694521 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 723421AM Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
3
FRAME, SHELF WPL 672692 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698112 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
4
SHIM, HANDLE WPL 679341 Contact Us For Availability
4
GLASS, SHELF WPL 6726714 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
RETAINER, GASKET (SIDE) WPL 699993 Contact Us For Availability
5
NAMEPLATE (ALM) WPL 699953 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
WASHER WPL 542337 Contact Us For Availability
6
TRIM, SHELF (REAR) WPL 6730950 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
RETAINER, F.F. GASKET (SIDE) WPL 699998 Contact Us For Availability
7
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
7
SEAL, CRISPER SHELF (SIDE) WPL 697793 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, FILL WPL 676663 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694132 Contact Us For Availability
8
RETAINER, GASKET (TOP/BOTTOM) WPL 699995 Contact Us For Availability
8
SHIM, TRIM LOCK (FRZ.) WPL 679273 Contact Us For Availability
8
SHELF, CRISPER WPL 700422 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
8
DUCT, AIR WPL 670613 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
9
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
9
TUNNEL, AIR (FRZ.) WPL 671153 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
9
SHIM, TRIM LOCK (F.F.) WPL 679275 Contact Us For Availability
9
TRIM, CRISPER SHELF WPL 6720429 Contact Us For Availability
9
SHIELD, HEAT WPL 698491 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
10
ORGANIZER, SHELF WPL 671958 Contact Us For Availability
10
FRAME, FRZ. HANDLE WPL 679214 Contact Us For Availability
10
SEAL, CRISPER SHELF (FRONT) WPL 697989 Contact Us For Availability
10
SOCKET, LIGHT WPL 694251 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
WASHER WPL 199134 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664039 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 6771826 Contact Us For Availability
11
FRAME, F.F. HANDLE WPL 679211 Contact Us For Availability
11
U-RAIL, CRISPER SHELF SUPPORT WPL 687562 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693972 Contact Us For Availability
12
TRIM, DOOR SHELF WPL 6771825 Contact Us For Availability
12
SCREW WPL 6527565 Contact Us For Availability
12
PAN, CRISPER (FRESH CRISPER) WPL 6992813 Contact Us For Availability
12
PAN, CRISPER WPL 6992817 Contact Us For Availability
12
GUARD, LIGHT WPL 694261 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
SHELF, FRZ. (PLASTIC) WPL 671423 Contact Us For Availability
13
ENDCAP, SHELF TRIM (WHT) WPL 672132 Contact Us For Availability
13
SEAL, SHELF (FRONT) WPL 672652 Contact Us For Availability
13
COVER, CONTROL WPL 697901 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
TRIM, SHELF WPL 6717659 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672083 Contact Us For Availability
14
HANDLE, DOOR WPL 679231 Contact Us For Availability
14
SEAL, SHELF (REAR) WPL 672662 Contact Us For Availability
14
SCREW WPL 40501635 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
15
DIVIDER WPL 674191 Contact Us For Availability
15
BUMPER, DOOR WPL 282726 Contact Us For Availability
15
FRAME, SPLIT SHELF WPL 672702 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694173 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
16
SCREW WPL 4060081 Contact Us For Availability
16
RAIL, P.O. SHELF WPL 673171 Contact Us For Availability
16
INSERT, HANDLE (ALM) WPL 679256 Contact Us For Availability
16
TRIM, SHELF (REAR) WPL 6730949 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 694174 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
CUP, SHELF WPL 674661 Contact Us For Availability
17
SCREW WPL 40002728 Contact Us For Availability
17
SCREW WPL 6527544 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SHELF, FRZ. (WIRE) WPL 676964 Contact Us For Availability
18
ENDCAP, SHELF TRIM WPL 672112 Contact Us For Availability
18
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
18
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
18
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686015 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
SUPPORT, DIVIDER WPL 674201 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6771827 Contact Us For Availability
19
TRIM, EXT. WPL 6793216 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
GUIDE, DIVIDER WPL 676573 Contact Us For Availability
20
TRAY, EGG WPL 672152 Contact Us For Availability
20
TRIM, EXT. WPL 6793218 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
21
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
21
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
21
END CAP, F.F. HANDLE WPL 679301 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 691382 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
22
PLUG BUTTON WPL 701462 Contact Us For Availability
22
DOOR, DAIRY WPL 699185 Contact Us For Availability
22
END CAP, FRZ. HANDLE WPL 679291 Contact Us For Availability
22
SCREW WPL 6527528 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 701182 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
WIRE HARNESS, TIMER WPL 678621 Contact Us For Availability
22
TIMER, DEFROST WPL 695434 Contact Us For Availability
23
COVER, PLENUM WPL 664805 Contact Us For Availability
23
TRAY, BUTTER WPL 299362 Contact Us For Availability
23
SCREW WPL 6527522 Contact Us For Availability
23
TRIM, SHELF (FRONT) WPL 6778334 Contact Us For Availability
23
GRILL, KICKPLATE (ALM) WPL 6702320 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
24
SHELF, PICK-OFF (LT.-LOW) WPL 6987220 Contact Us For Availability
24
SCREW WPL 6527562 Contact Us For Availability
24
GLASS, CRIPSER SHELF WPL 6748913 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
24
EVAPORATOR WPL 698227 Contact Us For Availability
25
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
SHIELD, LIGHT WPL 672401 Contact Us For Availability
25
SHELF, PICK-OFF (RT.-HIGH) WPL 6987218 Contact Us For Availability
25
SHELF, PICK-OFF (LT.-HIGH) WPL 6987219 Contact Us For Availability
25
SCREW WPL 652756 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
26
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
26
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
26
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
26
HOOK, P O SHELF WPL 670437 Contact Us For Availability
26
HOOK, P.O. SHELF WPL 670438 Contact Us For Availability
26
WASHER WPL 542332 Contact Us For Availability
26
TRIM, MEAT PAN SUPPORT WPL 670718 Contact Us For Availability
26
WHEEL ASSY. (LEFT) WPL 723193 Contact Us For Availability
26
WHEEL ASSY. (RIGHT) WPL 723194 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
27
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
27
RIVET WPL 5992017 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
27
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
27
SWITCH, HEATER WPL 673632 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
28
SCREW WPL 400017103 Contact Us For Availability
28
BASE, LIGHT WPL 672412 Contact Us For Availability
28
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
28
HINGE, UPPER WPL 5370920 Contact Us For Availability
28
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
28
ACTUATOR, MEAT PAN WPL 6707211 Contact Us For Availability
28
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
29
SCREW WPL 40002636 Contact Us For Availability
29
DUCT, AIR WPL 676251 Contact Us For Availability
29
SCREW WPL 6527552 Contact Us For Availability
29
NUT WPL 431019511 Contact Us For Availability
29
COVER, END CAP (ALM) WPL 671175 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
30
COVER, UPPER HINGE (ALM) WPL 695183 Contact Us For Availability
30
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
30
END CAP, KICKPLATE (RT-ALM) WPL 678545 Contact Us For Availability
30
END CAP, KICKPLATE (LT-ALM) WPL 678546 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
31
TRAY, ICE WPL 592812 Contact Us For Availability
31
SCREW WPL 4080621 Contact Us For Availability
31
SLIDE, CONTROL WPL 670742 Contact Us For Availability
31
SCREW WPL 4140131 Contact Us For Availability
31
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
31
WIRE TIE WPL 662231 Contact Us For Availability
32
SHELF, ICE TRAY WPL 671145 Contact Us For Availability
32
TUBE, DRAIN WPL 545317 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
33
PAN, ICE WPL 699192 Contact Us For Availability
33
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
33
SCREW WPL 6527534 Contact Us For Availability
33
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
34
PLUG, GROMMET WPL 678551 Contact Us For Availability
34
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
34
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
34
SUPPORT, MEAT PAN WPL 6764913 Contact Us For Availability
34
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 692961 Contact Us For Availability
35
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
35
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
35
PAN, MEAT WPL 699283 Contact Us For Availability
35
SCREW WPL 6527578 Contact Us For Availability
35
SCREW WPL 6527550 Contact Us For Availability
36
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
36
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
36
WHEEL WPL 698122 Contact Us For Availability
36
BRACKET, DEFROST TIMER WPL 673922 Contact Us For Availability
37
CAP, CONNECTOR WPL 681871 Contact Us For Availability
37
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
37
RIVET WPL 263976 Contact Us For Availability
37
LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability
37
LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability
37
CORD, POWER WPL 528903 Contact Us For Availability
38
SCREW WPL 6527548 Contact Us For Availability
38
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
38
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
38
COVER, HEAT EXCHANGER WPL 681861 Contact Us For Availability
39
STOP, DOOR WPL 692562 Contact Us For Availability
39
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
39
SCREW WPL 4060461 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
40
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
40
SLIDE, CONTROL WPL 674912 Contact Us For Availability
40
WASHER WPL 420007400 Contact Us For Availability
40
PAN, DRAIN WPL 682361 Contact Us For Availability
41
SUPPORT, SHIM WPL 679332 Contact Us For Availability
41
HOUSING, MEAT PAN WPL 6706910 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
PIN, WHEEL WPL 649651 Contact Us For Availability
41
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
41
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
42
WASHER WPL 674836 Contact Us For Availability
42
PLUG BUTTON WPL 676883 Contact Us For Availability
42
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
43
TUNNEL, AIR (MEAT) WPL 695741 Contact Us For Availability
43
BRACKET, WHEEL WPL 675301 Contact Us For Availability
44
SCREW WPL 40001531 Contact Us For Availability
44
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
44
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
44
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
45
SHIM, CENTER HINGE WPL 696051 Contact Us For Availability
46
SCREW WPL 6527561 Contact Us For Availability
46
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
46
CLIP WPL 602161 Contact Us For Availability
47
SCREW WPL 6527559 Contact Us For Availability
47
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
47
WHEEL WPL 698121 Contact Us For Availability
48
SCREW WPL 4140121 Contact Us For Availability
48
SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability
48
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
TRIM, DOOR TOP (F.F.) WPL 692652 Contact Us For Availability
49
SCREW WPL 6527564 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083501 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
× ![]()
Login and Registration Form
