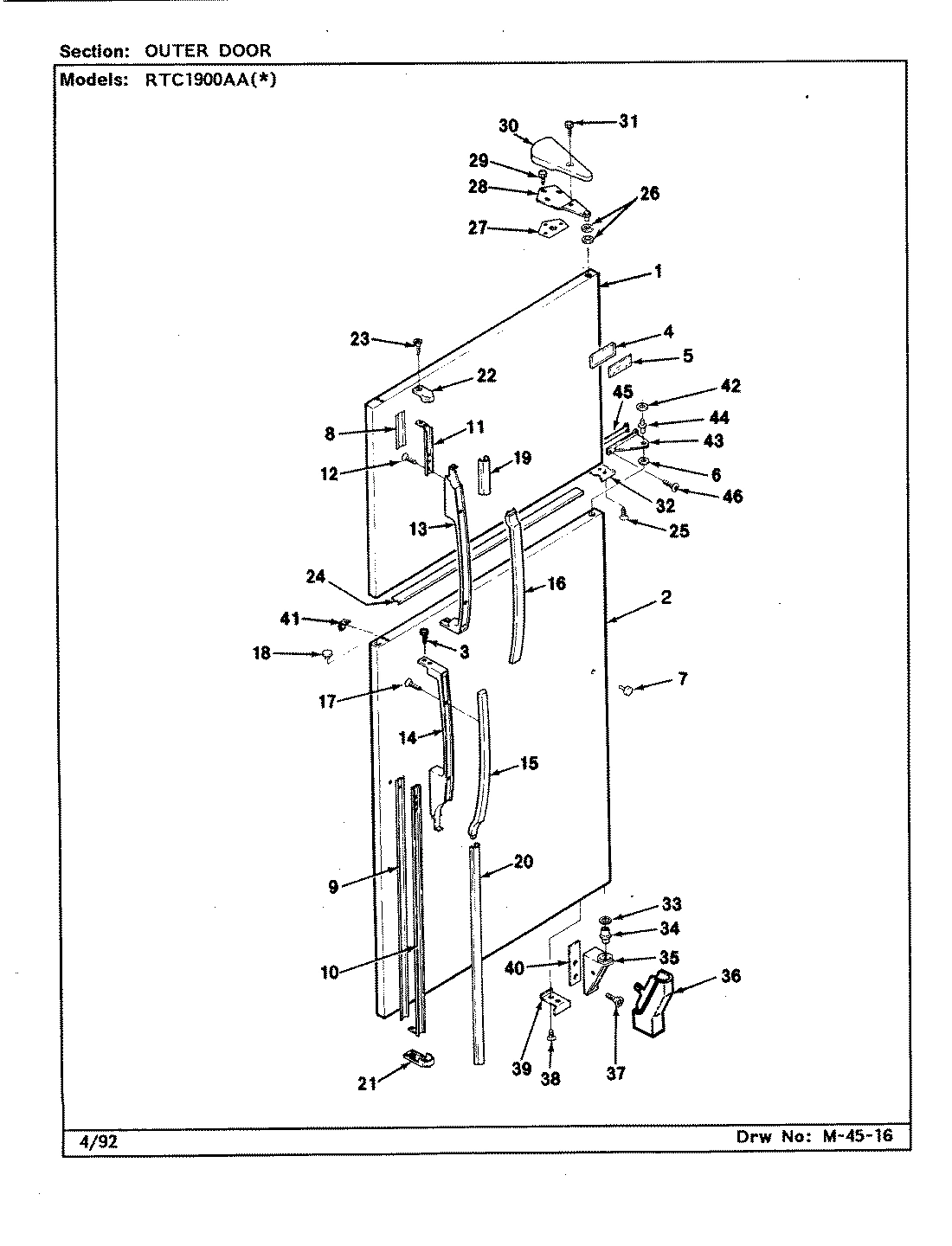

Model Whirlpool RTC1900AAW REFRIGERATOR – Common Parts &amp; Diagrams

1

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

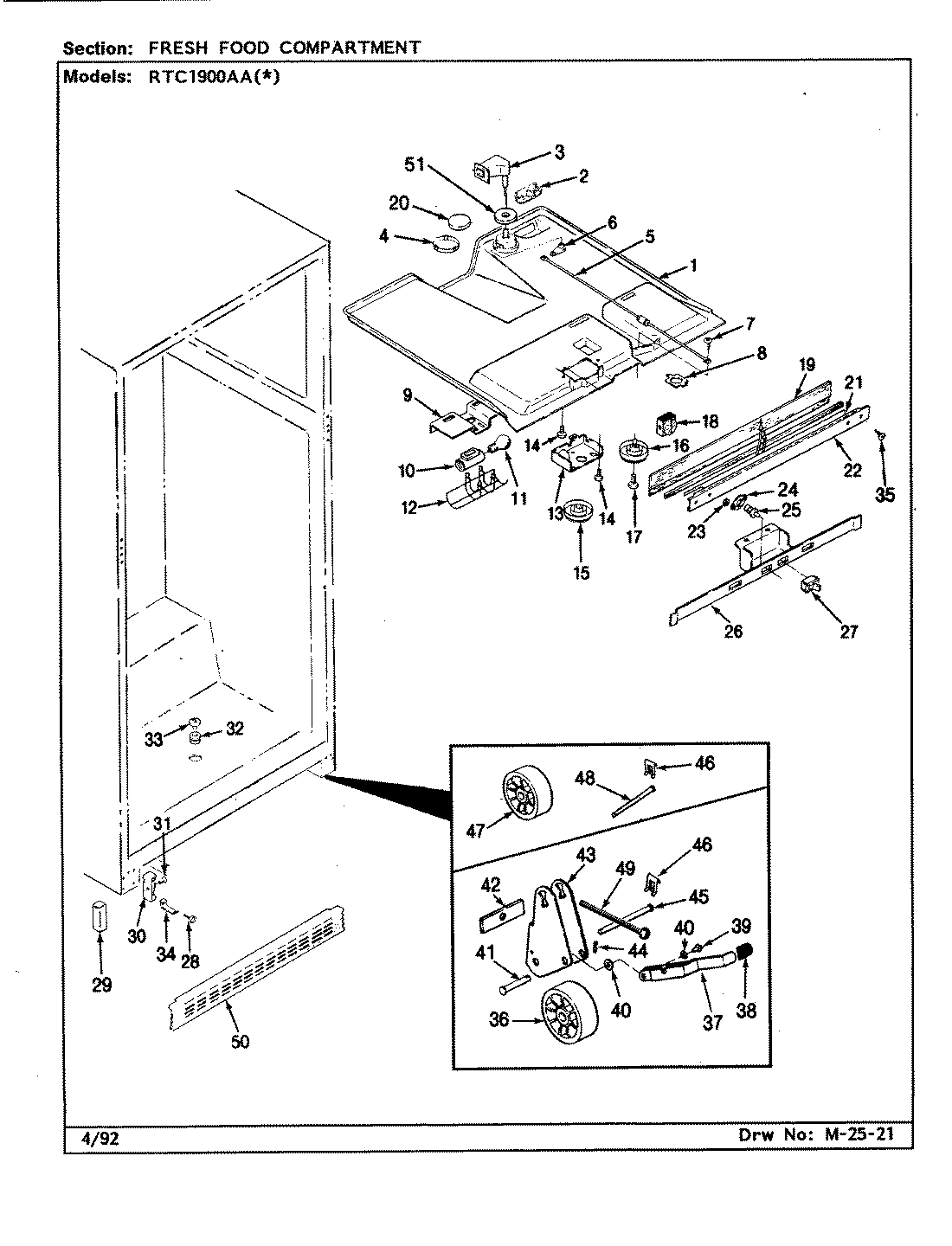

TOP, F.F. COMPARTMENT WPL 691201 Contact Us For Availability

1

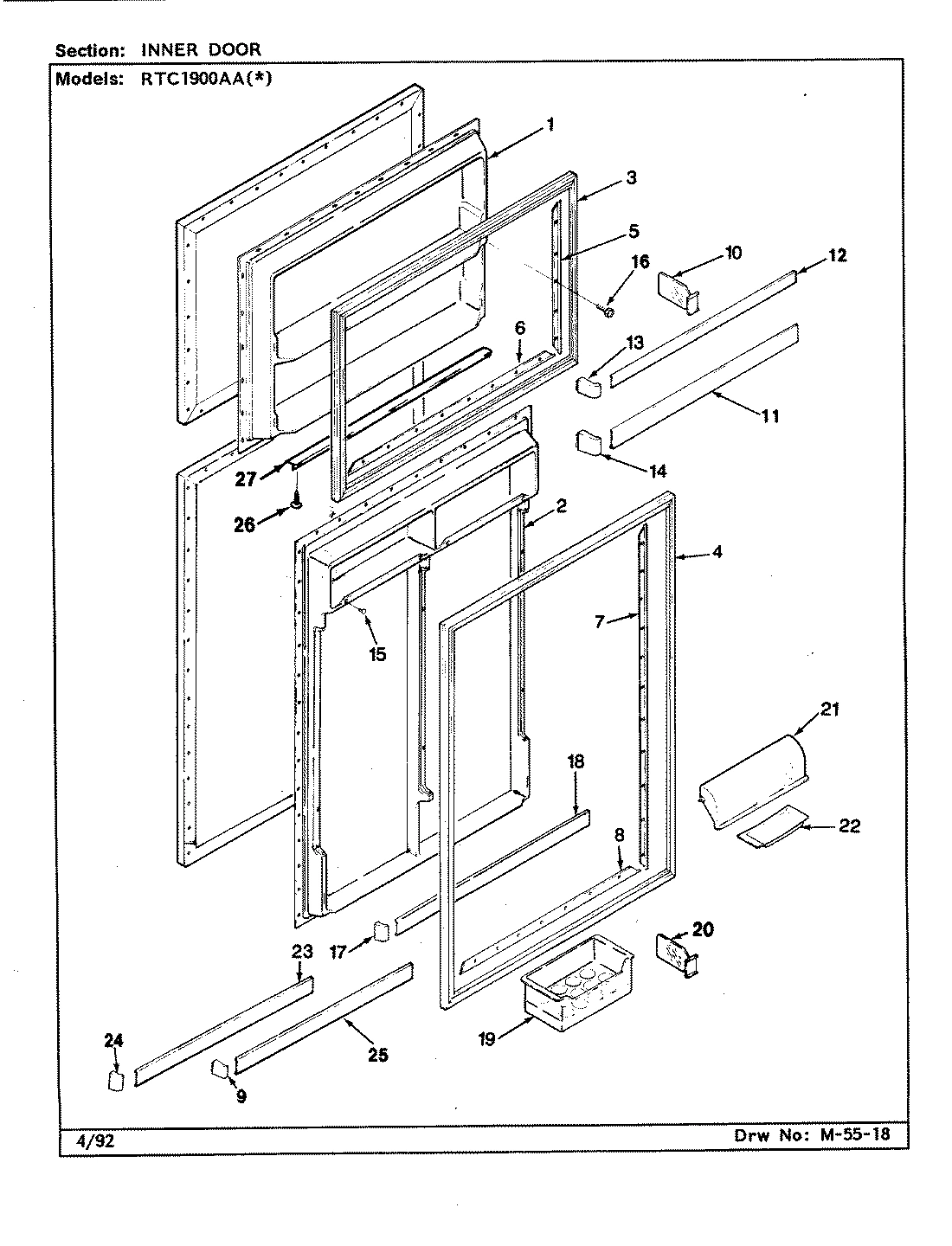

LINER, DOOR WPL 670062 Contact Us For Availability

1

PANEL, FRZ. DOOR (ALM) WPL 720423AM Contact Us For Availability

1

PANEL, FRZ. DOOR (WHT) WPL 720423WW Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability

1

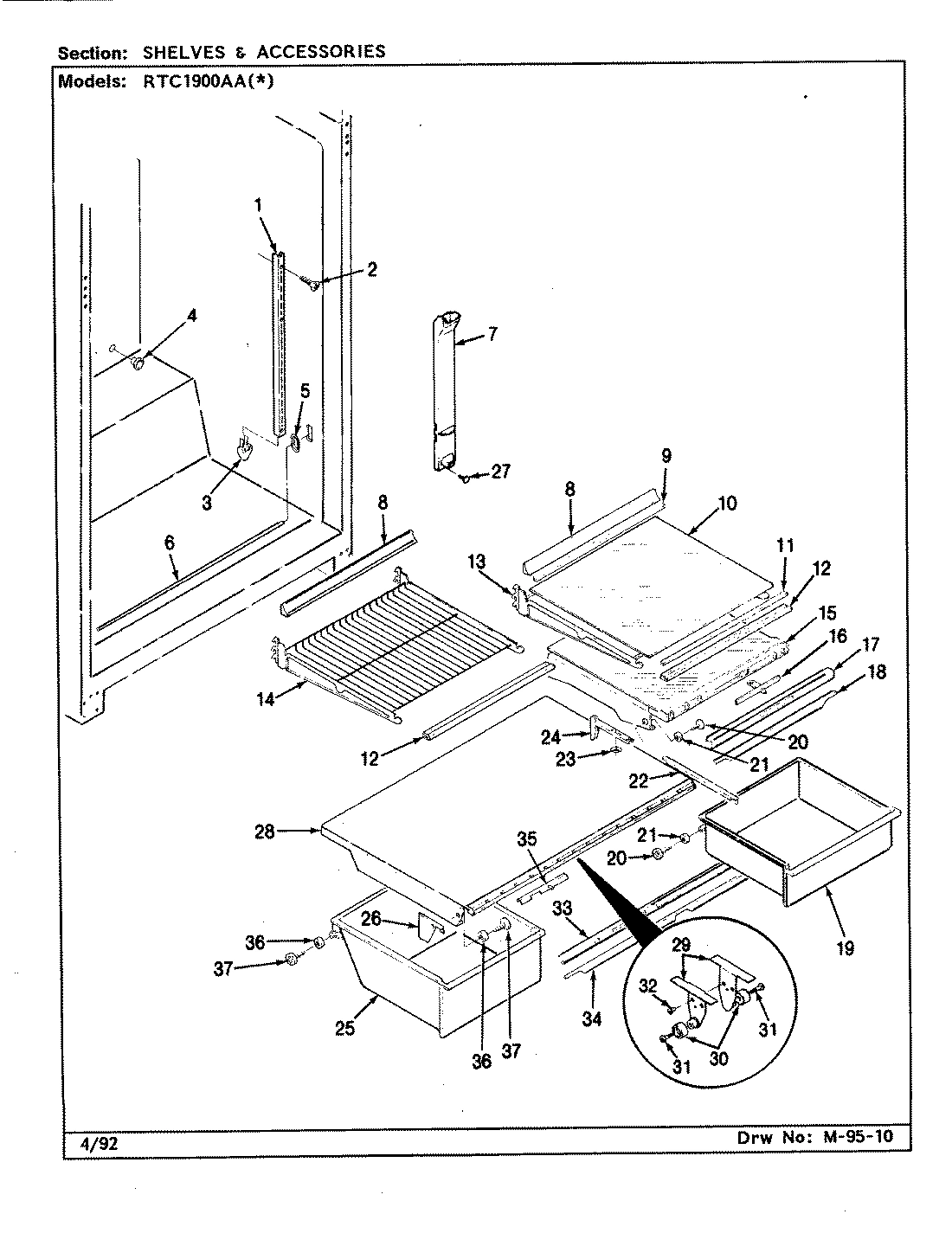

RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability

1

RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability

1

RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability

2

SEAL WPL 688666 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

DEFLECTOR WPL 601202 Contact Us For Availability

2

LINER, F.F. DOOR WPL 670071 Contact Us For Availability

2

PANEL, F.F. DOOR (ALM) WPL 720428AM Contact Us For Availability

2

PANEL, F.F. DOOR (WHT) WPL 720428WW Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SCREW WPL 40003728 Contact Us For Availability

3

GASKET WPL 675582 Contact Us For Availability

3

SCREW WPL 4060621 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability

3

MOTOR, EVAPORATOR FAN WPL 691061 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

DOOR SEAL WPL 677095 Contact Us For Availability

3

SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability

3

END CAP, CENTER RAIL WPL 603401 Contact Us For Availability

4

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

COVER, CRANK WPL 674931 Contact Us For Availability

4

DOOR SEAL WPL 677096 Contact Us For Availability

4

BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability

4

RELAY, START WPL 665881 Contact Us For Availability

4

GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability

5

SCREW WPL 40001512 Contact Us For Availability

5

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

5

ROD PAD CONTROL WPL 674991 Contact Us For Availability

5

RETAINER, FRZ. GASKET SIDE WPL 670338 Contact Us For Availability

5

INSERT, NAMEPLATE WPL 671941 Contact Us For Availability

5

OVERLOAD WPL 6329417 Contact Us For Availability

5

CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability

6

BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability

6

BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability

6

WASHER WPL 542332 Contact Us For Availability

6

CLIP, OVERLOAD WPL 658871 Contact Us For Availability

7

SCREW WPL 951051 Contact Us For Availability

7

SCREW WPL 6527513 Contact Us For Availability

7

RETAINER, F.F. DOOR GASKET WPL 670335 Contact Us For Availability

7

PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability

7

PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

7

TUNNEL, AIR MEAT WPL 675251 Contact Us For Availability

8

ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability

8

SCREW WPL 951061 Contact Us For Availability

8

BRACKET, LIGHT WPL 677031 Contact Us For Availability

8

RETAINER, FRZ. DOOR GASKET WPL 670336 Contact Us For Availability

8

SHIM, TRIM WPL 677463 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

8

TRIM, CANTILEVER WPL 6730913 Contact Us For Availability

8

TRIM, CANTILEVER WPL 673092 Contact Us For Availability

9

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

9

SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability

9

TUNNEL, AIR (FRZ.) WPL 671153 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SHIELD, HEAT WPL 691171 Contact Us For Availability

9

SHIM, TRIM WPL 677465 Contact Us For Availability

9

SCREW WPL 4140011 Contact Us For Availability

9

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

9

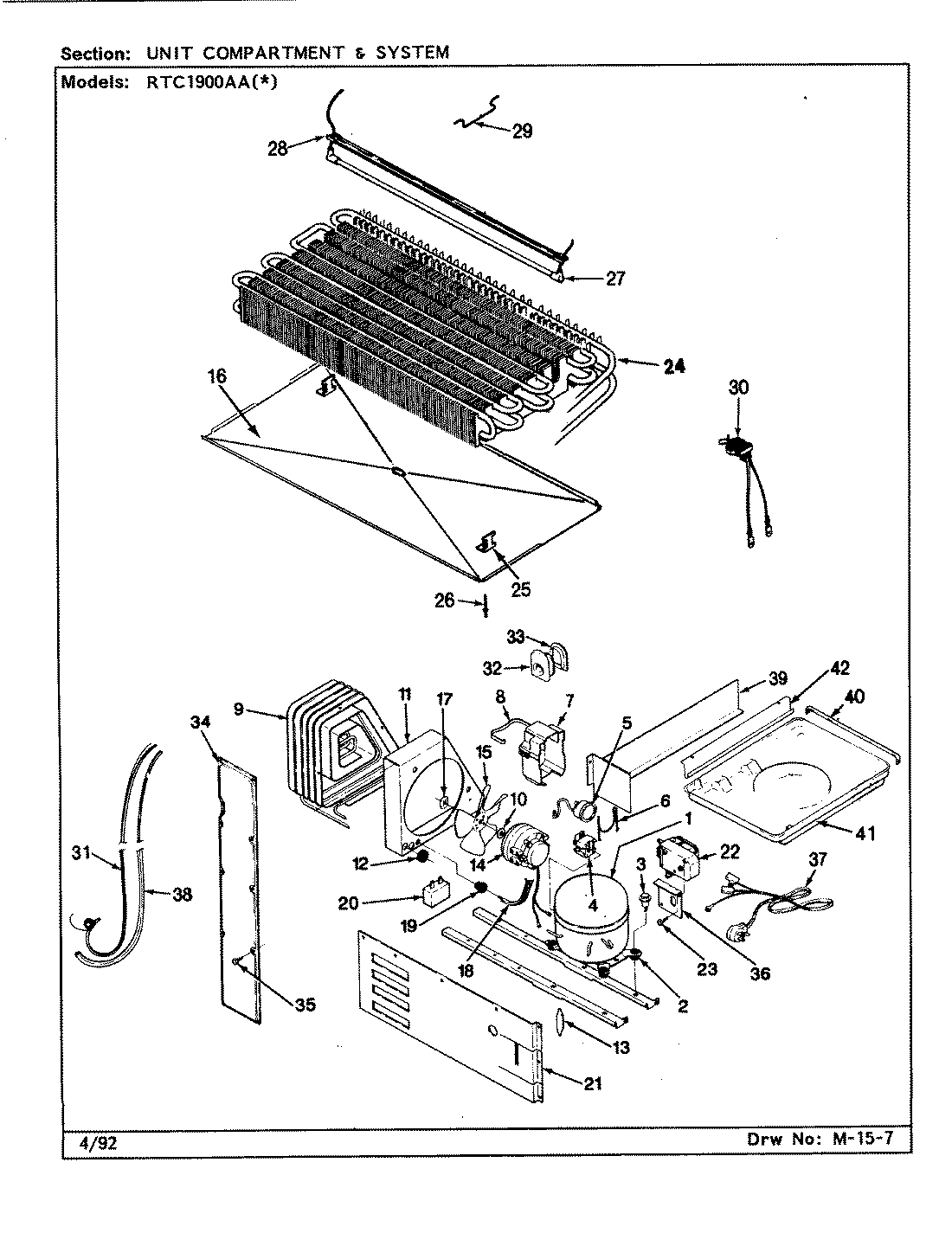

CONDENSER WPL 604343 Contact Us For Availability

9

CONDENSER WPL 695311 Contact Us For Availability

9

SEAL, SHELF (REAR) WPL 672662 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

HOLDER, LAMP WPL 673691 Contact Us For Availability

BRACKET, HANDLE WPL 671575 Contact Us For Availability

WASHER WPL 199134 Contact Us For Availability

GLASS, CANTILEVER WPL 672679 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

COVER, EVAPORATOR WPL 664039 Contact Us For Availability

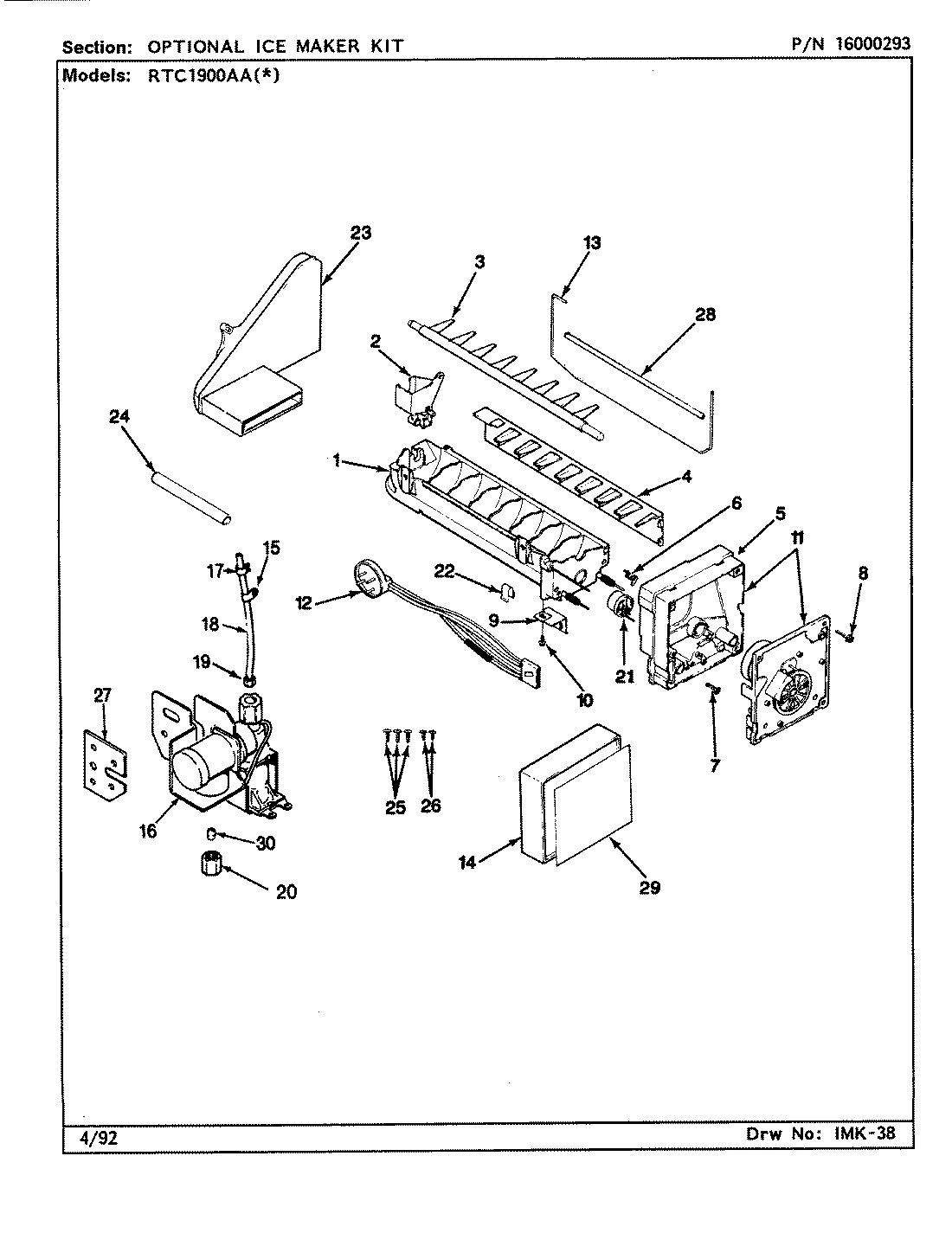

ICEMAKER WPL 951091 Contact Us For Availability

BRACKET, HANDLE WPL 671573 Contact Us For Availability

SHROUD, CONDENSER WPL 662281 Contact Us For Availability

SEAL, SHELF (FRONT) WPL 672652 Contact Us For Availability

BOTTOM FROST CHEST WPL 671291 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability

GUARD, LIGHT WPL 671901 Contact Us For Availability

RETAINER LIGHT----NA WPL 675411 Contact Us For Availability

SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

TRIM WPL 677832 Contact Us For Availability

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

SHELF, FRZ. (PLASTIC) WPL 671423 Contact Us For Availability

ARM, SENSOR WPL 681121 Contact Us For Availability

COVER THERMOSTAT WPL 671691 Contact Us For Availability

FRAME, SHELF WPL 672692 Contact Us For Availability

TRIM, FRZ SHELF WPL 671763 Contact Us For Availability

COVER ICE MAKER WPL 681131 Contact Us For Availability

ANCHOR WPL 603193 Contact Us For Availability

ENDCAP, SHELF TRIM WPL 672081 Contact Us For Availability

HANDLE, DOOR WPL 677781 Contact Us For Availability

SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability

CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability

SHIM HANDLE WPL 676972 Contact Us For Availability

SHIM HANDLE WPL 676973 Contact Us For Availability

SHIM WPL 676974 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability

SHELF, WIRE WPL 672712 Contact Us For Availability

DIVIDER WPL 674191 Contact Us For Availability

CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

KNOB, CONTROL WPL 672451 Contact Us For Availability

BUMPER, DOOR WPL 282726 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

MEAT KEEPER RAIL WPL 676491 Contact Us For Availability

SCREW WPL 4060081 Contact Us For Availability

VALVE, WATER WPL 693641 Contact Us For Availability

KNOB CONTROL WPL 672441 Contact Us For Availability

SCREW WPL 652755 Contact Us For Availability

INSERT, HANDLE (FRESH FOOD) WPL 678811 Contact Us For Availability

TRAY, EVAPORATOR WPL 691182 Contact Us For Availability

CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability

WASHER, SPRING WPL 420092900 Contact Us For Availability

FREEZER SHELF CUP WPL 655701 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SCREW WPL 405016103 Contact Us For Availability

ENDCAP, SHELF TRIM WPL 672111 Contact Us For Availability

SCREW WPL 6527544 Contact Us For Availability

CLIP WPL 199140 Contact Us For Availability

TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability

TUBE WPL 675796 No Longer Available

SHELF, FRZ. (WIRE) WPL 676964 Contact Us For Availability

GROUND WIRE, CONTROL WPL 2967533 Contact Us For Availability

SCREW WPL 4060131 Contact Us For Availability

CONTROL, TEMPERATURE WPL 686011 Contact Us For Availability

CONTROL, TEMPERATURE WPL 686013 Contact Us For Availability

TRIM, DOOR SHELF WPL 6771817 Contact Us For Availability

PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability

PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability

PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability

PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability

BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability

SEAL, MEAT PAN WPL 676772 Contact Us For Availability

SUPPORT, DIVIDER WPL 674201 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability

INSULATION WPL 601402 Contact Us For Availability

TRAY, EGG WPL 672151 Contact Us For Availability

TRIM HANDLE (FRZ) WPL 678053 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

PAN, MEAT WPL 676504 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

GUIDE, DIVIDER WPL 676573 Contact Us For Availability

DISC, CRANK COVER WPL 690371 Contact Us For Availability

ORGANIZER WPL 671952 Contact Us For Availability

ORGANIZER WPL 671951 Contact Us For Availability

TRIM, EXTENSION WPL 678055 Contact Us For Availability

CAPACITOR, RUN WPL 658892 Contact Us For Availability

SEAL, FROST CHEST WPL 6632510 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

HEATER, MULLION WPL 678982 Contact Us For Availability

WIRE HARNESS MULLION WPL 691531 Contact Us For Availability

WIRE HARNESS WPL 691541 Contact Us For Availability

DOOR, DAIRY WPL 670412 Contact Us For Availability

ENDCAP, HANDLE (F.F. DOOR) WPL 688181 Contact Us For Availability

COVER, UNIT COMPARTMENT WPL 691382 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

SCREW WPL 40002612 Contact Us For Availability

DUCT, AIR WPL 676251 Contact Us For Availability

CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability

MULLION FRONT WPL 672475AM Contact Us For Availability

MULLION FRONT WPL 672475WW Contact Us For Availability

TRAY, BUTTER WPL 672161 Contact Us For Availability

ENDCAP, HANDLE (FRZ.) WPL 673821 Contact Us For Availability

TIMER, DEFROST WPL 695434 Contact Us For Availability

LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability

COVER, PLENUM WPL 664805 Contact Us For Availability

DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability

DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability

DUCT, AIR WPL 670613 Contact Us For Availability

NUT, PUSH-ON WPL 431041505 Contact Us For Availability

TRIM, DOOR SHELF WPL 677187 Contact Us For Availability

SCREW WPL 6527522 Contact Us For Availability

SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

NUT WPL 431019511 Contact Us For Availability

PLUG, GROMMET WPL 678551 Contact Us For Availability

GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability

TUBE, FILL WPL 676663 Contact Us For Availability

GROUND PLATE WPL 673601 Contact Us For Availability

ENDCAP, SHELF TRIM (SAND BEIGE WPL 672131 Contact Us For Availability

TRIM, FRESH FOOD DOOR WPL 666516 Contact Us For Availability

EVAPORATOR WPL 691142 Contact Us For Availability

ACTUATOR MEAT KEEPER WPL 670725 Contact Us For Availability

TRAY, ICE WPL 592815 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

SWITCH, PLUN WPL 677241 Contact Us For Availability

TRIM, DOOR SHELF WPL 6771813 Contact Us For Availability

BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability

PAN, CRISPER WPL 676507 Contact Us For Availability

CUP, SHELF WPL 603131 Contact Us For Availability

SHELF, ICE TRAY WPL 671142 Contact Us For Availability

SCREW WPL 4010171 Contact Us For Availability

RIVET WPL 263979 Contact Us For Availability

SCREW WPL 400015103 Contact Us For Availability

SCREW, PANEL WPL 402020103 Contact Us For Availability

FACADE, CONTROL WPL 672521 Contact Us For Availability

CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability

WASHER WPL 542331 Contact Us For Availability

SCREW WPL 6527528 Contact Us For Availability

SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability

SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability

W10428773 Whirlpool Pump and Motor Assembly Backorder WPL W10428773 $371.04

SCREW WPL 40001531 Contact Us For Availability

PAN, ICE WPL 671411 Contact Us For Availability

TUBING PLASTIC-DOOR PANEL WPL 671871 Contact Us For Availability

SCREW WPL 406026103 Contact Us For Availability

BRACKET, WATER VALVE WPL 693631 Contact Us For Availability

SWITCH, MULLION WPL 673631 Contact Us For Availability

GASKET WPL 689302 Contact Us For Availability

SHIM, UPPER HINGE WPL 650311 Contact Us For Availability

HEATER, DEFROST WPL 6010635 Contact Us For Availability

SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability

PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability

PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability

HINGE, TOP WPL 674562 Contact Us For Availability

SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability

SHELF, CRISPER WPL 678902 Contact Us For Availability

TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability

COVER HINGE WPL 671173 Contact Us For Availability

SCREW WPL 998687 Contact Us For Availability

CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability

CLIP WPL 689351 Contact Us For Availability

BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

END CAP (R) WPL 678541 Contact Us For Availability

END CAP (L) WPL 678542 Contact Us For Availability

COVER, UPPER HINGE (ALM.) WPL 672293 Contact Us For Availability

COVER, UPPER HINGE(WHT.) WPL 672294 Contact Us For Availability

THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability

SCREW WPL 4000611 Contact Us For Availability

SCREW, HINGE COVER WPL 4030601 Contact Us For Availability

HEAT EXCHANGER WPL 650134 Contact Us For Availability

TUBING ASSY. WPL 650135 Contact Us For Availability

WIRE TIE WPL 662231 Contact Us For Availability

SCREW WPL 652756 Contact Us For Availability

TUBE, DRAIN WPL 545317 Contact Us For Availability

STOP, DOOR WPL 676621 Contact Us For Availability

GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability

RIVET WPL 263976 Contact Us For Availability

CAP, DRAIN TUBE WPL 650391 Contact Us For Availability

WASHER, LOWER HINGE WPL 674832 Contact Us For Availability

RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability

TRIM CRISPER WPL 672044 Contact Us For Availability

CLIP, KICKPLATE WPL 672591 Contact Us For Availability

PIN, HINGE WPL 689771 Contact Us For Availability

COVER, WIRE HARNESS WPL 601102 Contact Us For Availability

WIRE HARNESS, MAIN WPL 691622 Contact Us For Availability

SEAL, CRISPER SHELF WPL 677312 Contact Us For Availability

SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability

SCREW WPL 6527559 Contact Us For Availability

TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability

HINGE, LOWER WPL 689752 Contact Us For Availability

SCREW WPL 6527550 Contact Us For Availability

HUMIDITY CONTROL WPL 674911 Contact Us For Availability

WHEEL FRONT WPL 674551 Contact Us For Availability

COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability

BRACKET, DEFROST TIMER WPL 673922 Contact Us For Availability

ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability

LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability

LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability

SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability

CORD, POWER WPL 528903 Contact Us For Availability

SCREW WPL 6527534 Contact Us For Availability

38

HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability

38

SCREW WPL 6527548 Contact Us For Availability

38

COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability

39

SCREW WPL 4060461 Contact Us For Availability

39

STOP, DOOR WPL 690221 Contact Us For Availability

39

BAFFLE WPL 664933 Contact Us For Availability

40

WASHER WPL 420007400 Contact Us For Availability

40

SHIM WPL 690311 Contact Us For Availability

40

SUPPORT WPL 675961 Contact Us For Availability

41

AXLE WHEEL WPL 675291 Contact Us For Availability

41

CLIP, HANDLE WPL 673861 Contact Us For Availability

41

PAN, DRAIN WPL 682362 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability

W WPL 674831 Contact Us For Availability

RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability

RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability

43

BRACKET, WHEEL WPL 675301 Contact Us For Availability

43

WPL 678591 WPL 678591 Contact Us For Availability

44

CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability

44

WPL 673221 WPL 673221 Contact Us For Availability

45

WPL 674751 WPL 674751 Contact Us For Availability

45

WPL 678571 WPL 678571 Contact Us For Availability

46

CLIP WPL 602161 Contact Us For Availability

46

WPL 6527521 WPL 6527521 Contact Us For Availability

47

WHEEL, ROLLER WPL 674552 Contact Us For Availability

48

PIN, WHEEL WPL 298352 Contact Us For Availability

49

TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability

49

SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability

50

GRILL, KICKPLATE WPL 670233 Contact Us For Availability

51

SEAL, TOP TOWER WPL 689891 Contact Us For Availability
