Model Whirlpool RTC1700AAL REFRIGERATOR – Common Parts & Diagrams

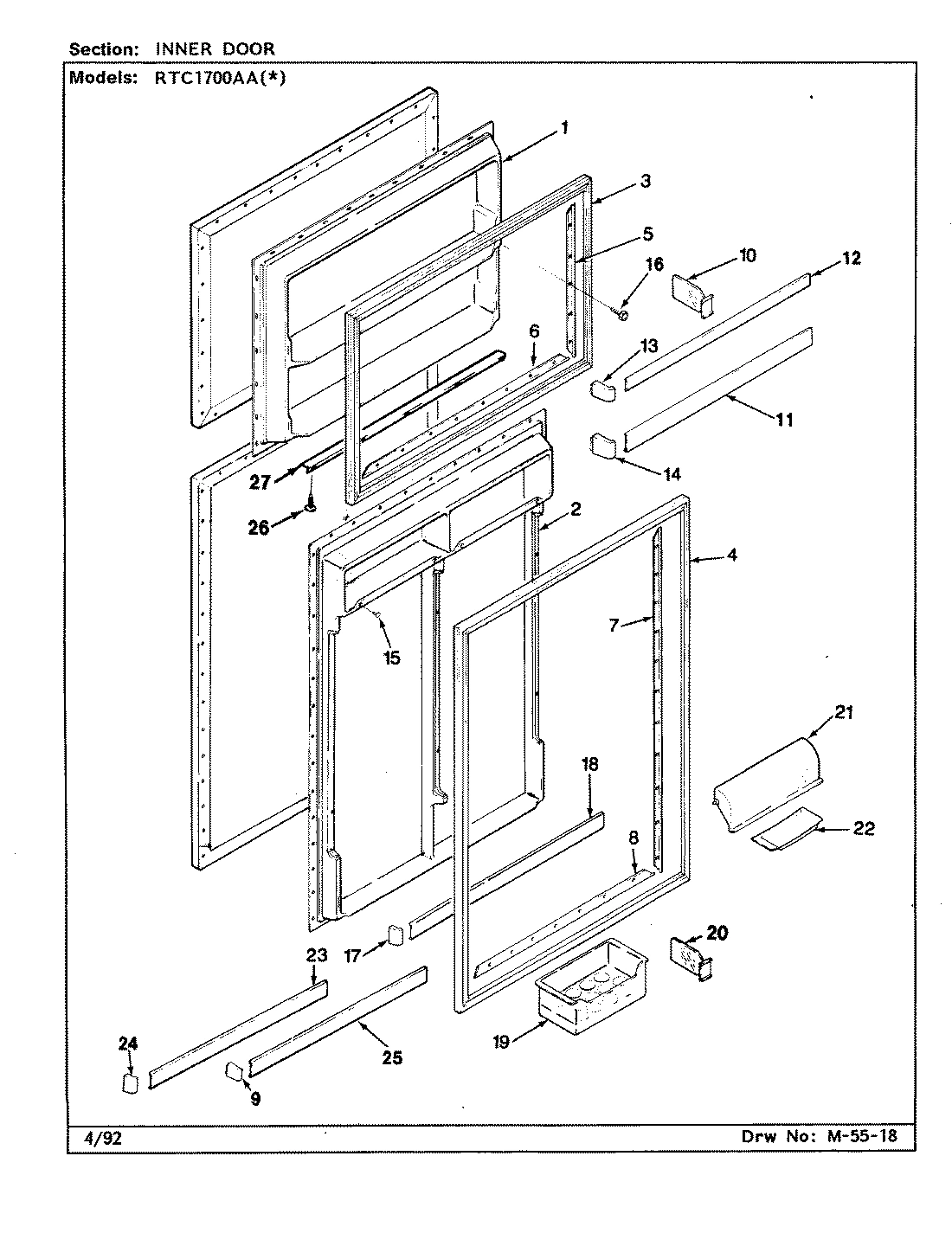

03 - INNER DOOR

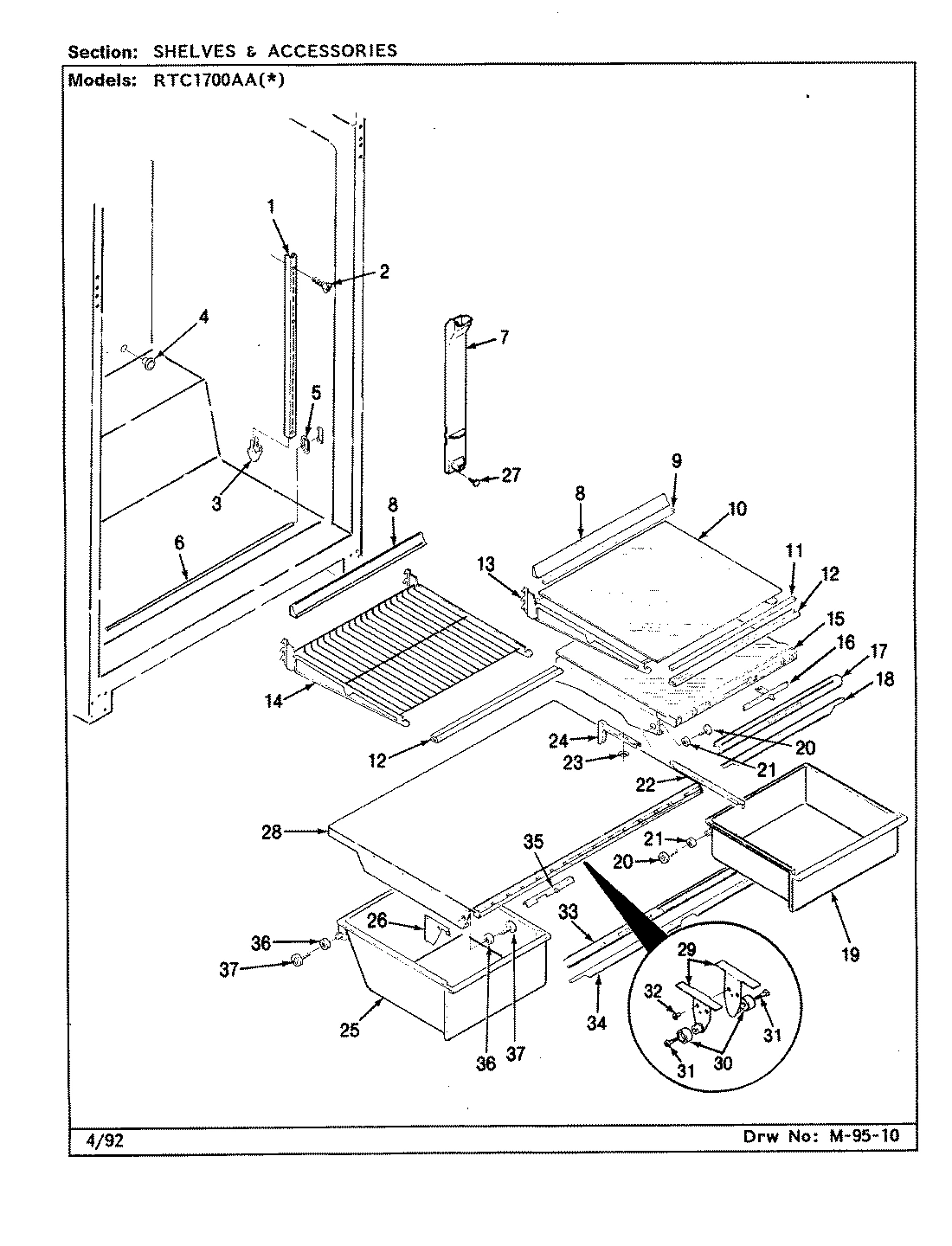

06 - SHELVES & ACCESSORIES

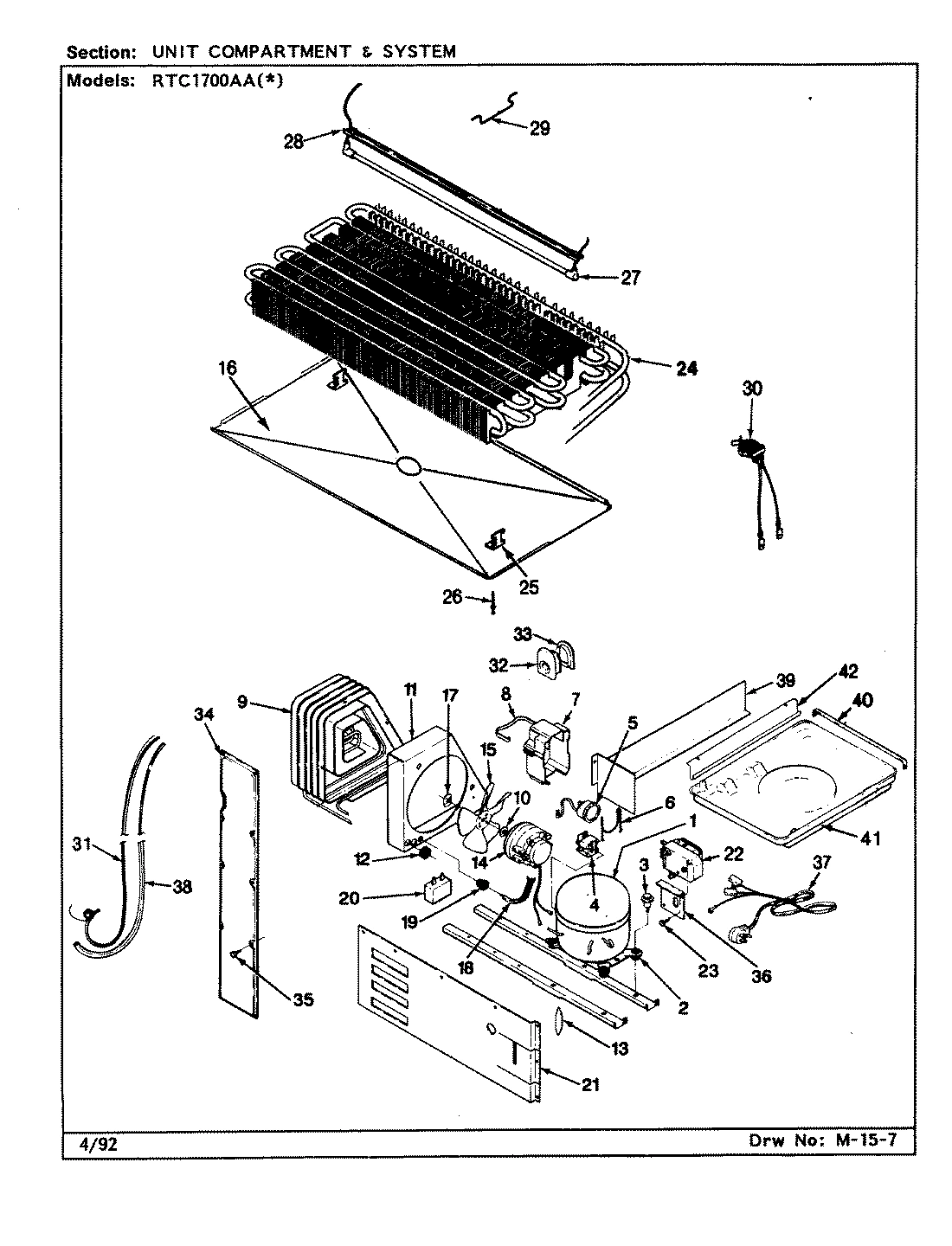

07 - UNIT COMPARTMENT & SYSTEM
01 - FREEZER COMPARTMENT

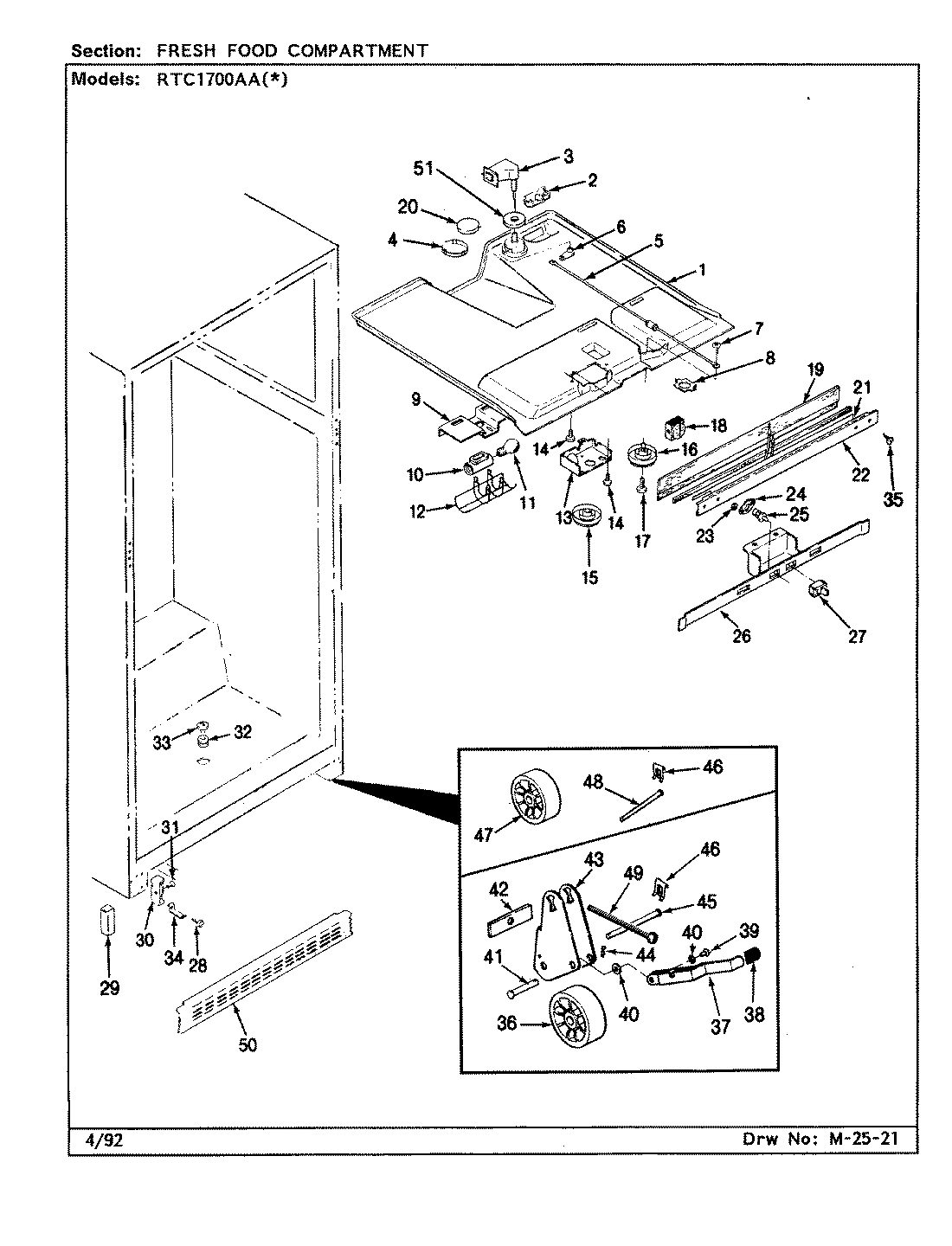

02 - FRESH FOOD COMPARTMENT

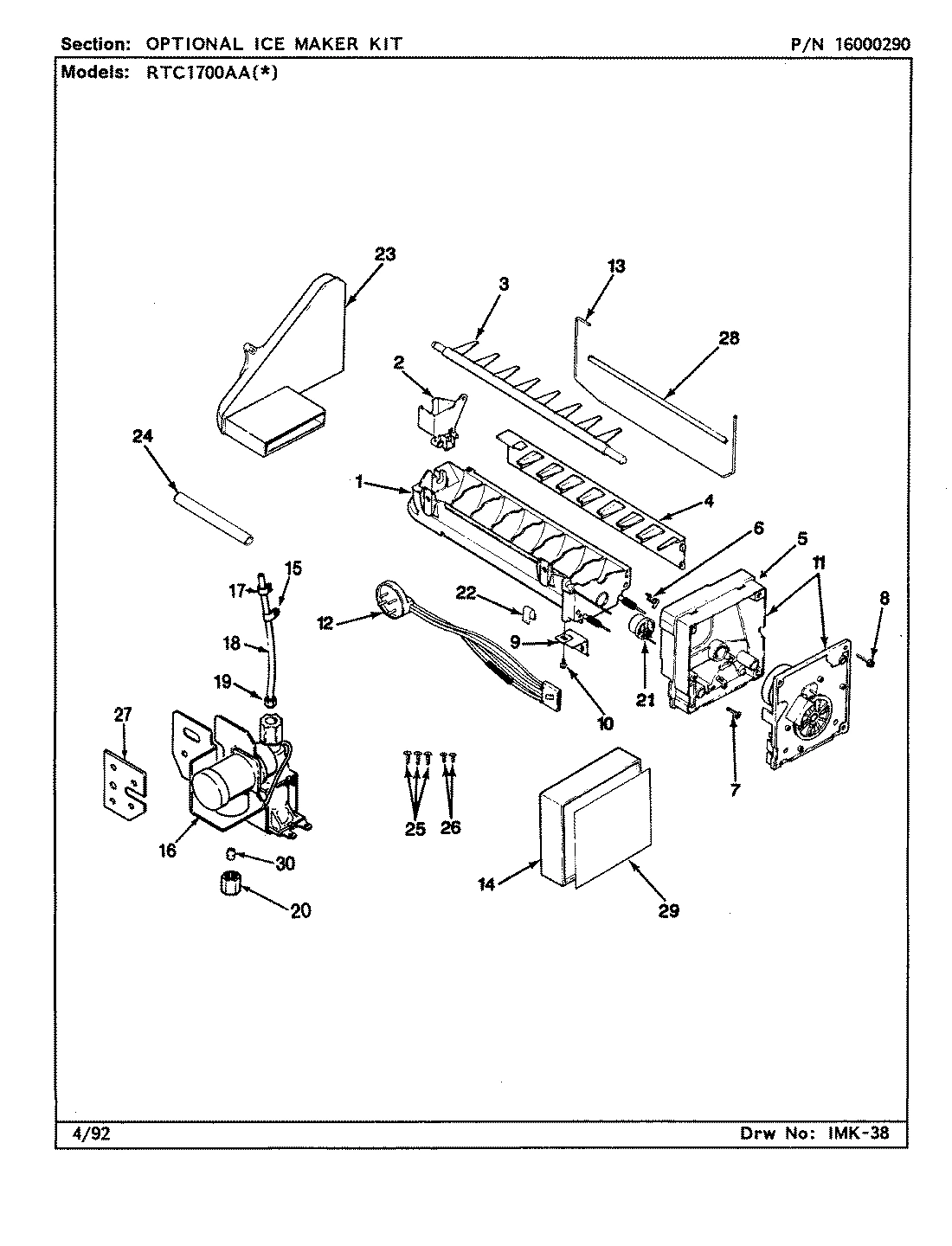

04 - OPTIONAL ICE MAKER KIT (RAE3100AAX)

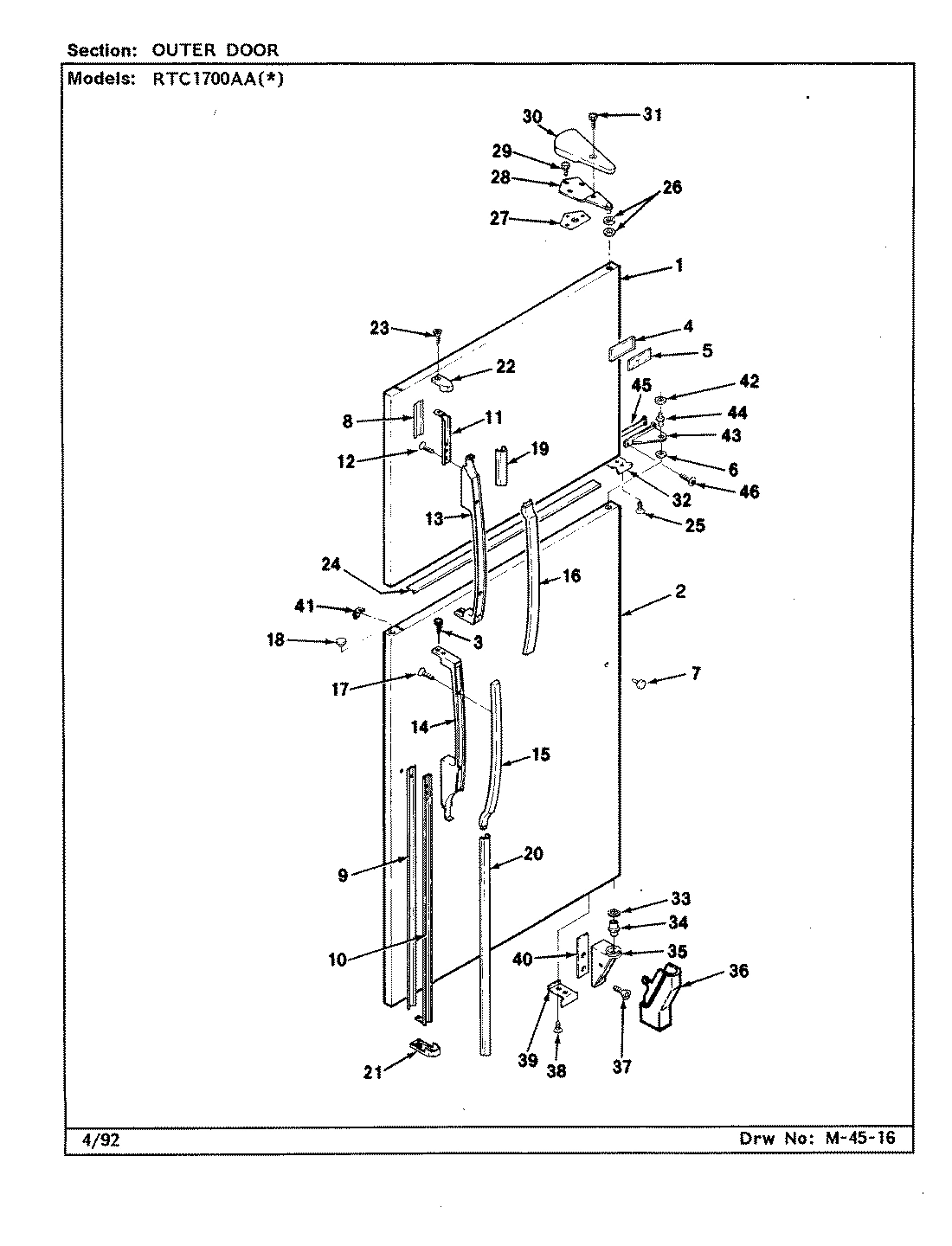

05 - OUTER DOOR
Common parts from model Whirlpool RTC1700AAL REFRIGERATOR
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
DIVIDER, MULLION WPL 691231 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720422AM Contact Us For Availability
2
LINER, DOOR WPL 670042 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL 72`` WPL 688665 Contact Us For Availability
2
AIR DEFLECTOR WPL 601203 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
PANEL, OUTER DOOR WPL 720427AM Contact Us For Availability
3
GASKET WPL 677443 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691061 Contact Us For Availability
3
ORIFICE, DAMPER WPL 675581 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
GASKET WPL 677444 Contact Us For Availability
4
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability
5
RETAINER, DOOR SEAL WPL 670334 Contact Us For Availability
5
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
SCREW WPL 40001512 Contact Us For Availability
5
ROD PAD CONTROL WPL 674991 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 671941 Contact Us For Availability
6
U-RAIL, CRISPER WPL 687566 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
WASHER WPL 542332 Contact Us For Availability
7
RETAINER, F.F. DOOR GASKET WPL 670335 Contact Us For Availability
7
TUNNEL, AIR WPL 675255 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
RETAINER, DOOR SEAL WPL 670331 Contact Us For Availability
8
TRIM, CANTILEVER WPL 673091 Contact Us For Availability
8
TRIM, CANTILEVER WPL 6730912 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
RIVET WPL 263979 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
BRACKET, LIGHT WPL 677031 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
SHIM WPL 677462 Contact Us For Availability
9
SEAL, SHELF (REAR) WPL 672661 Contact Us For Availability
9
CONDENSER WPL 695311 Contact Us For Availability
9
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
9
TUNNEL, AIR (FRZ) WPL 671152 Contact Us For Availability
9
SHIELD, HEAT WPL 691171 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SHIM, TRIM WPL 677465 Contact Us For Availability
10
GLASS, CANTILEVER WPL 672678 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
WASHER WPL 199134 Contact Us For Availability
10
HOLDER, LAMP WPL 673691 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
BRACKET, HANDLE WPL 671575 Contact Us For Availability
11
SEAL, SHELF (FRONT) WPL 672651 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BRACKET, HANDLE WPL 671572 Contact Us For Availability
12
TRIM WPL 677831 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
12
GUARD, LIGHT WPL 671901 Contact Us For Availability
12
RETAINER LIGHT----NA WPL 675411 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability
13
FRAME, MEAT SHELF WPL 672691 Contact Us For Availability
13
SHELF, FRZ. WPL 673481 Contact Us For Availability
13
COVER THERMOSTAT WPL 671691 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672081 Contact Us For Availability
14
SHELF, CANTILEVER WPL 672711 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
TRIM, SHELF WPL 671765 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
HANDLE, DOOR WPL 677781 Contact Us For Availability
14
SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability
14
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
14
SHIM HANDLE WPL 676972 Contact Us For Availability
14
SHIM HANDLE WPL 676973 Contact Us For Availability
14
SHIM WPL 676974 Contact Us For Availability
15
BUMPER, DOOR WPL 282726 Contact Us For Availability
15
RAIL, MEAT KEEPER WPL 676492 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
KNOB, CONTROL WPL 672451 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
16
SCREW WPL 652755 Contact Us For Availability
16
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
16
TRAY, DRIP WPL 691181 Contact Us For Availability
16
SEAL WPL 689461 Contact Us For Availability
16
KNOB CONTROL WPL 672441 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
INSERT, HANDLE (FRESH FOOD) WPL 678811 Contact Us For Availability
17
ENDCAP, SHELF TRIM WPL 672111 Contact Us For Availability
17
TRIM, MEAT KEEPER WPL 670711 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
WASHER, SPRING WPL 420092900 Contact Us For Availability
17
COVER, PLENUM WPL 664804 Contact Us For Availability
17
SCREW WPL 405016103 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
SCREW WPL 6527544 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
TRIM, DOOR SHELF WPL 6771816 Contact Us For Availability
18
SEAL, MEAT PAN WPL 676771 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
GROMMET WATER WPL 672941 Contact Us For Availability
18
GROUND WIRE, CONTROL WPL 2967533 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686015 Contact Us For Availability
18
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
18
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
19
TRAY, EGG WPL 672151 Contact Us For Availability
19
PAN, MEAT WPL 676505 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRAY, ICE WPL 592815 Contact Us For Availability
19
INSULATION WPL 601401 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, EXTENSION WPL 678052 Contact Us For Availability
20
ORGANIZER WPL 671952 Contact Us For Availability
20
ORGANIZER WPL 671951 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
SHELF, ICE TRAY WPL 671141 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
TRIM, EXTENSION WPL 678055 Contact Us For Availability
21
DOOR, DAIRY WPL 670411 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 691381 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
PAN, ICE WPL 671411 Contact Us For Availability
21
HEATER WIRE WPL 678981 Contact Us For Availability
21
WIRE HARNESS MULLION WPL 691531 Contact Us For Availability
21
WIRE HARNESS WPL 691541 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
ENDCAP, HANDLE (F.F. DOOR) WPL 688181 Contact Us For Availability
22
TRAY, BUTTER WPL 672161 Contact Us For Availability
22
LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability
22
TIMER, DEFROST WPL 665564 Contact Us For Availability
22
WIRE HARNESS, TIMER WPL 678621 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
MULLION FRONT WPL 672474AM Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
ENDCAP, HANDLE (FRZ.) WPL 673821 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 677185 Contact Us For Availability
23
NUT WPL 431019511 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
SHELF, FILL-IN WPL 673491 Contact Us For Availability
23
NUT, PUSH-ON WPL 431041505 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
SCREW WPL 6527522 Contact Us For Availability
23
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
24
ENDCAP, SHELF TRIM (SAND BEIGE WPL 672131 Contact Us For Availability
24
ACTUATOR MEAT KEEPER WPL 670725 Contact Us For Availability
24
EVAPORATOR WPL 691141 Contact Us For Availability
24
SIDE, ICE TRAY SHELF WPL 671471 Contact Us For Availability
24
GROUND PLATE WPL 673601 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
TRIM, DOOR WPL 666515 Contact Us For Availability
25
TRIM, DOOR SHELF WPL 6771811 Contact Us For Availability
25
PAN, CRISPER WPL 676506 Contact Us For Availability
25
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
25
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
25
SWITCH, PLUN WPL 677241 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
26
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
26
SCREW WPL 6527528 Contact Us For Availability
26
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
26
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
26
SCREW WPL 400015103 Contact Us For Availability
26
SCREW, PANEL WPL 402020103 Contact Us For Availability
26
FACADE, CONTROL WPL 672511 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
WASHER WPL 542331 Contact Us For Availability
27
SEAL, SECONDARY WPL 689301 Contact Us For Availability
27
HEATER, DEFROST WPL 6010634 Contact Us For Availability
27
PLUG BUTTON WPL 675571 Contact Us For Availability
27
CAP, CONNECTOR WPL 681871 Contact Us For Availability
27
SWITCH, MULLION WPL 673631 Contact Us For Availability
27
SCREW WPL 406026103 Contact Us For Availability
27
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
SHELF, CRISPER WPL 678901 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
28
HINGE, TOP WPL 674562 Contact Us For Availability
29
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
COVER HINGE WPL 671173 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
END CAP (R) WPL 678541 Contact Us For Availability
30
END CAP (L) WPL 678542 Contact Us For Availability
30
SLEEVE, BRASS WPL 694311 Contact Us For Availability
30
COVER, UPPER HINGE (ALM.) WPL 672293 Contact Us For Availability
31
SCREW WPL 6527534 Contact Us For Availability
31
WIRE TIE WPL 662231 Contact Us For Availability
31
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
31
SCREW WPL 4000611 Contact Us For Availability
31
SCREW, HINGE COVER WPL 4030601 Contact Us For Availability
32
RIVET WPL 263976 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
TUBE, DRAIN WPL 545317 Contact Us For Availability
32
STOP, DOOR WPL 676621 Contact Us For Availability
33
TRIM CRISPER WPL 672043 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
33
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
34
SEAL, CRISPER SHELF WPL 677311 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 691622 Contact Us For Availability
34
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
34
PIN, HINGE WPL 689771 Contact Us For Availability
35
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
35
SCREW WPL 6527550 Contact Us For Availability
35
SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability
35
SCREW WPL 6527559 Contact Us For Availability
35
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
35
HINGE, LOWER WPL 689752 Contact Us For Availability
36
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
36
BRACKET, DEFROST TIMER WPL 673922 Contact Us For Availability
36
WHEEL FRONT WPL 674551 Contact Us For Availability
36
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
37
SCREW WPL 652756 Contact Us For Availability
37
CORD, POWER WPL 528903 Contact Us For Availability
37
LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability
37
LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability
37
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
38
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
38
SCREW WPL 6527548 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
39
SCREW WPL 4060461 Contact Us For Availability
39
STOP, DOOR WPL 690221 Contact Us For Availability
40
SUPPORT WPL 675961 Contact Us For Availability
40
WASHER WPL 420007400 Contact Us For Availability
40
SHIM WPL 690311 Contact Us For Availability
41
PAN, DRAIN WPL 682362 Contact Us For Availability
41
AXLE WHEEL WPL 675291 Contact Us For Availability
41
CLIP, HANDLE WPL 673861 Contact Us For Availability
42
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
42
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
42
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
42
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
43
BRACKET, WHEEL WPL 675301 Contact Us For Availability
43
HINGE, CENTER WPL 678591 Contact Us For Availability
44
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
44
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
45
TAPPING PLATE WPL 674751 Contact Us For Availability
45
SHIM, CENTER HINGE WPL 678571 Contact Us For Availability
46
CLIP WPL 602161 Contact Us For Availability
46
SCREW, CENTER HINGE WPL 6527521 Contact Us For Availability
47
WHEEL, ROLLER WPL 674552 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
49
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
50
GRILL, KICKPLATE WPL 670236 Contact Us For Availability
51
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
× ![]()
Login and Registration Form
