Model Whirlpool RSW2200CAE REFRIGERATOR – Common Parts & Diagrams

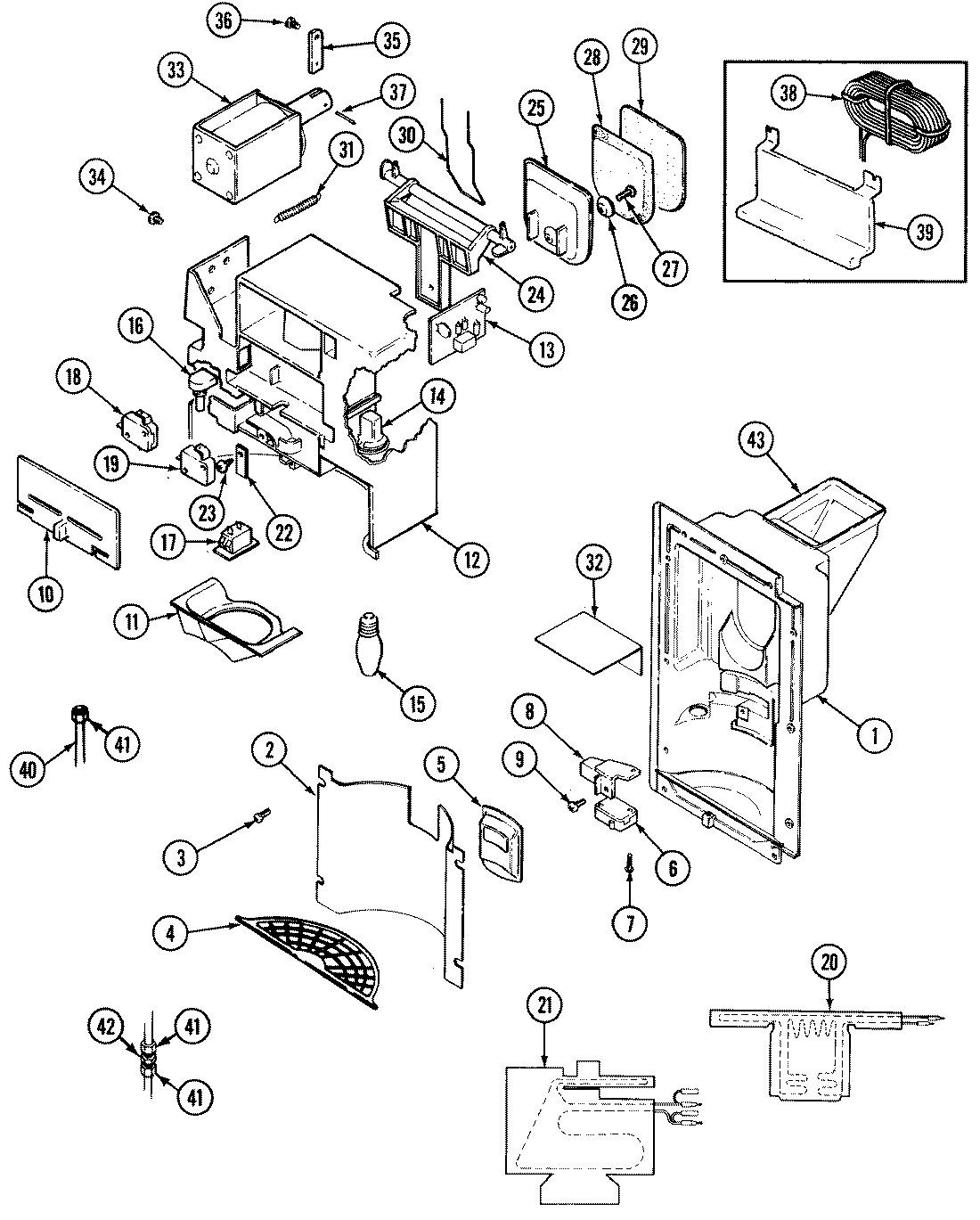

05 - ICE & WATER DISPENSER

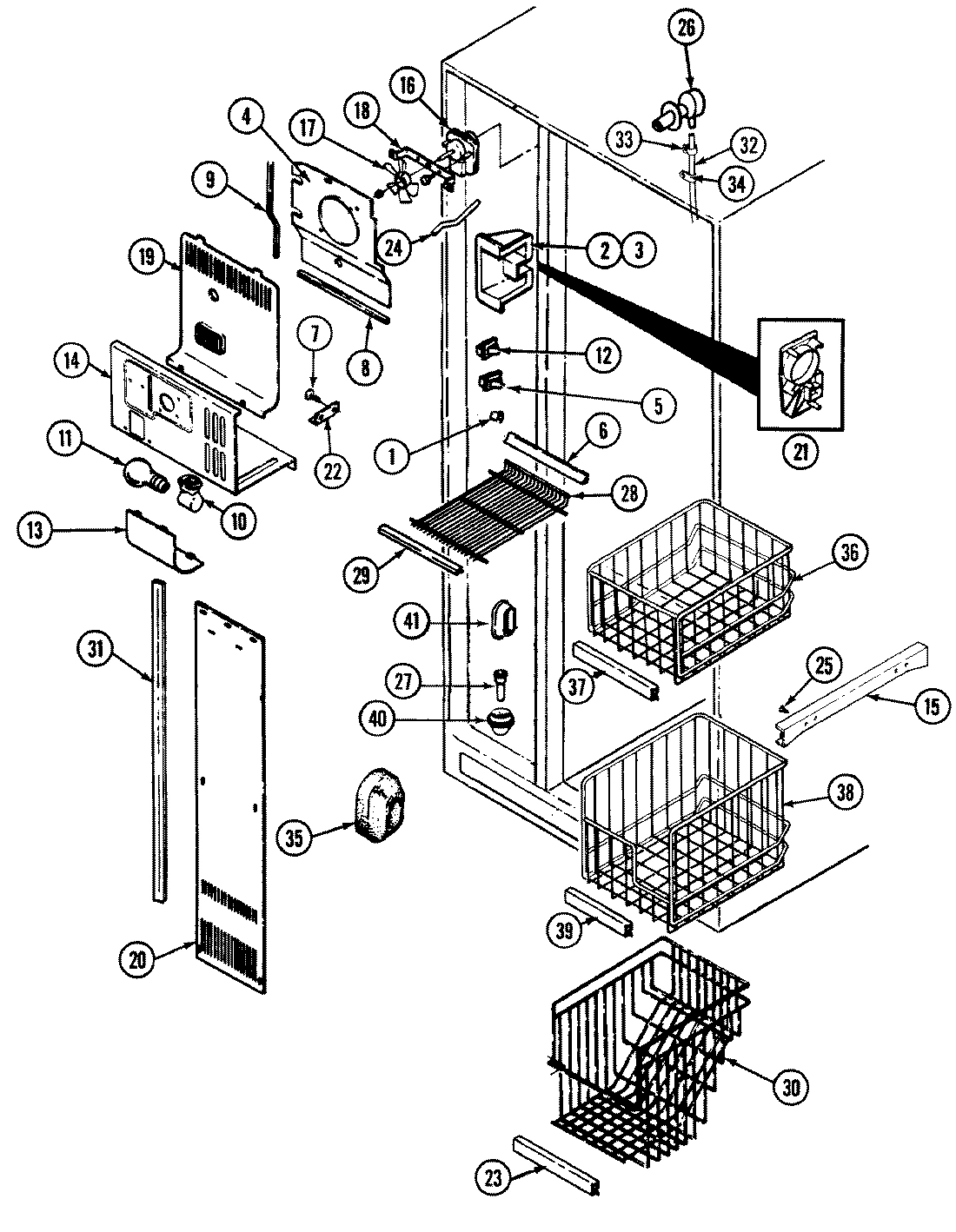

01 - FREEZER COMPARTMENT

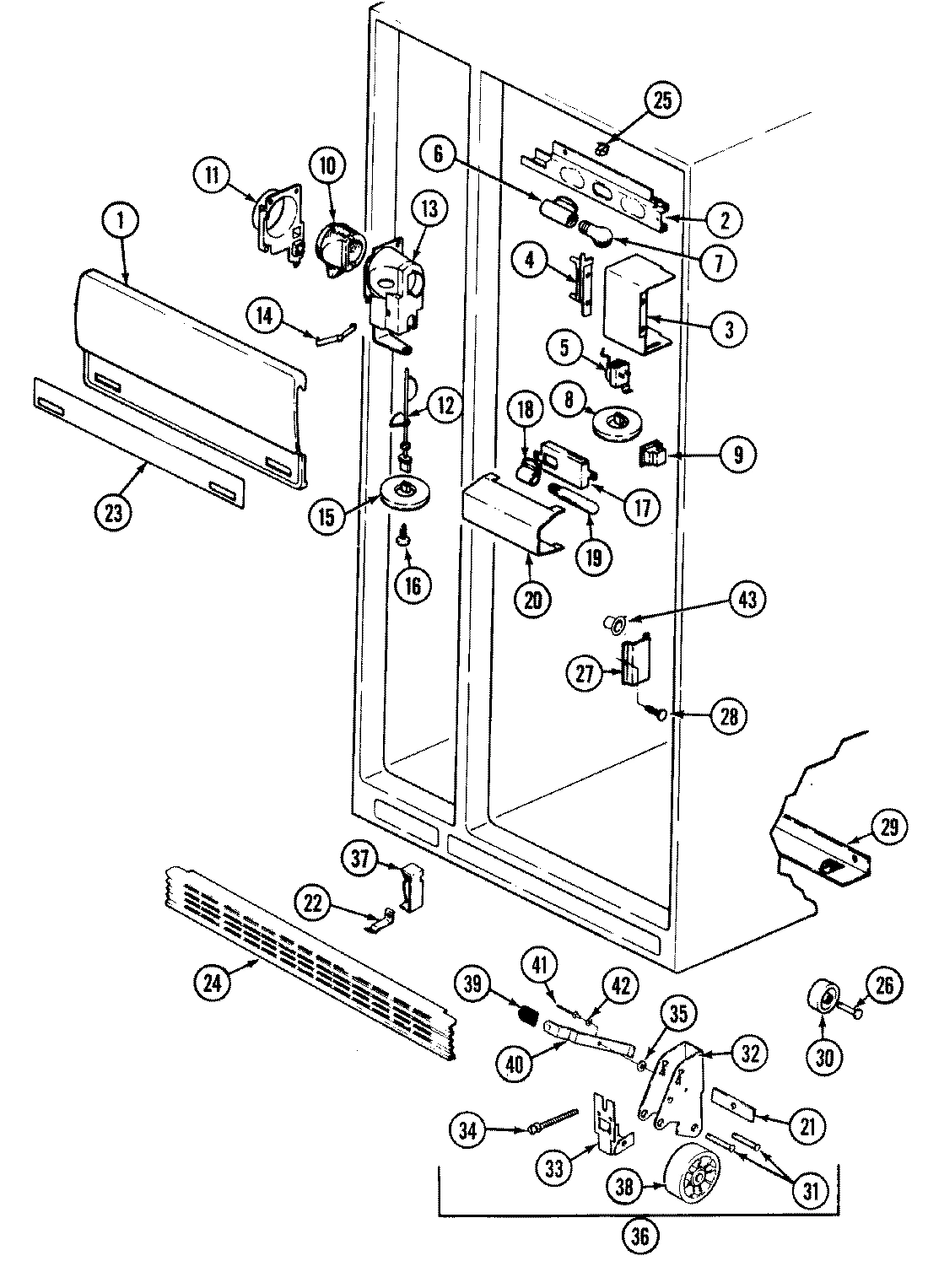

03 - FRESH FOOD COMPARTMENT

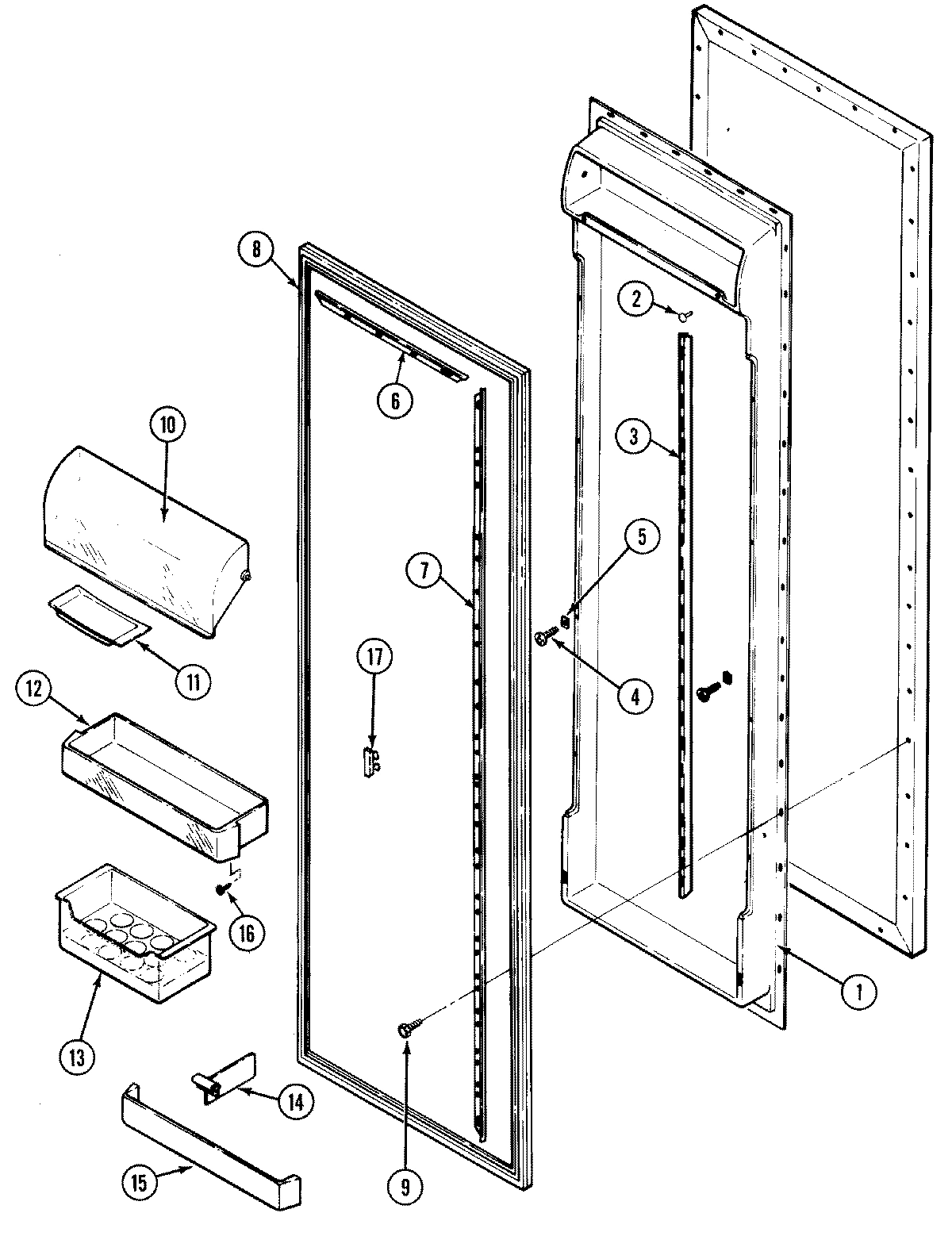

04 - FRESH FOOD INNER DOOR

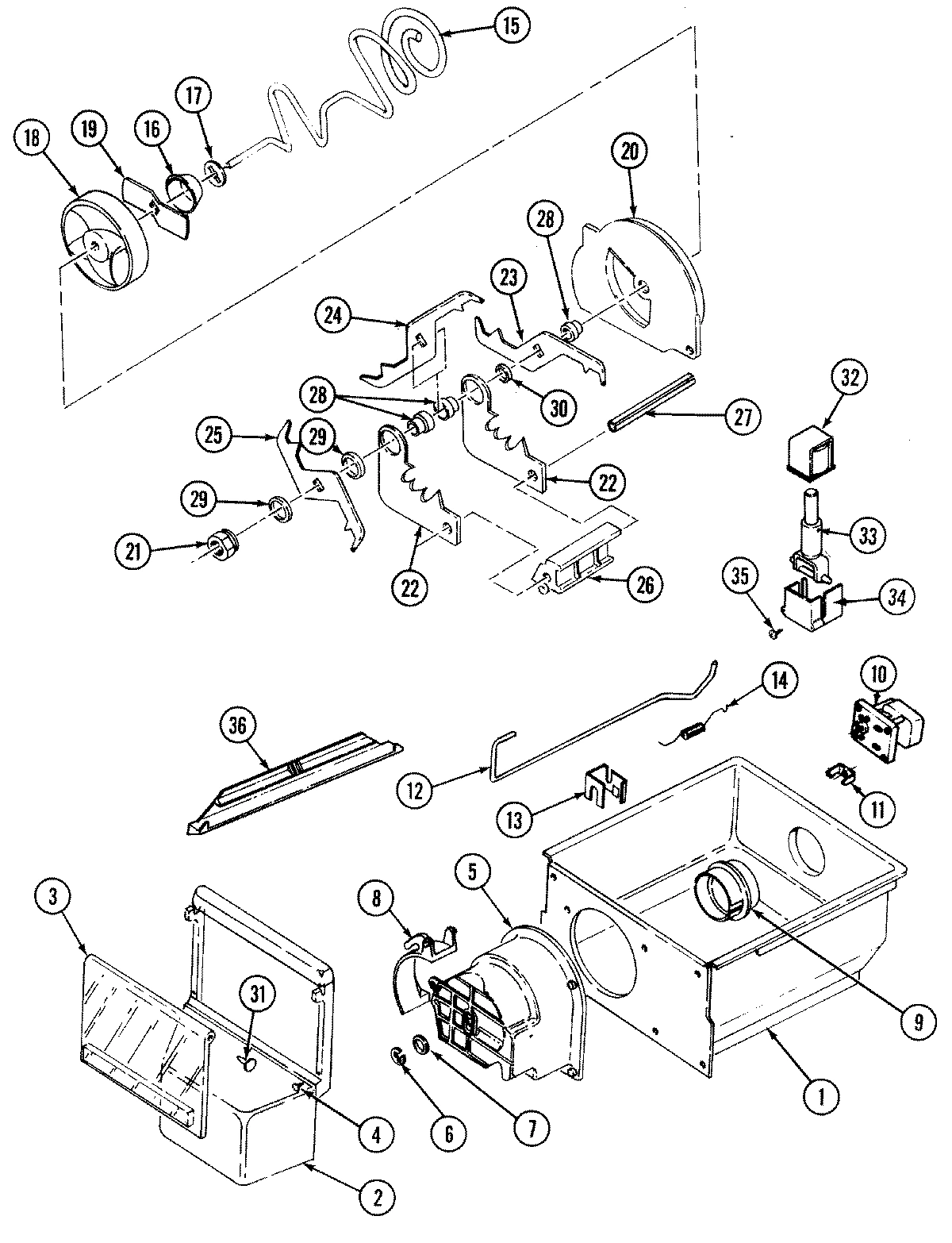

06 - ICE CRUSHER & BIN

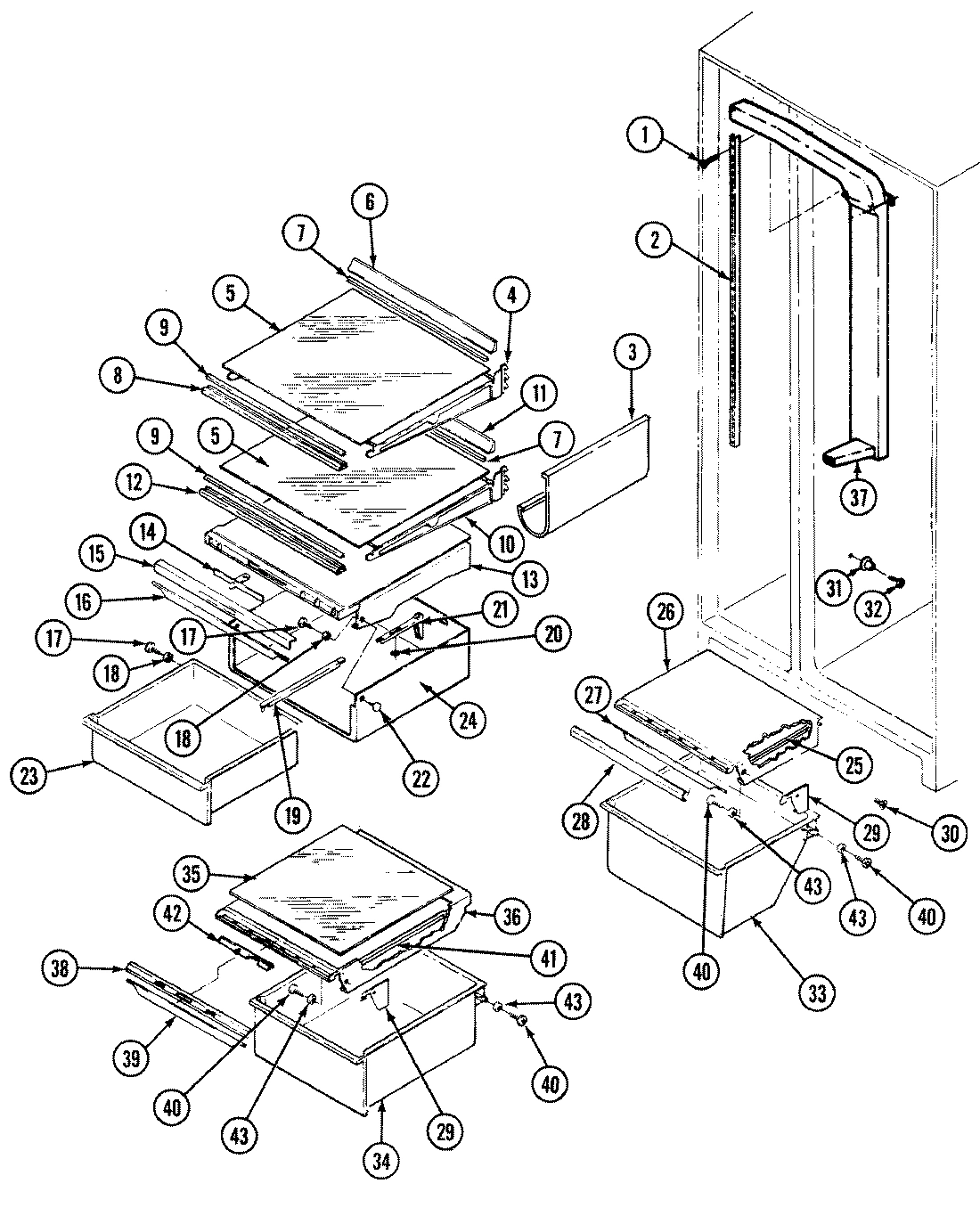

08 - SHELVES & ACCESSORIES

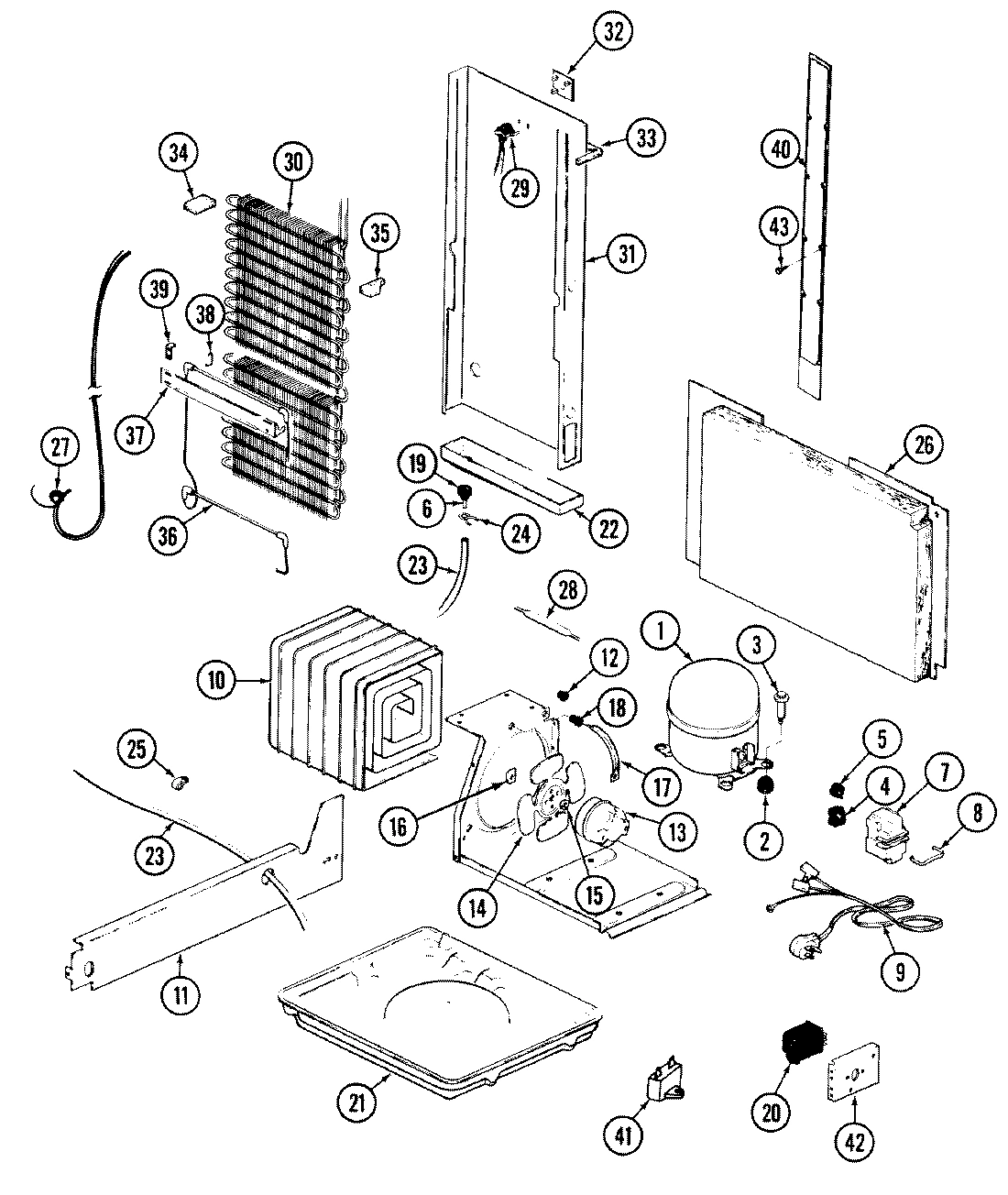

09 - UNIT COMPARTMENT & SYSTEM

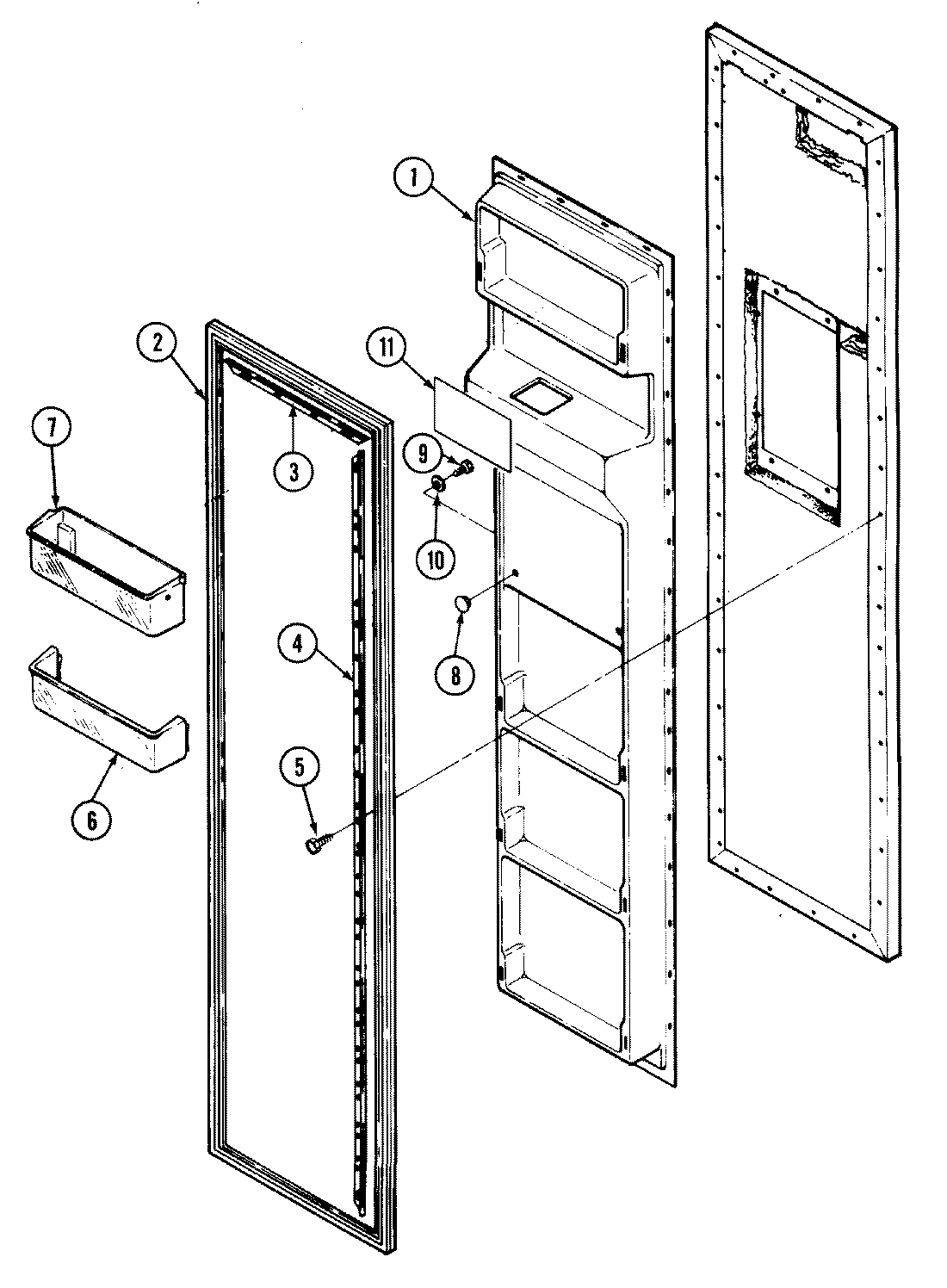

02 - FREEZER INNER DOOR

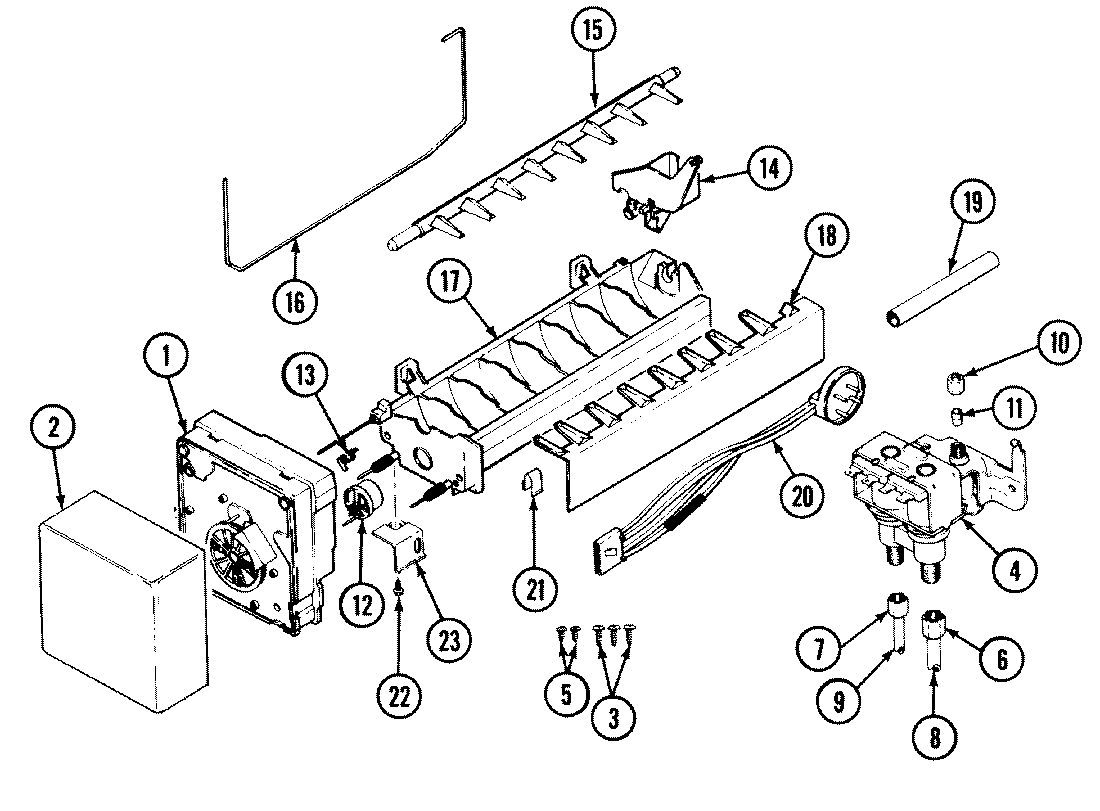

07 - ICE MAKER
Common parts from model Whirlpool RSW2200CAE REFRIGERATOR
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
INSULATION, BONNET TOP WPL 698411 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
LINER, F.F. DOOR WPL 692411 Contact Us For Availability
1
BIN, ICE WPL 697191 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000038 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 692521 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
2
LINER, FOUNTAIN WPL 696862 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
2
FRONT ASSY, ICE DISP WPL 6987515 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
COVER, ICE MAKER WPL 683282 Contact Us For Availability
3
SCREW WPL 6527573 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
3
RAIL, P O DOOR WPL 673161 Contact Us For Availability
3
DOOR, DISP BIN ASSY. WPL 6992011 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673085 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
RETAINER, GASKET WPL 699925 Contact Us For Availability
3
SCREW WPL 4000311 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
WIRE HARNESS, FREEZER ADAPTER WPL 698061 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
BUMPER, DOOR WPL 282726 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
RETAINER, GASKET WPL 699921 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
VALVE, WATER WPL 698251 Contact Us For Availability
5
PAD, ACTUATOR WPL 696822 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680582 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
5
SCREW WPL 652755 Contact Us For Availability
5
HOUSING, CRUSHER WPL 697561 Contact Us For Availability
5
SHELF, CANT GLASS WPL 6726712 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
SCREW WPL 4010181 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
TRIM, SHELF REAR WPL 671778 Contact Us For Availability
6
TUBE, DRAIN WPL 2652711 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
RETAINER, GASKET WPL 699922 Contact Us For Availability
6
RING, SNAP WPL 697041 Contact Us For Availability
6
TRIM, SHELF WPL 6730940 Contact Us For Availability
6
FRONT ASSY, PICKOFF WPL 698705 Contact Us For Availability
7
BULB, LIGHT WPL 319561 Contact Us For Availability
7
WASHER, RETAINER WPL 697031 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SHELF, PICK-OFF WPL 698734 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
8
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
8
TRIM, CANT SHELF FRONT WPL 6778327 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
STUD, PICK-OFF SHELF WPL 656602 Contact Us For Availability
8
TUBING WPL 6718710 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
RING, DRIVE WPL 700272 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
SCREW WPL 4000141 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
10
SLIDE, SELECTOR (LT. GRAY)--NA WPL 696814 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
DOOR, DAIRY WPL 699182 Contact Us For Availability
10
MOTOR, AUGER WPL 697331 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 701221 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
WASHER WPL 4200281 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
11
TRIM, MEAT SHELF WPL 6730941 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
INSERT, FRZ STORAGE WPL 676142 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
12
BRACKET, FOUNTAIN (WHT) WPL 700225 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
SHELF, PICK-OFF WPL 698724 Contact Us For Availability
12
ROD, CRUSHER CONTROL WPL 697141 Contact Us For Availability
12
TRIM, CANT SHELF FRONT WPL 6778328 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
THERMOSTAT WPL 950921 Contact Us For Availability
12
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
BOARD, PC (115V) WPL 697513 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
TRAY, EGG WPL 672152 Contact Us For Availability
13
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
13
SUPPORT, MEAT PAN WPL 6764911 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 6756010 Contact Us For Availability
13
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 697231 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
14
SPRING, CONTROL ROD WPL 697171 Contact Us For Availability
14
SLIDE, CONTROL WPL 670742 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
15
GLIDE, BASKET WPL 695191 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698715 Contact Us For Availability
15
AUGER, ICE DISPENSER WPL 697071 Contact Us For Availability
15
TRIM, MEAT PAN SUPPORT WPL 670718 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
16
SWITCH, LIGHT WPL 698323 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
RIVET WPL 5992017 Contact Us For Availability
16
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
17
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
17
WASHER, CONE STOP WPL 696981 Contact Us For Availability
17
SCREW WPL 652756 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
18
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
18
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
IMPELLER WPL 700361 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
19
SHIELD, FAN WPL 697321 Contact Us For Availability
19
TUBE, FILL WPL 676761 Contact Us For Availability
19
GROMMET WPL 525261 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
PLATE, DRIVE WPL 697551 Contact Us For Availability
19
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 697961 Contact Us For Availability
20
COVER, COIL LOWER WPL 697252 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
PLATE, IMPELLER WPL 697011 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695436 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
21
NUT, AUGER WPL 697091 Contact Us For Availability
21
ACTUATOR WPL 6707210 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
RETAINER, TUBE WPL 699411 Contact Us For Availability
22
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
22
BLADE, CRUSHER WPL 697061 Contact Us For Availability
22
PLUG BUTTON WPL 676883 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
23
TRIM, FRZ SHELF FRONT WPL 6717653 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674768 Contact Us For Availability
23
BLADE, CRUSHER WPL 697021 Contact Us For Availability
23
PAN, MEAT WPL 699283 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
SCREW WPL 951051 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
24
STRIKE, DOOR WPL 696751 Contact Us For Availability
24
KICKPLATE WPL 6702311 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
HOUSING, MEAT PAN WPL 6706910 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
25
SCREW WPL 4000221 Contact Us For Availability
25
CLIP WPL 550422 Contact Us For Availability
25
BLADE, CRUSHER WPL 697023 Contact Us For Availability
25
SEAL WPL 697791 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
26
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
26
SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 691392 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
27
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
WIRE TIE WPL 662231 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
28
SHELF, FRZ. (No.2,3,4,5) WPL 671787 Contact Us For Availability
28
BEARING, SPACER WPL 696971 Contact Us For Availability
28
TRIM, CRISPER SHELF WPL 6720414 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
29
TRIM, FRZ SHELF FRONT WPL 6717656 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
29
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
29
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
30
BASKET, FRZ WIRE WPL 693501 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
SPACER, BLADE WPL 696962 Contact Us For Availability
30
SCREW WPL 6527528 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
31
PIN, ICE DOOR WPL 679061 Contact Us For Availability
31
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
32
FUNNEL-KIT WPL 675792 Contact Us For Availability
32
FOIL, FOUNTAIN FRONT WPL 5380838 Contact Us For Availability
32
BRACKET, WHEEL WPL 678061 Contact Us For Availability
32
SCREW WPL 406026103 Contact Us For Availability
32
SOLENOID WPL 697301 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
33
CLAMP, SPRING WPL 603334 Contact Us For Availability
33
SCREW WPL 652751 Contact Us For Availability
33
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
33
YOKE ASSY. WPL 7235350 Contact Us For Availability
33
PAN, CRISPER WPL 699288 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
34
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 564875 Contact Us For Availability
34
GUIDE, YOKE WPL 697151 Contact Us For Availability
34
PAN, CRISPER WPL 699284 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
35
SCREW WPL 40001536 Contact Us For Availability
35
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
WASHER WPL 420007400 Contact Us For Availability
35
GLASS, CRISPER SHELF WPL 6748910 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
36
SCREW WPL 40002636 Contact Us For Availability
36
BASKET, FRZ WIRE WPL 693481 Contact Us For Availability
36
WHEEL ASSY.(L) WPL 723195 Contact Us For Availability
36
WHEEL ASSY.(R) WPL 723196 Contact Us For Availability
36
RAIL, ICE BIN WPL 697101 Contact Us For Availability
36
SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability
36
HEATER, DEFROST WPL 698481 Contact Us For Availability
37
PIN, SPRING WPL 672913 Contact Us For Availability
37
TRIM, FRZ SHELF FRONT WPL 6717650 Contact Us For Availability
37
END CAP, KICKPLATE (RT-WHT) WPL 678543 Contact Us For Availability
37
END CAP, KICKPLATE (LT-WHT) WPL 678544 Contact Us For Availability
37
TUNNEL, AIR WPL 675262 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
COIL, WATER WPL 676161 Contact Us For Availability
38
BASKET, PIZZA WPL 693491 Contact Us For Availability
38
WHEEL WPL 698122 Contact Us For Availability
38
TRIM WPL 6720431 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
COVER, WATER COIL WPL 688371 Contact Us For Availability
39
TRIM, FRZ SHELF FRONT WPL 6717652 Contact Us For Availability
39
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
39
SEAL, CRISPER PAN WPL 697987 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
TUBING WPL 6718724 Contact Us For Availability
40
TUBING, COIL TO FOUNTAIN WPL 6718729 Contact Us For Availability
40
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
40
SCREW WPL 6527534 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 698051 Contact Us For Availability
41
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
41
SEAL, CRISPER WPL 697792 Contact Us For Availability
41
CAPACITOR, RUN WPL 658896 Contact Us For Availability
42
CONNECTOR, TUBING WPL 695811 Contact Us For Availability
42
LOCKWASHER WPL 420003905 Contact Us For Availability
42
SLIDE, CONTROL WPL 674912 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
NUT, WIRE WPL 271165 Contact Us For Availability
43
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
43
WIRE HARNESS, FOUNTAIN WPL 695911 Contact Us For Availability
43
WIRE HARNESS SWITCH WPL 698011 Contact Us For Availability
43
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
43
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
43
SCREW WPL 4000171 Contact Us For Availability
43
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
43
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1086171 Contact Us For Availability
43
MANUAL, USE & CARE WPL 1088721 Contact Us For Availability
43
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
× ![]()
Login and Registration Form
