Model Whirlpool RST2400FAE REFRIGERATOR – Common Parts & Diagrams

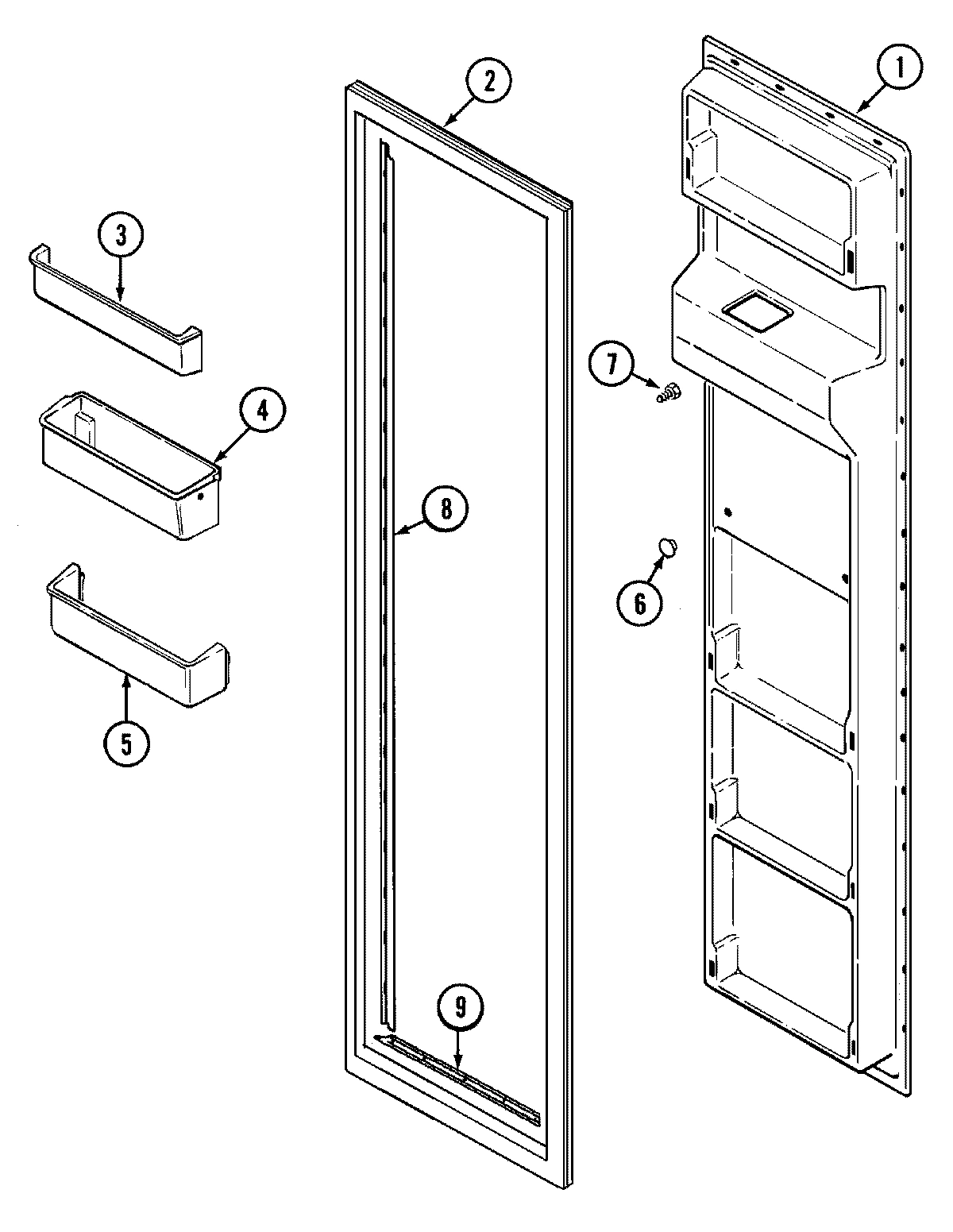

02 - FREEZER INNER DOOR

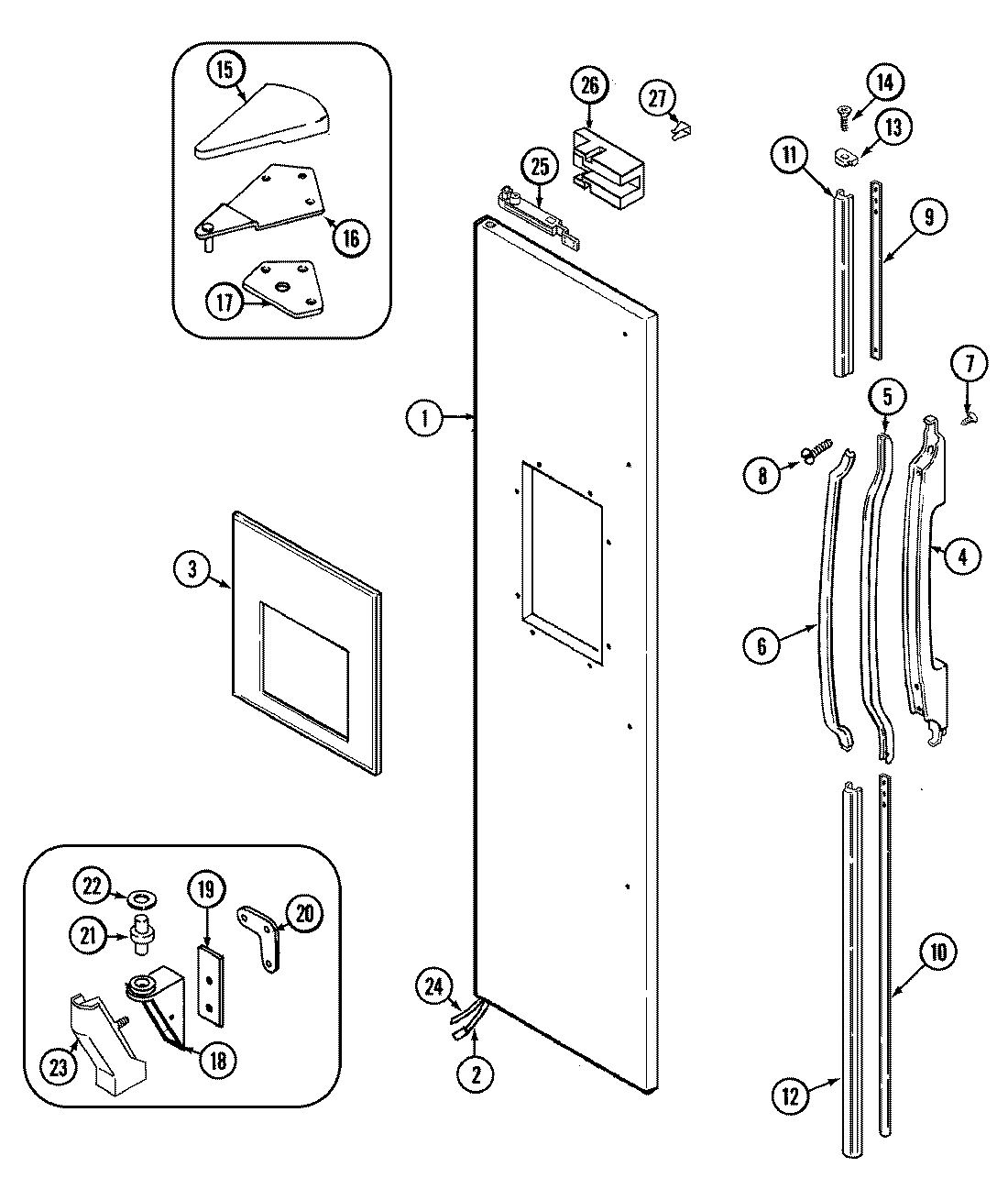

03 - FREEZER OUTER DOOR

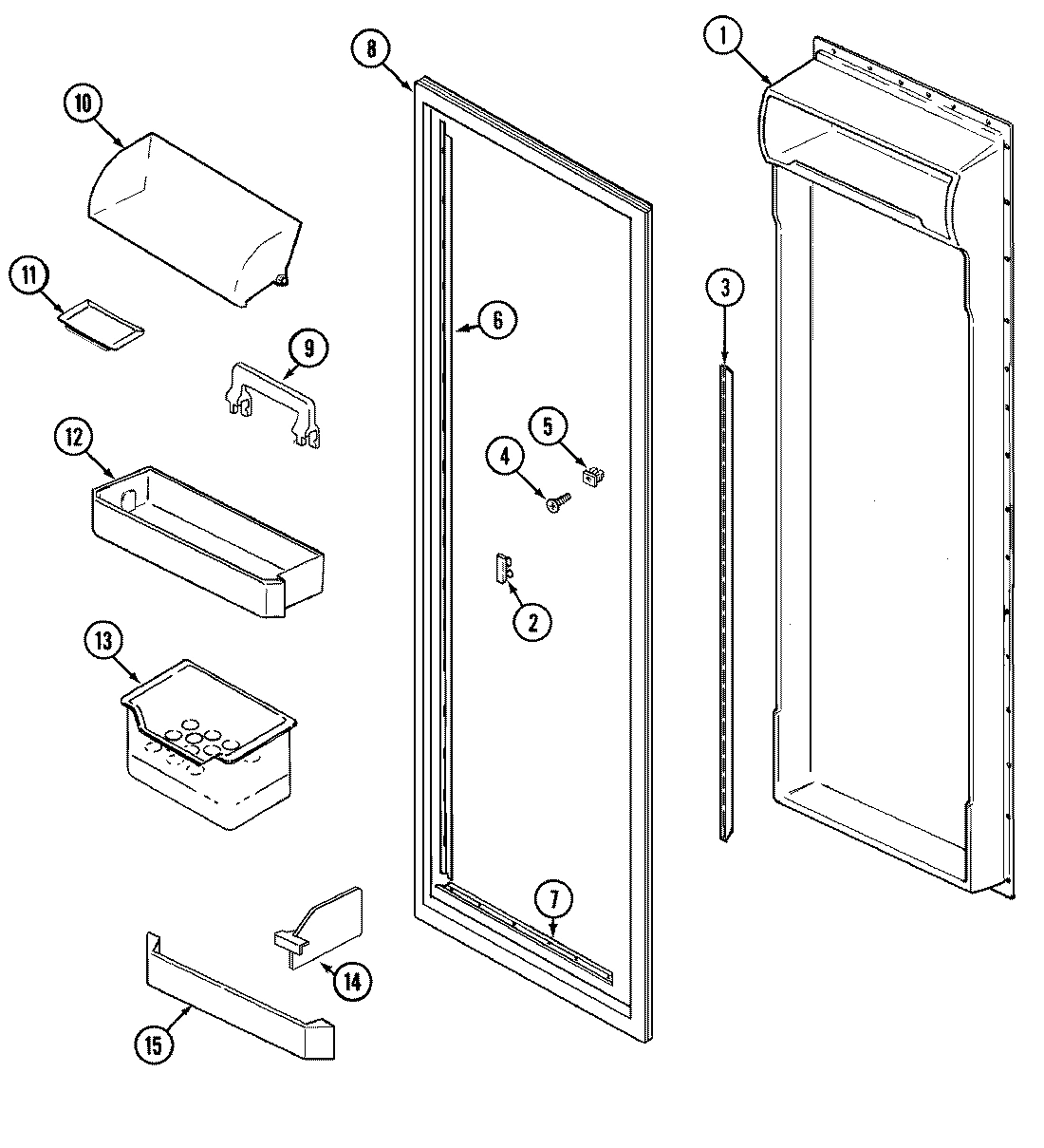

05 - FRESH FOOD INNER DOOR

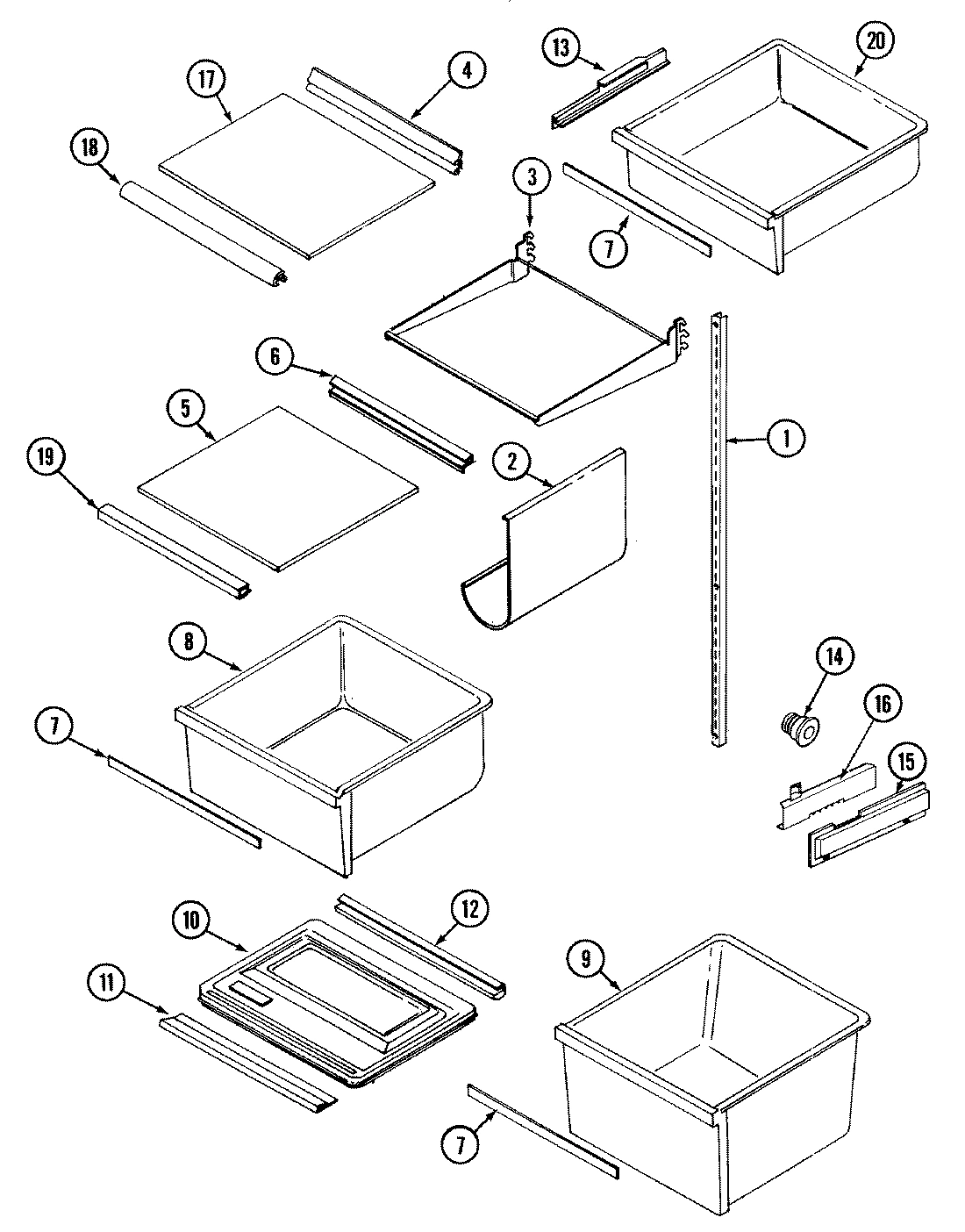

10 - SHELVES & ACCESSORIES

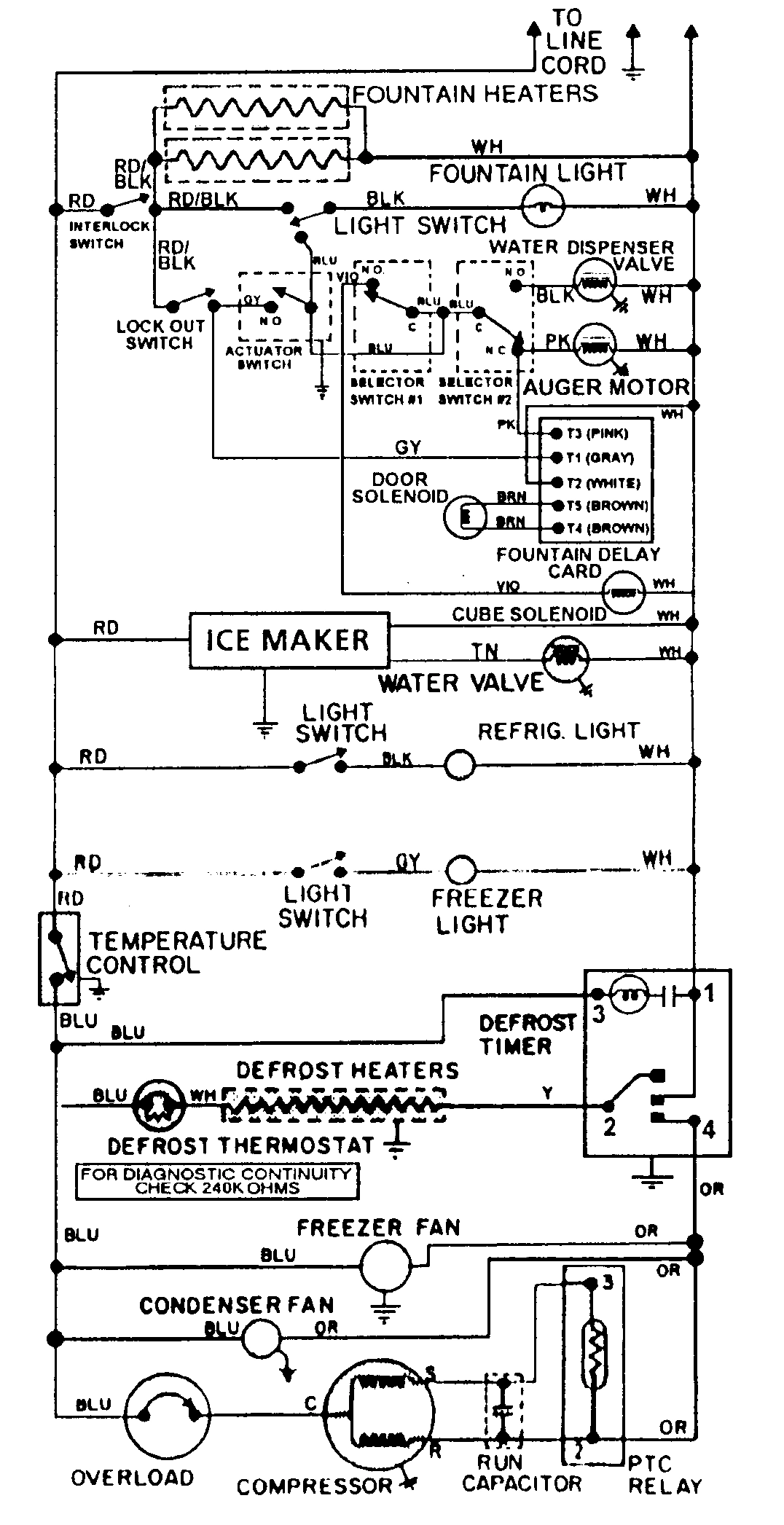

12 - WIRING INFORMATION

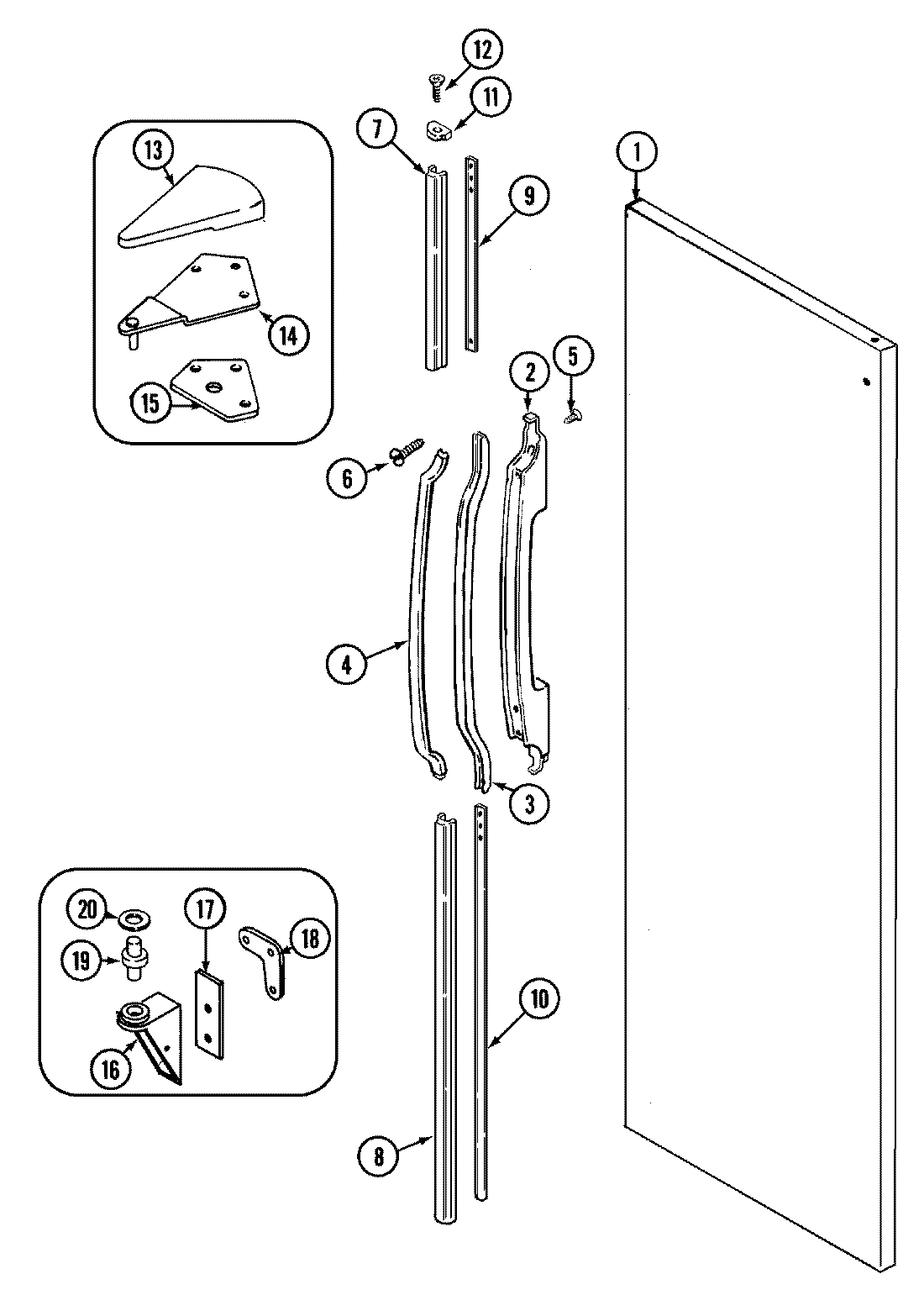

06 - FRESH FOOD OUTER DOOR

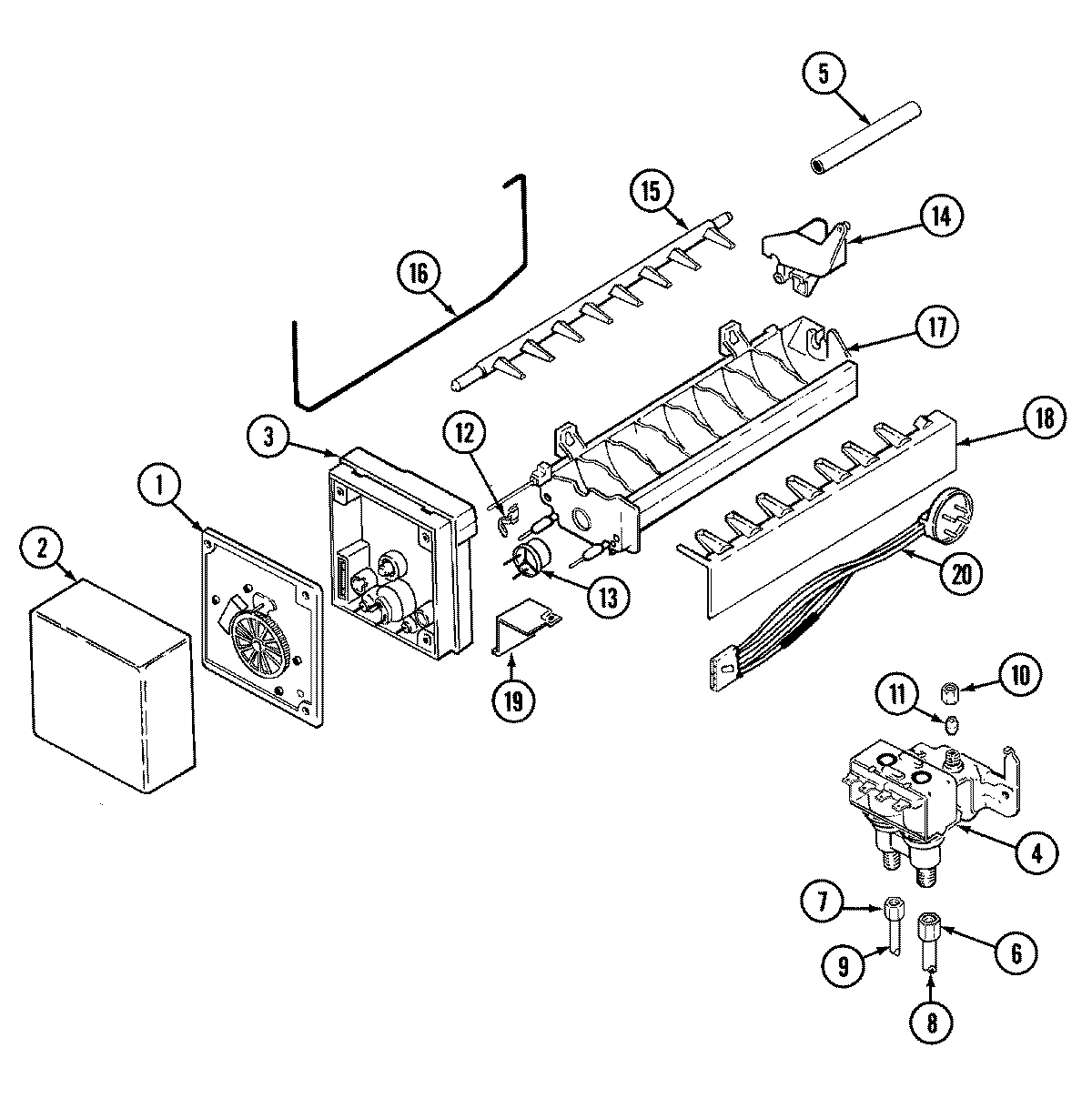

09 - ICE MAKER

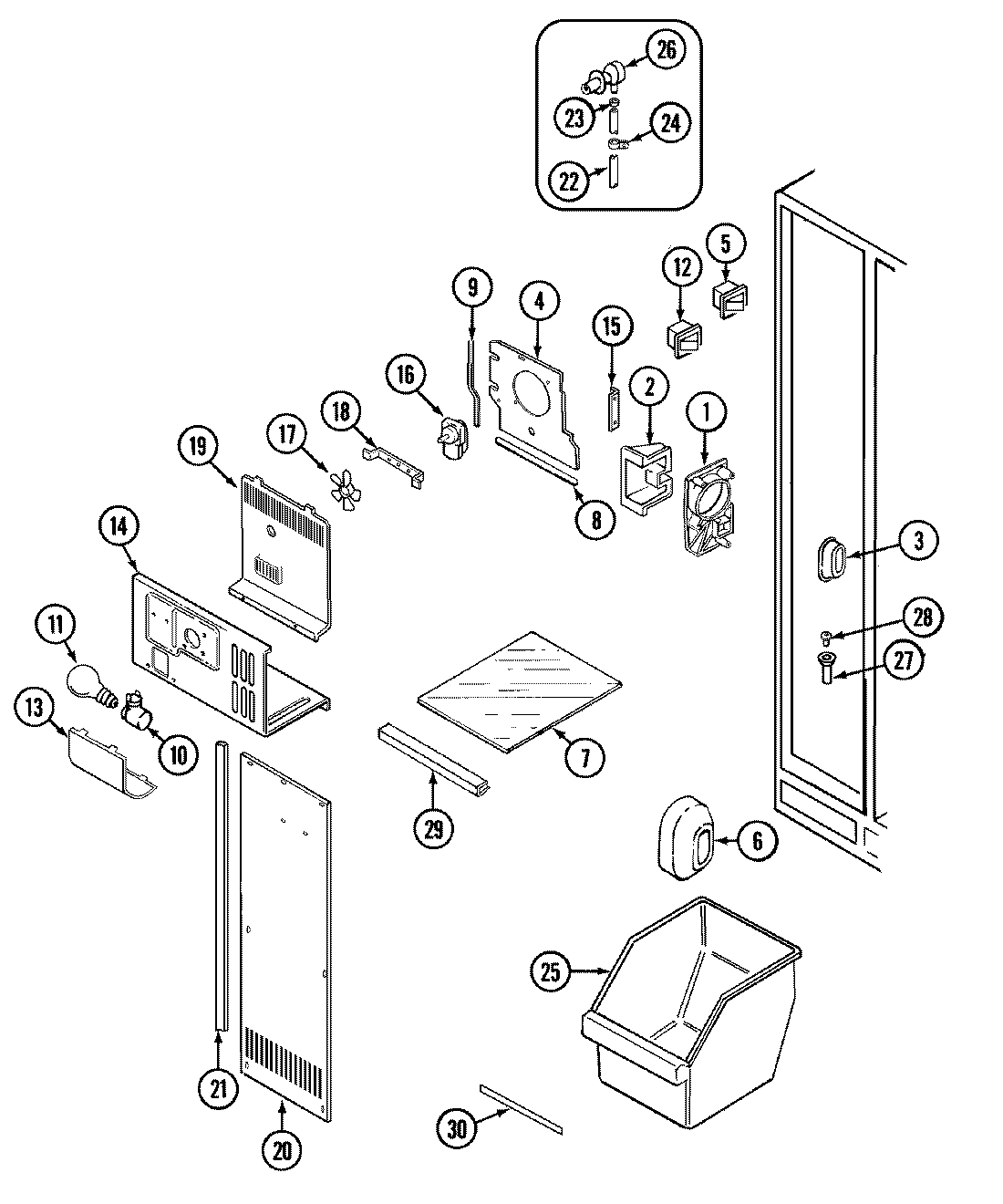

01 - FREEZER COMPARTMENT

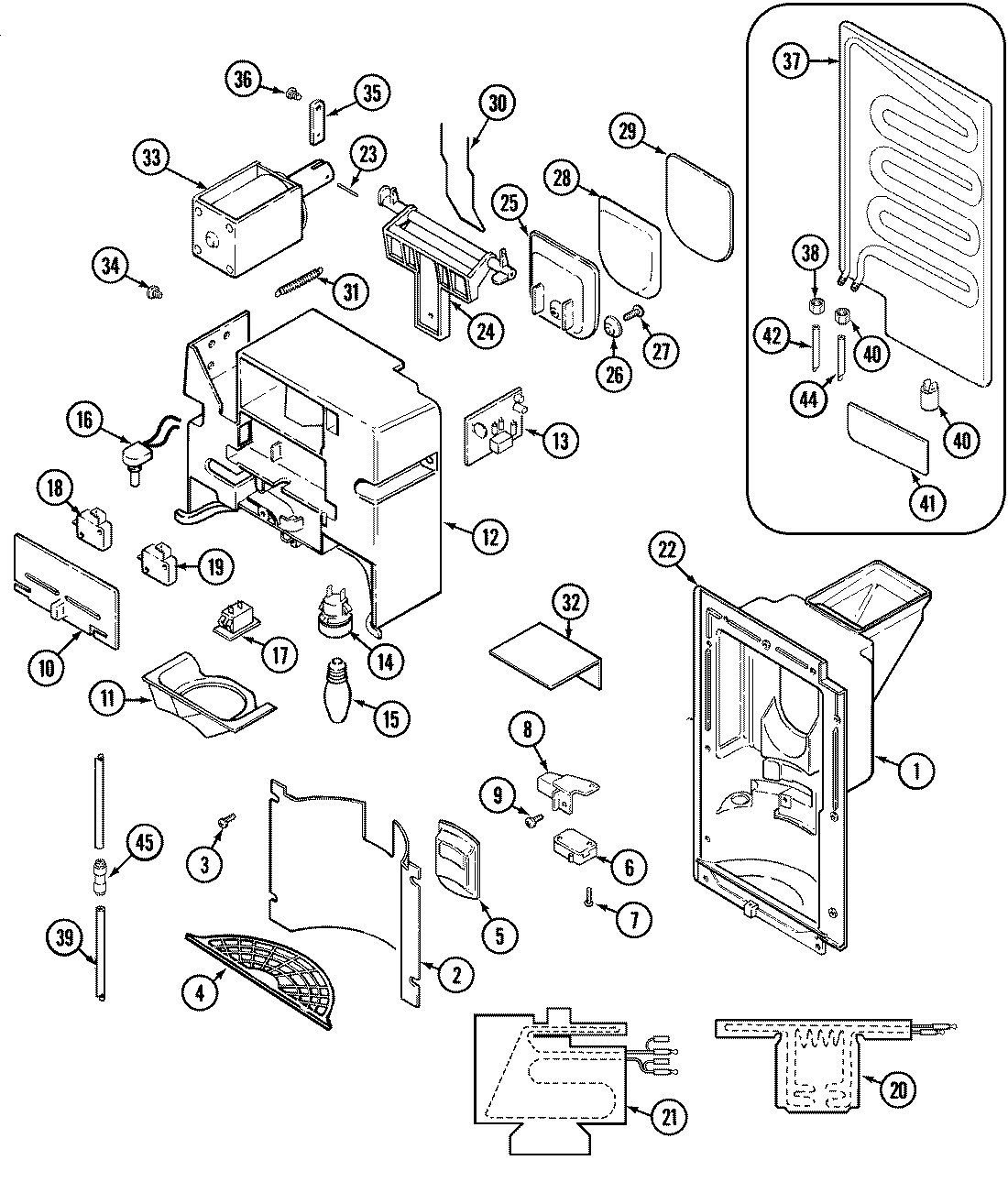

07 - ICE & WATER DISPENSER

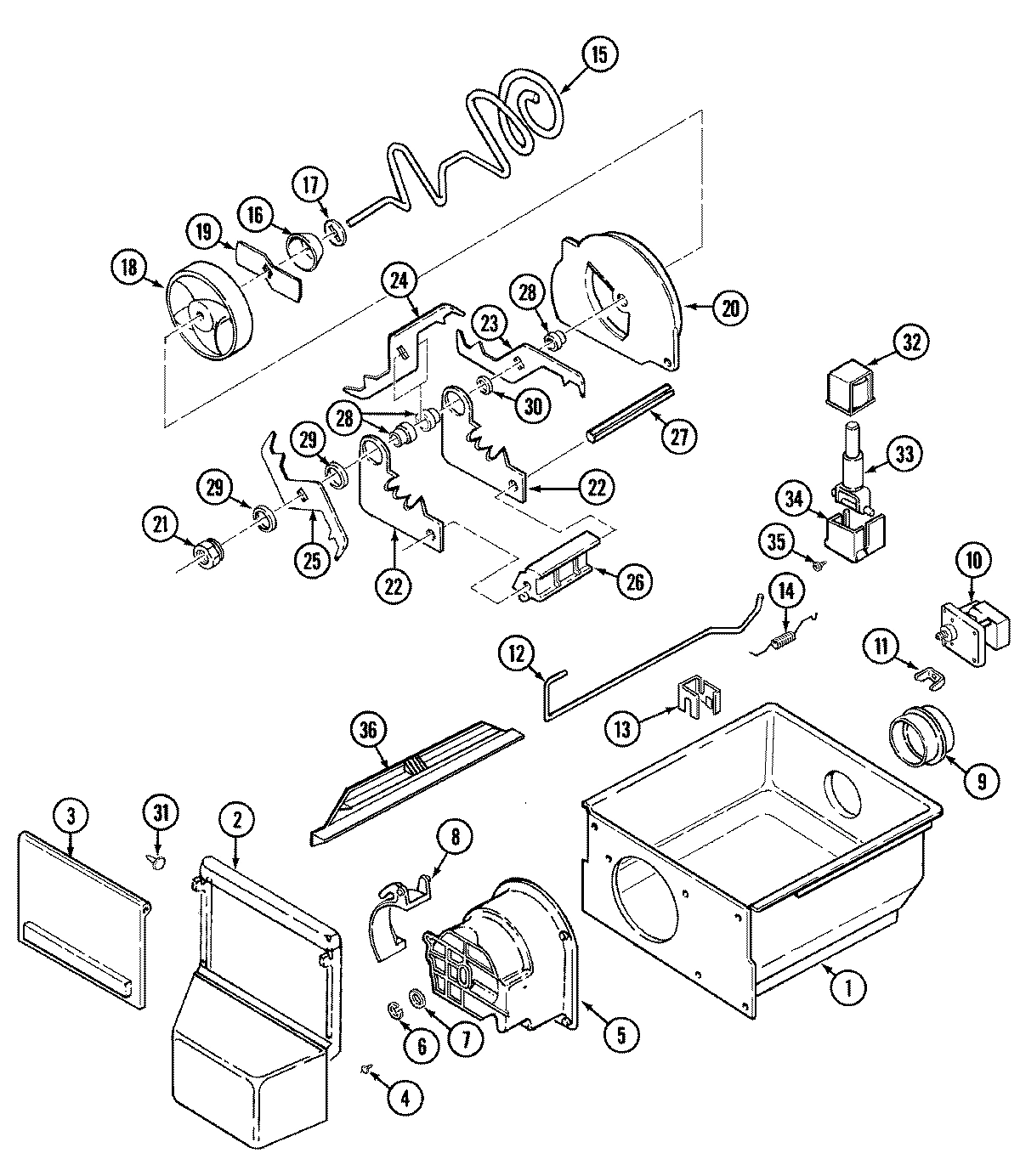

08 - ICE CRUSHER & BIN

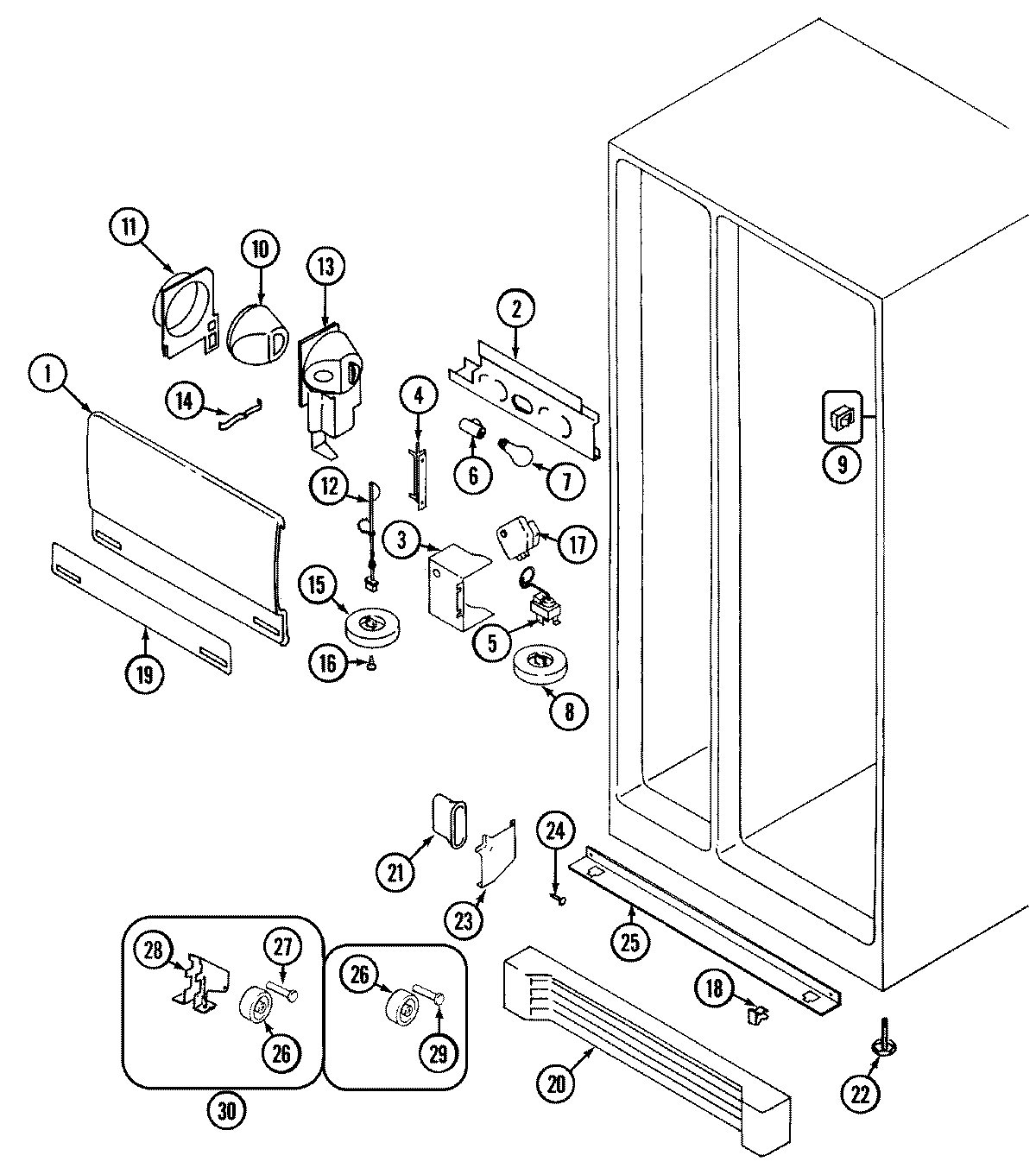

04 - FRESH FOOD COMPARTMENT

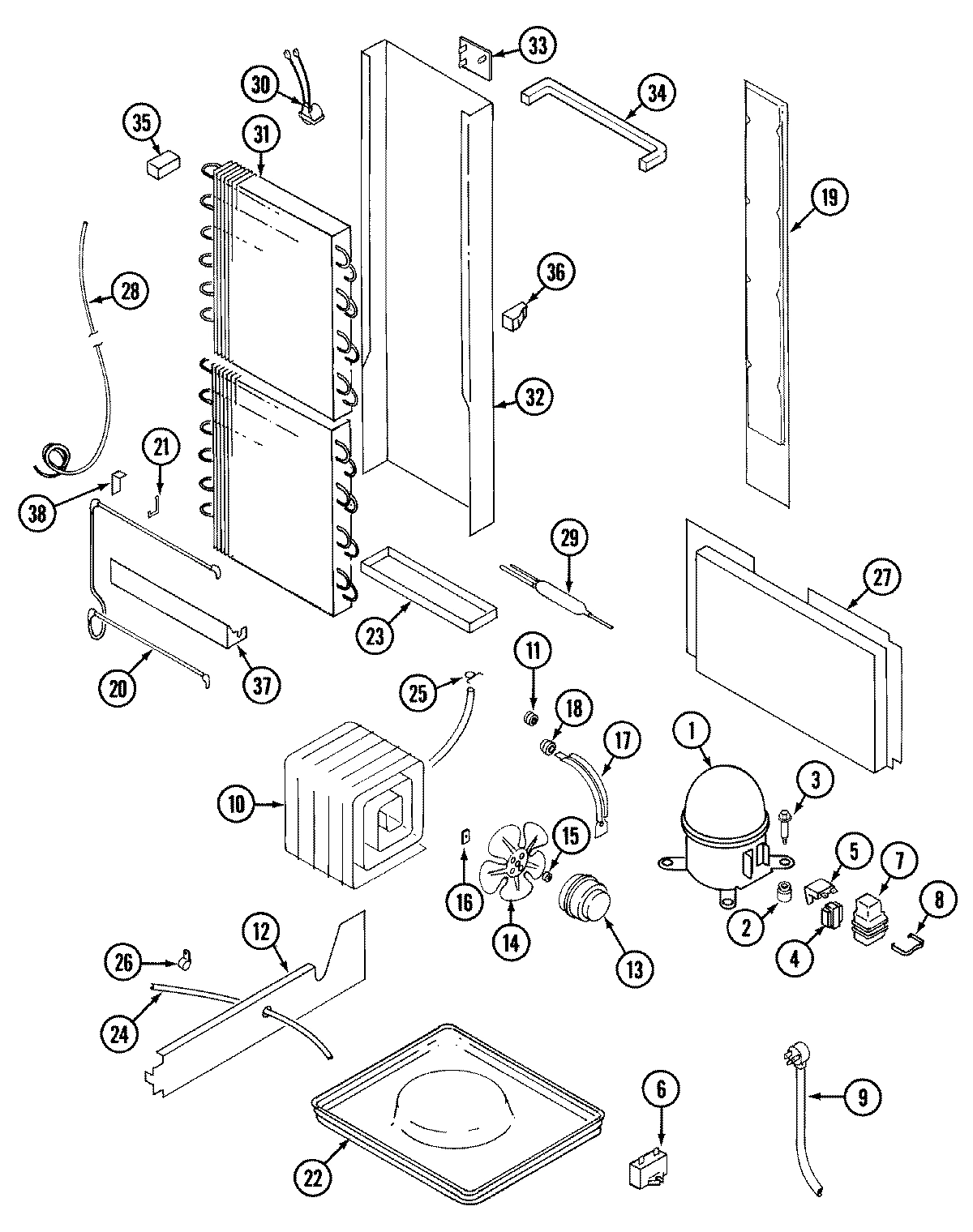

11 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RST2400FAE REFRIGERATOR
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL Y72341105WW Contact Us For Availability
1
LINER, F.F. DOOR WPL 692411 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723412WW Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
1
KIT, FOUNTAIN ASSY. WPL 12000057 Contact Us For Availability
1
INSULATION, FOUNTAIN WPL 696831 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
INSULATION, BONNET TOP WPL 698411 Contact Us For Availability
1
BIN, ICE DISP WPL 697201 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000059 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
2
WIRE HARNESS, DOOR WPL 698041 Contact Us For Availability
2
HANDLE WPL 679221 Contact Us For Availability
2
RIVET WPL 5992017 Contact Us For Availability
2
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
2
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
2
HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
LINER, FOUNTAIN WPL 696862 Contact Us For Availability
2
FRONT, ICE BIN WPL 61001620 Contact Us For Availability
2
HOUSING, LITE & WIRE WPL 691932 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
FRONT, PICKOFF WPL 6987013 Contact Us For Availability
3
SCREW WPL 40500435 Contact Us For Availability
3
ESCUTCHEON (WHT) WPL 61001618 Contact Us For Availability
3
FRAME,HANDLE WPL 679201 Contact Us For Availability
3
RAIL, SHELF SUPPORT WPL 61001705 Contact Us For Availability
3
FRAME, DELI SHELF WPL 656187 Contact Us For Availability
3
FRAME, SHELF WPL 701067 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
3
DOOR, ICE ACCESS WPL 61001695 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
4
SHELF, PICK-OFF WPL 698735 Contact Us For Availability
4
INSERT, HANDLE (WHT) WPL 679242 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
4
BUMPER, DOOR WPL 282726 Contact Us For Availability
4
TRIM, SHELF (REAR) WPL 701105 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (120V) WPL 61001021 Contact Us For Availability
4
COVER, COIL UPPER WPL 672976 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
5
FRONT, PICK-OFF SHELF WPL 698704 Contact Us For Availability
5
SCREW WPL 6527544 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
5
CRISPER SHELF(GLASS) WPL 6813923 Contact Us For Availability
5
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680582 Contact Us For Availability
5
PAD, ACTUATOR WPL 696822 Contact Us For Availability
5
HOUSING, CRUSHER WPL 697561 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
OVERLOAD WPL 61001627 Contact Us For Availability
5
OVERLOAD WPL 691053 Contact Us For Availability
6
STUD, PICK-OFF SHELF WPL 656602 Contact Us For Availability
6
RETAINER, GASKET WPL 699921 Contact Us For Availability
6
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
6
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
6
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
6
RING, SNAP WPL 697041 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
7
TRIM, EXTENSION (UPR - WHT) WPL 679328 Contact Us For Availability
7
RETAINER, GASKET WPL 699922 Contact Us For Availability
7
INSERT, CRISPER PAN WPL 61001572 Contact Us For Availability
7
SHELF WPL 6813925 Contact Us For Availability
7
WASHER, RETAINER WPL 697031 Contact Us For Availability
7
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
TRIM, EXTENSION (LWR - WHT) WPL 679329 Contact Us For Availability
8
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
8
PAN, CRISPER WPL 61001573 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
8
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
FUNNEL-KIT WPL 675792 Contact Us For Availability
9
RETAINER, GASKET WPL 699924 Contact Us For Availability
9
SHIM, TRIM LOCK (UPR) WPL 679261 Contact Us For Availability
9
RETAINER, BOTTLE WPL 697951 Contact Us For Availability
9
PAN, MEAT WPL 61001574 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
RING, DRIVE WPL 700272 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
THRMST-FIX WPL 696818 Contact Us For Availability
10
SHIM, TRIM LOCK (LWR) WPL 679262 Contact Us For Availability
10
DOOR, DAIRY WPL 699182 Contact Us For Availability
10
COVER, MEAT PAN WPL 656086 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
10
MOTOR, AUGER WPL 697331 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 701221 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
11
ENDCAP, HANDLE WPL 679282 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
11
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
SCREW WPL 41400435 Contact Us For Availability
12
SHELF, PICK-OFF WPL 698724 Contact Us For Availability
12
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BRACKET, FOUNTAIN WPL 703245 Contact Us For Availability
12
ROD, CRUSHER CONTROL WPL 697141 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 676091 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability
13
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
13
TRAY, EGG WPL 672152 Contact Us For Availability
13
RAIL, DELI PAN WPL 688052 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
BOARD, PC WPL 697514 Contact Us For Availability
13
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
13
SCREW WPL 4150171 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
14
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
14
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
14
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
14
HINGE, UPPER WPL 5370928 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 697241 Contact Us For Availability
14
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
14
SPRING, CONTROL ROD WPL 697171 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
15
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698715 Contact Us For Availability
15
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
15
CONTROL HOUSING WPL 657372 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
15
AUGER, ICE DISPENSER WPL 697071 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
16
HINGE UPPER WPL 5370926 Contact Us For Availability
16
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
16
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
16
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS, FREEZER WPL 701801 Contact Us For Availability
16
SWITCH, LIGHT (W/NUT) WPL 698326 Contact Us For Availability
16
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
17
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
17
GLASS, CANTILEVER SHELF WPL 6813922 Contact Us For Availability
17
GLASS, DELI WPL 6813928 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
17
WASHER, CONE STOP WPL 696981 Contact Us For Availability
17
SCREW WPL 4050071 Contact Us For Availability
17
TIMER, DEFROST WPL 682333 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
HINGE, LOWER (BLK) WPL 695161 Contact Us For Availability
18
SCREW WPL 6527559 Contact Us For Availability
18
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
18
TRIM, SHELF (FRONT) WPL 61001660 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
18
IMPELLER WPL 700361 Contact Us For Availability
18
CLIP, KICKPLATE WPL 702851 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
19
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
SHIELD, FAN WPL 61001025 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
19
PLATE, DRIVE WPL 697551 Contact Us For Availability
19
INSERT, LIGHT SHIELD WPL 6747610 Contact Us For Availability
19
COVER WPL 663811 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 702631 Contact Us For Availability
20
PAN, DELI WPL 61001451 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
COVER, COIL LOWER WPL 697252 Contact Us For Availability
20
HEATER, FOUNTAIN WPL 697961 Contact Us For Availability
20
PLATE, IMPELLER WPL 697011 Contact Us For Availability
20
KICKPLATE W/CLIPS (WHT) WPL 702889 Contact Us For Availability
21
PIN, HINGE WPL 700601 Contact Us For Availability
21
CLIP WPL 693141 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
21
NUT, AUGER WPL 697091 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
22
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
22
BLADE, CRUSHER WPL 697061 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
COVER, HINGE (BLK) WPL 61001609 Contact Us For Availability
23
SCREW, HINGE COVER (BLACK) WPL 6527547 Contact Us For Availability
23
PIN, SPRING WPL 672913 Contact Us For Availability
23
BLADE, CRUSHER WPL 697021 Contact Us For Availability
23
COVER, AIR RETURN WPL 699821 Contact Us For Availability
23
TROUGH, DRAIN WPL 535232 Contact Us For Availability
24
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
24
STRIKE, ICE DOOR WPL 696757 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
HOSE, DRAIN WPL 2691125 Contact Us For Availability
25
CLOSER, DOOR WPL 692581 Contact Us For Availability
25
DRAWER, FRZ. WPL 61001456 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
25
BLADE, CRUSHER WPL 697023 Contact Us For Availability
25
RAIL, HORIZONTAL SUPPORT WPL 61001032 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
INSULATION, CLOSER WPL 526131 Contact Us For Availability
26
ELEMENT WPL 700491 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
26
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
26
WHEEL WPL 698121 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
BRACKET, CLOSER WPL 692611 Contact Us For Availability
27
SCREW WPL 652755 Contact Us For Availability
27
TUBE, DRAIN WPL 2652711 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
27
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
27
PIN, WHEEL WPL 649651 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 61001228 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
28
BEARING, SPACER WPL 696971 Contact Us For Availability
28
SCREW WPL 4000621 Contact Us For Availability
28
BRACKET WPL 528461 Contact Us For Availability
28
SLEEVE WPL 2608823 Contact Us For Availability
28
HEAT EXCHANGER WPL 61001039 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
29
TRIM, SHELF WPL 701372 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
29
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
30
TRIM, DRAWER WPL 61001575 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
30
SPACER, BLADE WPL 696962 Contact Us For Availability
30
WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
31
PIN, ICE DOOR WPL 679061 Contact Us For Availability
31
EVAPORATOR WPL 5255122 Contact Us For Availability
32
FOIL, FOUNTAIN FRONT WPL 5380838 Contact Us For Availability
32
SCREW WPL 406026103 Contact Us For Availability
32
SOLENOID WPL 697301 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
33
YOKE ASSY. WPL 7235350 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
34
GUIDE, YOKE WPL 697151 Contact Us For Availability
34
SEAL WPL 6632518 Contact Us For Availability
35
SCREW WPL 40001536 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
36
SCREW WPL 40002636 Contact Us For Availability
36
RAIL, ICE BIN WPL 697102 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
SCREW WPL 40004828 Contact Us For Availability
37
TANK, WATER WPL 690658 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
38
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
TUBING, COIL TO FOUNTAIN WPL 6718729 Contact Us For Availability
40
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
41
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
41
COVER, WATER LINE CONN. WPL 685221 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002022 Contact Us For Availability
NI
NYLON NUT WPL 1953036 Contact Us For Availability
NI
NUT, WIRE WPL 271165 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 695912 Contact Us For Availability
NI
WIRE HARNESS, SWITCH WPL 698012 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
NI
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61001599 Contact Us For Availability
× ![]()
Login and Registration Form
