Model Whirlpool RSD24A REFRIGERATOR – Common Parts & Diagrams
03 - FREEZER INNER DOOR

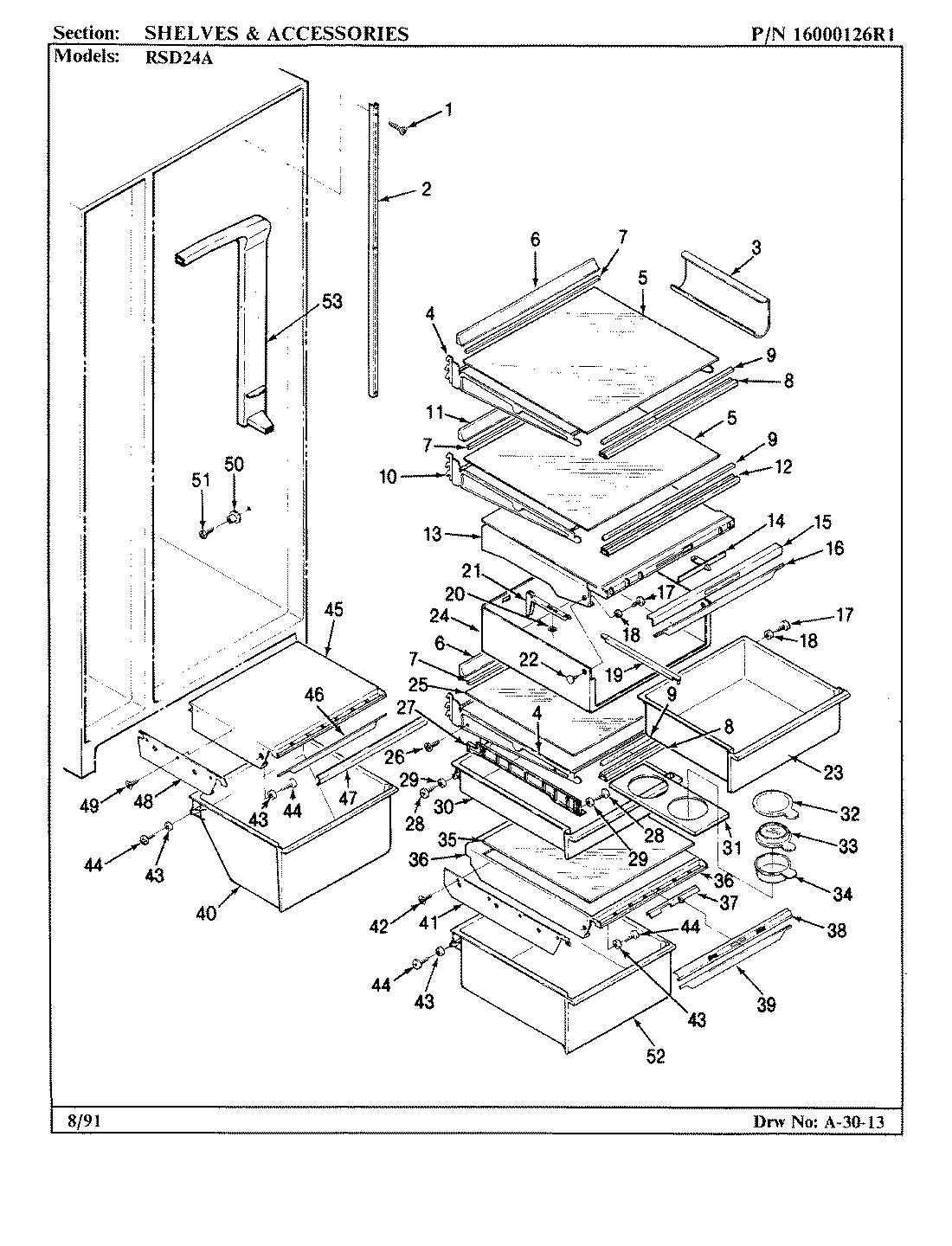

07 - SHELVES & ACCESSORIES

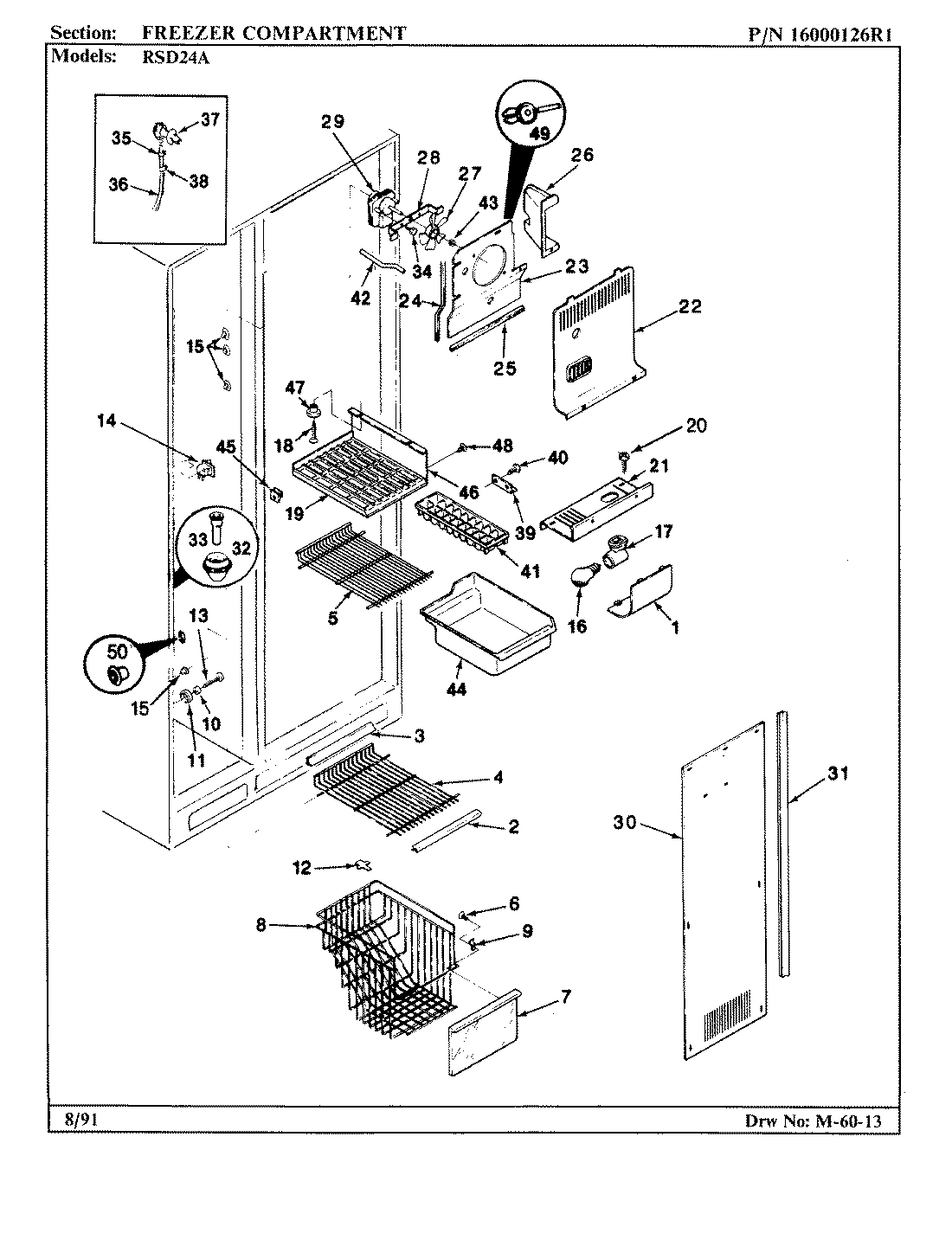

02 - FREEZER COMPARTMENT

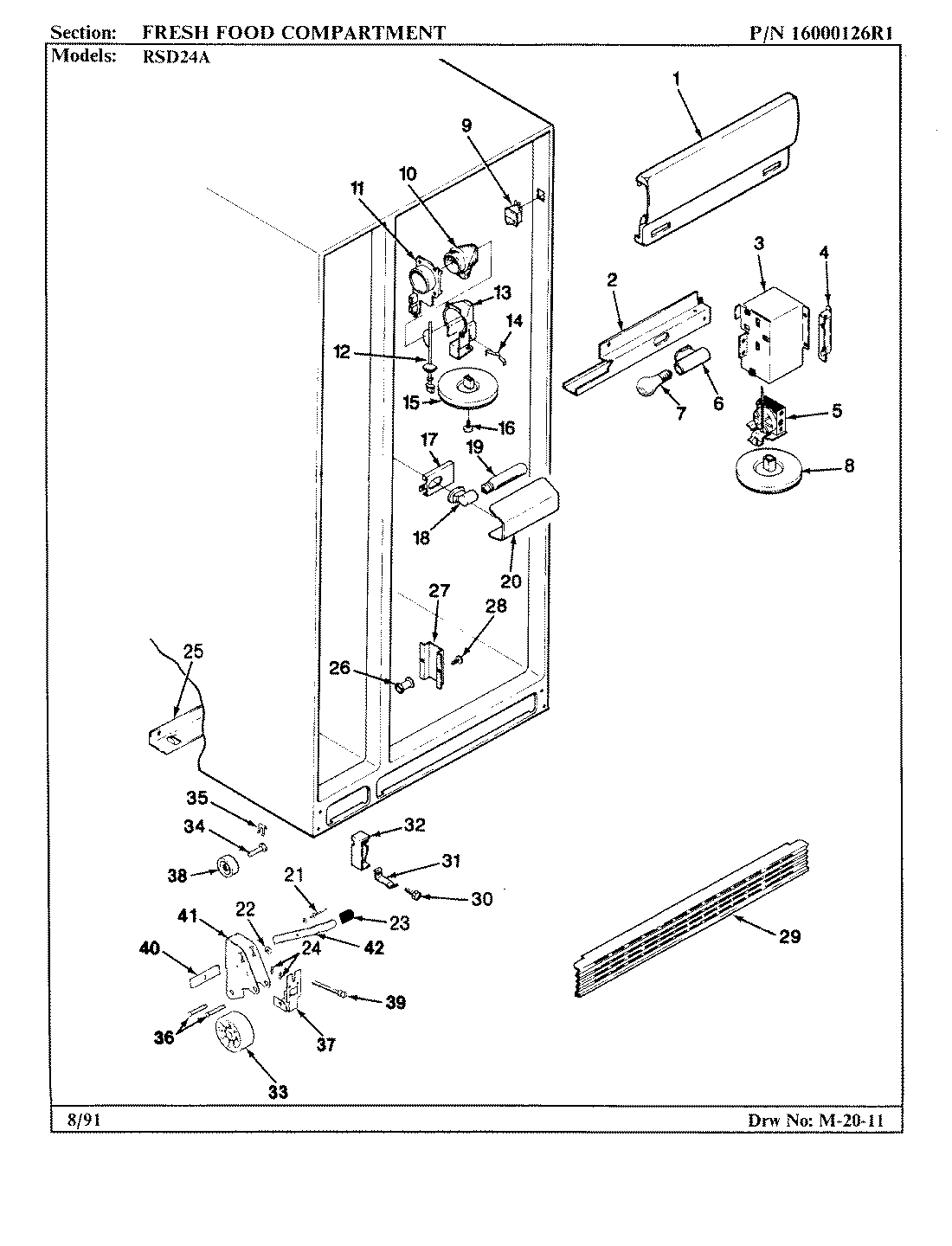

04 - FRESH FOOD COMPARTMENT

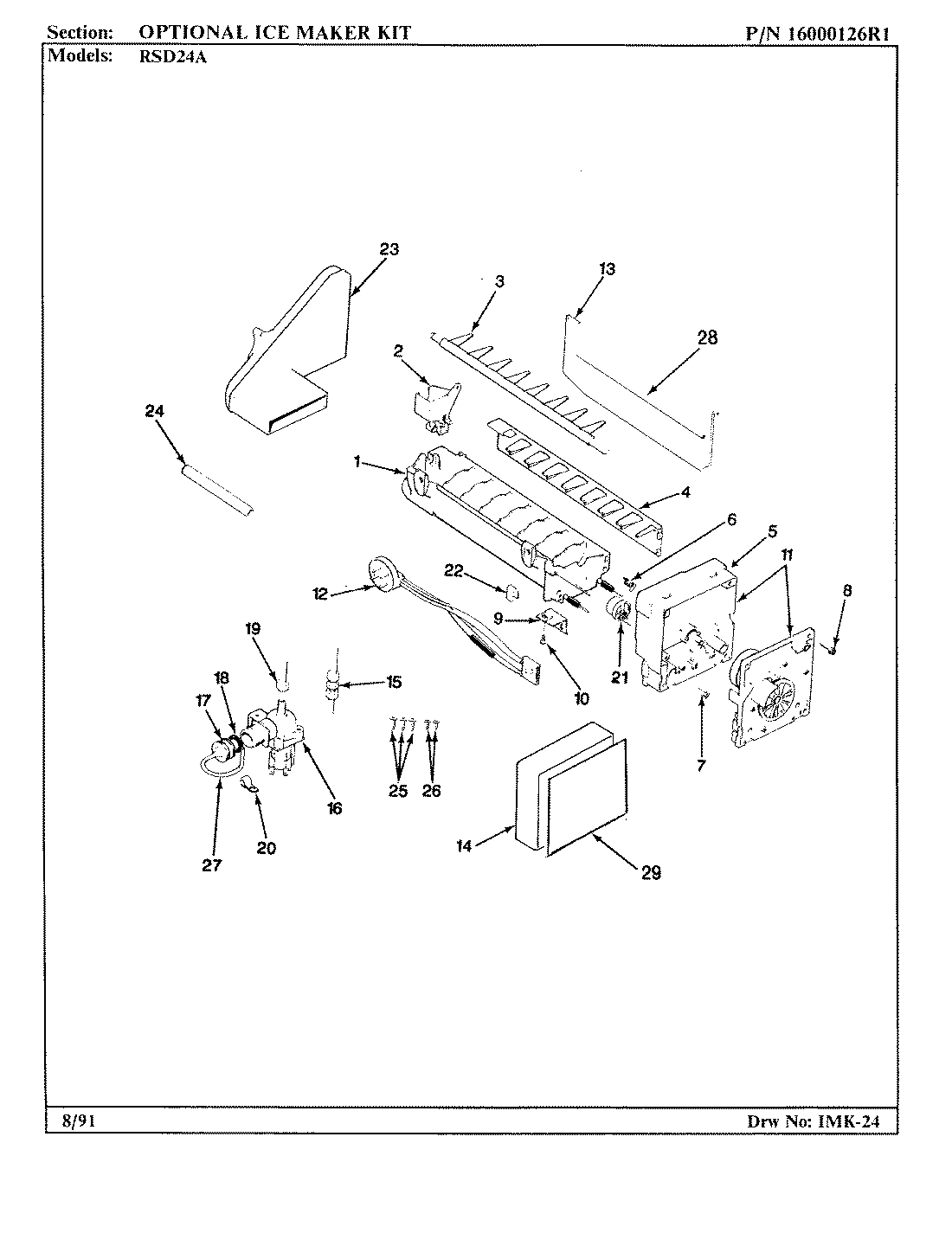

06 - OPTIONAL ICE MAKER KIT-RAE30

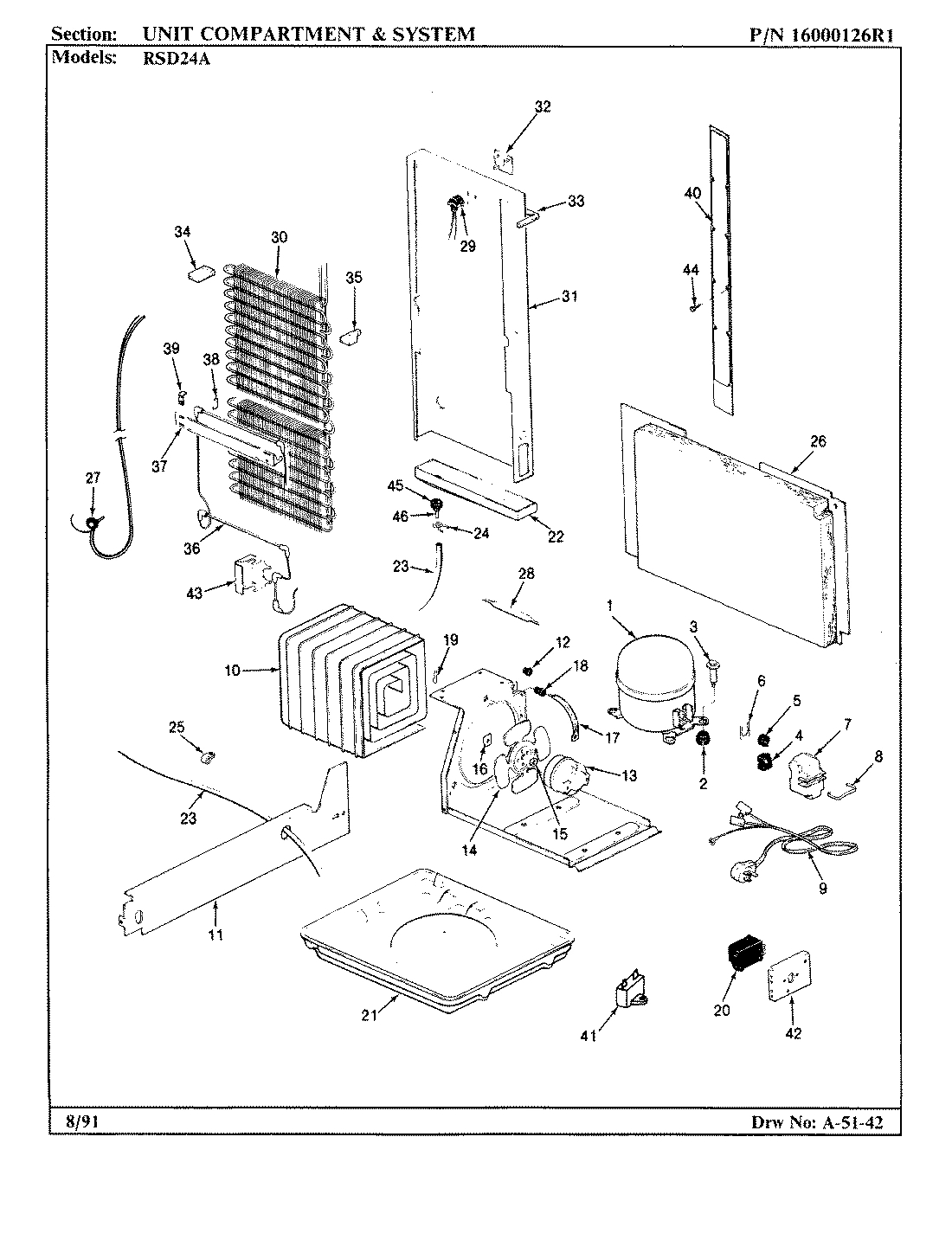

08 - UNIT COMPARTMENT & SYSTEM
01 - CARTONS

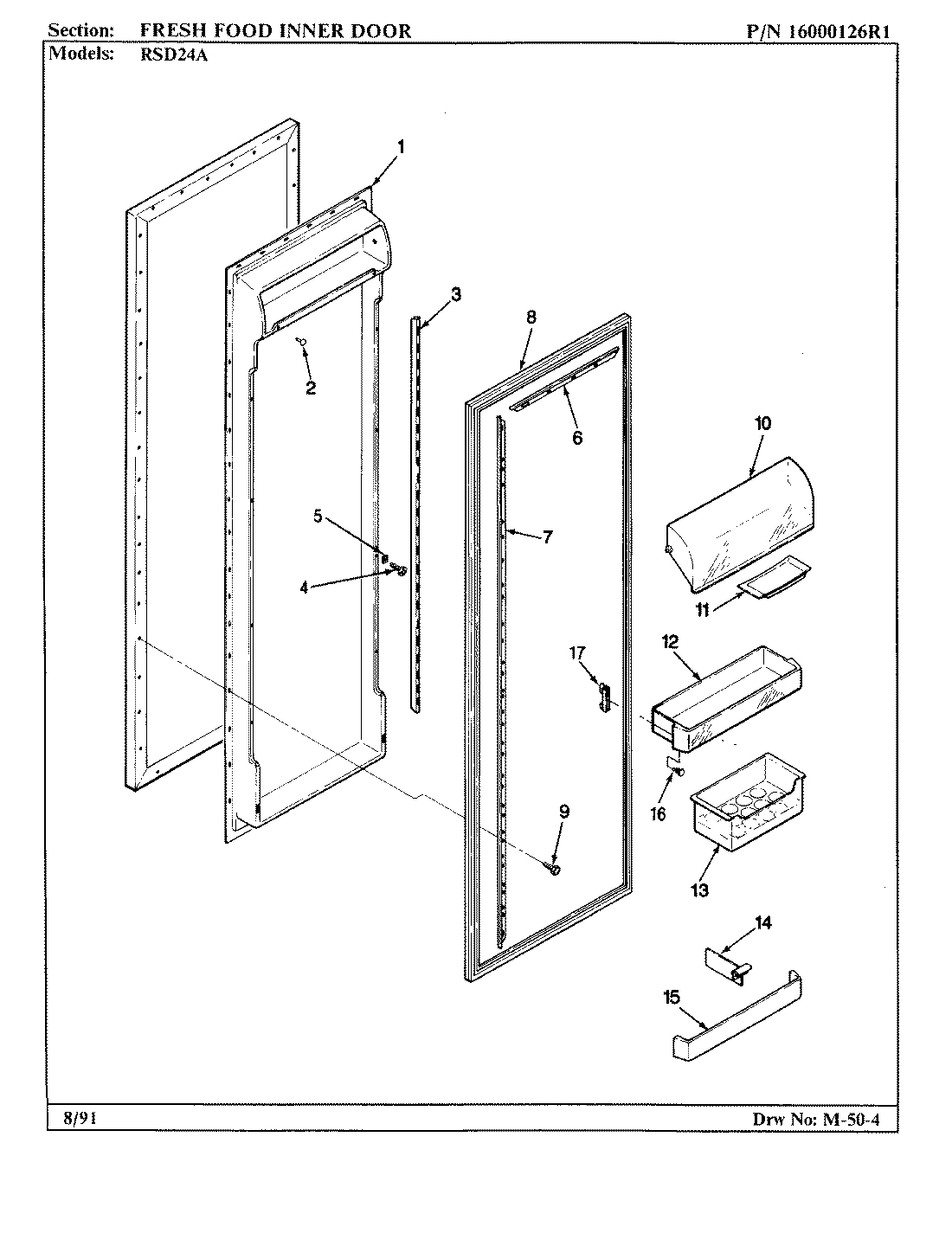

05 - FRESH FOOD INNER DOOR
Common parts from model Whirlpool RSD24A REFRIGERATOR
1
SCREW WPL 40003728 Contact Us For Availability
1
SHIELD, LIGHT WPL 672921 Contact Us For Availability
1
SHIELD, LIGHT WPL 671134 Contact Us For Availability
1
INSERT, LIGHT SHIELD WPL 674764 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
LINER, DOOR WPL 670591 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 677454 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
TRIM, FRZ. SHELF FRONT WPL 671762 Contact Us For Availability
2
LIGHT HOUSING WPL 671882 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
RETAINER, DOOR SEAL WPL 670324 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673081 Contact Us For Availability
3
TRIM, FRZ. SHELF RIGHT WPL 671772 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
RAIL, P O DOOR WPL 673161 Contact Us For Availability
4
FRAME, SHELF WPL 672732 Contact Us For Availability
4
SHELF, FRZ. WPL 671782 Contact Us For Availability
4
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
5
GLASS, CANTILEVER WPL 672676 Contact Us For Availability
5
SHELF, FRZ. WPL 671786 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 5288413 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
6
FRONT, PICK OFF FRZ. WPL 670891 Contact Us For Availability
6
TRIM, CANTILEVER WPL 673095 Contact Us For Availability
6
SCREW WPL 4060081 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, DOOR SEAL WPL 670322 Contact Us For Availability
7
RETAINER, DOOR SEAL WPL 670321 Contact Us For Availability
7
SHELF SEAL WPL 672665 Contact Us For Availability
7
FRONT WPL 676552 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
TRIM, CANTILEVER SHELF WPL 677835 Contact Us For Availability
8
BASKET, FRZ. WPL 671212 Contact Us For Availability
8
KNOB, CONTROL WPL 671451 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
GASKET WPL 677453 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672655 Contact Us For Availability
9
CLIP,FRZ BASKET WPL 671221 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
CLAMP WPL 538101 Contact Us For Availability
10
FRAME, MEAT SHELF WPL 672742 Contact Us For Availability
10
ROLLER,WHEEL BASKET WPL 671231 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
DOOR, DAIRY WPL 670415 Contact Us For Availability
11
TRIM, CANTILEVER WPL 673097 Contact Us For Availability
11
SPACE ROLLER WPL 671241 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
TRAY, BUTTER WPL 672161 Contact Us For Availability
12
TRIM, CANTILEVER SHELF WPL 677837 Contact Us For Availability
12
CLIP, BASKET STOP WPL 674881 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHELF, PICK OFF REF WPL 670901 Contact Us For Availability
13
MEAT KEEPER RAIL WPL 676491 Contact Us For Availability
13
SCREW WPL 6527519 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675605 Contact Us For Availability
13
TRAY, EGG WPL 672151 Contact Us For Availability
14
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
ORGANIZER,P.O. SHELF WPL 670271 Contact Us For Availability
15
TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability
15
CUP, SHELF WPL 674661 Contact Us For Availability
15
KNOB, CONTROL WPL 671452 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
FRONT,PICK OFF SHELF WPL 670841 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
16
BULB, LIGHT WPL 319561 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
WIRE HARNESS, WAIST WPL 674081 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
HOOK,P.O.SHELF (RIGHT) WPL 670431 Contact Us For Availability
17
HOOK,P.O. SHELF (LEFT) WPL 670432 Contact Us For Availability
18
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
SCREW WPL 652754 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability
19
SHELF, ICE TRAY WPL 671141 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
20
SCREW, SUPPORT BRACKET WPL 40001412 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 665568 Contact Us For Availability
21
ACTUATOR, MEAT KEEPER WPL 670723 Contact Us For Availability
21
SUPPORT, LIGHT SHIELD WPL 673452 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
22
PLUG BUTTON WPL 676881 Contact Us For Availability
22
SEAL WPL 6632523 Contact Us For Availability
22
SHIELD, FAN WPL 672252 Contact Us For Availability
22
LOCKWASHER WPL 420003905 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
MEAT PAN ASSY. WPL 676501 Contact Us For Availability
23
COVER, COIL WPL 672974 Contact Us For Availability
23
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
24
HOUSING, MEAT PAN WPL 670691 Contact Us For Availability
24
SEAL, FOAM WPL 6632515 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
GLASS, CANTILEVER WPL 672677 Contact Us For Availability
25
SEAL WPL 6632520 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
RAIL, HORIZONTAL SUPPORT WPL 672553 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
SCREW WPL 6527532 Contact Us For Availability
26
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
AIR TUNNEL WPL 537261 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 677863 Contact Us For Availability
27
SLIDE RAIL WPL 676581 Contact Us For Availability
27
RAIL WPL 676582 Contact Us For Availability
27
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
27
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
27
INLET TUBE ASSY WPL 602193 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950902 Contact Us For Availability
28
SCREW WPL 652756 Contact Us For Availability
28
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
MOTOR,EVAPORATOR FAN WPL 557358 Contact Us For Availability
29
WIRE HARNESS WPL 678651 Contact Us For Availability
29
GRILL, KICKPLATE WPL 670235 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
PAN, CRISPER WPL 6765014 Contact Us For Availability
30
SCREW WPL 40001512 Contact Us For Availability
30
COVER, LOWER COIL WPL 673351 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
31
ORGANIZER, MICRO WPL 671642 Contact Us For Availability
31
COIL COVER, GASKET WPL 675621 Contact Us For Availability
31
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
32
COVER, PLASTIC WPL 676321 Contact Us For Availability
32
END CAP (R) WPL 678541 Contact Us For Availability
32
END CAP (L) WPL 678542 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
COVER, GLASS WPL 676301 Contact Us For Availability
33
WHEEL FRONT WPL 674551 Contact Us For Availability
33
SEAL WPL 6632518 Contact Us For Availability
33
SEAL AIR RETURN WPL 676931 Contact Us For Availability
34
DISH, MICRO WPL 676311 Contact Us For Availability
34
AXLE WPL 625802 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
GLASS, CRISPER SHELF WPL 674896 Contact Us For Availability
35
CLAMP, SPRING WPL 603334 Contact Us For Availability
35
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
FUNNEL-KIT WPL 675792 Contact Us For Availability
36
SHELF, CRISPER WPL 672012 Contact Us For Availability
36
AXLE WHEEL WPL 675291 Contact Us For Availability
36
HEATER, DEFROST WPL 676792 Contact Us For Availability
37
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
37
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
37
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
38
TRIM, CRISPER WPL 672042 Contact Us For Availability
38
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
38
WHEEL, ROLLER WPL 674552 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
39
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
39
WIRE HARNESS WPL 673561 Contact Us For Availability
39
WIRE HARNESS WPL 677941 Contact Us For Availability
40
PAN, CRISPER WPL 6765013 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
40
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
41
BRACKET SIDE CRISPER WPL 6746513 Contact Us For Availability
41
BRACKET SIDE CRISPER WPL 6746514 Contact Us For Availability
41
TRAY, ICE WPL 592815 Contact Us For Availability
41
BRACKET, WHEEL WPL 678061 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
42
PLUG, TUBE WPL 675933 Contact Us For Availability
42
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
42
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
43
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
43
WASHER, SPRING WPL 420092900 Contact Us For Availability
43
RIVET, REFLECTOR WPL 263973 Contact Us For Availability
43
REFLECTOR WPL 676801 Contact Us For Availability
44
SCREW WPL 6527534 Contact Us For Availability
44
PAN, ICE WPL 671401 Contact Us For Availability
44
SCREW WPL 4000171 Contact Us For Availability
45
SHELF, CRISPER WPL 672024 Contact Us For Availability
45
GROMMET WPL 525261 Contact Us For Availability
45
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
46
SEAL WPL 677315 Contact Us For Availability
46
DRAIN TUBE WPL 265279 Contact Us For Availability
46
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
47
TRIM CRISPER LOWER WPL 672047 Contact Us For Availability
47
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
48
BRACKET (LT) WPL 6746515 Contact Us For Availability
48
BRACKET (RT) WPL 6746516 Contact Us For Availability
48
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
49
SCREW WPL 6527528 Contact Us For Availability
49
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
49
PLUG BUTTON WPL 675571 Contact Us For Availability
50
SUPPORT, CRISPER WPL 671621 Contact Us For Availability
50
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
51
SCREW WPL 40002612 Contact Us For Availability
52
PAN, CRISPER WPL 6765011 Contact Us For Availability
53
TUNNEL, AIR WPL 675262 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070761 Contact Us For Availability
NI
CLIP SHIPPING WPL 649352 Contact Us For Availability
NI
SCREW WPL 6527536 Contact Us For Availability
NI
BASE CRATE WPL 674113 Contact Us For Availability
NI
SPACER FRONT WPL 674141 Contact Us For Availability
NI
RAIL FOAM PACKIN WPL 674151 Contact Us For Availability
NI
CARTON SXS WPL 6741616 Contact Us For Availability
NI
CAP CARTON WPL 674173 Contact Us For Availability
NI
PAD, GLASS SHELF WPL 674391 Contact Us For Availability
NI
PAD, SHELF WPL 674443 Contact Us For Availability
NI
PAD, SHELF WPL 674444 Contact Us For Availability
NI
PAD, COMPARTMENT WPL 674471 Contact Us For Availability
NI
PAD, MICRO DISH WPL 674481 Contact Us For Availability
NI
PAD, FRZ. COMPT. WPL 677381 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690671 Contact Us For Availability
NI
SPACER CRATE BASE WPL 690681 Contact Us For Availability
× ![]()
Login and Registration Form
