Model Whirlpool RSD2000DAE REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER INNER DOOR

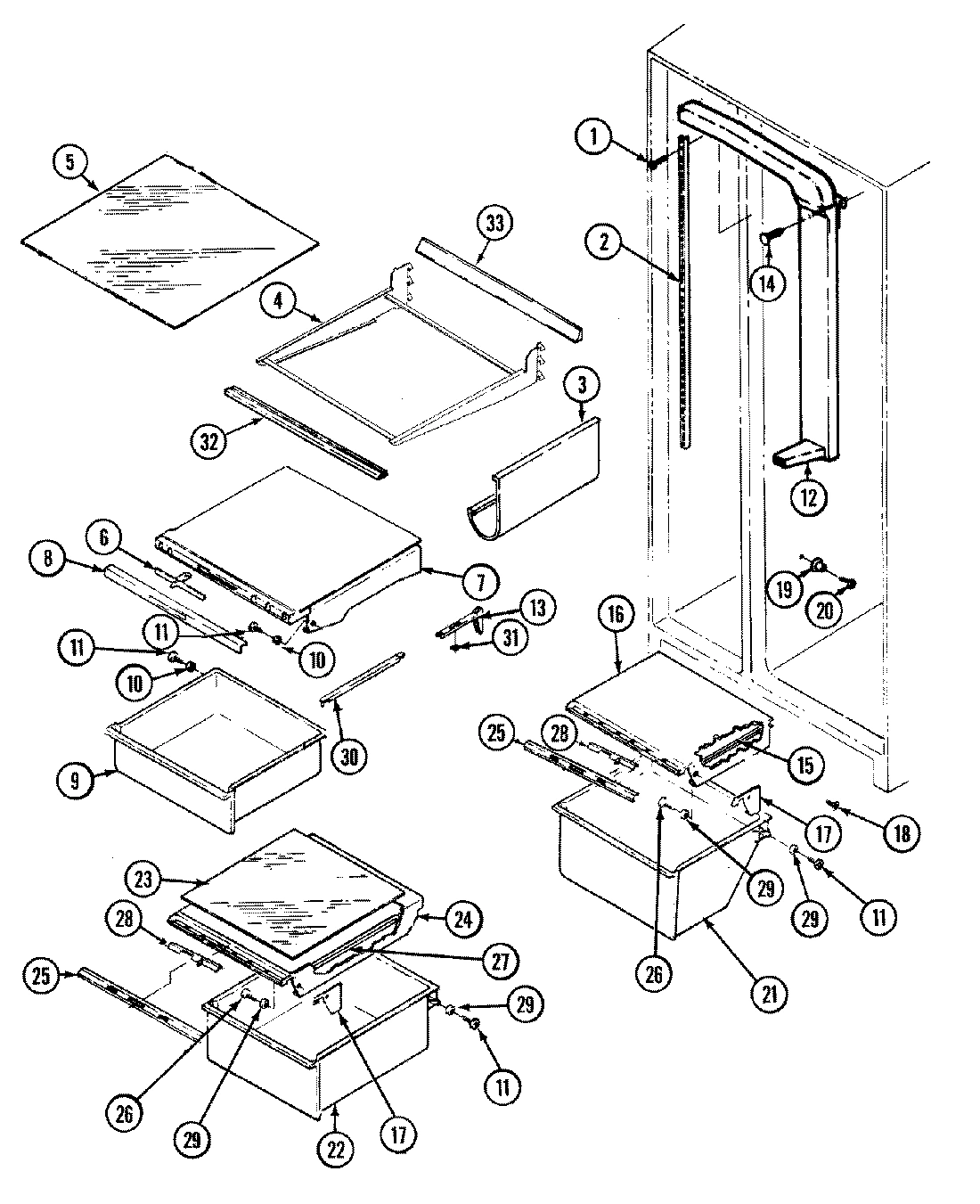

06 - SHELVES & ACCESSORIES

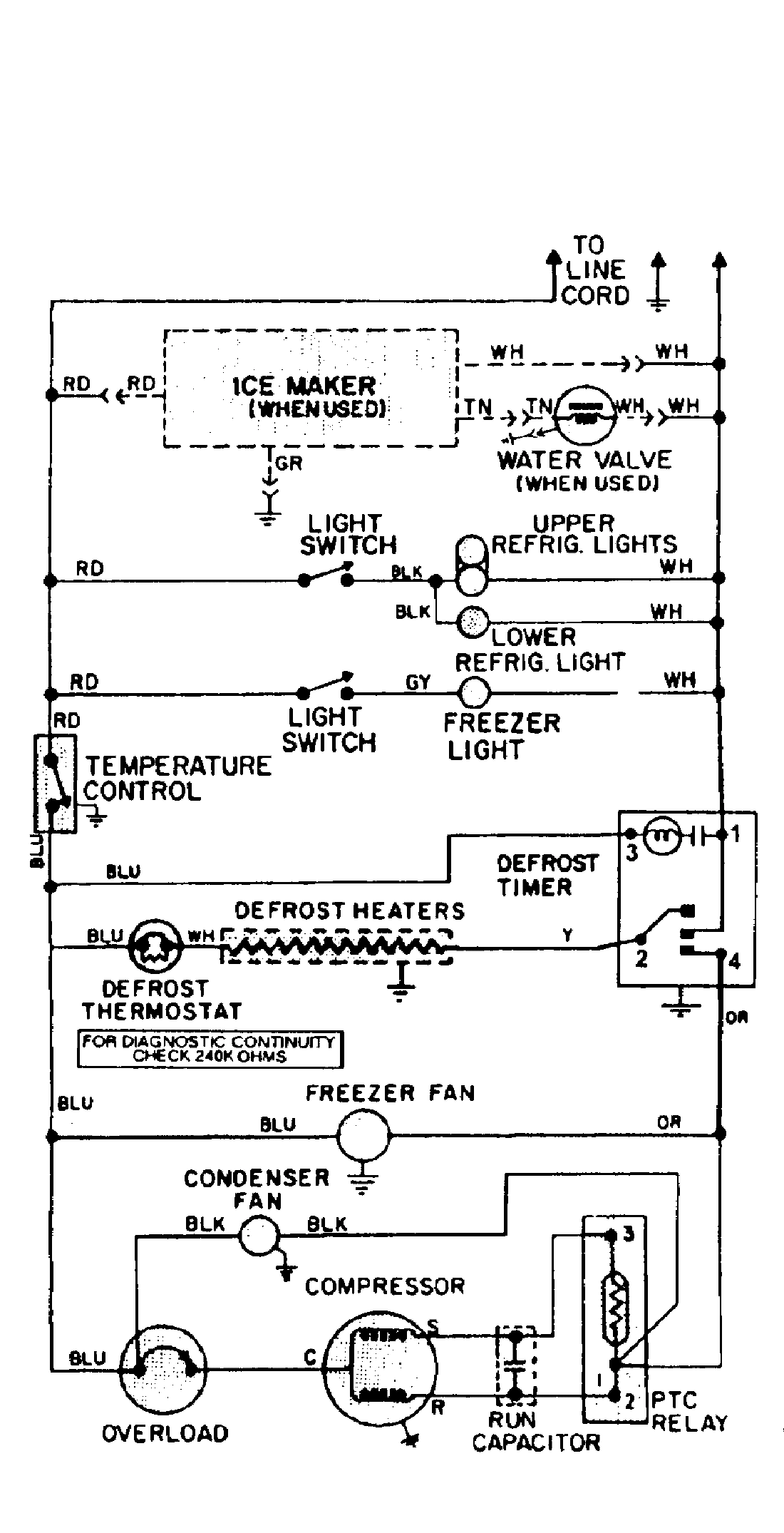

08 - WIRING INFORMATION

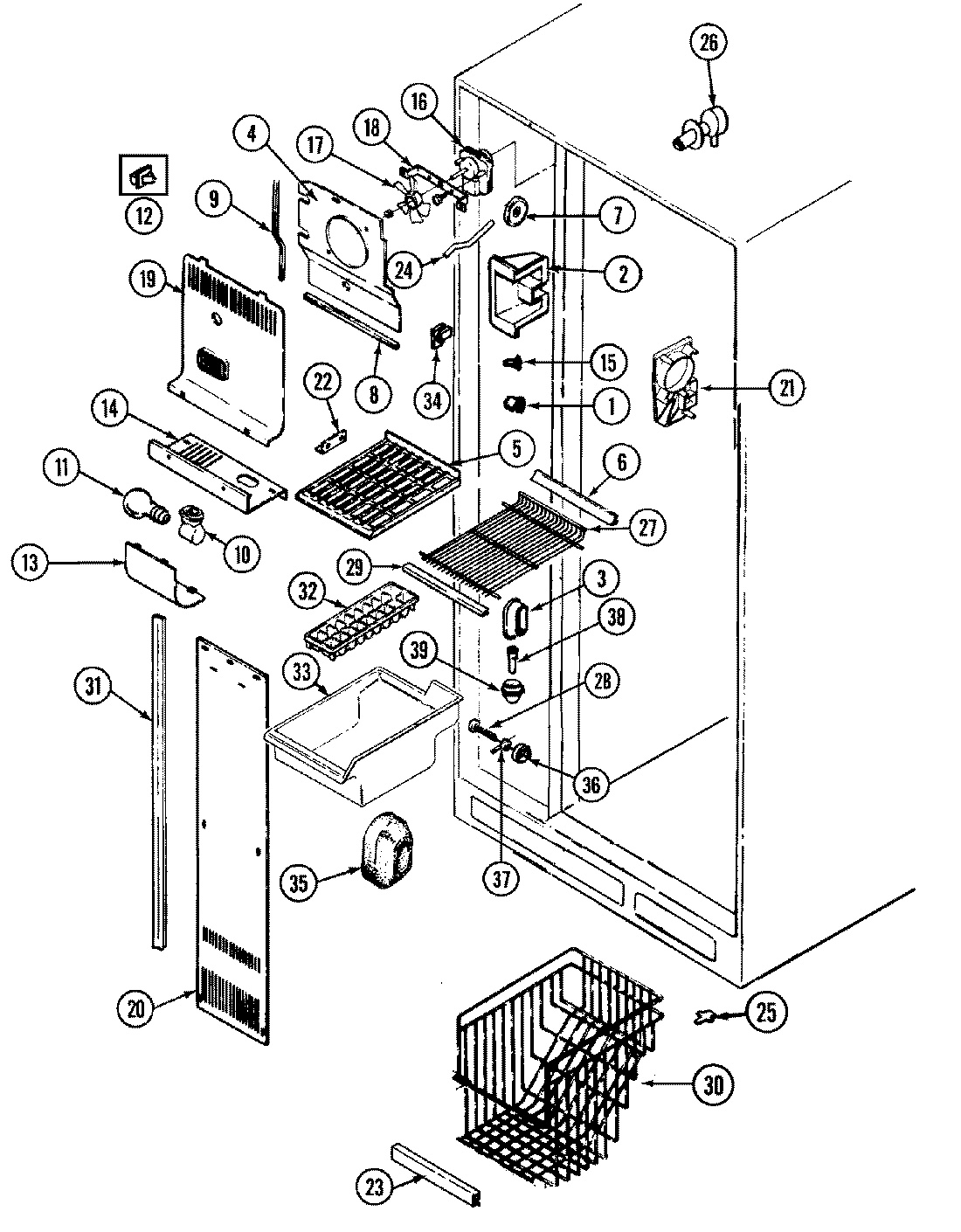

01 - FREEZER COMPARTMENT

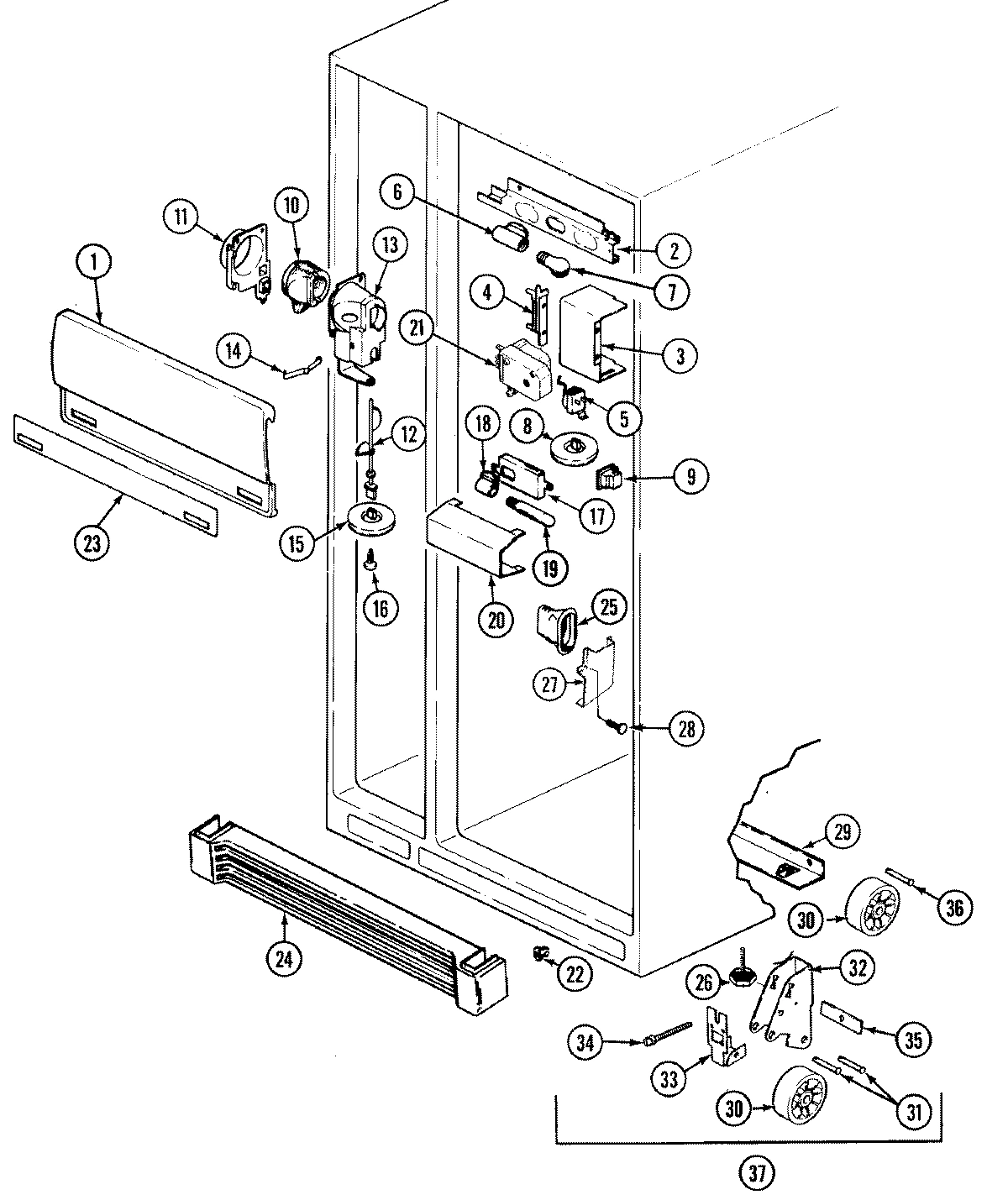

03 - FRESH FOOD COMPARTMENT

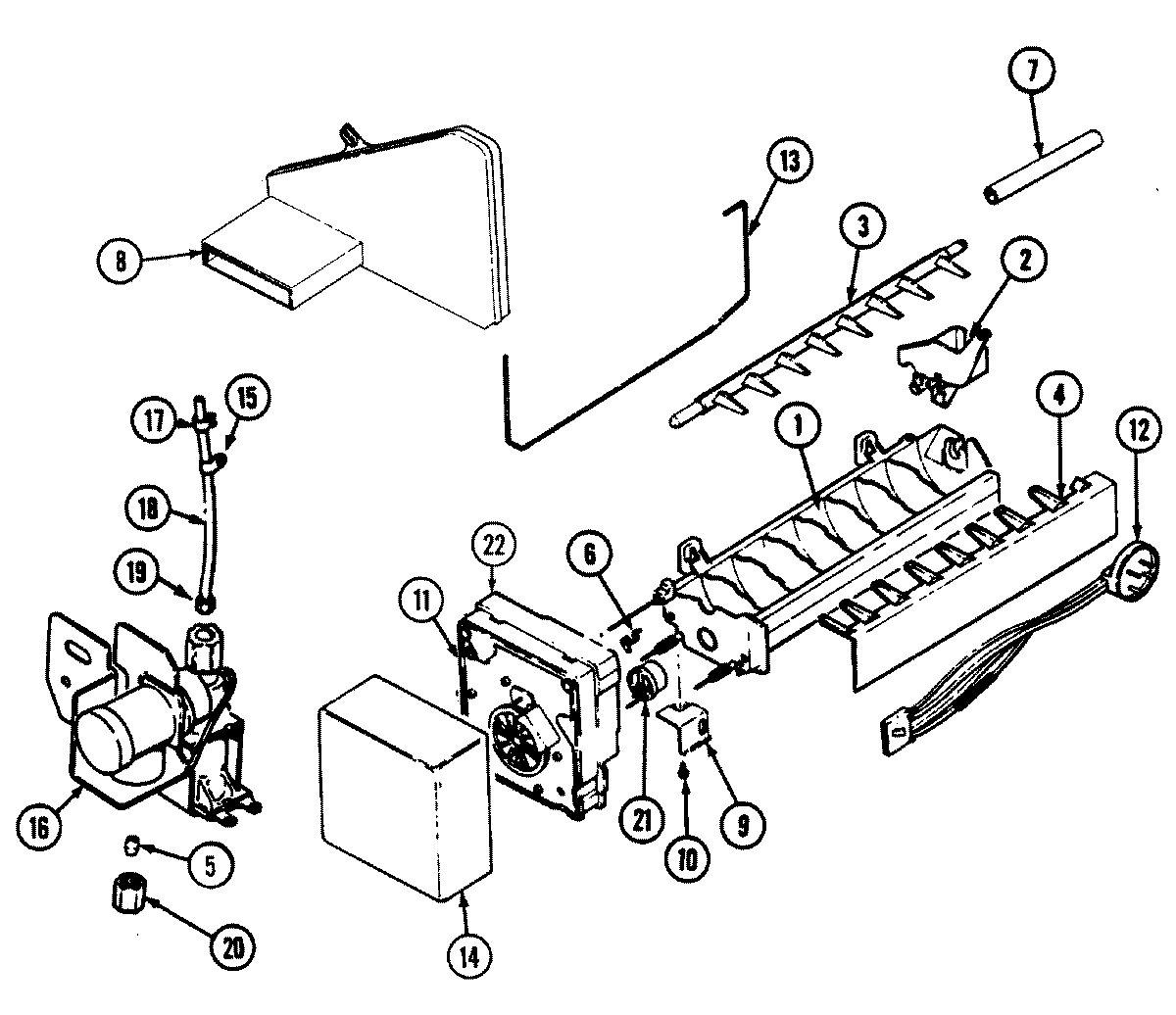

05 - OPTIONAL ICE MAKER KIT (RAE3100AAX)

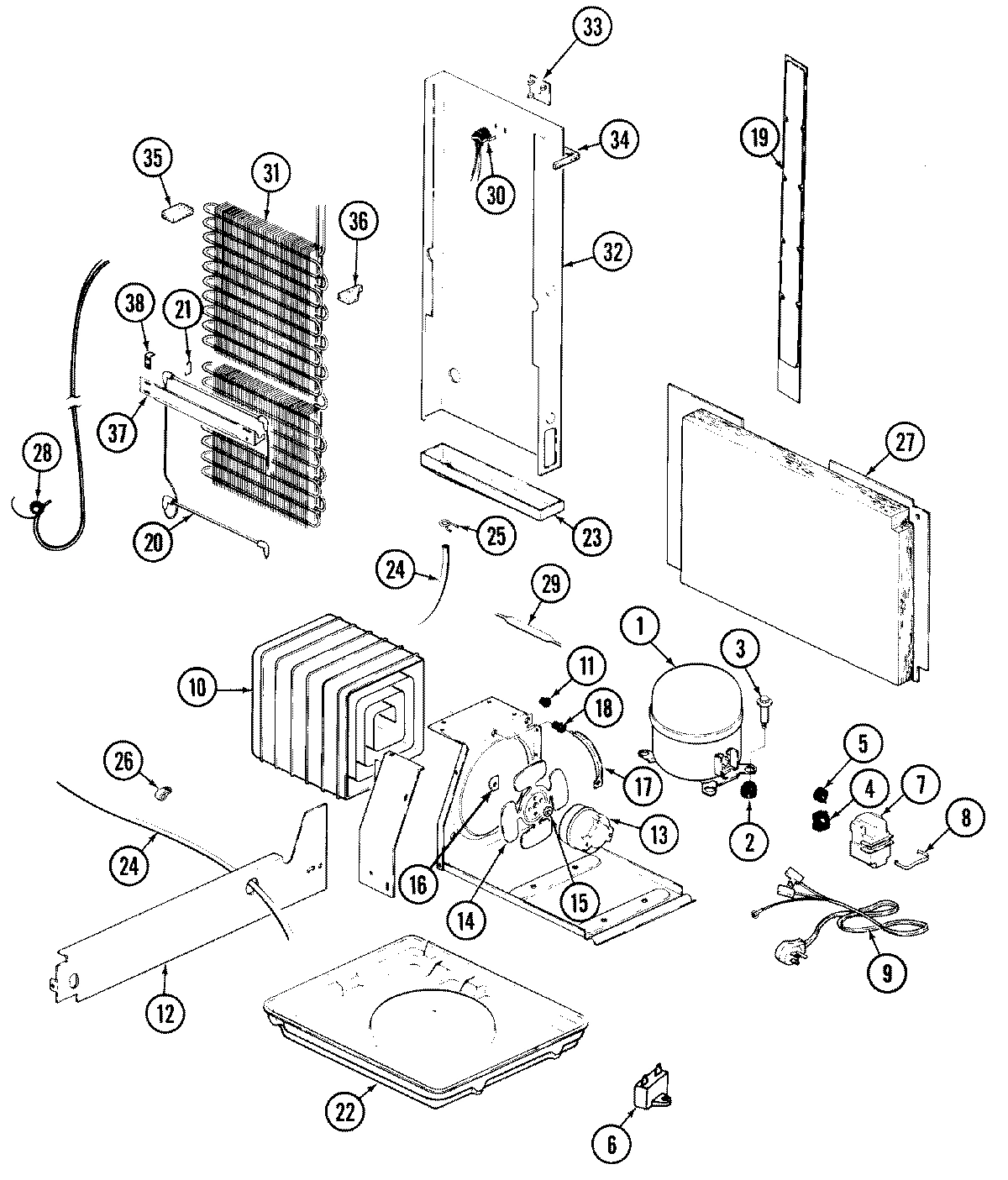

07 - UNIT COMPARTMENT & SYSTEM

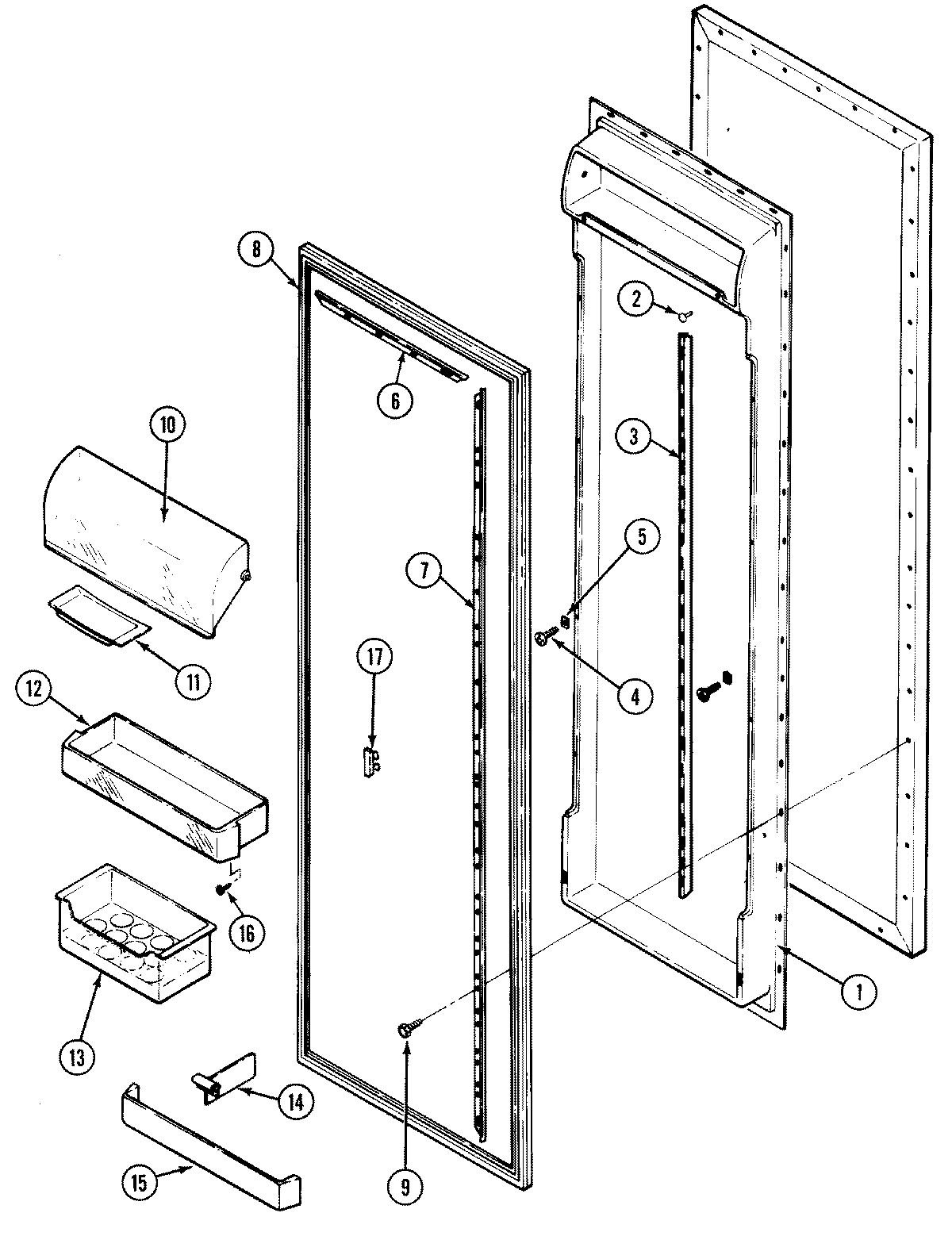

04 - FRESH FOOD INNER DOOR
Common parts from model Whirlpool RSD2000DAE REFRIGERATOR
1
SCREW WPL 40003728 Contact Us For Availability
1
CUP, SHELF WPL 674661 Contact Us For Availability
1
SHIELD, LIGHT WPL 671133 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
KIT, COMPRESSOR WPL 12000058 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
LINER, F.F. DOOR WPL 692391 Contact Us For Availability
2
GASKET WPL 700241 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
LIGHT HOUSING WPL 677511 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
3
RETAINER, GASKET WPL 699925 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 673087 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
RAIL, P O DOOR WPL 673161 Contact Us For Availability
4
FRAME, SHELF WPL 672731 Contact Us For Availability
4
FRAME, CANTILEVER WPL 672741 Contact Us For Availability
4
COVER, COIL (UPPER) WPL 672975 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665885 Contact Us For Availability
4
SCREW WPL 40002728 Contact Us For Availability
5
SHELF, CANT GLASS WPL 6726711 Contact Us For Availability
5
SHELF WPL 671146 Contact Us For Availability
5
SCREW WPL 4010241 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
OVERLOAD WPL 61001785 Contact Us For Availability
5
OVERLOAD WPL 691058 Contact Us For Availability
5
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
6
FRONT ASSY, PICKOFF WPL 698705 Contact Us For Availability
6
SLIDE, CONTROL WPL 670742 Contact Us For Availability
6
TRIM, SHELF WPL 701362 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CAPACITOR, RUN WPL 658896 Contact Us For Availability
6
CAPACITOR, RUN WPL 658898 Contact Us For Availability
6
RETAINER, GASKET WPL 699923 Contact Us For Availability
7
RETAINER, GASKET WPL 699921 Contact Us For Availability
7
SUPPORT, MEAT PAN WPL 6764911 Contact Us For Availability
7
CAP, CONNECTOR WPL 681871 Contact Us For Availability
7
BULB, LIGHT WPL 319561 Contact Us For Availability
7
TUBE, FILL WPL 676663 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
TRIM, MEAT PAN SUPPORT WPL 702812 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
KNOB, CONTROL WPL 671455 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
8
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
8
DUCT, AIR WPL 670613 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
GASKET WPL 700243 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
PAN, MEAT WPL 6992826 Contact Us For Availability
9
SEAL (44``) WPL 6632521 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
DOOR, DAIRY WPL 699181 Contact Us For Availability
11
SCREW WPL 652756 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
TUNNEL, AIR WPL 675264 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 673551 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability
12
SHELF, PICK-OFF WPL 698726 Contact Us For Availability
13
ACTUATOR WPL 6707210 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
SCREW WPL 4000531 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability
13
TRAY, EGG WPL 672152 Contact Us For Availability
14
SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
15
SEAL WPL 697791 Contact Us For Availability
15
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
KNOB, CONTROL WPL 671456 Contact Us For Availability
15
CLAMP WPL 5351612 Contact Us For Availability
15
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
15
FRONT, PICK-OFF WPL 698714 Contact Us For Availability
16
SHELF, LOWER WPL 678925 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
RIVET WPL 5992017 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
17
WASHER, SPRING WPL 420092900 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
17
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
17
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SCREW WPL 6527528 Contact Us For Availability
18
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
19
SHIELD, FAN WPL 672251 Contact Us For Availability
19
BULB, LIGHT WPL 201746 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
WIRE HARNESS, MAIN WPL 61001125 Contact Us For Availability
19
COVER, BACK WIRE WPL 670941 Contact Us For Availability
20
COVER, COIL LOWER WPL 673352 Contact Us For Availability
20
SHIELD, LIGHT WPL 672421 Contact Us For Availability
20
HEATER, DEFROST WPL 698481 Contact Us For Availability
21
PAN, CRISPER WPL 6992839 Contact Us For Availability
21
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
21
SCREW WPL 4050071 Contact Us For Availability
21
TIMER, DEFROST WPL 682333 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
22
PAN, CRISPER WPL 699285 Contact Us For Availability
22
SCREW WPL 40001536 Contact Us For Availability
22
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
22
CLIP, KICKPLATE WPL 702851 Contact Us For Availability
22
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
22
SCREW WPL 951061 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
23
TRIM, BASKET WPL 61001127 Contact Us For Availability
23
INSERT, LIGHT SHIELD WPL 674769 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
24
SHELF, UPPER----NA WPL 678913 Contact Us For Availability
24
PLUG, TUBE WPL 675933 Contact Us For Availability
24
TUBE, FILL WPL 676761 Contact Us For Availability
24
KICKPLATE W/CLIPS (WHT) WPL 702887 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
TRIM, CRISPER SHELF WPL 61001134 Contact Us For Availability
25
CLIP, STOP WPL 674882 Contact Us For Availability
25
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
26
SCREW WPL 6527534 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
LEG, LEVELING WPL 686642 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
27
SEAL, CRISPER WPL 697792 Contact Us For Availability
27
SCREW WPL 998645 Contact Us For Availability
27
SHELF, FRZ. (No.2,3,4,5) WPL 671787 Contact Us For Availability
27
SHELF, FRZ. WPL 671789 Contact Us For Availability
27
COVER, AIR RETURN WPL 699821 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 691391 Contact Us For Availability
28
SLIDE, CONTROL WPL 674912 Contact Us For Availability
28
SCREW WPL 6527519 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL 6501325 Contact Us For Availability
28
WIRE TIE WPL 662231 Contact Us For Availability
29
ROLLER WPL 674232 Contact Us For Availability
29
TRIM, SHELF WPL 61001133 Contact Us For Availability
29
RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability
29
SCREW WPL 6527542 Contact Us For Availability
30
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
30
BASKET, FRZ. WPL 693531 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
31
NUT WPL 431019511 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
31
EVAPORATOR WPL 5255121 Contact Us For Availability
32
TRIM, SHELF WPL 61001130 Contact Us For Availability
32
TRAY, ICE WPL 592812 Contact Us For Availability
32
SCREW WPL 652751 Contact Us For Availability
32
BRACKET, WHEEL WPL 678062 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
33
TRIM, SHELF WPL 61001131 Contact Us For Availability
33
TRIM, SHELF WPL 61001132 Contact Us For Availability
33
PAN, ICE WPL 699191 Contact Us For Availability
33
FACEPLATE, BRACKET WPL 702301 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
34
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
34
SCREW, WHEEL ADJUSTMENT WPL 61001126 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
35
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
35
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
ROLLER WHEEL WPL 671232 Contact Us For Availability
36
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
SPACE ROLLER WPL 671241 Contact Us For Availability
37
WHEEL ASSY. WPL 61001108 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
TUBE, DRAIN WPL 2652711 Contact Us For Availability
38
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
GROMMET WPL 525261 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001353 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1093881 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
× ![]()
Login and Registration Form
