Model Whirlpool RSCA207AAE REFRIGERATOR – Common Parts &amp; Diagrams

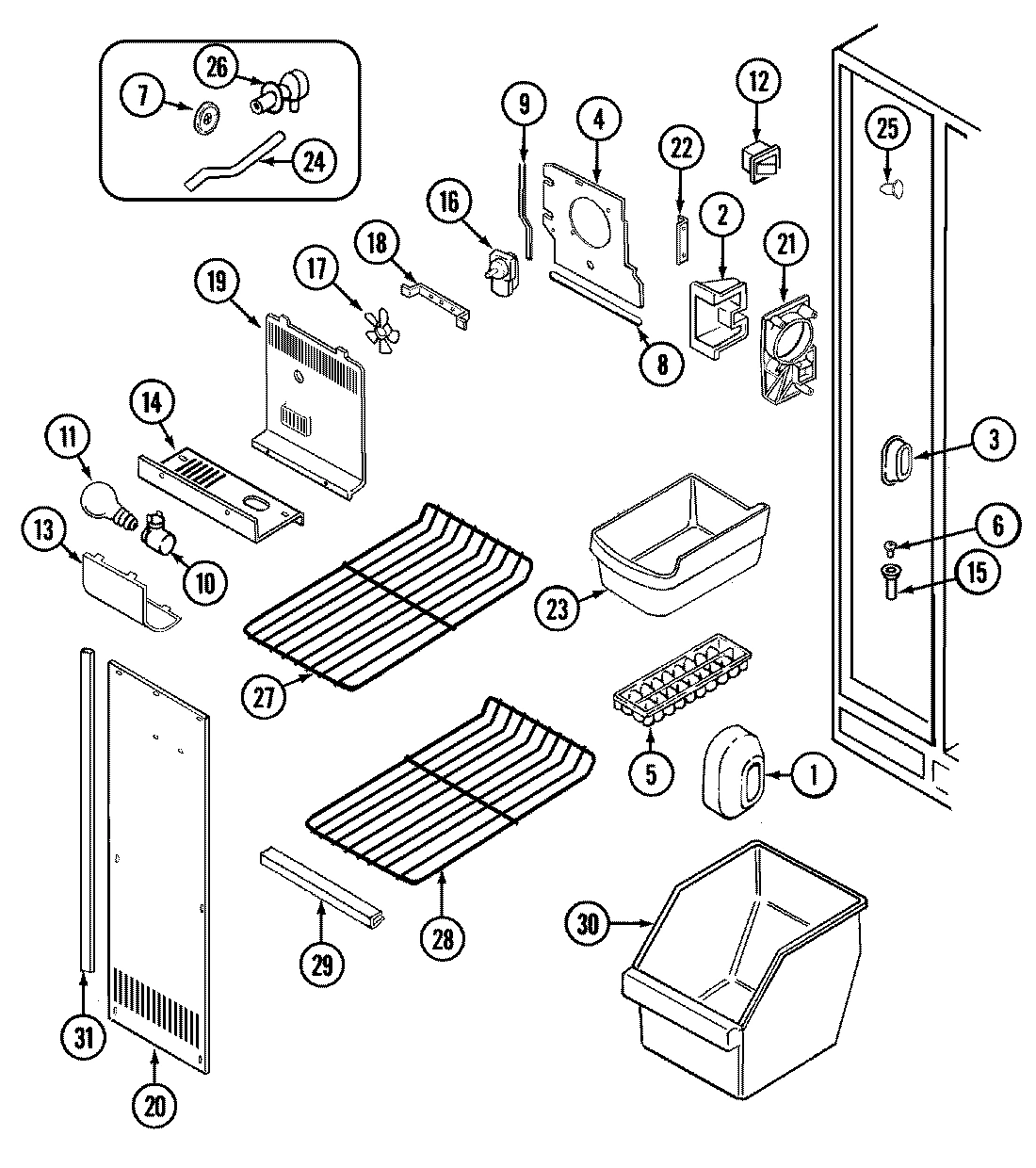

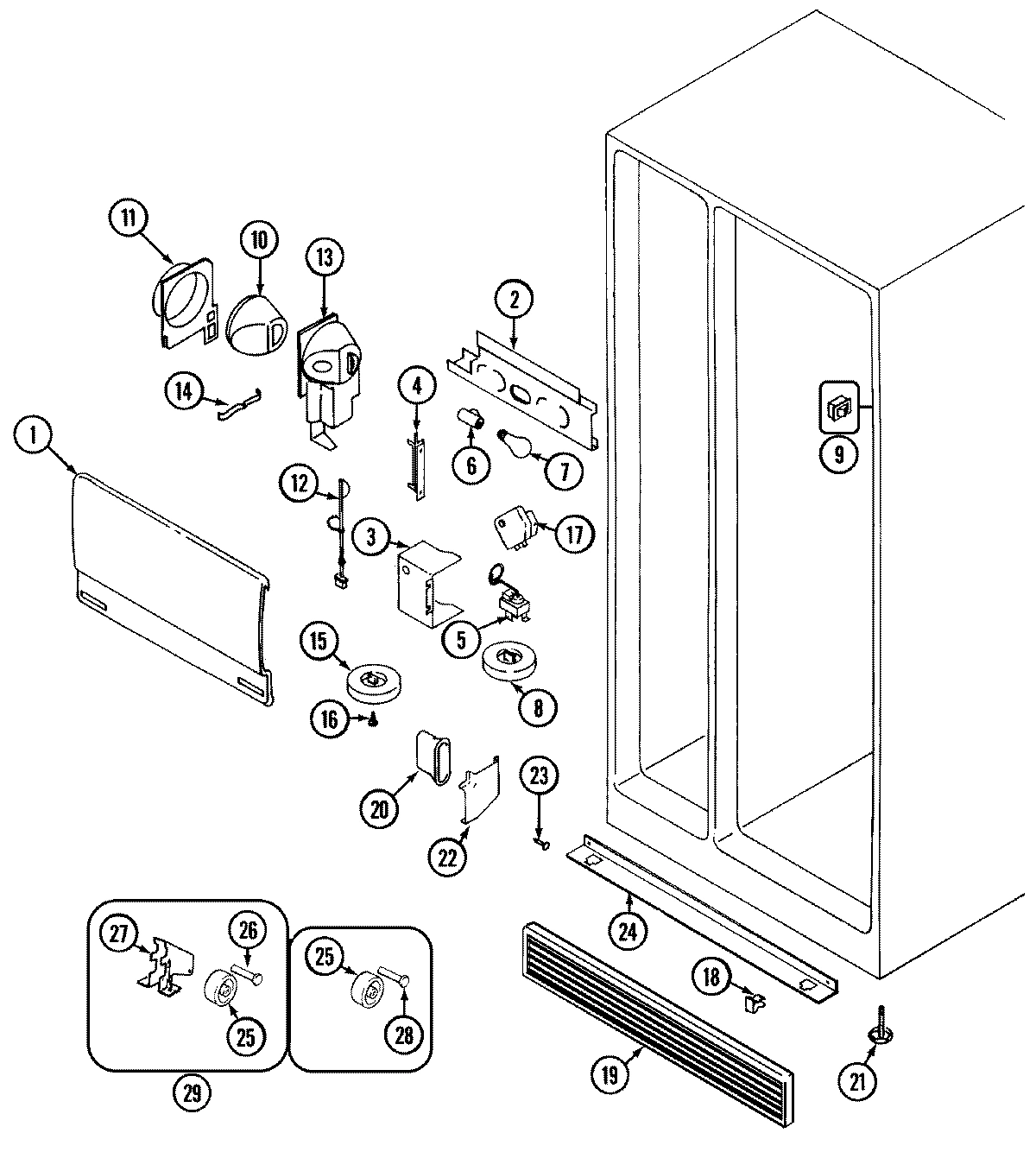

1

RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability

1

INSULATION, AIR RETURN WPL 678371 Contact Us For Availability

1

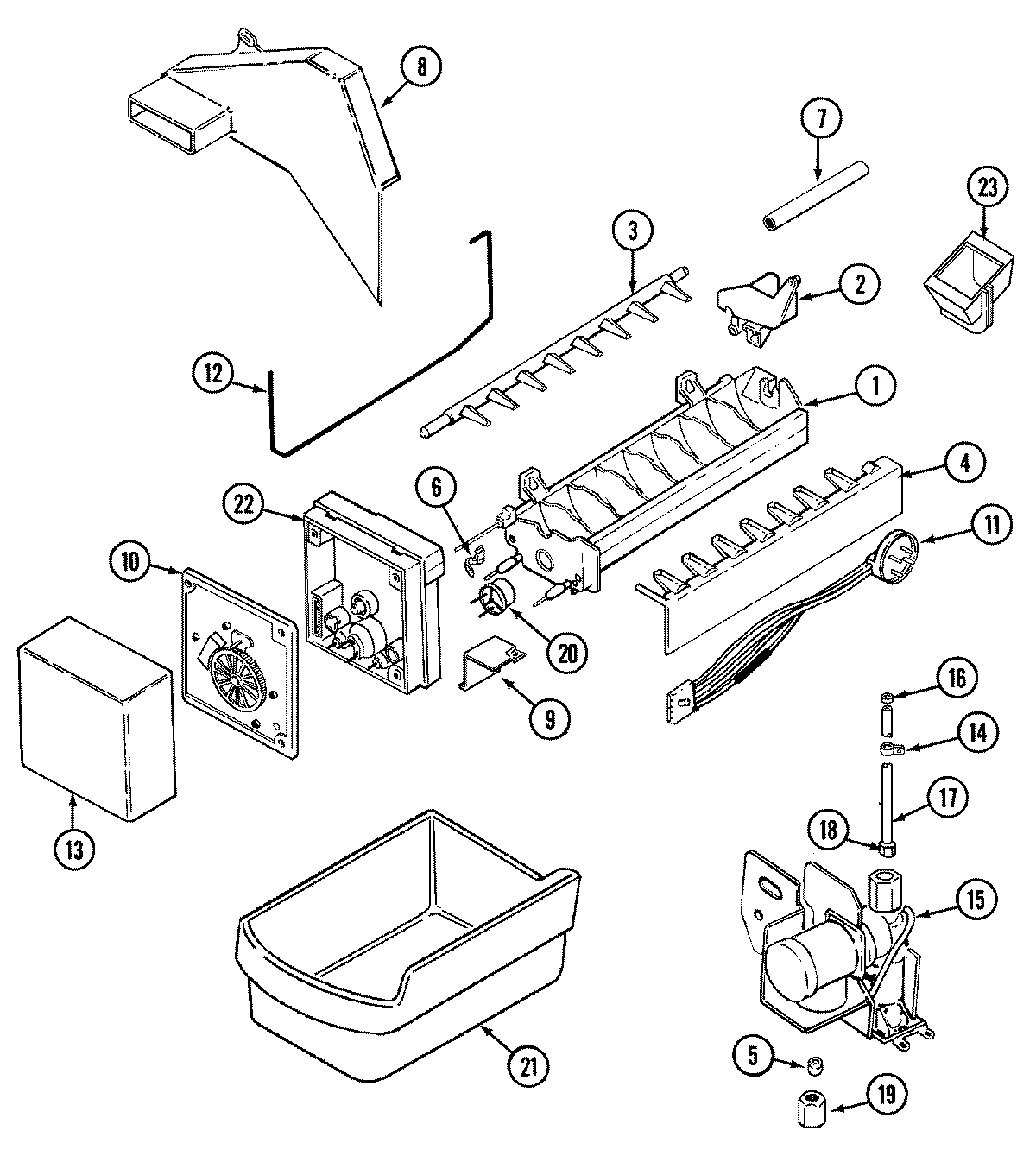

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

1

GREASE, SILICONE WPL 950991 Contact Us For Availability

1

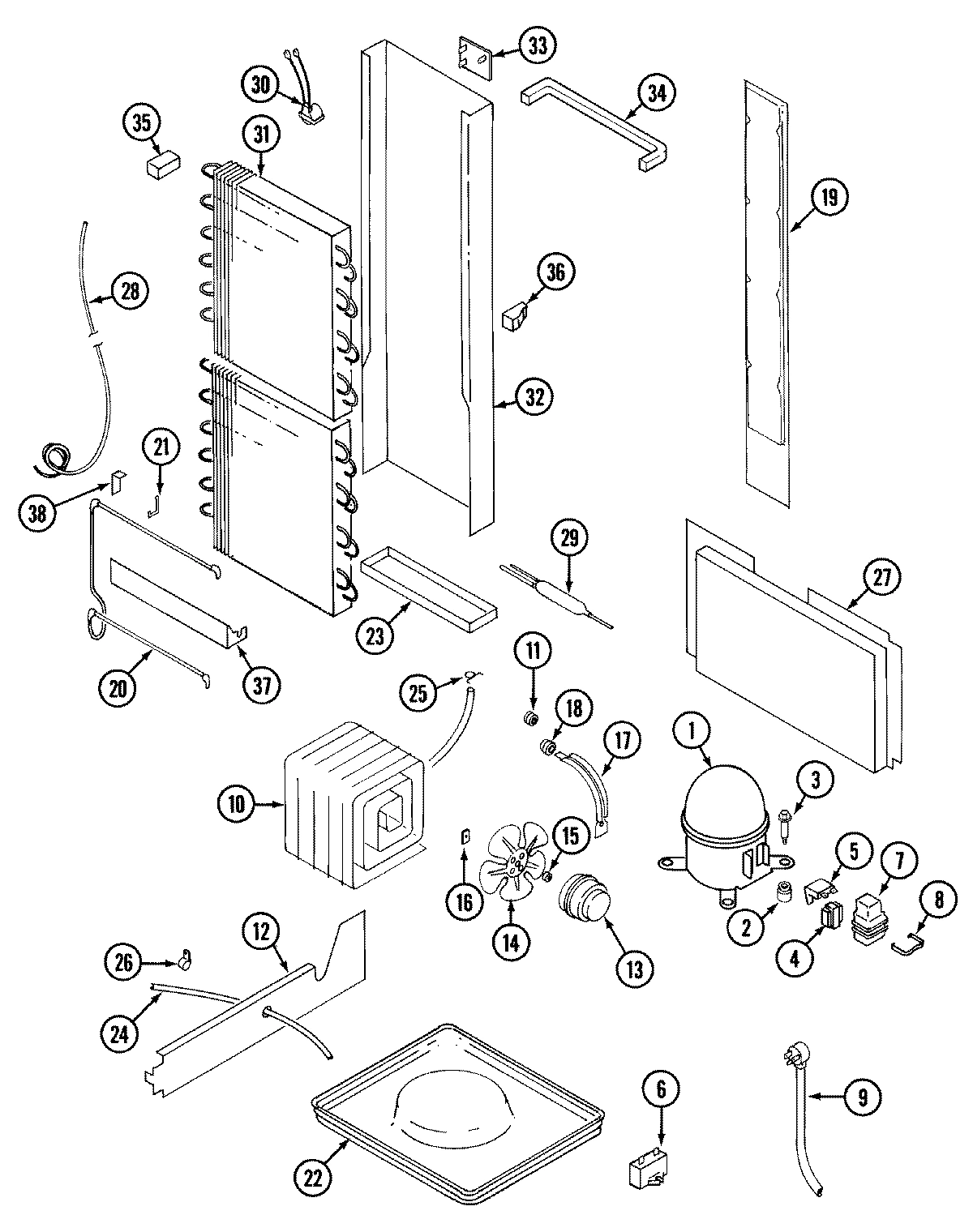

KIT, COMPRESSOR WPL 12000006 Contact Us For Availability

1

KIT, COMPRESSOR WPL 12000058 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61001017 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability

1

SHIELD, LIGHT REF WPL 691941 Contact Us For Availability

2

SEAL, MEAT PAN (REAR) WPL 656491 Contact Us For Availability

2

SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

HOUSING, LITE & WIRE WPL 691931 Contact Us For Availability

3

SHELF, WIRE WPL 701058 Contact Us For Availability

3

RETAINER, AIR RETURN WPL 700341 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability

3

HOUSING, TEMPERATURE CONTROL WPL 701781 Contact Us For Availability

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $90.53

4

SEAL, CRISPER PAN (REAR) WPL 681571 Contact Us For Availability

4

COVER, COIL (UPPER) WPL 672975 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

RELAY, START WPL 665885 Contact Us For Availability

4

RELAY, START WPL 688572 Contact Us For Availability

4

SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability

5

SHELF, CRISPER WPL 656875 Contact Us For Availability

5

TRAY, ICE WPL 592812 Contact Us For Availability

5

SLEEVE, BRASS WPL 694311 Contact Us For Availability

5

OVERLOAD WPL 61001785 Contact Us For Availability

5

OVERLOAD WPL 691053 Contact Us For Availability

5

OVERLOAD WPL 691058 Contact Us For Availability

5

SCREW WPL 4010241 Contact Us For Availability

5

CONTROL, TEMPERATURE WPL 61001481 Contact Us For Availability

6

TRIM WPL 666501 Contact Us For Availability

6

GROMMET WPL 525261 Contact Us For Availability

6

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

CAPACITOR, RUN WPL 658896 Contact Us For Availability

6

CAPACITOR, RUN WPL 658898 Contact Us For Availability

7

TRIM, SHELF WPL 701093 Contact Us For Availability

7

CAP, CONNECTOR WPL 681871 Contact Us For Availability

7

TUBE, FILL WPL 676668 Contact Us For Availability

7

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

7

COVER, TERMINAL WPL 665892 Contact Us For Availability

7

COVER, TERMINAL WPL 697541 Contact Us For Availability

7

BULB, LIGHT (60W) WPL 557712 Contact Us For Availability

8

PAN, CRISPER WPL 66636147 Contact Us For Availability

8

SEAL WPL 689464 Contact Us For Availability

8

DUCT, AIR WPL 701981 Contact Us For Availability

8

DUCT, AIR WPL 701982 Contact Us For Availability

8

DUCT, AIR WPL 701983 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability

8

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

8

KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability

9

PAN, MEAT WPL 66636144 Contact Us For Availability

9

SEAL (44``) WPL 6632521 Contact Us For Availability

9

SWITCH, LIGHT WPL 669871 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

CORD, POWER WPL 528903 Contact Us For Availability

COVER, MEAT PAN WPL 656083 Contact Us For Availability

SCREW WPL 4000211 Contact Us For Availability

ICEMAKER WPL 951091 Contact Us For Availability

SCREW WPL 4140011 Contact Us For Availability

U-NUT, CONDENSER WPL 604082 Contact Us For Availability

CONDENSER WPL 649981 Contact Us For Availability

INSULATION, HOUSING WPL 587671 Contact Us For Availability

SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability

BULB, LIGHT WPL 681231 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability

ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability

12

ARM, SENSOR WPL 681121 Contact Us For Availability

12

BAFFLE, AIR DIVIDER WPL 703621 Contact Us For Availability

12

BAFFLE, FREEZER CONTROL WPL 686102 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

SHIELD, LIGHT WPL 672921 Contact Us For Availability

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 684457 Contact Us For Availability

SCREW WPL 4000531 Contact Us For Availability

HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability

SUPPORT, LIGHT SHIELD WPL 673443 Contact Us For Availability

CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability

SPRING, BAFFLE WPL 526481 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $36.90

TUBE, DRAIN WPL 2652711 Contact Us For Availability

SCREW WPL 4010171 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

KNOB WPL 2989312 Contact Us For Availability

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $90.30

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

SCREW WPL 4030671 Contact Us For Availability

WIRE HARNESS FREEZER WPL 700391 Contact Us For Availability

CLAMP, SPRING WPL 603334 Contact Us For Availability

SCREW WPL 4000011 Contact Us For Availability

TUBE WPL 675796 No Longer Available

BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

CLIP, KICKPLATE WPL 601001 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

SHIELD, FAN WPL 672251 Contact Us For Availability

COVER WPL 663811 Contact Us For Availability

WIRE HARNESS, MAIN WPL 702671 Contact Us For Availability

KICKPLATE WPL 689817 Contact Us For Availability

SCREW WPL 40001536 Contact Us For Availability

COVER, COIL LOWER WPL 673352 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

HEATER, DEFROST WPL 698481 Contact Us For Availability

TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability

ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability

PAN, ICE WPL 683461 Contact Us For Availability

CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability

LEG, LEVELING WPL 686641 Contact Us For Availability

BRACKET, MOUNTING WPL 672881 Contact Us For Availability

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

SCREW WPL 951061 Contact Us For Availability

PAN, DRAIN WPL 682361 Contact Us For Availability

COVER, AIR RETURN WPL 699821 Contact Us For Availability

23

W10772617 Whirlpool Outer Tub Backorder WPL W10772617 $365.40

23

TROUGH, WATER INLET WPL 61001305 Contact Us For Availability

23

TROUGH, DRAIN WPL 535231 Contact Us For Availability

PLUG, TUBE WPL 675933 Contact Us For Availability

TUBE, FILL WPL 676761 Contact Us For Availability

HOSE, DRAIN WPL 2691118 Contact Us For Availability

RAIL, HORIZONTAL SUPPORT WPL 61001030 Contact Us For Availability

SCREW WPL 6527542 Contact Us For Availability

25

PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability

25

CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability

25

WHEEL WPL 698121 Contact Us For Availability

26

GROMMET WPL 692191 Contact Us For Availability

26

CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability

26

PIN, WHEEL WPL 649651 Contact Us For Availability

SCREW WPL 998645 Contact Us For Availability

SHELF, 1 WPL 6660337 Contact Us For Availability

COVER WPL 663393 Contact Us For Availability

SCREW WPL 4000621 Contact Us For Availability

BRACKET WPL 528461 Contact Us For Availability

SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability

COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability

HEAT EXCHANGER WPL 6501316 Contact Us For Availability

HEAT EXCHANGER WPL 6501325 Contact Us For Availability

PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability

29

TRIM, SHELF WPL 701371 Contact Us For Availability

29

DRIER WPL 139001 Contact Us For Availability

29

WHEEL ASSY. (FRONT) WPL 720191 Contact Us For Availability

30

DRAWER, FRZ. WPL 66636142 Contact Us For Availability

30

THERMOSTAT, WPL 5208529 Contact Us For Availability

31

CLIP WPL 693141 Contact Us For Availability

31

WPL 5255121 WPL 5255121 Contact Us For Availability

32

WPL 688341 WPL 688341 Contact Us For Availability

33

WPL 558781 WPL 558781 Contact Us For Availability

34

WPL 6632517 WPL 6632517 Contact Us For Availability

35

WPL 650631 WPL 650631 Contact Us For Availability

36

WPL 650641 WPL 650641 Contact Us For Availability

37

WPL 2991512 WPL 2991512 Contact Us For Availability

38

WPL 525611 WPL 525611 Contact Us For Availability

NI

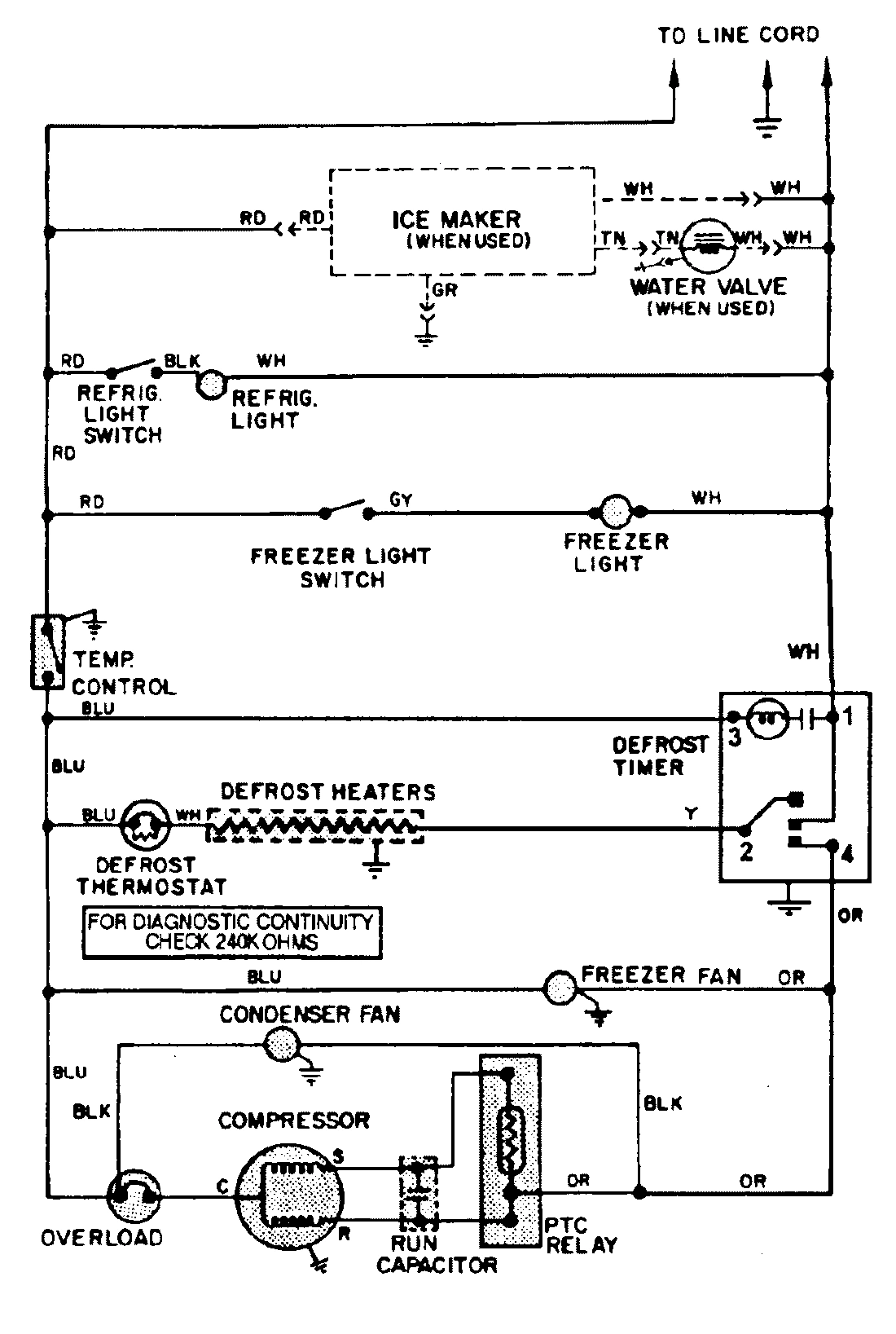

WIRING INFORMATION WPL 15001164 Contact Us For Availability

NI

WPL 1084293 WPL 1084293 Contact Us For Availability

NI

WPL 16002079 WPL 16002079 Contact Us For Availability
