Model Whirlpool RSC2000AAW REFRIGERATOR – Common Parts & Diagrams

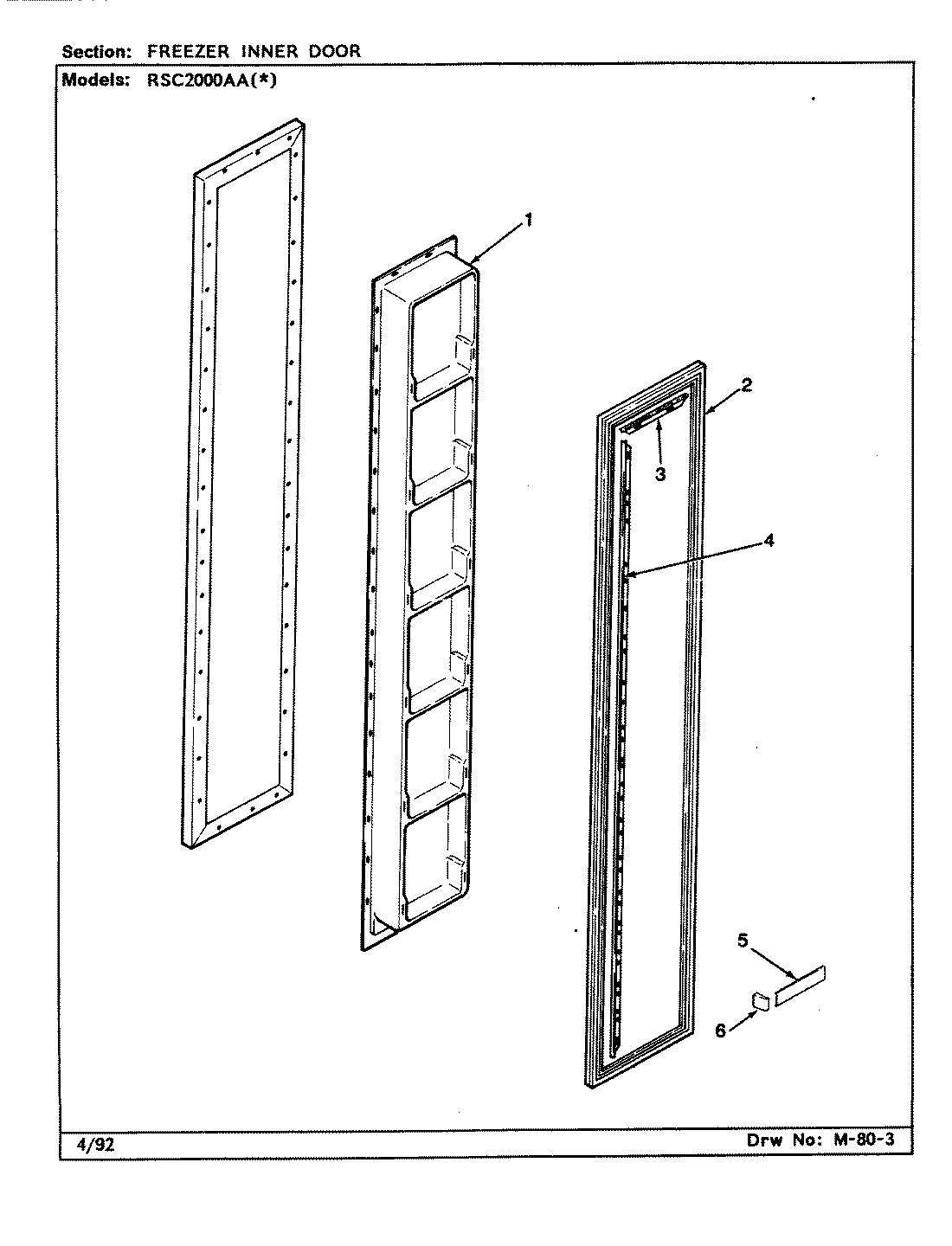

02 - FREEZER INNER DOOR

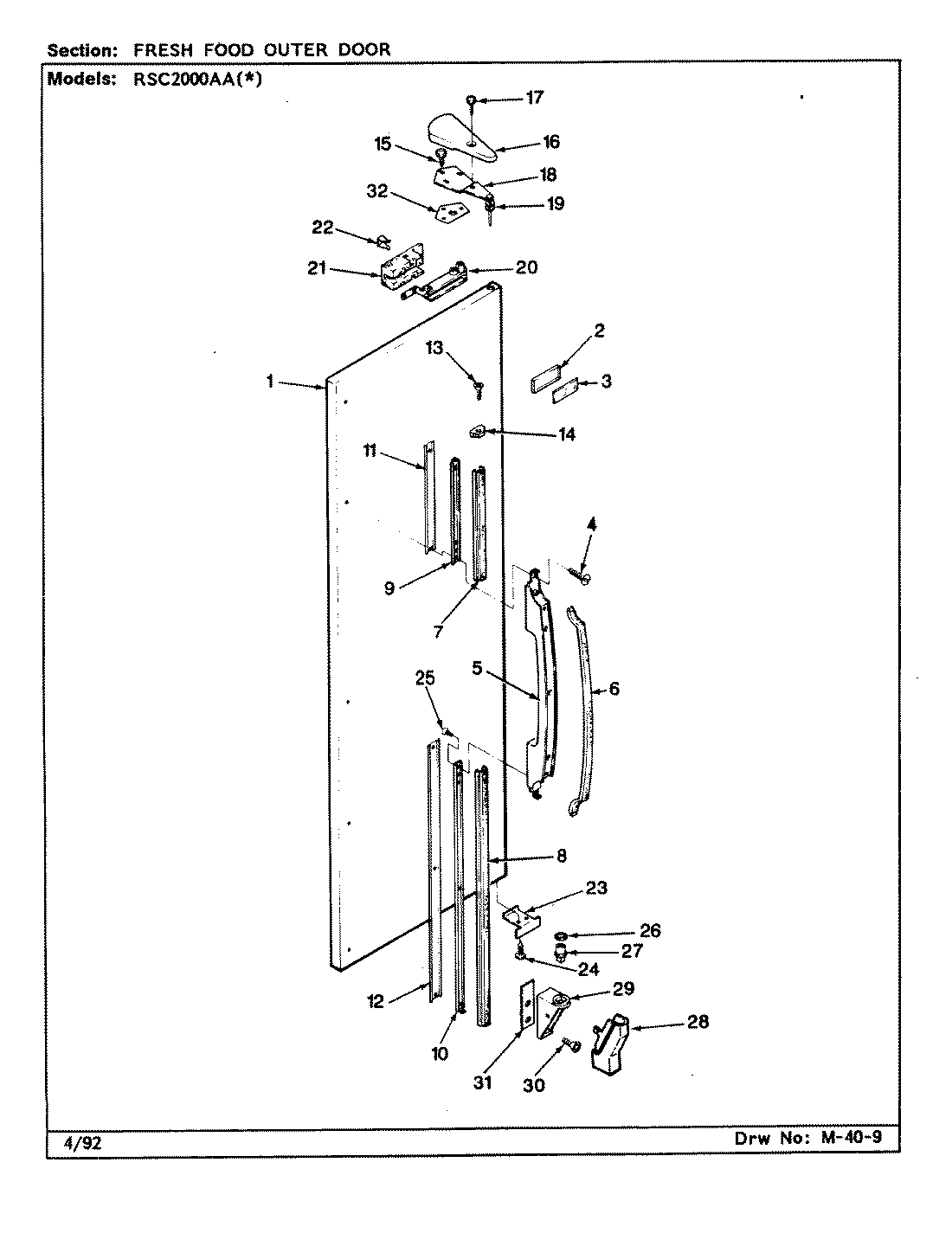

06 - FRESH FOOD OUTER DOOR

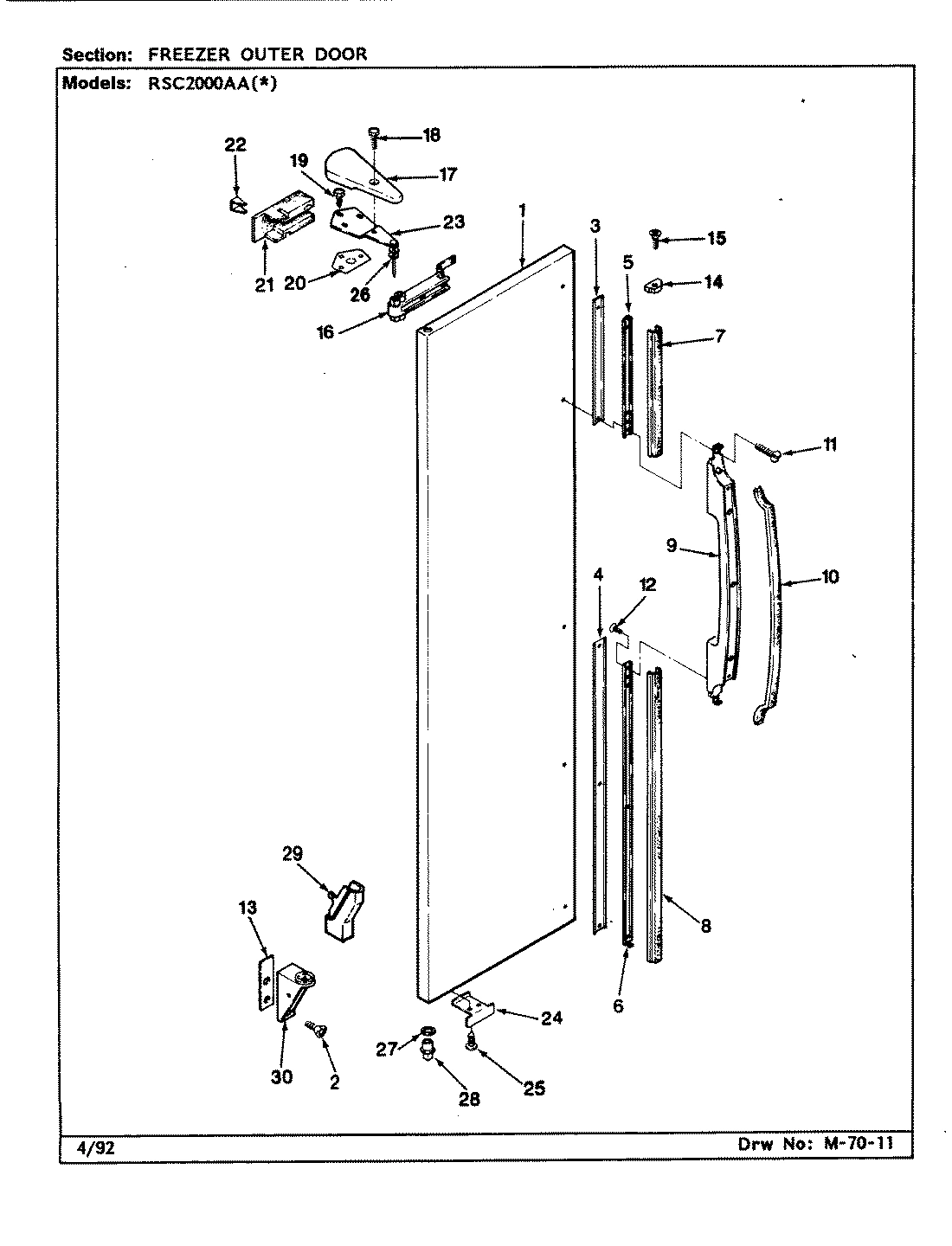

03 - FREEZER OUTER DOOR

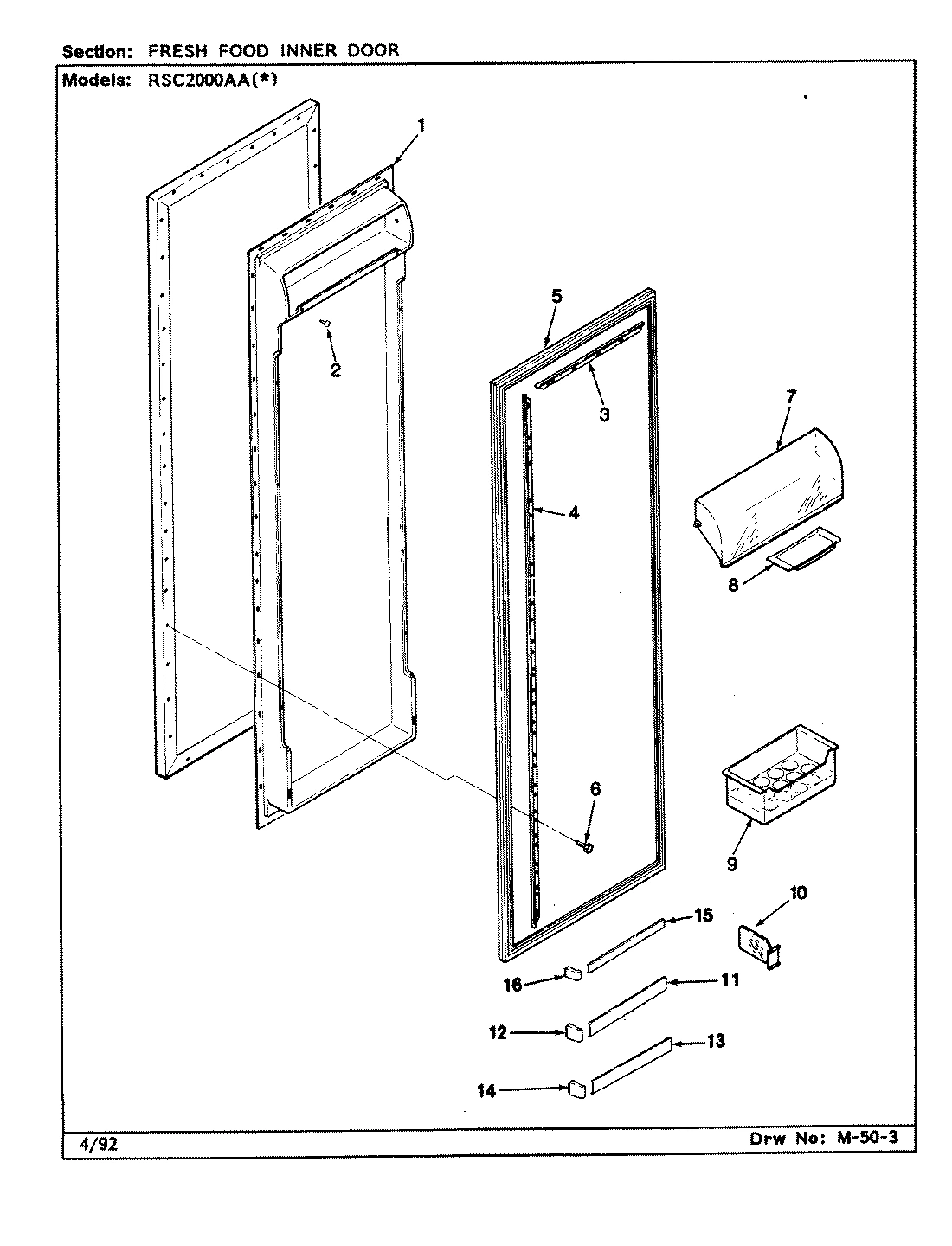

05 - FRESH FOOD INNER DOOR

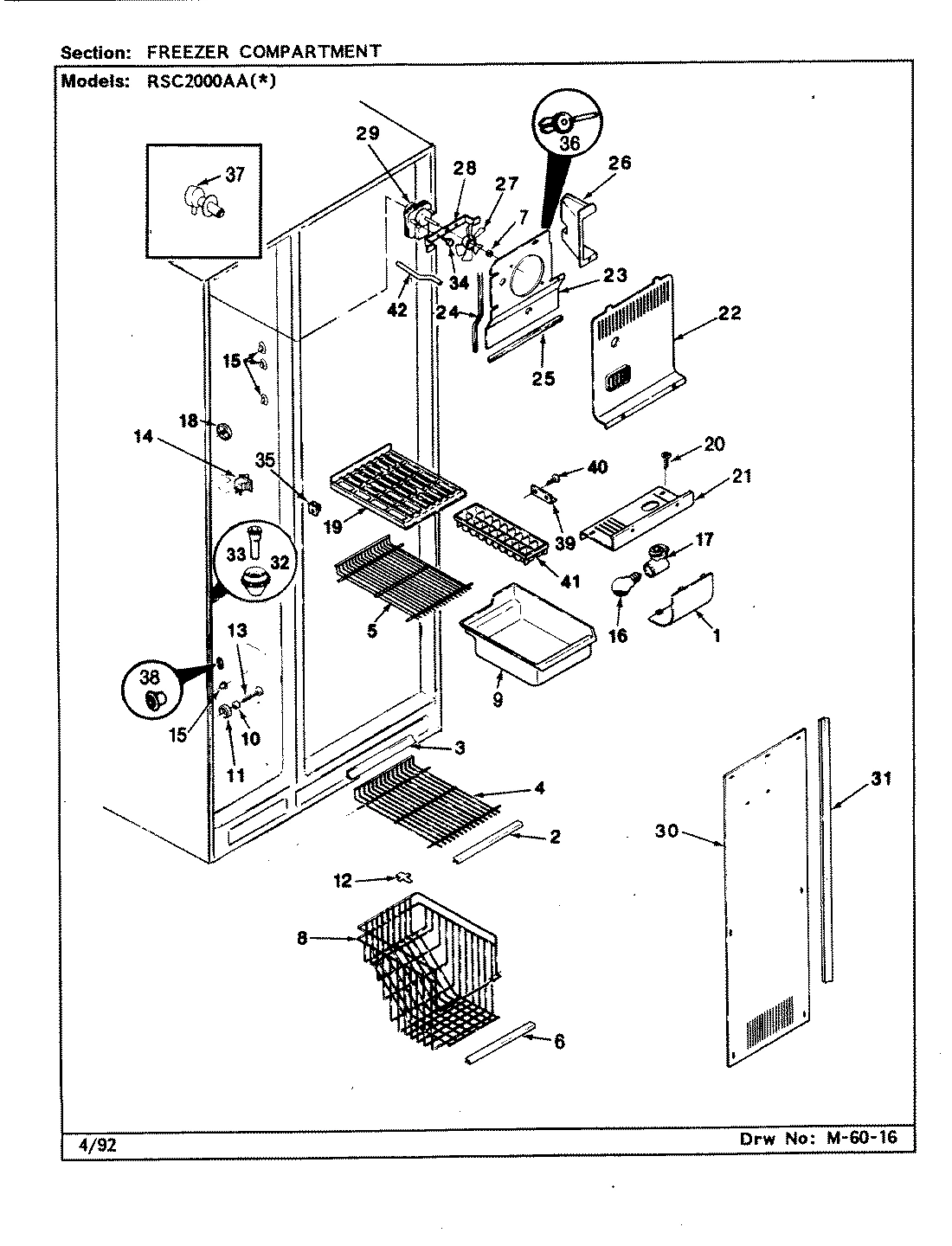

01 - FREEZER COMPARTMENT

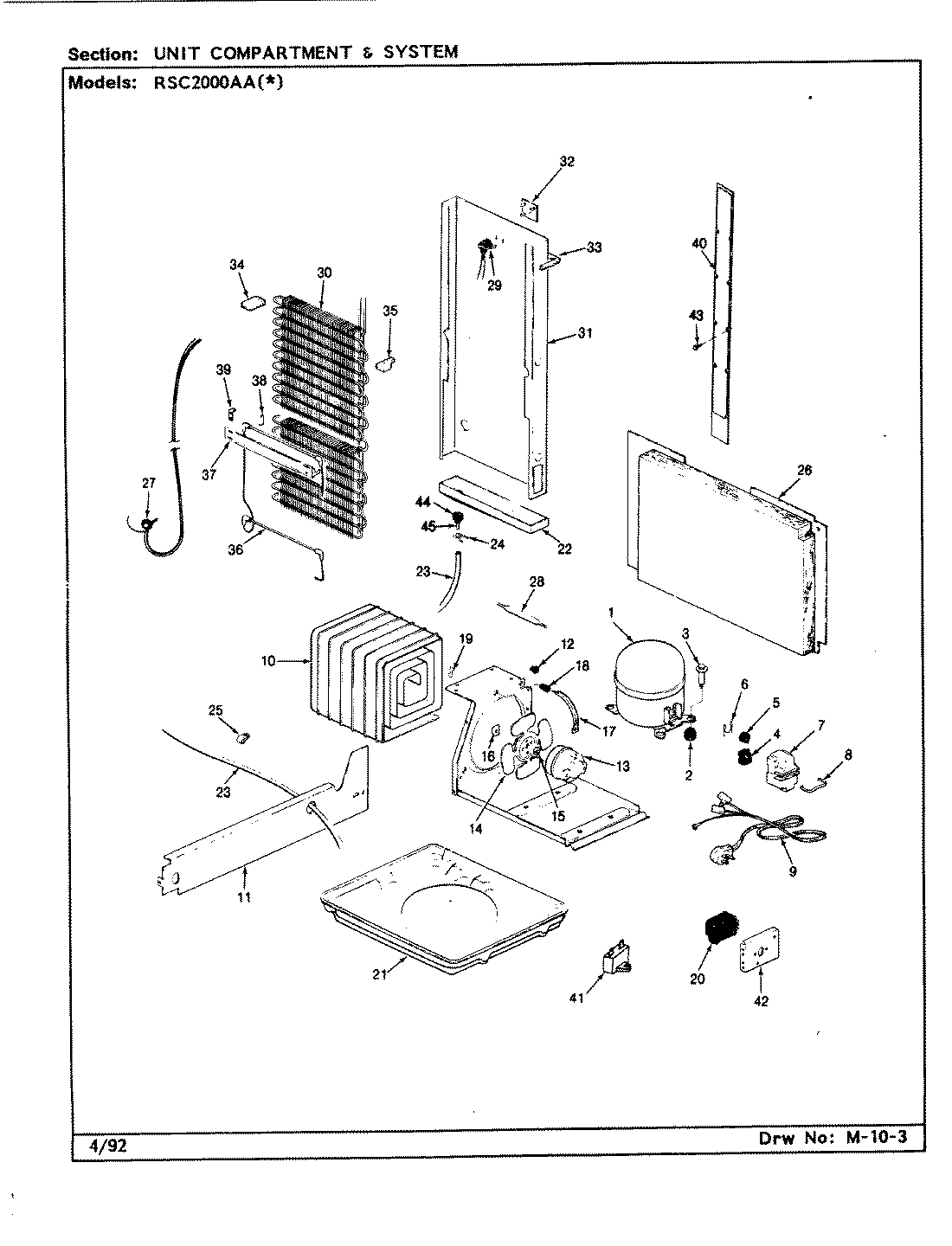

09 - UNIT COMPARTMENT & SYSTEM

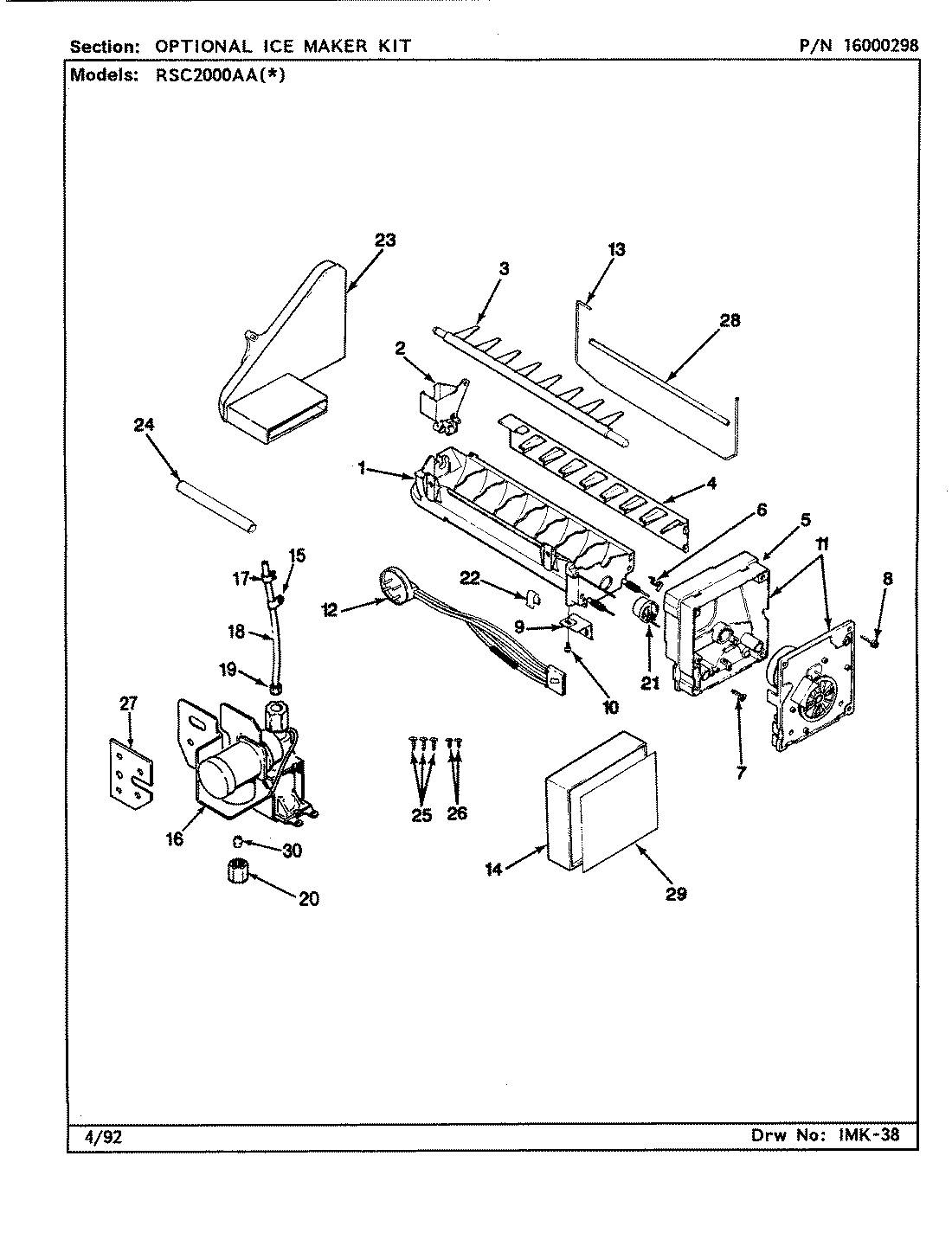

07 - OPTIONAL ICE MAKER KIT

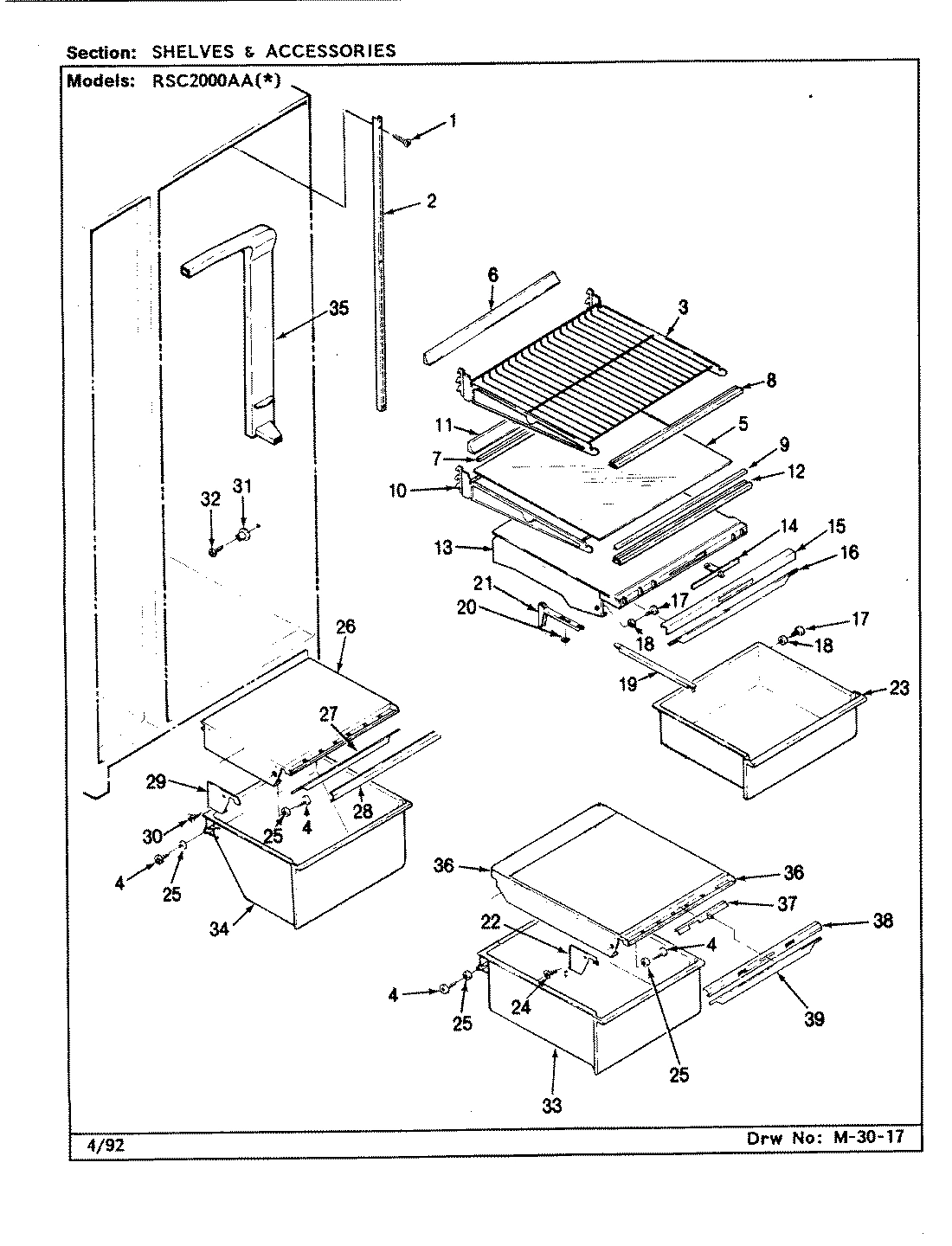

08 - SHELVES & ACCESSORIES

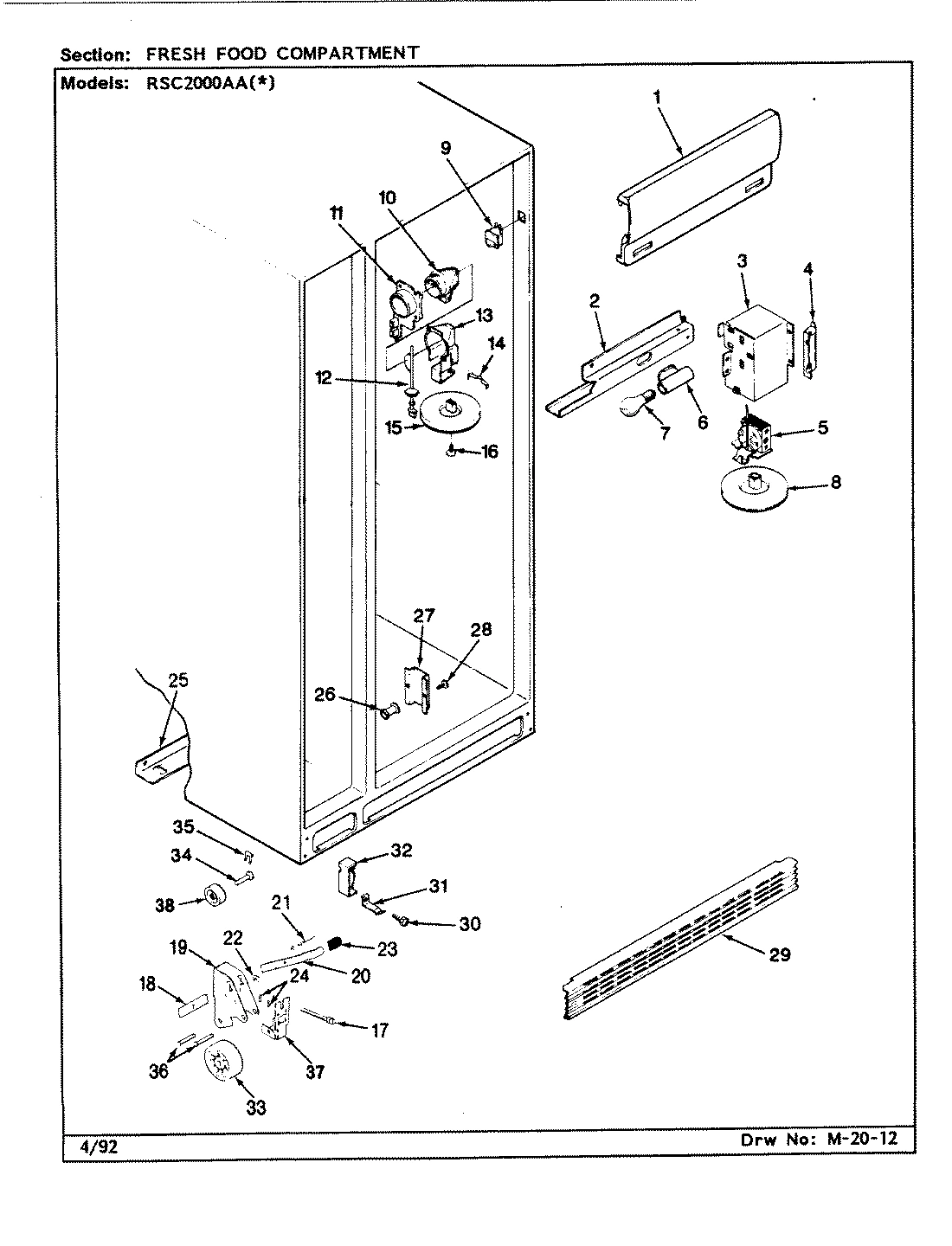

04 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RSC2000AAW REFRIGERATOR
1
LINER, DOOR WPL 670131 Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 7204113AM Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 7204113WW Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720419AM Contact Us For Availability
1
PANEL, OUTER DOOR WPL 720419WW Contact Us For Availability
1
LINER, DOOR WPL 670181 Contact Us For Availability
1
SHIELD, LIGHT WPL 672921 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
SHIELD, LIGHT WPL 671133 Contact Us For Availability
1
INSERT, LIGHT SHIELD WPL 674763 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 676702 Contact Us For Availability
2
BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability
2
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
2
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
TRIM, FRZ. SHELF FRONT WPL 671761 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
2
CLIP WPL 550422 Contact Us For Availability
2
LIGHT HOUSING WPL 671881 Contact Us For Availability
3
RETAINER, DOOR SEAL WPL 670325 Contact Us For Availability
3
INSERT, NAMEPLATE WPL 671941 Contact Us For Availability
3
SHIM, TRIM LOCK WPL 672996 Contact Us For Availability
3
RETAINER, DOOR SEAL WPL 670323 Contact Us For Availability
3
TRIM, FRZ. SHELF FRONT WPL 671771 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SHELF, CONTILEVER WPL 672721 Contact Us For Availability
3
HOUSING, TEMPERATURE CONTROL WPL 671261 Contact Us For Availability
4
RETAINER, DOOR SEAL WPL 670321 Contact Us For Availability
4
SHIM, TRIM LOCK WPL 672997 Contact Us For Availability
4
SHELF, FRZ. WPL 671781 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
SCREW WPL 6527534 Contact Us For Availability
4
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
4
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
5
TRIM, DOOR SHELF WPL 677189 Contact Us For Availability
5
BRACKET, HANDLE WPL 671563 Contact Us For Availability
5
GASKET, F.F. DOOR WPL 676701 Contact Us For Availability
5
SHELF, FRZ. WPL 671785 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
GLASS, CANTILEVER WPL 6726710 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696943 Contact Us For Availability
5
CONTROL, TEMPERATURE WPL 696946 Contact Us For Availability
6
ENDCAP SHELF TRIM, FREEZER LH WPL 672071 Contact Us For Availability
6
ENDCAP, SHELF TRIM FRZ. RH WPL 672091 Contact Us For Availability
6
BRACKET, HANDLE WPL 671564 Contact Us For Availability
6
SCREW WPL 652755 Contact Us For Availability
6
TRIM WPL 6717613 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
TRIM, CANTILEVER WPL 673094 Contact Us For Availability
6
SOCKET, LIGHT WPL 298131 Contact Us For Availability
7
TRIM, EXTENSION UPPER WPL 671556 Contact Us For Availability
7
TRIM, EXTENSION WPL 677026 Contact Us For Availability
7
DOOR, DAIRY WPL 670414 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
GASKET, SHELF REAR WPL 672664 Contact Us For Availability
8
TRIM, EXTENSION LOWER WPL 671557 Contact Us For Availability
8
TRIM EXTENSION WPL 677027 Contact Us For Availability
8
TRAY, BUTTER WPL 672161 Contact Us For Availability
8
BASKET, FRZ. WPL 693531 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
TRIM, CANTILEVER SHELF WPL 677834 Contact Us For Availability
8
KNOB, CONTROL WPL 671451 Contact Us For Availability
9
HANDLE, DOOR WPL 671511 Contact Us For Availability
9
SHIM, HANDLE WPL 673851 Contact Us For Availability
9
BRACKET, HANDLE UPPER WPL 671561 Contact Us For Availability
9
TRAY, EGG WPL 672151 Contact Us For Availability
9
PAN, ICE WPL 671401 Contact Us For Availability
9
SWITCH, LIGHT WPL 669871 Contact Us For Availability
9
CORD, POWER WPL 528903 Contact Us For Availability
9
CLAMP WPL 538101 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
GASKET, SHELF FRONT WPL 672654 Contact Us For Availability
10
SCREW WPL 6527544 Contact Us For Availability
10
INSERT, HANDLE (BLK) WPL 678821 Contact Us For Availability
10
BRACKET, HANDLE LOWER WPL 671562 Contact Us For Availability
10
ORGANIZER WPL 671951 Contact Us For Availability
10
ORGANIZER WPL 671952 Contact Us For Availability
10
ROLLER,WHEEL BASKET WPL 671231 Contact Us For Availability
10
SCREW WPL 4000621 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
FRAME, CANTILEVER WPL 672741 Contact Us For Availability
10
INSULATION, HOUSING WPL 587671 Contact Us For Availability
11
SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability
11
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 6771810 Contact Us For Availability
11
SPACE ROLLER WPL 671241 Contact Us For Availability
11
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
TRIM, CANTILEVER WPL 673096 Contact Us For Availability
11
ORIFICE, FRZ. CONTROL (INLET) WPL 673511 Contact Us For Availability
12
SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability
12
ENDCAP, SHELF TRIM WPL 672081 Contact Us For Availability
12
ENDCAP, SHELF TRIM F.F. RH WPL 672122 Contact Us For Availability
12
CLIP, STOP WPL 674882 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
TRIM, CANTILEVER SHELF WPL 677836 Contact Us For Availability
12
DAMPER, FRZ. CONTROL WPL 676091 Contact Us For Availability
13
SCREW WPL 4140041 Contact Us For Availability
13
SCREW WPL 6527559 Contact Us For Availability
13
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
13
SHIM WPL 690311 Contact Us For Availability
13
TRIM WPL 6771815 Contact Us For Availability
13
SCREW WPL 6527519 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675608 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
MEAT KEEPER RAIL WPL 676491 Contact Us For Availability
13
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
14
ENDCAP, HANDLE WPL 673803 Contact Us For Availability
14
ENDCAP, SHELF TRIM F.F. LH WPL 672082 Contact Us For Availability
14
ENDCAP, SHELF TRIM F.F. RH WPL 672123 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
14
SPRING, BAFFLE WPL 526481 Contact Us For Availability
15
SCREW, HANDLE END CAP WPL 4140047 Contact Us For Availability
15
TRIM WPL 6771819 Contact Us For Availability
15
CUP, SHELF WPL 674661 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability
15
KNOB, CONTROL WPL 671452 Contact Us For Availability
16
DOOR CLOSURE WPL 544852 Contact Us For Availability
16
ENDCAP, SHELF TRIM (SAND BEIGE WPL 672131 Contact Us For Availability
16
ENDCAP, SHELF REF RH WPL 676081 Contact Us For Availability
16
BULB, LIGHT WPL 319561 Contact Us For Availability
16
CLIP WPL 199140 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
16
SCREW WPL 4000011 Contact Us For Availability
17
COVER, UPPER HINGE (ALM) WPL 695183 Contact Us For Availability
17
COVER, UPPER HINGE (WHT) WPL 695184 Contact Us For Availability
17
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
SCREW WPL 652756 Contact Us For Availability
17
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SCREW, HINGE COVER WPL 4030601 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
19
SCREW WPL 998687 Contact Us For Availability
19
CUP, SHELF WPL 603131 Contact Us For Availability
19
SHELF, ICE TRAY WPL 671143 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
LINKAGE, MEAT KEEPER WPL 670732 Contact Us For Availability
19
BRACKET, WHEEL WPL 678061 Contact Us For Availability
20
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
SCREW, SUPPORT BRACKET WPL 40001412 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 695434 Contact Us For Availability
20
NUT WPL 431019511 Contact Us For Availability
20
LEVER, WHEEL LOCK WPL 672321 Contact Us For Availability
21
INSULATION, CLOSER WPL 526131 Contact Us For Availability
21
INSULATION DOOR WPL 676451 Contact Us For Availability
21
SUPPORT, LIGHT SHIELD WPL 673441 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
ACTUATOR WPL 670724 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
BRACKET, CLOSER WPL 526141 Contact Us For Availability
22
SEAL,FAN SHIELD WPL 6632522 Contact Us For Availability
22
SHIELD, FAN WPL 672251 Contact Us For Availability
22
RIVET WPL 440015300 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
LOCKWASHER WPL 420003905 Contact Us For Availability
23
HINGE, UPPER WPL 5370922 Contact Us For Availability
23
COVER, COIL WPL 672973 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
PAN, MEAT WPL 676504 Contact Us For Availability
23
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
24
STOP, DOOR WPL 690221 Contact Us For Availability
24
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
25
SCREW WPL 6527548 Contact Us For Availability
25
CLIP, HANDLE WPL 673861 Contact Us For Availability
25
SEAL (44``) WPL 6632521 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
25
SCREW WPL 6527542 Contact Us For Availability
25
SUPPORT RAIL WPL 672551 Contact Us For Availability
26
WASHER WPL 521851 Contact Us For Availability
26
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
26
SCREW WPL 998645 Contact Us For Availability
26
COVER, UNIT COMPARTMENT WPL 691391 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
SHELF, CRISPER WPL 678921 Contact Us For Availability
26
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
26
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
27
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
27
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA950903 Contact Us For Availability
27
SCREW WPL 406026103 Contact Us For Availability
27
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
27
AIR DEFLECTOR WPL 621281 Contact Us For Availability
28
PIN, HINGE WPL 689771 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
TRIM WPL 672046 Contact Us For Availability
29
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
29
MOTOR, EVAPORATOR FAN WPL 695031 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
29
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
29
GRILL, KICKPLATE WPL 670232 Contact Us For Availability
30
HINGE, LOWER WPL 689752 Contact Us For Availability
30
SCREW WPL 40001512 Contact Us For Availability
30
COVER, COIL LOWER WPL 673355 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
30
SLEEVE, BRASS WPL 694311 Contact Us For Availability
30
SCREW WPL 6527528 Contact Us For Availability
31
CLIP WPL 693141 Contact Us For Availability
31
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
31
SUPPORT, CRISPER WPL 671621 Contact Us For Availability
31
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
SCREW WPL 40002612 Contact Us For Availability
32
END CAP (R) WPL 678541 Contact Us For Availability
32
END CAP (L) WPL 678542 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
33
SEAL AIR RETURN WPL 676931 Contact Us For Availability
33
MEAT PAN ASSY. WPL 6765010 Contact Us For Availability
33
WHEEL FRONT WPL 674551 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
PAN, CRISPER WPL 6765012 Contact Us For Availability
34
AXLE WPL 625802 Contact Us For Availability
35
SUPPORT ICE SHELF WPL 671431 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
TUNNEL, AIR WPL 675262 Contact Us For Availability
35
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
36
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
SHELF, CRISPER WPL 678931 Contact Us For Availability
36
AXLE WHEEL WPL 675291 Contact Us For Availability
37
GROMMET, WATER ENTRY WPL 683072 Contact Us For Availability
37
SCREW WPL 4000171 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
37
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
37
FACEPLATE, BRACKET WPL 672801 Contact Us For Availability
38
RETAINER WPL 676851 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
TRIM, CRISPER WPL 672041 Contact Us For Availability
38
WHEEL, ROLLER WPL 674552 Contact Us For Availability
39
BRACKET, MOUNTING WPL 672881 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
SEAL WPL 677314 Contact Us For Availability
40
SCREW WPL 4000261 Contact Us For Availability
40
COVER, BACK WIRE WPL 670941 Contact Us For Availability
40
WIRE HARNESS, MAIN WPL 678701 Contact Us For Availability
41
TRAY, ICE WPL 592815 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
42
PLUG BUTTON WPL 675571 Contact Us For Availability
42
PLUG, TUBE WPL 675933 Contact Us For Availability
42
TUBE, FILL WPL 676761 Contact Us For Availability
42
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
44
GROMMET WPL 525261 Contact Us For Availability
45
DRAIN TUBE WPL 265279 Contact Us For Availability
× ![]()
Login and Registration Form
