Model Whirlpool RS386PXBB0 – Common Parts & Diagrams

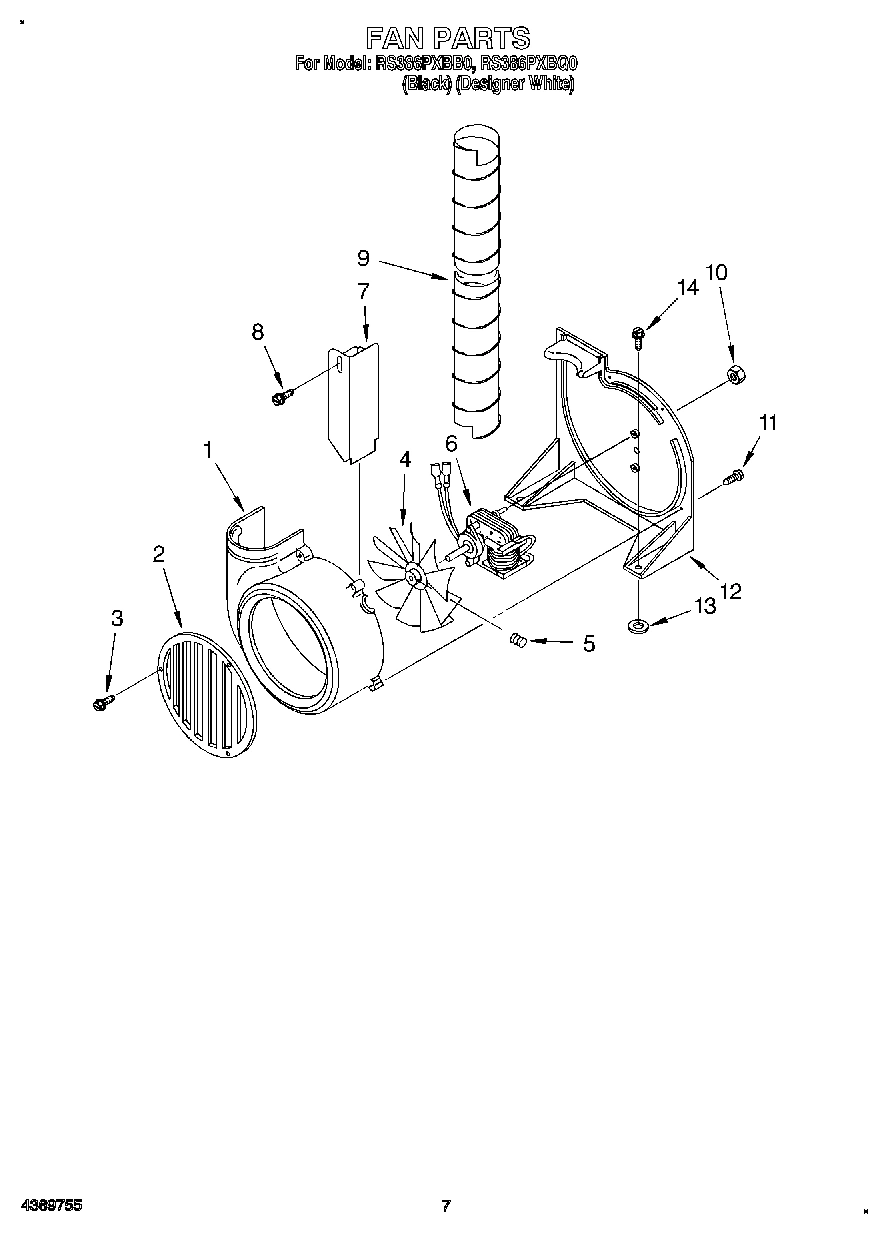

06 - FAN, LITERATURE

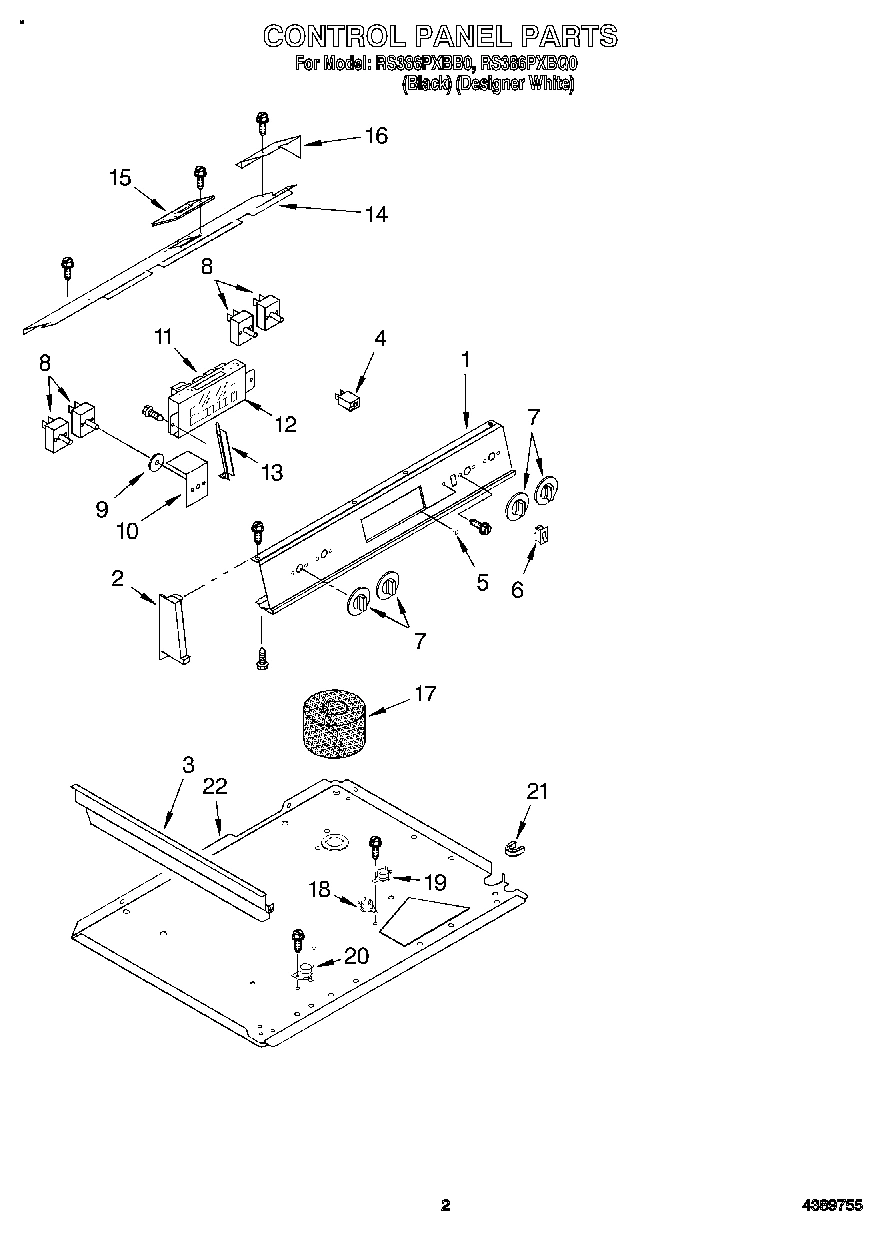

02 - CONTROL PANEL

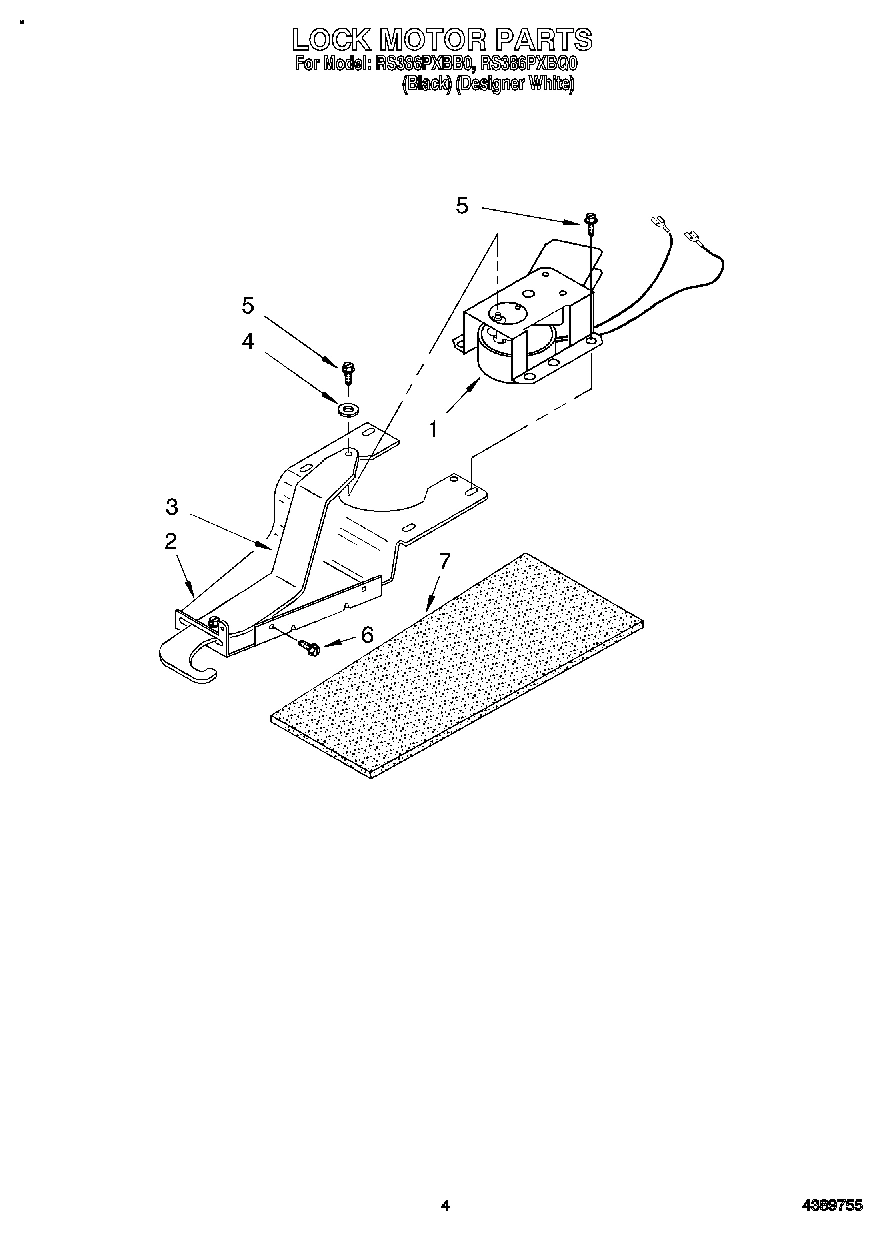

04 - LOCK MOTOR

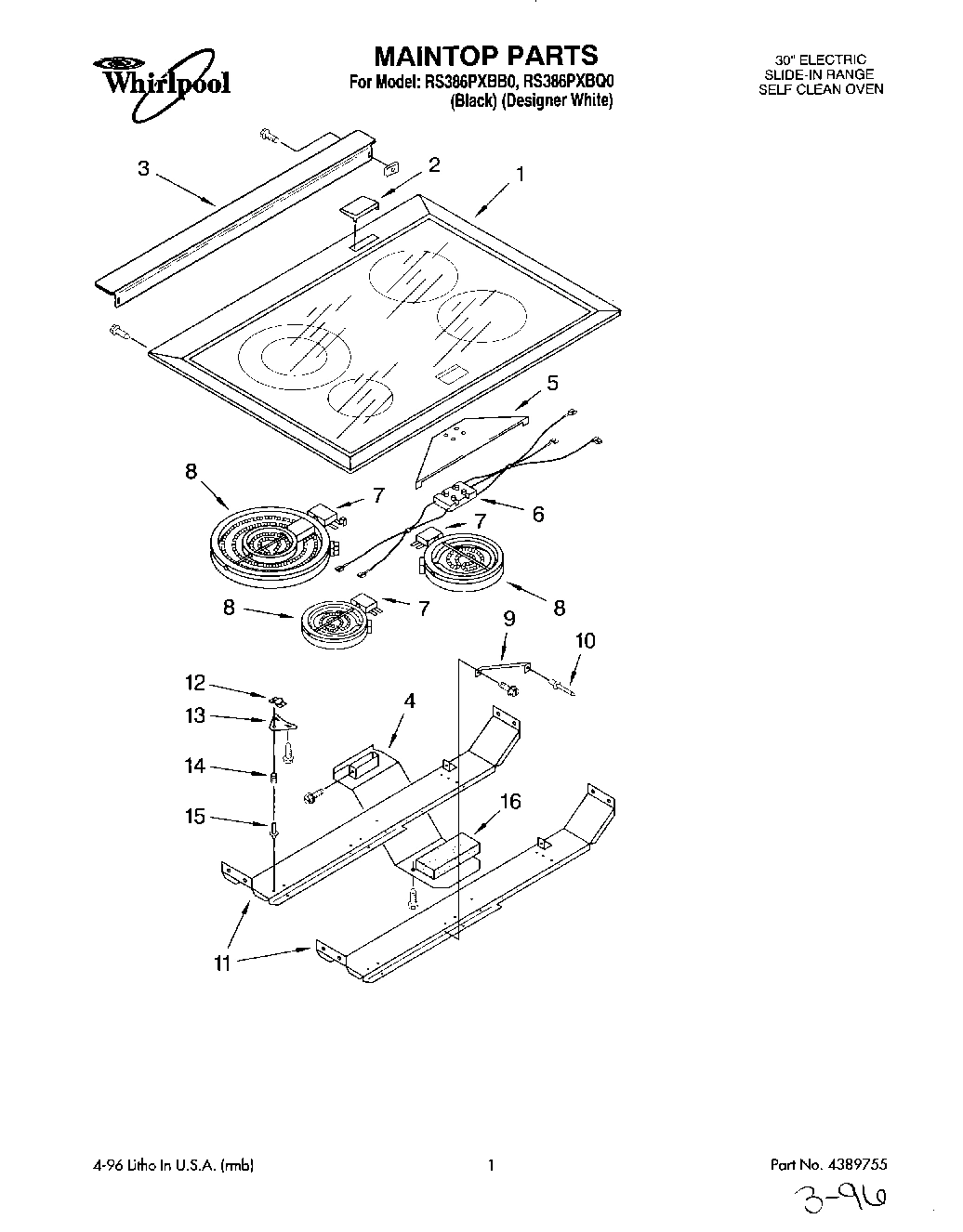

01 - MAINTOP

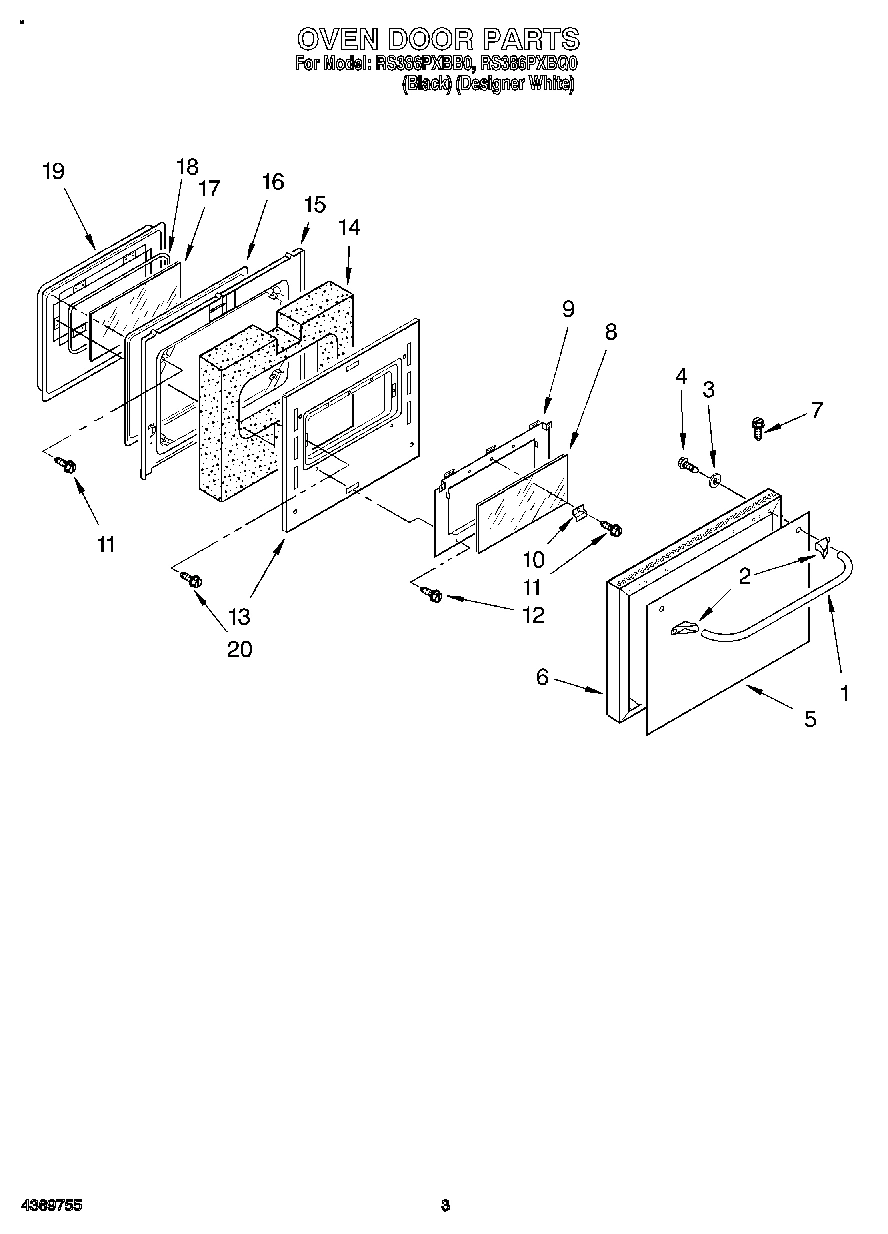

03 - OVEN DOOR

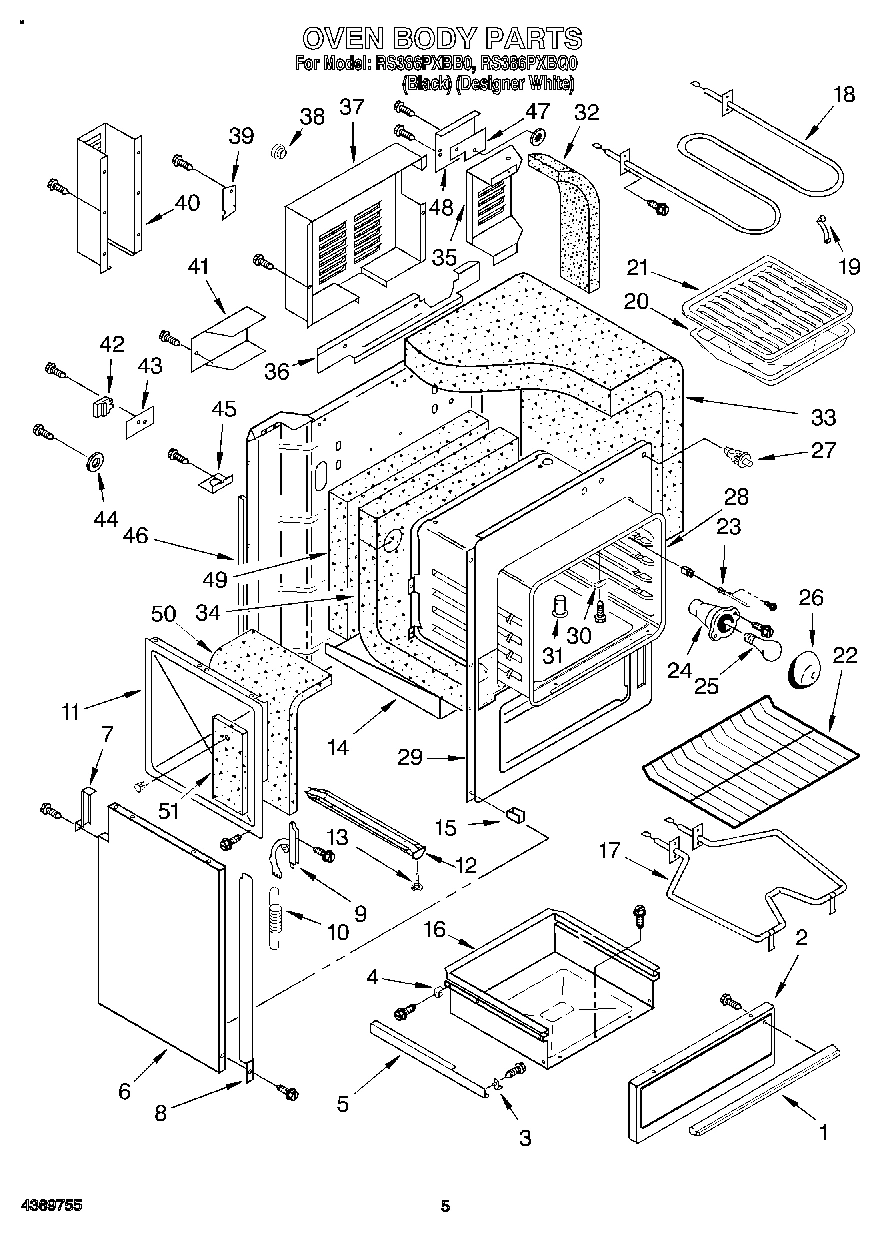

05 - OVEN BODY
Common parts from model Whirlpool RS386PXBB0
Tech Sheet WPL LIT4389357 Contact Us For Availability
Use & Care Guide WPL LIT4389358 Contact Us For Availability
1
Housing, Fan WPL 4389643 Contact Us For Availability
1
Panel, Control (Black) WPL 4389668 Contact Us For Availability
1
Panel, Control (White) WPL 4389669 Contact Us For Availability
1
Panel, Control (Screw) WPL 4389712 Contact Us For Availability
1
Motor, Lock WPL 4389419 Contact Us For Availability
1
Cooktop (Black) WPL 4389676 Contact Us For Availability
1
Cooktop (White) WPL 4389677 Contact Us For Availability
1
Handle, Oven Door (Black) WPL 4389412 Contact Us For Availability
1
Handle, Oven Door (White) WPL 4389413 Contact Us For Availability
1
Handle, Drawer (Black) WPL 4389621 Contact Us For Availability
1
Handle, Drawer (White) WPL 4389665 Contact Us For Availability
2
Grill, Fan WPL 4389645 Contact Us For Availability
2
Endcap (R.H. Black) WPL 4389360 Contact Us For Availability
2
Endcap (L.H. White) WPL 4389361 Contact Us For Availability
2
Endcap (R.H. White) WPL 4389362 Contact Us For Availability
2
Endcap (L.H. Black) WPL 4389411 Contact Us For Availability
2
Plate, Door Lock WPL 4389607 Contact Us For Availability
2
Trim, Vent (Black) WPL 4389703 Contact Us For Availability
2
Trim, Vent (White) WPL 4389754 Contact Us For Availability
2
Endcap, Handle (Black) WPL 4389521 Contact Us For Availability
2
Endcap, Handle (White) WPL 4389522 Contact Us For Availability
2
Panel, Drawer (Black) WPL 4389619 Contact Us For Availability
2
Panel, Drawer (White) WPL 4389620 Contact Us For Availability
3
Extension, Side WPL 4389364 Contact Us For Availability
3
Lever, Lock WPL 4389608 Contact Us For Availability
3
Filler, Backsplash WPL 4389376 Contact Us For Availability
3
Nut, Speed (2) WPL 4389560 Contact Us For Availability
3
Spacer, Handle (2) WPL 4389418 Contact Us For Availability
3
Stop, Glide (2) WPL 4389477 Contact Us For Availability
3
Screw (2) WPL 4389541 Contact Us For Availability
4
Blade, Fan WPL 4389642 Contact Us For Availability
4
Light, Ind. (Oven) WPL 4389577 Contact Us For Availability
4
Washer WPL 4389659 Contact Us For Availability
4
Screw WPL 4389650 Contact Us For Availability
4
Vent Assembly WPL 4389675 Contact Us For Availability
4
Screw, Handle (2) WPL 4389657 Contact Us For Availability
4
Stop, Glide (2) WPL 4389476 Contact Us For Availability
4
Screw (2) WPL 4389537 Contact Us For Availability
5
Set Screw WPL 4389656 Contact Us For Availability
5
Bracket, Ind Light WPL 4389691 Contact Us For Availability
5
Glass, Outer Door (White) WPL 4389575 Contact Us For Availability
5
Glass, Outer Door (Black) WPL 4389576 Contact Us For Availability
5
Support, Drawer (2) WPL 4389470 Contact Us For Availability
6
Motor, Fan WPL 4389641 Contact Us For Availability
6
Switch, Rocker (White) WPL 4389370 Contact Us For Availability
6
Light, Indicator WPL 4389708 Contact Us For Availability
6
Frame, Oven Door (Black) WPL 4389602 Contact Us For Availability
6
Frame, Oven Door (White) WPL 4389667 Contact Us For Availability
6
Panel, Bodyside (Left Side) WPL 4389617 Contact Us For Availability
6
Panel, Bodyside (Right Side) WPL 4389618 Contact Us For Availability
7
Raceway, Wire WPL 4389670 Contact Us For Availability
7
Knob, Control (4) (Black) WPL 4389573 Contact Us For Availability
7
Knob, Control (4) (White) WPL 4389574 Contact Us For Availability
7
Insulation, Motor WPL 4389606 Contact Us For Availability
7
Limiter (1900W - RR, RF) WPL 4389687 Contact Us For Availability
7
Limiter (1400W - LF) WPL 4389688 Contact Us For Availability
7
Limiter (2400W - LR) WPL 4389689 Contact Us For Availability
7
Screw, Frame (6) (Black) WPL 4389552 Contact Us For Availability
7
Filler, Rear (2) WPL 4389638 Contact Us For Availability
8
Switch, Infinite (Screw) WPL 4389713 Contact Us For Availability
8
Element, Radiant (Includes No.7) (1400W - LF) WPL 4389678 Contact Us For Availability
8
Element, Radiant (Includes No.7) (2400W - LR) WPL 4389680 Contact Us For Availability
8
Glass, Middle WPL 4389402 Contact Us For Availability
8
Trim, Side (L.H. Black) WPL 4389465 Contact Us For Availability
8
Trim, Side (R.H. Black) WPL 4389466 Contact Us For Availability
8
Trim, Side (L.H. White) WPL 4389467 Contact Us For Availability
8
Trim, Side (R.H. White) WPL 4389468 Contact Us For Availability
9
Hose, Flexible WPL 4389640 Contact Us For Availability
9
Seal, Switch (4) WPL 4389690 Contact Us For Availability
9
Bracket, Maintop WPL 4389674 Contact Us For Availability
9
Hinge, Oven Door (Screw (6)) WPL 4389538 Contact Us For Availability
9
Plate, Glass Mtg. WPL 4389399 Contact Us For Availability
9
Hinge, Oven Door (Right) WPL 4389472 Contact Us For Availability
9
Hinge, Oven Door (Left) WPL 4389473 Contact Us For Availability
10
Nut, Hex WPL 4389661 Contact Us For Availability
10
Shield, Switch (4) WPL 4389694 Contact Us For Availability
10
Rivet, Pop WPL 4389714 Contact Us For Availability
10
Retainer, Glass WPL 4389398 Contact Us For Availability
10
Spring, Door (2) WPL 4389474 Contact Us For Availability
11
Screw WPL 4389655 Contact Us For Availability
11
Timer, ERC WPL 4389570 Contact Us For Availability
11
Support, Element WPL 4389706 Contact Us For Availability
11
Retainer, Side (2) WPL 4389613 Contact Us For Availability
12
Plate, Fan WPL 4389644 Contact Us For Availability
12
Overlay, Timer (Black) WPL 4389366 Contact Us For Availability
12
Overlay, Timer (White) WPL 4389367 Contact Us For Availability
12
Clip, Push-On WPL 4389716 Contact Us For Availability
12
Screw, Retainer WPL 4389534 Contact Us For Availability
12
Rail, Base (2) (Includes No.13) WPL 4389469 Contact Us For Availability
13
Washer, Felt (4) WPL 4389601 Contact Us For Availability
13
Bracket, Timer WPL 4389673 Contact Us For Availability
13
Bracket, Element WPL 4389683 Contact Us For Availability
13
Retainer, Insulation WPL 4389397 Contact Us For Availability
13
Leg, Leveler (4) WPL 4389478 Contact Us For Availability
14
Cover, Wire WPL 4389696 Contact Us For Availability
14
Spring, Element WPL 4389681 Contact Us For Availability
14
Insulation, Door WPL 4389394 Contact Us For Availability
14
Retainer, Lower WPL 4389614 Contact Us For Availability
15
Plate, Cover WPL 4389671 Contact Us For Availability
15
Stud, Element WPL 4389684 Contact Us For Availability
15
Lining, Door WPL 4389396 Contact Us For Availability
15
Spacer, Body (4) WPL 4389558 Contact Us For Availability
16
Extension, Cover WPL 4389582 Contact Us For Availability
16
Insulation, Flue WPL 4389693 Contact Us For Availability
16
Gasket, Oven Door WPL 4389600 Contact Us For Availability
16
Drawer, Storage WPL 4389612 Contact Us For Availability
17
Seal, Vent WPL 4389686 Contact Us For Availability
17
Glass, Inner WPL 4389403 Contact Us For Availability
18
Switch, Limit WPL 4389421 Contact Us For Availability
18
Seal, Inner Glass WPL 4389408 Contact Us For Availability
19
Switch, Limit WPL 4389605 Contact Us For Availability
19
Plug, Oven Door WPL 4389395 Contact Us For Availability
19
Support, Broil (3) WPL 4389639 Contact Us For Availability
20
Switch, Limit WPL 4389603 Contact Us For Availability
21
Grommet WPL 4389580 Contact Us For Availability
22
Bottom, Burner Box WPL 4389682 Contact Us For Availability
22
Rack, Oven (2) WPL 4389455 Contact Us For Availability
23
Screw (2) WPL 4389527 Contact Us For Availability
23
Sensor, Oven WPL 4389458 Contact Us For Availability
24
Screw (2) WPL 4389536 Contact Us For Availability
24
Housing, Lite WPL 4389628 Contact Us For Availability
26
Lens, Oven Lite WPL 4389629 Contact Us For Availability
27
Switch, Door Lite WPL 4389630 Contact Us For Availability
28
Body, Oven WPL 4389609 Contact Us For Availability
29
Frame, Front WPL 4389610 Contact Us For Availability
30
Cover, Front WPL 4389475 Contact Us For Availability
31
Tube, Vent WPL 4389705 Contact Us For Availability
32
Insulation, Top & Side (2) WPL 4389701 Contact Us For Availability
33
Insulation, Wrap WPL 4389622 Contact Us For Availability
34
Insulation, Back & Bottom WPL 4389623 Contact Us For Availability
35
Shield, Wire WPL 4389697 Contact Us For Availability
36
Support, Top WPL 4389704 Contact Us For Availability
37
Shield, Upper WPL 4389615 Contact Us For Availability
38
Bushing, Snap WPL 4389660 Contact Us For Availability
39
Screw WPL 4389646 Contact Us For Availability
39
Plate, Flue Cover WPL 4389634 Contact Us For Availability
40
Cover, Uppe WPL 4389616 Contact Us For Availability
41
WPL 4389635 WPL 4389635 Contact Us For Availability
42
WPL 4389627 WPL 4389627 Contact Us For Availability
43
WPL 4389579 WPL 4389579 Contact Us For Availability
43
WPL 4389651 WPL 4389651 Contact Us For Availability
44
WPL 4389540 WPL 4389540 Contact Us For Availability
44
WPL 4389658 WPL 4389658 Contact Us For Availability
45
WPL 4389633 WPL 4389633 Contact Us For Availability
46
WPL 4389695 WPL 4389695 Contact Us For Availability
47
WPL 4389699 WPL 4389699 Contact Us For Availability
48
WPL 4389648 WPL 4389648 Contact Us For Availability
48
WPL 4389698 WPL 4389698 Contact Us For Availability
48
WPL 4389718 WPL 4389718 Contact Us For Availability
49
WPL 4389685 WPL 4389685 Contact Us For Availability
50
WPL 4389702 WPL 4389702 Contact Us For Availability
51
WPL 4389471 WPL 4389471 Contact Us For Availability
51
WPL 4389700 WPL 4389700 Contact Us For Availability
51
WPL 4389717 WPL 4389717 Contact Us For Availability
× ![]()
