Model Whirlpool RS363PXYQ2 – Common Parts & Diagrams
01 - SECTION

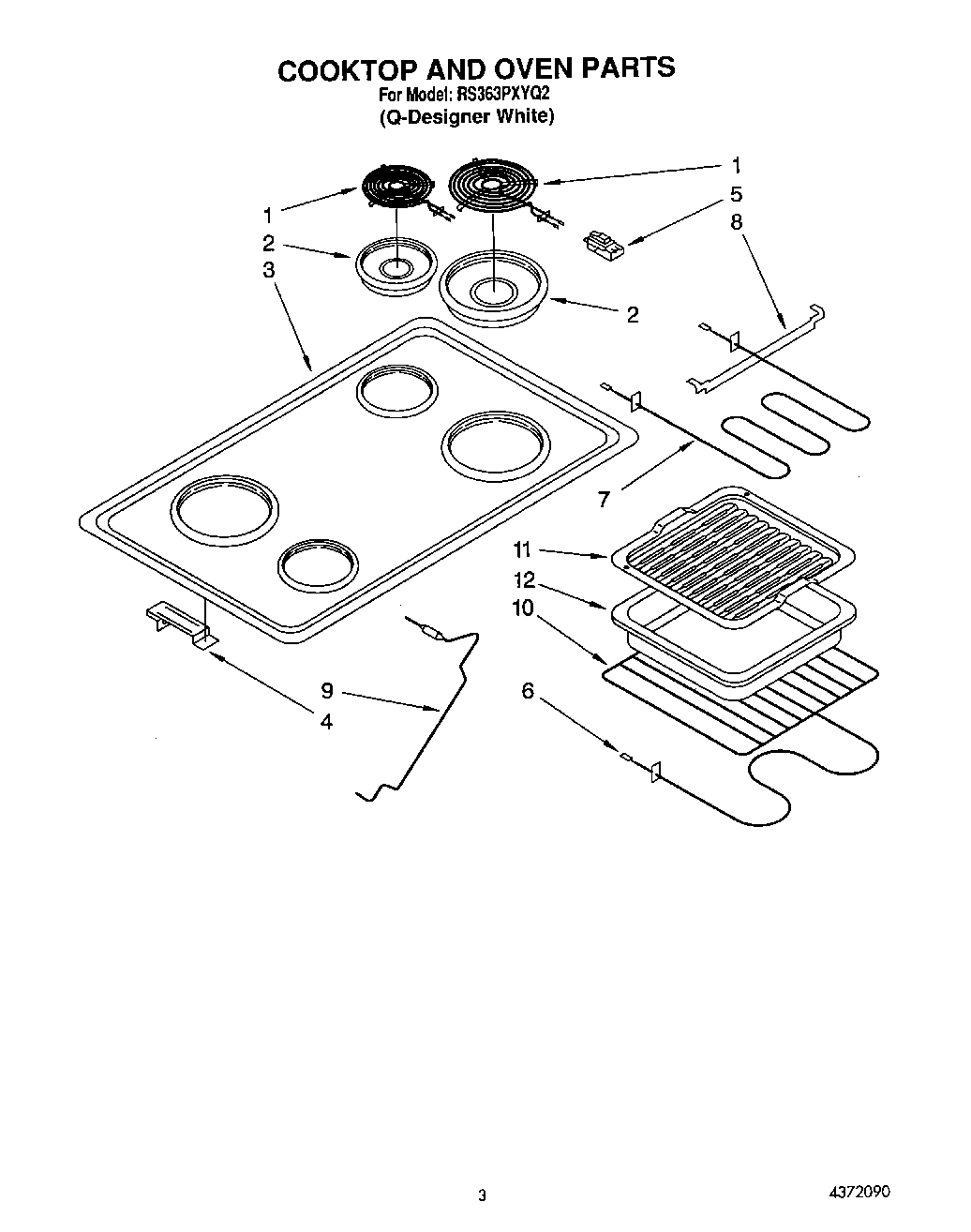

02 - SECTION

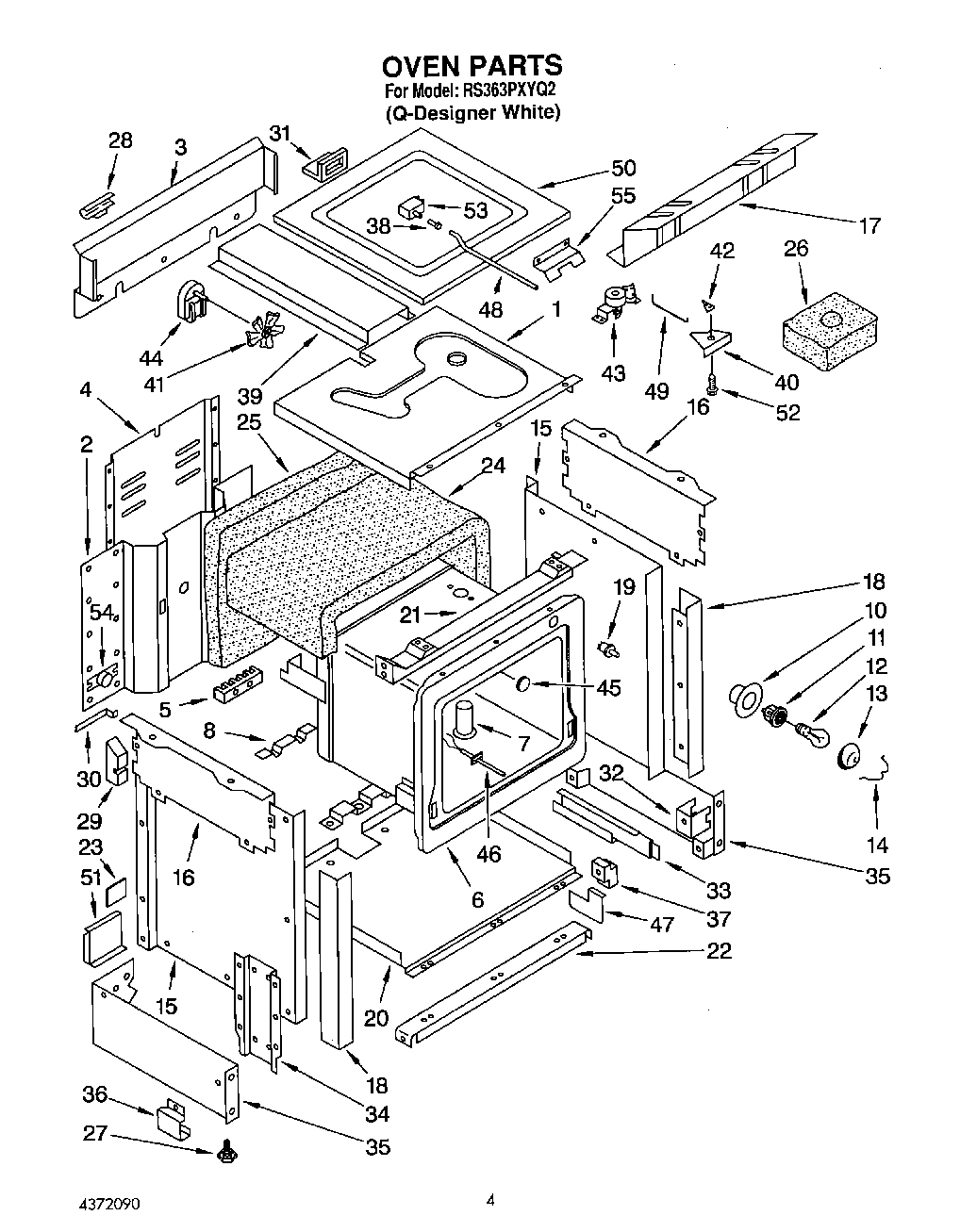

03 - SECTION

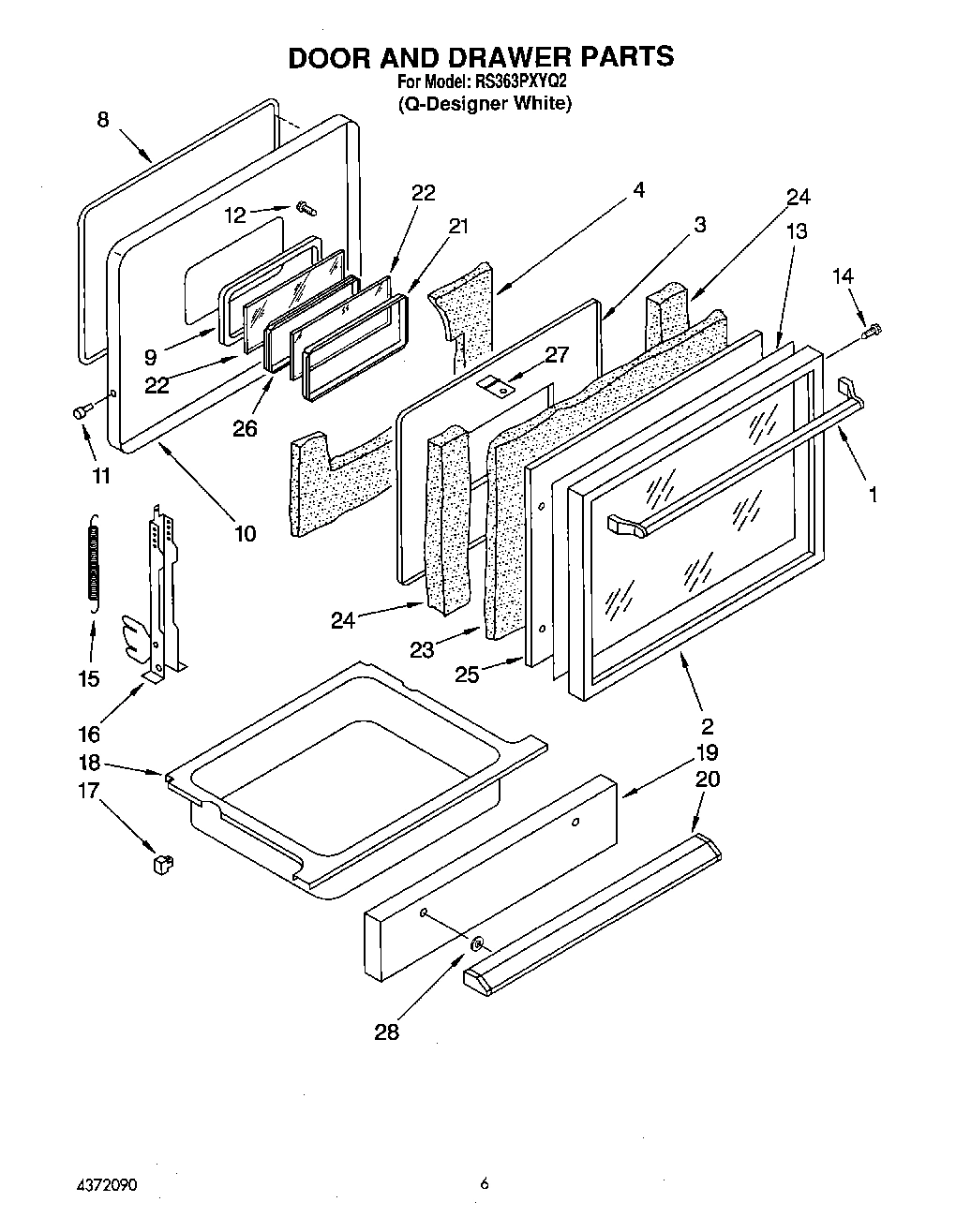

04 - SECTION
Common parts from model Whirlpool RS363PXYQ2
List, Repair Parts WPL LIT4372090 Contact Us For Availability
Installation Instructions WPL LIT816985 Contact Us For Availability
Use & Care Guide WPL LIT816986 Contact Us For Availability
1
Panel, Control WPL 4371959 Contact Us For Availability
1
Retainer, Top WPL 4371402 Contact Us For Availability
1
Handle, Door WPL 4371554 Contact Us For Availability
2
Pan, Reflector (6`` (2)) WPL 4371387 Contact Us For Availability
2
Pan, Reflector (8`` (2)) WPL 4371445 Contact Us For Availability
2
Panel, Rear (lower) WPL 4371330 Contact Us For Availability
2
Frame, Door WPL 4371648 Contact Us For Availability
3
Button, Clock (8) WPL 4371644 Contact Us For Availability
3
Cooktop (White) WPL 868473 Contact Us For Availability
3
Panel, Rear (upper) WPL 4371573 Contact Us For Availability
3
Liner, Door WPL 4372011 Contact Us For Availability
4
Hinge, Cooktop WPL 4371430 Contact Us For Availability
4
Cover, Wire WPL 4372017 Contact Us For Availability
4
Insulation WPL 4371341 Contact Us For Availability
5
Indicator Light WPL 4371380 Contact Us For Availability
6
Liner, Oven WPL 4372012 Contact Us For Availability
7
Bracket, Clock WPL 4371373 Contact Us For Availability
7
Element, Broil WPL 4371351 Contact Us For Availability
7
Tube, Vent WPL 4371411 Contact Us For Availability
8
End Cap (R.H.) WPL 4371374 Contact Us For Availability
8
End Cap (L.H.) WPL 4371375 Contact Us For Availability
8
Support, Element WPL 866429 Contact Us For Availability
8
Plate, Mounting WPL 816473 Contact Us For Availability
8
Seal, Door WPL 4371348 Contact Us For Availability
9
Plate, End Cap WPL 4371389 Contact Us For Availability
9
Rod, Cooktop Support WPL 4371397 Contact Us For Availability
9
Seal, Glass WPL 816801 Contact Us For Availability
10
Lens, Light WPL 4371440 Contact Us For Availability
10
Rack, Oven WPL 4371483 Contact Us For Availability
10
Rack, Oven (Offset) WPL 4371579 Contact Us For Availability
10
Cup, Oven Light WPL 4371293 Contact Us For Availability
10
Baffle, Door WPL 4372009 Contact Us For Availability
11
Switch, Oven Light WPL 4371646 Contact Us For Availability
11
Insert, Broiler Pan WPL 4372022 Contact Us For Availability
11
Plug, Button (2) WPL 4371345 Contact Us For Availability
12
Knob, Infinite Switch (4) WPL 4371642 Contact Us For Availability
12
Pan, Broiler WPL 4372023 Contact Us For Availability
12
Screw, 10-24 x 5/8 WPL 4372010 Contact Us For Availability
13
Lens, Oven Light WPL 4372021 Contact Us For Availability
13
Glass, Outer WPL 4371647 Contact Us For Availability
14
Retainer, Lens WPL 4371394 Contact Us For Availability
14
Screw, Handle (4) WPL 4371346 Contact Us For Availability
15
Clock, Electronic WPL 4371376 Contact Us For Availability
15
Retainer, Insulation (2) WPL 4371446 Contact Us For Availability
15
Spring, Door (2) WPL 4371651 Contact Us For Availability
16
Panel, Side (2) WPL 4371370 Contact Us For Availability
16
Channel, Hinge (2) WPL 816496 Contact Us For Availability
17
Knob, Clock (1) WPL 4371643 Contact Us For Availability
17
Shield, Wire WPL 4371403 Contact Us For Availability
17
Guide (2) WPL 4371413 Contact Us For Availability
18
Rail, Top WPL 4371377 Contact Us For Availability
18
Trim, Oven Front (2) WPL 4371410 Contact Us For Availability
18
Drawer WPL 4371412 Contact Us For Availability
19
Rail, Bottom WPL 4371378 Contact Us For Availability
19
Switch, Oven Light WPL 4371452 Contact Us For Availability
19
Panel, Drawer WPL 4371649 Contact Us For Availability
20
Spacer, Timer WPL 4371645 Contact Us For Availability
20
Shield, Bottom Insulation WPL 816728 Contact Us For Availability
20
Handle, Drawer WPL 4371650 Contact Us For Availability
21
Bracket, Cooktop WPL 4372013 Contact Us For Availability
21
Collar, Glass WPL 816799 Contact Us For Availability
22
Channel, Oven WPL 4371424 Contact Us For Availability
22
Glass, Barrier (2) WPL 816681 Contact Us For Availability
23
Plate, Filler (2) WPL 4371388 Contact Us For Availability
23
Insulation WPL 4371342 Contact Us For Availability
24
Insulation, Wrap WPL 4372016 Contact Us For Availability
24
Insulation (2) WPL 4371343 Contact Us For Availability
25
Insulation, Back WPL 4371362 Contact Us For Availability
25
Panel, Insulation WPL 816800 Contact Us For Availability
26
Insulation, Vent WPL 4372014 Contact Us For Availability
26
Spacer, Glass WPL 4371349 Contact Us For Availability
27
Leg, Leveling (4) WPL 4371398 Contact Us For Availability
27
Strike, Door WPL 816839 Contact Us For Availability
28
Bracket, Hinge Support WPL 4371335 Contact Us For Availability
28
Spacer, Handle WPL 4371405 Contact Us For Availability
29
Counterweight (2) WPL 4371331 Contact Us For Availability
30
Retainer, Weight WPL 4371332 Contact Us For Availability
31
Bracket, Latch WPL 4371575 Contact Us For Availability
32
Spacer (2) WPL 4371404 Contact Us For Availability
33
Rail, Drawer (R.H.) WPL 4372018 Contact Us For Availability
33
Rail, Drawer (L.H.) WPL 4372019 Contact Us For Availability
34
Support, Front (2) WPL 4371406 Contact Us For Availability
35
Panel, Lower Side (R.H.) WPL 4371371 Contact Us For Availability
35
Panel, Lower Side (L.H.) WPL 4371372 Contact Us For Availability
36
Shield, Toe WPL 4371449 Contact Us For Availability
37
Glide, Front (2) WPL 4371429 Contact Us For Availability
38
Cap, Push Rod WPL 4371574 Contact Us For Availability
39
Channel, Duct WPL 4371338 Contact Us For Availability
40
Housing, Latch WPL 816857 Contact Us For Availability
41
Blade, Fan WPL 4371577 Contact Us For Availability
42
Latch, Door WPL 4371167 Contact Us For Availability
43
Motor, Latch WPL 4371367 Contact Us For Availability
44
Motor, Fan WPL 4371368 Contact Us For Availability
45
Button, Plug WPL 4371390 Contact Us For Availability
46
Probe, 3`` WPL 4371578 Contact Us For Availability
47
Retainer, Door WPL 816474 Contact Us For Availability
48
Rod, Switch WPL 4371395 Contact Us For Availability
49
Rod, Connecting WPL 4371396 Contact Us For Availability
50
Panel, Sub-Top WPL 4372015 Contact Us For Availability
51
Channel, Air WPL 4371333 Contact Us For Availability
52
Axle, Latch WPL 4371168 Contact Us For Availability
54
Switch, Thermo Cut-Off WPL 4371408 Contact Us For Availability
55
Shield, Heat WPL 4371401 Contact Us For Availability
55
Anti-tip Kit WPL 4371420 Contact Us For Availability
× ![]()
