Model LG RP4G – Common Parts & Diagrams
Diagram 0

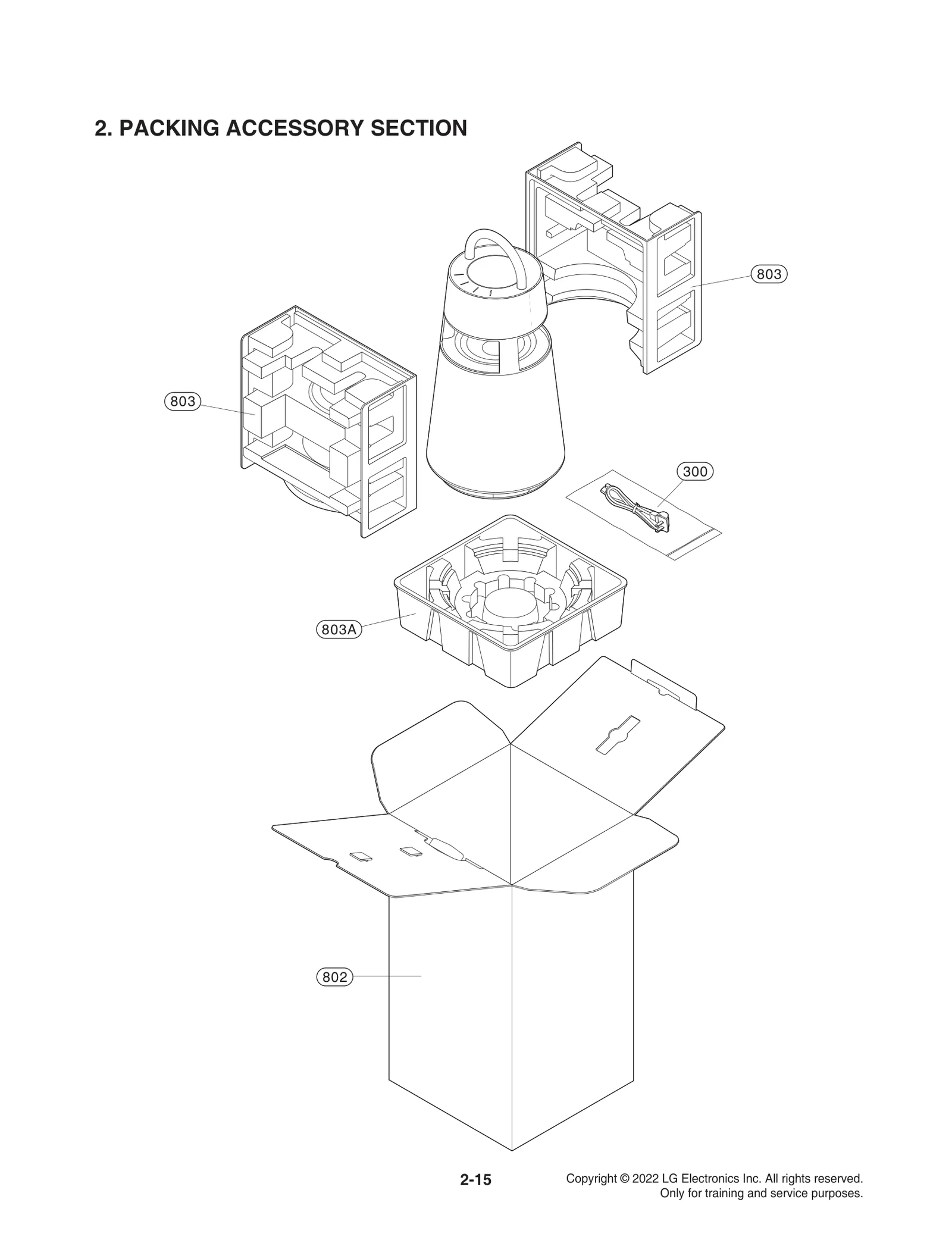

Diagram 1
Diagram 2
Common parts from model LG RP4G
252
Button LGE MBG67856702 Contact Us For Availability
253
Cover LGE MCK71541601 Contact Us For Availability
254
Case LGE MBN66494201 Contact Us For Availability
255
Case LGE MBN66494301 Contact Us For Availability
256
Speaker,Tweeter LGE EAB63208408 Contact Us For Availability
257
Decor LGE MCR68424601 Contact Us For Availability
258
Decor LGE MCR68424502 Contact Us For Availability
259
Lens LGE MFB65481501 Contact Us For Availability
260
Lens LGE MFB65481401 Contact Us For Availability
261
Cover LGE MCK71541502 Contact Us For Availability
262
Cover LGE MCK71541402 Contact Us For Availability
263
Speaker,Woofer LGE EAB64628803 Contact Us For Availability
264
Cover Assembly LGE ACQ30418202 Contact Us For Availability
265
Rechargeable Battery,Lithium Ion LGE EAC64790805 Contact Us For Availability
266
Cover LGE MCK71541001 Contact Us For Availability
267
Chassis LGE MBS65048701 Contact Us For Availability
268
Socket,Power LGE EAG63233209 Contact Us For Availability
269
Case LGE MBN66494002 Contact Us For Availability
270
Decor Assembly LGE ACW76648002 Contact Us For Availability
271
Decor Assembly LGE ACW76648152 Contact Us For Availability
272
Decor Assembly LGE ACW76647902 Contact Us For Availability
273
Decor LGE MCR68427701 Contact Us For Availability
274
Foot LGE MDP64331301 Contact Us For Availability
275
Holder LGE MEG66678501 Contact Us For Availability
802
Box,Master LGE MAY69817653 Contact Us For Availability
803
Packing LGE MFZ67383001 Contact Us For Availability
803A
Packing LGE MFZ67383002 Contact Us For Availability
A41
PCB Assembly LGE EBR35429501 Contact Us For Availability
A42
PCB Assembly LGE EBR36577301 Contact Us For Availability
A44
Cover Assembly LGE ACQ30418401 Contact Us For Availability
A46
PCB Assembly LGE EBR36086337 Contact Us For Availability
A50
PCB Assembly LGE EBR36098601 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833604 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130059 Contact Us For Availability
CABLE2
Harness,Single LGE EAD65925601 Contact Us For Availability
CABLE3
Harness,Single LGE EAD65405202 Contact Us For Availability
CABLE4
Harness,Single LGE EAD65832703 Contact Us For Availability
IC101A
S/W,System Program LGE SAA42636301 Contact Us For Availability
IC502A
S/W,System Program LGE SAA42636203 Contact Us For Availability
IC503A
S/W,System Program LGE SAA42636402 Contact Us For Availability
× ![]()
