Model LG RNC5 – Common Parts & Diagrams

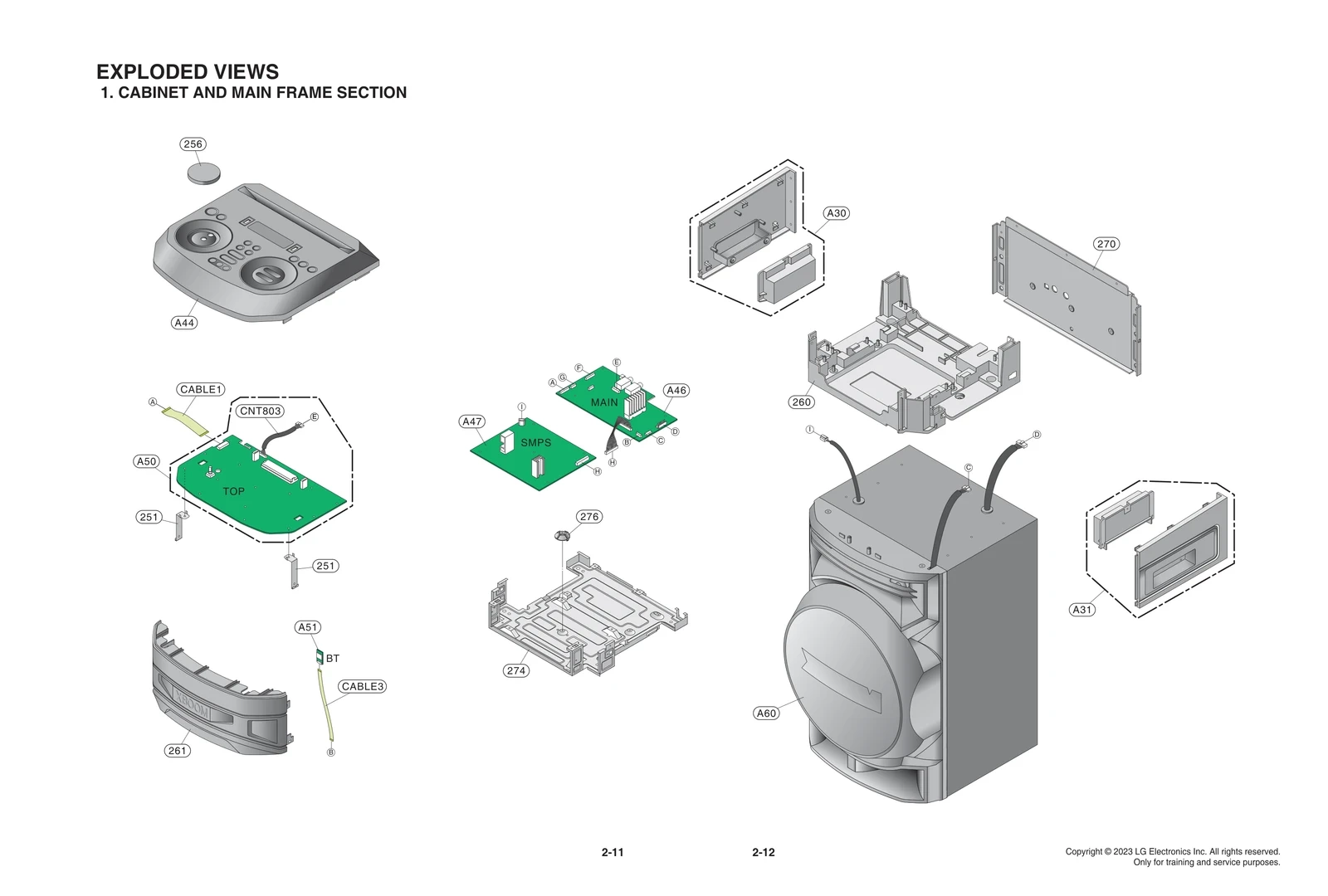

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG RNC5
260
Frame LGE MDQ66500102 Contact Us For Availability
261
Panel Assembly,Front LGE AGL30003912 Contact Us For Availability
270
Panel,Rear LGE MGC66105578 Contact Us For Availability
274
Chassis LGE MBS64886201 Contact Us For Availability
276
Holder LGE MEG63540502 Contact Us For Availability
825
Antenna,T LGE EAA56671908 Contact Us For Availability
900
Remote Controller Assembly LGE AKB75815311 Contact Us For Availability
A30
Cover Assembly LGE ACQ30004903 Contact Us For Availability
A31
Cover Assembly LGE ACQ30004803 Contact Us For Availability
A44
Cover Assembly LGE ACQ30004505 Contact Us For Availability
A46
Option Code Assembly LGE EBR30169522 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR30795410 Contact Us For Availability
A50
PCB Assembly LGE EBR40407001 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833604 Contact Us For Availability
A60
Board Assembly LGE AAX76967603 Contact Us For Availability
A60
Board Assembly LGE AAX76967621 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD60718903 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130063 Contact Us For Availability
CNT803
Harness,Single LGE EAD42004424 Contact Us For Availability
IC101A
S/W,System Program LGE SAA41782101 Contact Us For Availability
IC503A
S/W,System Program LGE SAA41782001 Contact Us For Availability
IC504A
S/W,System Program LGE SAA41782201 Contact Us For Availability
× ![]()
