Model Whirlpool RNC22AY-3A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

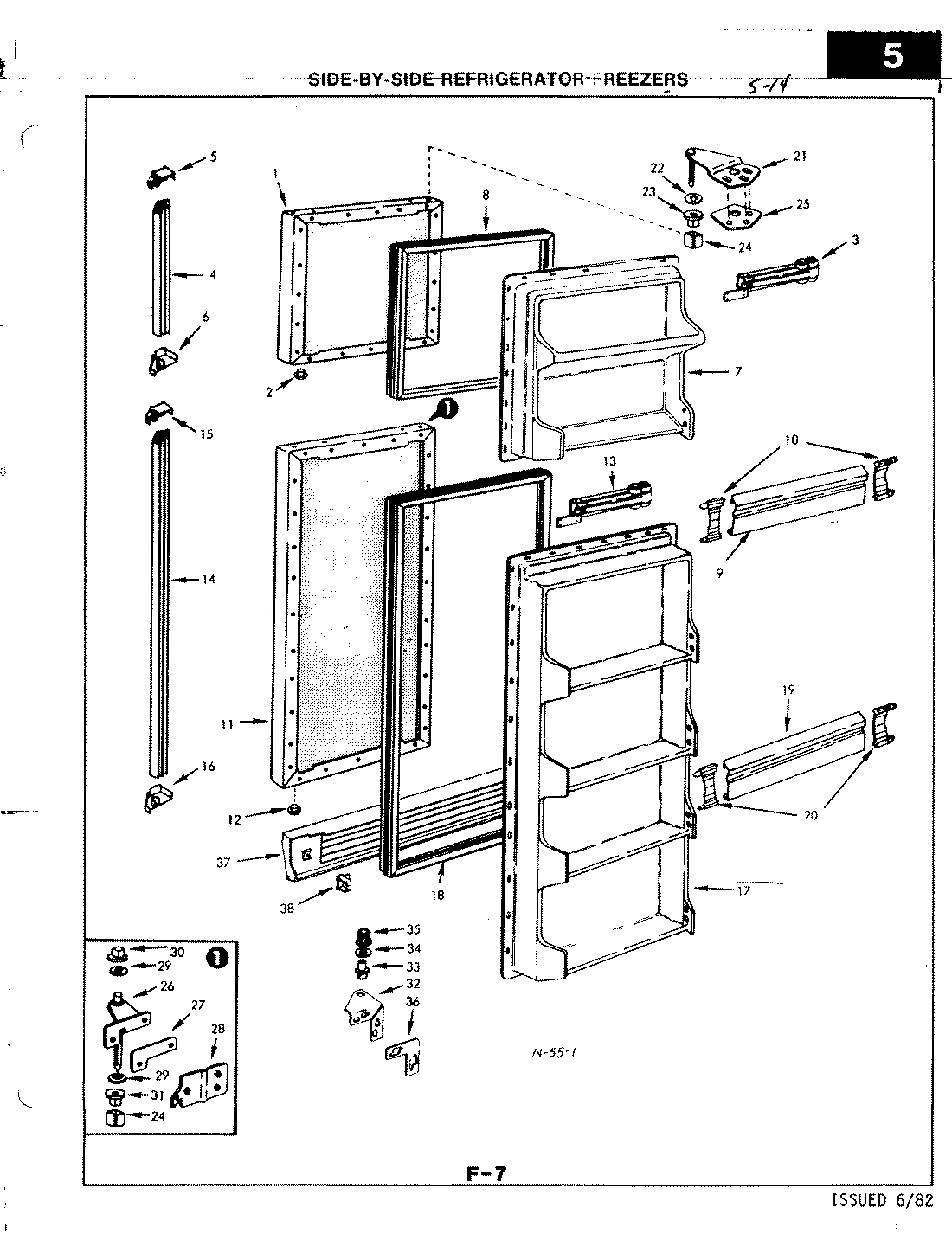

02 - FREEZER DOOR

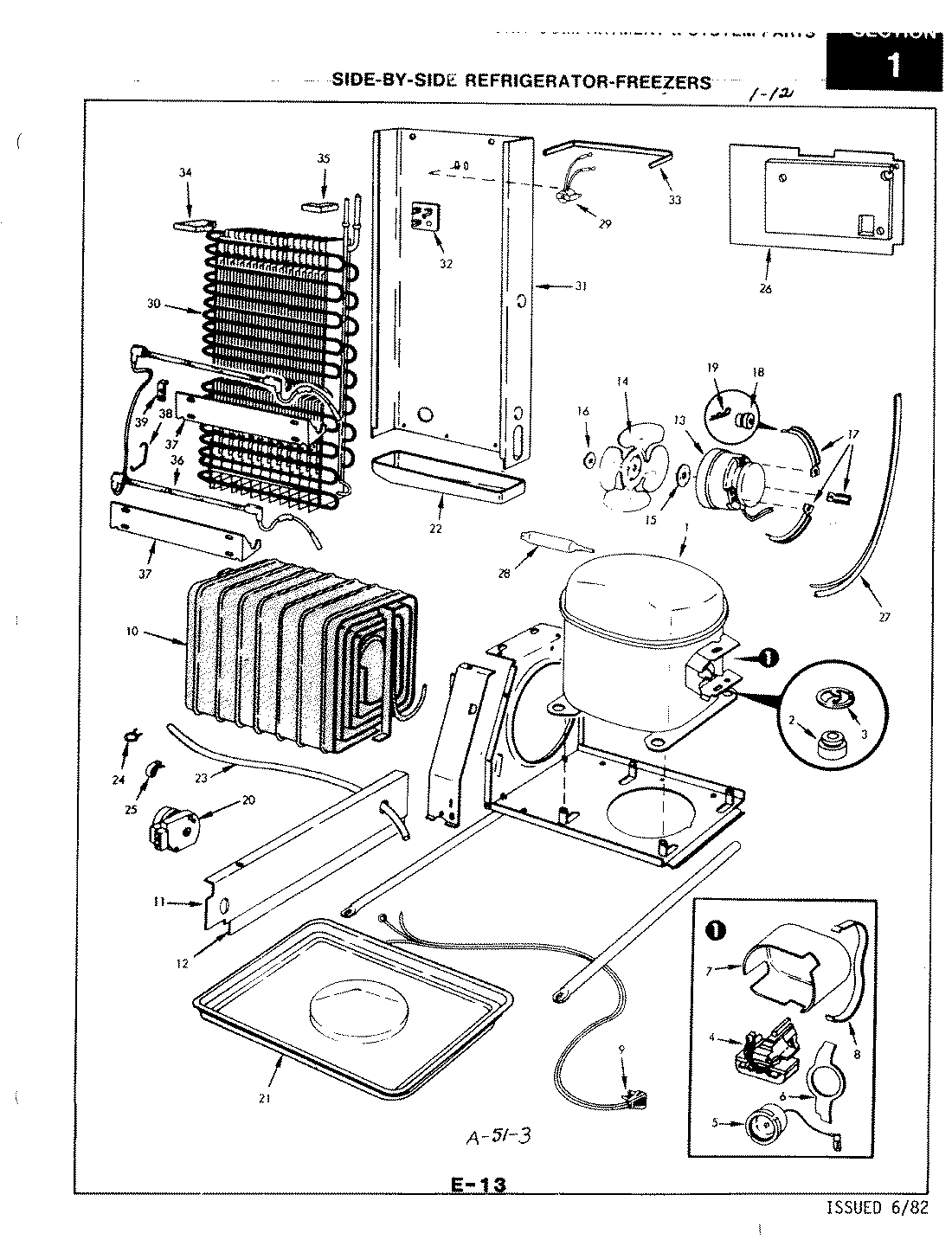

04 - UNIT COMPARTMENT & SYSTEM

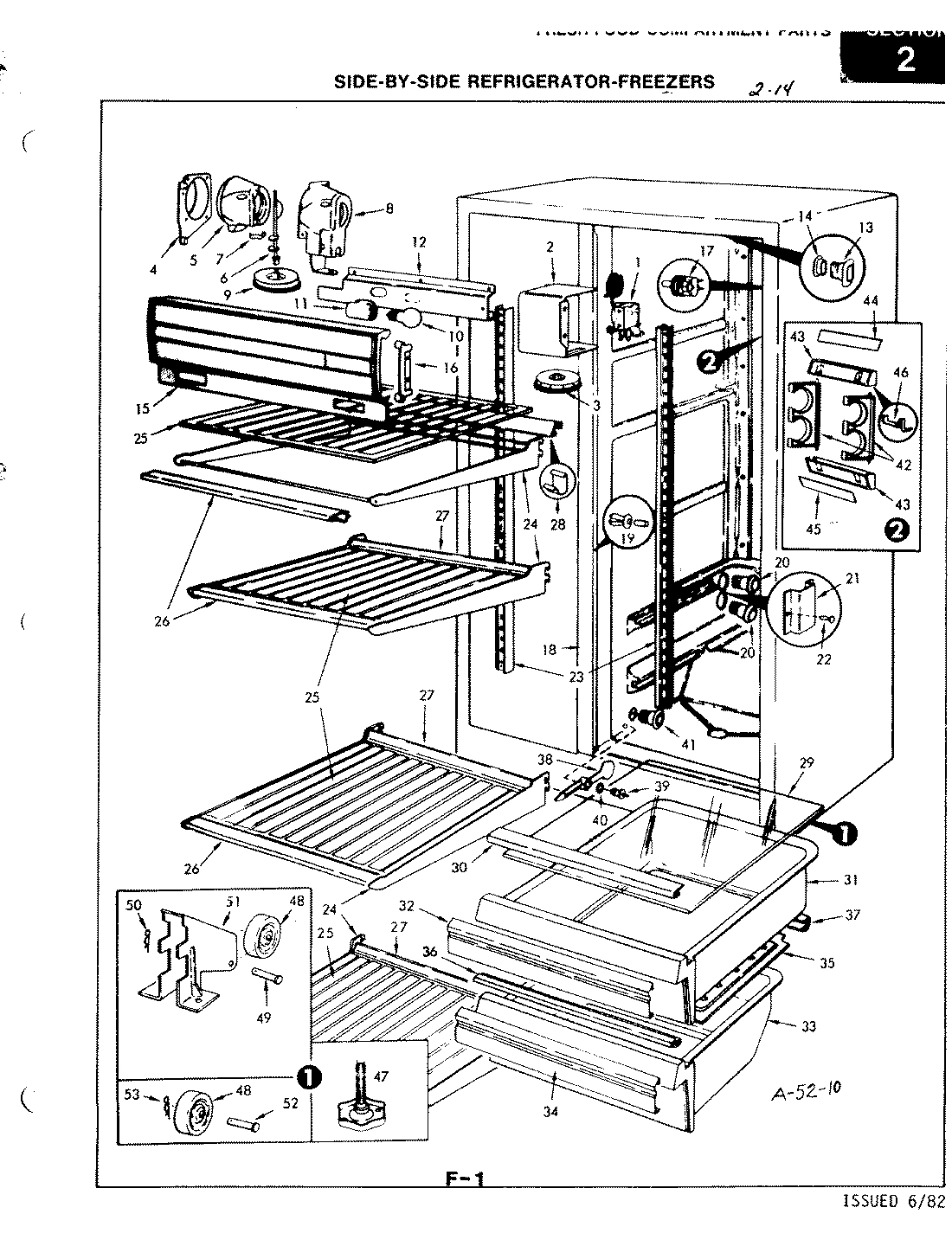

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RNC22AY-3A REFRIGERATOR
1
ORIFICE WPL 544231 Contact Us For Availability
1
PANEL, DOOR WPL 5558328AM Contact Us For Availability
1
PANEL, DOOR WPL 5558328HW Contact Us For Availability
1
PANEL, DOOR WPL 5558328WW Contact Us For Availability
1
COMPRESSOR WPL RA979T Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
HOUSING WPL 536829 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269033 Contact Us For Availability
4
HANDLE WPL 5683533 Contact Us For Availability
4
RELAY WPL 928693 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
OVERLOAD WPL 5306761 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
PLUG WPL 539331 Contact Us For Availability
6
CLIP WPL 288481 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
SEAL WPL 5207717 Contact Us For Availability
7
INNER PANEL WPL 59433113 Contact Us For Availability
7
COVER WPL 288491 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
GASKET WPL 537128 Contact Us For Availability
8
CLIP WPL 288503 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
TRIM WPL 5925847 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
10
CONDENSER WPL RA436444 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
OUTER PANEL WPL 5558345HW Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
12
SEAL WPL 640771 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
SHIELD WPL 5566433 Contact Us For Availability
13
BRACKET, CLOSER WPL 526141 Contact Us For Availability
13
CLOSER, DOOR WPL 544851 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
SCREW WPL 4021001 Contact Us For Availability
14
WASHER WPL 4200631 Contact Us For Availability
14
HANDLE WPL 5683532 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
END CAP WPL 579472 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SHIELD WPL 5933320 Contact Us For Availability
16
SHIELD WPL 542475 Contact Us For Availability
16
END CAP WPL 579471 Contact Us For Availability
16
SCREW WPL 4020777 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
PLUG WPL 495032900 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
17
INNER PANEL WPL 59433110 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
18
GASKET WPL 5371215 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
MULLION WPL 590262HW Contact Us For Availability
19
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
19
TRIM WPL 5925845 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
STUD, (ALM) WPL 599209 Contact Us For Availability
20
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
20
RETAINER WPL 593161 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER WPL 541134 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
SCREW WPL 4000221 Contact Us For Availability
21
FAN GRID WPL 626891 Contact Us For Availability
21
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
21
SCREW WPL 998687 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
22
COIL COVER WPL 5354910 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
HEATER WPL 571177 Contact Us For Availability
23
DIVIDER WPL 574924HW Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
23
BUSHING WPL 557811 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
23
SCREW WPL 4000371 Contact Us For Availability
23
SUPPORT WPL 583811 Contact Us For Availability
24
GASKET WPL 573691 Contact Us For Availability
24
SEAL SLEEVE WPL 559901 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
24
SHELF FRAME WPL 643432 Contact Us For Availability
25
BREAKER FRAME WPL 540365 Contact Us For Availability
25
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
25
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
SHELF, GLASS WPL 6243827 Contact Us For Availability
26
SCREW WPL 400017103 Contact Us For Availability
26
COVER WPL 574025 Contact Us For Availability
26
HINGE WPL 543906 Contact Us For Availability
26
SCREW WPL 9986110 Contact Us For Availability
26
COVER WPL 632132 Contact Us For Availability
26
TRIM WPL 6500511 Contact Us For Availability
27
SPACER WPL 543864 Contact Us For Availability
27
SLEEVE WPL 2608811 Contact Us For Availability
27
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
27
TRIM WPL 52014116 Contact Us For Availability
28
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
28
TAPPING PLATE WPL 540312 Contact Us For Availability
28
CLIP WPL 641511 Contact Us For Availability
29
WASHER WPL 521852 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
SHELF, CRISPER WPL 2853038 Contact Us For Availability
30
NUT WPL 538211 Contact Us For Availability
30
EVAPORATOR WPL RA436434 Contact Us For Availability
30
TRIM WPL 597464 Contact Us For Availability
31
DRAIN TUBE WPL 265275 Contact Us For Availability
31
BUSHING WPL 557812 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
31
PAN, CRISPER WPL 5939522 Contact Us For Availability
32
GROMMET WPL 525261 Contact Us For Availability
32
SCREW WPL 4030621 Contact Us For Availability
32
HINGE WPL 5367111 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
HANDLE WPL 5931762 Contact Us For Availability
33
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
33
PAN, MEAT WPL 5959235 Contact Us For Availability
34
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
34
WASHER WPL 542332 Contact Us For Availability
34
COIL BLOCK WPL 527534 Contact Us For Availability
34
HANDLE WPL 5931763 Contact Us For Availability
35
SHELF WPL 593141 Contact Us For Availability
35
CUP WPL 554241 Contact Us For Availability
35
COIL SUPPORT WPL 528621 Contact Us For Availability
35
COVER WPL 539348 Contact Us For Availability
36
SHELF WPL 577062 Contact Us For Availability
36
SPACER WPL 536883 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
36
GASKET WPL 541022 Contact Us For Availability
37
TRIM WPL 5375216 Contact Us For Availability
37
KICKPLATE WPL 564778 Contact Us For Availability
37
REFLECTOR WPL 299159 Contact Us For Availability
37
GASKET WPL 541032 Contact Us For Availability
38
DRAWER WPL 5933022 Contact Us For Availability
38
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
LEVELER WPL 547312 Contact Us For Availability
39
HANDLE WPL 5931765 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
39
STUD WPL 539142 Contact Us For Availability
40
ICE CUBE TRAY WPL 601121 Contact Us For Availability
40
WASHER WPL 420096900 Contact Us For Availability
41
PAN, ICE WPL 627254 Contact Us For Availability
41
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
42
INSERT WPL 6405938 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
RACK, WINE WPL 565194 Contact Us For Availability
43
SUPPORT WPL 572054 Contact Us For Availability
44
INSERT WPL 572061 Contact Us For Availability
45
INSERT WPL 592996 Contact Us For Availability
46
SPRING, WINE RACK WPL 580571 Contact Us For Availability
47
LEG, LEVELING WPL 60128 Contact Us For Availability
48
WHEEL WPL 298342 Contact Us For Availability
51
SCREW WPL 4000621 Contact Us For Availability
51
BRACKET WPL 528461 Contact Us For Availability
52
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
53
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
53
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
53
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
NI
GROMMET WPL 172453 Contact Us For Availability
× ![]()
