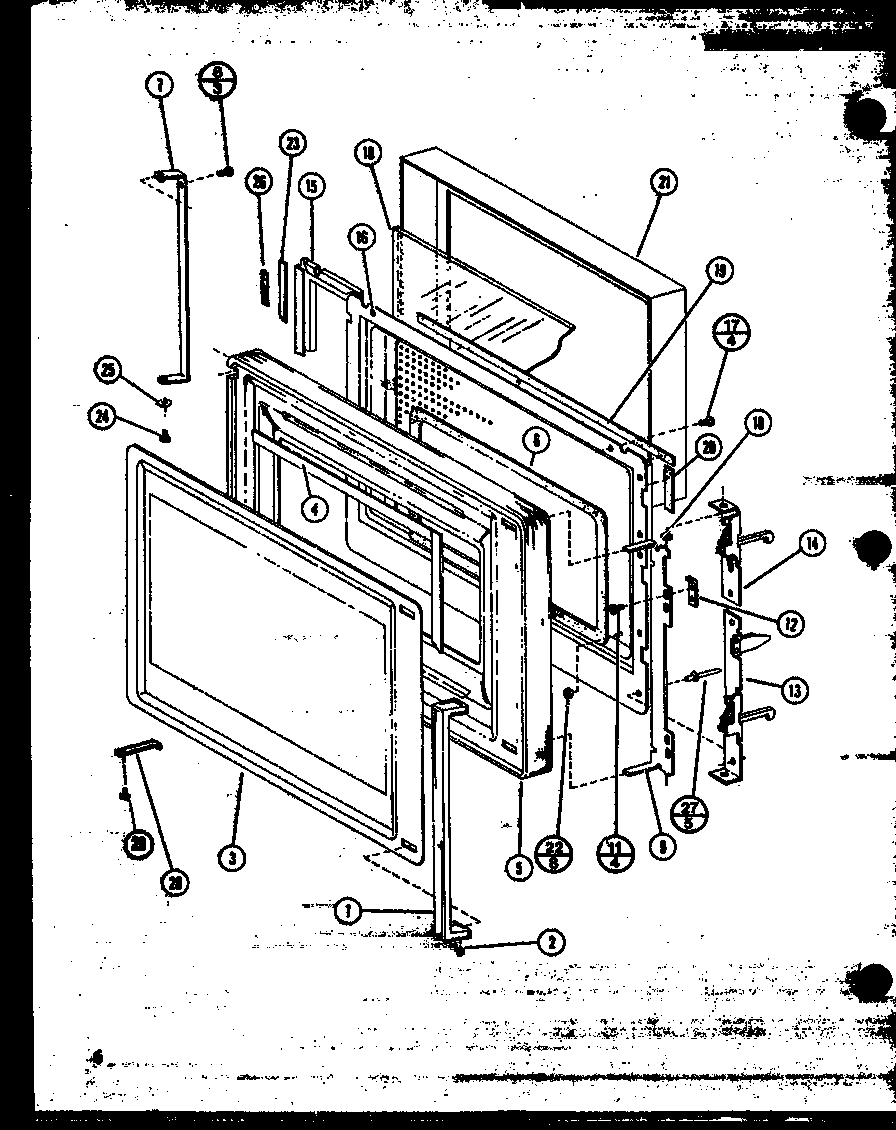

Model Whirlpool RMC-30A CONVECTION MICROWAVE – Common Parts & Diagrams
02 - Page 2
01 - Page 1
03 - Page 3
05 - Page 5
04 - Page 4
Common parts from model Whirlpool RMC-30A CONVECTION MICROWAVE
1
HANDLE WPL C8830803 Contact Us For Availability
1
ESCUTCHEON CONTROL WPL D7480802 Contact Us For Availability
1
INSUL-OVEN TOP WPL B8307302 Contact Us For Availability
1
MAGNETRON WPL C8761711 Contact Us For Availability
1
EXHUST DUCT WPL C8825603 Contact Us For Availability
2
SCREW WPL M0208328 Contact Us For Availability
2
LIGHT BUTTON WPL C8869301 Contact Us For Availability
2
STOP BUTTON WPL C8869401 Contact Us For Availability
2
START BUTTON WPL C8869501 Contact Us For Availability
2
INSUL-BACK OVEN WPL B8307202 Contact Us For Availability
2
RELAY K WPL C8845503 Contact Us For Availability
3
LENS DOOR WPL D7412303 Contact Us For Availability
3
INSUL-LFT OVEN WPL B8307102 Contact Us For Availability
3
SCREW WPL M0234016 Contact Us For Availability
4
TAPE ROLL (72 YDS/ROLL) WPL M0275159 Contact Us For Availability
4
GASKET WPL C8866301 Contact Us For Availability
4
TRAY SUPPORT (SMALL) WPL D7428101 Contact Us For Availability
4
GASKET, U-CHANNEL WPL B8321904 Contact Us For Availability
5
DOOR CASTING WPL D7412403 Contact Us For Availability
5
GASKET WPL A1018104 Contact Us For Availability
6
GASKET WPL A1018101 Contact Us For Availability
6
CLIP WPL B5725102 Contact Us For Availability
7
DOOR HINGE WPL C8836501 Contact Us For Availability
7
HEATER SVPTS K WPL B5797402 Contact Us For Availability
7
THERMAL CUTOUT WPL B5665821 Contact Us For Availability
7
CAP & RESISTOR ASSY WPL B8329401 Contact Us For Availability
8
SCREW WPL M0253217 Contact Us For Availability
8
OVEN WELD K WPL D7432010 Contact Us For Availability
8
BRACKET WPL B8307702 Contact Us For Availability
9
ACTUATOR-LATCH WPL C8841001 Contact Us For Availability
9
MODULE RMC30 WPL R0163043 Contact Us For Availability
9
SUPPORT K WPL B8359202 Contact Us For Availability
9
SCREW WPL M0202528 Contact Us For Availability
9
TEMP PROBE JACK K WPL B8355401 Contact Us For Availability
10
BUSHING WPL B8306202 Contact Us For Availability
10
SWITCH SSL K WPL D7546302 Contact Us For Availability
10
SUPPORT K WPL B8359302 Contact Us For Availability
10
LOCK-NUT---K WPL M0282801 Contact Us For Availability
11
TEMP PROBE WPL B8312501 Contact Us For Availability
11
GLASS,OVEN LIGHT WPL B8304301 Contact Us For Availability
11
SNAP BUSHING WPL A3293503 Contact Us For Availability
12
ADJUSTOR WPL B8314502 Contact Us For Availability
12
SPRING WPL A1039301 Contact Us For Availability
12
BRACKET OVEN LIGHT WPL C8840302 Contact Us For Availability
12
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
13
LWR DOOR LATCH ASSY WPL R0183067 Contact Us For Availability
13
THERMOSTAT WPL C8860502 Contact Us For Availability
13
SHIELD BULB WPL A1021401 Contact Us For Availability
14
UPPER DOOR LATCH ASSY WPL R0183068 Contact Us For Availability
14
BEZEL WPL C8837503 Contact Us For Availability
14
TRANSFORMER WPL D7474104 Contact Us For Availability
14
INSUL-RT OVEN WPL B8306902 Contact Us For Availability
15
GASKET WPL D7447702 Contact Us For Availability
15
CLIP EXHAUST DUCT WPL A1018401 Contact Us For Availability
15
KIT, DIODE WPL B8329801 Contact Us For Availability
15
DUCT COVER WPL C8825302 Contact Us For Availability
16
INNER DOOR ASSY WPL C8840501 Contact Us For Availability
16
TERMINAL BOARD WPL C8845905 Contact Us For Availability
16
DUCT, BL IMPUT WPL C8825201 Contact Us For Availability
17
SCREW WPL M0259218 Contact Us For Availability
17
BAFFLE, TRANSFORMER WPL B8323501 Contact Us For Availability
18
SCREW A WPL M0202515 Contact Us For Availability
18
WINDOW-INNER WPL A1004901 Contact Us For Availability
18
INSUL-RT OVEN WPL B8307002 Contact Us For Availability
19
GASKET WPL A1032401 Contact Us For Availability
19
ANTENNA A WPL B8302701 Contact Us For Availability
19
AIR DEFLECTOR WPL C8827403 Contact Us For Availability
20
GASKET WPL A1032402 Contact Us For Availability
20
WASHER WPL M0272503 Contact Us For Availability
20
NUT, SELF THREAD WPL M0282901 Contact Us For Availability
20
EXHQUST WPL C8826901 Contact Us For Availability
21
DOOR-INNER WPL D7410801 Contact Us For Availability
21
SHAFT-ANTENNA A WPL B8357201 Contact Us For Availability
21
SCREW T.C WPL M0229916 Contact Us For Availability
21
DOOR-OVEN AIR WPL B5796801 Contact Us For Availability
22
NUT WPL A1021301 Contact Us For Availability
22
ANTENNA DR COUPLER A WPL A1005502 Contact Us For Availability
22
BRACKET-SOL ARM WPL B8305801 Contact Us For Availability
23
TAPE PER ROLL WPL M0275115 Contact Us For Availability
23
BEARING A WPL A1005403 Contact Us For Availability
23
PIN WPL M1200104 Contact Us For Availability
24
GRILLE WPL D7414401 Contact Us For Availability
24
STRAP-CAPACITOR WPL A3257003 Contact Us For Availability
24
SOLENOID ARM K WPL B8305902 Contact Us For Availability
25
RETAINER RING A WPL A1021601 Contact Us For Availability
25
ROLL PIN WPL M1200101 Contact Us For Availability
26
SEALER RTV-CLEAR WPL M0275581 Contact Us For Availability
26
MTG BRACKET WPL C8870001 Contact Us For Availability
27
WASHER WPL M0270535 Contact Us For Availability
27
SCREW WPL M0213815 Contact Us For Availability
27
BASE PAN WPL D7404112 Contact Us For Availability
28
ARM-DOOR STOP WPL B8307503 Contact Us For Availability
28
O RING WPL A1021701 Contact Us For Availability
28
BACK PLATE PNT WPL B8303303 Contact Us For Availability
28
RMC SOLENOID KIT WPL R0157446 Contact Us For Availability
29
SCREW-SHOULDER WPL M0220219 Contact Us For Availability
29
BRACKET WPL B8310901 Contact Us For Availability
29
PLUG WPL M0311104 Contact Us For Availability
29
SCREW WPL M0201414 Contact Us For Availability
30
MOTOR WPL B8308302 Contact Us For Availability
30
TRANSFORMER FILAMENT WPL C8807811 Contact Us For Availability
31
SCREW WPL M0253509 Contact Us For Availability
31
GASKET, U-CHANNEL WPL B8321902 Contact Us For Availability
32
HEATER BROIL ELEMENT WPL C8830502 Contact Us For Availability
32
SCREW WPL M0254449 Contact Us For Availability
32
GASKET, U-CHANNEL WPL B8321903 Contact Us For Availability
33
FOOT WPL B5732505 Contact Us For Availability
33
BRACKET-SCROLL MTG WPL D7404701 Contact Us For Availability
34
POP RIVET WPL A4539619 Contact Us For Availability
34
BLOWER WHEEL WPL C3670805 Contact Us For Availability
35
OVEN TRAY (LARGE) WPL C8841202 Contact Us For Availability
35
CORD, POWER WPL B8310502 Contact Us For Availability
35
SCROLL WLD WPL C8826801 Contact Us For Availability
36
SCREW, No.8-32 X 5/16 PPH (BLK) WPL M0230028 Contact Us For Availability
36
OVEN RACK K WPL D7622101 Contact Us For Availability
36
BLOWER SCROLL WPL C8825404 Contact Us For Availability
37
SCREW WPL M0217514 Contact Us For Availability
37
MOTOR, BLOWER WPL D7674401 Contact Us For Availability
38
WRAPPER-BENT WPL D7414501 Contact Us For Availability
38
BACK PLATE PNT WPL C8829203 Contact Us For Availability
38
MTR MNT WPL B5795401 Contact Us For Availability
39
CLIP, WATERLINE WPL YA0381501 Contact Us For Availability
39
BACK PLATE WPL A1019901 Contact Us For Availability
40
COVER PLATE PNT. WPL B8300805 Contact Us For Availability
40
POP RIVET WPL A4539609 Contact Us For Availability
41
HINGE WPL B8300101 Contact Us For Availability
41
HINGE WPL B8300301 Contact Us For Availability
41
WIRING HARNESS WPL D7697601 Contact Us For Availability
41
BLOWER WHEEL WPL C3670806 Contact Us For Availability
42
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
42
INSUL-BLOWER SCROLL WPL B8307402 Contact Us For Availability
43
SHIM WPL B8314402 Contact Us For Availability
43
LOCK WASHER WPL M0272805 Contact Us For Availability
44
CLIP, CORD WPL M0104102 Contact Us For Availability
45
WASHER NON-METAL WPL M0274032 Contact Us For Availability
45
WASHER WPL M0274046 Contact Us For Availability
45
SCREW WPL M0227303 Contact Us For Availability
46
ADHESIVE MELT PINT WPL M0910003 Contact Us For Availability
46
BRK OVEN MOUNTING WPL B8307801 Contact Us For Availability
47
SCREW,SM WPL M0233329 Contact Us For Availability
48
PLUG WPL M0310005 Contact Us For Availability
49
JUMPER WIRE WPL C8849601 Contact Us For Availability
49
JUMPER WIRE WPL D7292655 Contact Us For Availability
49
JUMPER WIRE WPL D7292669 Contact Us For Availability
49
EYELET K WPL A0381401 Contact Us For Availability
50
INSULATOR, POD K WPL M0325501 Contact Us For Availability
50
NUT K WPL M0281405 Contact Us For Availability
51
CUT-OUT, THERMAL WPL B5665822 Contact Us For Availability
51
BAFFLE WPL B8323001 Contact Us For Availability
52
BRACKET-SW MTG WPL D7428201 Contact Us For Availability
53
WASHER WPL M0274045 Contact Us For Availability
53
CLIP WPL M0110508 Contact Us For Availability
53
SWITCH, LIMIT WPL C8842003 Contact Us For Availability
53
SWITCH LIMIT WPL C8842005 Contact Us For Availability
54
SCREW WPL M0258901 Contact Us For Availability
54
LIMIT SWITCH WPL B8306602 Contact Us For Availability
55
SCREW TORX WPL M0259318 Contact Us For Availability
55
DOOR GUIDE,SLEEVE WPL C8840402 Contact Us For Availability
56
STIFFNER, WRAPPER WPL B8343901 Contact Us For Availability
56
DOOR CATCH WPL C8829605 Contact Us For Availability
57
SPRING FASTENER WPL B8308801 Contact Us For Availability
57
LEVER WPL B8305701 Contact Us For Availability
58
PIN BELL-CRANK WPL A3182601 Contact Us For Availability
59
SCREW WPL M0234114 Contact Us For Availability
60
INSULATOR-LT BRKT WPL C8912501 Contact Us For Availability
60
SCREW WPL M0202521 Contact Us For Availability
61
SCREW K WPL M0229005 Contact Us For Availability
62
ANTENNA ASSEMBLY WPL B8324202 Contact Us For Availability
63
INSULATION WPL B8360102 Contact Us For Availability
64
SEALER RTV-CLEAR WPL M0275537 Contact Us For Availability
65
GASKET (INCH) WPL A3030301 Contact Us For Availability
66
POP RIVET WPL A4539601 Contact Us For Availability
× ![]()
