Model Whirlpool RMC-20 CONVECTION MICROWAVE – Common Parts & Diagrams

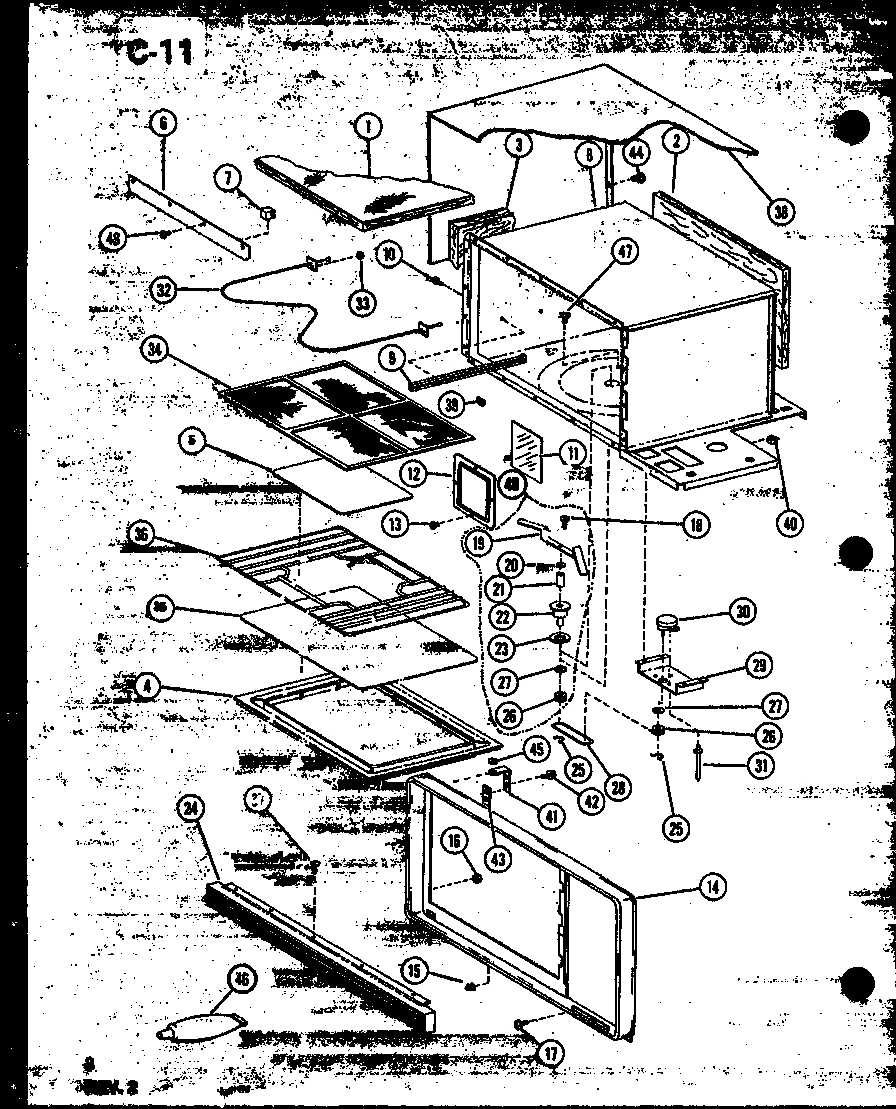

03 - Page 3

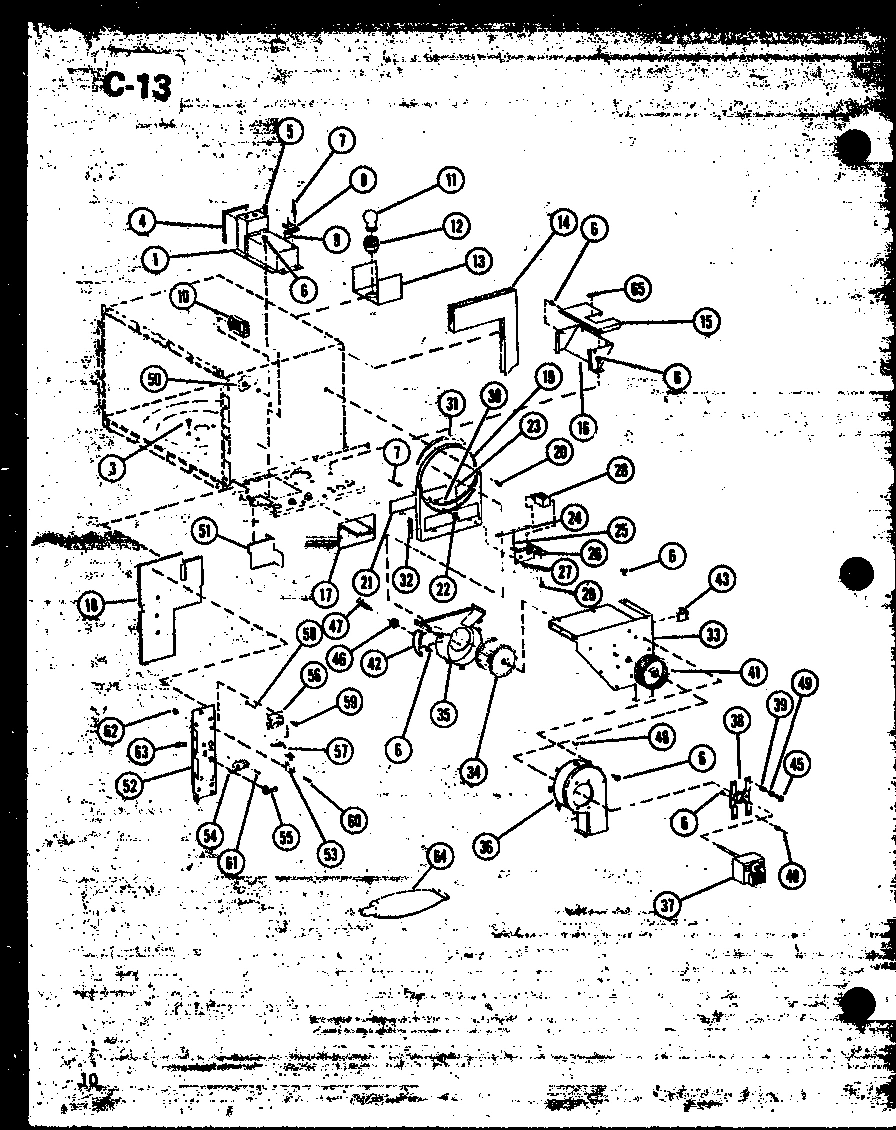

04 - Page 4
01 - Page 1

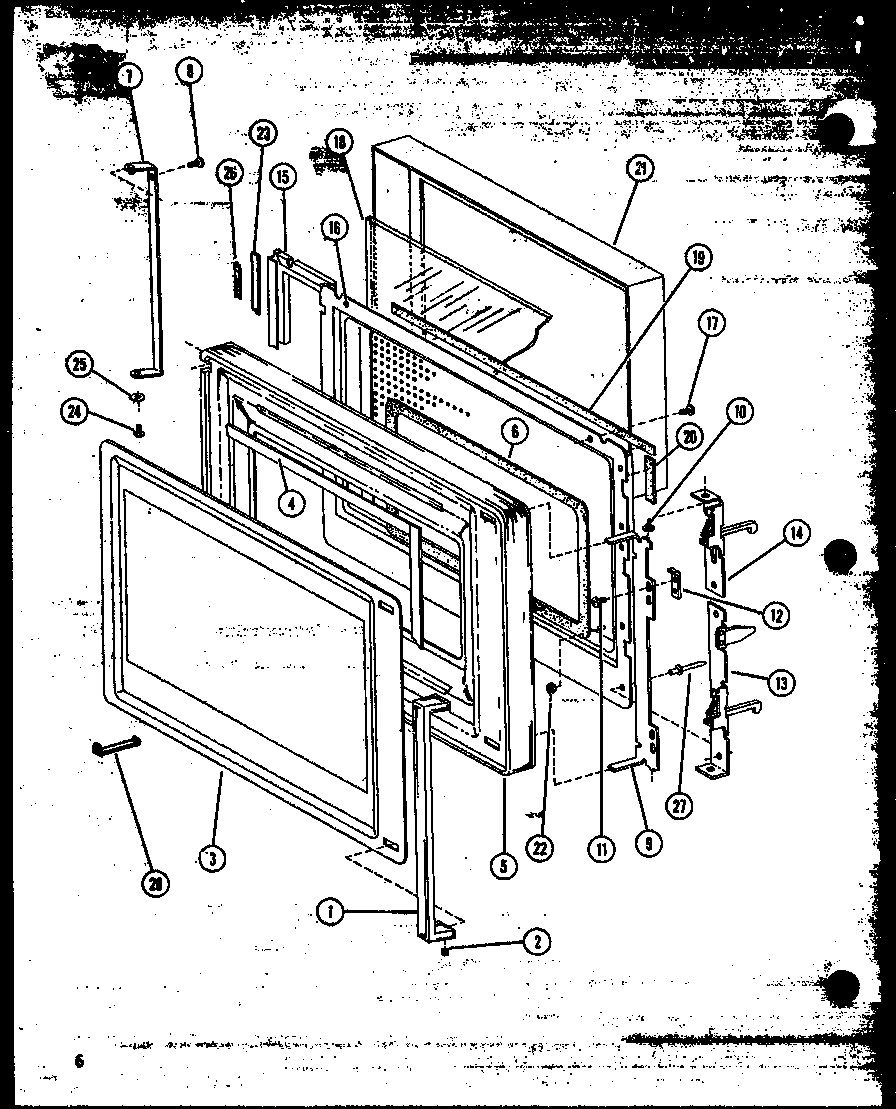

02 - Page 2

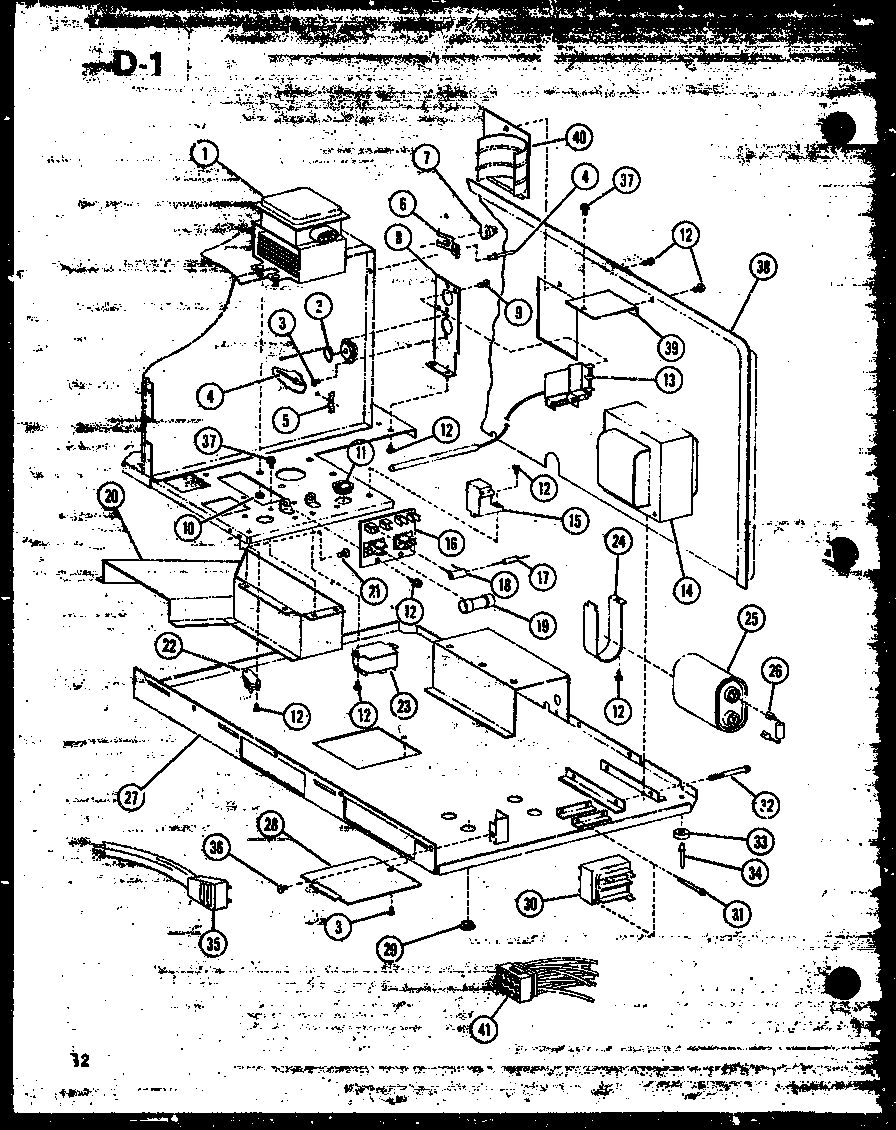

05 - Page 5
Common parts from model Whirlpool RMC-20 CONVECTION MICROWAVE
1
INSUL-OVEN TOP WPL B8307302 Contact Us For Availability
1
EXHUST DUCT WPL C8825601 Contact Us For Availability
1
KNOB WPL C8735901 Contact Us For Availability
1
HANDLE WPL C8830803 Contact Us For Availability
1
MAGNETRON WPL C8761709 Contact Us For Availability
2
INSUL-BACK OVEN WPL B8307202 Contact Us For Availability
2
(+) KNOB-TEMP IND WPL B5782401 Contact Us For Availability
2
SCREW WPL M0208328 Contact Us For Availability
2
CONTROL WPL C8864601 Contact Us For Availability
3
INSUL-LFT OVEN WPL B8307102 Contact Us For Availability
3
SCREW WPL M0234016 Contact Us For Availability
3
SCREW WPL M0213815 Contact Us For Availability
3
KNOB WPL B8300701 Contact Us For Availability
3
LENS, DOOR WPL D7412301 Contact Us For Availability
4
TRAY SUPPORT (SMALL) WPL D7428101 Contact Us For Availability
4
POP RIVET WPL A4539601 Contact Us For Availability
4
GASKET, U-CHANNEL WPL B8321904 Contact Us For Availability
4
LENS-UPPER WPL C8829001 Contact Us For Availability
4
TAPE ROLL (72 YDS/ROLL) WPL M0275159 Contact Us For Availability
5
OVEN TRAY WPL C2718401 Contact Us For Availability
5
GASKET WPL A1018104 Contact Us For Availability
5
LENS-LOWER WPL C8829101 Contact Us For Availability
5
DOOR CASTING WPL D7412402 Contact Us For Availability
5
CLIP WPL A1016301 Contact Us For Availability
6
ISOLATOR, OVEN HEAT WPL C8827101 Contact Us For Availability
6
CLIP WPL B5725102 Contact Us For Availability
6
TAPE ROLL WPL M0275158 Contact Us For Availability
6
GASKET WPL A1018101 Contact Us For Availability
7
HEATER SUPT WPL B5797401 Contact Us For Availability
7
ESCUTCHEON CASTING WPL D7391902 Contact Us For Availability
7
DOOR HINGE WPL C8836501 Contact Us For Availability
7
THERMAL CUTOUT WPL B5665821 Contact Us For Availability
8
OVEN CAVITY WPL D7432003 Contact Us For Availability
8
DISK-TIMER WPL C8841502 Contact Us For Availability
8
BRACKET WPL B8307702 Contact Us For Availability
9
GUIDE K WPL C8839802 Contact Us For Availability
9
GUIDE-OVEN RACK WPL C8839902 Contact Us For Availability
9
THERMAL CUT OUT KIT WPL B5665818 Contact Us For Availability
9
BUTTON-LIGHT WPL B5798901 Contact Us For Availability
9
BUTTON-START WPL B5799001 Contact Us For Availability
9
BUTTON-STOP WPL B5799101 Contact Us For Availability
9
SCREW WPL M0202528 Contact Us For Availability
9
ACTUATOR-LATCH WPL C8841001 Contact Us For Availability
10
SWITCH JACK WPL C8845402 Contact Us For Availability
10
BUTTON-SELECTOR WPL B8300401 Contact Us For Availability
10
BUSHING WPL B8306202 Contact Us For Availability
10
LOCK-NUT---K WPL M0282801 Contact Us For Availability
11
GLASS,OVEN LIGHT WPL B8304301 Contact Us For Availability
11
SCREW A WPL M0202515 Contact Us For Availability
11
LIGHT PILOT WPL B5785705 Contact Us For Availability
11
SNAP BUSHING WPL A3293503 Contact Us For Availability
12
BRACKET OVEN LIGHT WPL C8840301 Contact Us For Availability
12
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
12
PLATE-CONTROL MTG WPL D7410302 Contact Us For Availability
12
ADJUSTOR WPL B8314502 Contact Us For Availability
13
SCREW A K WPL M0211516 Contact Us For Availability
13
SHIELD BULB WPL A1021401 Contact Us For Availability
13
SWITCH WPL B5674703 Contact Us For Availability
13
SWITCH WPL B5762105 Contact Us For Availability
13
LWR DOOR LATCH ASSY WPL R0183067 Contact Us For Availability
13
THERMOSTAT WPL C8860501 Contact Us For Availability
14
BEZEL WPL C8837503 Contact Us For Availability
14
INSUL-RT OVEN WPL B8306902 Contact Us For Availability
14
.156 POP RIVET WPL A4539618 Contact Us For Availability
14
UPPER DOOR LATCH ASSY WPL R0183068 Contact Us For Availability
14
TRANSFORMER WPL D7474101 Contact Us For Availability
15
CLIP EXHAUST DUCT WPL A1018401 Contact Us For Availability
15
COVER, DUCT WPL C8825301 Contact Us For Availability
15
TIMER WPL C8841402 Contact Us For Availability
15
GASKET WPL D7447702 Contact Us For Availability
15
KIT, DIODE WPL B5767803 Contact Us For Availability
16
NUT, SELF THREAD WPL M0282901 Contact Us For Availability
16
DUCT, BL IMPUT WPL C8825201 Contact Us For Availability
16
DIGITAL TIMER WPL D7405902 Contact Us For Availability
16
INNER DOOR ASSY WPL C8840501 Contact Us For Availability
16
TERMINAL BOARD WPL C8841603 Contact Us For Availability
17
BAFFLE, TRANSFORMER WPL B8323501 Contact Us For Availability
17
SWITCH WPL C8841102 Contact Us For Availability
17
SCREW WPL M0258518 Contact Us For Availability
17
FUSE WPL M0308102 Contact Us For Availability
17
FUSE RESISTOR K WPL M0308107 Contact Us For Availability
18
INSUL-RT OVEN WPL B8307002 Contact Us For Availability
18
WINDOW-INNER WPL A1004901 Contact Us For Availability
18
RESISTOR A WPL M0308601 Contact Us For Availability
18
RESISTOR K WPL M0308607 Contact Us For Availability
19
ANTENNA A WPL B8302701 Contact Us For Availability
19
AIR DEFLECT WLD WPL C8827401 Contact Us For Availability
19
GASKET WPL A1032401 Contact Us For Availability
19
FUSE-20A WPL M0850507 Contact Us For Availability
20
WASHER WPL M0272503 Contact Us For Availability
20
SHOULDER SCREW WPL A1020102 Contact Us For Availability
20
GASKET WPL A1032402 Contact Us For Availability
20
EXHQUST WPL C8826901 Contact Us For Availability
21
SCREW WPL M0234114 Contact Us For Availability
21
SHAFT, ANTENNA WPL B8302801 Contact Us For Availability
21
DOOR-OVEN AIR WPL B5796801 Contact Us For Availability
21
DOOR-INNER WPL D7410801 Contact Us For Availability
21
SCREW T.C WPL M0229916 Contact Us For Availability
22
ANTENNA DR COUPLER A WPL A1005502 Contact Us For Availability
22
BRACKET-SOL ARM WPL B8305801 Contact Us For Availability
22
WIRING HARNESS WPL D7499701 Contact Us For Availability
22
NUT WPL A1021301 Contact Us For Availability
22
KIT, TRIAC ASSY WPL B8308701 Contact Us For Availability
23
BEARING A WPL A1005402 Contact Us For Availability
23
PIN WPL M1200104 Contact Us For Availability
23
RELAY K WPL B5773502 Contact Us For Availability
23
TEMP PROBE WPL B8312501 Contact Us For Availability
23
TAPE PER ROLL WPL M0275115 Contact Us For Availability
24
GRILLE WPL D7414401 Contact Us For Availability
24
SOLENOID ARM WPL B8305901 Contact Us For Availability
24
SCREW WPL M0258901 Contact Us For Availability
24
STRAP-CAPACITOR WPL A3257003 Contact Us For Availability
25
RETAINER RING A WPL A1021601 Contact Us For Availability
25
ROLL PIN WPL M1200101 Contact Us For Availability
25
WASHER WPL M0274045 Contact Us For Availability
26
BRACKET, SOLENOID WPL C8840201 Contact Us For Availability
26
SEALER RTV-CLEAR WPL M0275581 Contact Us For Availability
26
RESISTOR ASSY WPL A1001901 Contact Us For Availability
27
WASHER WPL M0270535 Contact Us For Availability
27
BASEPAN WELDMENT WPL D7404102 Contact Us For Availability
28
O RING WPL A1021701 Contact Us For Availability
28
SOLENOID, DOOR LOCKING WPL B5682103 Contact Us For Availability
28
ARM-DOOR STOP WPL B8307503 Contact Us For Availability
28
COVER PLATE WPL B8303302 Contact Us For Availability
29
BRACKET WPL B8310901 Contact Us For Availability
29
SCREW WPL M0201414 Contact Us For Availability
29
PLUG WPL M0311104 Contact Us For Availability
30
MOTOR WPL B8308302 Contact Us For Availability
30
GASKET, U-CHANNEL WPL B8321901 Contact Us For Availability
30
TRANSFORMER WPL C8807805 Contact Us For Availability
31
GASKET, U-CHANNEL WPL B8321902 Contact Us For Availability
31
SCREW WPL M0254412 Contact Us For Availability
32
BROIL HEATER, 120 V., 1400 WAT WPL C8830501 Contact Us For Availability
32
GASKET, U-CHANNEL WPL B8321903 Contact Us For Availability
32
SCREW WPL M0254449 Contact Us For Availability
33
BRACKET-SCROLL MTG WPL D7404701 Contact Us For Availability
33
FOOT WPL B5732505 Contact Us For Availability
34
RACK WPL D7454101 Contact Us For Availability
34
BLOWER WHEEL WPL C3670803 Contact Us For Availability
34
POP RIVET WPL A4539619 Contact Us For Availability
35
OVEN TRAY WPL C8841201 Contact Us For Availability
35
SCROLL WLD WPL C8826801 Contact Us For Availability
35
CORD, POWER WPL B8310502 Contact Us For Availability
36
SCREW, No.8-32 X 5/16 PPH (BLK) WPL M0230028 Contact Us For Availability
36
OVEN RACK ASSY WPL D7428002 Contact Us For Availability
36
SCROLL WPL C8825401 Contact Us For Availability
37
SCREW WPL M0217514 Contact Us For Availability
37
MOTOR WPL B5736104 Contact Us For Availability
38
WRAPPER-BENT WPL D7414501 Contact Us For Availability
38
MTR MNT WPL B5795401 Contact Us For Availability
38
BACK PLATE PNT WPL C8829201 Contact Us For Availability
39
CLIP, WATERLINE WPL YA0381501 Contact Us For Availability
39
SPRING FASTENER WPL B8308801 Contact Us For Availability
39
BACK PLATE WPL A1019901 Contact Us For Availability
40
CLIP-CABLE WPL M0110505 Contact Us For Availability
40
POP RIVET WPL A4539613 Contact Us For Availability
40
COVER PLATE PNT. WPL B8300803 Contact Us For Availability
41
HINGE WPL B8300101 Contact Us For Availability
41
HINGE WPL B8300301 Contact Us For Availability
41
BLOWER WHEEL WPL C3670804 Contact Us For Availability
41
WIRING HARNESS WPL D7500201 Contact Us For Availability
42
INSUL-BLOWER SCROLL WPL B8307402 Contact Us For Availability
43
SHIM WPL B8314401 Contact Us For Availability
43
SHIM WPL B8314402 Contact Us For Availability
43
SHIM WPL B8314403 Contact Us For Availability
43
CLIP WPL B8306501 Contact Us For Availability
45
WASHER NON-METAL WPL M0274032 Contact Us For Availability
45
WASHER WPL M0274046 Contact Us For Availability
45
SCREW WPL M0227303 Contact Us For Availability
46
ADHESIVE MELT PINT WPL M0910003 Contact Us For Availability
46
WASHER WPL M0272605 Contact Us For Availability
47
SCREW WPL M0202642 Contact Us For Availability
48
PLUG WPL M0310005 Contact Us For Availability
49
ANTENNA ASSEMBLY WPL B8324201 Contact Us For Availability
49
EYELET K WPL A0381401 Contact Us For Availability
50
NUT-DECORATIVE WPL A3275701 Contact Us For Availability
51
BAFFLE WPL B8323001 Contact Us For Availability
52
BRACKET-SW MTG WPL D7428201 Contact Us For Availability
53
SWITCH, LIMIT WPL C8842001 Contact Us For Availability
54
LIMIT SWITCH WPL B8306602 Contact Us For Availability
55
SLEEVE, DOOR GUIDE WPL C8840401 Contact Us For Availability
56
DOOR CATCH WPL C8829603 Contact Us For Availability
57
LEVER WPL B8305701 Contact Us For Availability
58
PIN BELL-CRANK WPL A3182601 Contact Us For Availability
60
SCREW WPL M0202521 Contact Us For Availability
61
SCREW K WPL M0229005 Contact Us For Availability
62
SPEED NUT WPL M0289502 Contact Us For Availability
62
NUT A WPL M0289504 Contact Us For Availability
63
SEALER RTV-CLEAR WPL M0275537 Contact Us For Availability
NI
TERMINAL BLOCK WPL B5677206 Contact Us For Availability
NI
CLIP, CORD WPL M0104102 Contact Us For Availability
NI
JUMPER WIRE WPL C8849601 Contact Us For Availability
NI
JUMPER WIRE WPL D7292655 Contact Us For Availability
× ![]()
Login and Registration Form
