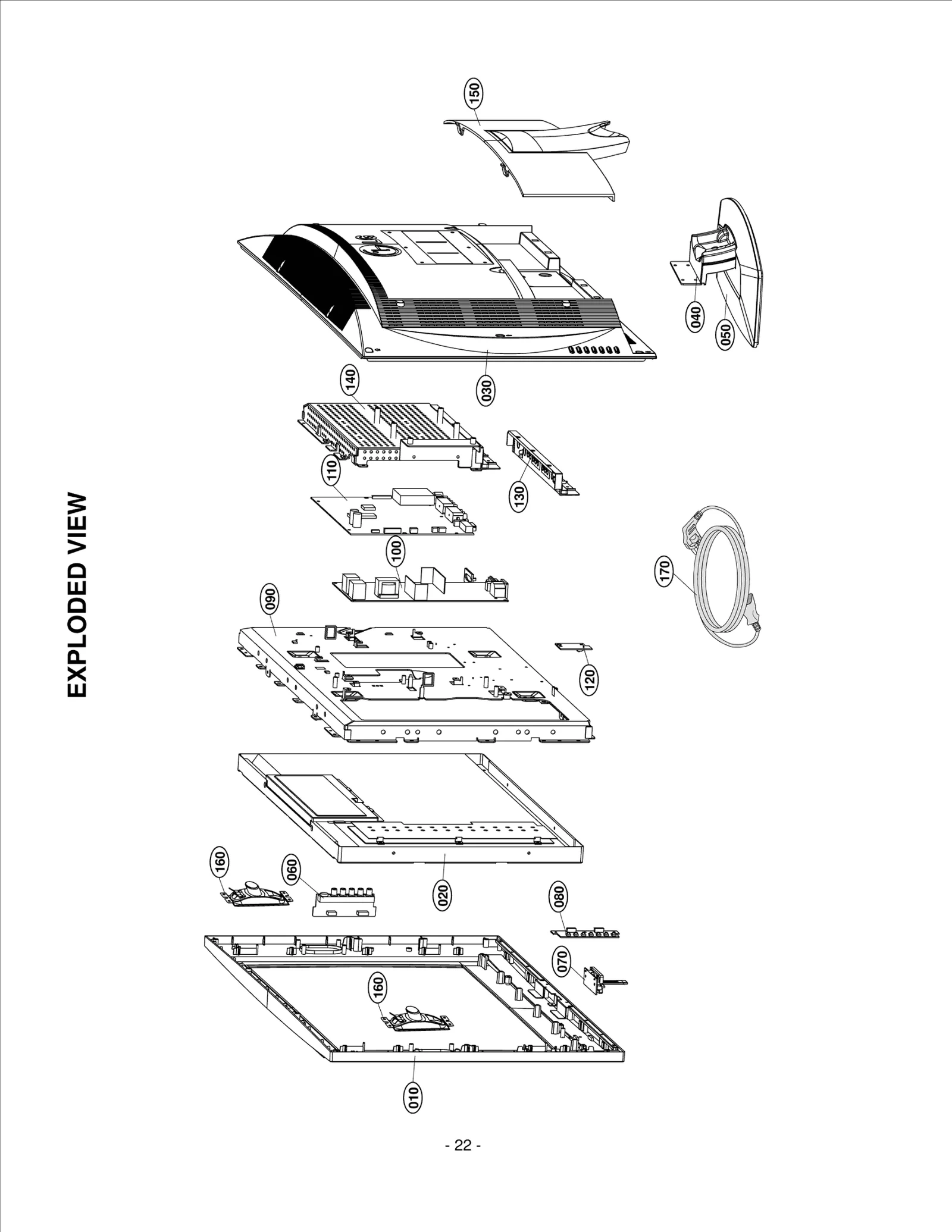

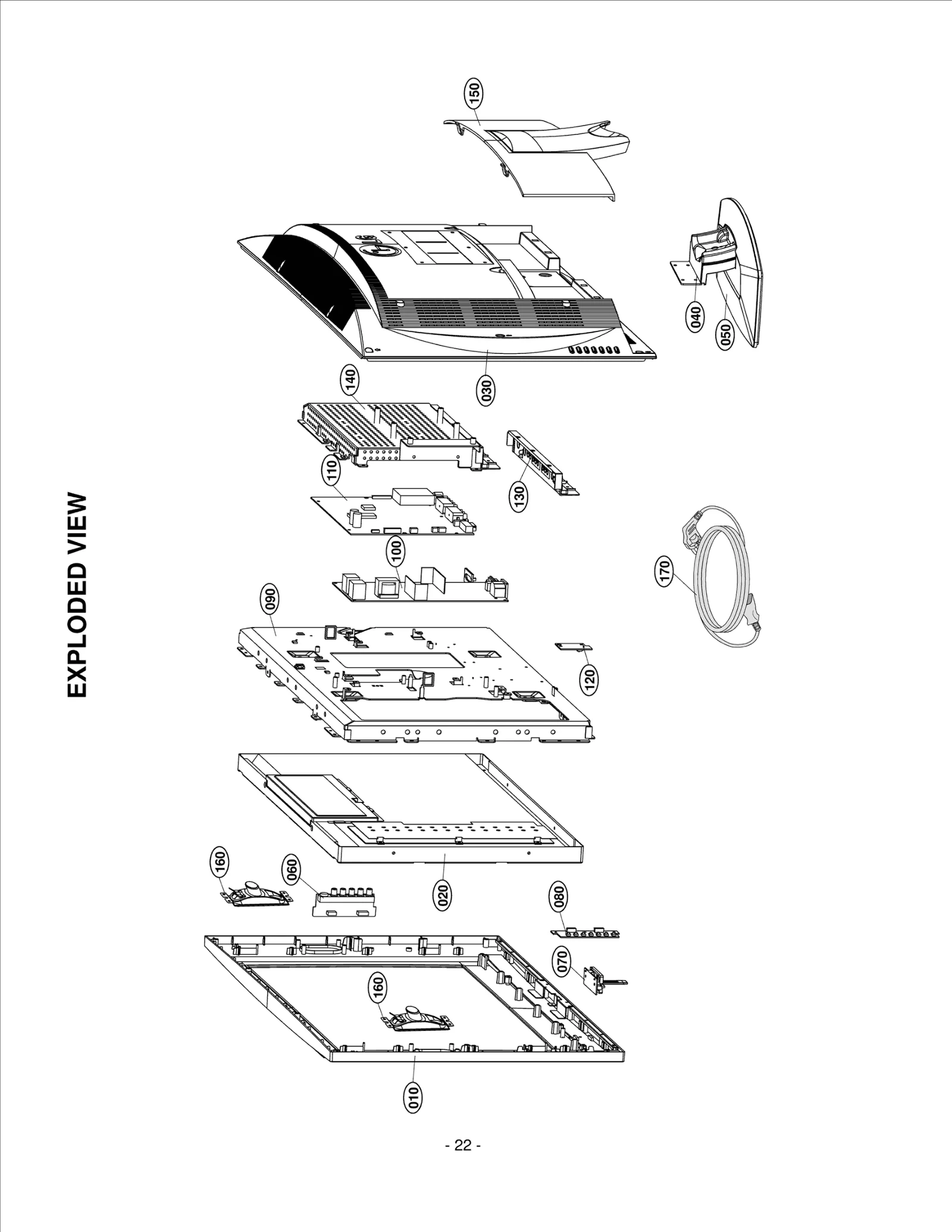

Diagram 0
Diagram 1
Common parts from model LG RM-23LZ55C
1
JACK,RCA LGE 380-336E Contact Us For Availability
1
IC,DRAWING LGE 0IZZ9A0009A Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FLP283A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP232A Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809TKE024N Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK221A Contact Us For Availability
060
PWB(PCB) ASSEMBLY,VI LGE 6871TVT370C Contact Us For Availability
070
PWB(PCB) ASSEMBLY,SU LGE 6871TST763D Contact Us For Availability
090
METAL ASSEMBLY LGE 4951TKS236F Contact Us For Availability
100
PWB(PCB) ASSEMBLY,PO LGE 6871TPT287E Contact Us For Availability
100
PWB(PCB) ASSEMBLY,PO LGE 6871TPT287J Contact Us For Availability
110
MAIN TOTAL ASSEMBLY LGE 33139N2014A Contact Us For Availability
120
PWB(PCB) ASSEMBLY,SU LGE 6871TST632C Contact Us For Availability
130
COVER ASSEMBLY LGE 3551TKK530J Contact Us For Availability
140
METAL ASSEMBLY LGE 4951TKK174F Contact Us For Availability
150
Cover LGE 3550TKK623C Contact Us For Availability
160
Speaker,Fullrange LGE EAB30825701 Contact Us For Availability
A1
Printing Part Assemb LGE 3871TZL353Q Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710T00008Q Contact Us For Availability
C1
CABLE,DVI LGE 68509J0001A Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T11020N Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631T20034Y Contact Us For Availability
C4
CORD,A/V LGE 6852TAZ006U Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631T20033T Contact Us For Availability
C5
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631T20034Z Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631T20033E Contact Us For Availability
C8
Harness,Single LGE 6631T20033D Contact Us For Availability
C9
LGE 6631T20033A LGE 6631T20033A Contact Us For Availability
C10
LGE 6631T20029Z LGE 6631T20029Z Contact Us For Availability
C11
LGE 6631T20029Y LGE 6631T20029Y Contact Us For Availability
C35
CAPACITOR,FIXED CERA LGE 0CK334CF94A Contact Us For Availability
C74
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C74
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C76
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C88
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C90
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C100
CAPACITOR,CHIP[AL. E LGE 0CH8476F691 Contact Us For Availability
C108
Capacitor,AL,Radial LGE 0CE476EK638 Contact Us For Availability
C112
LGE 0CE475EK638 LGE 0CE475EK638 Contact Us For Availability
C117
CAPACITOR,FIXED CERA LGE 0CK562CK51A Contact Us For Availability
C120
C ELECTROLYTIC 10UF KME 16V M LGE 0CE106BF618 Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C129
C,MPE LGE 181-007F Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
C133
CAPACITOR,FIXED ELEC LGE 0CE477EJ618 Contact Us For Availability
C216
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C313
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE 0CH5150K416 Contact Us For Availability
C352
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C404
LGE 0CE227EJ638 LGE 0CE227EJ638 Contact Us For Availability
C462
CAPACITOR,CHIP[CERAM LGE 0CH3474H946 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
C468
Capacitor,Ceramic,Chip LGE 0CH5820K416 Contact Us For Availability
C469
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C488
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C613
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C628
Capacitor,Ceramic,Chip LGE 0CH2822K516 Contact Us For Availability
C628
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3822K516 Contact Us For Availability
C629
Capacitor,Ceramic,Chip LGE 0CH3823K516 Contact Us For Availability
C629
CAPACITOR,FIXED CERA LGE 0CK823DK56A Contact Us For Availability
C757
CAPACITOR,CHIP LGE 0CH5471K416 Contact Us For Availability
C800
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C807
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C905
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C924
Capacitor,Ceramic,Chip LGE 0CH5080K116 Contact Us For Availability
C958
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1006
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C1007
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C1010
CAPACITOR,FIXED CERA LGE 0CK273DK51A Contact Us For Availability
C1010
Capacitor,Ceramic,Ch LGE 0CH2273K516 Contact Us For Availability
C1015
Capacitor,Ceramic,Chip LGE 0CH5680K416 Contact Us For Availability
C1018
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5390K416 Contact Us For Availability
C1102
CAPACITOR,AL.ELECTRO LGE 0CE107EK638 Contact Us For Availability
C1113
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C1113
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF618 Contact Us For Availability
C1303
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C1500
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C2007
Capacitor,Ceramic,Axial LGE EAE34161310 Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRFC00288A Contact Us For Availability
D102
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D105
DIODE,ZENER LGE 0DZ620009HB Contact Us For Availability
D107
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC1
IC,PERIPHERALS LGE 0IPRPMN003G Contact Us For Availability
IC5
IC,POWER MANAGEMENT LGE 0IPMG00107A Contact Us For Availability
IC8
IC,POWER MANAGEMENT LGE 0IMCRFA015A Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRMZ002A Contact Us For Availability
IC101
IC,Audio Amplifier LGE 0IMCRMZ002B Contact Us For Availability
IC103
IC,SAMSUNG ELECTRONICS LGE 0ISS780800J Contact Us For Availability
IC200
IC,LINEAR LGE 0ISA722200C Contact Us For Availability
IC200
IC LA7222 (1280 AUDIO), SANYO LGE 0ISA722200A Contact Us For Availability
IC300
IC,POWER MANAGEMENT LGE 0IPMGKE039A Contact Us For Availability
IC450
IC,PERIPHERALS LGE 0IPRPTO022A Contact Us For Availability
IC500
IC,MICRO CONTROLLER LGE 0IMCRGN002D Contact Us For Availability
IC501
IC,MEMORIES LGE 0IMMREB010B Contact Us For Availability
IC600
IC,PERIPHERALS LGE 0IPRPM3002D Contact Us For Availability
IC601
IC,POWER MANAGEMENT LGE 0IPMGNS001E Contact Us For Availability
IC702
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
IC751
DIODE,RECTIFIERS LGE 0DRSE00018B Contact Us For Availability
IC752
IC,Multiplexer LGE 0IMCRTI001A Contact Us For Availability
IC753
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
IC800
IC,PERIPHERALS LGE 0IPRPNP001A Contact Us For Availability
IC850
IC,MICRO CONTROLLER LGE 0IMCRMI006B Contact Us For Availability
IC900
SOCKET(CIRC),IC LGE 6620F00017A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPGN014C Contact Us For Availability
IC905
IC,POWER MANAGEMENT LGE 0IPMGFA061A Contact Us For Availability
IC906
IC,LDO Voltage Regulator LGE 0IPMGSG020A Contact Us For Availability
IC906
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
IC918
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC1301
IC,POWER MANAGEMENT LGE 0IPMG00063A Contact Us For Availability
IC2000
IC,STANDARD LOGIC LGE 0ISTL00026A Contact Us For Availability
JA2000
JACK,RCA LGE 6612J00060A Contact Us For Availability
JA2002
JACK,RCA LGE 380-336F Contact Us For Availability
L8
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L8
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L105
COIL,CHOKE LGE 6140TBZ045A Contact Us For Availability
L208
Filter,Bead LGE EAM38769501 Contact Us For Availability
L501
Filter,Bead LGE EAM30764101 Contact Us For Availability
L1001
INDUCTOR,CHIP LGE 0LC1020101A Contact Us For Availability
L1001
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L1300
COIL,ENERGY RECOVERY LGE 6140VR0008B Contact Us For Availability
L1700
INDUCTOR AXIAL LEAD KCN20A82G LGE 0LA0102K119 Contact Us For Availability
LED1600
LED LGE 0DLBE0138AA Contact Us For Availability
P101
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P105
Connector,Wafer LGE 6602T20008D Contact Us For Availability
P750
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P750
Harness,Single LGE 6631T20033F Contact Us For Availability
P1100
CONNECTOR ASSEMBLY LGE 6631T25019K Contact Us For Availability
P1100
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
P1700
Conector,Wafer LGE 6602T20009B Contact Us For Availability
P2000
Connector,Wafer LGE 6602T20008N Contact Us For Availability
Q12
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1000
TRANSISTOR LGE 0TR388109AA Contact Us For Availability
Q1101
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R107
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R123
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R133
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ8202D677 Contact Us For Availability
R147
RESISTOR CHIP 39 1/10W 5 D.R/T LGE 0RH0392D622 Contact Us For Availability
R159
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R201
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH9101D622 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R223
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R224
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R261
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R470
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R473
RESISTOR,METAL GLAZE LGE 0RJ3602D677 Contact Us For Availability
R479
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R502
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R520
Resistor,Chip LGE 0RH1800D622 Contact Us For Availability
R527
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R532
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R702
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R802
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R806
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R808
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R809
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R852
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R921
RESISTOR,METAL GLAZE LGE 0RJ4990D477 Contact Us For Availability
R945
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R952
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R1001
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R1004
RESISTOR CHIP LGE 0RH3000D622 Contact Us For Availability
R1012
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R1027
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R1028
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1303
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R1601
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R1602
RESISTOR CHIP 270 1/10W 5 D.R LGE 0RH2700D622 Contact Us For Availability
R1606
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R1700
Resistor,Metal Film LGE 0RN8200F409 Contact Us For Availability
R1701
Resistor,Metal Film LGE 0RN6200F409 Contact Us For Availability
R1702
Resistor,Metal Film LGE 0RN5100F409 Contact Us For Availability
R1703
Resistor,Metal Film LGE 0RN4300F409 Contact Us For Availability
R1704
Resistor,Metal Film LGE 0RN3300F409 Contact Us For Availability
R1705
Resistor,Metal Film LGE 0RN2700F409 Contact Us For Availability
R1706
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R2001
Resistor,Carbon Film LGE 0RD0752Q609 Contact Us For Availability
R2007
Resistor,Carbon Film LGE 0RD4703Q609 Contact Us For Availability
RA604
RESISTOR,METAL GLAZE LGE 0RJ1000C687 Contact Us For Availability
RA604
RESISTOR,ARRAY LGE 0RRZVTA001A Contact Us For Availability
TU1000
TUNER LGE 6700NFNS11J Contact Us For Availability
X11
CRYSTAL,STANDARD LGE 6202VDT002E Contact Us For Availability
X450
RESONATOR,CRYSTAL LGE 6212AA2580C Contact Us For Availability
X500
RESONATOR,CRYSTAL LGE 6202VDT002J Contact Us For Availability
X900
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
Z1000
FILTER(CIRC),SAW LGE 6200QL3002Q Contact Us For Availability
ZD1000
DIODE,ZENER LGE 0DZ330009DF Contact Us For Availability
ZD1300
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
ZD5003
DIODE,ZENER LGE 0DZ510009EE Contact Us For Availability
ZD5003
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
