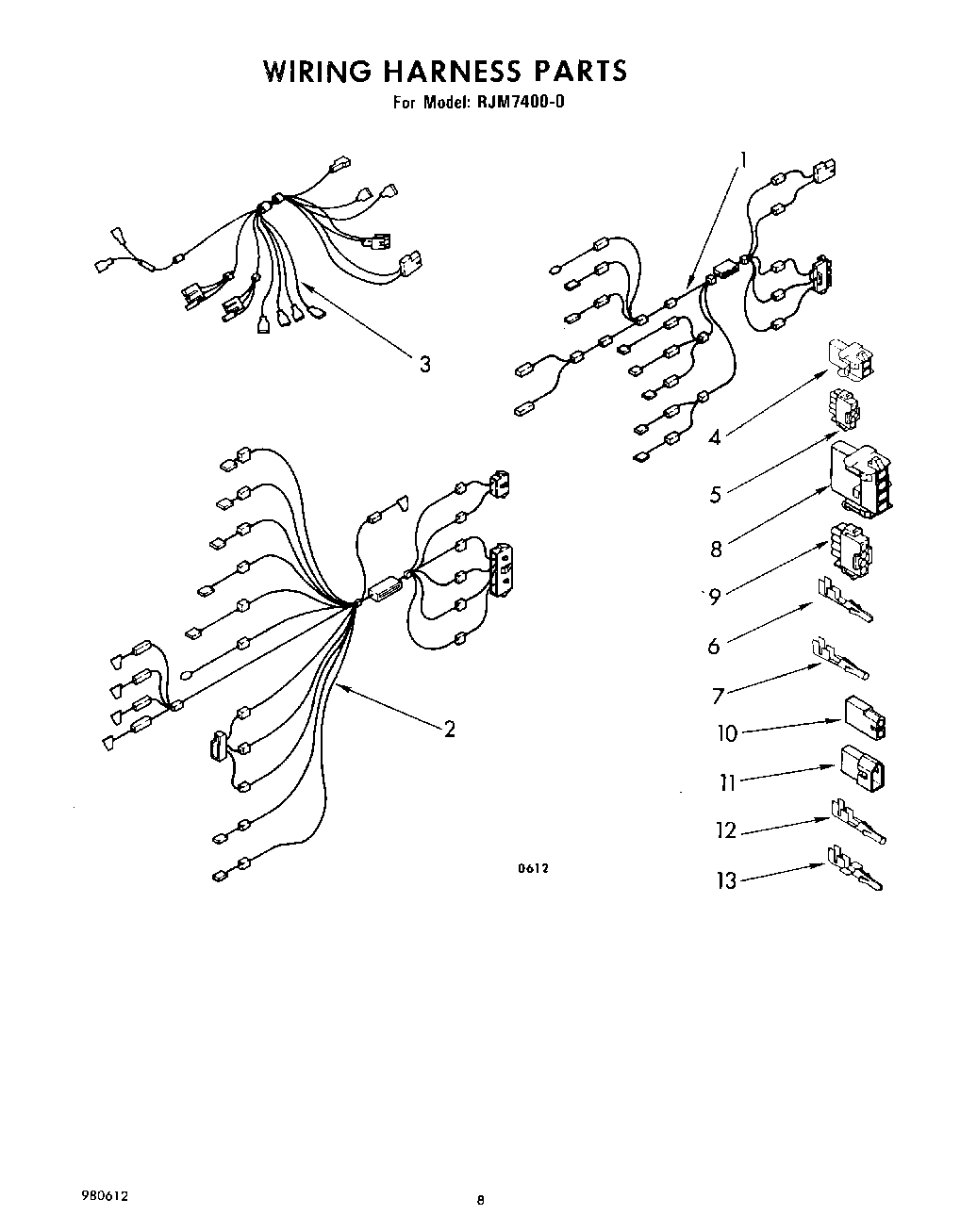

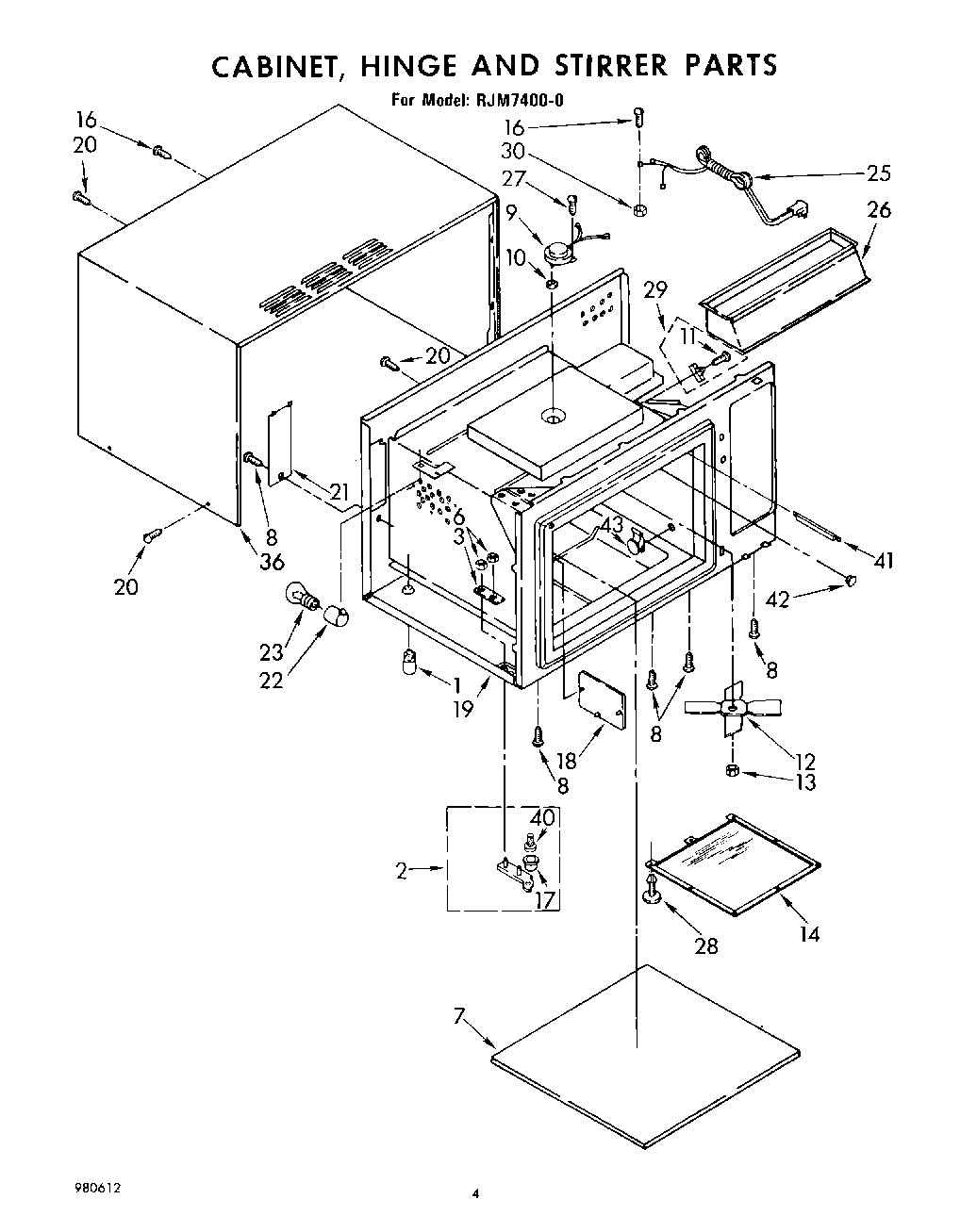

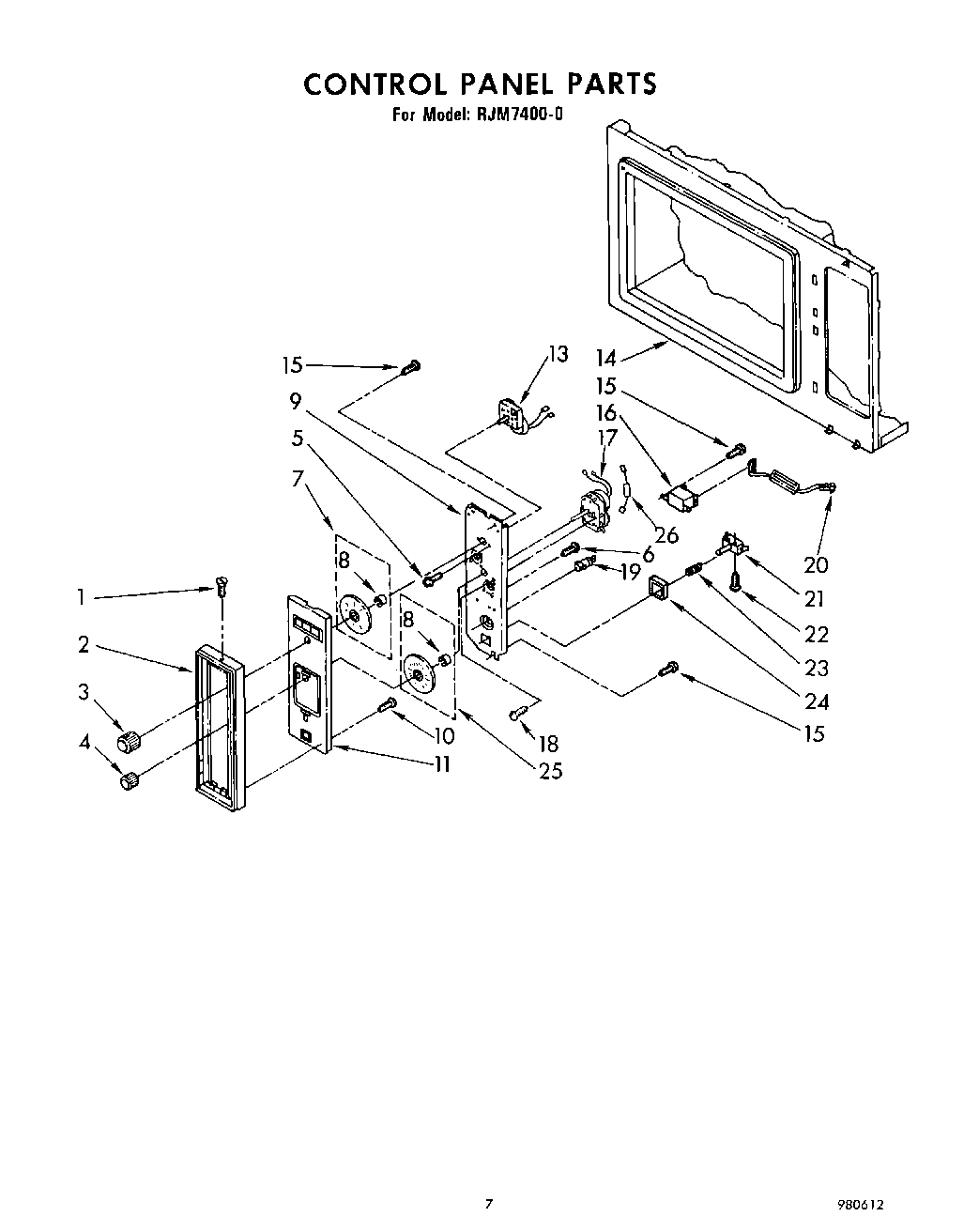

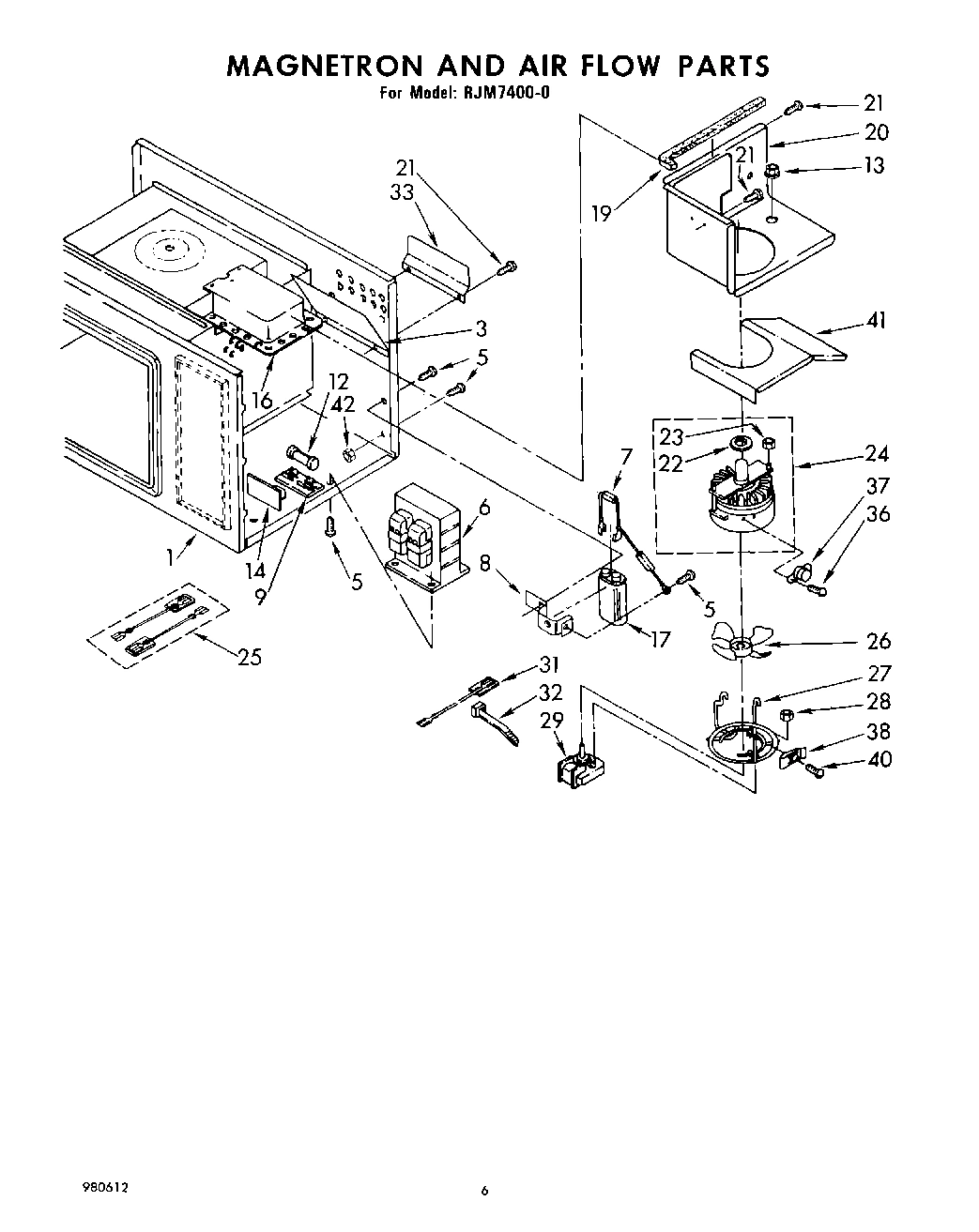

Model Whirlpool RJM74000 – Common Parts &amp; Diagrams

1

Cabinet (Not A Serviceable Part) WPL ARI123430A Contact Us For Availability

1

harness, main WPL 310813 Contact Us For Availability

1

Foot, Mounting (4) WPL 307540 Contact Us For Availability

2

Harness, Control WPL 310856 Contact Us For Availability

2

Hinge, Door (Top) WPL 328126 Contact Us For Availability

2

Hinge, Door (Bottom) WPL 328127 Contact Us For Availability

2

Frame, Control Panel WPL 310161 Contact Us For Availability

3

Deflector, Air WPL 307635 Contact Us For Availability

3

Harness, Interlock WPL 310893 Contact Us For Availability

3

Plate, Hinge WPL 307527 Contact Us For Availability

3

Knob, Meal Timer WPL 308708 Contact Us For Availability

4

cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability

4

Knob, Cook Power Control WPL 307673 Contact Us For Availability

5

plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability

5

Screw, Timer Mounting (6-32 x 1/4) (2) WPL 487384 Contact Us For Availability

6

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $4.82

6

Seal, Side (2) WPL 307543 Contact Us For Availability

6

Transformer WPL 307676 Contact Us For Availability

6

terminal, pin (male) WPL 310222 Contact Us For Availability

6

Screw, Ground WPL 342043 Contact Us For Availability

7

Retainer, Side Seal (2) WPL 307546 Contact Us For Availability

7

Rectifier, High Voltage WPL 328057 Contact Us For Availability

7

terminal, pin (female) WPL 310223 Contact Us For Availability

7

Base, Ceramic (Install W/Silastic No. 482338) WPL 309145 Contact Us For Availability

7

Dial & Rind, Meal Timer WPL 310811 Contact Us For Availability

8

Plunger, Latch WPL 832771 Contact Us For Availability

8

Bracket, Capacitor WPL 308572 Contact Us For Availability

8

cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability

8

screw, 10a x 3/8 WPL 254217 Contact Us For Availability

8

Ring, Compression WPL 310641 Contact Us For Availability

9

Cam, Latch WPL 310119 Contact Us For Availability

9

Block, Fuse WPL 309795 Contact Us For Availability

9

Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability

9

Motor, Stirrer WPL 309998 Contact Us For Availability

9

Bracket, Support WPL 310163 Contact Us For Availability

Ring, ``E`` (2) WPL 310386 Contact Us For Availability

receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability

Gasket, Stirrer Motor WPL 307651 Contact Us For Availability

Screw, 6-18 x 3/8 (2) WPL 310378 Contact Us For Availability

11

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

11

Lever, Latch Cam WPL 310120 Contact Us For Availability

11

Panel, Control WPL 310143 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $14.70

Stirrer 4-Blade WPL 309976 Contact Us For Availability

Screw, 8-32 x 9/32 WPL 310210 Contact Us For Availability

Bushing, Wire WPL 308410 Contact Us For Availability

Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability

Timer, Meal Timer WPL 310185 Contact Us For Availability

Button, Door Handle WPL 310112 Contact Us For Availability

Shield, Fuse WPL 310391 Contact Us For Availability

Cover, Stirrer WPL 309441 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI123432A Contact Us For Availability

15

SCREW Backorder WPL 246131 $8.91

15

Spring, Door Handle WPL 310197 Contact Us For Availability

Handle, Door WPL 310110 Contact Us For Availability

Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability

Guide, Wave (Riveted At Assembly, Not Service WPL ARI123431A Contact Us For Availability

Relay, Latching WPL 307634 Contact Us For Availability

Bracket, Door Handle WPL 310111 Contact Us For Availability

Capacitor (Alternate) WPL 310418 Contact Us For Availability

Capacitor (Alternate) WPL 310625 Contact Us For Availability

Bushing WPL 309628 Contact Us For Availability

Timer, Cook Power Control WPL 310186 Contact Us For Availability

18

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

18

End Cap, Door WPL 310125 Contact Us For Availability

18

Cover, Light WPL 307516 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

Switch Kit, Door (Kit Contains Primary, Monit WPL 832773 Contact Us For Availability

Base & Cavity Assembly (Not Serviceable) WPL ARI123429A Contact Us For Availability

Light, Indicator (On) WPL 356936 Contact Us For Availability

Damper, Spring WPL 310124 Contact Us For Availability

Duct, Cooling Air WPL 307529 Contact Us For Availability

Screw, 10A x 1/2 WPL 307748 Contact Us For Availability

Resistor, 3 Ohm WPL 328023 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Spring, Interlock WPL 310199 Contact Us For Availability

Cover, Lamp WPL 307512 Contact Us For Availability

Switch, Push-To-Start WPL 310162 Contact Us For Availability

Guide, Interlock (Not a Serviceable Part) WPL ARI123427A Contact Us For Availability

Screw, Switch Mounting (2) WPL 98106 Contact Us For Availability

Gasket, Magnetron WPL 310309 Contact Us For Availability

Socket, Snap-In WPL 307519 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

Pin, Roller (3) WPL 307603 Contact Us For Availability

nut, 5 mm-0.8 flange (2) WPL 310300 Contact Us For Availability

Spring, Pushbutton WPL 310200 Contact Us For Availability

24

Barrier, Visibility WPL 310330 Contact Us For Availability

24

Magnetron WPL 310235 Contact Us For Availability

24

Button, Push To Start WPL 310141 Contact Us For Availability

Rivet, Accordian (5) WPL 310951 Contact Us For Availability

Wire Kit, High Voltage (Magnetron) WPL 261945 Contact Us For Availability

Cord, Power WPL 310900 Contact Us For Availability

Dial & Ring, Cook Power Control WPL 310812 Contact Us For Availability

screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability

Blade, Fan WPL 307535 Contact Us For Availability

Baffle, Air Exhaust WPL 309444 Contact Us For Availability

Resistor (10 Ohm) WPL 311254 Contact Us For Availability

27

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

27

Switch, Light WPL 310149 Contact Us For Availability

27

Mount, Fan Motor WPL 310414 Contact Us For Availability

28

Insulator, Light & Monitor Switch WPL 310154 Contact Us For Availability

28

nut, flange (2) WPL 311136 Contact Us For Availability

28

Fastener, Stirrer Cover (8) WPL 310423 Contact Us For Availability

Ring, Retaining (3) WPL 307605 Contact Us For Availability

Motor Fan (Alternate) WPL 310221 Contact Us For Availability

Motor, Fan (Alternate) WPL 310921 Contact Us For Availability

Fuse, Thermal WPL 309279 Contact Us For Availability

30

Slide, Interlock (Not a Serviceable Part) WPL ARI123428A Contact Us For Availability

30

Nut, Hex (10-32) WPL 309487 Contact Us For Availability

31

Insulator, Primary Switch WPL 307611 Contact Us For Availability

31

Wire, High Voltage (4) WPL 309084 Contact Us For Availability

32

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

32

Bracket, Primary Switch WPL 310148 Contact Us For Availability

33

Screw, 6-32 x 3/8 (2) WPL 310629 Contact Us For Availability

33

Deflector, Exhaust WPL 308219 Contact Us For Availability

34

Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability

35

Door, Complete WPL 328741 Contact Us For Availability

36

Interlock Assembly WPL 328656 Contact Us For Availability

36

Wrapper, Cabinet WPL 307510 Contact Us For Availability

37

Latch, Door WPL 328740 Contact Us For Availability

37

Thermostat, Fixed WPL 307564 Contact Us For Availability

38

Fastener, Speed WPL 308845 Contact Us For Availability

40

Pin, Hinge WPL 308785 Contact Us For Availability

40

Screw, 10A x 1/2 (3) WPL 246134 Contact Us For Availability

41

Shield, Magnetron WPL 310419 Contact Us For Availability

41

Cover, Rivet WPL 309437 Contact Us For Availability

42

Plug, Button WPL 309960 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

27`` Trim Kit WPL 261940 Contact Us For Availability

Browning Tray WPL 307677 Contact Us For Availability

Instructions, Install WPL 307843 Contact Us For Availability

WPL 310777 WPL 310777 Contact Us For Availability

WPL 310847 WPL 310847 Contact Us For Availability

WPL 310878 WPL 310878 Contact Us For Availability

WPL 310929 WPL 310929 Contact Us For Availability

WPL 310930 WPL 310930 Contact Us For Availability

WPL 311251 WPL 311251 Contact Us For Availability

WPL 311291 WPL 311291 Contact Us For Availability

WPL 311318 WPL 311318 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

WPL 832763 WPL 832763 Contact Us For Availability

WPL 832765 WPL 832765 Contact Us For Availability

WPL 832769 WPL 832769 Contact Us For Availability

WPL 832790 WPL 832790 Contact Us For Availability

WPL 832810 WPL 832810 Contact Us For Availability

WPL 980612 WPL 980612 Contact Us For Availability
